Project 1 - Wiper control system and Vehicle speed calculation for ABS using Wheel Speed sensor

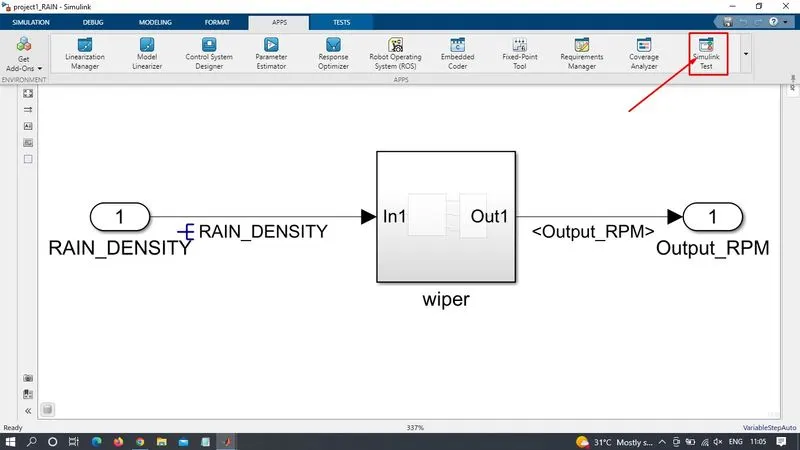

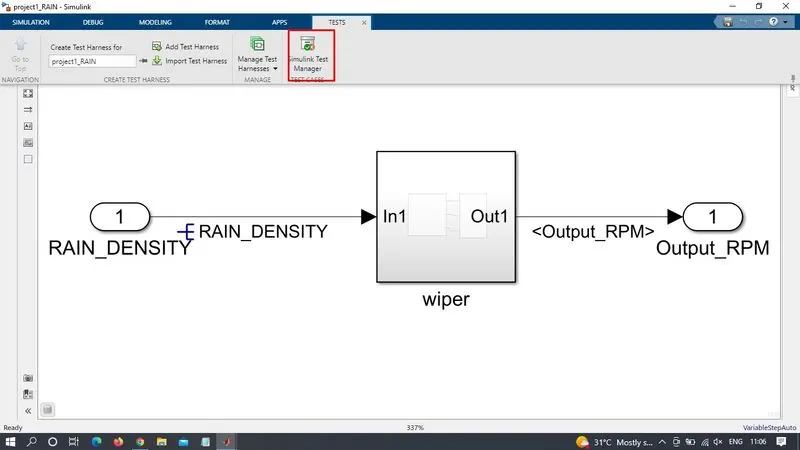

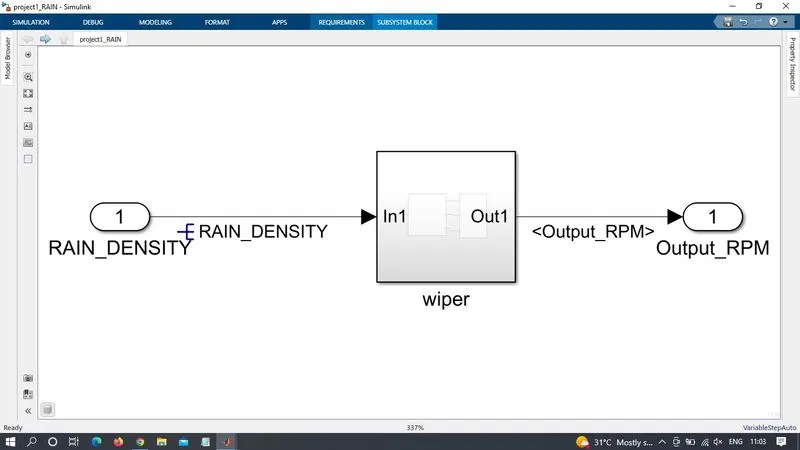

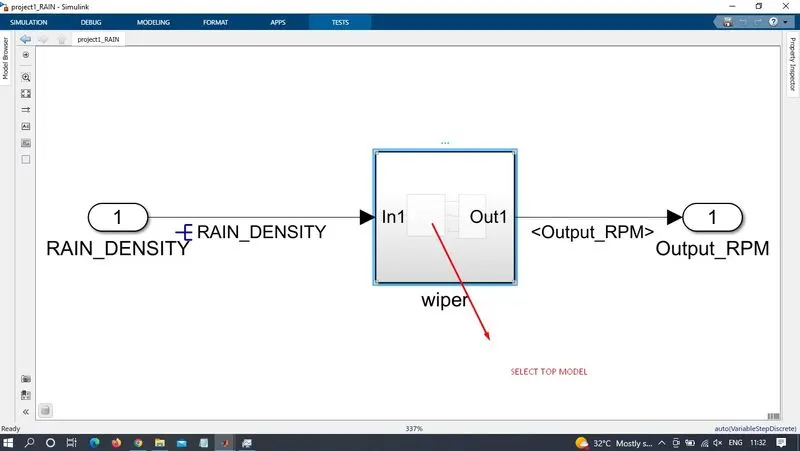

Develop Simulink/state flow model for wiper control system based on the given conditions.
Description of Challenge:

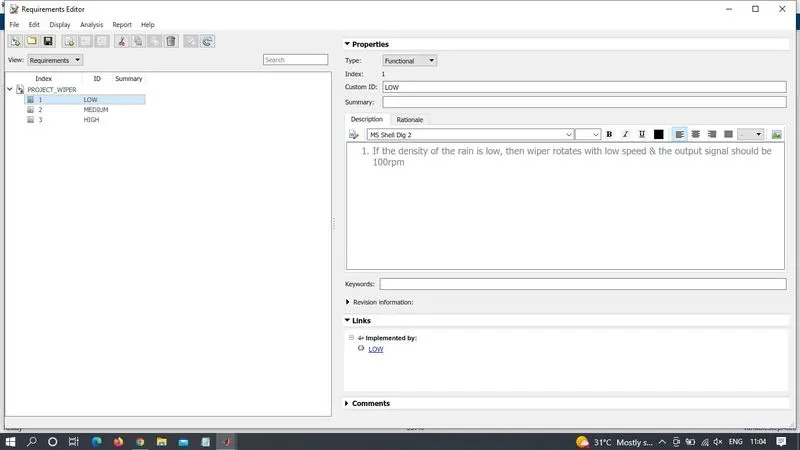

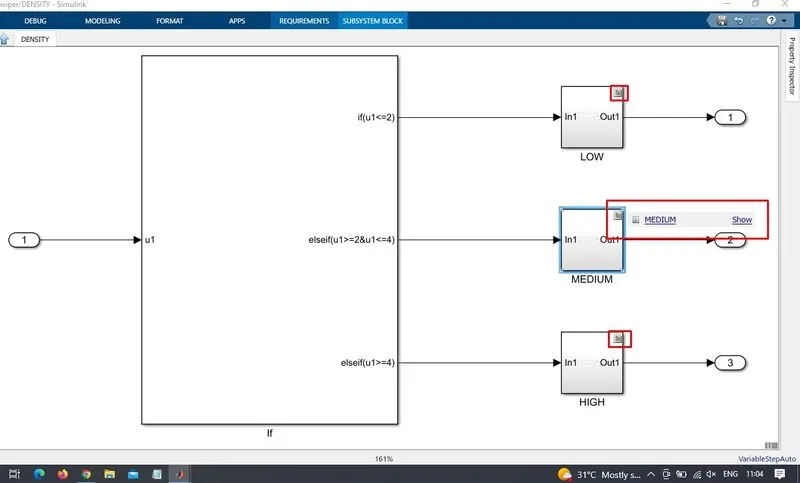

- If the density of the rain is low, then wiper rotates with low speed & the output signal should be 100rpm
- If the density of the rain is medium, then wiper rotates with medium speed & the output signal should be 200rpm
- If the density of the rain is high, then wiper rotates with high speed & the output signal should be 500rpm

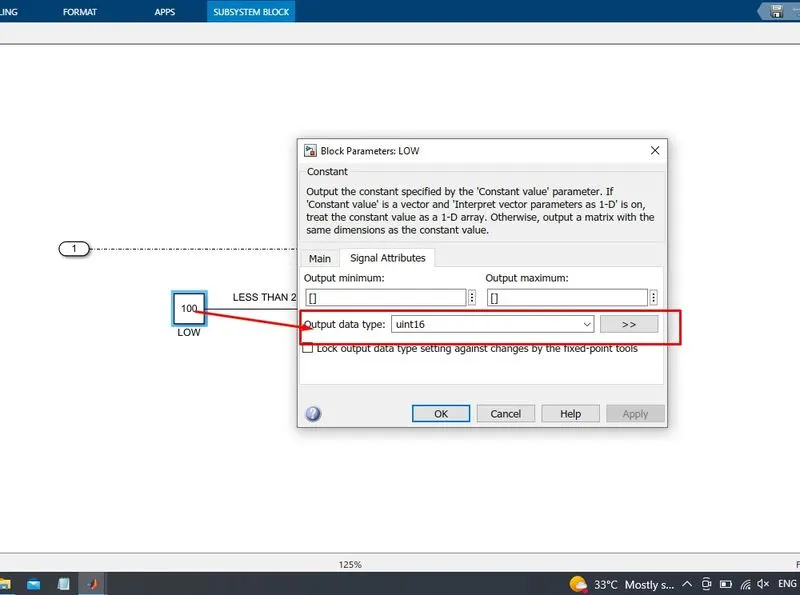

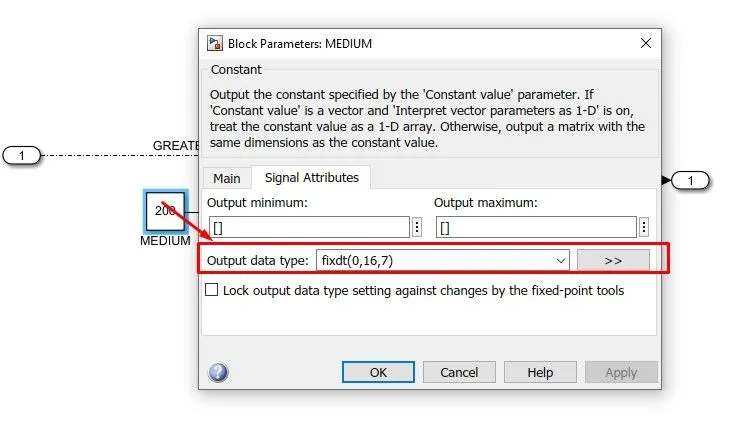

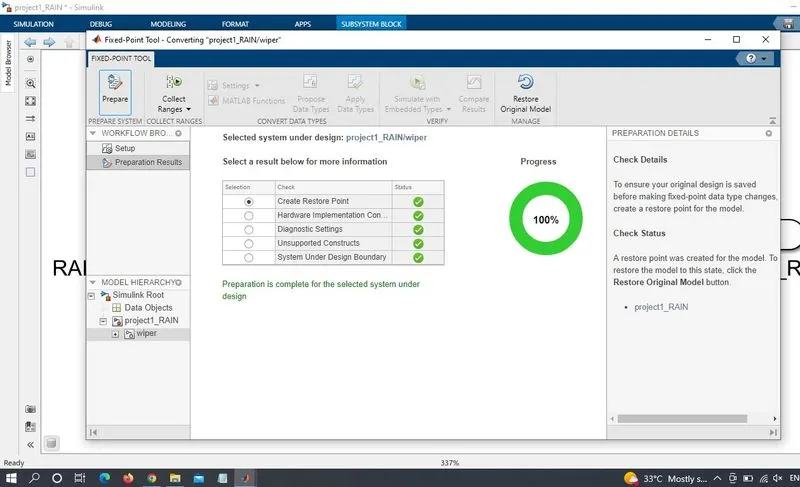

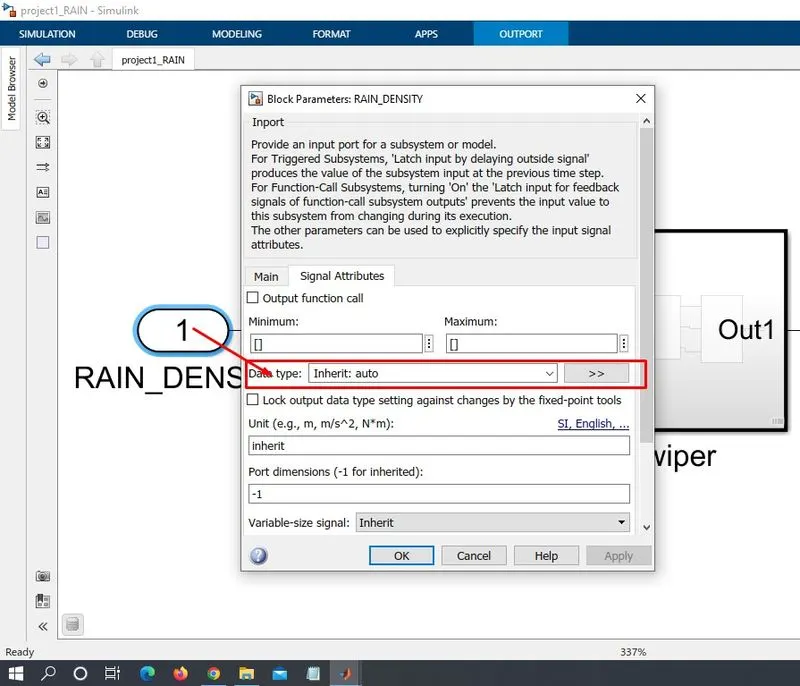

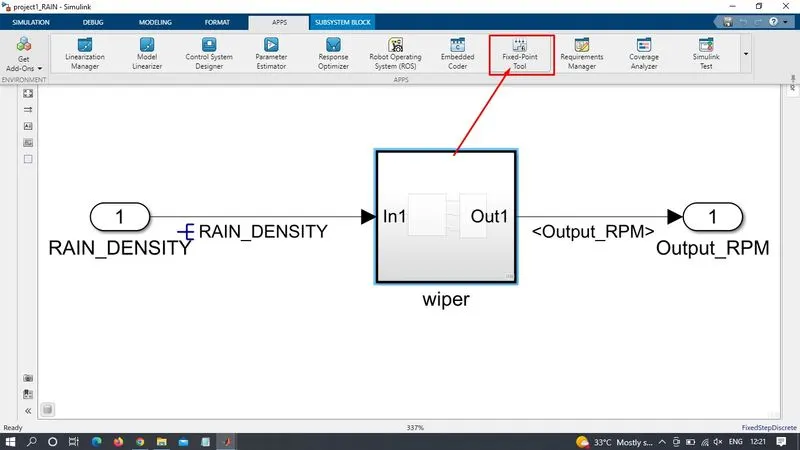

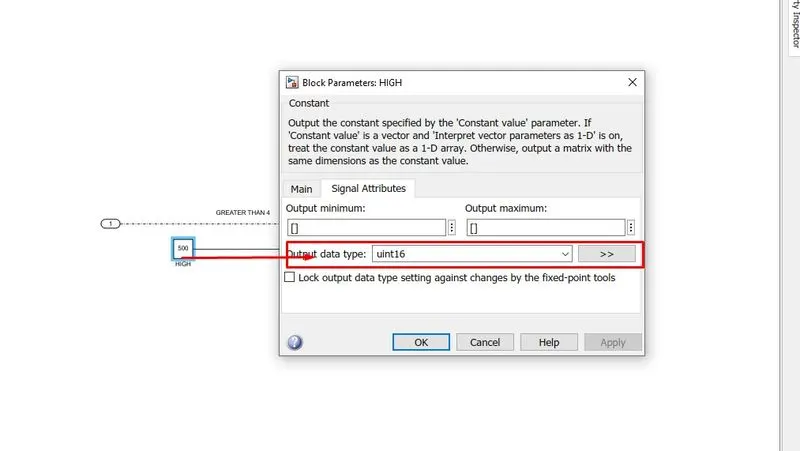

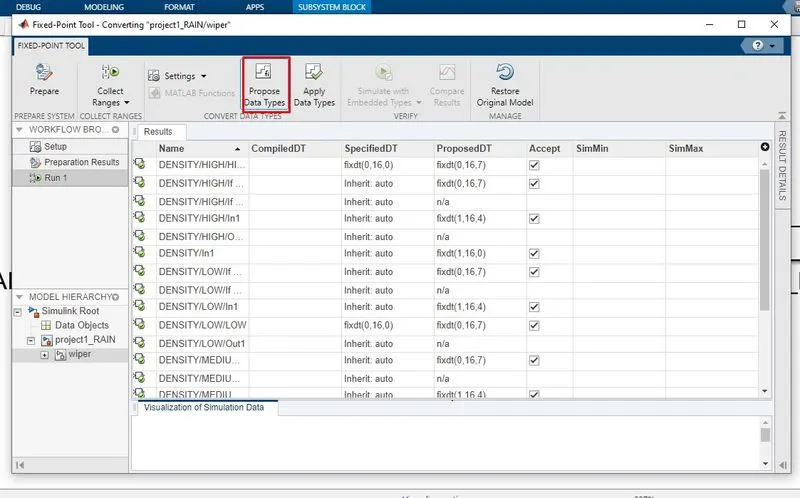

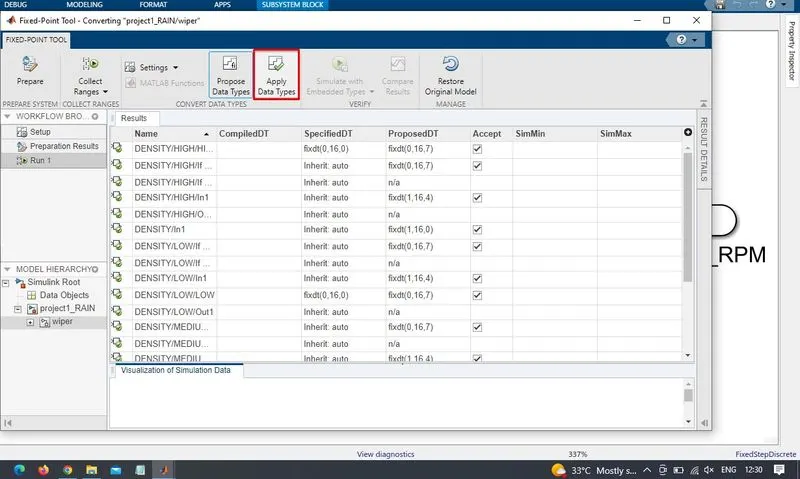

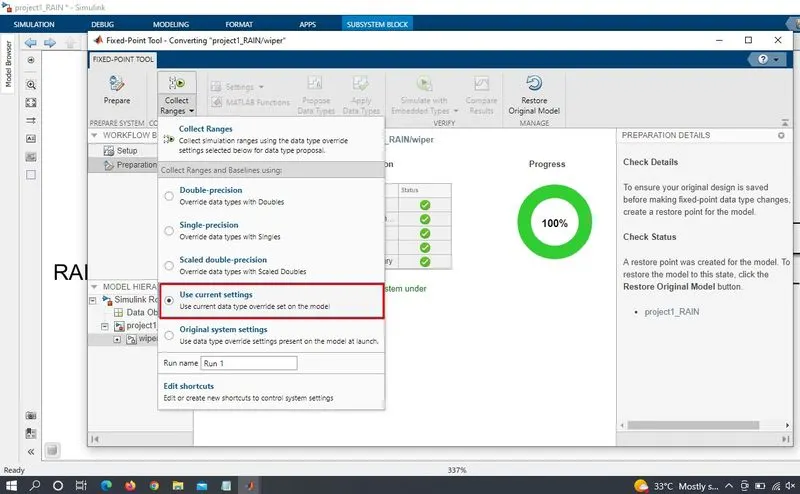

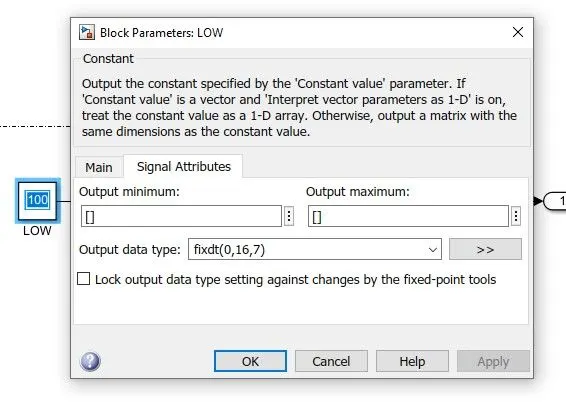

Fixed point tool
steps

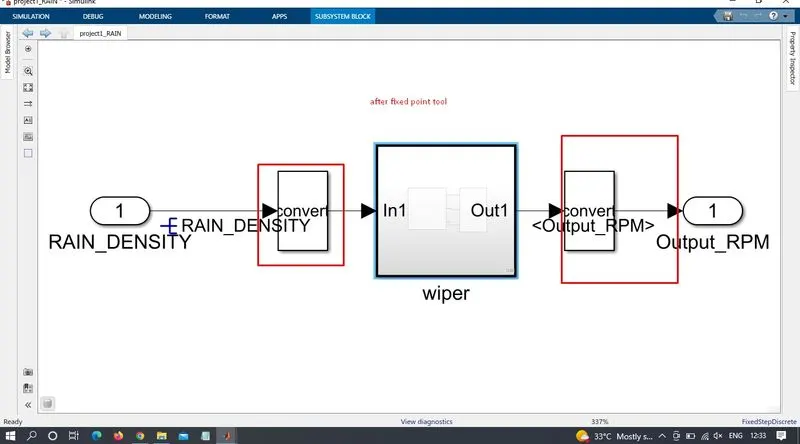

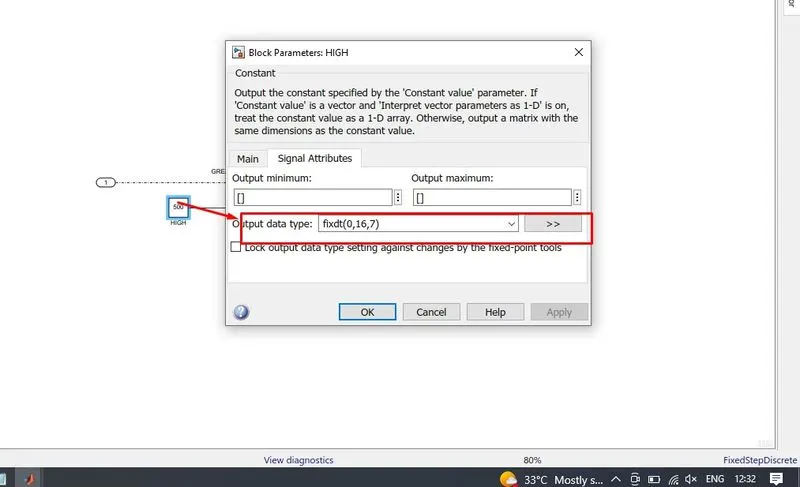

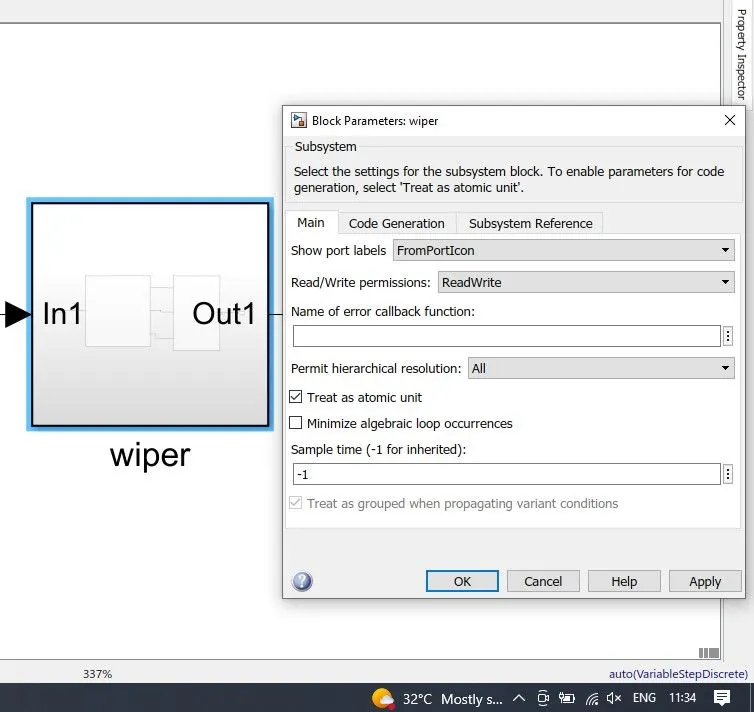

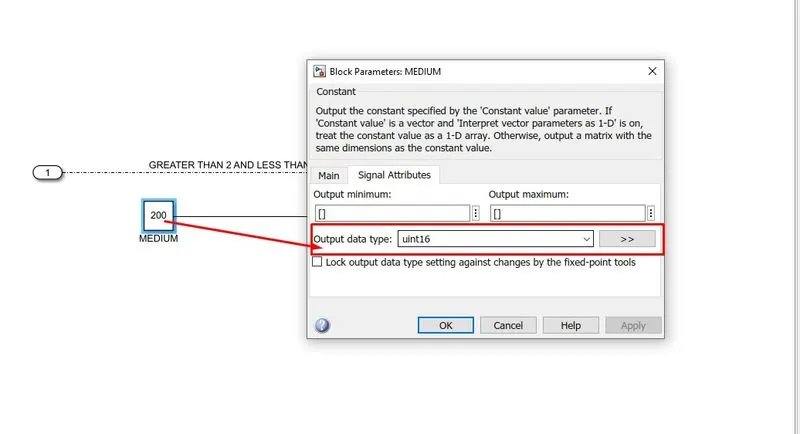

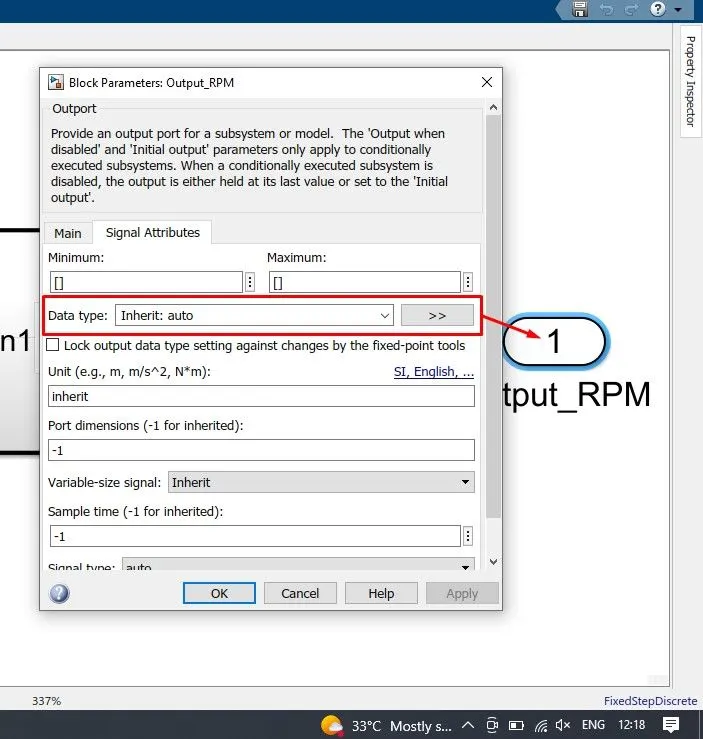

after conversion

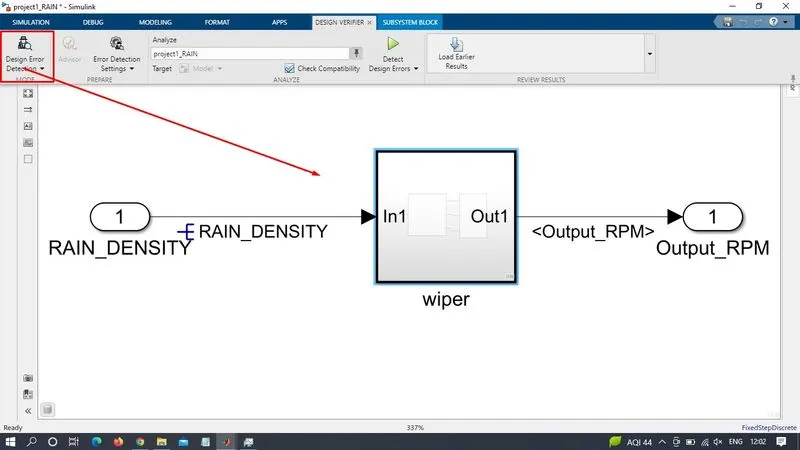

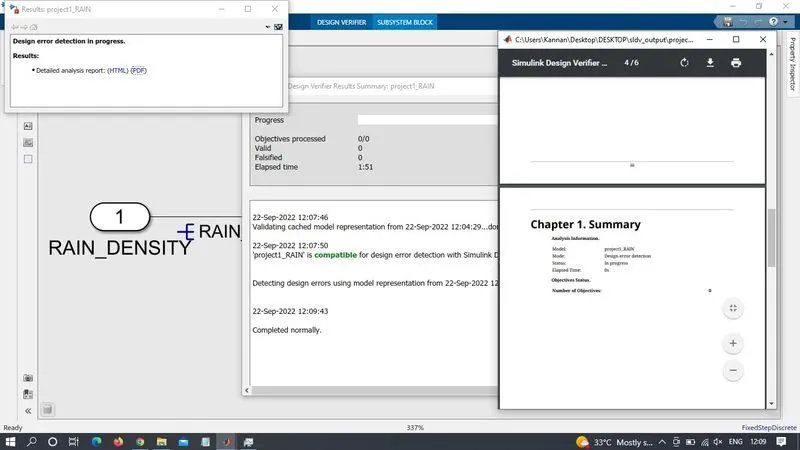

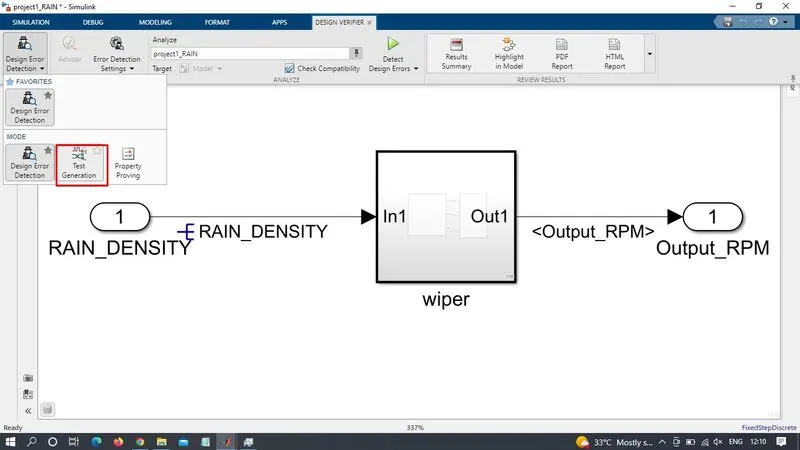

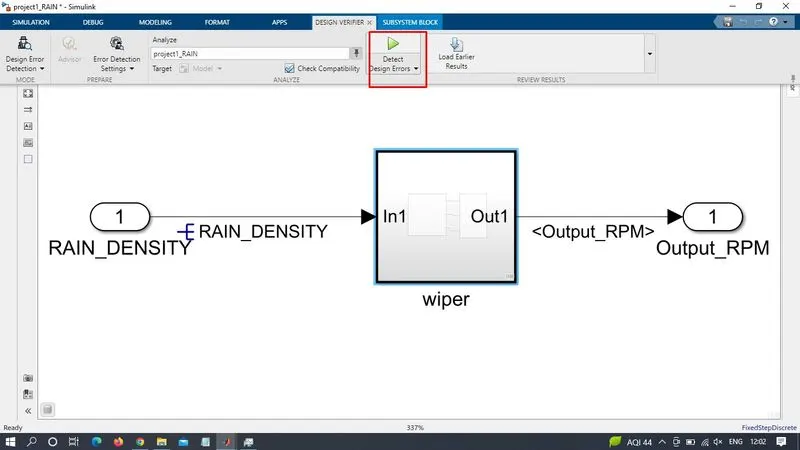

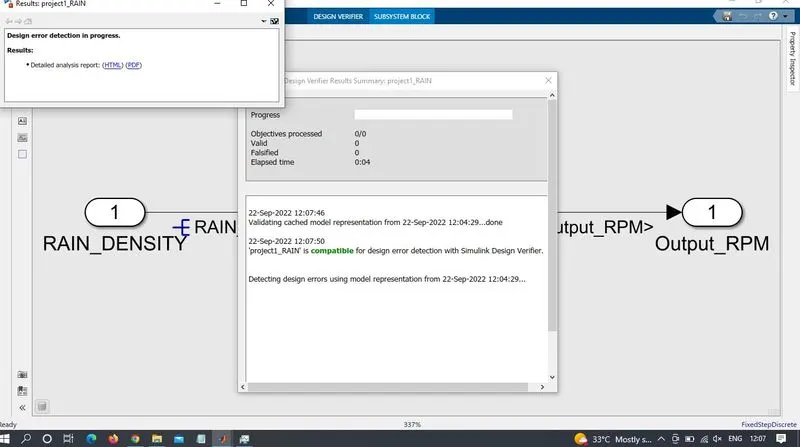

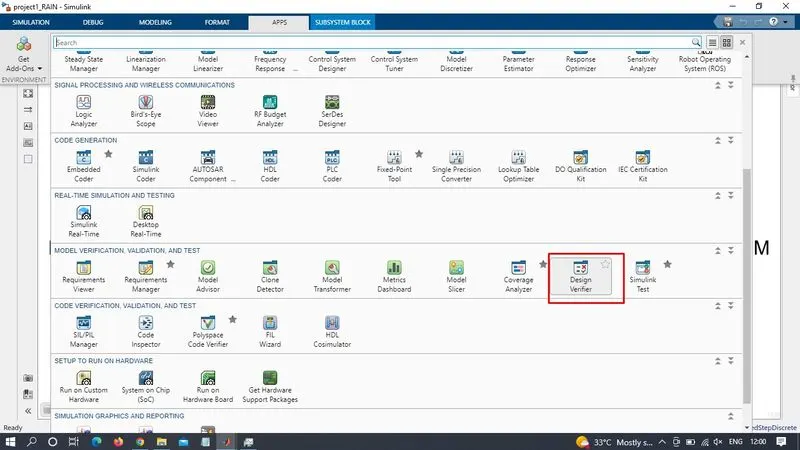

simulink design verifier

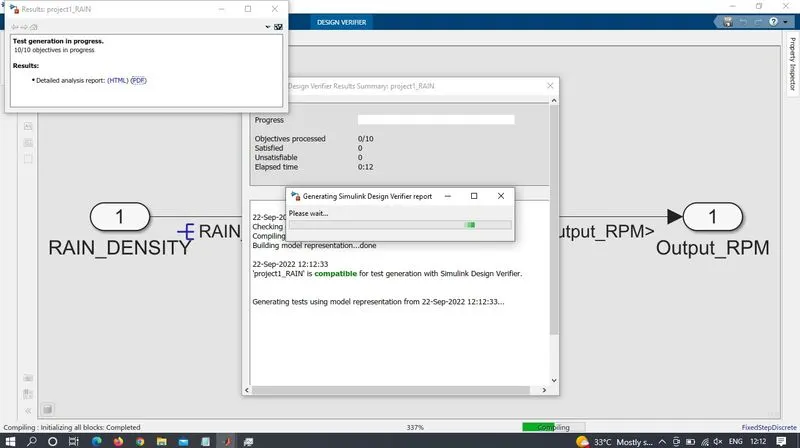

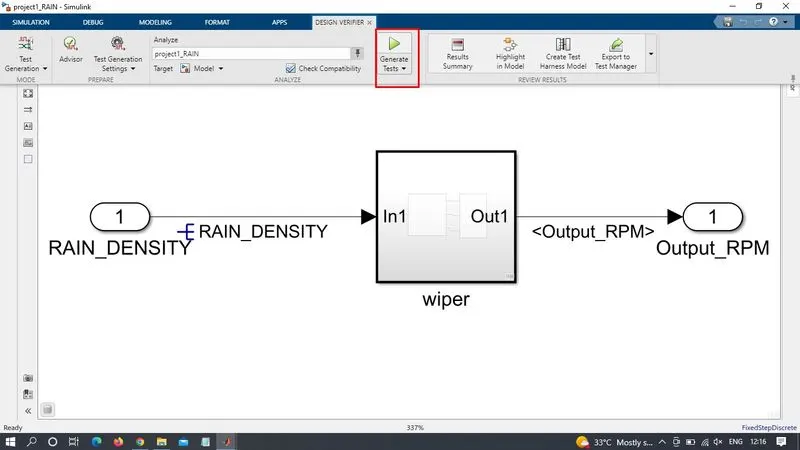

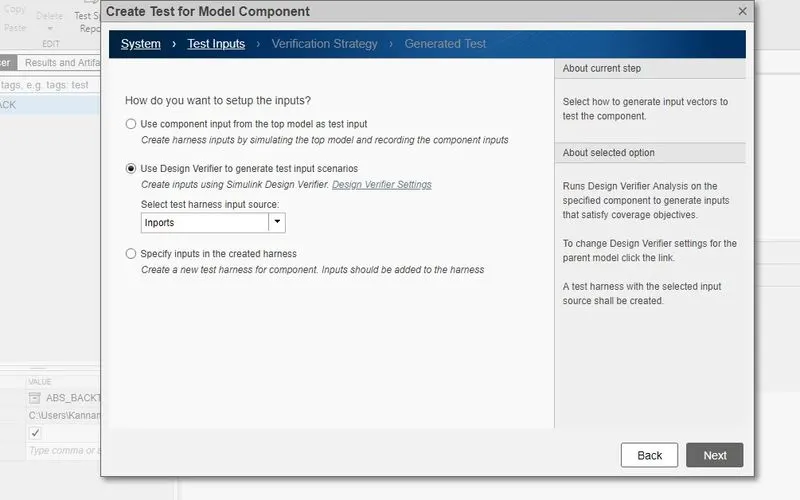

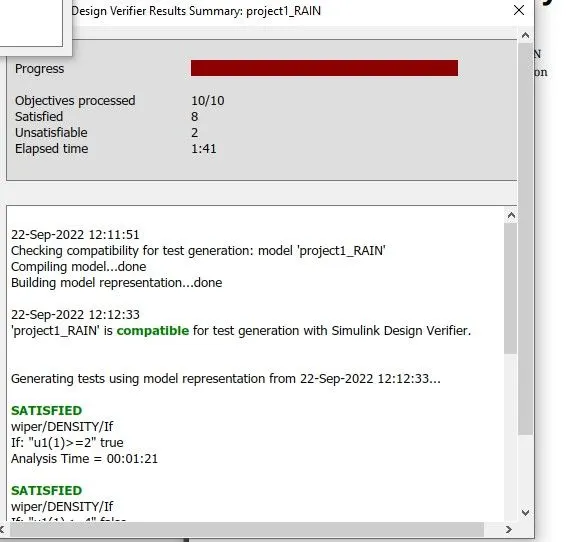

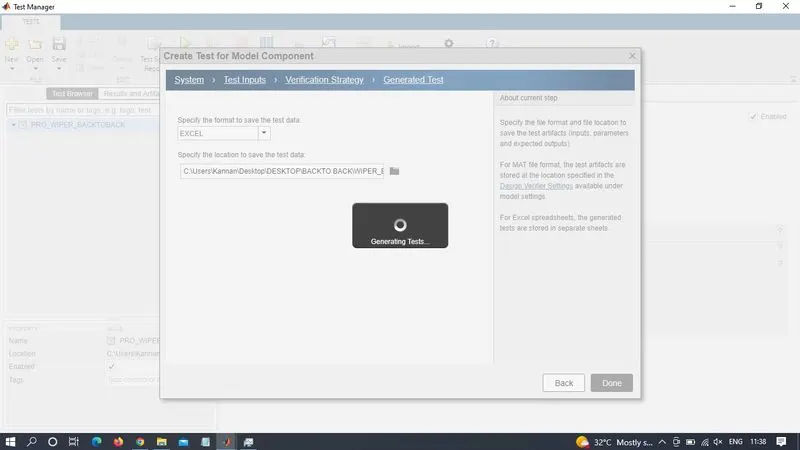

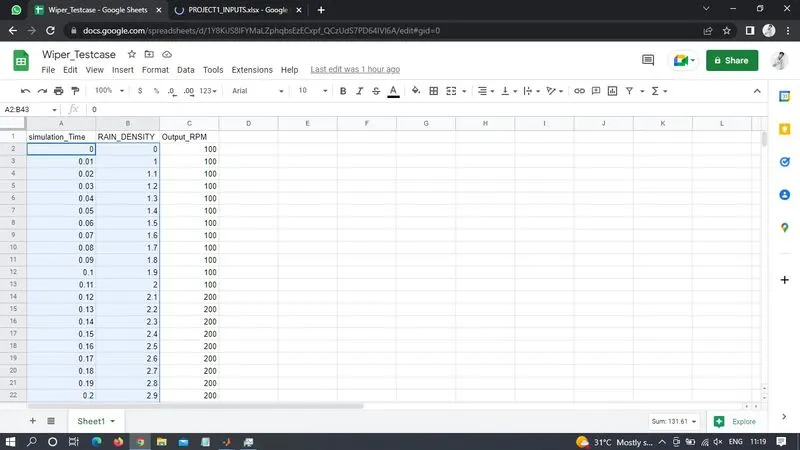

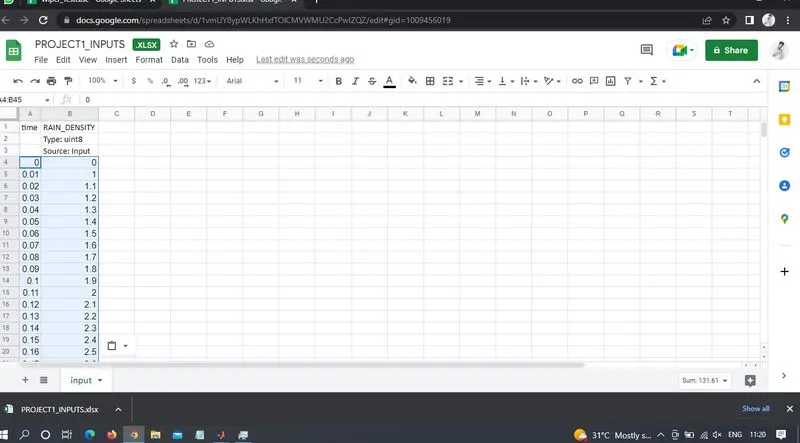

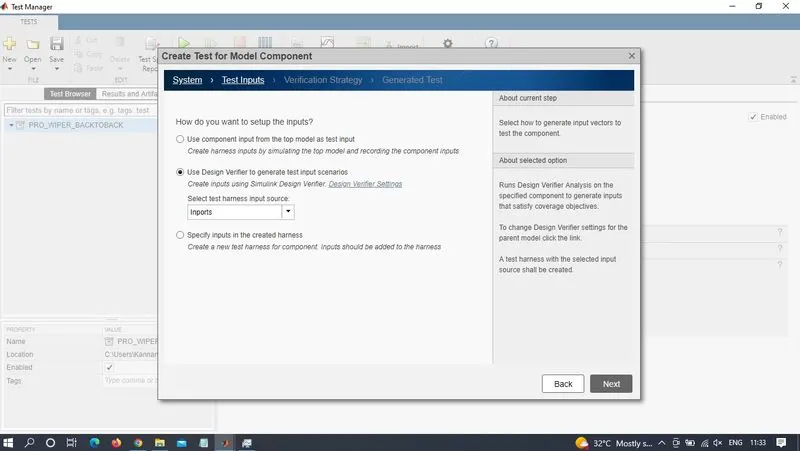

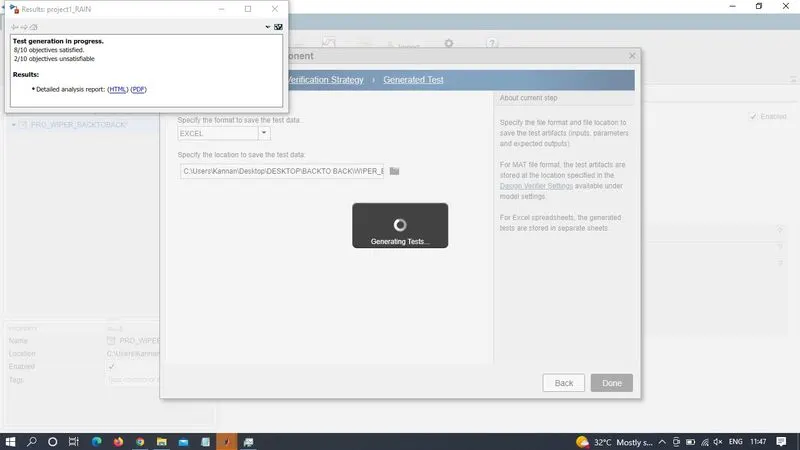

test generation

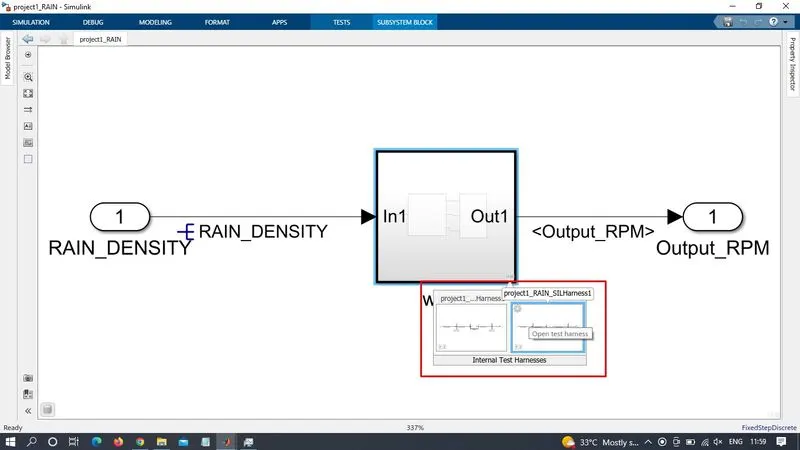

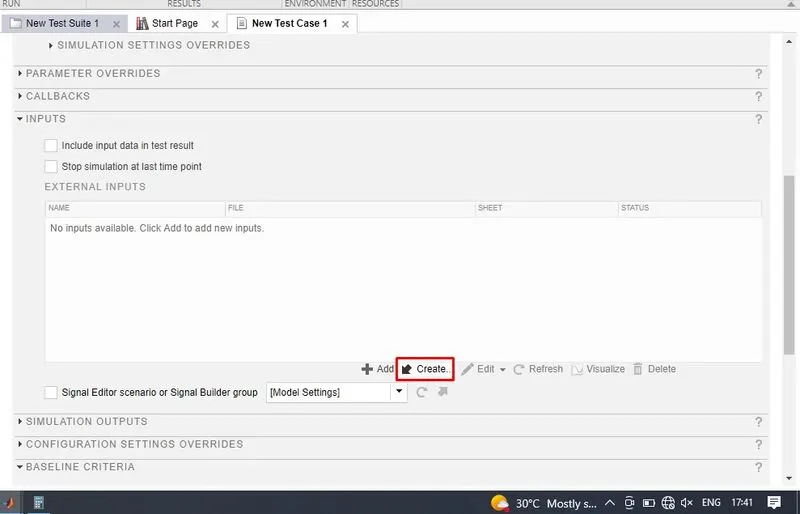

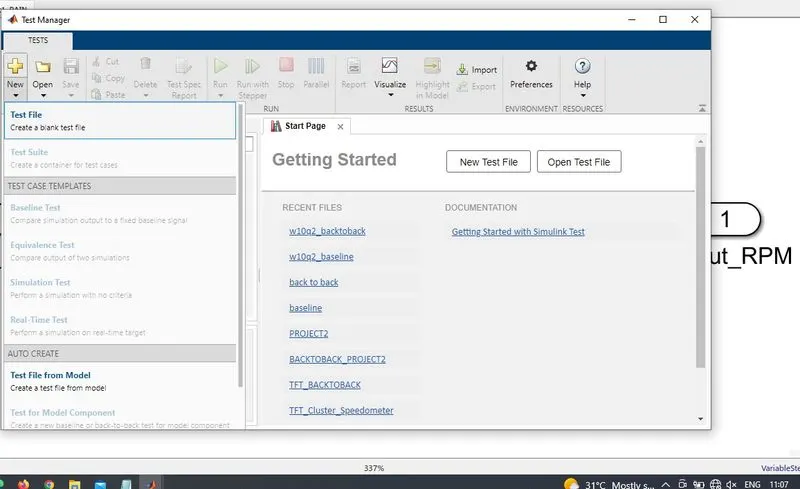

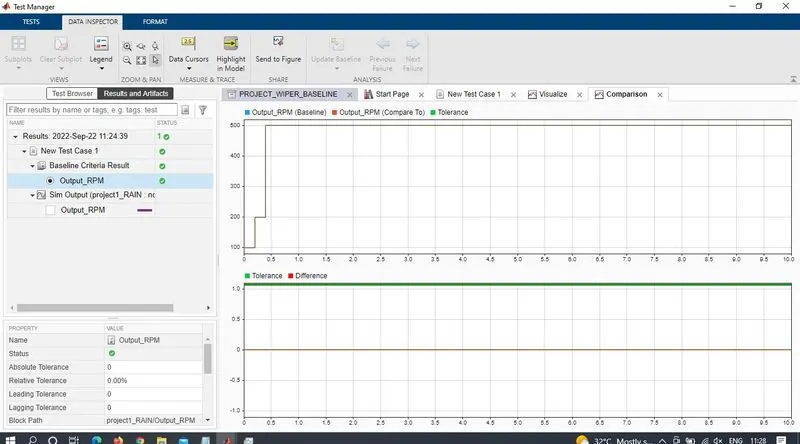

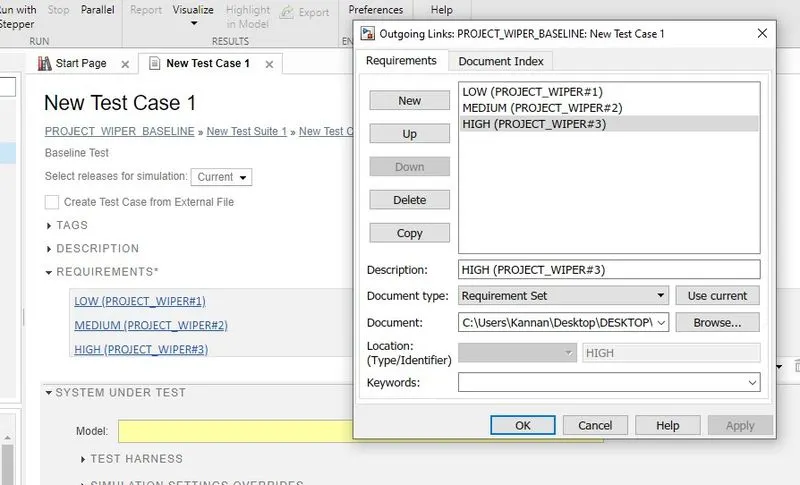

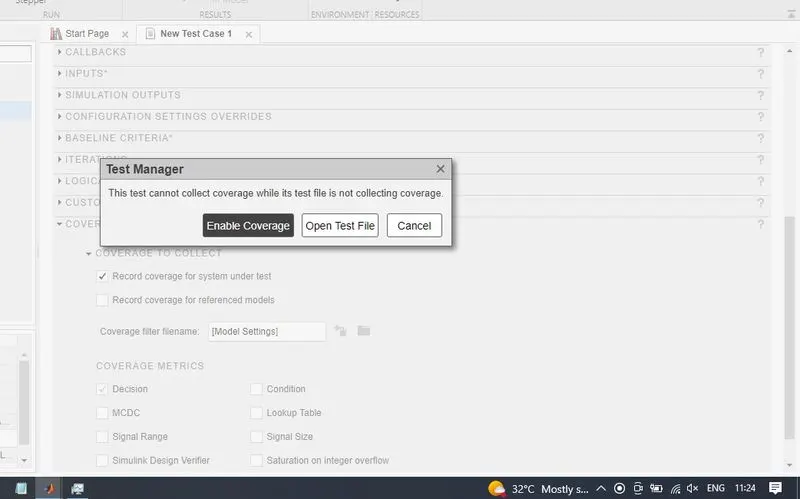

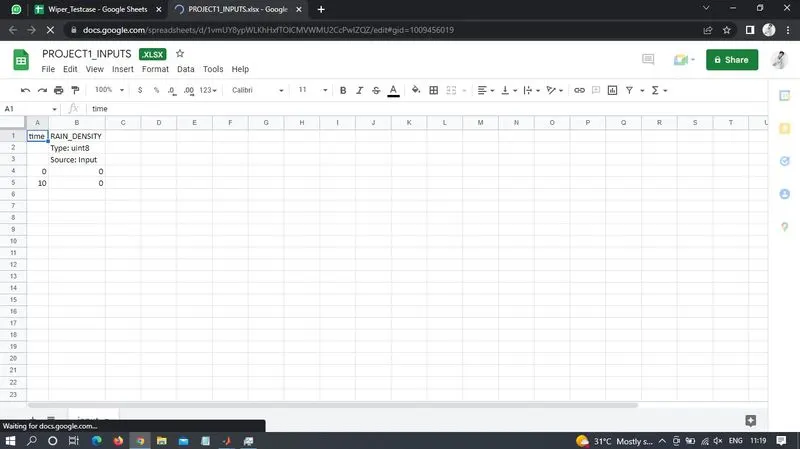

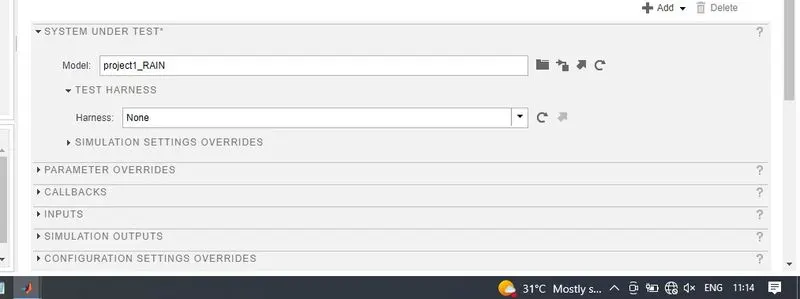

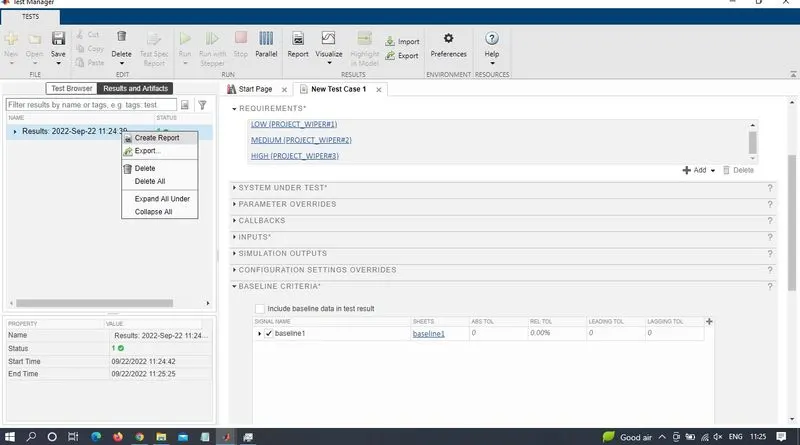

baseline testing

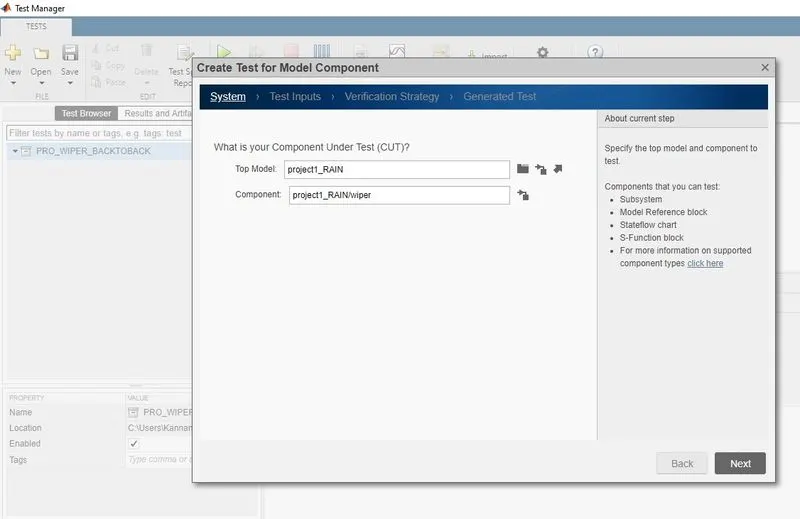

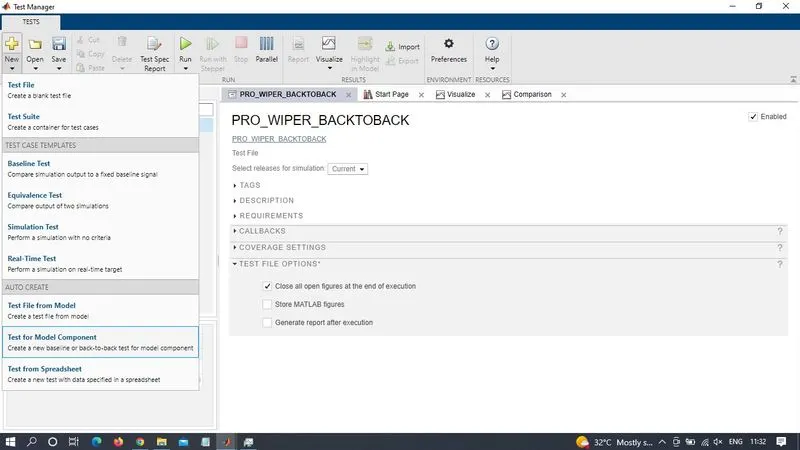

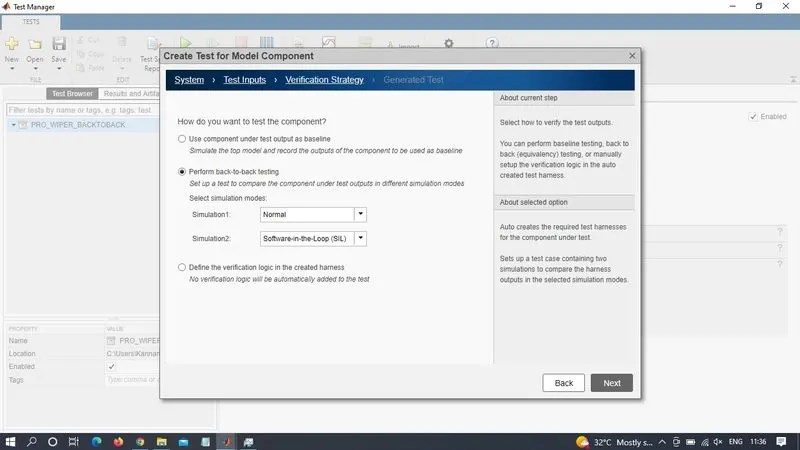

back to back
.Vehicle speed calculation for ABS using Wheel Speed sensor

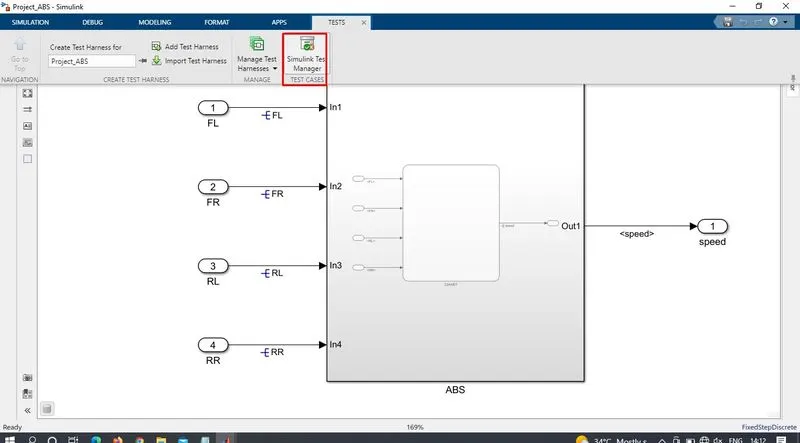

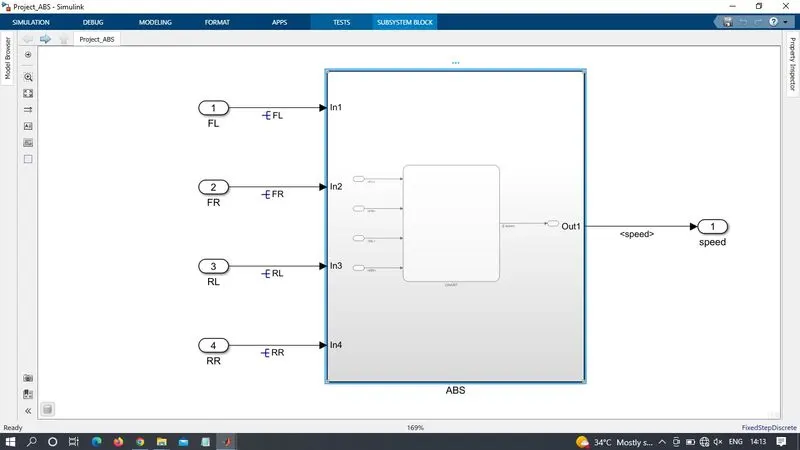

Develop Simulink/state flow model for the vehicle speed calculation unit inside the ABS system for the below conditions.
Description of Challenge:

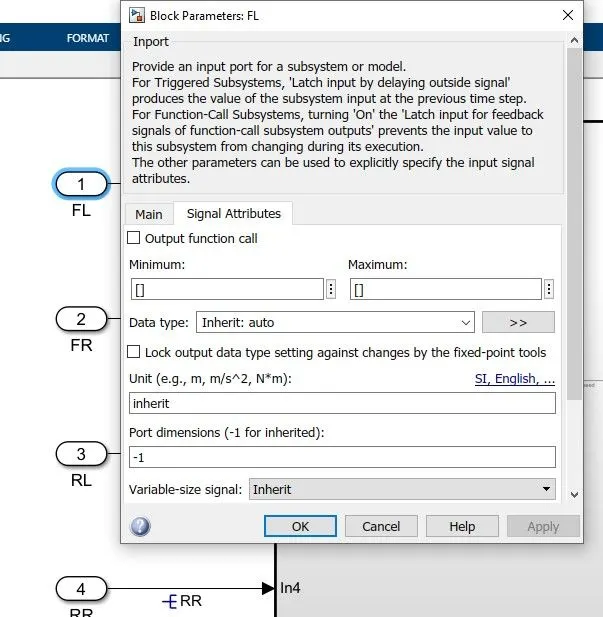

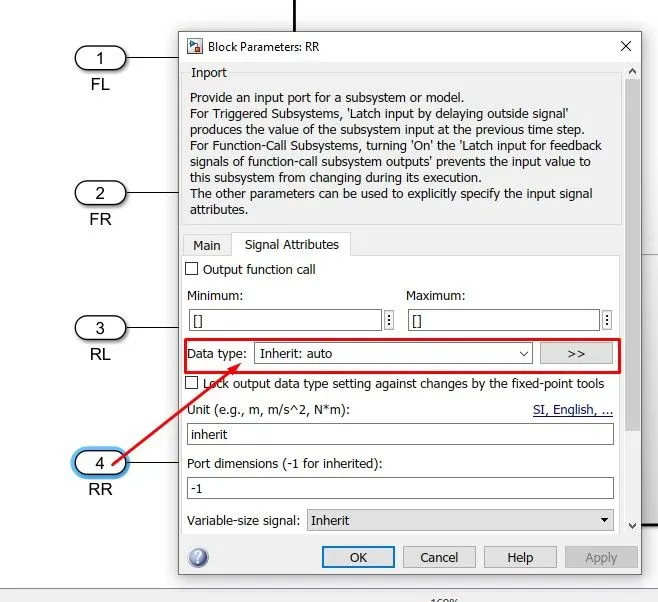

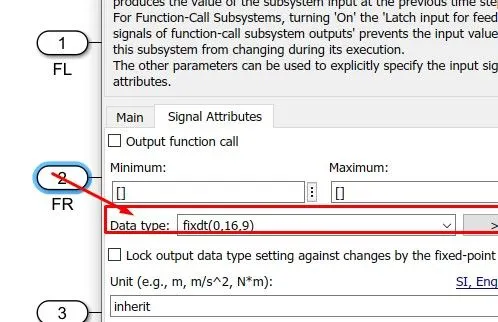

fl, fr, rl and rr are the wheel speeds of front left, front right, rear left and rear right respectively.

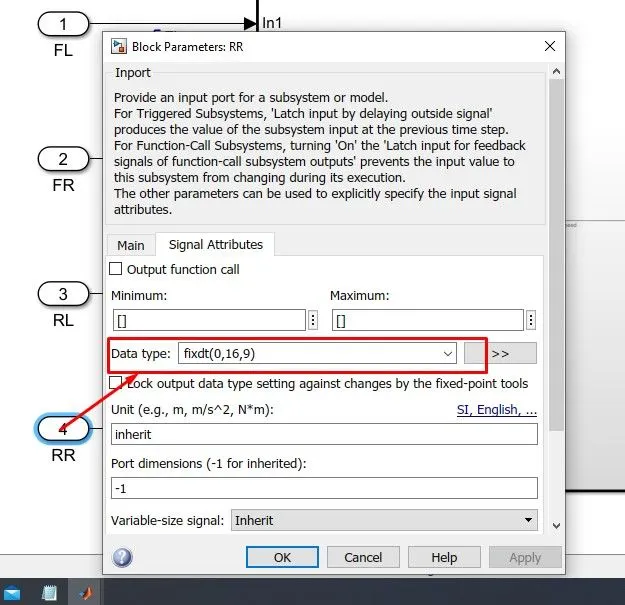

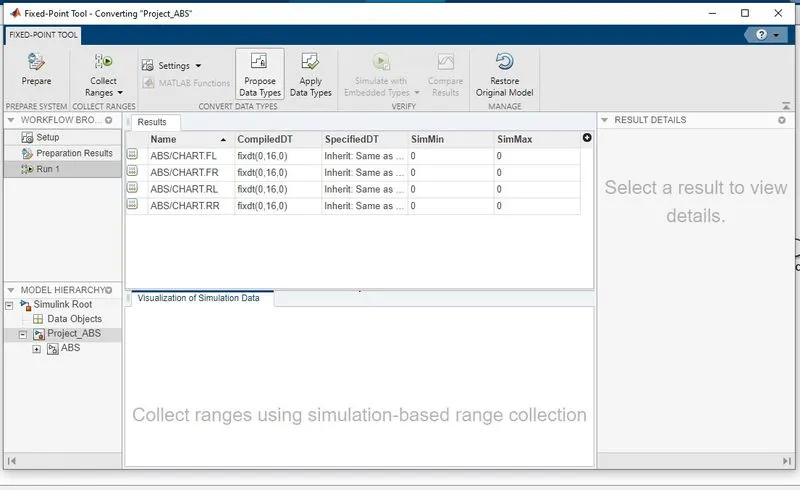

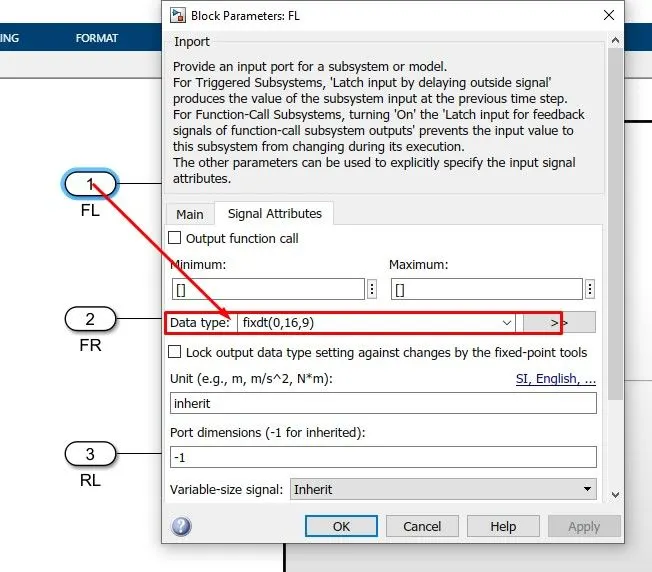

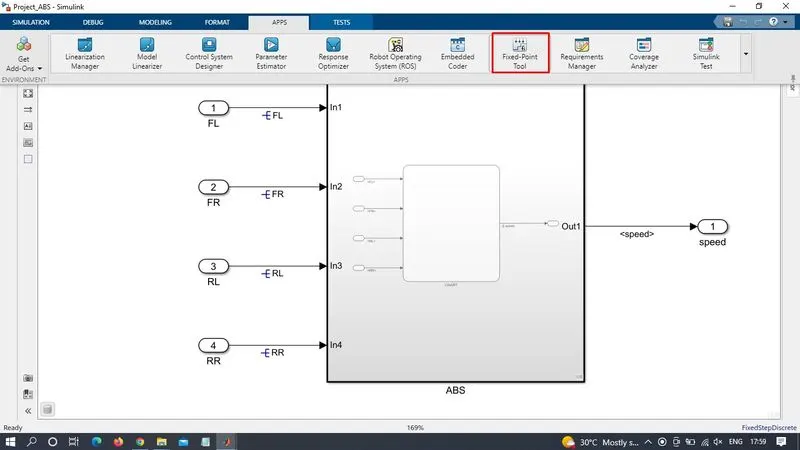

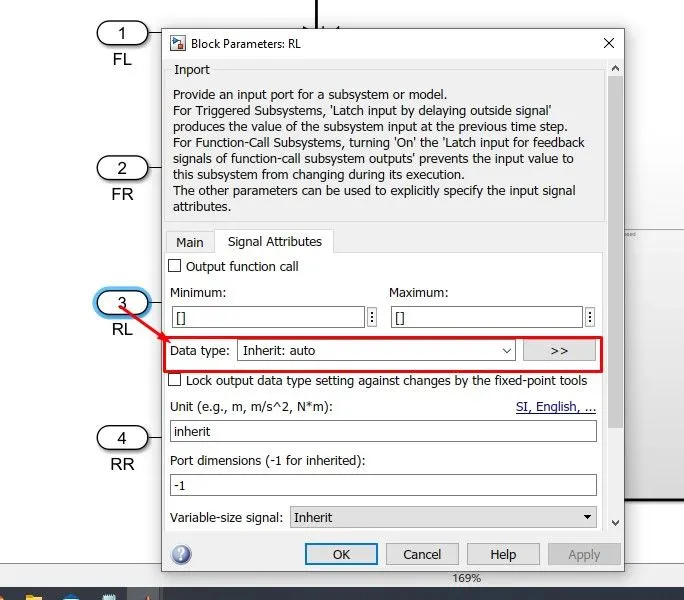

Fixed

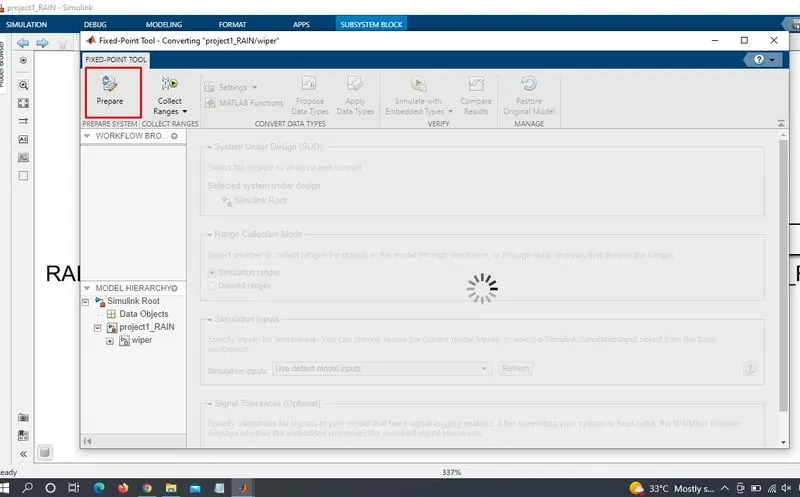

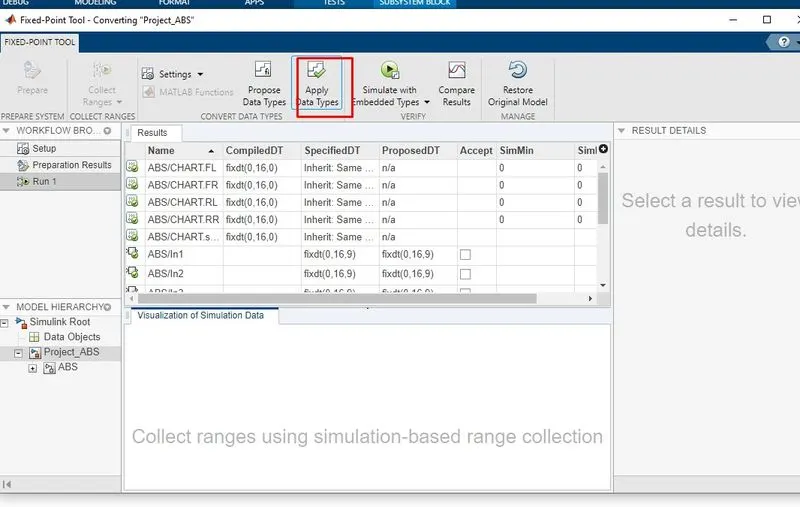

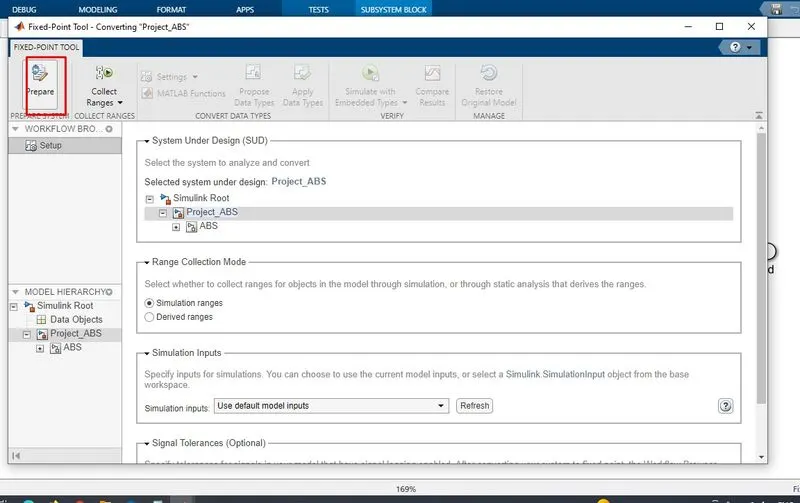

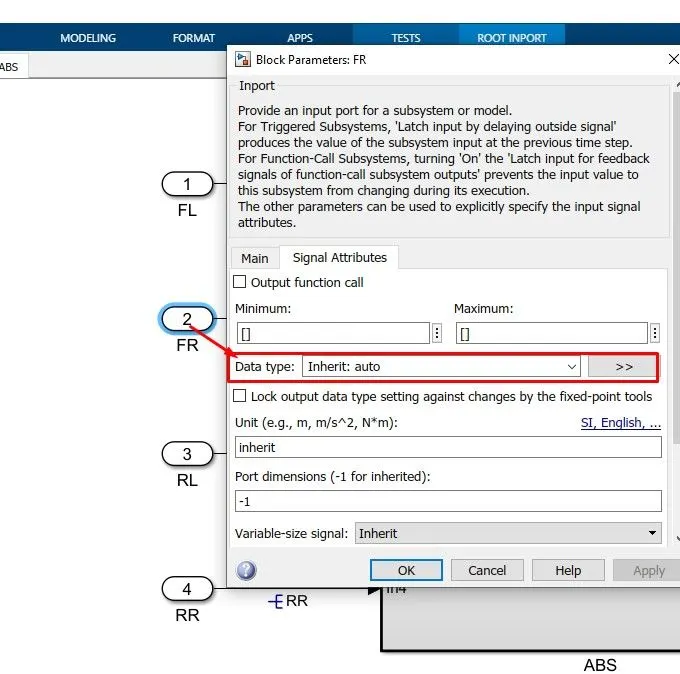

PREPARE->Collect ranges->propose data types->apply data types

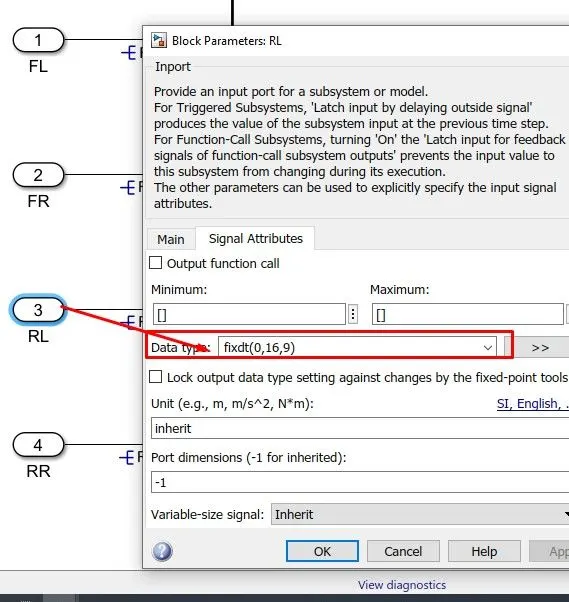

after fixed

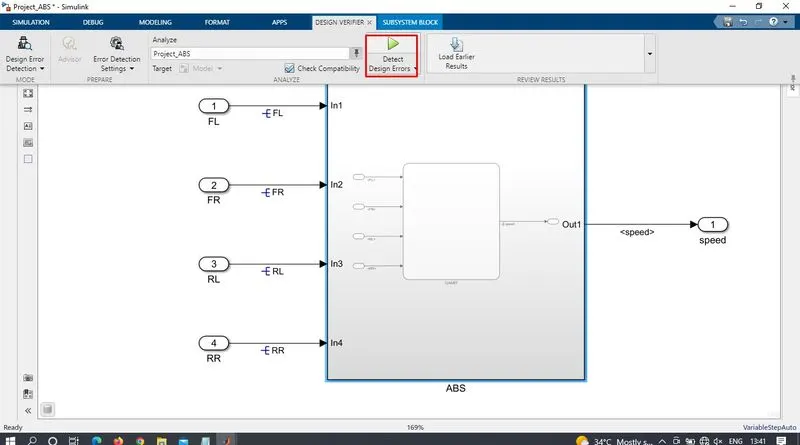

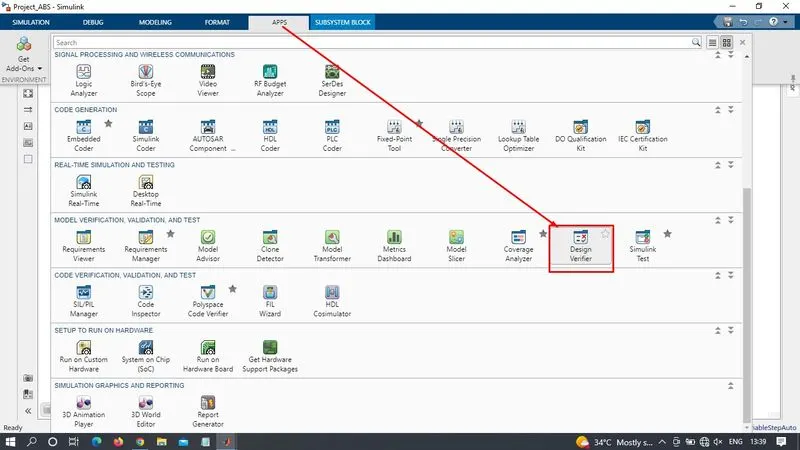

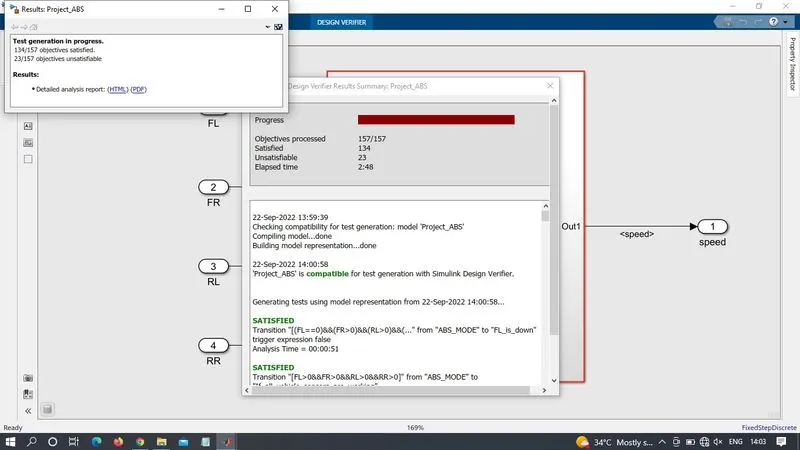

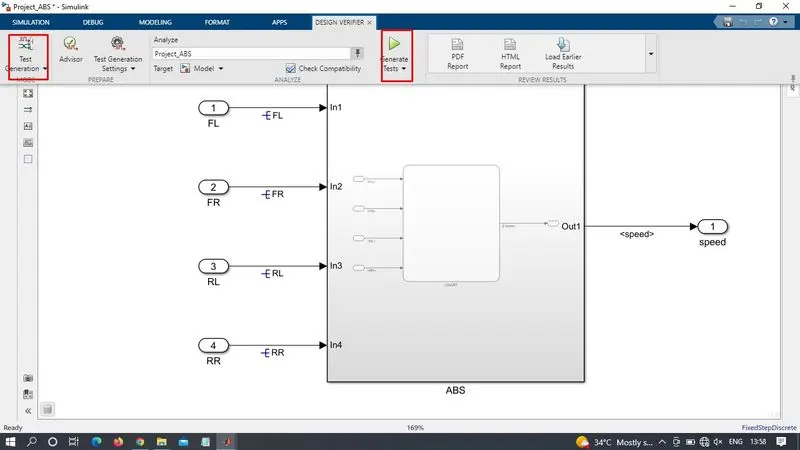

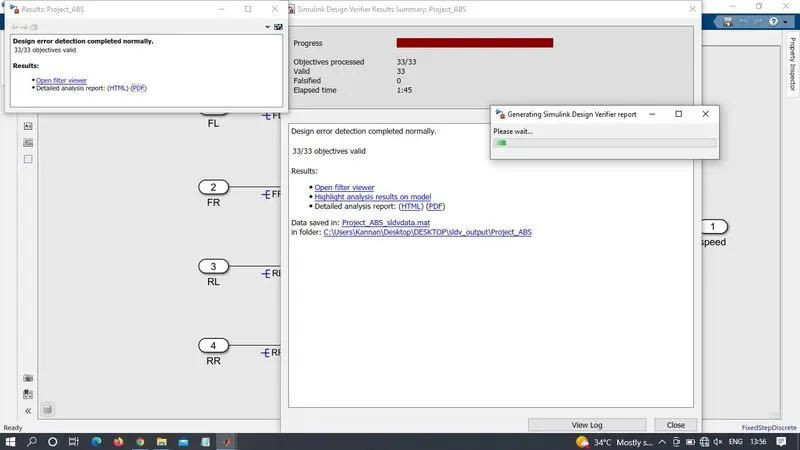

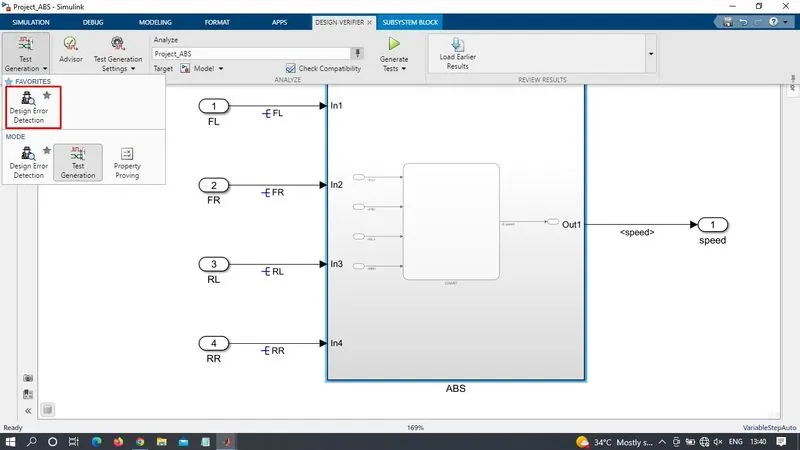

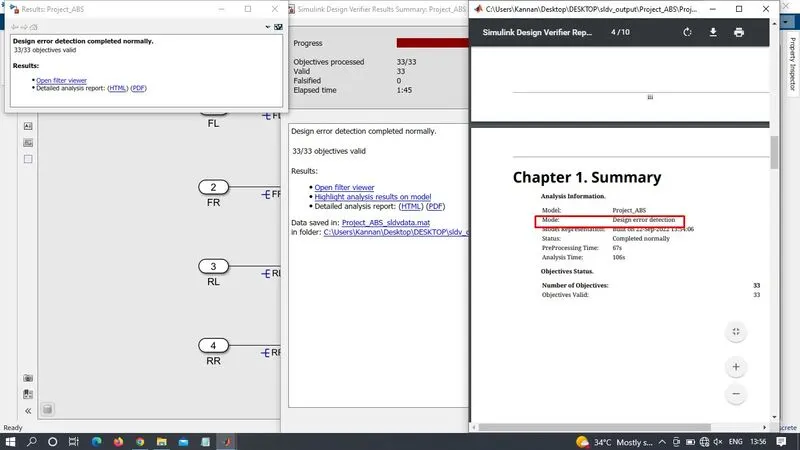

SLDV (Design verifier)

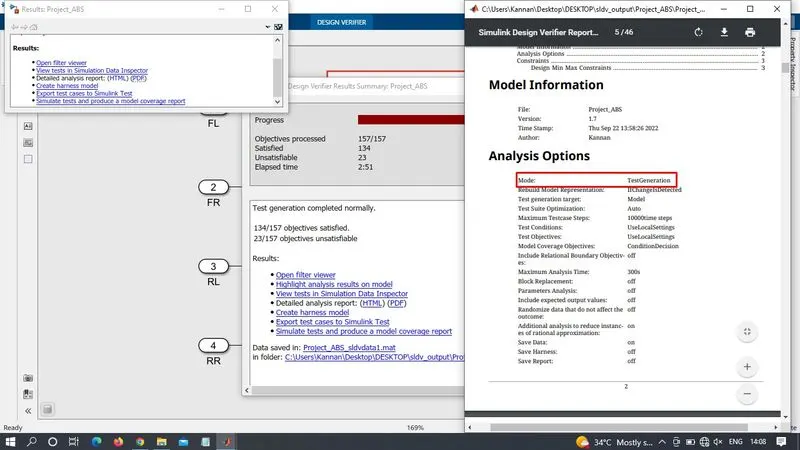

test generation

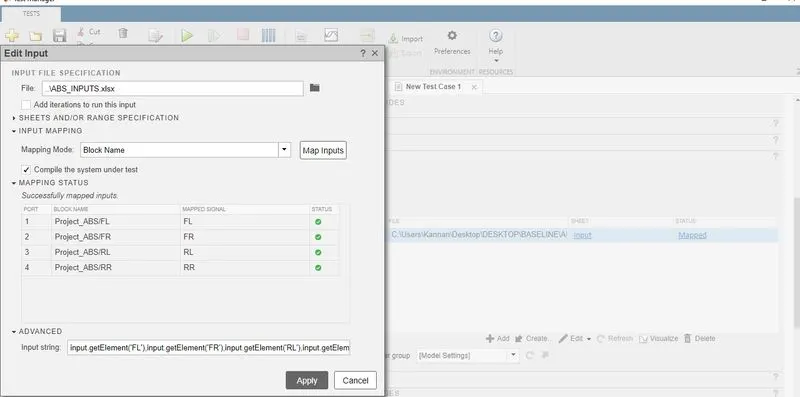

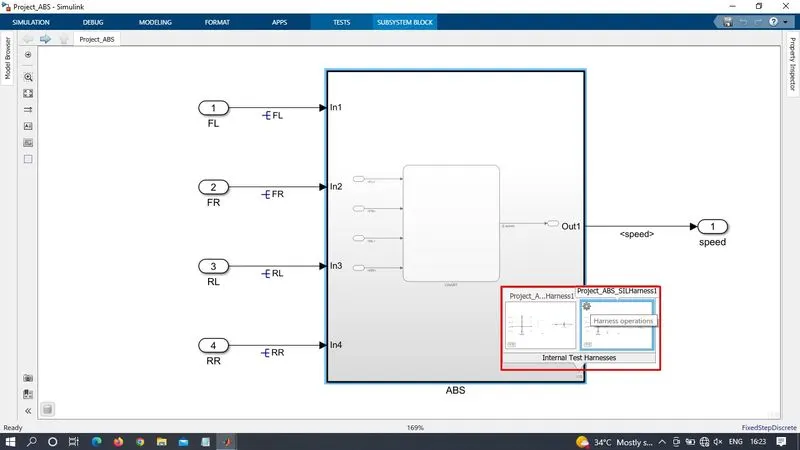

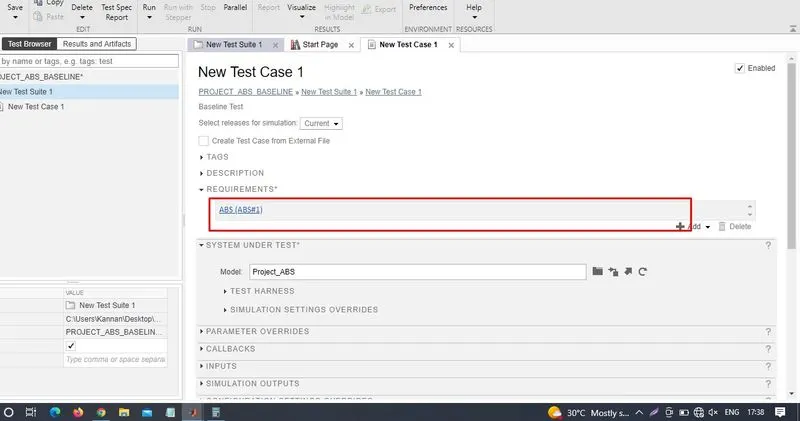

Baseline test

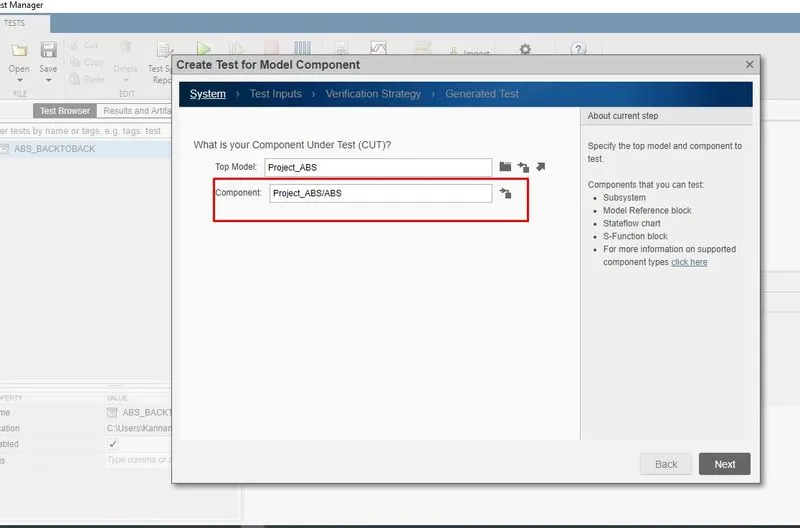

back to back
