Project 2 Adaptive Cruise Control

This project application adaptive cruise control.

step 1

open the matlab.select workspace directory after i open the new blank model.(cruise.slx)mail SLX file

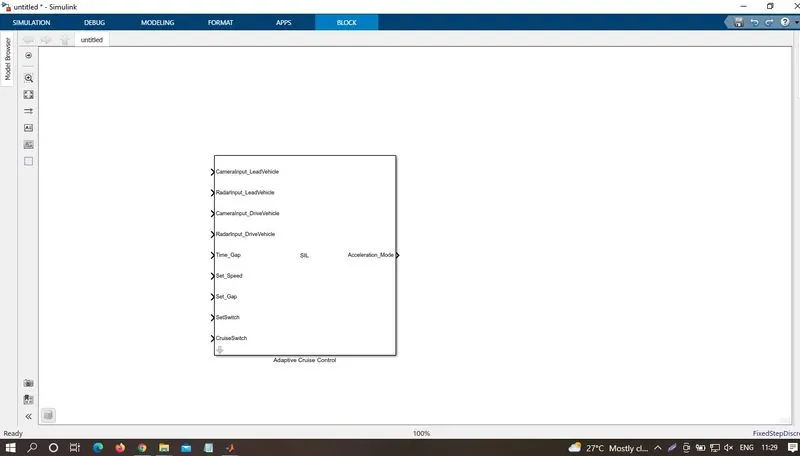

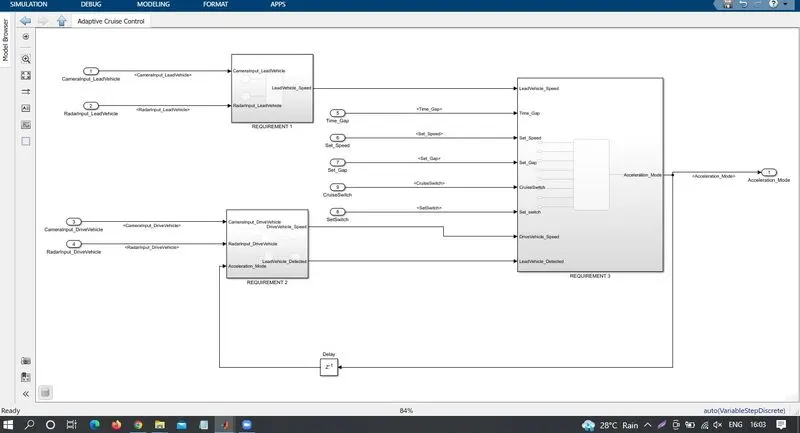

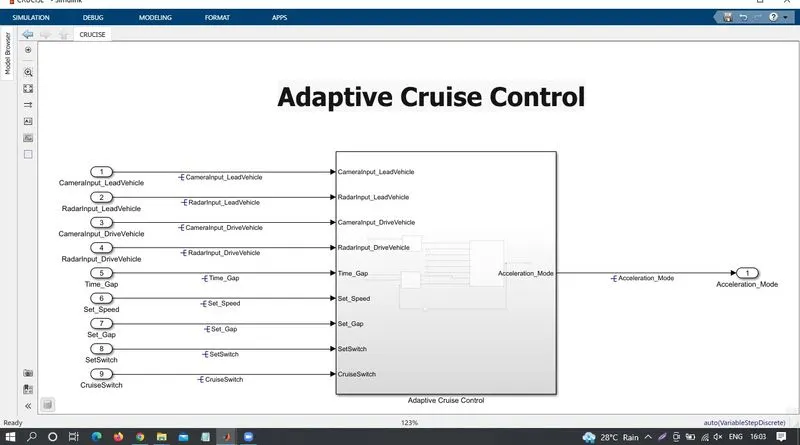

first I make sub system adaptive cruise control .It has 9 inports and 1 outports

input

categorized 3 requirements .requirement 1 ,requirement2 & requirement 3.requirements created as per instructions & condition

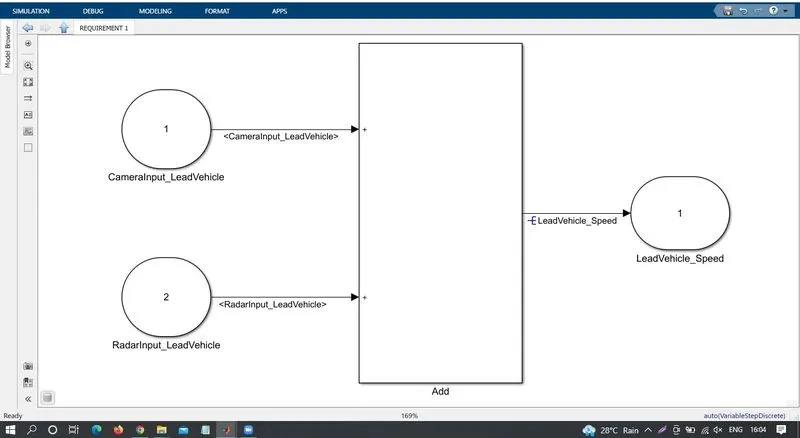

requirement 1

It has two inputs CameraInput_LeadVehicle & RadarInput_LeadVehicle.one output LeadVehicle_Speed.LeadVehicle_Speed output connected to input of the requirement 3

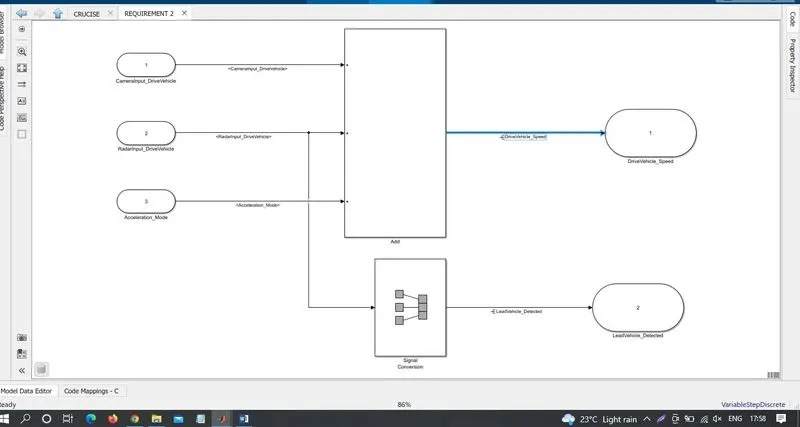

requirement 2

it has three inports CameraInput_DriveVehicle,RadarInput_DriveVehicle,Acceleration_Mode,two outports LeadVehicle_Detected,DriveVehicle_Speed

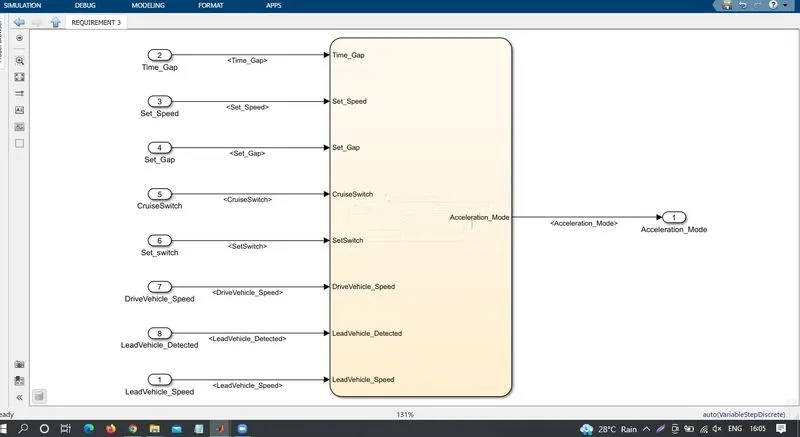

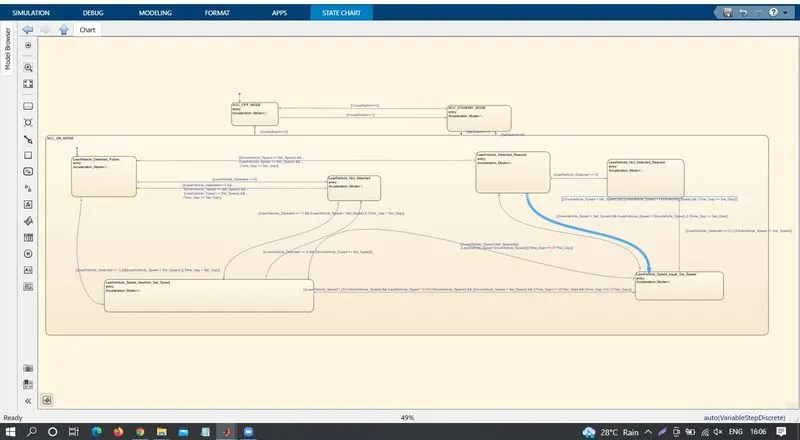

chart

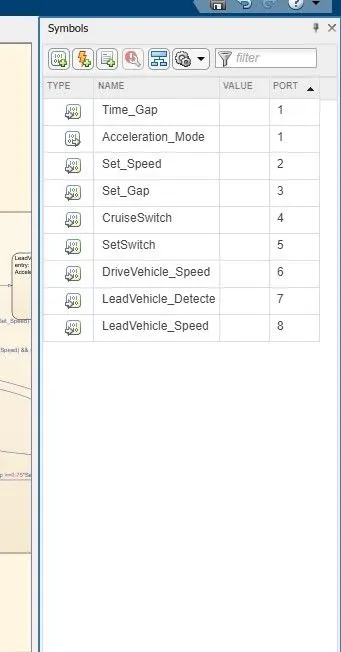

symbols pane

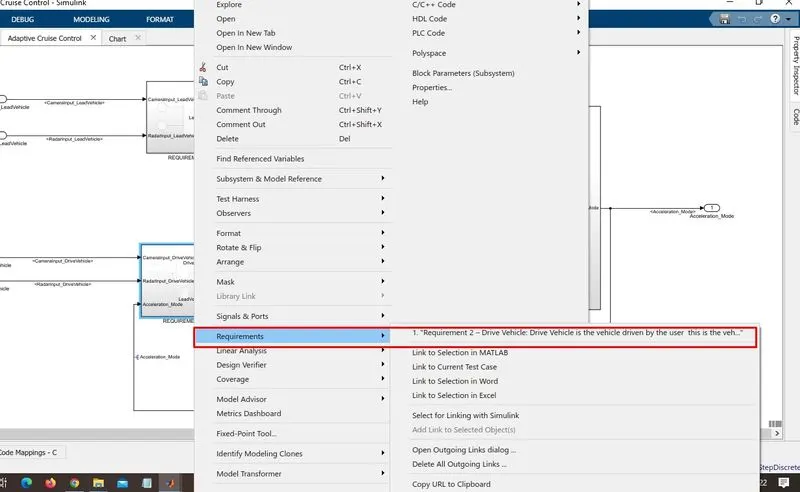

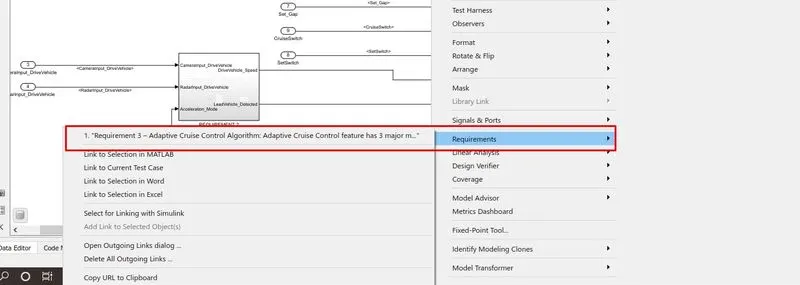

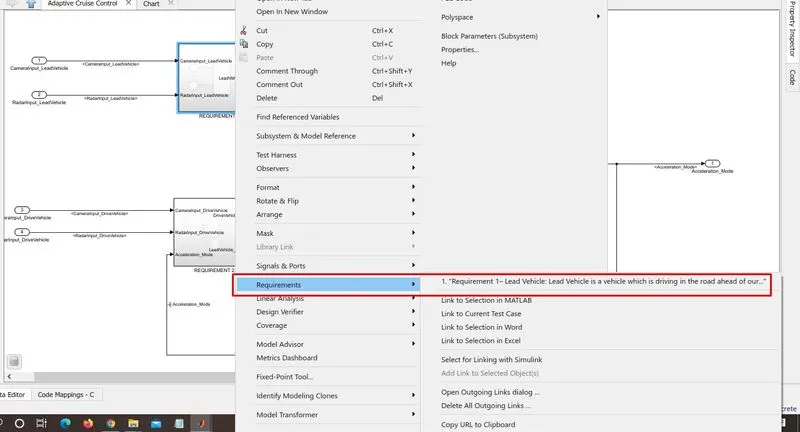

requirements link

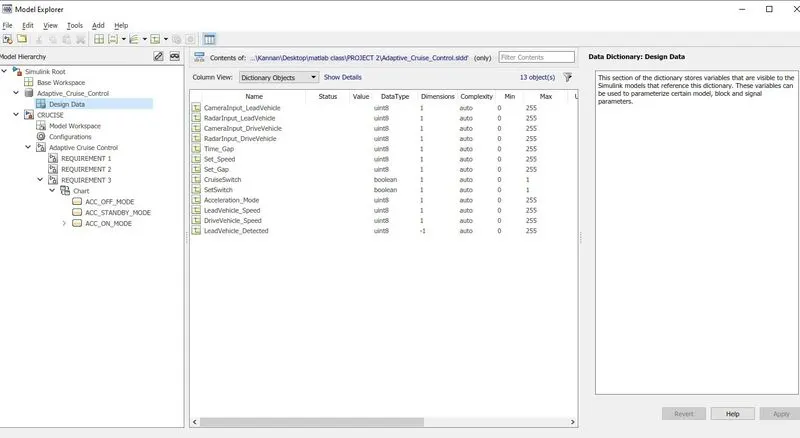

SLDD

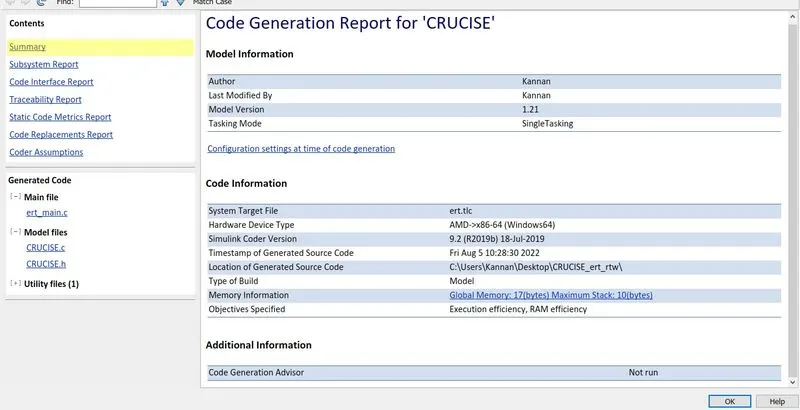

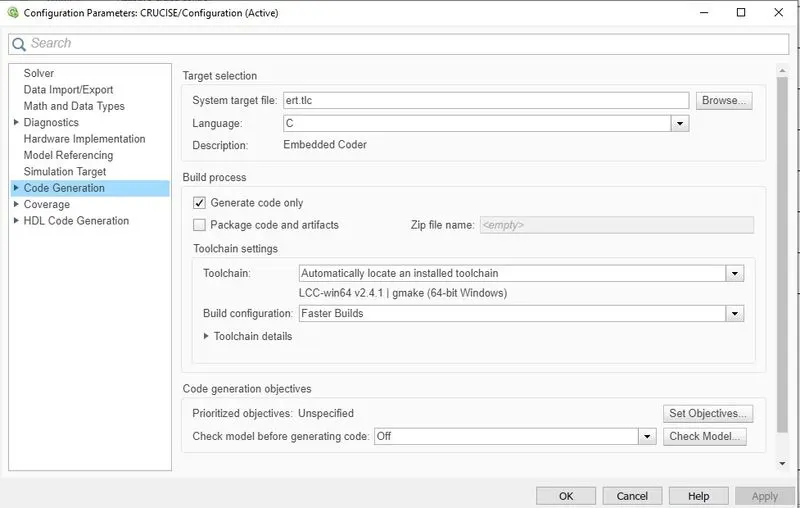

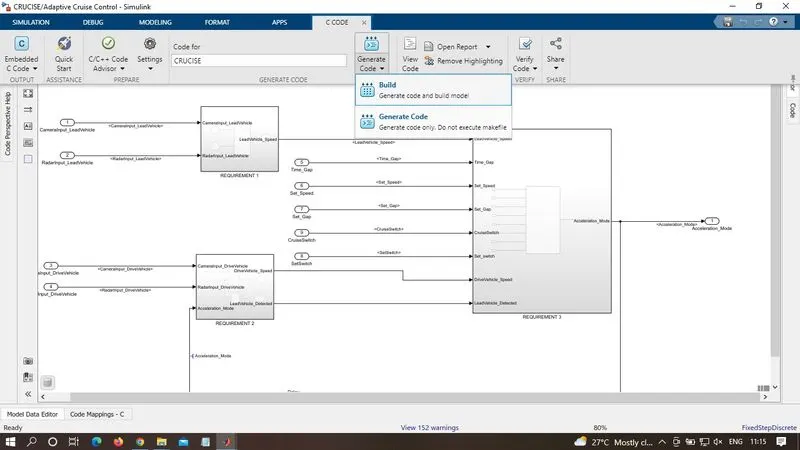

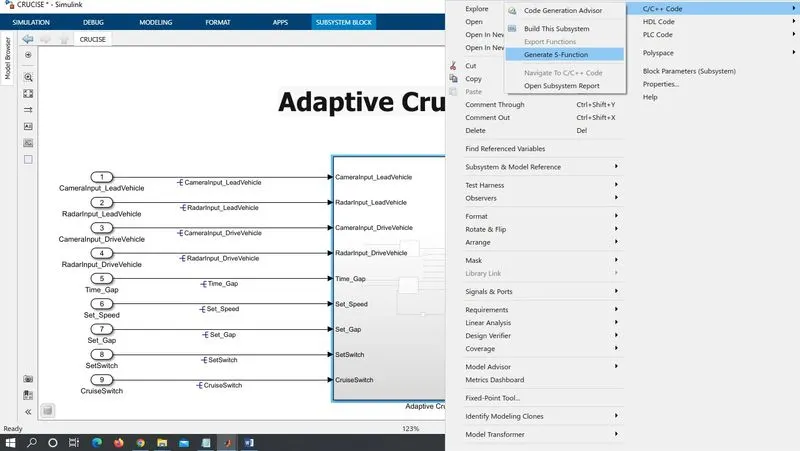

sil model .

I submitted sil_crucise.slx file.
