Project 1- Traffic Jam Assistant Feature

Title:- Traffic Jam Assistant Feature

Aim:-

• Model must be developed in MATLAB Simulink as per MBD guidelines.
• Code Generation Profile must be in Embedded Coder.
• Simulink Data Dictionary must be created for the model & must be linked to the model.
• Model Advisor Report is mandatory & this will be followed by Code Generation.

Introduction to the Feature:

Traffic Jam Assistant is one of the most common feature in Advanced Driver Assistance System. Traffic Jam Assistant helps the driver arrive more relaxed at their destination, even in dense traffic or in traffic jams. As a partially automated comfort function, the system takes over the longitudinal & lateral guidance of the vehicle. This means that the car can drive off, accelerate & brake automatically, as well as steer the vehicle within certain constraints. The driver has to permanently supervise the system & be ready to take over the complete control of the vehicle at any time.

Traffic Jam Assistant system helps to avoid rear end collisions in dense traffic conditions & traffic jams. In Traffic jams, the vehicle takes over driving off, acceleration, braking and steering within same lane.

Basic Working Principle:

Traffic Jam Assistant is based on the sensors and the functionality of the Adaptive Cruise Control (ACC) with stop & go and Lane Keeping Support (LKS). When ACC ‘Stop & Go’ is turned ON, the Traffic Jam Assistant continuously analyses the speed of the surrounding vehicles and compares it with the own driving speed. If the system detects dense traffic or a traffic jam at speeds less than 60 kmph, the driver can activate the functionality by press of a button. The vehicle will now automatically follow the vehicle in front, takes over driving off, acceleration, braking and steering within same lane.

Information regarding the Traffic Jam Assistant will be available to be displayed to the driver in the Instrument Panel Cluster (IPC). The Algorithm which the students need to implement here in this project is predominantly based on IPC units.

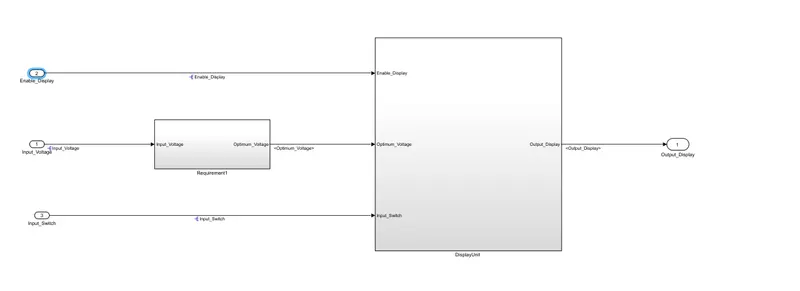

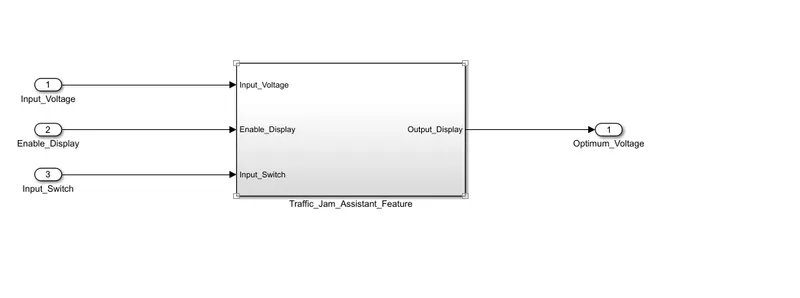

Simulink Model:-

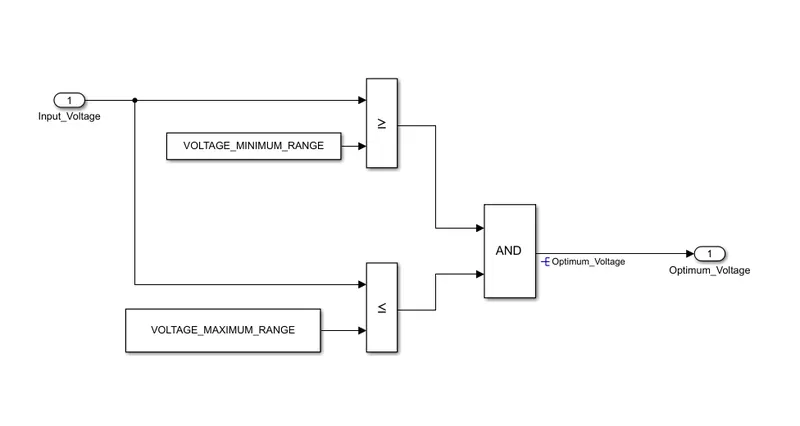

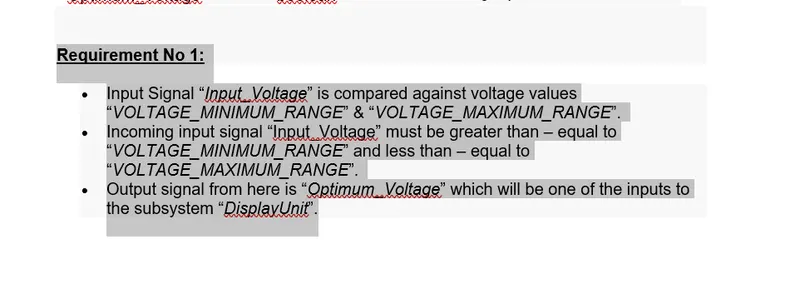

Requirement No 1:

• Input Signal “Input_Voltage” is compared against voltage values “VOLTAGE_MINIMUM_RANGE” & “VOLTAGE_MAXIMUM_RANGE”.
• Incoming input signal “Input_Voltage” must be greater than – equal to “VOLTAGE_MINIMUM_RANGE” and less than – equal to “VOLTAGE_MAXIMUM_RANGE”.
• Output signal from here is “Optimum_Voltage” which will be one of the inputs to the subsystem “DisplayUnit”.

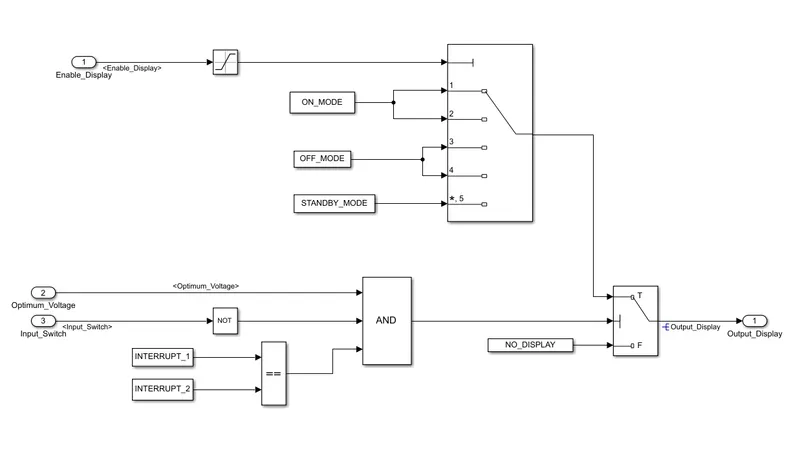

Requirement No 2 (DisplayUnit Subsystem):

• Input Signals are “Optimum_Voltage”, “Input_Switch”,“Enable_Display”. Signal “Enable_Display” must be saturated between the range 0 – 7. Output signal from the subsystem is “Output_Display”.
• Input Signal “Enable_Display” is compared against pre – defined set of values in a multiport switch. Total data ports in the multiport switch is 5.
• Multiport switch inputs 1 & 2 is connected to calibration signal “ON_MODE”, Multiport switch inputs 3 & 4 is connected to calibration signal “OFF_MODE” while Multiport switch input 5 is connected to calibration signal “STANDBY_MODE”.
• The output from Multiport switch is connected to the first input port of the Switch block. The third input port of the Switch block is connected to the calibration signal “NO_DISPLAY”.
• Meanwhile NOT value of input signal “Input_Switch” is compared in an AND gate against input signal “Optimum_Voltage” and the output from comparing if calibration signals “INTERRUPT_1” & “INTERRUPT_2” are equal. The output of the AND gate is the second input of the switch block.
• The output from the switch block is “Output_Display”.

SLDD:-

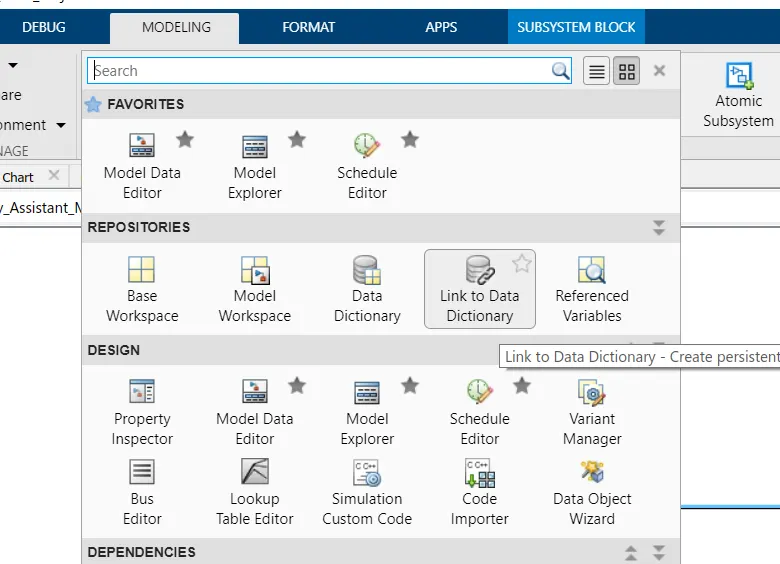

1)First go to Modeling then select Link to Data Dictionary as shown below.

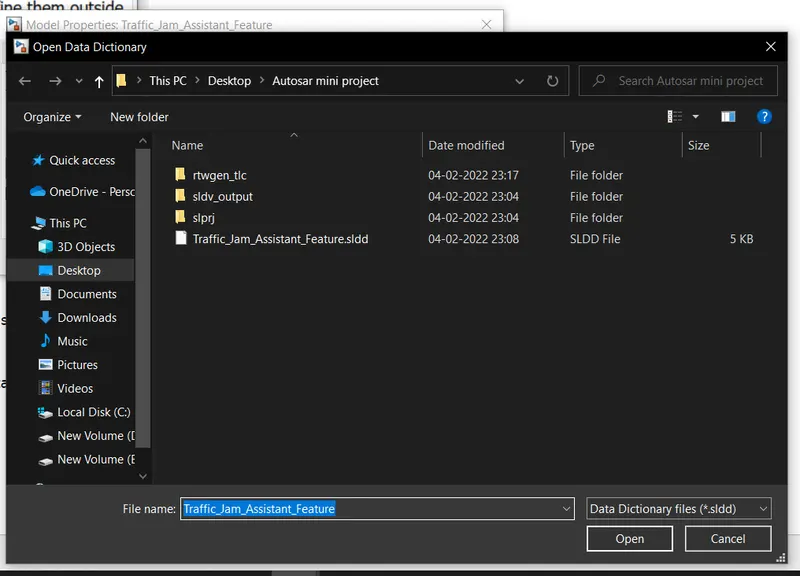

2)Then foloowing window will open click on the New & ok.

3)Then Give the name and save the file by using the extension sldd as shown below.

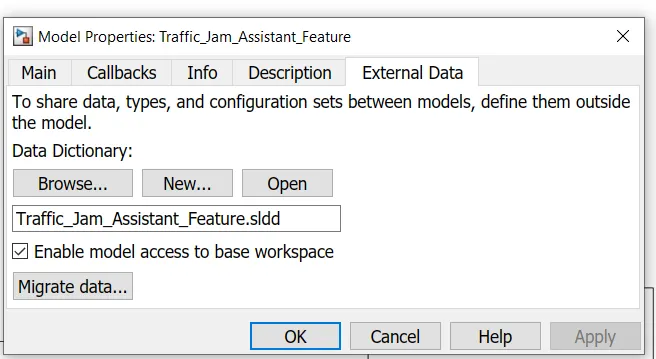

4)Then In right corner folowing option is available click on External Data .

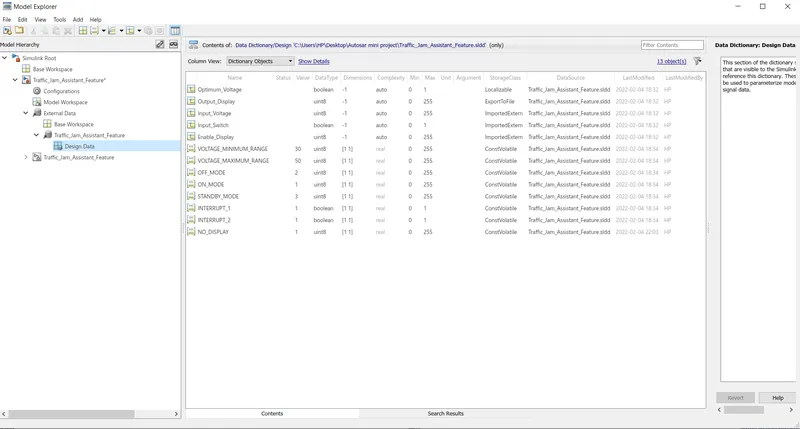

5)Then Following Window will Open Just add the signal and Change the parameter According to the following signal which is shown below.

Input Signals:

Output Signal:

Calibration Signals:

Local Signal:

Requirement Tagging:-

1)First select the text which is to be tagged.

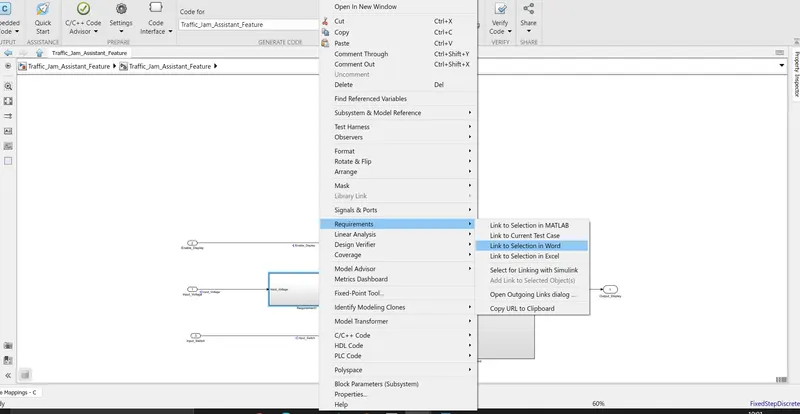

2)Then go to the model and right click on the subsystem which is to be tagged.

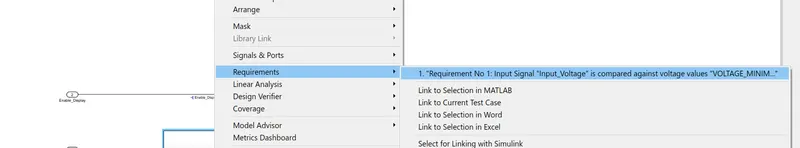

3) Again go to requirements you get the data which is to be open after clicking on the 1. Requirement.

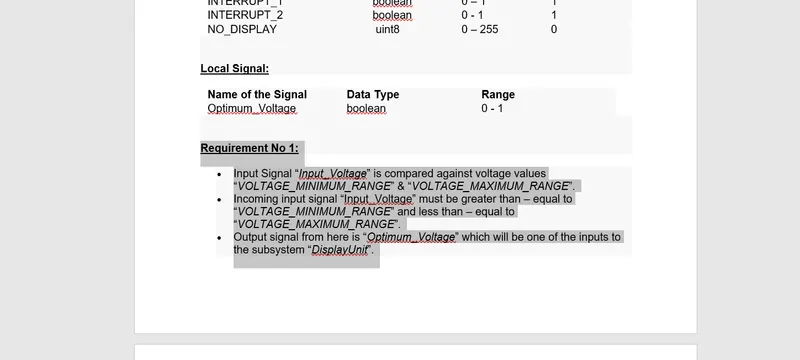

4)The Data which is to be link is open in the word as shown below.

Model Advisor Report:-

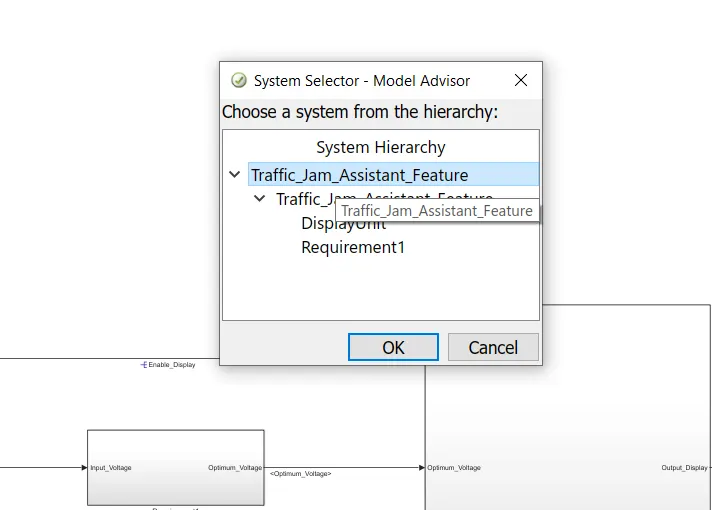

1)Click on the Model Advisor Option and select the model for model advisor report.

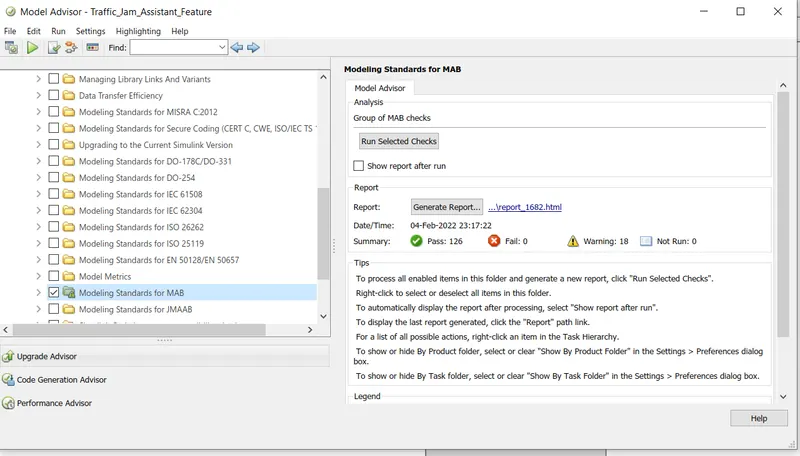

2)Then Select Modelling Standard for MAAB as shown below and click on Run Selected Checks and generate the report.

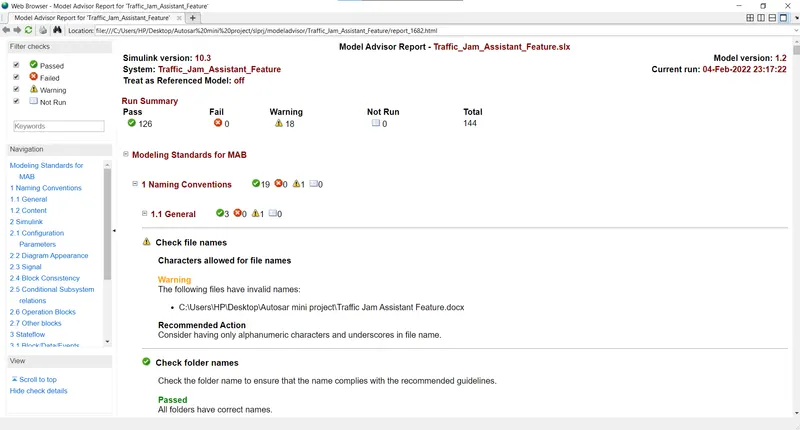

3)Model advisor report according to Modeling Standard for MAB is shown below.

Code Generation:-

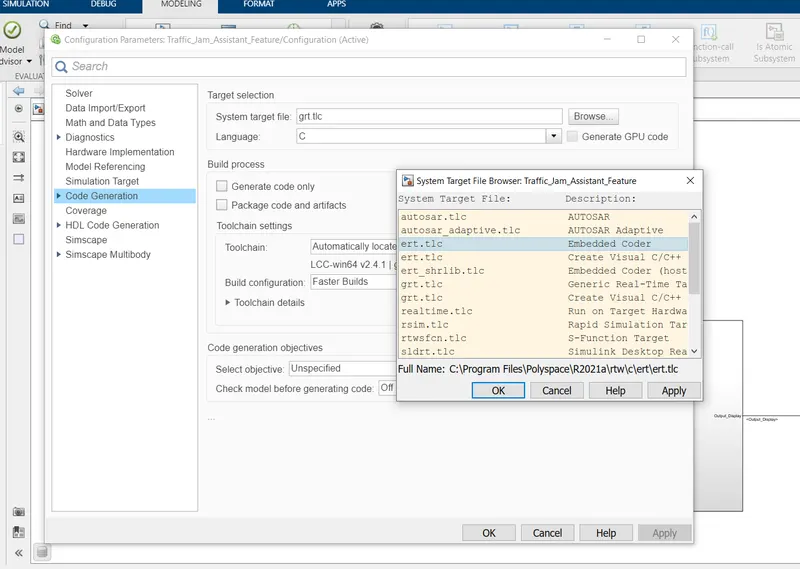

1) First go to the configuration parameter setting and change the system file target from grt.tlc to ert.tlc Embedded Coder as shown below.

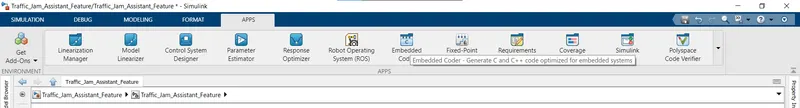

2) Then go to the app and select the Embedded Coder as shown below.

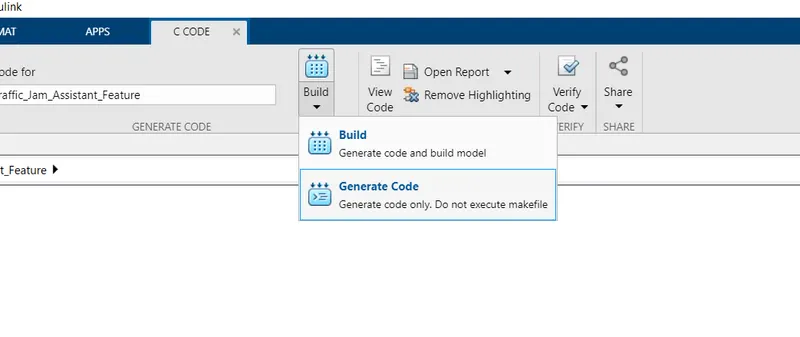

3) Then two option is available select the Generate Code.

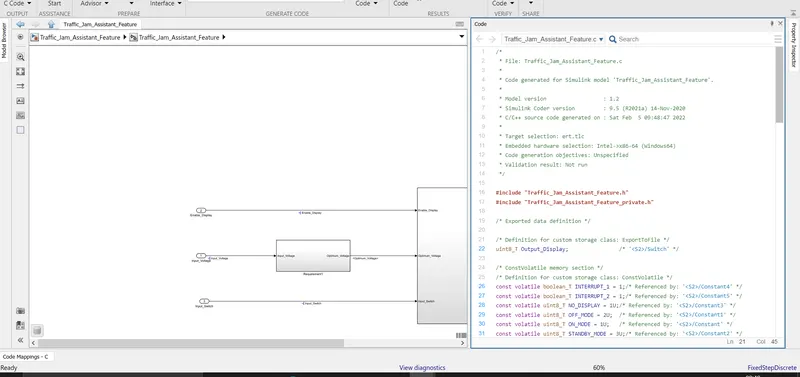

4) After few time one window will top-up this window contain the embedded code as shown below.

Embedded Generated Code:-

/*
 * File: Traffic_Jam_Assistant_Feature.c
 *
 * Code generated for Simulink model 'Traffic_Jam_Assistant_Feature'.
 *
 * Model version                  : 1.2
 * Simulink Coder version         : 9.5 (R2021a) 14-Nov-2020
 * C/C++ source code generated on : Sat Feb  5 09:48:47 2022
 *
 * Target selection: ert.tlc
 * Embedded hardware selection: Intel->x86-64 (Windows64)
 * Code generation objectives: Unspecified
 * Validation result: Not run
 */

#include "Traffic_Jam_Assistant_Feature.h"
#include "Traffic_Jam_Assistant_Feature_private.h"

/* Exported data definition */

/* Definition for custom storage class: ExportToFile */
uint8_T Output_Display;                /* '/Switch' */

/* ConstVolatile memory section */
/* Definition for custom storage class: ConstVolatile */
const volatile boolean_T INTERRUPT_1 = 1;/* Referenced by: '/Constant4' */
const volatile boolean_T INTERRUPT_2 = 1;/* Referenced by: '/Constant5' */
const volatile uint8_T NO_DISPLAY = 1U;/* Referenced by: '/Constant3' */
const volatile uint8_T OFF_MODE = 2U;  /* Referenced by: '/Constant1' */
const volatile uint8_T ON_MODE = 1U;   /* Referenced by: '/Constant' */
const volatile uint8_T STANDBY_MODE = 3U;/* Referenced by: '/Constant2' */
const volatile uint8_T VOLTAGE_MAXIMUM_RANGE = 50U;/* Referenced by: '/Constant1' */
const volatile uint8_T VOLTAGE_MINIMUM_RANGE = 30U;/* Referenced by: '/Constant' */

/* Real-time model */
static RT_MODEL_Traffic_Jam_Assistan_T Traffic_Jam_Assistant_Featur_M_;
RT_MODEL_Traffic_Jam_Assistan_T *const Traffic_Jam_Assistant_Featur_M =
  &Traffic_Jam_Assistant_Featur_M_;

/* Model step function */
void Traffic_Jam_Assistant_Feature_step(void)
{
  /* local block i/o variables */
  boolean_T Optimum_Voltage;
  uint8_T tmp;

  /* Logic: '/Logical Operator' incorporates:
   *  Constant: '/Constant'
   *  Constant: '/Constant1'
   *  Inport: '/Input_Voltage'
   *  RelationalOperator: '/Relational Operator1'
   *  RelationalOperator: '/Relational Operator2'
   */
  Optimum_Voltage = ((Input_Voltage >= VOLTAGE_MINIMUM_RANGE) && (Input_Voltage <=
    VOLTAGE_MAXIMUM_RANGE));

  /* Switch: '/Switch' incorporates:
   *  Constant: '/Constant4'
   *  Constant: '/Constant5'
   *  Inport: '/Input_Switch'
   *  Logic: '/Logical Operator'
   *  Logic: '/Logical Operator1'
   *  RelationalOperator: '/Relational Operator'
   */
  if (Optimum_Voltage && (!Input_Switch) && (INTERRUPT_1 == INTERRUPT_2)) {
    /* Saturate: '/Saturation' incorporates:
     *  Inport: '/Enable_Display'
     */
    if (Enable_Display < 1) {
      tmp = 0U;
    } else {
      tmp = 1U;
    }

    /* End of Saturate: '/Saturation' */

    /* MultiPortSwitch: '/Multiport Switch' */
    if (tmp == 1) {
      /* Switch: '/Switch' incorporates:
       *  Constant: '/Constant'
       */
      Output_Display = ON_MODE;
    } else {
      /* Switch: '/Switch' incorporates:
       *  Constant: '/Constant2'
       */
      Output_Display = STANDBY_MODE;
    }

    /* End of MultiPortSwitch: '/Multiport Switch' */
  } else {
    /* Switch: '/Switch' incorporates:
     *  Constant: '/Constant3'
     */
    Output_Display = NO_DISPLAY;
  }

  /* End of Switch: '/Switch' */
}

/* Model initialize function */
void Traffic_Jam_Assistant_Feature_initialize(void)
{
  /* (no initialization code required) */
}

/* Model terminate function */
void Traffic_Jam_Assistant_Feature_terminate(void)
{
  /* (no terminate code required) */
}

/*
 * File trailer for generated code.
 *
 * [EOF]
 */
