Project 1- Traffic Jam Assistant Feature

Aim of Challenge:-

• Developing Traffic Jam Assistant feature.

Description:-

Step 1:- Do a Requirement Analysis by following the Objective of the Project.

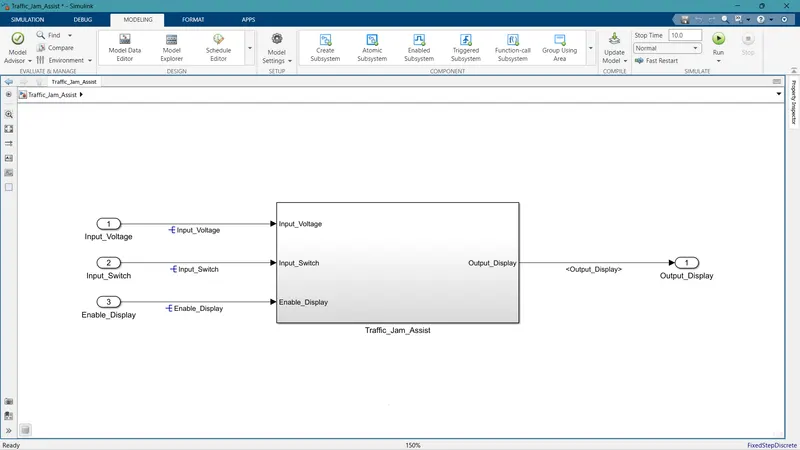

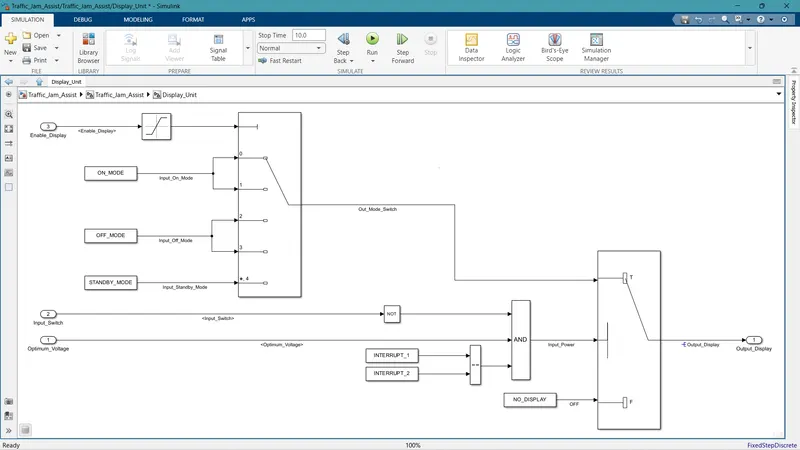

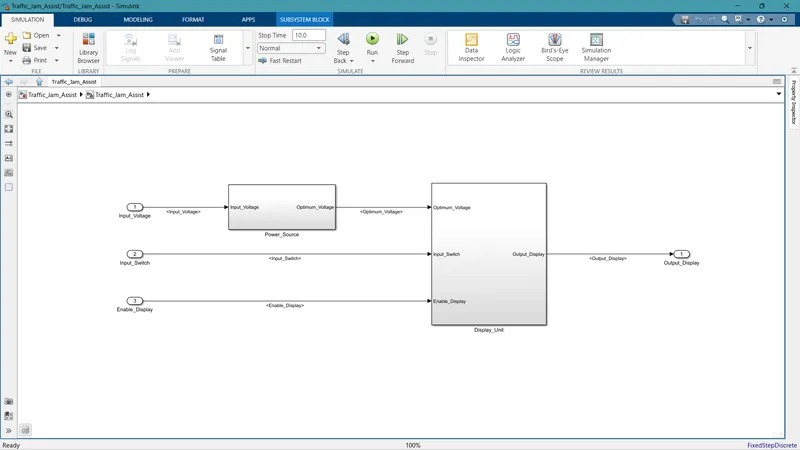

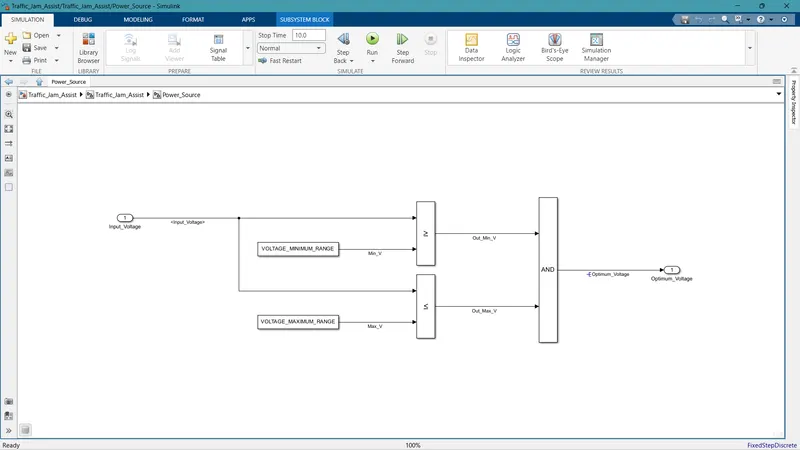

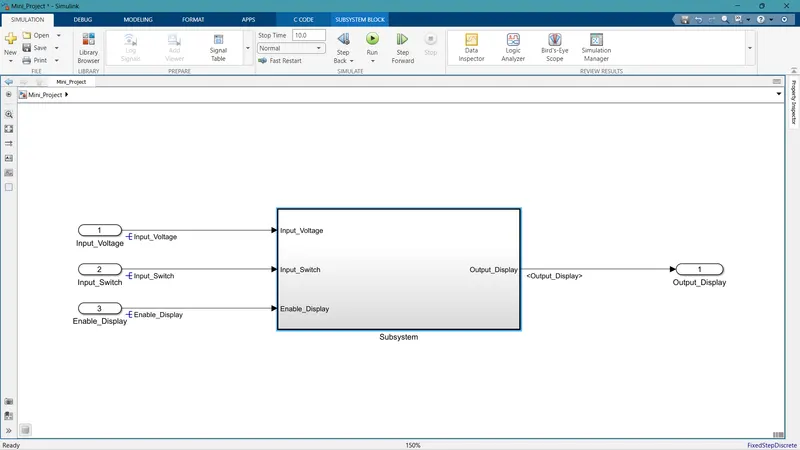

Step 2:- Open a new tab on Simulink and start the modeling with the following requirements.

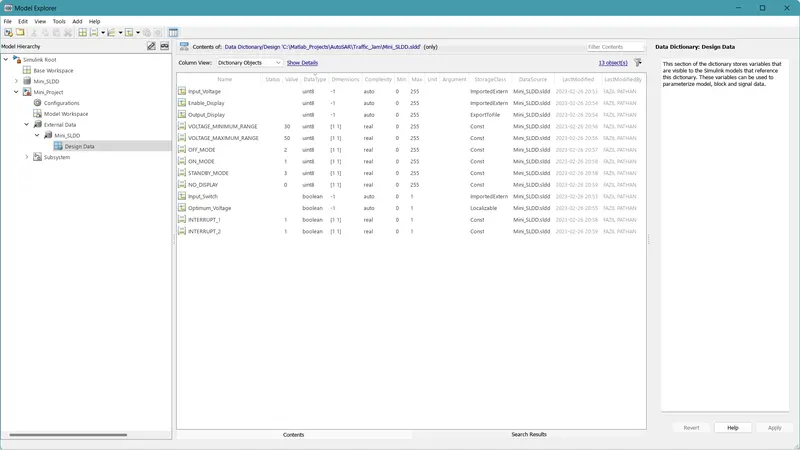

Step 3:- Start the SLDD creation by going to Modeling -> model explorer -> File -> New -> Data Dictionary.

Add the Inport and Outport Signal and update it as per the given Data List.

After Creating the SLDD link it with the Simulink Model.

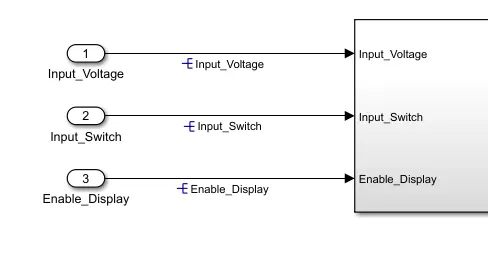

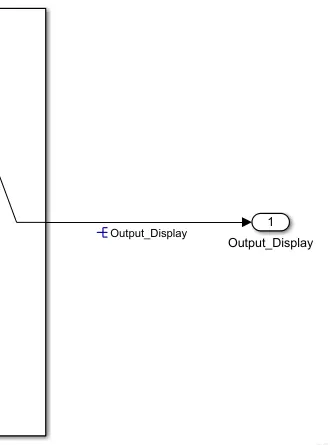

Step 4:- Do the Signal Resolving for Inputs and Outputs by right-clicking on the signal label and clicking on resolve signals.

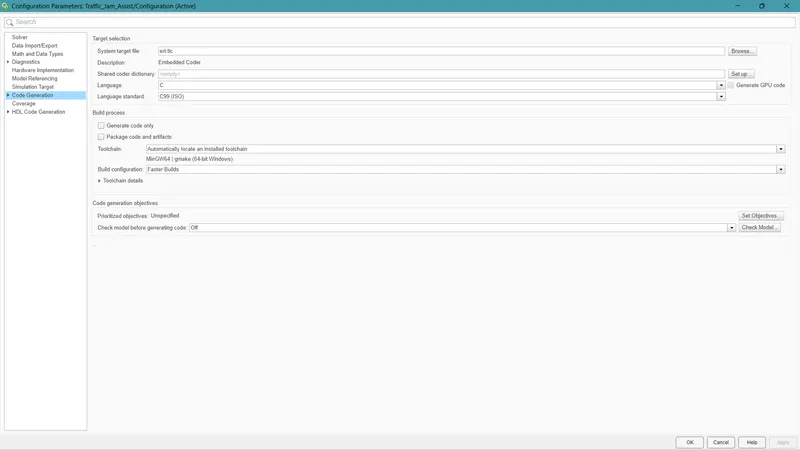

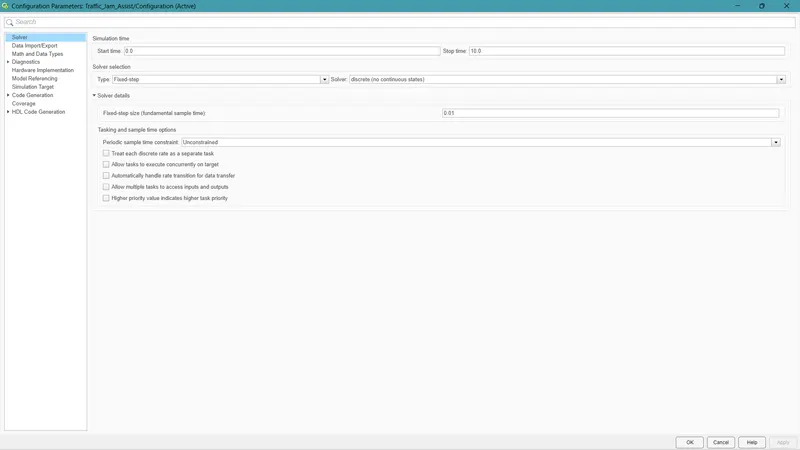

Step 5:- Update the Configuration Parameter, Set the ''Sample Time'' as 0.01s, and Use ''Embedded Coder'' to generate the code and update other parameters.

Step 6:- Now Open the Model Advisor.

Modeling -> Model Advisor -> Select Checks to be performed -> Run Model Advisor Checks.

In this project, I have selected Maab Guidelines in checks.

Resolve If any warnings or Incomplete Tests are Detected.

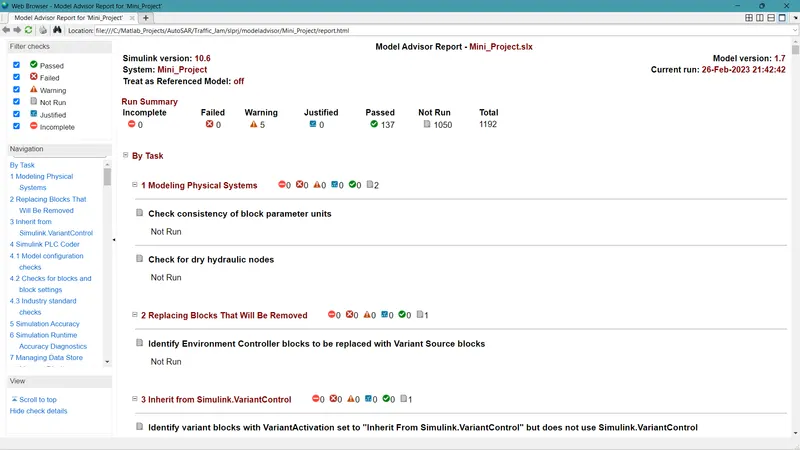

A model Advisor Report will be generated.

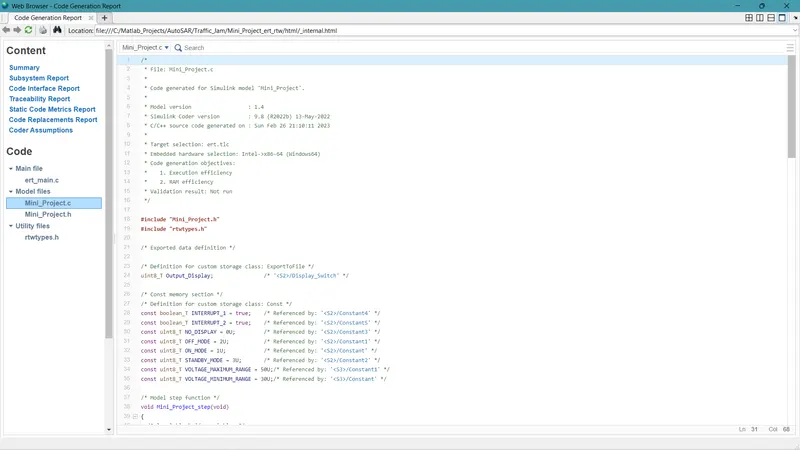

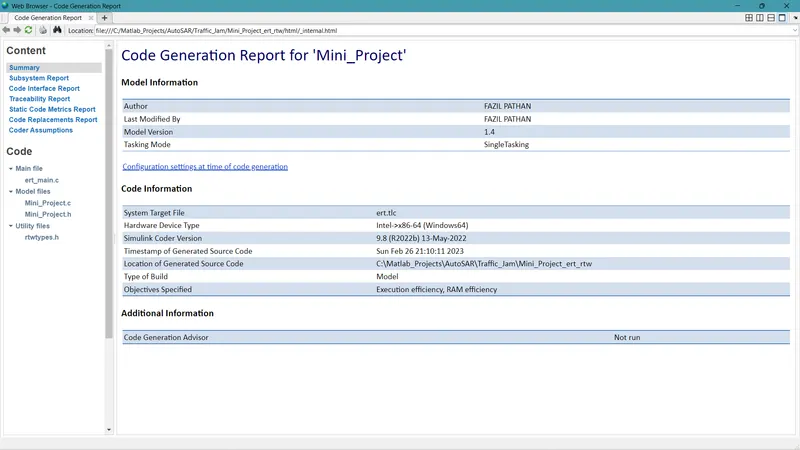

Step 7:- Do the Code Generation.

Go to embedded coder click on quick start follow all the steps and generate the code.

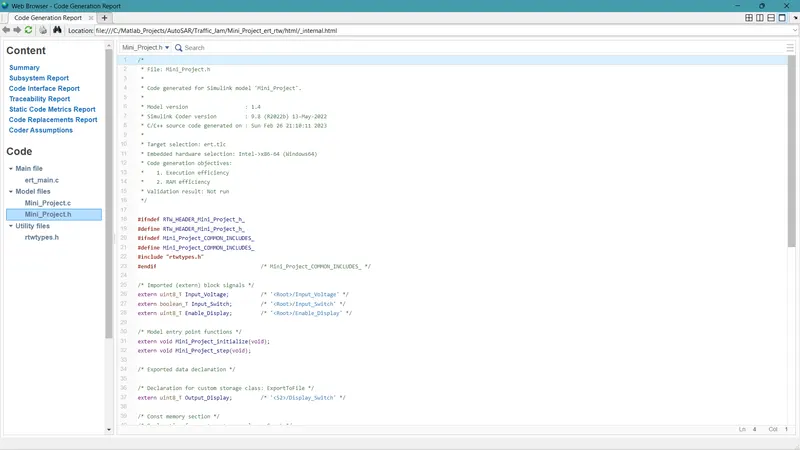

Code will be generated in terms of .c and .h files.

Step 8:- The Traffic Jam Assistant Feature Project has been completed.
