Project 1- Traffic Jam Assistant Feature

ANSWER:

STEPS FOLLOW TO COMPLETE MIL SYSTEM:

1.BASIC MODEL SETTING -solver setting,sample time.COVERAGE setting (if given).

2.1.LINK DATA DICTIONARY TO MODEL

2.MODEL ADVISOR CHECK-REDUCED WARNINGS AND ERROR ,GENERATE REPORT (AS PER MAAB GUIDLINES)

3.CREATE SUBSYETEM

4.TREAT SYSTEMM AS AATOMIC UNIT (ENABLE OPTION)(RIGHT CLICK ON SUBSYTEM--BLOCK PARAMETER)(ADVANCED OPTION -SELECT -SIL)

5.GENERATE TEST  HARNES-RIGHT CLICK ON SUBSYTEM-TEST HARNESS-GENERATE FOR SUBSYTEM

6.MIL TEMPLATE IS READY (IT WILL AUTOMIATICALLY CREATE NEW MODEL EITH NAME  "TESTHARNESS1"

7.UPDATE THE TEST CASES EXCEL SHEET-OPEN SIGNAL BUILDER -FILE -BROWSE

8.RUN MODEL COMPARE THE RESULT.

9.GENERATE C CODE

ANSWER:

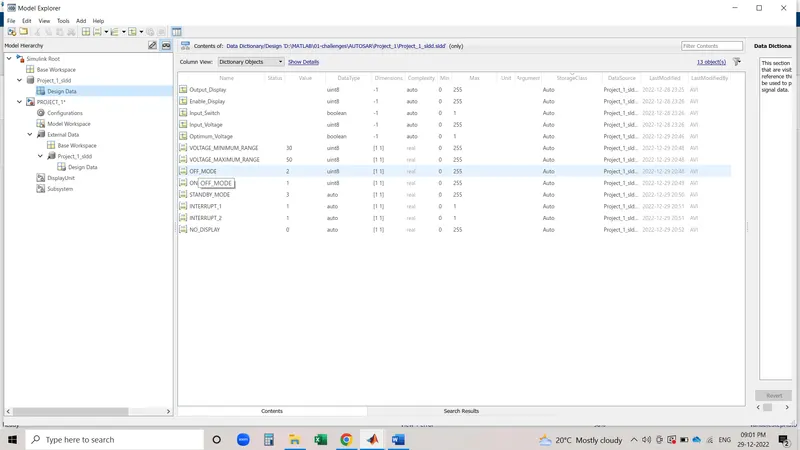

1.SLDD CREATION

BASIC

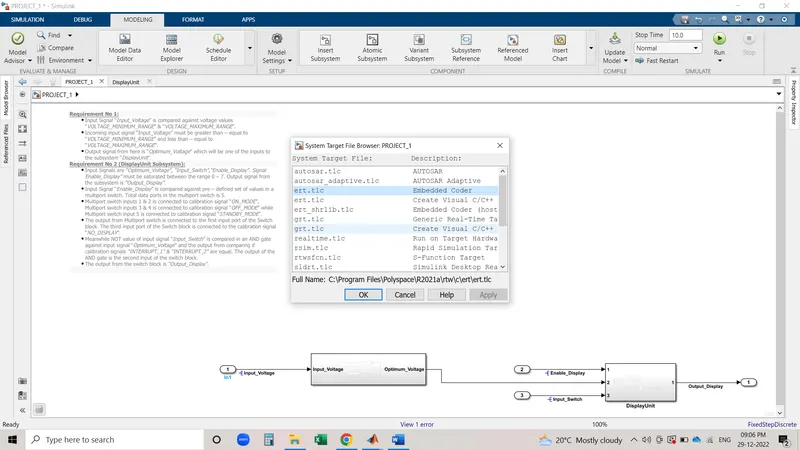

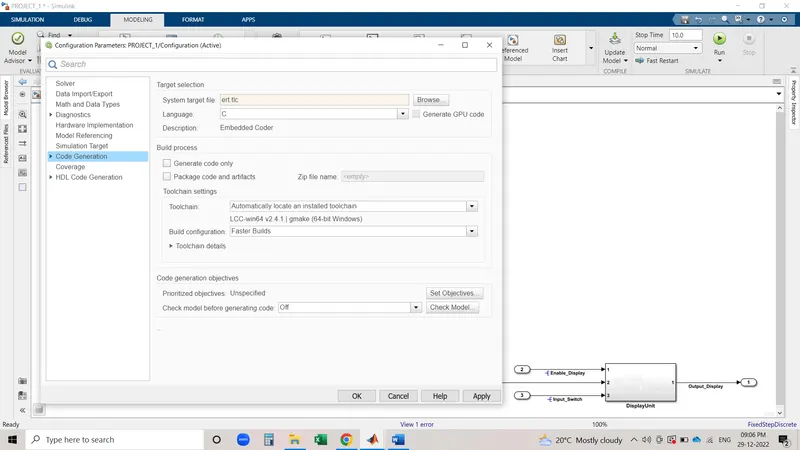

2.SETTING FOR GENERATION C CODE

CODE GENERATION

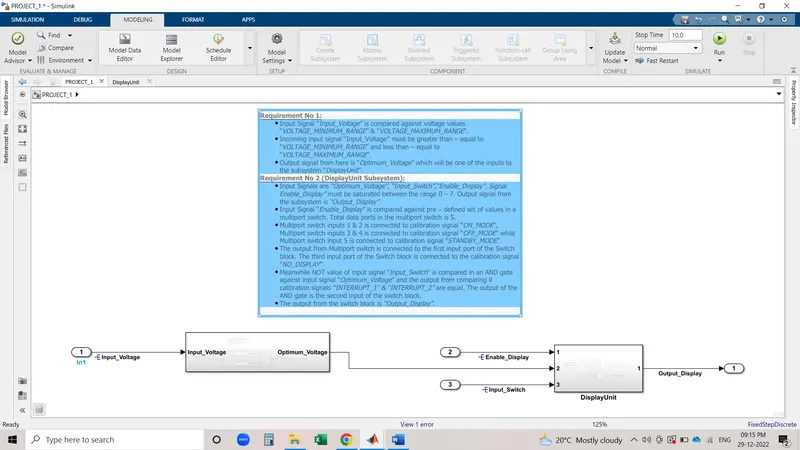

MODEL DEVELOPMENT

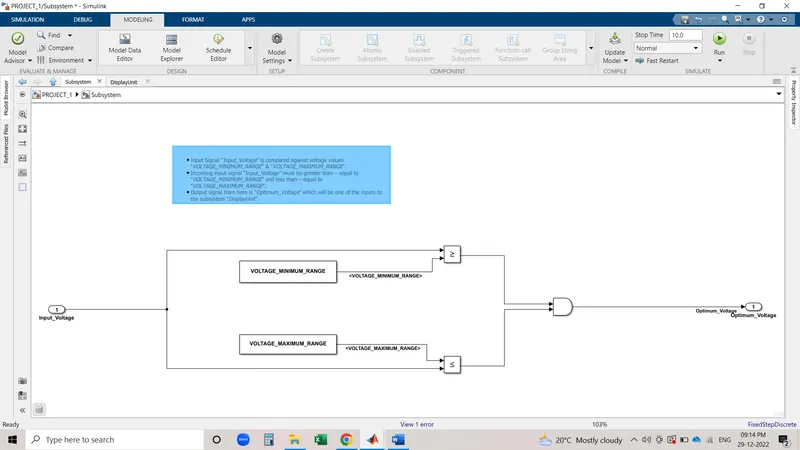

REQUIRMENT 1

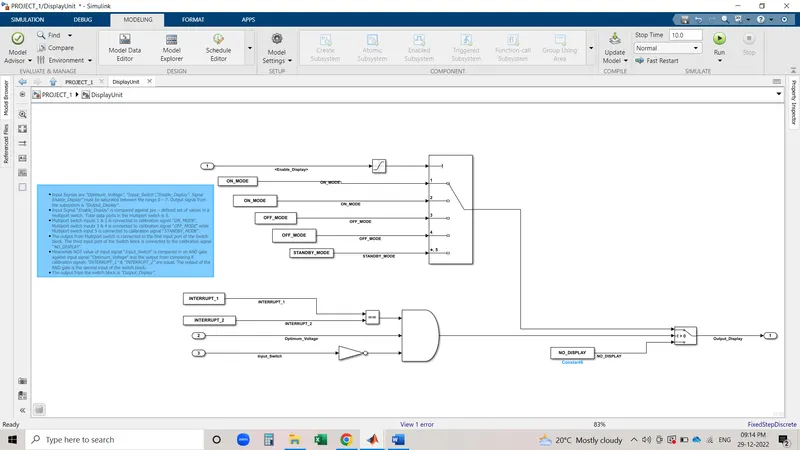

REQUIRMENT 2

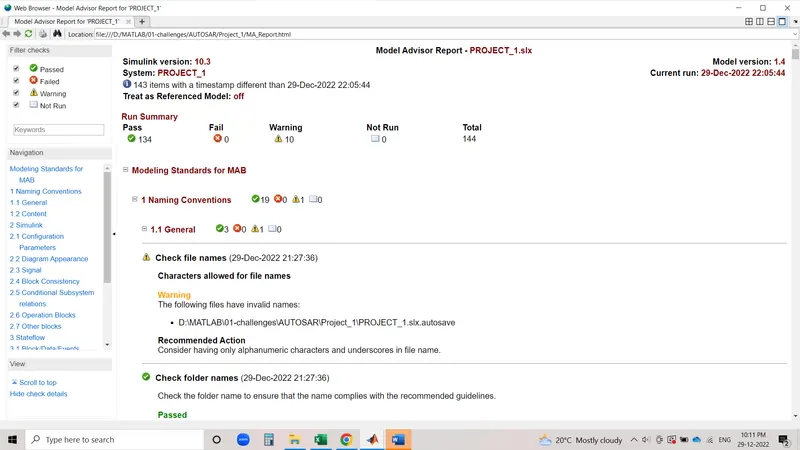

MAAB GUIDLINES:

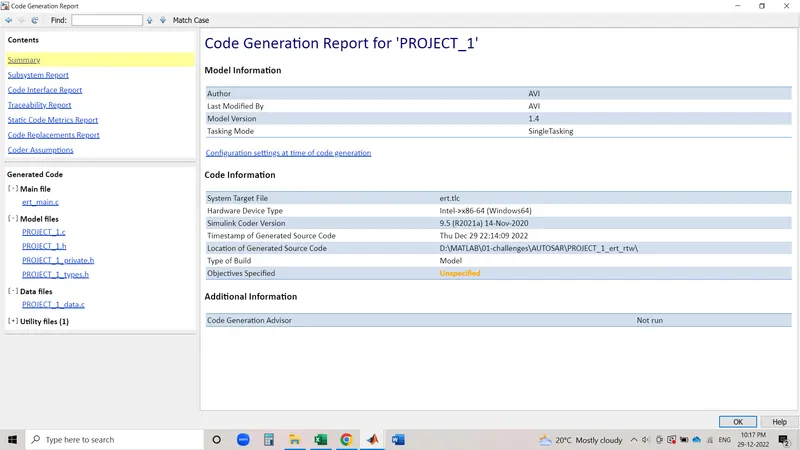

CODE GENERATION :
