Project-1: Powertrain for aircraft in runways

AIM - To prepare a Project report on Powertrain for Aircraft In Runway under given sections -

Part A:

1. Search and list out the total weight of various types of aircrafts.

2. Is there any difference between ground speed and air speed?

3. Why is it not recommended to use aircraft engine power to move it on the ground at Airport?

4. How an aircraft is pushed to runway when its ready to take off?

5. Learn about take off power, tyre design, rolling resistance, tyre pressure, brake forces when landing.

Part B:

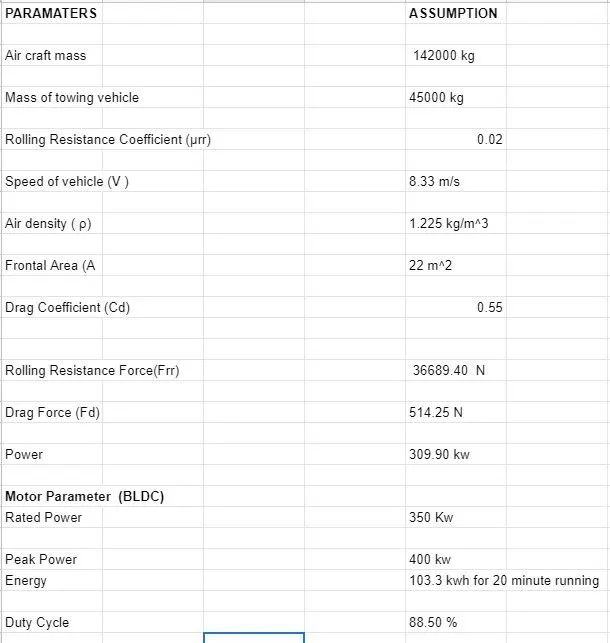

6. A. With necessary assumptions, calculate the force and power required to push / pull an aircraft by a towing vehicle.

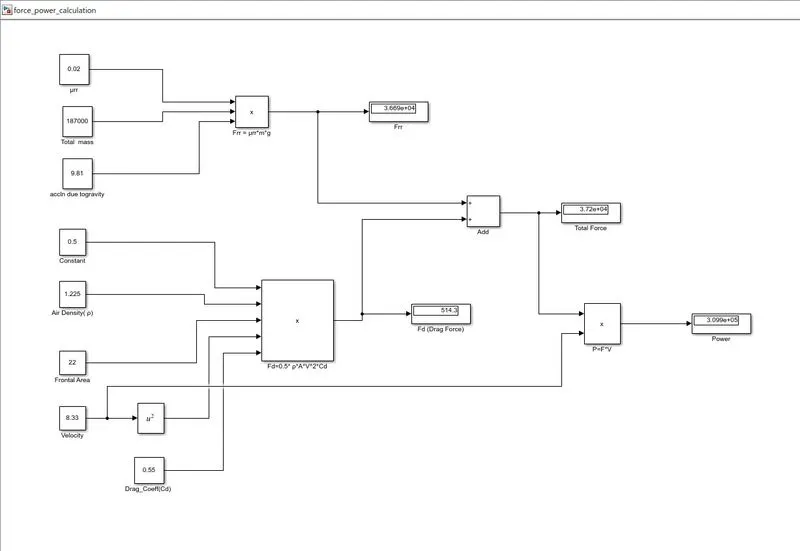

B. Develop the model for the calculated force and power using Simulink.

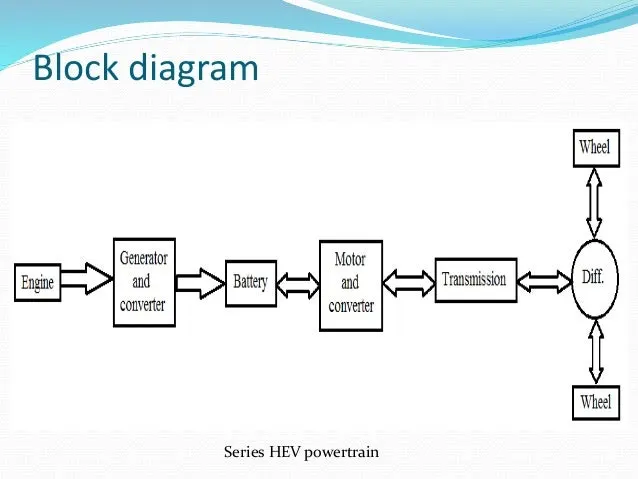

7. A. Design an electric powertrain with type of motor, it’s power rating, and energy requirement to fulfill aircraft towing application in Simulink. Estimate the duty cycle range to control the aircraft speed from zero to highest. Make all required assumptions. Prepare a table of assumed parameters. Draw a block diagram of powertrain.

(Hint :DC7 Block)

B. Also, Design the parameters in excel sheet.

Part A -

1. Search and list out the total weight of various types of aircrafts.

List Of Total weight of various types of aircrafts.

MTOW = Maximum take-off weight, MLW = Maximum landing weight, TOR = Take-off run (SL, ISA+15°, MTOW), LR = Landing run (SL, ISA+15°, MLW)

Type	MTOW [kg]	MLW [tonnes]	TOR [m]	LR [m]	ICAO category	FAA category
Antonov An-225	640,000	591.7	3500		Heavy	Super
Scaled Composites Model 351 Stratolaunch	589,670		3660		Heavy	Super
Airbus A380-800	575,000	394	3100	1930	Super	Super
Boeing 747-8F	447,700	346.091	3100	1800	Heavy	Heavy
Boeing 747-8	443,613	306.175	3100		Heavy	Heavy
Boeing 747-400ER	412,770	295.742	3090		Heavy	Heavy
Antonov An-124-100M	405,060	330	2520	900	Heavy	Heavy
Boeing 747-400	396,900	295.742	3018	2179	Heavy	Heavy
Lockheed C-5 Galaxy	381,000	288.417	2530	1494	Heavy	Heavy
Boeing 747-200	377,840	285.700	3338	2109	Heavy	Heavy
Boeing 747-300	377,840	260.320	3222	1905	Heavy	Heavy
Airbus A340-500	371,950	240	3050	2010	Heavy	Heavy
Airbus A340-600	367,400	256	3100	2100	Heavy	Heavy
Boeing 777F	347,800	260.816	2830		Heavy	Heavy
Airbus A330-900	352,000	251.5	3100		Heavy	Heavy
Boeing 777-300ER	351,800	251.29	3100		Heavy	Heavy
Boeing 777-200LR	347,450	223.168	3000		Heavy	Heavy
Boeing 747-100	340,200	265.300			Heavy	Heavy
Airbus A350-1000	308,000	233.5			Heavy	Heavy
Boeing 777-300	299,370	237.683	3380		Heavy	Heavy
Boeing 777-200ER	297,550	213.00	3380	1550	Heavy	Heavy
Airbus A340-300	276,700	190	3000	1926	Heavy	Heavy
McDonnell Douglas MD-11	273,300	185	2990	1890	Heavy	Heavy
Airbus A350-900	270,000	175	2670	1860	Heavy	Heavy
Ilyushin Il-96M	270,000	195.04	3115	2118	Heavy	Heavy
McDonnell Douglas DC-10	256,280	183	2990	1890	Heavy	Heavy
Boeing 787-9	254,000	192.777	2900		Heavy	Heavy
Boeing 787-10	254,000	201.849			Heavy	Heavy
Airbus A340-200	253,500	181	2990		Heavy	Heavy
Ilyushin IL-96-300	250,000	175	2600	1980	Heavy	Heavy
Airbus A330-300	242,000	185	2500	1750	Heavy	Heavy
Airbus A330-200	242,000	180	2220	1750	Heavy	Heavy
Lockheed L-1011-500	231,300	166.92	2636		Heavy	Heavy
Boeing 787-8	228,000	172.365	3300	1695	Heavy	Heavy
Lockheed L-1011-200	211,400				Heavy	Heavy
Ilyushin IL-86	208,000	175			Heavy	Heavy
Boeing 767-400ER	204,000	158.758	3414		Heavy	Heavy
Airbus A300-600R	192,000	140	2385	1555	Heavy	Heavy
Boeing 767-300ER	187,000	136.08	2713	1676	Heavy	Heavy
Concorde	185,000	111.1	3440	2220	Heavy	Heavy
Airbus A300-600	163,000	138	2324	1536	Heavy	Heavy
Boeing 767-300	159,000	136.078	2713	1676	Heavy	Heavy
Airbus A310-300	157,000	124	2290	1490	Heavy	Heavy
Vickers VC10	152,000	151.9			Heavy	Heavy
Boeing 707-320B	151,000	97.5			Heavy	Heavy
Boeing 707-320C	151,000	112.1			Heavy	Heavy
Douglas DC-8-61	147,000				Heavy	Heavy
Airbus A310-200	142,000	123	1860	1480	Heavy	Heavy
Airbus A400M	141,000	122	980	770	Heavy	Heavy
Douglas DC-8-32	140,000				Heavy	Heavy
Douglas DC-8-51	125,000				Medium	Large
Boeing 757-300	124,000	101.6	2550	1750	Medium	Large
Boeing 707-120B	117,000	86.3			Medium	Large
Boeing 757-200	116,000	89.9	2347	1555	Medium	Large
Boeing 720B	106,000	79.5			Medium	Large
Boeing 720	104,000	79.5			Medium	Large
Tupolev Tu-154M	104,000	80			Medium	Large
Tupolev Tu-204SM	104,000	87.5	2250		Medium	Large
Convair 880	87,500				Medium	Large
Boeing 737-900	85,000	66.36	2500	1704	Medium	Large
Boeing 737-900ER	85,000	71.35	2804	1829	Medium	Large
Boeing 727-200 Advanced	84,000	70.1			Medium	Large
Airbus A321-100	83,000	77.8	2200	1540	Medium	Large
Boeing 737-800	79,000	65.32	2308	1634	Medium	Large
Boeing 727-200	78,000	68.1			Medium	Large
McDonnell-Douglas MD-83	73,000	63.28			Medium	Large
Boeing 727-100	72,500	62.4			Medium	Large
Boeing 727-100C	72,500	62.4			Medium	Large
McDonnell-Douglas MD-90-30	71,000	64.41	2165	1520	Medium	Large
de Havilland Comet 4	70,700				Medium	Large
Boeing 737-700	70,000	58.06	1921	1415	Medium	Large
Airbus A320-100	68,000	66	1955	1490	Medium	Large
Boeing 737-400	68,000	54.9	2540	1540	Medium	Large
de Havilland Comet 3	68,000				Medium	Large
Boeing 377	67,000				Medium	Large
Boeing 737-600	66,000	54.66	1796	1340	Medium	Large
Airbus A220-300	65,000	57.61	1890	1494	Medium	Large
Hawker Siddeley Trident 2E	65,000				Medium	Large
Airbus A319	64,000	62.5	1850	1470	Medium	Large
Boeing 737-300	63,000	51.7	1939	1396	Medium	Large
Boeing 737-500	60,000	49.9	1832	1360	Medium	Large
Airbus A220-100	59,000	50.80	1463	1356	Medium	Large
Airbus A318	59,000	57.5	1375	1340	Medium	Large
Boeing 717-200HGW	55,000	47.174	1950		Medium	Large
Douglas DC-7	55,000				Medium	Large
de Havilland Comet 2	54,000				Medium	Large
Boeing 717-200BGW	50,000	46.265	1950		Medium	Large
de Havilland Comet 1	50,000				Medium	Large
Douglas DC-6A	48,600				Medium	Large
Douglas DC-6B	48,500				Medium	Large
Embraer 190	48,000	43	2056	1323	Medium	Large
Caravelle III	46,000				Medium	Large
Fokker 100	46,000	39.95	1621	1350	Medium	Large
Douglas DC-6	44,000				Medium	Large
Avro RJ-85	42,000	36.74			Medium	Large
Handley Page Hermes	39,000				Medium	Large
Embraer 175	37,500	32.8	2244	1304	Medium	Large
Bombardier CRJ900	36,500	33.345	1778	1596	Medium	Large
Embraer 170	36,000	32.8	1644	1274	Medium	Large
Bombardier CRJ700	33,000	30.39	1564	1478	Medium	Large
Douglas DC-4	33,000				Medium	Large
Vickers Viscount 800	30,400				Medium	Large
Bombardier Q400	28,000	28.01	1219	1295	Medium	Large
Bombardier CRJ200	23,000	21.319	1918	1479	Medium	Large
ATR 72-600	22,800	22.35	1333	914	Medium	Large
Saab 2000	22,800	21.5	1300		Medium	Large
Embraer ERJ 145	22,000	19.3	2270	1380	Medium	Large
ATR 42-500	18,600	18.3	1165	1126	Medium	Small
Saab 340	13,150	12.930	1300	1030	Medium	Small
Embraer 120 Brasilia	11,500	11.25	1560	1380	Medium	Small
BAe Jetstream 41	10,890	10.570	1493	826	Medium	Small
Learjet 75	9,752	8.709	1353	811	Medium	Small
Pilatus PC-24	8,300	7.665	893	724	Medium	Small
Embraer Phenom 300	8,150	7.65	956	677	Medium	Small
Beechcraft 1900D	7,765	7.605	1036	853	Medium	Small
Cessna Citation CJ4	7,761	7.103	1039	896	Medium	Small
de Havilland Hercules	7,000				Medium	Small
Embraer Phenom 100	4,800	4.43	975	741	Light	Small

• Maximum Take-Off Weight (MTOW) -

  The maximum takeoff weight (also known as the maximum brake-release weight) is the maximum weight authorised at brake release for takeoff, or at the start of the takeoff roll.

  The maximum takeoff weight is always less than the maximum taxi/ramp weight to allow for fuel burned during taxi by the engines and the APU.

  In operation, the maximum weight for takeoff may be limited to values less than the maximum takeoff weight due to aircraft performance, environmental conditions, airfield characteristics (takeoff field length, altitude), maximum tire speed and brake energy, obstacle clearances, and/or en route and landing weight requirements.

• Maximum landing weight (MLW) -

The maximum weight authorised for normal landing of an aircraft.

The MLW must not exceed the MTOW.

The operation landing weight may be limited to a weight lower than the Maximum Landing Weight by the most restrictive of the following requirements:

• Aircraft performance requirements for a given altitude and temperature:

landing field length requirements,

approach and landing climb requirements

• Noise requirements

• Maximum taxi weight (MTW) -

The maximum taxi weight (MTW) (also known as the maximum ramp weight (MRW) is the maximum weight authorized for maneuvering (taxiing or towing) an aircraft on the ground as limited by aircraft strength and airworthiness requirements. It includes the weight of taxi and run-up fuel for the engines and the APU.

It is greater than the maximum takeoff weight due to the fuel that will be burned during the taxi and runup operations.

The difference between the maximum taxi/ramp weight and the maximum take-off weight (maximum taxi fuel allowance) depends on the size of the aircraft, the number of engines, APU operation, and engines/APU fuel consumption, and is typically assumed for 10 to 15 minutes allowance of taxi and run-up operations.

• Maximum zero-fuel weight (MZFW) -

The maximum permissible weight of the aircraft less all usable fuel and other specified usable agents (engine injection fluid, and other consumable propulsion agents). It is the maximum weight permitted before usable fuel and other specified usable fluids are loaded in specified sections of the airplane.

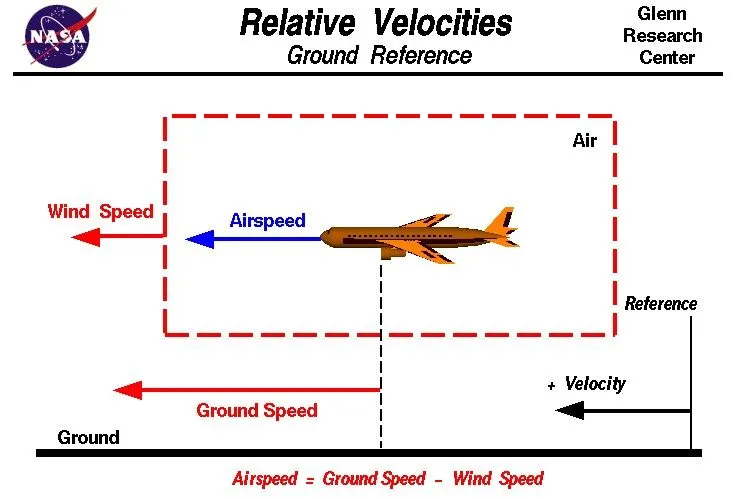

2. Is there any difference between ground speed and air speed?

• Ground Speed -

  Ground speed is the horizontal speed of an aircraft relative to the Earth’s surface. It is vital for accurate navigation to the destination that the pilot has an estimate of the ground speed that will be achieved during a flight.

  An aircraft diving vertically would have a ground speed of zero. Information displayed to passengers through the entertainment system of airline aircraft usually gives the aircraft ground speed rather than airspeed.

  Ground speed can be determined by the vector sum of the aircraft's true airspeed and the current wind speed and direction; a headwind subtracts from the ground speed, while a tailwind adds to it. Winds at other angles to the heading will have components of either headwind or tailwind as well as a crosswind component.

• Air Speed - In aviation, airspeed is the speed of an aircraft relative to the air.

Airspeed is the vector difference between the ground speed and the wind speed. On a perfectly still day, the airspeed is equal to the ground speed. But if the wind is blowing in the same direction that the aircraft is moving, the airspeed will be less than the ground speed.

Conclusion - Yes there is a difference between air speed and the ground speed , On a perfectly still day, the airspeed is equal to the ground speed. But if the wind is blowing in the same direction that the aircraft is moving, the airspeed will be less than the ground speed.

3. Why is it not recommended to use aircraft engine power to move it on the ground at Airport?

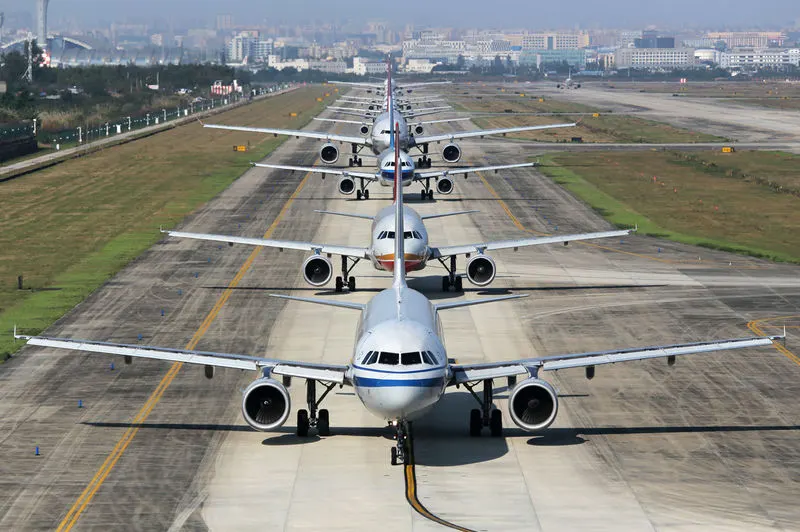

Taxiing (rarely spelled taxying) is the movement of an aircraft on the ground, under its own power, in contrast to towing or pushback where the aircraft is moved by a tug. The aircraft usually moves on wheels, but the term also includes aircraft with skis or floats (for water-based travel).

An airplane uses taxiways to taxi from one place on an airport to another; for example, when moving from a hangar to the runway. The term "taxiing" is not used for the accelerating run along a runway prior to takeoff, or the decelerating run immediately after landing, which are called the takeoff roll and landing rollout, respectively.

However it not recommended to use aircraft engine power to move it on the ground at Airport because -

• The jet blast or prop wash might cause damage to the terminal building or equipment.
• Engine close to ground may also blow sand and debris forward and then suck them into the engine, causing damage to the engine.
• It is easier for truck driver to see surrounding better than the pilot sitting in the cockpit with limited window.
• It also save fuel.

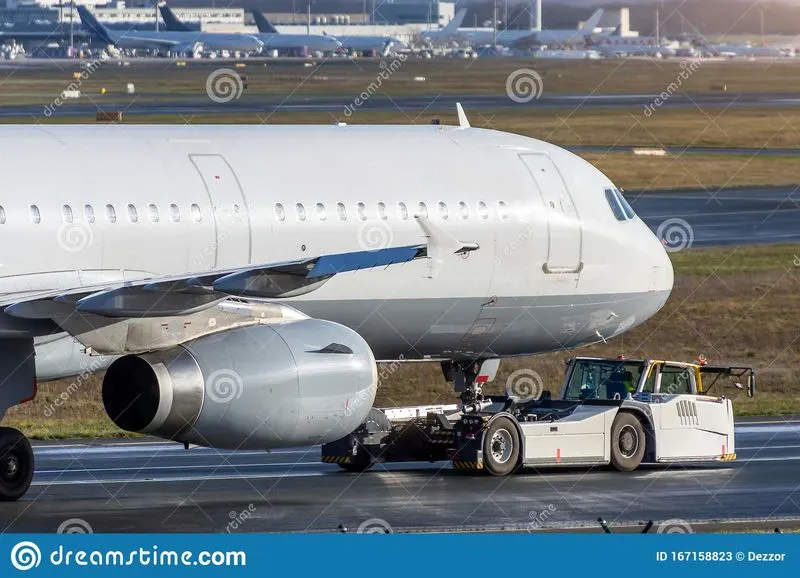

Aircraft towing is a frequent and vital operation around any airport. The aircraft is attached it to the tow vehicle by the use of a towbar or other specialized methods that connect to or raise the nose or landing gear off the ground.

4. How an aircraft is pushed to runway when its ready to take off?

In aviation, pushback is an airport procedure during which an aircraft is pushed backwards away from its parking position, usually at an airport gate by external power. Pushbacks are carried out by special, low-profile vehicles called pushback tractors or tugs.

Although many aircraft are capable of moving themselves backwards on the ground using reverse thrust (a procedure referred to as a powerback), the resulting jet blast or prop wash might cause damage to the terminal building or equipment. Engines close to the ground may also blow sand and debris forward and then suck them into the engine, causing damage to the engine. A pushback is therefore the preferred method to move the aircraft away from the gate.

Aircraft towing is a frequent and vital operation around any airport. The aircraft is attached it to the tow vehicle by the use of a towbar or other specialized methods that connect to or raise the nose or landing gear off the ground.

5. Learn about take off power, tyre design, rolling resistance, tyre pressure, brake forces when landing.

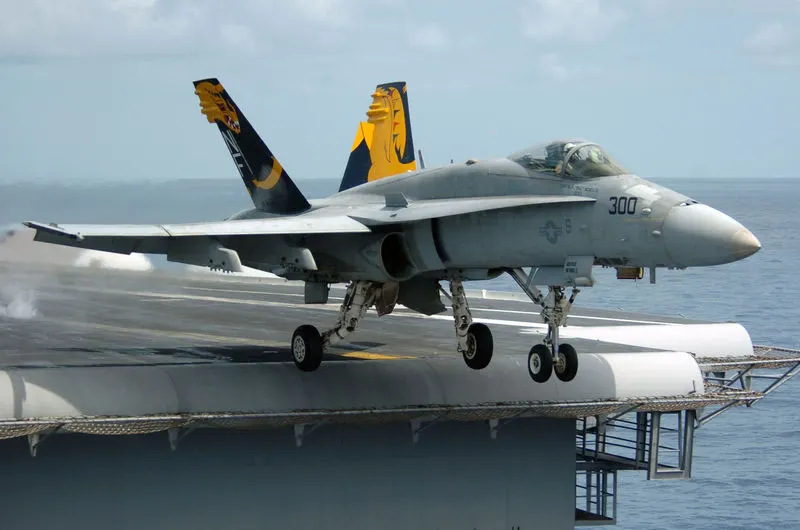

• Take Off power -

  Takeoff is the phase of flight in which an aerospace vehicle leaves the ground and becomes airborne. For aircraft traveling vertically, this is known as liftoff.

  For aircraft that take off horizontally, this usually involves starting with a transition from moving along the ground on a runway. For ballons, helicopter and some specialized fixed-wing aircraft (VTOL aircraft such as the Harrier), no runway is needed.

• For light aircraft , usually full power is used during takeoff. Large transport category (airliner) aircraft may use a reduced power for takeoff, where less than full power is applied in order to prolong engine life, reduce maintenance costs and reduce noise emissions. In some emergency cases, the power used can then be increased to increase the aircraft's performance. Before takeoff, the engines, particularly piston engine, are routinely run up at high power to check for engine-related problems. The aircraft is permitted to accelerate to rotation speed (often referred to as V_r). The term rotation is used because the aircraft pivots around the axis of its main landing gear while still on the ground, usually because of gentle manipulation of the flight controls to make or facilitate this change in aircraft attitude (once proper air displacement occurs under / over the wings, an aircraft will lift off on its own; controls are to ease that in).

  The nose is raised to a nominal 5°–15° nose up pitch attitude to increase lift from the wings and effect liftoff. For most aircraft, attempting a takeoff without a pitch-up would require cruise speeds while still on the runway.



• Tyre Design -

Tire Markings

Tire Terminologies -

1. Apex strip - A triangular piece of stiff rubber which is fitted onto the bead core to taper the rigid bead into the flexible body plies in the sidewall.

2. Aramid cord protector - The tire is constructed with an aramid ply insert between the tread and the top belt to prevent damage to the tire belts.

3. Bead heel - Outer edge of the bead.

4. Bead toe - Inner edge of the bead.

5. Belt plies (Nylon cord) - Angled belt plies which serve to add strength to the tire especially in the tread area.

6. Belt plies (High modulus cord) - Belt plies which serve to add strength to the tire especially in the tread area.

7. Chafer strip - Protective layer of rubber and fabric which prevents chafing between cord body plies and the wheel.

8. Carcass plies - Layers of rubber-coated fabric plies which have the cords running radially from bead to bead. These provide the tire with strength in the sidewall area.

9. Innerliner - A sheet of low permeable rubber laminated to the inside of the first casing ply of a tubeless tire to insure retention of air when tire is inflated.

10. Sidewall - The side area of the tire located between the shoulder and the beads. Composed of rubber, it protects the carcass from damage.

11. Undertread - A rubber layer provided for use in retreading the tire and which provides adhesion of tread to the tire carcass. Bridgestone makes this rubber layer thick enough to ensure a high number of retreads.

12. Venting hole - The hole through which gas is vented from inside the carcass plies.

• Rolling Resistance -

Rolling resistance, sometimes called rolling friction or rolling drag, is the force resisting the motion when a body (such as a ball, tire, or wheel) rolls on a surface. It is mainly caused by non-elastic effects; that is, not all the energy needed for deformation (or movement) of the wheel, roadbed, etc., is recovered when the pressure is removed.

A rubber tire will have higher rolling resistance on a paved road than a steel rail-road wheel on a steel rail. Also, sand on the ground will give more rolling resistance than concrete. Sole rolling resistance factor is not dependent on speed.

The "rolling resistance coefficient" is defined by the following equation:

where

is the rolling resistance force

is the dimensionless rolling resistance coefficient or coefficient of rolling friction (CRF), and

is the normal force, the force perpendicular to the surface on which the wheel is rolling.

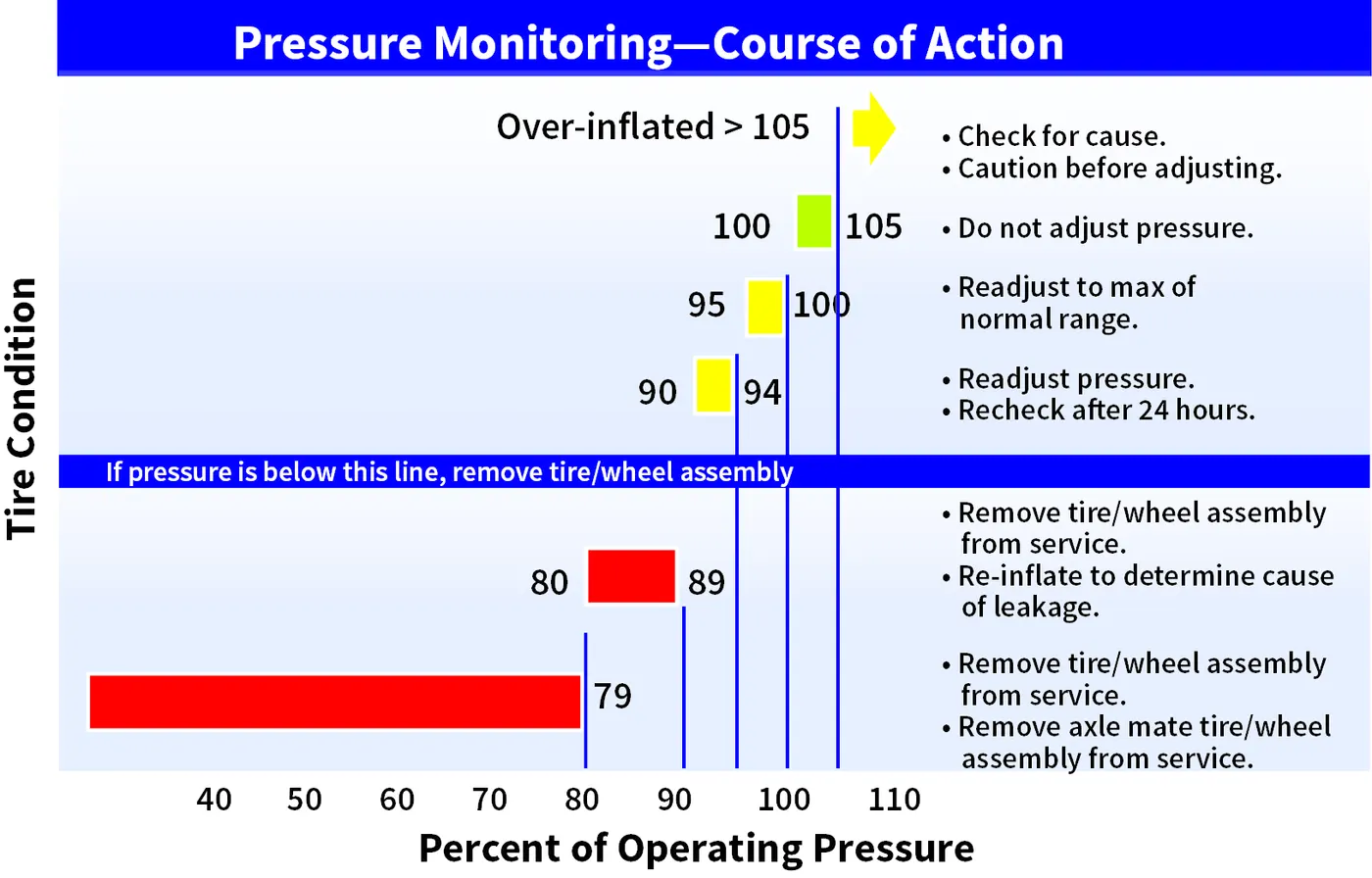

• Tyre Pressure -

Aircraft tires generally operate at high pressures, up to 200 psi (14 bar; 1,400 kPa) for airliners, and even higher for business jets. The main landing gear on the Concorde was typically inflated to 232 psi (16.0 bar), whilst its tail bumper gear tires were as high as 294 psi (20.3 bar).

Because aircraft tires operate at such high extremes of pressure, load, and speed, their care and service is critically important. The most important action an operator can take to prevent tire-related events is to maintain proper tire inflation pressure. Failure to keep aircraft tires properly inflated can lead to very serious consequences. The most serious of these is the structural failure of the tire. If the tire operates underinflated or overdeflected/overloaded, the nylon cords which form the structure of the tire go in and out of compression as the tire rotates. This weakens the cords – much like a paperclip which is bent back and forth – until eventually the cords break. If enough cords break, the entire structure will eventually fail.

• Brake Force When Landing -

Aircraft braking systems include:

• Aircraft Disc Brakes in the landing gear, used to brake the wheels while touching the ground. These brakes are operated hydraulically or pneumatically. In most modern aircraft they are activated by the top section of the rudder pedals ("toe brakes"). In some older aircraft the bottom section is used instead ("heel brakes"). Levers are used in a few aircraft. Most aircraft are capable of differential braking.

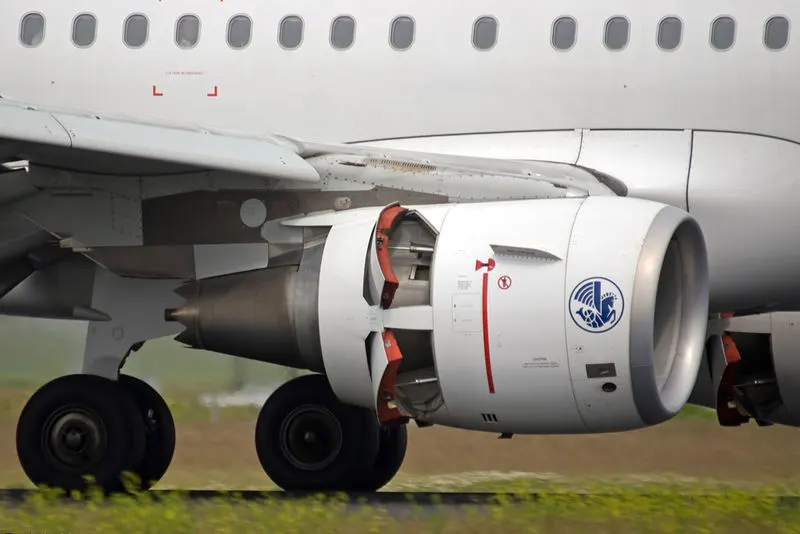

• Thrust Reverses, that allow thrust from the engines to be used to slow the aircraft.
• Air Brakes, dedicated flight control surfaces that work by increasing drag.

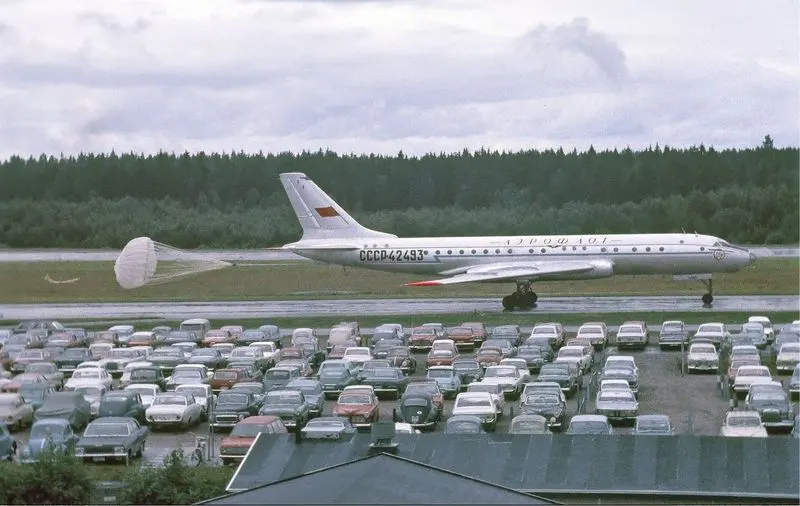

• Large drogue parachutes, used by several former and current military and civilian aircraft (examples include the American B-52 and the soviet Tu-134 and Tu-144) and in the Space Shuttle.

Aircraft Disc Brakes -

A disc brake is a type of brake that uses the calipers to squeeze pairs of pads against a disc or a "rotor" to create friction. This action slows the rotation of a shaft, such as a vehicle action, either to reduce its rotational speed or to hold it stationary. The energy of motion is converted into waste heat which must be dispersed.

Hydraulically Actuated disc brakes are the most commonly used form of brake for motor vehicles, but the principles of a disc brake are applicable to almost any rotating shaft. The components includes the disc, master cylinder, caliper (which contains cylinder and two brake pads) on both side of the disc.

Thrust Reversal -

Thrust reversal, also called reverse thrust, is the temporary diversion of an aircraft engine's thrust for it to act against the forward travel of the aircraft, providing deceleration. Thrust reverser systems are featured on many jetaircraft to help slow down just after touch-down, reducing wear on the brakes and enabling shorter landing distances. Such devices affect the aircraft significantly and are considered important for safe operations by ailines. There have been accidents involving thrust reversal systems, including fatal ones.

Reverse thrust is also available on many propeller driven aircraft through reversing the controllable pitch propeller to a negative angle. The equivalent concept for a ship is called astern propulsion.

Drogue parachute -

A drogue parachute is a parachute designed for deployment from a rapidly-moving object. It can be used for various purposes, such as to decrease speed, to provide control and stability, or as a pilot parachute to deploy a larger parachute. Vehicles that have used drogue parachutes include multi-stage parachutes, aircraft, and spacecraft recovery systems.

PART B -

6. A. With necessary assumptions, calculate the force and power required to push / pull an aircraft by a towing vehicle.

B. Develop the model for the calculated force and power using Simulink.

A. With necessary assumptions, calculate the force and power required to push / pull an aircraft by a towing vehicle.

Forces in consideration -

1. Rolling Resistance Force
2. Aerodynamic Drag Force

There is no inclination taking Hill Climbing Force = 0

Assumption For Calculation -

1. Rolling Resistance Force (Frr)

Frr = μrr * m * g

μrr = Rolling Resistance Coefficient

m = Mass of Vehicle

g = Acceleration due to gravity (9.81 m / s^2)

Assumption -

Air craft mass (Airbus A310-200) = 142000 kg

Mass of towing vehicle = 45000 kg

Total mass (m) = 142000 + 45000 = 187000 kg

Rolling Resistance Coefficient (μrr) = 0.02

Speed of vehicle (V ) = 30 kmph = 8.33 m/s

We Know That -

Frr = μrr * m * g

Frr = 0.02 * 187000 * 9.81 = 36689.40 N

2. Aerodynamic Drag Force (Fd)

Fd = 0.5 * ρ * A * V^2 *Cd

Assumption -

Air density ( ρ) = 1.225 kg/m^3

Frontal Area (A) = 22 m^2

Drag Coefficient (Cd) = 0.55

Speed of vehicle (V ) = 30 kmph = 8.33 m/s

We Know That -

Fd = 0.5 * ρ * A * V^2 *Cd

Fd = 0.5 * 1.225 *22 * 8.33^2 * 0.55 = 514.25 N

Total Force required to push / pull an aircraft by a towing vehicle = Frr + Fd = 36689.40 + 514.25 = 37203.65 N

Power Calculation (P)-

Power (P) = Ftotal * V

P = 37203.65 * 8.33 = 309.90 KW

B. Develop the model for the calculated force and power using Simulink.

Simulink Modal -

Blocks Used -

• Constant Block For putting the data for calculatioin of Friction Resistance Force and Drag Force .
• Product Block for multiplying the values.
• Addition Block - For adding Friction Resistance Force and Drag Force
• Display Block - Our output is shown in the display block .

Conclusion -

• Friction Resistance Force (Frr) = 36689.40 N
• Drag Force (Fd) = 514.25 N
• Total Force (Ft) = 37203.65 N
• Power (P) = 309.90 KW

7. A. Design an electric powertrain with type of motor, it’s power rating, and energy requirement to fulfill aircraft towing application in Simulink. Estimate the duty cycle range to control the aircraft speed from zero to highest. Make all required assumptions. Prepare a table of assumed parameters. Draw a block diagram of powertrain.

Assumption For Designing Electric Power train -

Motor Type - BLDC Motor

Rated Power - 350 Kw

Peak power - 400 Kw

Time For Running - 20 min

Output Power = 309.90 Kw

• Energy requirement (E) = Energy (E) = P * t = 309.90 * 20 / 60 = 103.3 KWh ( energy required for towing the aircraft for 20 minutes)
• Duty Cycle(D) = Power Required / Rated Power

Duty Cycle = 309.90 / 350 = 0.885

Duty Cycle = 88.50 %

Block Diagram Of Powertrain -

EXCEL SHEET -
