Project 1 - Parsing NASA thermodynamic data

HHarbans Lal12 Aug 2022

AIM: To write a MATLAB program that extracts the 14 coefficients and calculates the enthalpy, entropy, and specific heats for all the species in the data file

OBJECTIVES:

To develop a function that extracts the 14 coefficients and calculates the enthalpy, entropy, and specific heats for all the species in the data file.
Develop a code to calculate the molecular weight of each species and display it in the command window.
To plot the Cp, Enthalpy, and Entropy for the local temperature range (low temperature: high temperature) specific for each species.
To save the plots as images with appropriate names and dump them in separate folders for each species with a suitable name. All of these should be generated automatically.

Principle:

NASA came up with polynomials that can be used to evaluate thermodynamic properties such as Cp, H, and S. They have also documented the coefficients that are required to evaluate these polynomials for 1000+ species.

Solution Procedure:

Here R is the universal gas constant, T is the temperature

CpR=x1+(x2)T+(x3)T2+(x4)T3+(x5)T4CpR=x1+(x2)T+(x3)T2+(x4)T3+(x5)T4

HRT=x1+(x2)T2+(x3)T23+(x4)T34+(x5)T45+x6THRT=x1+(x2)T2+(x3)T23+(x4)T34+(x5)T45+x6T

SR=x1lnT+(x2)T+(x3)T22+(x4)T33+(x5)T44+x7SR=x1lnT+(x2)T+(x3)T22+(x4)T33+(x5)T44+x7

We will use these above the Specific Heat, Entropy, and Enthalpy as function code in Matlab and used to calculate the above and plot the graph accordingly

File Parsing is how a piece of file information can be used in a computer program. Read data from external files and databases and include that data in your calculation.

File Writing - writing data in a particular file

Steps for choosing the logic of code and file parsing -

Step 1: - We open the file and parse the file, fopen is used to open a file.

Step 2: - To navigate throughout the file, use (fgetl) command to get the line of the file and read the file line by line to get to the desired result.

Step 3: - Reading the text from the header file and read the file line by line

Step 4: - String split command then cell array is generated. A cell array is a special data structure to store data of different types and perform the desired task

Step 5: - The function for Cp, H, and S is created to calculate them by taking the values from the file data

Step 6: - Molecular weight is calculated using the molecular weight function and is printed on the command window

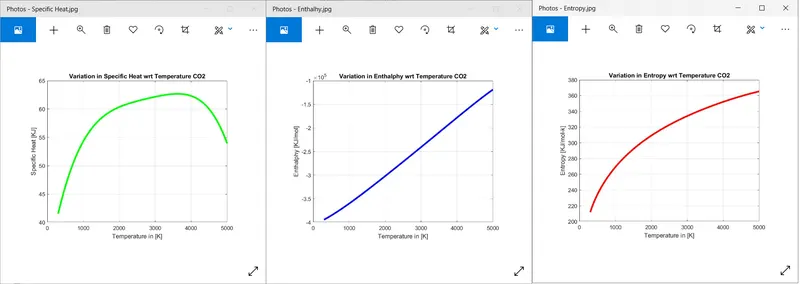

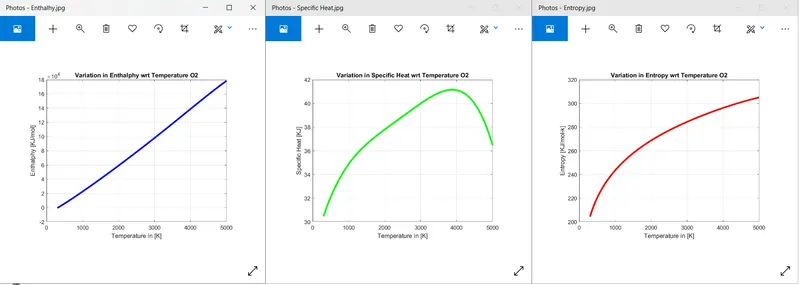

Step 7: - The plots for Cp, H, and S are created for each species and saved in a folder in jpg format to access the species with different images

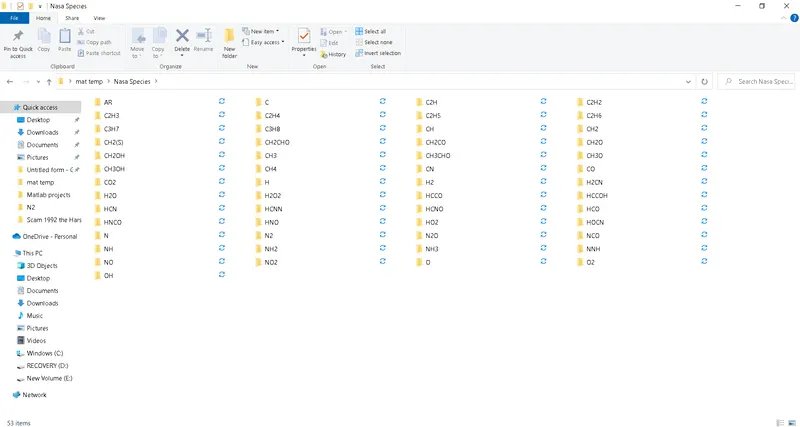

Step 8: - Create folders for different molecules and save the plots for specific heat, enthalpy, and entropy in that folder and display the molecular weight of different species in the command window

The logic for the code is explained below and file parsing is a beneficial technique. Parsing a file means reading in a data stream of some sort and building an in-memory model of the semantic content of that data. This aims at facilitating performing some kind of transformation on the data and It means, to a computer, what “reading text” means to a human being. You scan it, from start to finish, and figure out what it means as you go - whether you’re” a person reading text or a computer parsing a file

CODE for the functions used in the main program: -

Entropy: -

Entropy is a scientific concept, as well as a measurable physical property that is most commonly associated with a state of disorder, randomness, or uncertainty.

SR=x1lnT+(x2)T+(x3)T22+(x4)T33+(x5)T44+x7SR=x1lnT+(x2)T+(x3)T22+(x4)T33+(x5)T44+x7

CODE for the Entropy function: -

%Funtion for the entropy
function [S] = entropy_S(x1,x2,x3,x4,x5,x7,x8,x9,x10,x11,x12,x14,temp,gb_m,r)
%Checking for the temperaure

%The FIRST 7 coefficients are HIGH-temperature coefficients and the SECOND 7 coefficients are LOW-temperature coefficients
if(temp<=gb_m)
    S = r.*(x8.*log(temp) +(x9.*temp) +(x10*((temp).^2)/2) + (x11*((temp).^3)/3) + (x12*((temp).^4)/4) + (x14));

else
    S = r.*(x1.*log(temp) +(x2.*temp) +(x3*((temp).^2)/2) + (x4*((temp).^3)/3) + (x5*((temp).^4)/4) + (x7));

end

Explanation of the above code: -

%Funtion for the entropy - comments to make a program user friendly
function [S] = entropy_S(x1,x2,x3,x4,x5,x7,x8,x9,x10,x11,x12,x14,temp,gb_m,r) -

function is used to make the code easy to implement,it is a group of statements that together perform a task
%Checking for the temperature -comments
%The FIRST 7 coefficients are HIGH-temperature coefficients and the SECOND 7 coefficients are LOW-temperature coefficients - comments
if(temp<=gb_m) - comparing matrix values of the temperature generated from the linspace command with the global medium temperature
S = r.*(x8.*log(temp) +(x9.*temp) +(x10*((temp).^2)/2) + (x11*((temp).^3)/3) + (x12*((temp).^4)/4) + (x14)); - calculation of the entropy wrt to the equations
else - else statement to perform the task if the if statements fail
S = r.*(x1.*log(temp) +(x2.*temp) +(x3*((temp).^2)/2) + (x4*((temp).^3)/3) + (x5*((temp).^4)/4) + (x7)); - calculation of the entropy wrt to the equations
end - to end or terminate the function

_____________________________________________________________________________________________

Enthalpy: -

is a property of a thermodynamic system, defined as the sum of the system's internal energy and the product of its pressure and volume.It is a convenient state function standardly used in many measurements in chemical, biological, and physical systems at a constant pressure.

HRT=x1+(x2)T2+(x3)T23+(x4)T34+(x5)T45+x6THRT=x1+(x2)T2+(x3)T23+(x4)T34+(x5)T45+x6T

CODE for the Enthalpy function: -

%Funtion for the enthalpy
function [H] = enthalpy_H(x1,x2,x3,x4,x5,x6,x8,x9,x10,x11,x12,x13,temp,gb_m,r)
%Checking for the temperaure

%The FIRST 7 coefficients are HIGH-temperature coefficients and the SECOND 7 coefficients are LOW-temperature coefficients
if(temp<=gb_m)
    H = r*temp.*(x8 + ((x9*temp)/2) + ((x10*(temp).^2)/3) + ((x11*(temp).^3)/4) + ((x12*(temp).^4)/5) + ((x13./temp)));
else

    H = r*temp.*(x1 + ((x2*temp)/2) + ((x3*(temp).^2)/3) + ((x4*(temp).^3)/4) + ((x5*(temp).^4)/5) + ((x6./temp)));
end

Explanation of the above code: -

%Funtion for the enthalpy - comments to make a program user friendly
function [H] = enthalpy_H(x1,x2,x3,x4,x5,x6,x8,x9,x10,x11,x12,x13,temp,gb_m,r) - function is used to make the code easy to implement ,it is a group of statements that together perform a task
%Checking for the temperature -comments
%The FIRST 7 coefficients are HIGH-temperature coefficients and the SECOND 7 coefficients are LOW-temperature coefficients - comments
if(temp<=gb_m) - comparing matrix values of the temperature generated from the linspace command with the global medium temperature
H = r*temp.*(x8 + ((x9*temp)/2) + ((x10*(temp).^2)/3) + ((x11*(temp).^3)/4) + ((x12*(temp).^4)/5) + ((x13./temp))); - calculation of the enthalpy wrt to the equations
else - else statement to perform the task if the if statements fail
H = r*temp.*(x1 + ((x2*temp)/2) + ((x3*(temp).^2)/3) + ((x4*(temp).^3)/4) + ((x5*(temp).^4)/5) + ((x6./temp))); - calculation of the enthalpy wrt to the equations
end - to terminate the function

______________________________________________________________________________________________

Specific Heat(Cp): -

In thermodynamics, the specific heat capacity (Cp) of a substance is the heat capacity of a sample of the substance divided by the mass of the sample.

CpR=x1+(x2)T+(x3)T2+(x4)T3+(x5)T4CpR=x1+(x2)T+(x3)T2+(x4)T3+(x5)T4

CODE for the Specific Heat function: -

%Funtion for the Specific Heat
function [Cp] = Specific_heat(x1,x2,x3,x4,x5,x8,x9,x10,x11,x12,temp,gb_m,r)
%Checking for the temperaure
%The FIRST 7 coefficients are HIGH-temperature coefficients and the SECOND 7 coefficients are LOW-temperature coefficients
if(temp<=gb_m)
   Cp = r.*(x8 +(x9.*temp) +(x10*(temp).^2) + (x11*(temp).^3) + (x12*(temp).^4));

else
     Cp = r.*(x1 +(x2.*temp) +(x3*(temp).^2) + (x4*(temp).^3) + (x5*(temp).^4));


end

Explanation of the above code: -

%Funtion for the Specific Heat - comments to make a program user friendly
function [Cp] = Specific_heat(x1,x2,x3,x4,x5,x8,x9,x10,x11,x12,temp,gb_m,r) - function is used to make the code easy to implement ,it is a group of statements that together perform a task
%Checking for the temperature -comments
%The FIRST 7 coefficients are HIGH-temperature coefficients and the SECOND 7 coefficients are LOW-temperature coefficients
if(temp<=gb_m) - comparing matrix values of the temperature generated from the linspace command with the global medium temperature
Cp = r.*(x8 +(x9.*temp) +(x10*(temp).^2) + (x11*(temp).^3) + (x12*(temp).^4)); - calculation of the Specific heat wrt to the equations
else - else statement to perform the task if the if statements fail
Cp = r.*(x1 +(x2.*temp) +(x3*(temp).^2) + (x4*(temp).^3) + (x5*(temp).^4)); - calculation of the Specific heat wrt to the equations
end

______________________________________________________________________________________________

Molecular Weight: -

The molecular mass is the mass of a given molecule

CODE for the Molecular weight function: -

%function calculate molecular mass
function mw = mol_wt(sp_name)
%storing value
compound_name = (sp_name)
% creating an array of elements
key_at = ['C','H','O','N','A'];
%storing the atomic mss value in the array
value_at = [12.0107 1.00794 15.994 14.0067 39.948];

%asssigning molecular mass as 0
mw =0 ;
%creating for loop to perform the task
for i = 1:length(compound_name)
    for j = 1:length(key_at)
        %comparing the string value
        if strcmp(compound_name(i),key_at(j))
            %if above comparision is true value of molecular mass is
            %calculated

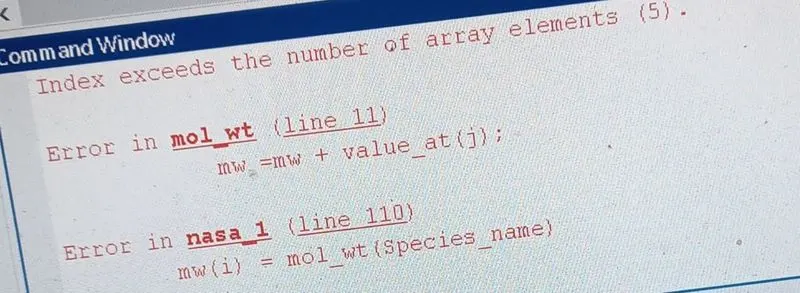

            mw =mw + value_at(j);
            %storing the position for further use
            pos = j;

        end
    end
    %converting the srting to number
    k = str2num(compound_name(i));
    %comparing if the value of k is greater than executed the further statements
    if(k>1)
        %molecular mass calculation
        mw = mw + value_at(pos)*(k-1);
    end
end
%command to print the molecular masss of the molecule

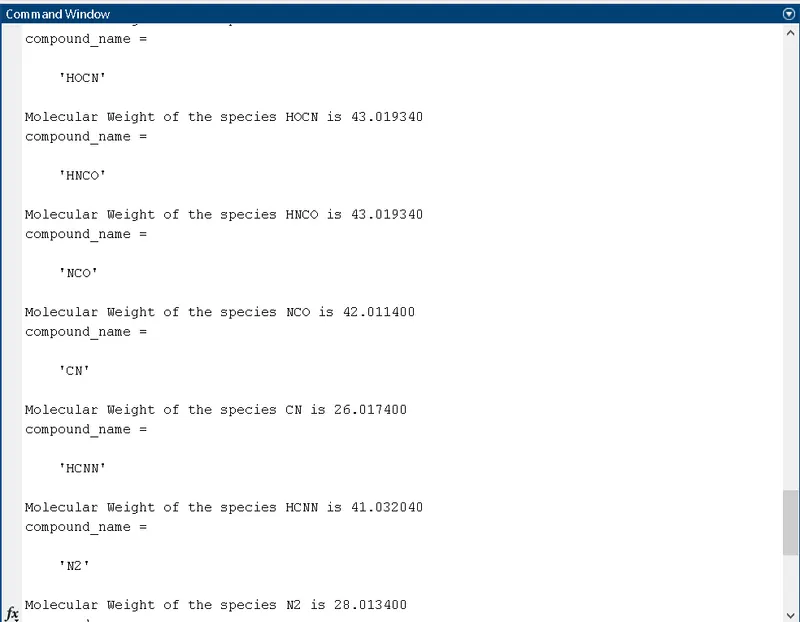

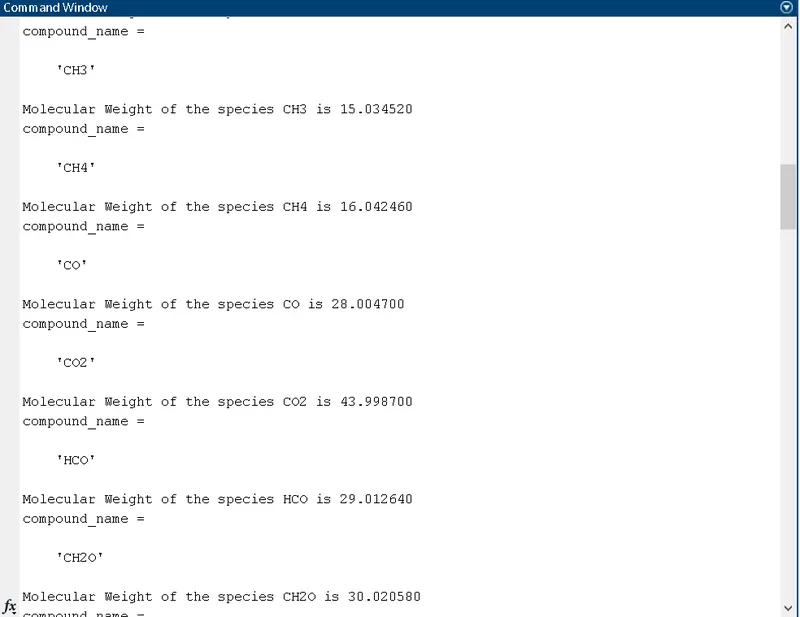

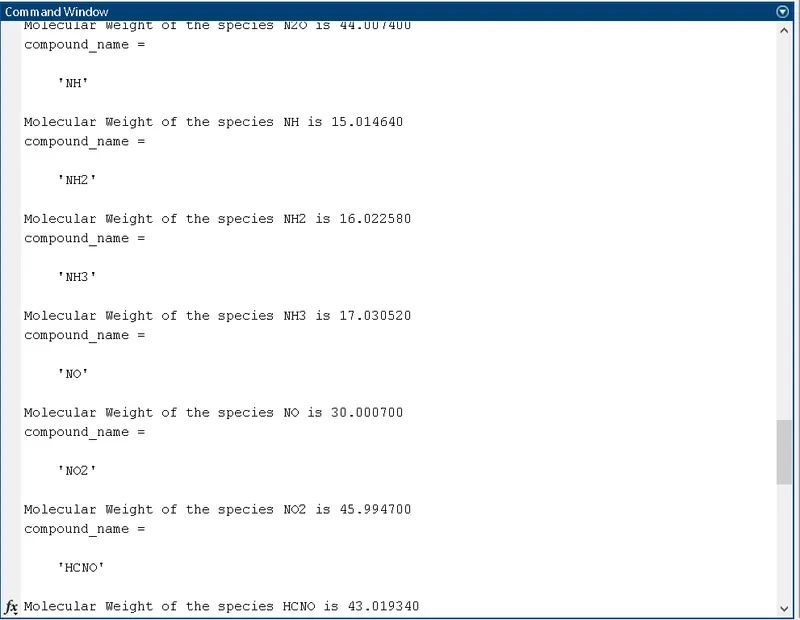

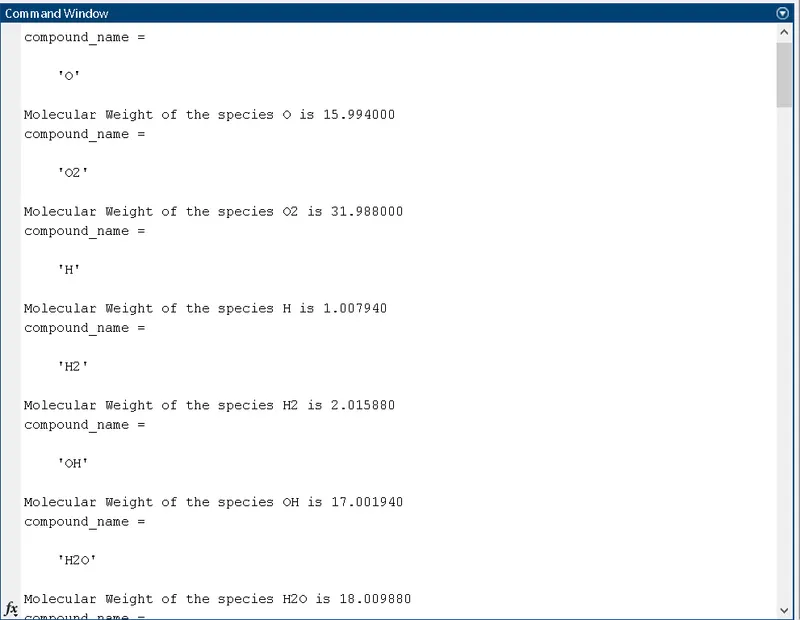

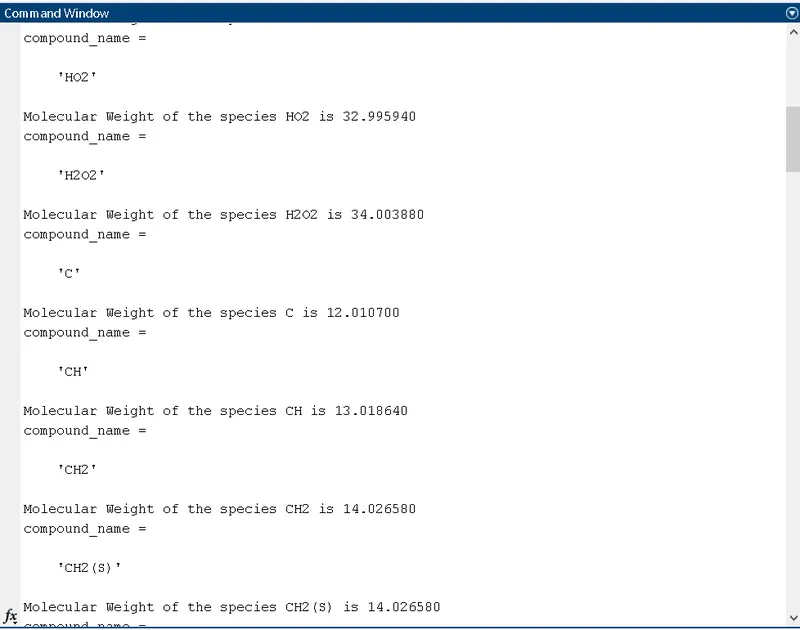

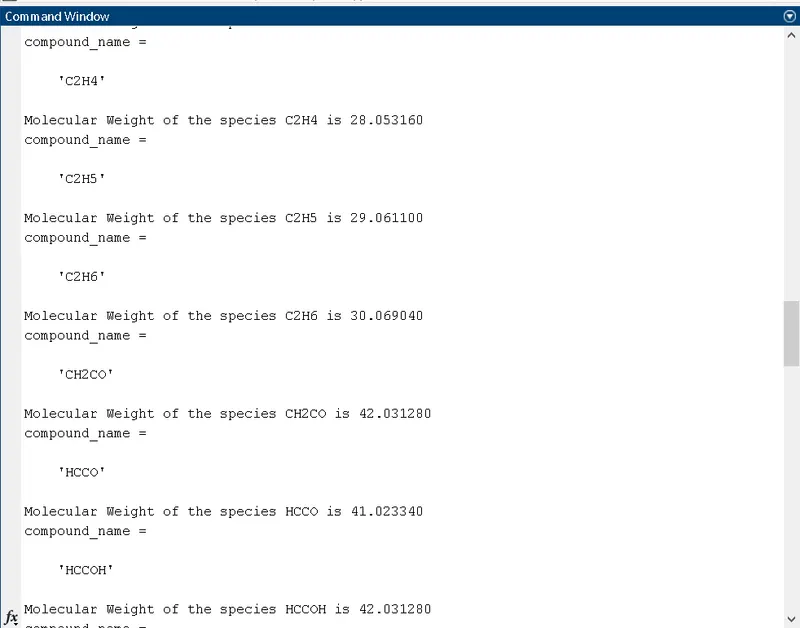

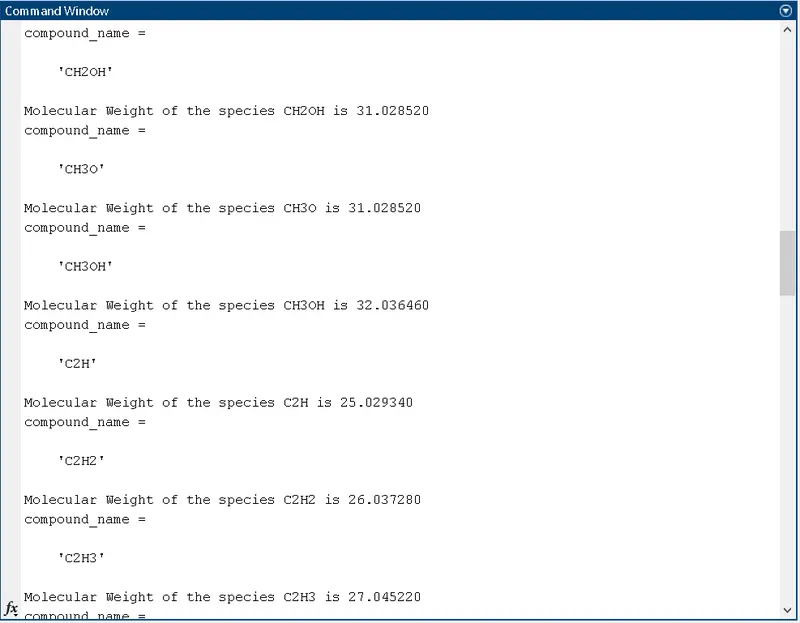

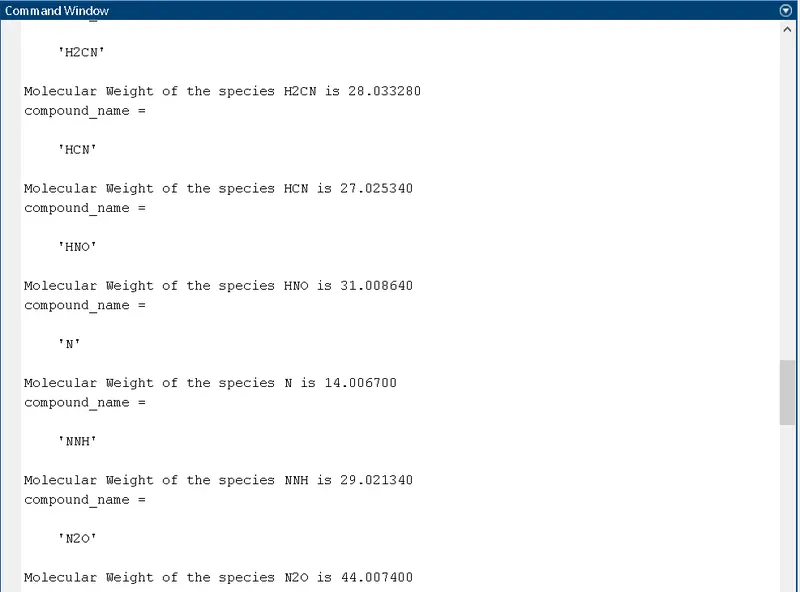

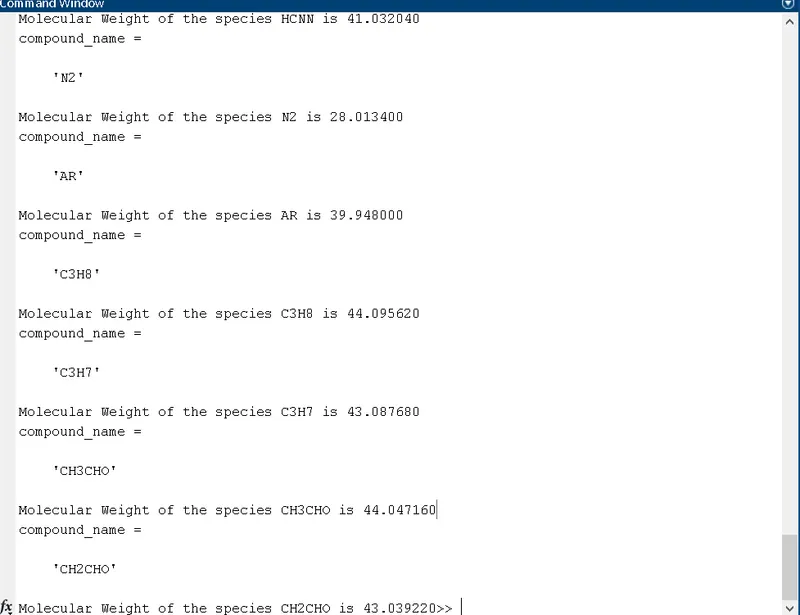

fprintf('Molecular Weight of the species %s is %f',compound_name ,mw)
end

Explanation of the above code: -

%function calculate molecular mass - comments to make a program user friendly
function mw = mol_wt(sp_name)
%storing value - comments to make a program user friendly
compound_name = (sp_name)
key_at = ['C','H','O','N','A']; - creating an array of elements
%storing the atomic mss value in the array - comments to make a program user friendly
value_at = [12.0107 1.00794 15.994 14.0067 39.948]; - storing the atomic mass value in the array

mw =0 ; -asssigning molecular mass as 0
%creating for loop to perform the task - comments to make a program user friendly
for i = 1:length(compound_name) - creating for loop to execute till the elements lenght
for j = 1:length(key_at) - creating for loop to execute till the key_at array length
%comparing the string value - comments to make a program user friendly
if strcmp(compound_name(i),key_at(j)) - comparing the string value of the species name and the elemts in the array key_at
%if above comparision is true value of molecular mass is - comments
%calculated- comments
mw =mw + value_at(j); - molecular mass calculation
%storing the position for further use- comments
pos = j; - storing the position
end - to terminate the if statement
end - to terminate the inner for j loop
k = str2num(compound_name(i)); - converting the srting to number
%comparing if the value of k is greater than executed the further statements- comments
if(k>1)
%molecular mass calculation mw = mw + value_at(pos)*(k-1);- comments
end - to terminate the if statement
end- to terminate the outer for i loop
%command to print the molecular masss of the molecule- comments
fprintf('Molecular Weight of the species %s is %f',compound_name ,mw) - to print the species name and value
end - to terminate the function

______________________________________________________________________________________________

Main CODE for NASA file parsing and plot generation: -

%File Parsing for a file
clc
clear all
close all

f1 = fopen('THERMO.dat','r');

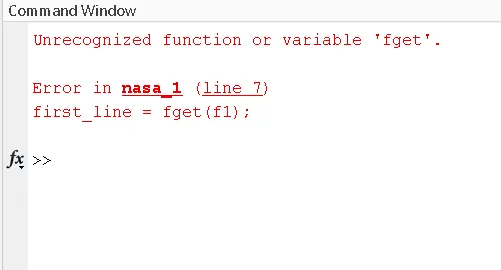

first_line = fgetl(f1);

%R is the universal gas constant J/(mol-K)

R = 8.314;
temp = fgetl(f1);

%Reading text from a header file
%Reading the global temperature from the next line

A = strsplit(temp,' ');

%Cell array is generated 1x4 cell array

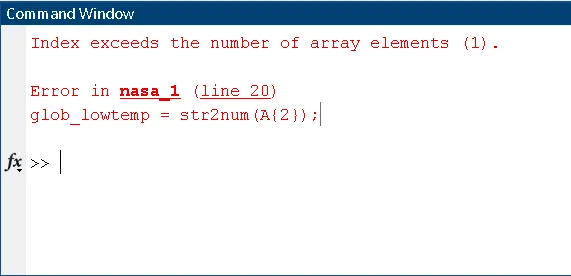

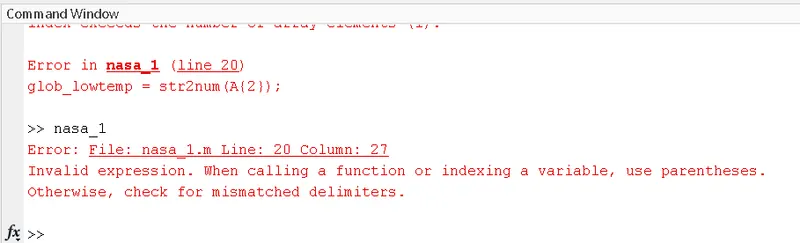

glob_lowtemp = str2num(A{2});

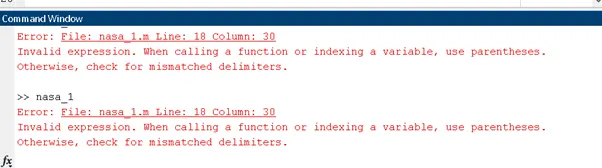

glob_midtemp = str2num(A{3});
glob_hightemp =str2num(A{4});

%Temperature range
Temperature = linspace(glob_lowtemp,glob_hightemp,1000);
%skipping the three comment lines
for j =1:3;
    k =fgetl(f1);
end
%running for loop fopr 53 times as there are 53 species
for i = 1:53;

    %Parsing of the species block
        tline = fgetl(f1);
        S =strsplit(tline,' ');
        Species_name =S{1};

        %Extracting the coefficients from first line
        line2 =fgetl(f1);
        x =findstr(line2,'E');

        %Finding the 5 coefficient
        x1 = line2(1:x(1)+3);
        x1 = str2num(x1);

        x2 = line2(x(1)+4:x(2)+3);
        x2 = str2num(x2);

        x3 = line2(x(2)+4:x(3)+3);
        x3 = str2num(x3);

        x4 = line2(x(3)+4:x(4)+3);
        x4 = str2num(x4);

        x5 = line2(x(4)+4:x(5)+3);
        x5 = str2num(x5);

        %line3 5coefficients
        line3 = fgetl(f1);
        x = findstr(line3,'E');

        x6 = line3(1:x(1)+3);
        x6 = str2num(x6);

        x7 = line3(x(1)+4:x(2)+3);
        x7 = str2num(x7);

        x8 = line3(x(2)+4:x(3)+3);
        x8 = str2num(x8);

        x9 = line3(x(3)+4:x(4)+3);
        x9 = str2num(x9);

        x10 = line3(x(4)+4:x(5)+3);
        x10 = str2num(x10);

        %Line4  4coefficients

        line4=fgetl(f1);
        x = findstr(line4,'E');

        x11 = line4(1:x(1)+3);
        x11 = str2num(x11);

        x12 = line4(x(1)+4:x(2)+3);
        x12 = str2num(x12);

        x13 = line4(x(2)+4:x(3)+3);
        x13 = str2num(x13);

        x14 = line4(x(3)+4:x(4)+3);
        x14 = str2num(x14);


        % Entropy Calculation

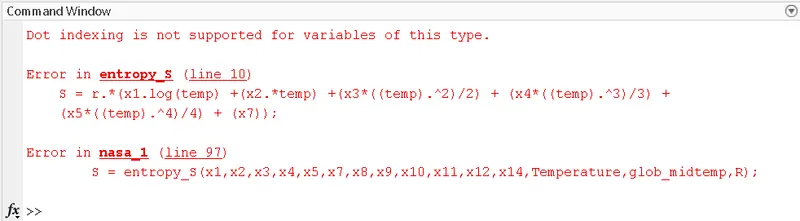

        S = entropy_S(x1,x2,x3,x4,x5,x7,x8,x9,x10,x11,x12,x14,Temperature,glob_midtemp,R);

        %Cp calculation means Specific Heat calculation


        Cp = Specific_heat(x1,x2,x3,x4,x5,x8,x9,x10,x11,x12,Temperature,glob_midtemp,R);

        %Enthlpy Calculation is H

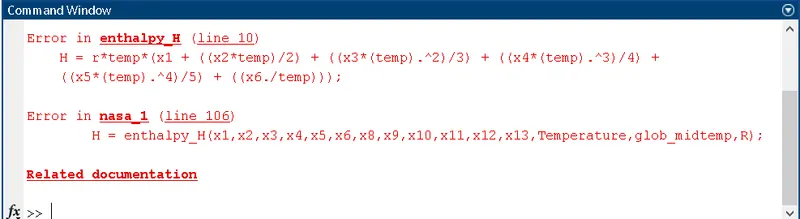

        H = enthalpy_H(x1,x2,x3,x4,x5,x6,x8,x9,x10,x11,x12,x13,Temperature,glob_midtemp,R);

        %Molecular Weight calculation of different elements

        mw(i) = mol_wt(Species_name);

        %Reading and writinh of the molecular wieght in the list of molecular
        %wieght
        Moll_wt = fopen('Molecular Weight.txt','w');

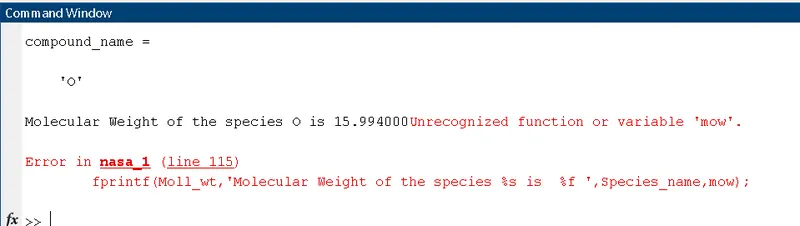

        fprintf(Moll_wt,'Molecular Weight of the species %s is  %f ',Species_name,mw);
        fprintf(Moll_wt,'/n');
        fclose(Moll_wt);

        % Plotting on the graph for species fo the temperature and specific
        % heat

        %Creating a folder for saving the species with its properties

        directory_curr = pwd;

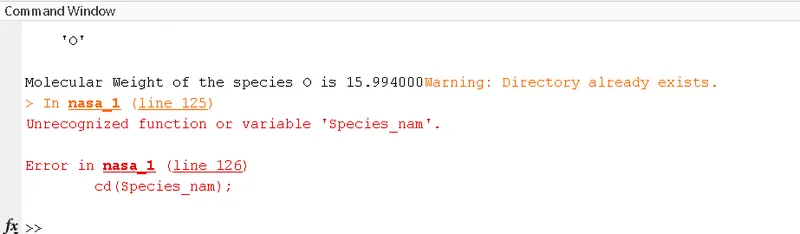

        mkdir(Species_name);
        cd(Species_name);

        %Plotting the graph in different plotting window
        %plot 1 for the temperature and entropy
        %plot 2 for the temperature and enthalpy
        %plot 3 for the temperature and specific heat


        %plot 1 Enthalphy and Temperaure

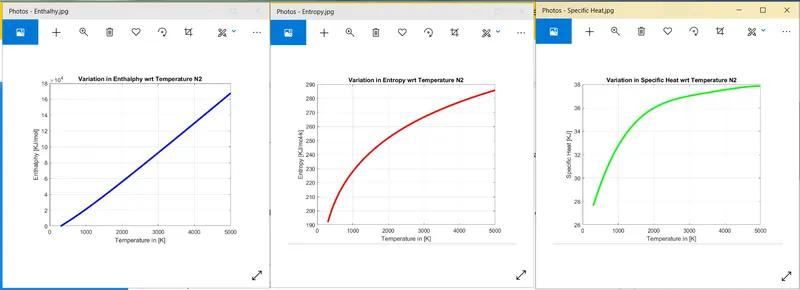

        figure(1)
        plot(Temperature,H,'linewidth',3,'color','b');
        xlabel('Temperature in [K]');
        ylabel('Enthalphy [KJ/mol]');
        grid on
        title(sprintf('Variation in Enthalphy wrt Temperature %s',Species_name));

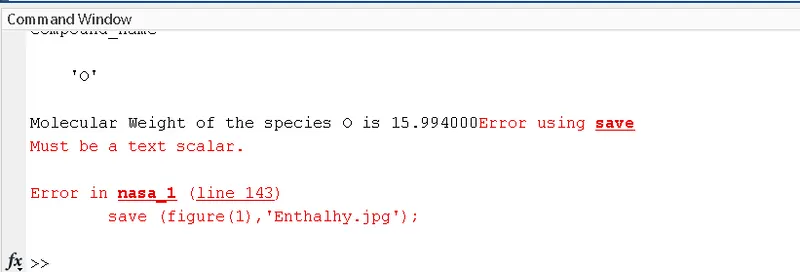

        saveas (figure(1),'Enthalhy.jpg');

         %plot 2 Entropy and Temperature

        figure(2)
        plot(Temperature,S,'linewidth',3,'color','r');
        xlabel('Temperature in [K]');
        ylabel('Entropy [KJ/mol-k]');
        grid on
        title(sprintf('Variation in Entropy wrt Temperature %s',Species_name));

        saveas (figure(2),'Entropy.jpg');

         %plot 3 Specific Heat and Temperature

        figure(3)
        plot(Temperature,Cp,'linewidth',3,'color','g');
        xlabel('Temperature in [K]');
        ylabel('Specific Heat [KJ]');
        grid on
        title(sprintf('Variation in Specific Heat wrt Temperature %s',Species_name));

        saveas (figure(3),'Specific Heat.jpg');

        cd(directory_curr);

end

Explanation of the above CODE: -

%File Parsing for a file - comments to make a program user friendly
clc - to clear the command window
clear all - to clear all the workspace variables
close all - to close all the output window
f1 = fopen('THERMO.dat','r'); - command to open a file in read mode
first_line = fgetl(f1); - to read file line by line
%R is the universal gas constant J/(mol-K)
R = 8.314; - constant
temp = fgetl(f1); - to save the line in the temp variable

%Reading text from headerfile - comments to make a program user friendly
%Reading the global temperature from the next line
A = strsplit(temp,' '); - to split the line saved in temp variable when space(' ') is found

%Cell array is generated 1x4 cell array
glob_lowtemp = str2num(A{2}); - assigning the global lower temperature
glob_midtemp = str2num(A{3});- assigning the global middle temperature
glob_hightemp =str2num(A{4});- assigning the global high temperature

%Temperature range
Temperature = linspace(glob_lowtemp,glob_hightemp,1000); - command to generate the 1000 values between the range of temperature
%skipping the three comment lines
for j =1:3; - for skipping the comments line by running loop
k =fgetl(f1); - to read the comments line
end - end of the for loop
%running for loop fopr 53 times as there are 53 species
for i = 1:53; - for loop to parse the file and create plot for 53 molecules in the file

%Parsing of the species block -comments to make a program user friendly
tline = fgetl(f1); - reading the first line for a molecule
S =strsplit(tline,' '); - splitting the string when the space is found by the command
Species_name =S{1}; - extracting the name of the molecule

%Extracting the coefficients from first line
line2 =fgetl(f1); - reading the first line of the coefficients
x =findstr(line2,'E'); - finding the string using the command

%Finding the 5 coefficient
x1 = line2(1:x(1)+3); - Extracting the 1st coefficients from the line
x1 = str2num(x1); - converting the string coefficients extracted above to number
x2 = line2(x(1)+4:x(2)+3); - Extracting the 2nd coefficients from the line
x2 = str2num(x2); - converting the string coefficients extracted above to number
x3 = line2(x(2)+4:x(3)+3); - Extracting the 3rd coefficients from the line
x3 = str2num(x3); - converting the string coefficients extracted above to number
x4 = line2(x(3)+4:x(4)+3); - Extracting the 4th coefficients from the line
x4 = str2num(x4); - converting the string coefficients extracted above to number
x5 = line2(x(4)+4:x(5)+3); - Extracting the 5th coefficients from the line
x5 = str2num(x5); - converting the string coefficients extracted above to number
%line3 5coefficients
line3 = fgetl(f1); - reading the line of the coefficients
x = findstr(line3,'E');- finding the string using the command
x6 = line3(1:x(1)+3); -Extracting the 6th coefficients from the line
x6 = str2num(x6); - converting the string coefficients extracted above to number
x7 = line3(x(1)+4:x(2)+3);-Extracting the 7th coefficients from the line
x7 = str2num(x7); - converting the string coefficients extracted above to number
x8 = line3(x(2)+4:x(3)+3);-Extracting the 8th coefficients from the line
x8 = str2num(x8); - converting the string coefficients extracted above to number
x9 = line3(x(3)+4:x(4)+3);-Extracting the 9th coefficients from the line
x9 = str2num(x9); - converting the string coefficients extracted above to number
x10 = line3(x(4)+4:x(5)+3);-Extracting the 10th coefficients from the line
x10 = str2num(x10); - converting the string coefficients extracted above to number

%Line4 4coefficients
line4=fgetl(f1); - reading the line of the coefficients
x = findstr(line4,'E');- finding the string using the command
x11 = line4(1:x(1)+3);-Extracting the 11th coefficients from the line
x11 = str2num(x11); - converting the string coefficients extracted above to number
x12 = line4(x(1)+4:x(2)+3);-Extracting the 12th coefficients from the line
x12 = str2num(x12); - converting the string coefficients extracted above to number
x13 = line4(x(2)+4:x(3)+3);-Extracting the 13th coefficients from the line
x13 = str2num(x13); - converting the string coefficients extracted above to number
x14 = line4(x(3)+4:x(4)+3);-Extracting the 14th coefficients from the line
x14 = str2num(x14); - converting the string coefficients extracted above to number

% Entropy Calculation
S = entropy_S(x1,x2,x3,x4,x5,x7,x8,x9,x10,x11,x12,x14,Temperature,glob_midtemp,R);

%Cp calculation means Specific Heat calculation
Cp = Specific_heat(x1,x2,x3,x4,x5,x8,x9,x10,x11,x12,Temperature,glob_midtemp,R);

%Enthlpy Calculaion is H
H = enthalpy_H(x1,x2,x3,x4,x5,x6,x8,x9,x10,x11,x12,x13,Temperature,glob_midtemp,R);

%Molecular Weight calculation of different elements
mw(i) = mol_wt(Species_name);

%Reading and writinh of the molecular wieght in the list of molecular
%wieght
% Plotting on the graph for species fo the temperature and specific
% heat

%Creating a folder for saving the species with its properties
directory_curr = pwd; - pwd identify the current directory
mkdir(Species_name); - command used for making a new directory
cd(Species_name); - cd is for changing the directory

%Plotting the graph in different plotting window
%plot 1 for the temperature and entrophy
%plot 2 for the temperature and enthalphy
%plot 3 for the temperature and specific heat

%plot 1 Enthalphy and Temperaure
figure(1) - to open the first figure window
plot(Temperature,H,'linewidth',3,'color','b'); -plot between temperature and enthalpy
xlabel('Temperature in [K]'); - for labelling the x axis
ylabel('Enthalphy [KJ/mol]'); - for labelling the y axis
grid on - to make the grid on
title(sprintf('Variation in Enthalphy wrt Temperature %s',Species_name)); - to give the title to the plot
saveas (figure(1),'Enthalhy.jpg'); - to save the plot as jpg file in the folder made

%plot 2 Entropy and Temperaure
figure(2) - to open the second figure window
plot(Temperature,S,'linewidth',3,'color','r'); -plot between temperature and entropy
xlabel('Temperature in [K]'); - labeling of the xaxis
ylabel('Entropy [KJ/mol-k]'); - labelling the y axis
grid on - to make the grid on
title(sprintf('Variation in Entropy wrt Temperature %s',Species_name));- to give the title to the plot
saveas (figure(2),'Entropy.jpg'); - to save the plot as jpg file in the folder made

%plot 3 Specific Heat and Temperaure
figure(3) - - to open the third figure window
plot(Temperature,Cp,'linewidth',3,'color','g');plot between temperature and specific heat
xlabel('Temperature in [K]'); - labeling of the xaxis
ylabel('Specific Heat [KJ]');- labelling the y axis
grid on- to make the grid on
title(sprintf('Variation in Specific Heat wrt Temperature %s',Species_name));- to give the title to the plot
saveas (figure(3),'Specific Heat.jpg'); - to save the plot as jpg file in the folder made
cd(directory_curr); - to change the directory
end to end the for loop
