Project 1 - Parsing NASA thermodynamic data

BBhavin Chaudhary15 Apr 2022

The following submission include code to Parse NASA Thermodynamic data as given in CHEMKIN II format.

1. User friendly code for Parsing individual data-(Code, Output, Plot, Screenshots) follows- Display of thermodynamic data in table, Individual gas selection by code user, auto calculate gas parameters and display in table, auto generation & saving of parameter plots.

2. General extraction code for parsing complete data-(Code, Output, Plot, Screenshots) follows- Display of thermodynamic data in table, auto selection of all gas, auto calculation of gas parameters and display in table, auto generation & saving of parameter plots.

3. Citation/Reference

BY Bhavin Chaudhary

1. PARSE INDIVIDUAL DATA

1.1 CODE

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%W4 MATLAB BASIC-PARSING NASA THERMODYNAMIC DATA
%SKILL-LYNC-Bhavin Chaudhary-7 April 2022 to 14 April 2022

%OBJECTIVE 1 INDIVIDUAL CALCULATION
%To parse or read the NASA Thermodynamic data into simplified and easy to interprete data format.

%METHODOLOGY
%1. Generate string from file (read the data)
%2. Filter or extract the individual gas data
%3. Convert the data into table(easy to read)
%4. extract the elements and calculate the specific heat, enthalpy and entropy
%5. calculate the molecular mass of gas
%6. plot the specific heat, enthalpy,and entropy w.r.t temperature


%CITATION
%Understanding the data structure
%1.Understanding the NASA Thermodynamic data formatting method- pdf link- https://shepherd.caltech.edu/EDL/PublicResources/sdt/formats/nasa.html
%2.Understanding the NASA data of ideal gas thermodynamic properties in chemkin format- site link for pdf- https://jingweizhu.weebly.com/uploads/1/3/5/4/13548262/ideal_gas_thermodynamic_properties_in_chemkin_format.pdf
%3.Book to refer the chemkin plot data - https://www.osti.gov/servlets/purl/7073290
%4.Check thermodynamic values -http://combustion.berkeley.edu/gri-mech/data/thermo_table.html
%5.Basic of table in MATLAB-youtube video- https://www.youtube.com/watch?v=SbR5_i4UY0w
%6.Convert string to number youtube video -https://www.youtube.com/watch?v=DdOPybjKpkE
%7.MATLAB Video 4: Basic Strings, Concatenating Strings, and Char Function-youtube video- https://www.youtube.com/watch?v=NlUCU-0MXn4
%8.MATLAB/Otave for Beginners- Extracting Data From Tables, Matrices and Vectors -youtube video- https://www.youtube.com/watch?v=lh10T_uWIak
%9.Use of subplot command-youtube video- https://www.youtube.com/watch?v=BO5tqj_0bKQ
%10.To save multiple plot in folder by Moninka Shivhare -https://www.mathworks.com/matlabcentral/answers/403782-how-can-i-save-multiple-plots-in-a-specified-folder

%use of commands
%1.Use of fprint f command - https://www.mathworks.com/help/matlab/ref/fprintf.html
%2.Use of split line command -https://www.mathworks.com/help/matlab/ref/splitlines.html
%3.Use of convert character to trings command -https://www.mathworks.com/help/matlab/ref/convertcharstostrings.html
%4.Use of switch case command -https://www.mathworks.com/help/matlab/ref/switch.html
%5.Use of extract Between command -https://www.mathworks.com/help/matlab/ref/extractbetween.html
%6.Use of table commands -https://www.mathworks.com/help/matlab/ref/table.html
%7.Use of concatenate array -https://www.mathworks.com/help/matlab/ref/double.cat.html
%8.Use of text to number command -https://www.mathworks.com/help/matlab/matlab_prog/converting-from-string-to-numeric.html
%9.USE OF ACCESS DATA IN TABLE -https://www.mathworks.com/help/matlab/matlab_prog/access-data-in-a-table.html
%10.Use of cell to array(mat) command -https://www.mathworks.com/help/matlab/ref/cell2mat.html
%11.Use of switch case command -https://www.mathworks.com/help/matlab/ref/switch.html
%12.Determine array element not a number -https://www.mathworks.com/help/matlab/ref/isnan.html
%13.Determine array element a number -https://www.mathworks.com/help/matlab/ref/isnumeric.html
%14.Use of while loop -https://www.mathworks.com/help/matlab/ref/while.html

close all
clear all
clc
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%Reading data from given file
f1=fopen('THERMO.dat','r'); %this format defines file as f1 commanding to open file(' file name', with input mode of MATLAB System to read=r file)
%this command outputs the file f1 as a string data A using a array specifier
% integer signed %d %i
%floating point number %f %e %g
%character conversion specifier %s %c
%here we will use %c character specifier which read any character,
%including white space and line change
global_character_line_A1=fscanf(f1,'%c');

%Now we will split the character array data with respect to its line and form individual CHARACTER CELL of data
individual_character_line_A2=splitlines(global_character_line_A1);
%We will convert the character value cells into string value cells
individual_string__line_A=convertCharsToStrings(individual_character_line_A2);

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%%GAS GENERAL CONFIGURATION DATA EXTRACTION
%%Here we will display the gas data and the minimum/median/maximum temperature so that the end user can select the gas
%for his calculation
%We will define a variable to select the first line from general string data
i1=linspace(6,214,53);

%here we will extrct the first line of each gas
gas_info_line_1=individual_string__line_A(i1(:,1:53));

%here we will extract the gas information string based on its position
gas=extractBetween(gas_info_line_1,1,8);
gas_identifier=extractBetween(gas_info_line_1,19,24);
atoms_number=extractBetween(gas_info_line_1,25,44);
Tmin=str2double(extractBetween(gas_info_line_1,45+4,45+10));
Tmax=str2double(extractBetween(gas_info_line_1,45+13,45+20));
Tmed=str2double(extractBetween(gas_info_line_1,45+23,45+30));

%%HIGH TEMPERATURE COEFFICIENT EXTRACTION
%We will define a variable to select the second and third line from general string data
i2=linspace(7,215,53);
i3=linspace(8,216,53);
%here we will extrct the second line of each gas
gas_info_line_2=individual_string__line_A(i2(:,1:53));
%here we will extrct the third line of each gas
gas_info_line_3=individual_string__line_A(i3(:,1:53));


%here we will extract the high temperature coefficients information from string based on position of E
line_2_positionE=cell2mat(strfind(gas_info_line_2,'E'));
line_3_positionE=cell2mat(strfind(gas_info_line_3,'E'));

%here we will extract the gas information string based on position of E and convert string into a number
a1=str2double(extractBetween(gas_info_line_2,1,line_2_positionE(:,1:1)+3));
a2=str2double(extractBetween(gas_info_line_2,line_2_positionE(:,1:1)+4,line_2_positionE(:,2:2)+3));
a3=str2double(extractBetween(gas_info_line_2,line_2_positionE(:,2:2)+4,line_2_positionE(:,3:3)+3));
a4=str2double(extractBetween(gas_info_line_2,line_2_positionE(:,3:3)+4,line_2_positionE(:,4:4)+3));
a5=str2double(extractBetween(gas_info_line_2,line_2_positionE(:,4:4)+4,line_2_positionE(:,5:5)+3));
a6=str2double(extractBetween(gas_info_line_3,1,line_3_positionE(:,1:1)+3));
a7=str2double(extractBetween(gas_info_line_3,line_3_positionE(:,1:1)+4,line_3_positionE(:,2:2)+3));


%%LOW TEMPERATURE COEFFICIENT EXTRACTION
%We will define a variable to select the fourth line from general string data
i4=linspace(9,217,53);
%here we will extrct the fourth line of each gas
gas_info_line_4=individual_string__line_A(i4(:,1:53));

%here we will extract the low temperature coefficients information from string based on position of E
line_4_positionE=cell2mat(strfind(gas_info_line_4,'E'));

%here we will extract the gas information string based on position of E and convert string into a number
b1=str2double(extractBetween(gas_info_line_3,line_3_positionE(:,2:2)+4,line_3_positionE(:,3:3)+3));
b2=str2double(extractBetween(gas_info_line_3,line_3_positionE(:,3:3)+4,line_3_positionE(:,4:4)+3));
b3=str2double(extractBetween(gas_info_line_3,line_3_positionE(:,4:4)+4,line_3_positionE(:,5:5)+3));
b4=str2double(extractBetween(gas_info_line_4,1,line_4_positionE(:,1:1)+3));
b5=str2double(extractBetween(gas_info_line_4,line_4_positionE(:,1:1)+4,line_4_positionE(:,2:2)+3));
b6=str2double(extractBetween(gas_info_line_4,line_4_positionE(:,2:2)+4,line_4_positionE(:,3:3)+3));
b7=str2double(extractBetween(gas_info_line_4,line_4_positionE(:,3:3)+4,line_4_positionE(:,4:4)+3));


%%CONVERSION OF INDIVIDUAL EXTRACTED STRING INTO TABLE
%Here we will convert the string array into individual table
SrNo=linspace(1,53,53)';
SRNO=array2table(SrNo);
GAS=array2table(gas);
GAS_IDENTIFIER=array2table(gas_identifier);
ATOMS=array2table(atoms_number);
TMIN=array2table(Tmin);
TMED=array2table(Tmed);
TMAX=array2table(Tmax);
A1=array2table(a1);
A2=array2table(a2);
A3=array2table(a3);
A4=array2table(a4);
A5=array2table(a5);
A6=array2table(a6);
A7=array2table(a7);
B1=array2table(b1);
B2=array2table(b2);
B3=array2table(b3);
B4=array2table(b4);
B5=array2table(b5);
B6=array2table(b6);
B7=array2table(b7);

%%COMBINING THE TABLE
%we will use concatenation to combine the individual tables into one united table
disp('NASA THERMODYNAMIC GAS DATA SELECTION TABLE')
TABLE=cat(2,SRNO,GAS,GAS_IDENTIFIER,ATOMS,TMIN,TMED,TMAX,A1,A2,A3,A4,A5,A6,A7,B1,B2,B3,B4,B5,B6,B7)

Calculation=input('do yo want to calculate thermodynamic parameter? if yes enter 1 if No enter 0 =');

%We will use while loop to calculate the parameters by selecting the gases selected gases

while Calculation==1
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%%CODE TO SELECT AND EVALUATE THE PARAMETERS
%0. Enter the temperature of system
Tsystem=input('Enter the temperature of system between 300K to 5000 K in Kelvin scale=');
%1. Select the gas
Sr=input('select the gas and enter the sr no of gas given in 1st column of table=');


%Calculate the parameters
selected_gas=TABLE.gas(Sr:Sr);
disp('The termodynamic properties at selected system temperature Tsystem-Specific heat(J/mol-K), Specifc enthalpy(J/mol), Specific Entropy(J/mol-K) & Gibbs free energy(J/mol)')
[gas_specific_heat, gas_specific_enthalpy, gas_specific_entropy,  gas_specific_gibbs_free_energy]=w4_mb_function_parsing_nasa_data(TABLE,Tsystem,Sr)

%Calculate molecular mass
[molecular_mass]=w4_mb_function_parsing_nasa_data_molecular_mass(TABLE,Sr)

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%Here we will convert the calculated parameters into table so as to display as one
SRN=array2table(Sr);
T=array2table(Tsystem);
G=array2table(selected_gas);
CP=array2table(gas_specific_heat);
H=array2table(gas_specific_enthalpy);
S=array2table(gas_specific_entropy);
GFE=array2table(gas_specific_gibbs_free_energy);
M=array2table(molecular_mass);

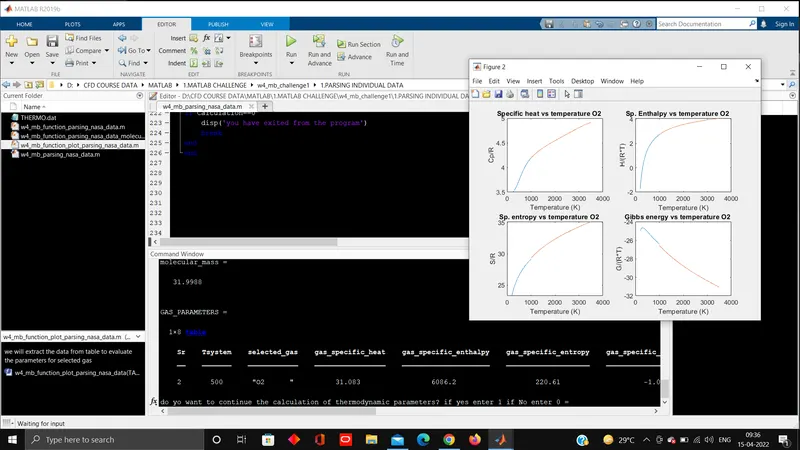

GAS_PARAMETERS=cat(2,SRN,T,G,CP,H,S,GFE,M)

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

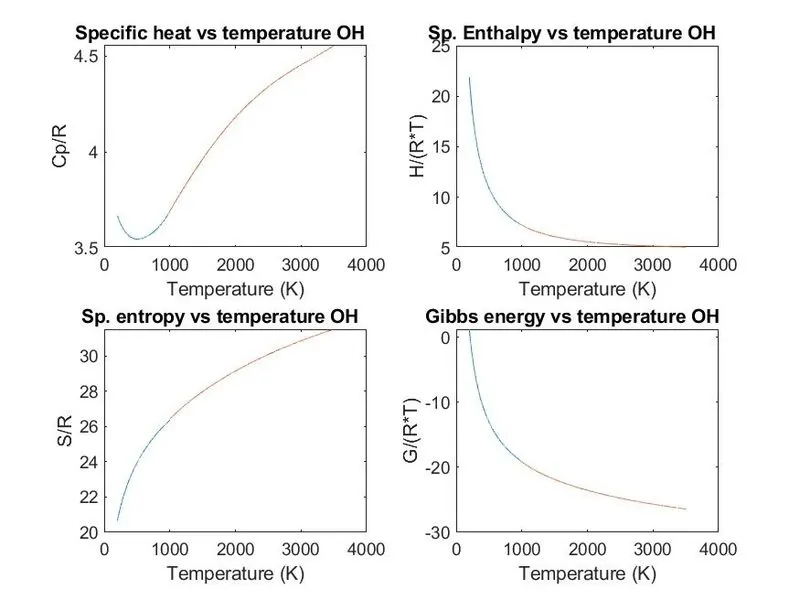

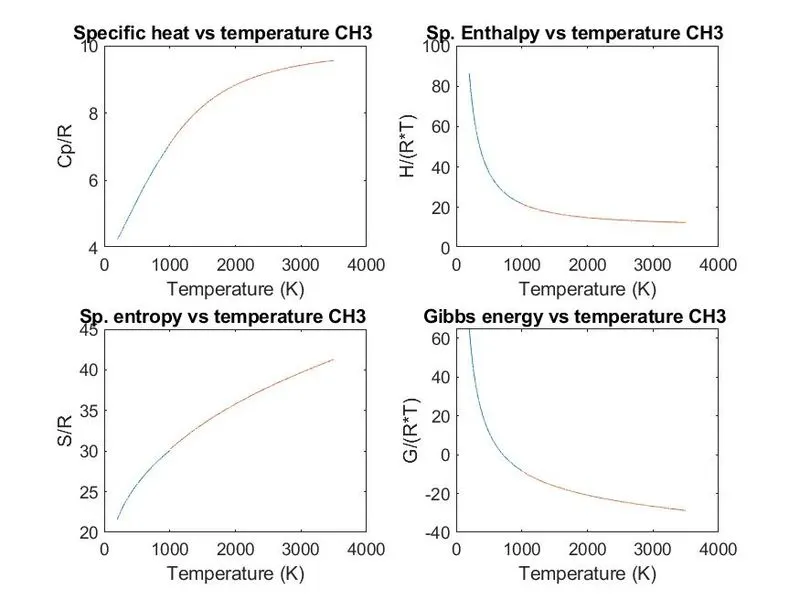

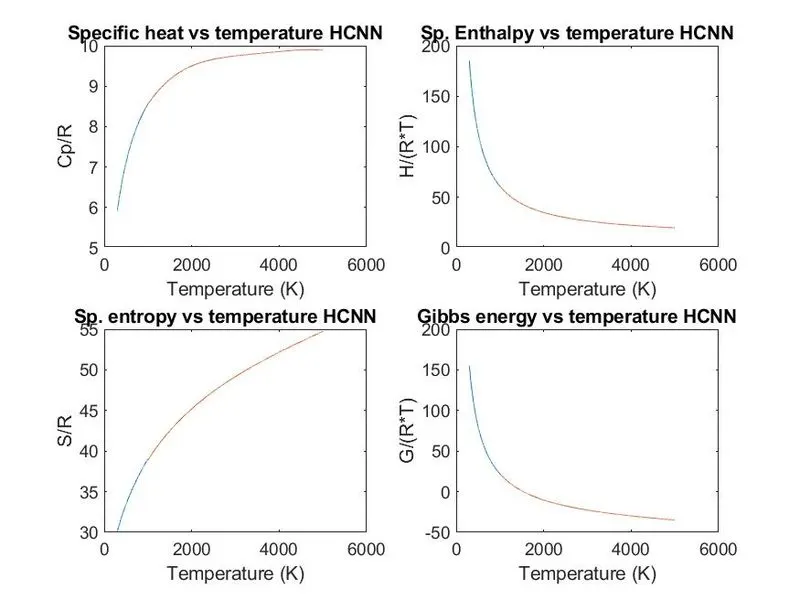

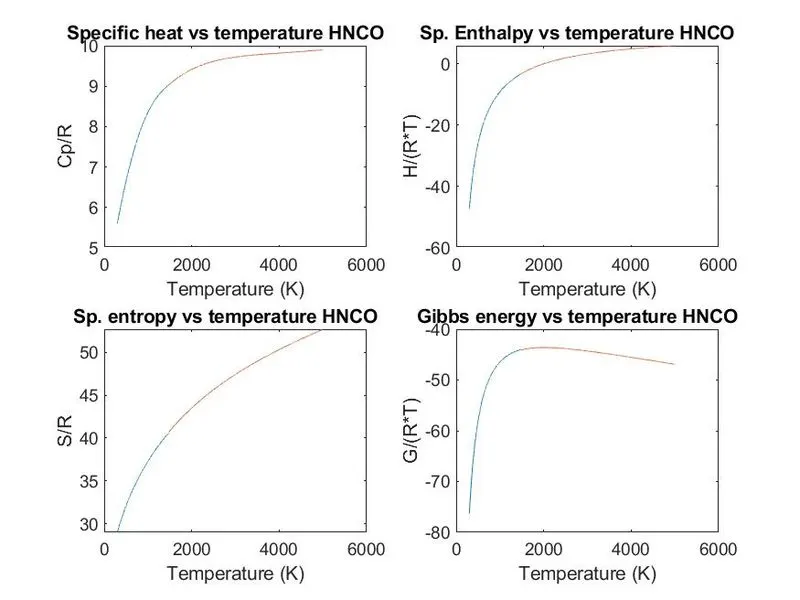

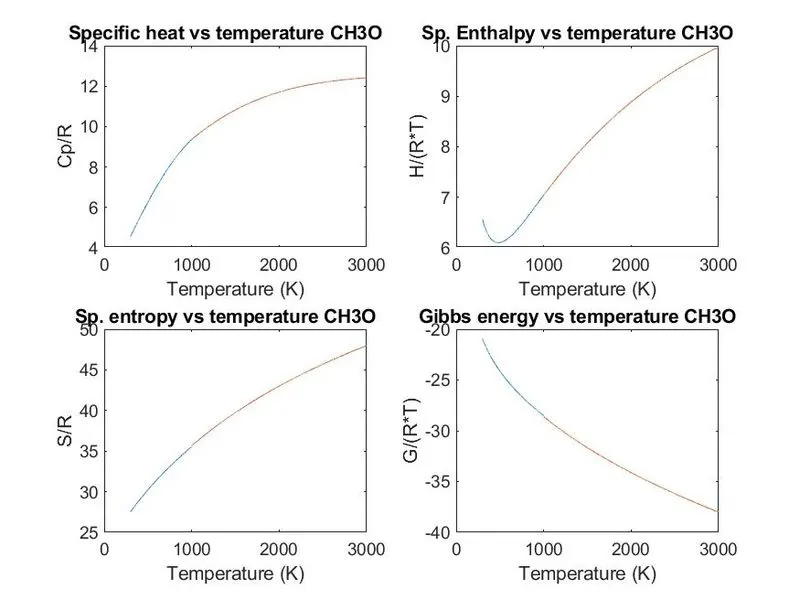

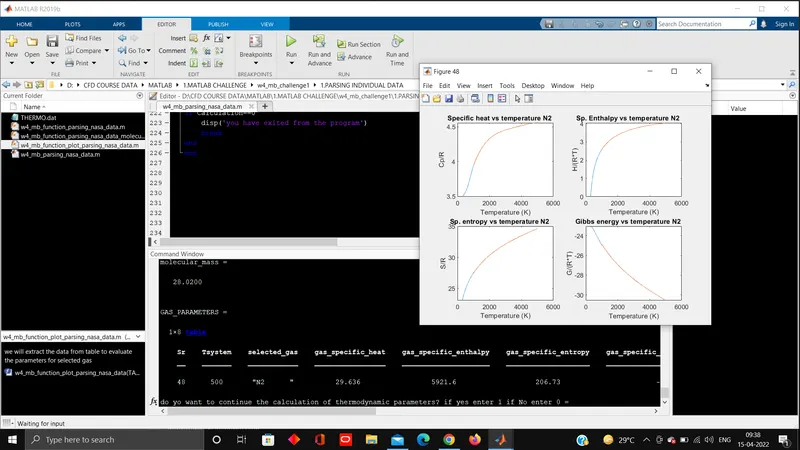

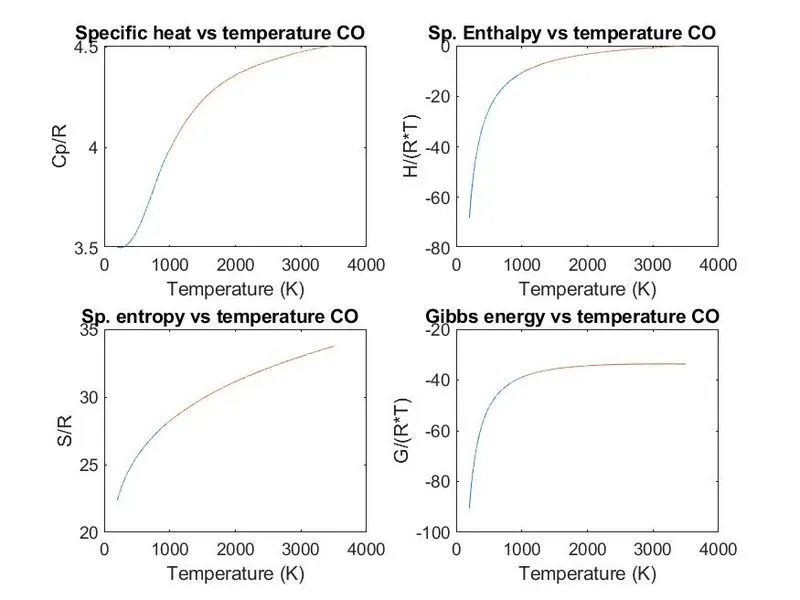

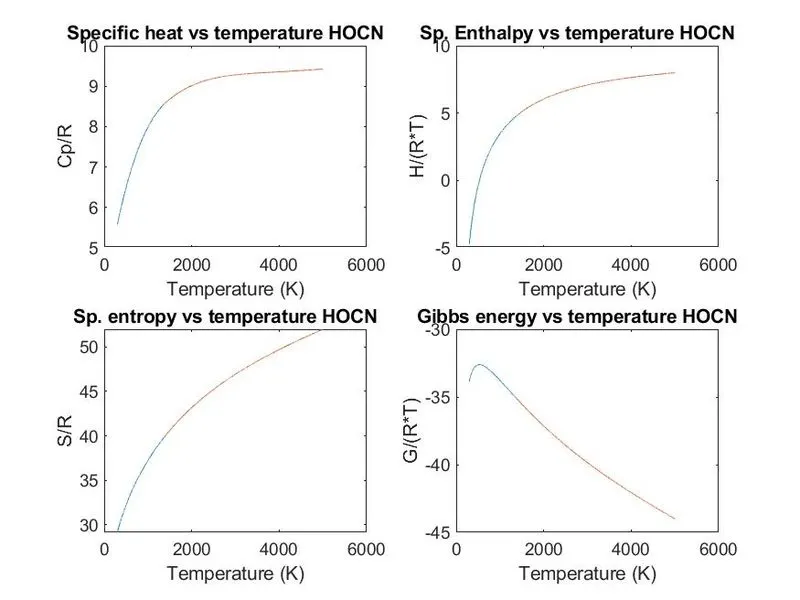

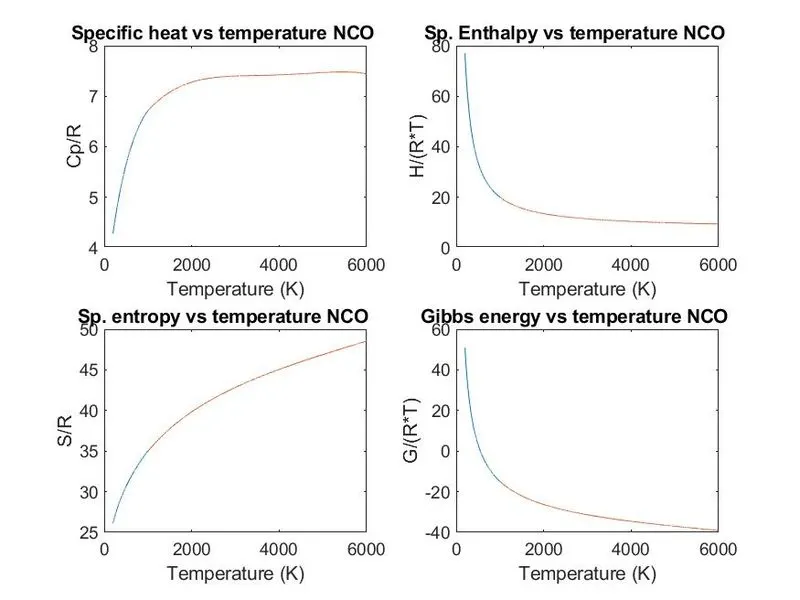

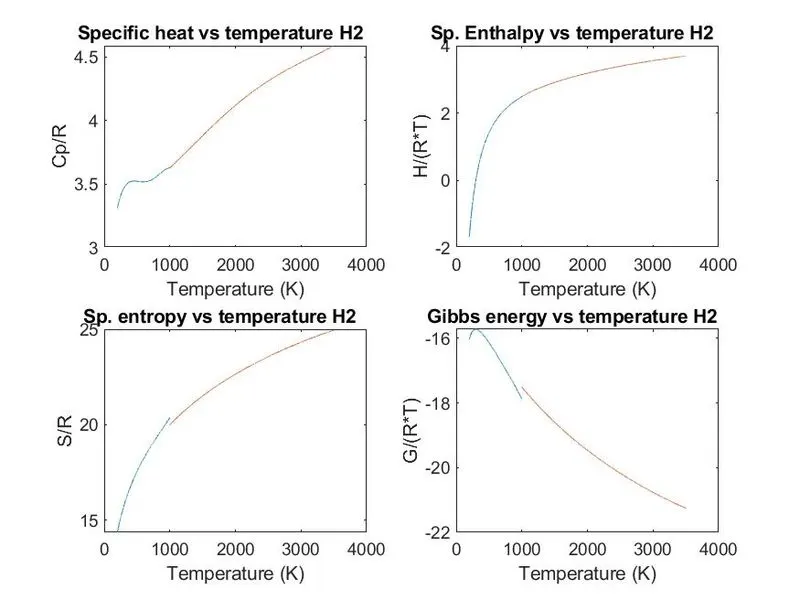

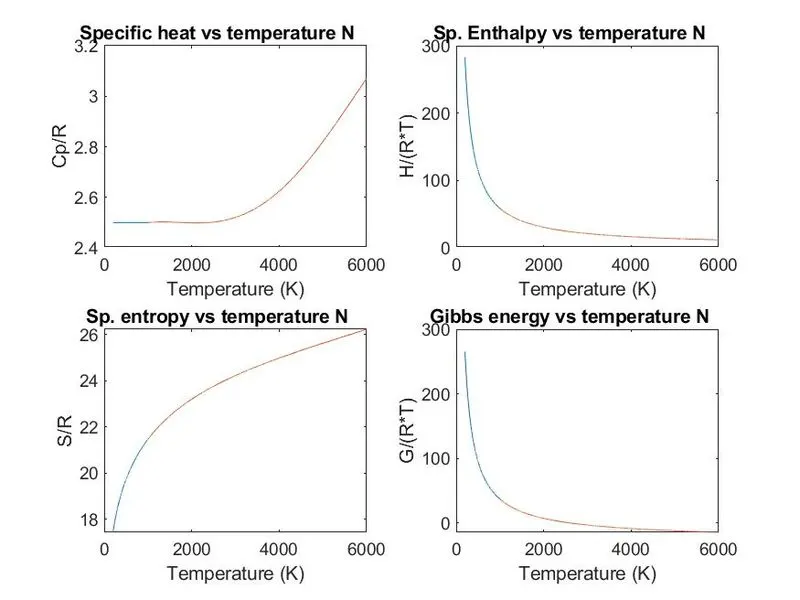

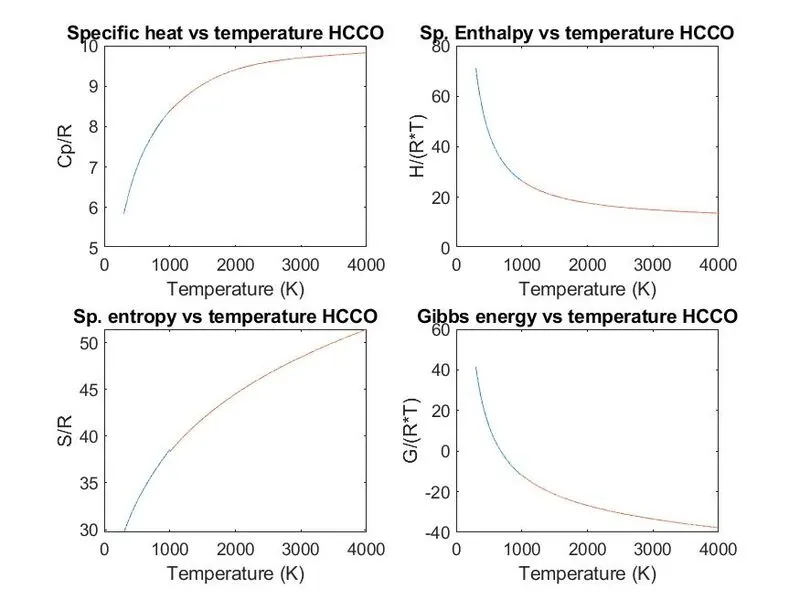

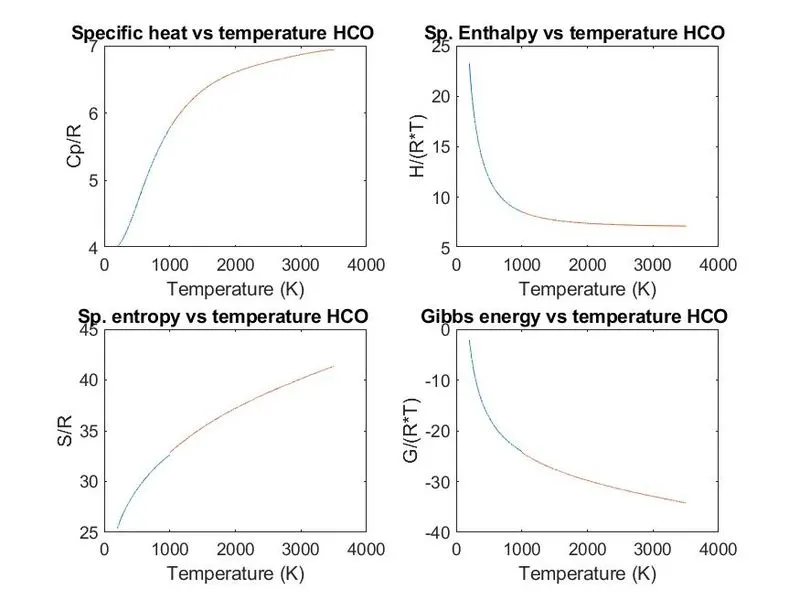

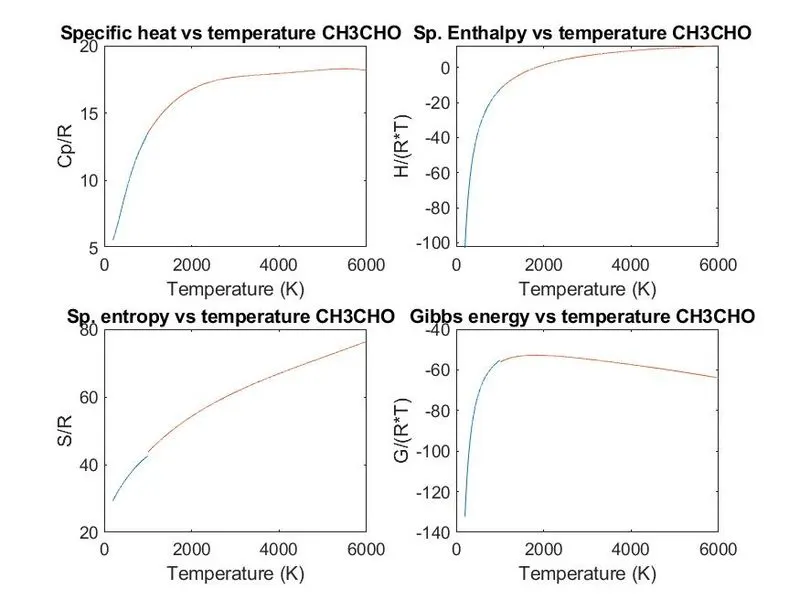

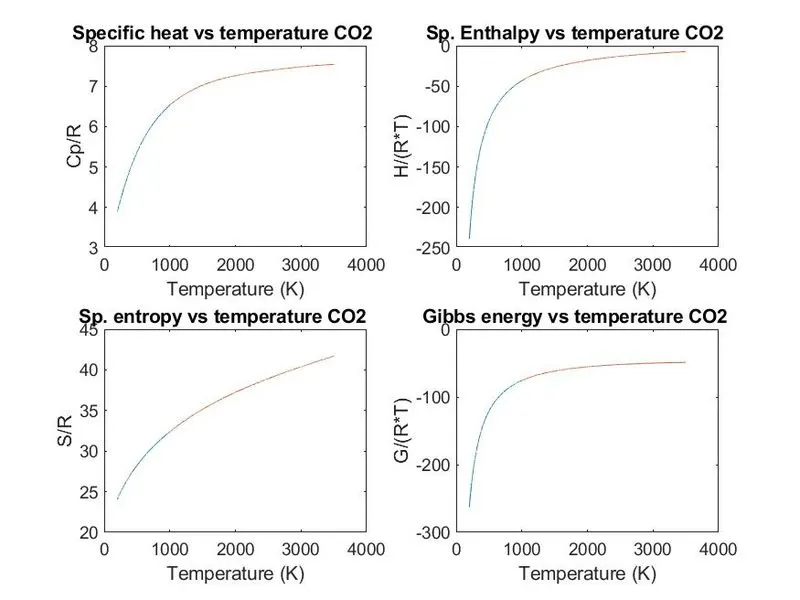

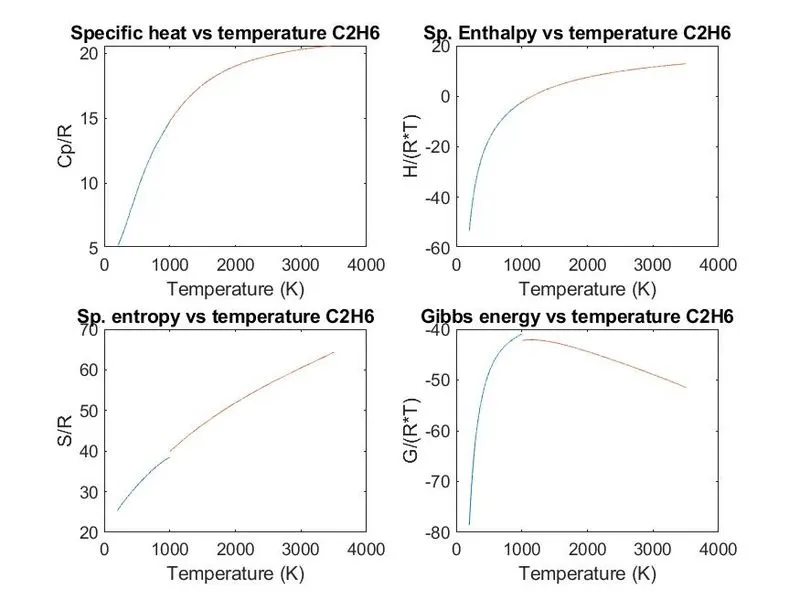

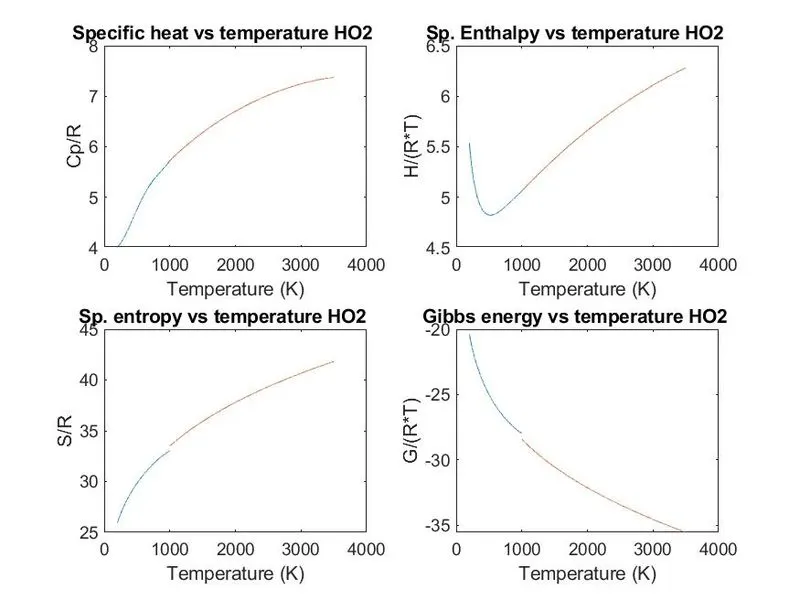

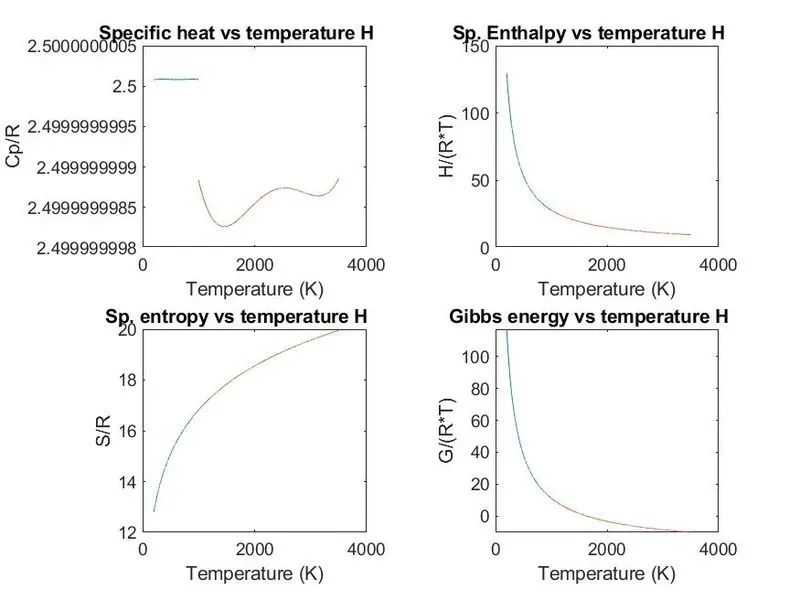

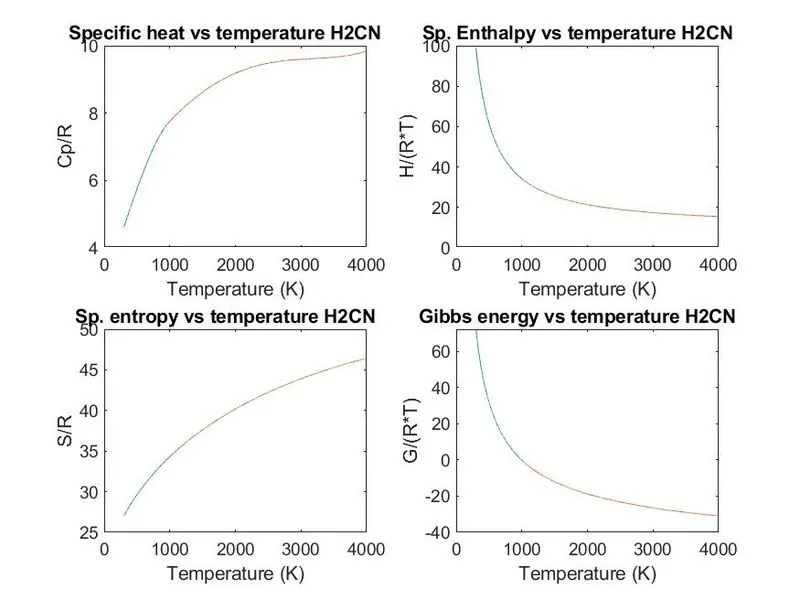

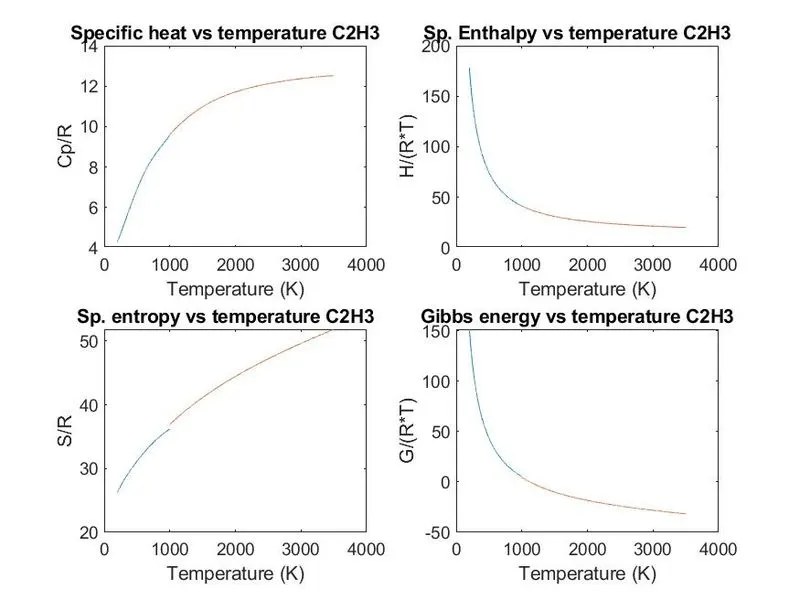

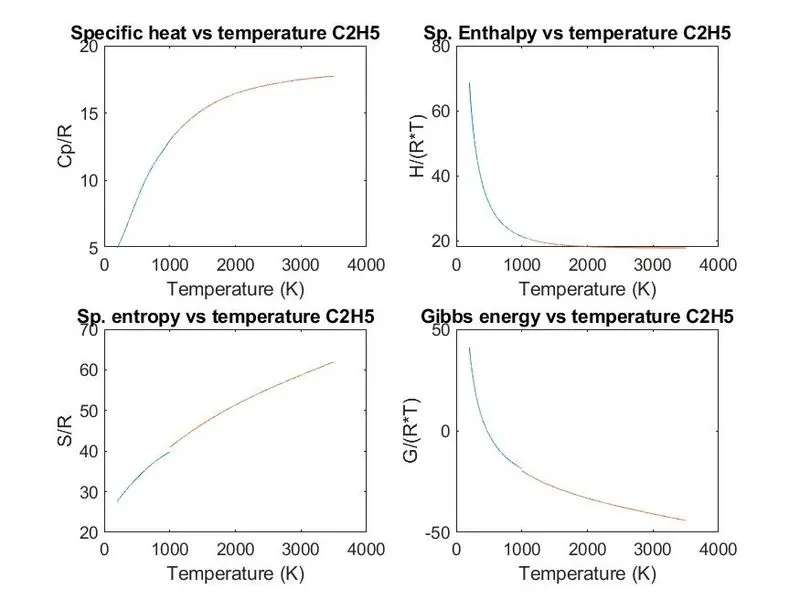

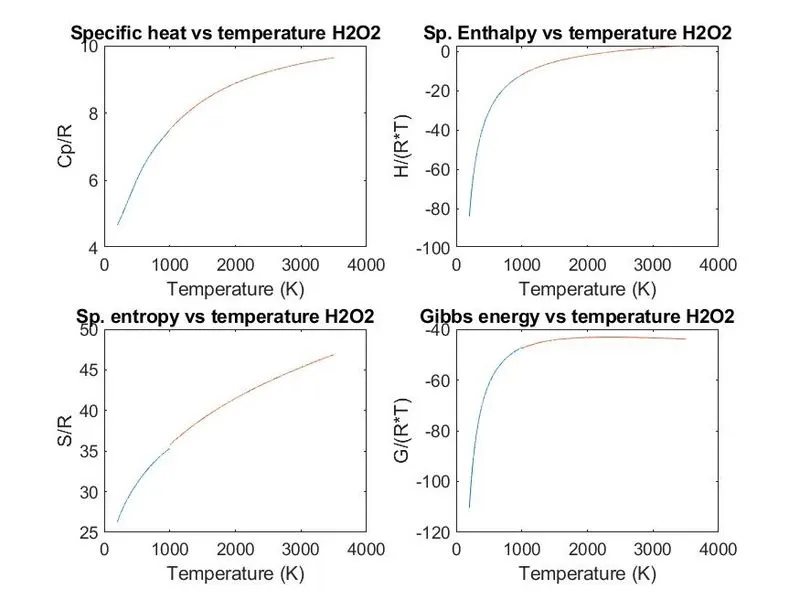

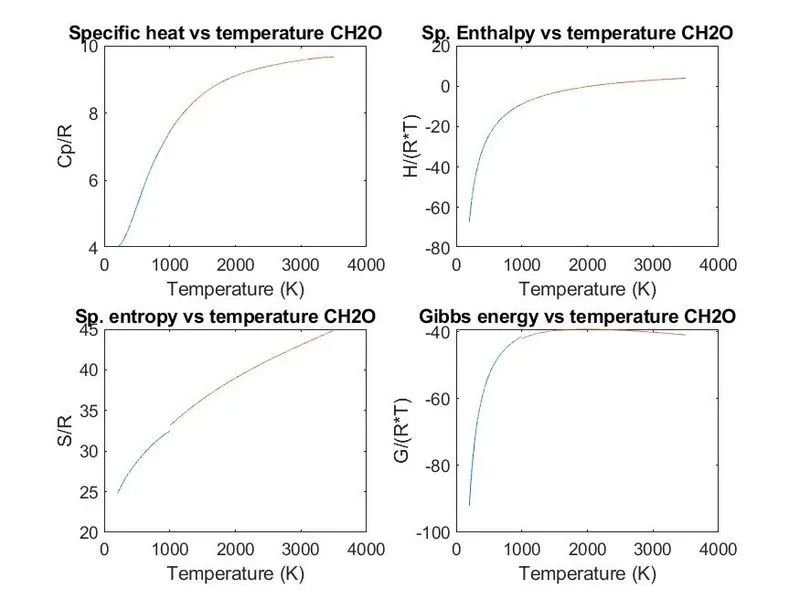

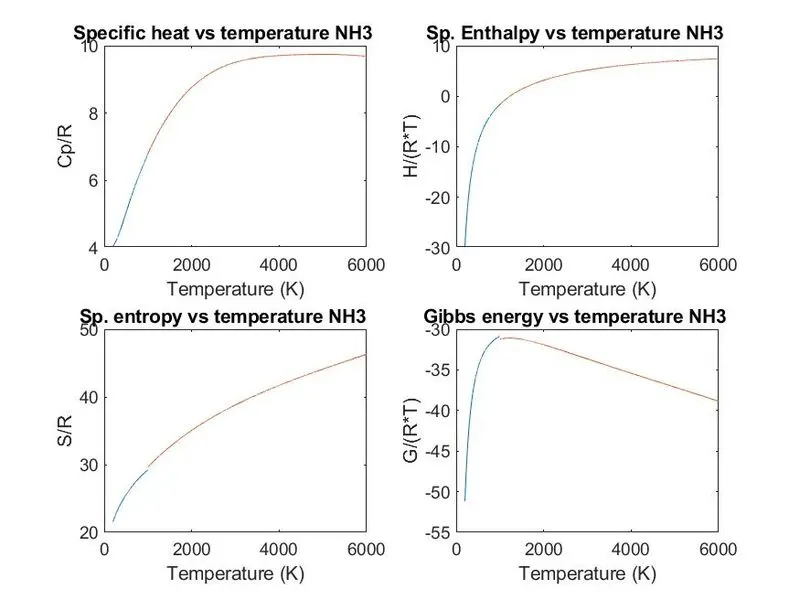

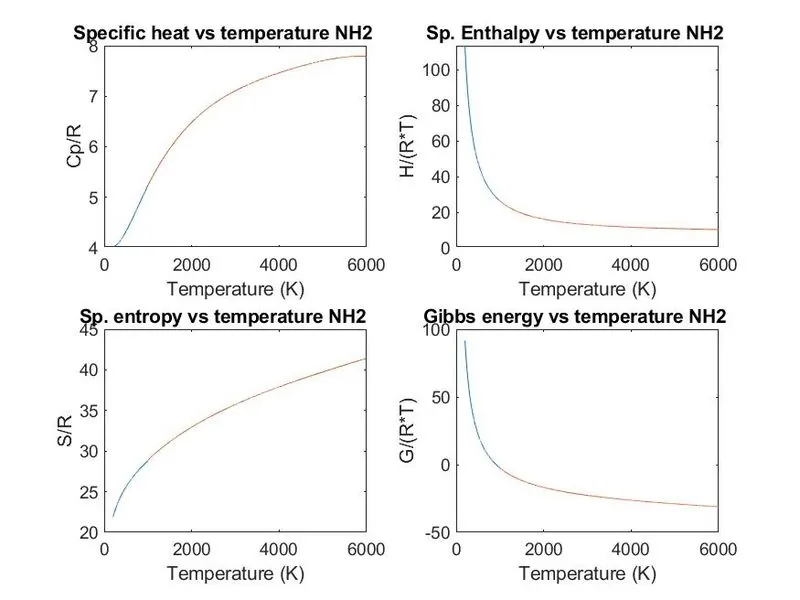

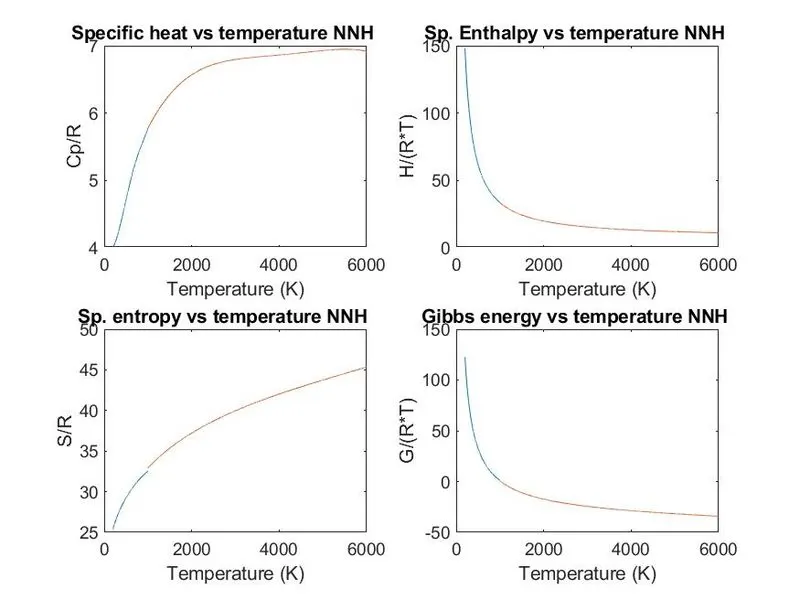

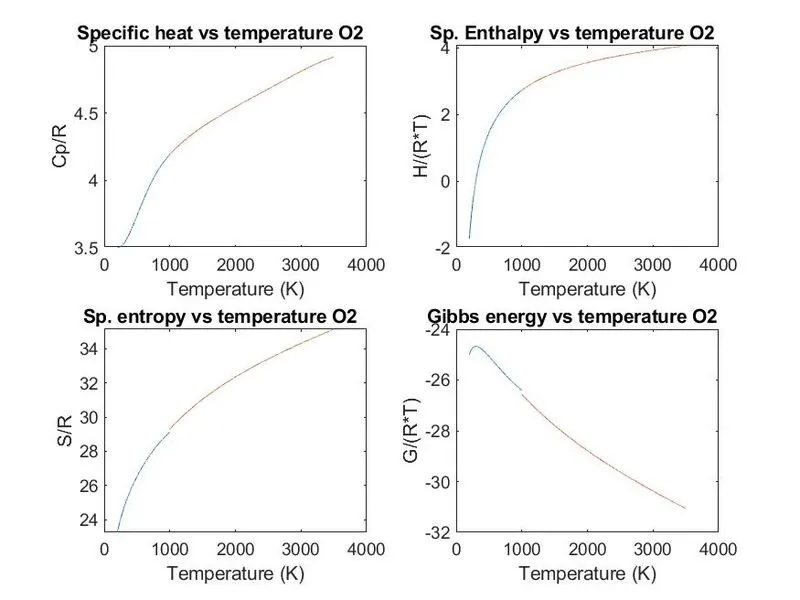

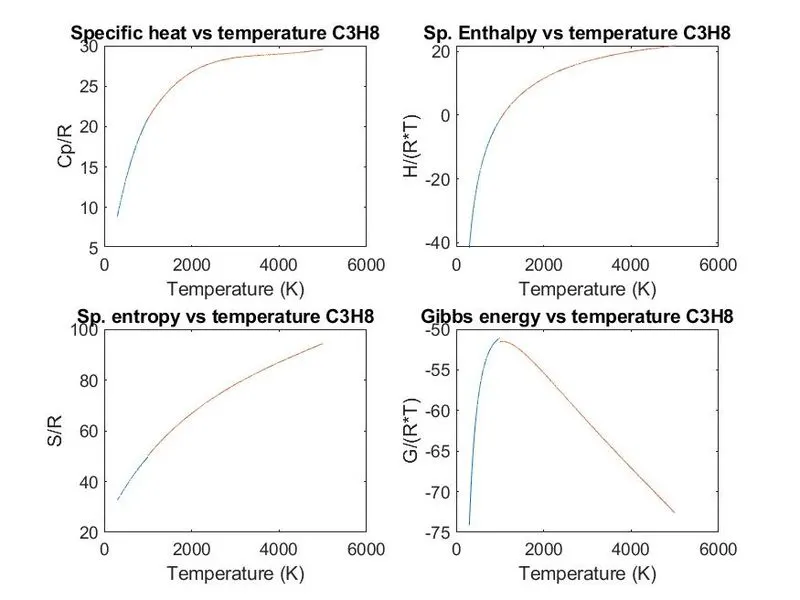

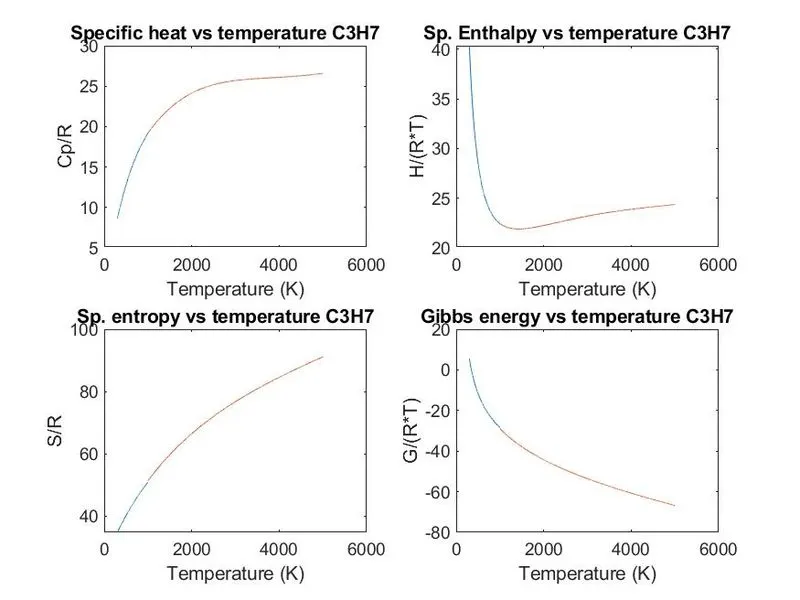

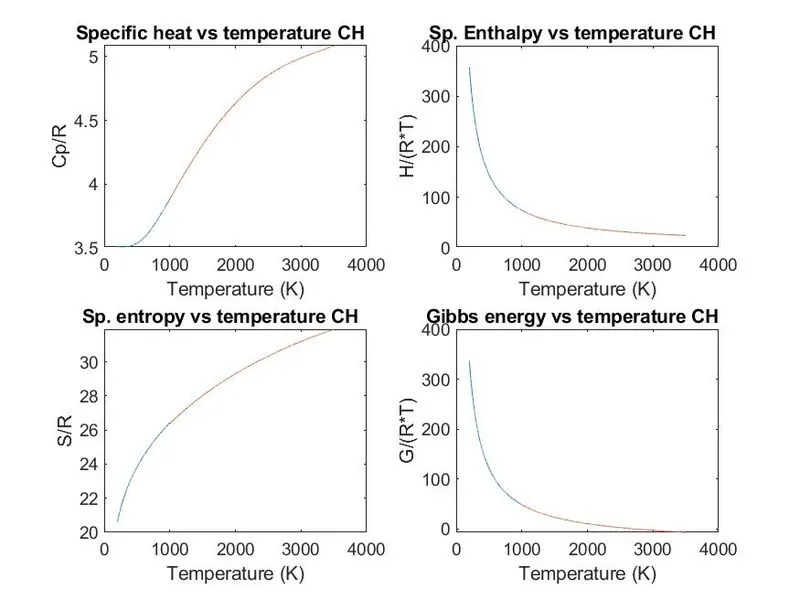

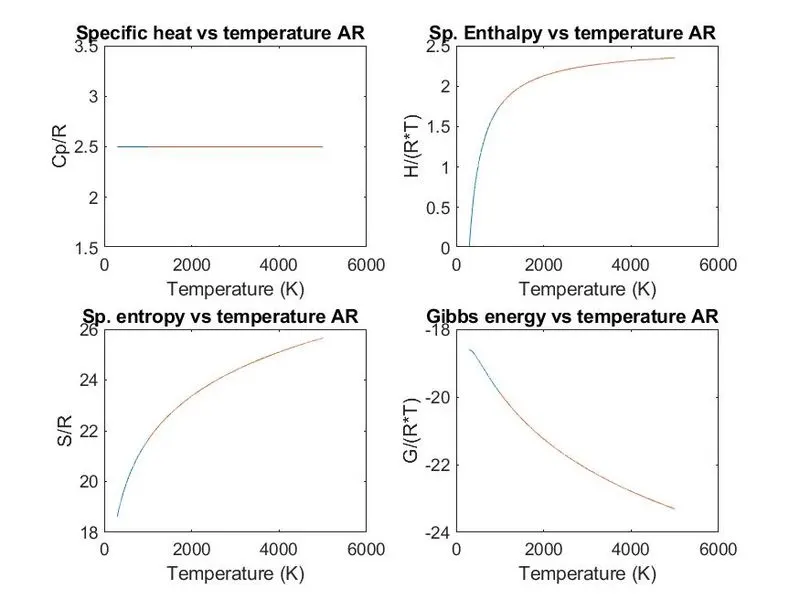

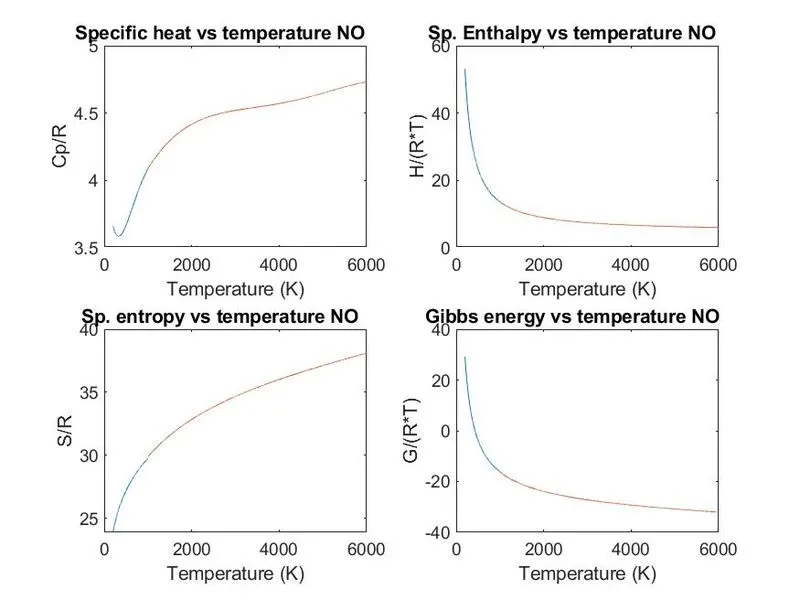

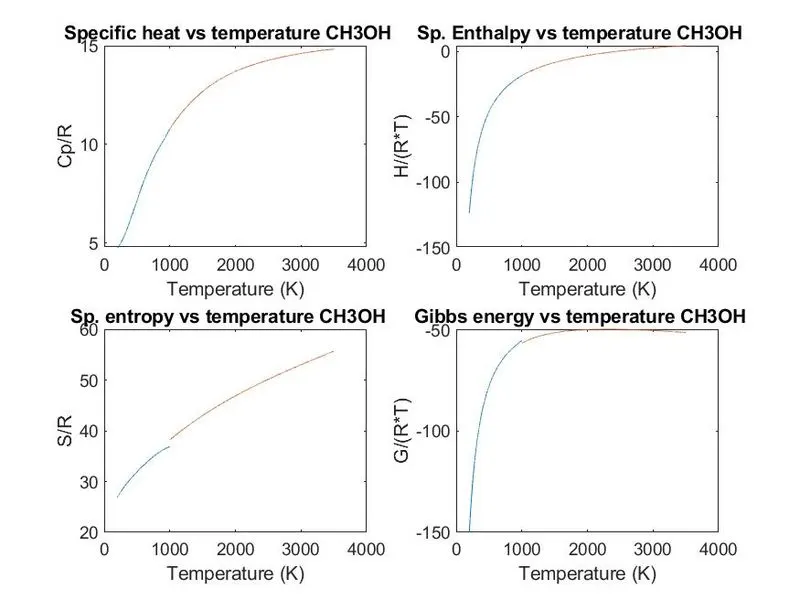

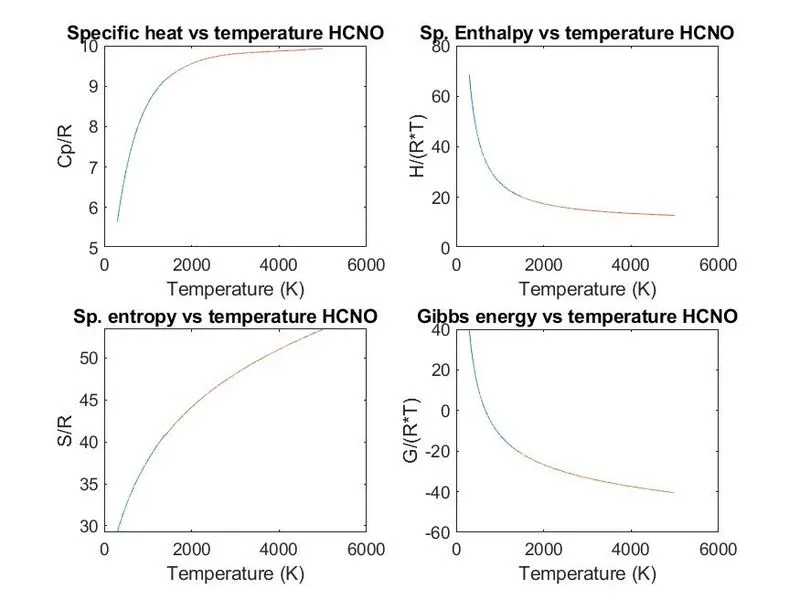

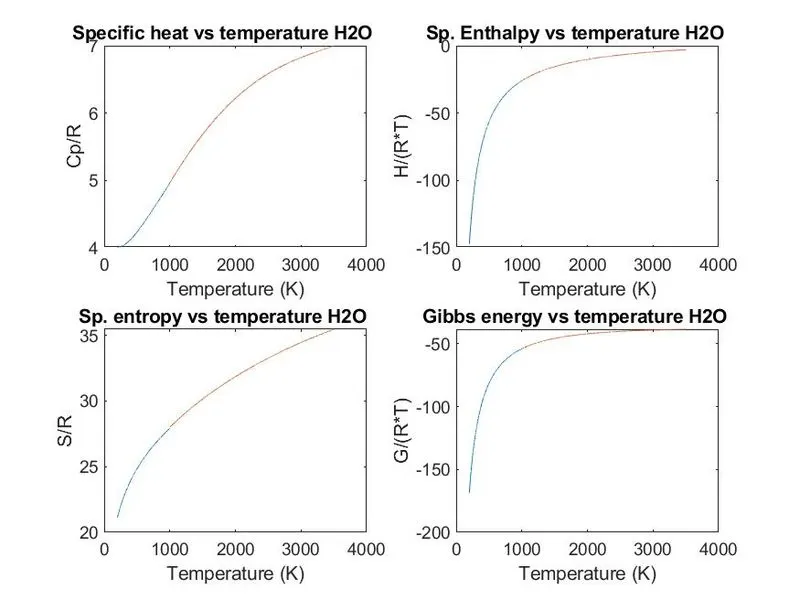

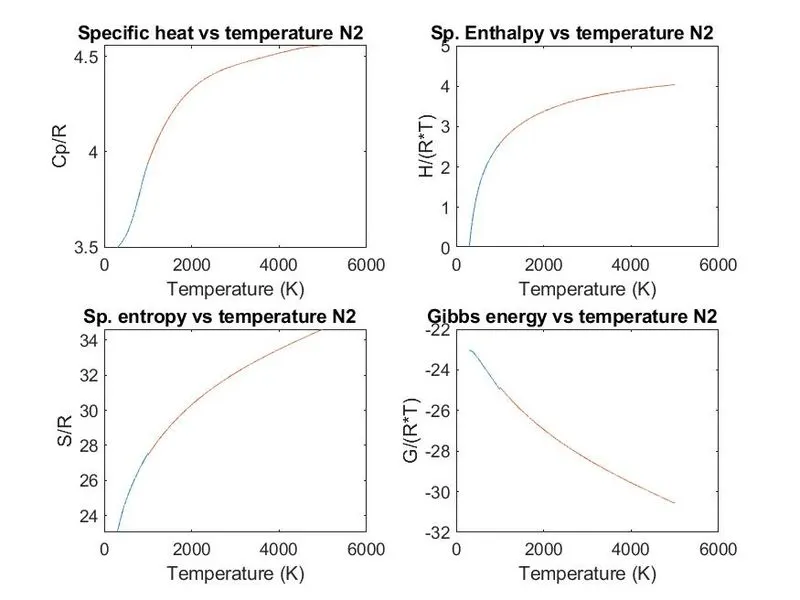

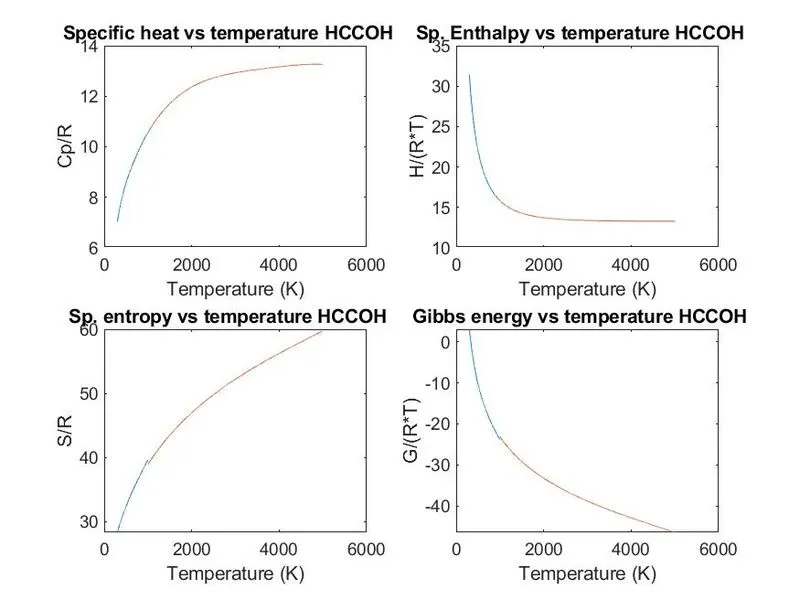

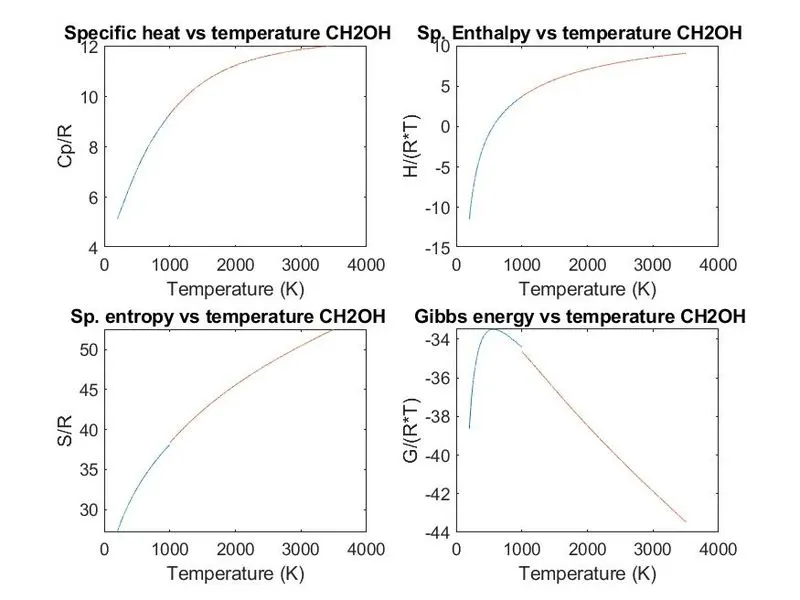

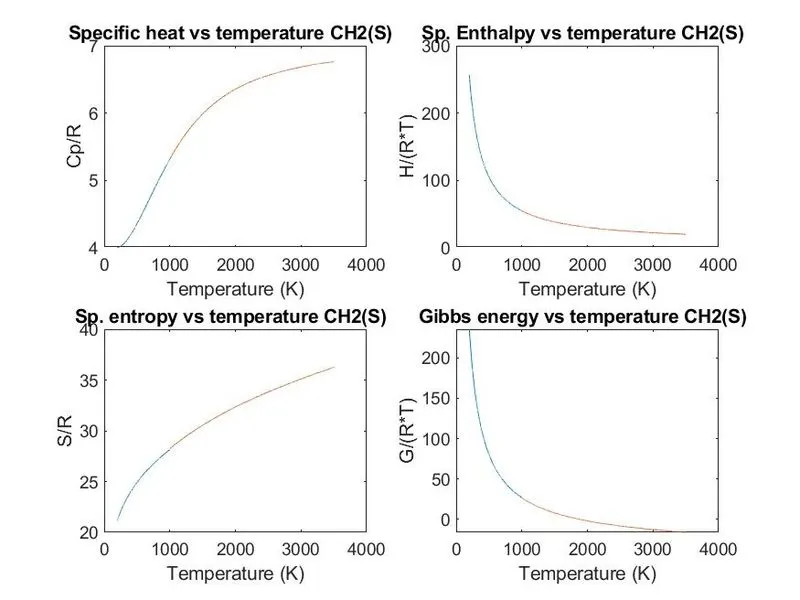

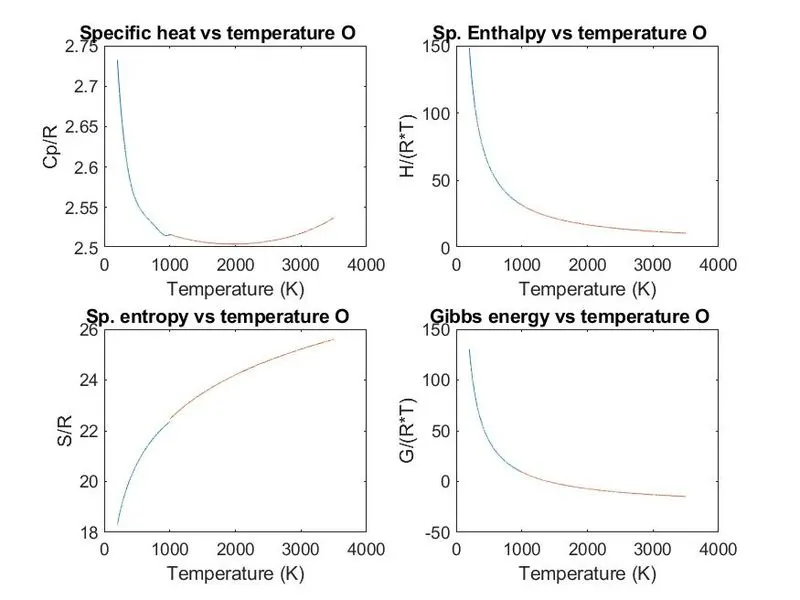

%Evaluate polynomial data and plot specific heat, enthalpy, entropy with respect to temperature ranges

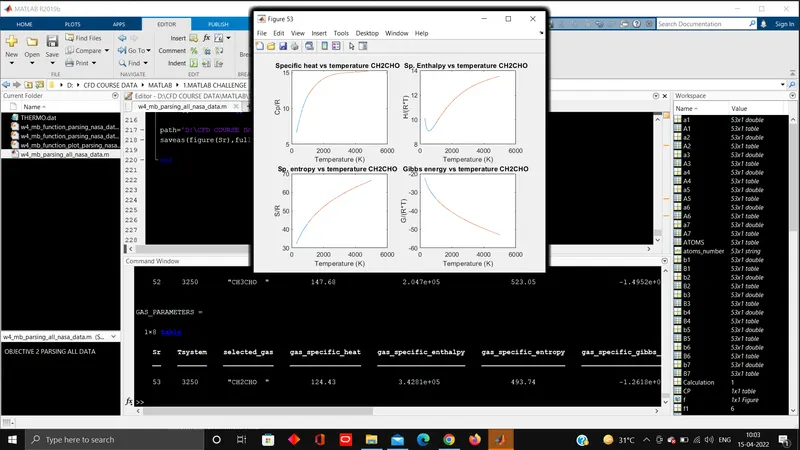

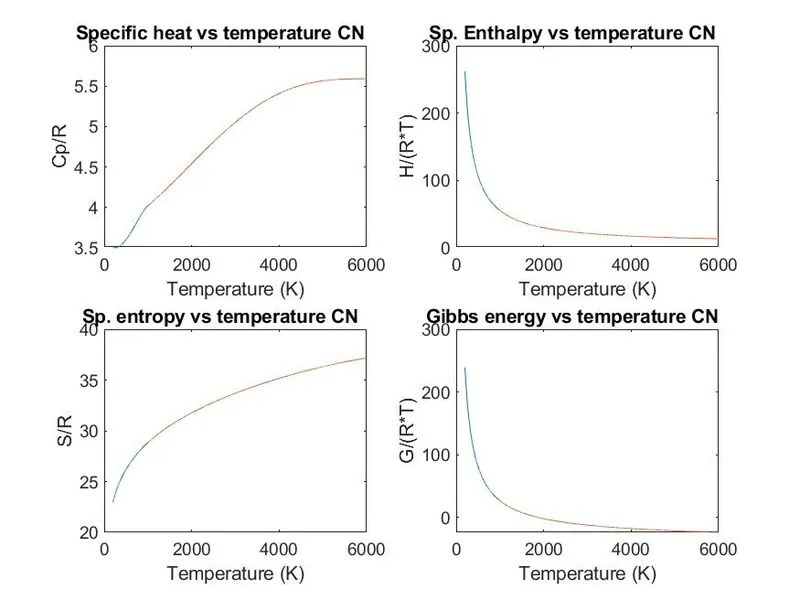

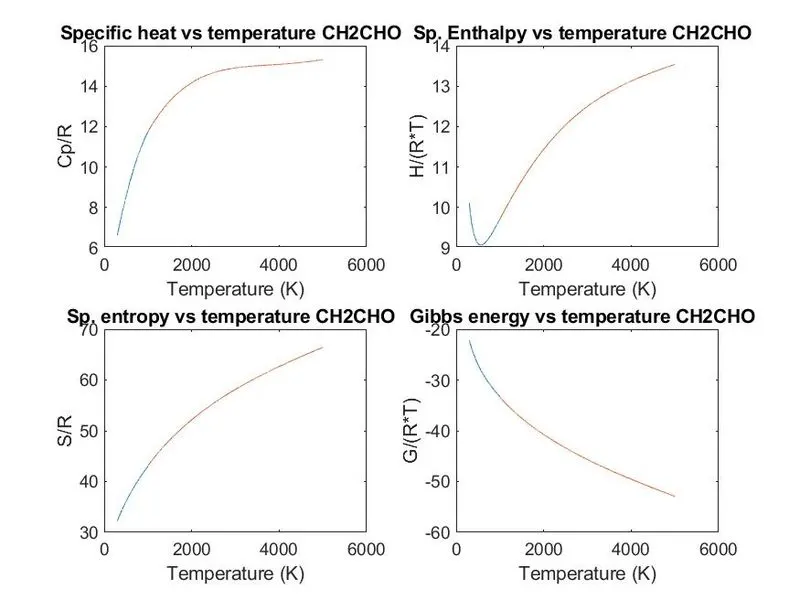

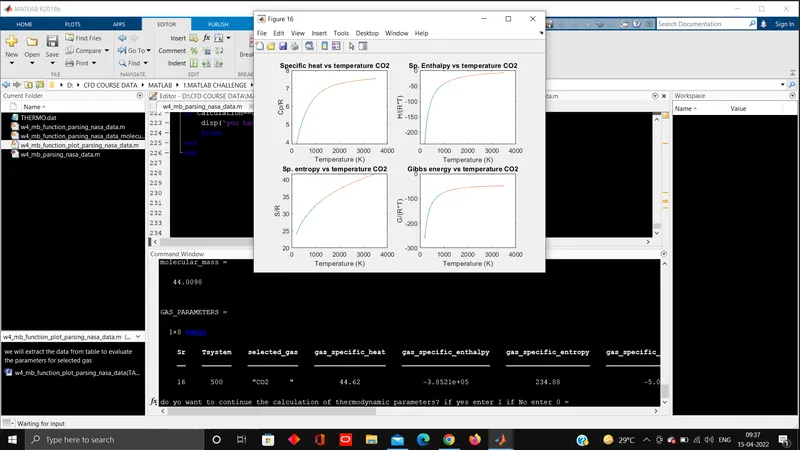

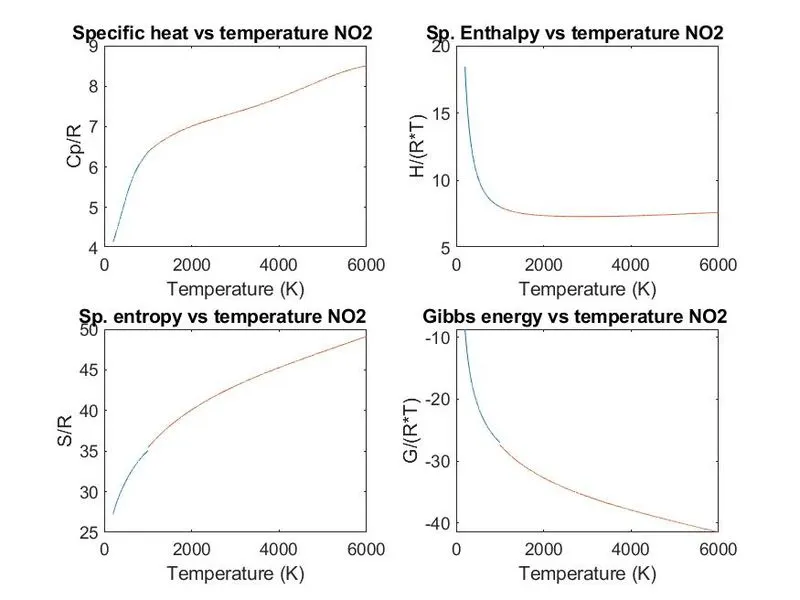

[T1, T2, gas_specific_heat_array1, gas_specific_heat_array2, gas_specific_enthalpy_array1, gas_specific_enthalpy_array2, gas_specific_entropy_array1, gas_specific_entropy_array2, gas_specific_gibbs_free_energy_array1, gas_specific_gibbs_free_energy_array2]=w4_mb_function_plot_parsing_nasa_data(TABLE,Sr);

f=figure(Sr);
subplot(2,2,1)
plot(T1,gas_specific_heat_array1,T2,gas_specific_heat_array2)
xlabel('Temperature (K)')
ylabel('Cp/R')
title(['Specific heat vs temperature ',num2str(selected_gas)])
subplot(2,2,2)
plot(T1,gas_specific_enthalpy_array1,T2,gas_specific_enthalpy_array2)
xlabel('Temperature (K)')
ylabel('H/(R*T)')
title(['Sp. Enthalpy vs temperature ',num2str(selected_gas)])
subplot(2,2,3)
plot(T1,gas_specific_entropy_array1,T2,gas_specific_entropy_array2)
xlabel('Temperature (K)')
ylabel('S/R')
title(['Sp. entropy vs temperature ',num2str(selected_gas)])
subplot(2,2,4)
plot(T1,gas_specific_gibbs_free_energy_array1,T2,gas_specific_gibbs_free_energy_array2)
xlabel('Temperature (K)')
ylabel('G/(R*T)')
title(['Gibbs energy vs temperature ',num2str(selected_gas)])

path='D:\CFD COURSE DATA\MATLAB\1.MATLAB CHALLENGE\w4_mb_challenge1\1.PLOTTING INDIVDUAL GAS DATA';

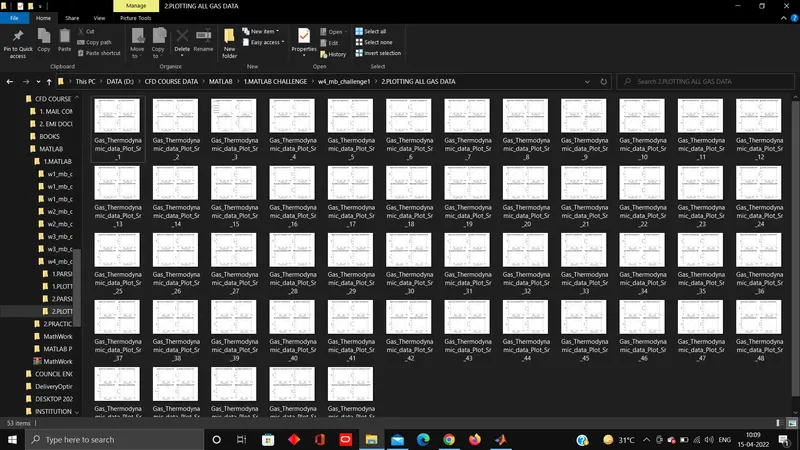

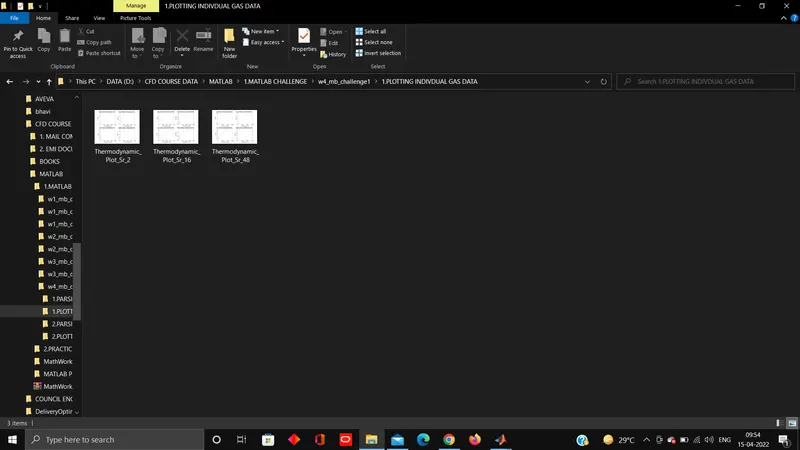

saveas(figure(Sr),fullfile(path,['Thermodynamic_Plot_Sr_' num2str(Sr) '.jpeg']));

%BREAKING OF While loop
Calculation=input('do yo want to continue the calculation of thermodynamic parameters? if yes enter 1 if No enter 0 =');
if Calculation==0
    disp('you have exited from the program')
    break
end
end


%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

function [gas_specific_heat, gas_specific_enthalpy, gas_specific_entropy, gas_specific_gibbs_free_energy]=w4_mb_function_parsing_nasa_data(TABLE,Tsystem,Sr)
% we will extract the data from table to evaluate the parameters for selected gas
T=Tsystem;
Tmed_local=TABLE.Tmed(Sr:Sr);
%Specific gas constant in J/K.mol
R=8.31446;
if T>Tmed_local
    %we will extract the high temperature coefficient data from table
    a1=TABLE.a1(Sr:Sr);
    a2=TABLE.a2(Sr:Sr);
    a3=TABLE.a3(Sr:Sr);
    a4=TABLE.a4(Sr:Sr);
    a5=TABLE.a5(Sr:Sr);
    a6=TABLE.a6(Sr:Sr);
    a7=TABLE.a7(Sr:Sr);

    %evaluate the parameters of gas
    gas_specific_heat= (a1 + a2*T + a3*T^2 + a4*T^3 + a5*T^4)*R;
    gas_specific_enthalpy= (a1 + (a2*T)/2 + (a3*T^2)/3 + (a4*T^3)/4 + (a5*T^4)/5 + a6/T)*R*T;
    gas_specific_entropy= (a1*log(T) + a2*T + a3*T^2/2 + (a4*T^3)/3 + (a5*T^4)/5 + a7)*R;
    gas_specific_gibbs_free_energy=gas_specific_enthalpy-T*gas_specific_entropy;
else
    if T

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

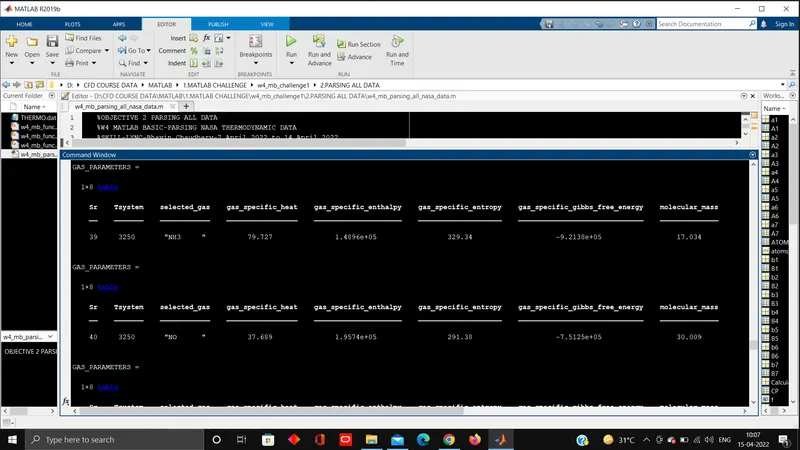

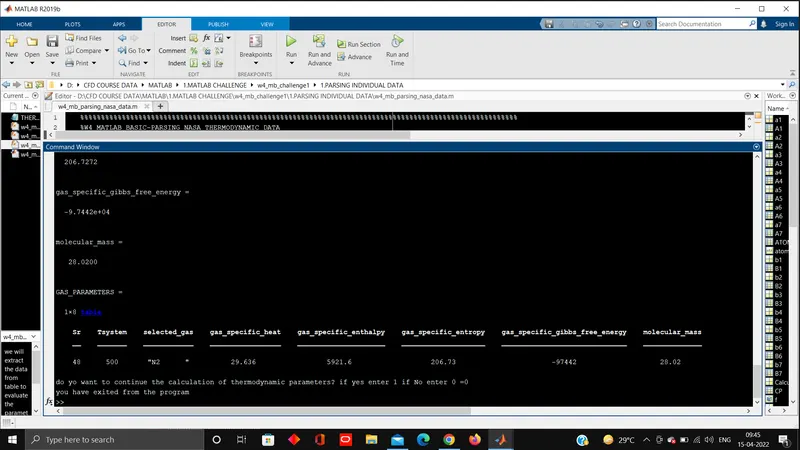

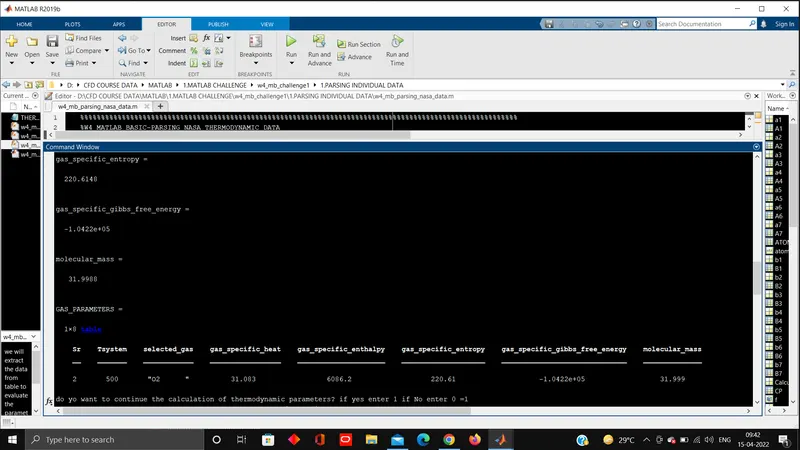

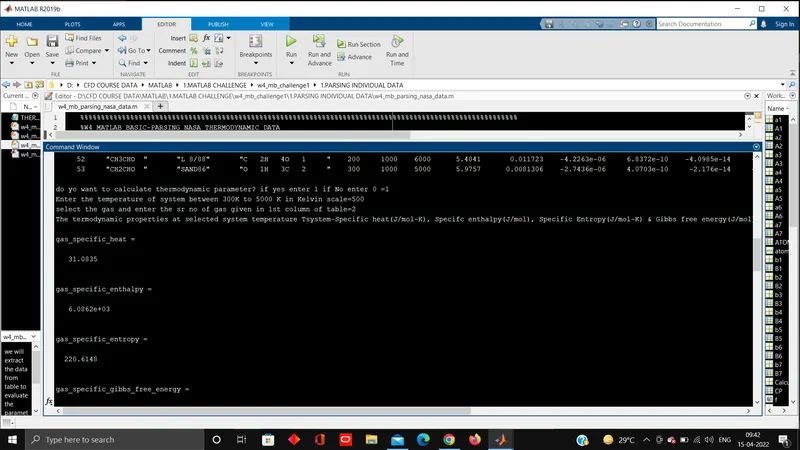

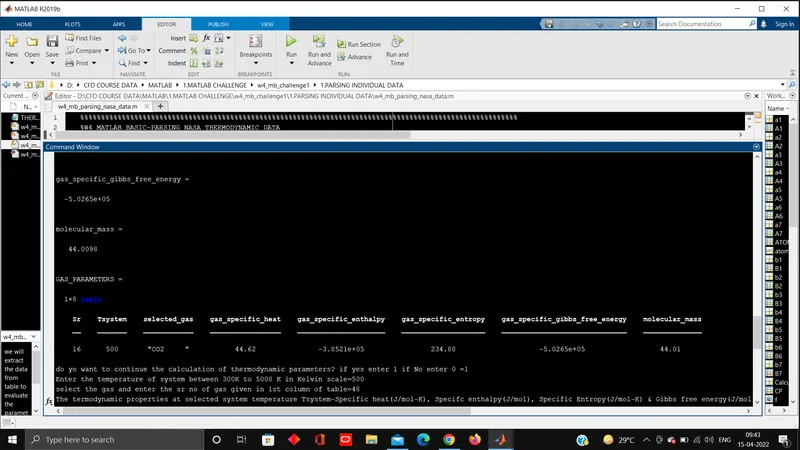

1.2 OUTPUT

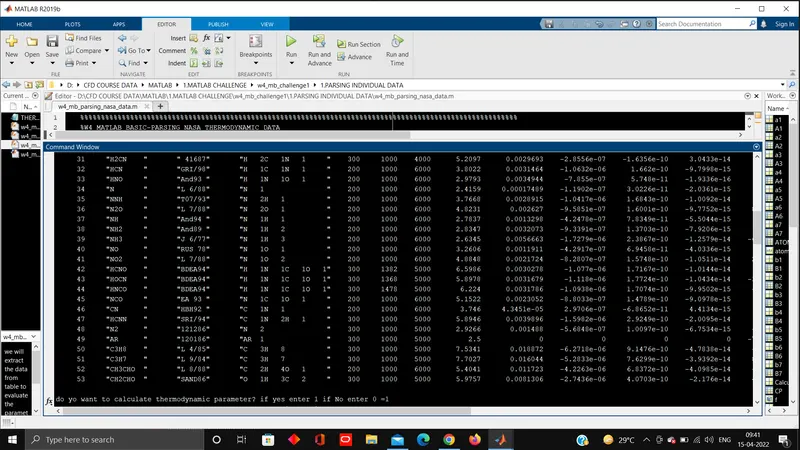

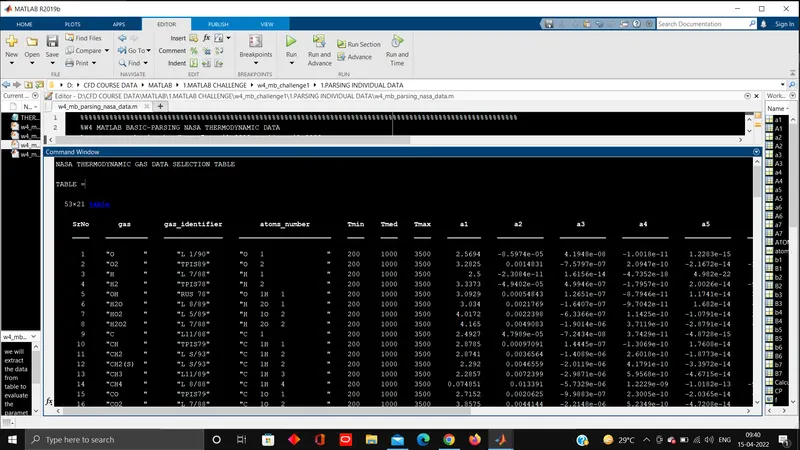

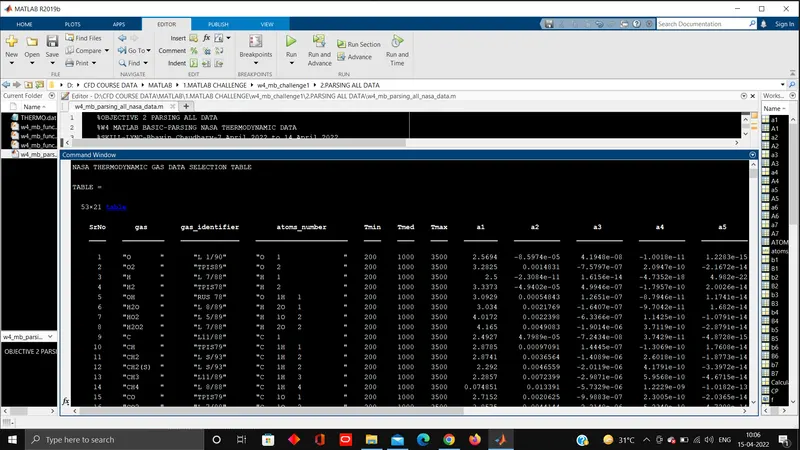

NASA THERMODYNAMIC GAS DATA SELECTION TABLE

TABLE =

53×21 table

SrNo gas gas_identifier atoms_number Tmin Tmed Tmax a1 a2 a3 a4 a5 a6 a7 b1 b2 b3 b4 b5 b6 b7
____ __________ ______________ ______________________ ____ ____ ____ ________ ___________ ___________ ___________ ___________ _______ ________ _______ ___________ ___________ ___________ ___________ _______ ________

1 "O " "L 1/90" "O 1 " 200 1000 3500 2.5694 -8.5974e-05 4.1948e-08 -1.0018e-11 1.2283e-15 29218 4.7843 3.1683 -0.0032793 6.6431e-06 -6.1281e-09 2.1127e-12 29122 2.0519
2 "O2 " "TPIS89" "O 2 " 200 1000 3500 3.2825 0.0014831 -7.5797e-07 2.0947e-10 -2.1672e-14 -1088.5 5.4532 3.7825 -0.0029967 9.8473e-06 -9.6813e-09 3.2437e-12 -1063.9 3.6577
3 "H " "L 7/88" "H 1 " 200 1000 3500 2.5 -2.3084e-11 1.6156e-14 -4.7352e-18 4.982e-22 25474 -0.44668 2.5 7.0533e-13 -1.9959e-15 2.3008e-18 -9.2773e-22 25474 -0.44668
4 "H2 " "TPIS78" "H 2 " 200 1000 3500 3.3373 -4.9402e-05 4.9946e-07 -1.7957e-10 2.0026e-14 -950.16 -3.205 2.3443 0.0079805 -1.9478e-05 2.0157e-08 -7.3761e-12 -917.94 0.68301
5 "OH " "RUS 78" "O 1H 1 " 200 1000 3500 3.0929 0.00054843 1.2651e-07 -8.7946e-11 1.1741e-14 3858.7 4.4767 3.992 -0.0024013 4.6179e-06 -3.8811e-09 1.3641e-12 3615.1 -0.10393
6 "H2O " "L 8/89" "H 2O 1 " 200 1000 3500 3.034 0.0021769 -1.6407e-07 -9.7042e-11 1.682e-14 -30004 4.9668 4.1986 -0.0020364 6.5204e-06 -5.488e-09 1.772e-12 -30294 -0.84903
7 "HO2 " "L 5/89" "H 1O 2 " 200 1000 3500 4.0172 0.0022398 -6.3366e-07 1.1425e-10 -1.0791e-14 111.86 3.7851 4.3018 -0.0047491 2.1158e-05 -2.4276e-08 9.2923e-12 294.81 3.7167
8 "H2O2 " "L 7/88" "H 2O 2 " 200 1000 3500 4.165 0.0049083 -1.9014e-06 3.7119e-10 -2.8791e-14 -17862 2.9162 4.2761 -0.00054282 1.6734e-05 -2.1577e-08 8.6245e-12 -17703 3.4351
9 "C " "L11/88" "C 1 " 200 1000 3500 2.4927 4.7989e-05 -7.2434e-08 3.7429e-11 -4.8728e-15 85451 4.8015 2.5542 -0.00032154 7.3379e-07 -7.3223e-10 2.6652e-13 85444 4.5313
10 "CH " "TPIS79" "C 1H 1 " 200 1000 3500 2.8785 0.00097091 1.4445e-07 -1.3069e-10 1.7608e-14 71012 5.485 3.4898 0.00032384 -1.689e-06 3.1622e-09 -1.4061e-12 70797 2.084
11 "CH2 " "L S/93" "C 1H 2 " 200 1000 3500 2.8741 0.0036564 -1.4089e-06 2.6018e-10 -1.8773e-14 46264 6.1712 3.7627 0.00096887 2.7949e-06 -3.8509e-09 1.6874e-12 46004 1.5625
12 "CH2(S) " "L S/93" "C 1H 2 " 200 1000 3500 2.292 0.0046559 -2.0119e-06 4.1791e-10 -3.3972e-14 50926 8.6265 4.1986 -0.0023666 8.233e-06 -6.6882e-09 1.9431e-12 50497 -0.76912
13 "CH3 " "L11/89" "C 1H 3 " 200 1000 3500 2.2857 0.0072399 -2.9871e-06 5.9568e-10 -4.6715e-14 16776 8.4801 3.6736 0.002011 5.7302e-06 -6.8712e-09 2.5439e-12 16445 1.6046
14 "CH4 " "L 8/88" "C 1H 4 " 200 1000 3500 0.074851 0.013391 -5.7329e-06 1.2229e-09 -1.0182e-13 -9468.3 18.437 5.1499 -0.013671 4.918e-05 -4.8474e-08 1.6669e-11 -10247 -4.6413
15 "CO " "TPIS79" "C 1O 1 " 200 1000 3500 2.7152 0.0020625 -9.9883e-07 2.3005e-10 -2.0365e-14 -14152 7.8187 3.5795 -0.00061035 1.0168e-06 9.0701e-10 -9.0442e-13 -14344 3.5084
16 "CO2 " "L 7/88" "C 1O 2 " 200 1000 3500 3.8575 0.0044144 -2.2148e-06 5.2349e-10 -4.7208e-14 -48759 2.2716 2.3568 0.0089846 -7.1236e-06 2.4592e-09 -1.437e-13 -48372 9.9011
17 "HCO " "L12/89" "H 1C 1O 1 " 200 1000 3500 2.7722 0.004957 -2.4845e-06 5.8916e-10 -5.3351e-14 4011.9 9.7983 4.2212 -0.0032439 1.378e-05 -1.3314e-08 4.3377e-12 3839.6 3.3944
18 "CH2O " "L 8/88" "H 2C 1O 1 " 200 1000 3500 1.7607 0.0092 -4.4226e-06 1.0064e-09 -8.8386e-14 -13996 13.656 4.7937 -0.0099083 3.7322e-05 -3.7929e-08 1.3177e-11 -14309 0.60281
19 "CH2OH " "GUNL93" "C 1H 3O 1 " 200 1000 3500 3.6927 0.0086458 -3.751e-06 7.8723e-10 -6.4855e-14 -3242.5 5.8104 3.8639 0.0055967 5.9327e-06 -1.0453e-08 4.3697e-12 -3193.9 5.473
20 "CH3O " "121686" "C 1H 3O 1 " 300 1000 3000 3.7708 0.0078715 -2.6564e-06 3.9444e-10 -2.1126e-14 127.83 2.9296 2.1062 0.0072166 5.3385e-06 -7.3776e-09 2.0756e-12 978.6 13.152
21 "CH3OH " "L 8/88" "C 1H 4O 1 " 200 1000 3500 1.7897 0.014094 -6.365e-06 1.3817e-09 -1.1706e-13 -25375 14.502 5.7154 -0.015231 6.5244e-05 -7.1081e-08 2.6135e-11 -25643 -1.5041
22 "C2H " "L 1/91" "C 2H 1 " 200 1000 3500 3.1678 0.0047522 -1.8379e-06 3.0419e-10 -1.7723e-14 67121 6.6359 2.8897 0.01341 -2.8477e-05 2.9479e-08 -1.0933e-11 66839 6.223
23 "C2H2 " "L 1/91" "C 2H 2 " 200 1000 3500 4.1476 0.0059617 -2.3729e-06 4.6741e-10 -3.6124e-14 25936 -1.2303 0.80868 0.023362 -3.5517e-05 2.8015e-08 -8.5007e-12 26429 13.94
24 "C2H3 " "L 2/92" "C 2H 3 " 200 1000 3500 3.0167 0.01033 -4.6808e-06 1.0176e-09 -8.6261e-14 34613 7.7873 3.2125 0.0015148 2.5921e-05 -3.5766e-08 1.4715e-11 34860 8.5105
25 "C2H4 " "L 1/91" "C 2H 4 " 200 1000 3500 2.0361 0.014645 -6.7108e-06 1.4722e-09 -1.2571e-13 4939.9 10.305 3.9592 -0.0075705 5.7099e-05 -6.9159e-08 2.6988e-11 5089.8 4.0973
26 "C2H5 " "L12/92" "C 2H 5 " 200 1000 3500 1.9547 0.017397 -7.9821e-06 1.7522e-09 -1.4964e-13 12858 13.462 4.3065 -0.0041866 4.9714e-05 -5.9913e-08 2.3051e-11 12842 4.7072
27 "C2H6 " "L 8/88" "C 2H 6 " 200 1000 3500 1.0719 0.021685 -1.0026e-05 2.2141e-09 -1.9e-13 -11426 15.116 4.2914 -0.0055015 5.9944e-05 -7.0847e-08 2.6869e-11 -11522 2.6668
28 "CH2CO " "L 5/90" "C 2H 2O 1 " 200 1000 3500 4.5113 0.0090036 -4.1694e-06 9.2335e-10 -7.9484e-14 -7551.1 0.63225 2.1358 0.018119 -1.7395e-05 9.344e-09 -2.0146e-12 -7042.9 12.216
29 "HCCO " "SRIC91" "H 1C 2O 1 " 300 1000 4000 5.6282 0.0040853 -1.5935e-06 2.8626e-10 -1.9408e-14 19327 -3.9303 2.2517 0.017655 -2.3729e-05 1.7276e-08 -5.0665e-12 20059 12.49
30 "HCCOH " " SRI91" "C 2O 1H 2 " 300 1000 5000 5.9238 0.0067924 -2.5659e-06 4.4988e-10 -2.994e-14 7264.6 -7.6018 1.2424 0.031072 -5.0867e-05 4.3137e-08 -1.4015e-11 8031.6 13.874
31 "H2CN " " 41687" "H 2C 1N 1 " 300 1000 4000 5.2097 0.0029693 -2.8556e-07 -1.6356e-10 3.0433e-14 27677 -4.4445 2.8517 0.0056952 1.0711e-06 -1.6226e-09 -2.3511e-13 28638 8.9928
32 "HCN " "GRI/98" "H 1C 1N 1 " 200 1000 6000 3.8022 0.0031464 -1.0632e-06 1.662e-10 -9.7998e-15 14407 1.5755 2.259 0.010051 -1.3352e-05 1.0092e-08 -3.0089e-12 14713 8.9164
33 "HNO " "And93 " "H 1N 1O 1 " 200 1000 6000 2.9793 0.0034944 -7.855e-07 5.748e-11 -1.9336e-16 11751 8.6064 4.5335 -0.0056696 1.8473e-05 -1.7137e-08 5.5455e-12 11548 1.7498
34 "N " "L 6/88" "N 1 " 200 1000 6000 2.4159 0.00017489 -1.1902e-07 3.0226e-11 -2.0361e-15 56134 4.6496 2.5 0 0 0 0 56105 4.1939
35 "NNH " "T07/93" "N 2H 1 " 200 1000 6000 3.7668 0.0028915 -1.0417e-06 1.6843e-10 -1.0092e-14 28651 4.4705 4.3447 -0.0048497 2.0059e-05 -2.1726e-08 7.947e-12 28792 2.9779
36 "N2O " "L 7/88" "N 2O 1 " 200 1000 6000 4.8231 0.002627 -9.5851e-07 1.6001e-10 -9.7752e-15 8073.4 -2.2017 2.2572 0.011305 -1.3671e-05 9.682e-09 -2.9307e-12 8741.8 10.758
37 "NH " "And94 " "N 1H 1 " 200 1000 6000 2.7837 0.0013298 -4.2478e-07 7.8349e-11 -5.5044e-15 42121 5.7408 3.4929 0.00031179 -1.489e-06 2.4816e-09 -1.0357e-12 41881 1.8483
38 "NH2 " "And89 " "N 1H 2 " 200 1000 6000 2.8347 0.0032073 -9.3391e-07 1.3703e-10 -7.9206e-15 22172 6.5204 4.204 -0.0021061 7.1068e-06 -5.6115e-09 1.6441e-12 21886 -0.14184
39 "NH3 " "J 6/77" "N 1H 3 " 200 1000 6000 2.6345 0.0056663 -1.7279e-06 2.3867e-10 -1.2579e-14 -6544.7 6.5663 4.286 -0.0046605 2.1719e-05 -2.2809e-08 8.2638e-12 -6741.7 -0.62537
40 "NO " "RUS 78" "N 1O 1 " 200 1000 6000 3.2606 0.0011911 -4.2917e-07 6.9458e-11 -4.0336e-15 9921 6.3693 4.2185 -0.004639 1.1041e-05 -9.3361e-09 2.8036e-12 9844.6 2.2808
41 "NO2 " "L 7/88" "N 1O 2 " 200 1000 6000 4.8848 0.0021724 -8.2807e-07 1.5748e-10 -1.0511e-14 2316.5 -0.11742 3.944 -0.0015854 1.6658e-05 -2.0475e-08 7.8351e-12 2896.6 6.312
42 "HCNO " "BDEA94" "H 1N 1C 1O 1" 300 1382 5000 6.5986 0.0030278 -1.077e-06 1.7167e-10 -1.0144e-14 17966 -10.331 2.6473 0.012751 -1.0479e-05 4.4143e-09 -7.5752e-13 19299 10.733
43 "HOCN " "BDEA94" "H 1N 1C 1O 1" 300 1368 5000 5.8978 0.0031679 -1.118e-06 1.7724e-10 -1.0434e-14 -3706.5 -6.1817 3.786 0.0068867 -3.2149e-06 5.172e-10 1.1936e-14 -2827 5.6329
44 "HNCO " "BDEA94" "H 1N 1C 1O 1" 300 1478 5000 6.224 0.0031786 -1.0938e-06 1.7074e-10 -9.9502e-15 -16660 -8.3822 3.631 0.0073028 -2.2805e-06 -6.6127e-10 3.6224e-13 -15587 6.1946
45 "NCO " "EA 93 " "N 1C 1O 1 " 200 1000 6000 5.1522 0.0023052 -8.8033e-07 1.4789e-10 -9.0978e-15 14004 -2.5443 2.8269 0.0088052 -8.3866e-06 4.8017e-09 -1.3314e-12 14682 9.5505
46 "CN " "HBH92 " "C 1N 1 " 200 1000 6000 3.746 4.3451e-05 2.9706e-07 -6.8652e-11 4.4134e-15 51536 2.7868 3.6129 -0.00095551 2.1443e-06 -3.1516e-10 -4.643e-13 51708 3.9805
47 "HCNN " "SRI/94" "C 1N 2H 1 " 300 1000 5000 5.8946 0.0039896 -1.5982e-06 2.9249e-10 -2.0095e-14 53453 -5.1031 2.5243 0.015961 -1.8816e-05 1.2126e-08 -3.2357e-12 54262 11.676
48 "N2 " "121286" "N 2 " 300 1000 5000 2.9266 0.001488 -5.6848e-07 1.0097e-10 -6.7534e-15 -922.8 5.9805 3.2987 0.0014082 -3.9632e-06 5.6415e-09 -2.4449e-12 -1020.9 3.9504
49 "AR " "120186" "AR 1 " 300 1000 5000 2.5 0 0 0 0 -745.38 4.366 2.5 0 0 0 0 -745.38 4.366
50 "C3H8 " "L 4/85" "C 3H 8 " 300 1000 5000 7.5341 0.018872 -6.2718e-06 9.1476e-10 -4.7838e-14 -16468 -17.892 0.93355 0.026425 6.106e-06 -2.1977e-08 9.5149e-12 -13959 19.202
51 "C3H7 " "L 9/84" "C 3H 7 " 300 1000 5000 7.7027 0.016044 -5.2833e-06 7.6299e-10 -3.9392e-14 8298.4 -15.48 1.0516 0.025992 2.3801e-06 -1.961e-08 9.3732e-12 10632 21.123
52 "CH3CHO " "L 8/88" "C 2H 4O 1 " 200 1000 6000 5.4041 0.011723 -4.2263e-06 6.8372e-10 -4.0985e-14 -22593 -3.4808 4.7295 -0.0031933 4.7535e-05 -5.7459e-08 2.1931e-11 -21573 4.103
53 "CH2CHO " "SAND86" "O 1H 3C 2 " 300 1000 5000 5.9757 0.0081306 -2.7436e-06 4.0703e-10 -2.176e-14 490.32 -5.0453 3.4091 0.010739 1.8915e-06 -7.1586e-09 2.8674e-12 1521.5 9.5583

do yo want to calculate thermodynamic parameter? if yes enter 1 if No enter 0 =1
Enter the temperature of system between 300K to 5000 K in Kelvin scale=500
select the gas and enter the sr no of gas given in 1st column of table=2
The termodynamic properties at selected system temperature Tsystem-Specific heat(J/mol-K), Specifc enthalpy(J/mol), Specific Entropy(J/mol-K) & Gibbs free energy(J/mol)

gas_specific_heat =

31.0835

gas_specific_enthalpy =

6.0862e+03

gas_specific_entropy =

220.6148

gas_specific_gibbs_free_energy =

-1.0422e+05

molecular_mass =

31.9988

GAS_PARAMETERS =

1×8 table

Sr Tsystem selected_gas gas_specific_heat gas_specific_enthalpy gas_specific_entropy gas_specific_gibbs_free_energy molecular_mass
__ _______ ____________ _________________ _____________________ ____________________ ______________________________ ______________

2 500 "O2 " 31.083 6086.2 220.61 -1.0422e+05 31.999

do yo want to continue the calculation of thermodynamic parameters? if yes enter 1 if No enter 0 =1
Enter the temperature of system between 300K to 5000 K in Kelvin scale=500
select the gas and enter the sr no of gas given in 1st column of table=16
The termodynamic properties at selected system temperature Tsystem-Specific heat(J/mol-K), Specifc enthalpy(J/mol), Specific Entropy(J/mol-K) & Gibbs free energy(J/mol)

gas_specific_heat =

44.6204

gas_specific_enthalpy =

-3.8521e+05

gas_specific_entropy =

234.8835

gas_specific_gibbs_free_energy =

-5.0265e+05

molecular_mass =

44.0098

GAS_PARAMETERS =

1×8 table

16 500 "CO2 " 44.62 -3.8521e+05 234.88 -5.0265e+05 44.01

do yo want to continue the calculation of thermodynamic parameters? if yes enter 1 if No enter 0 =1
Enter the temperature of system between 300K to 5000 K in Kelvin scale=500
select the gas and enter the sr no of gas given in 1st column of table=48
The termodynamic properties at selected system temperature Tsystem-Specific heat(J/mol-K), Specifc enthalpy(J/mol), Specific Entropy(J/mol-K) & Gibbs free energy(J/mol)

gas_specific_heat =

29.6359

gas_specific_enthalpy =

5.9216e+03

gas_specific_entropy =

206.7272

gas_specific_gibbs_free_energy =

-9.7442e+04

molecular_mass =

28.0200

GAS_PARAMETERS =

1×8 table

48 500 "N2 " 29.636 5921.6 206.73 -97442 28.02

do yo want to continue the calculation of thermodynamic parameters? if yes enter 1 if No enter 0 =0
you have exited from the program
>>

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

1.3 SCREENSHOTS

TABLE

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

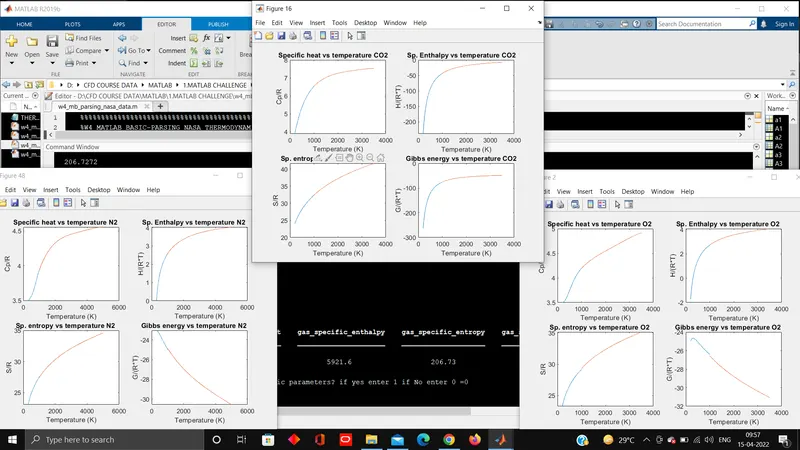

1. O2 GAS OUTPUT WITH TABLE

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

2. CO2 GAS OUTPUT WITH TABLE

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

3. N2 GAS OUTPUT WITH TABLE

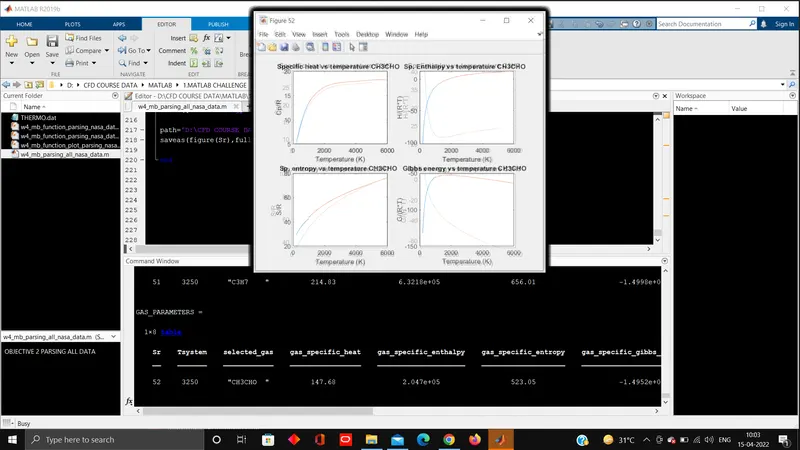

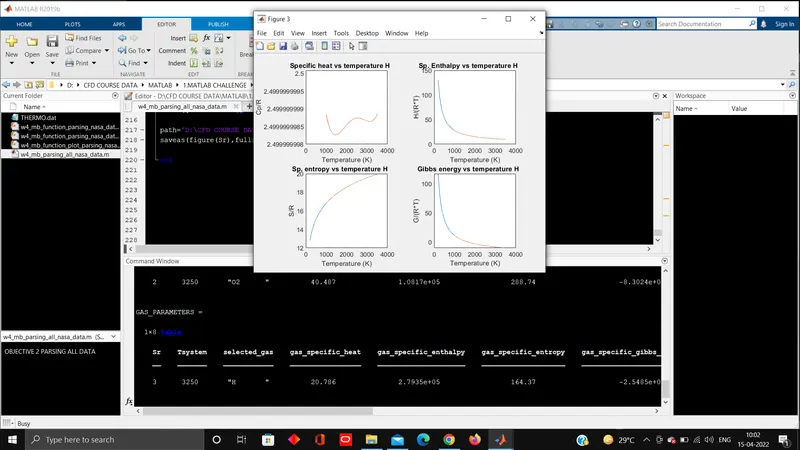

ALL

4. FOLDER SCREENSHOT SAVING PLOT AUTOMATICALLY

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

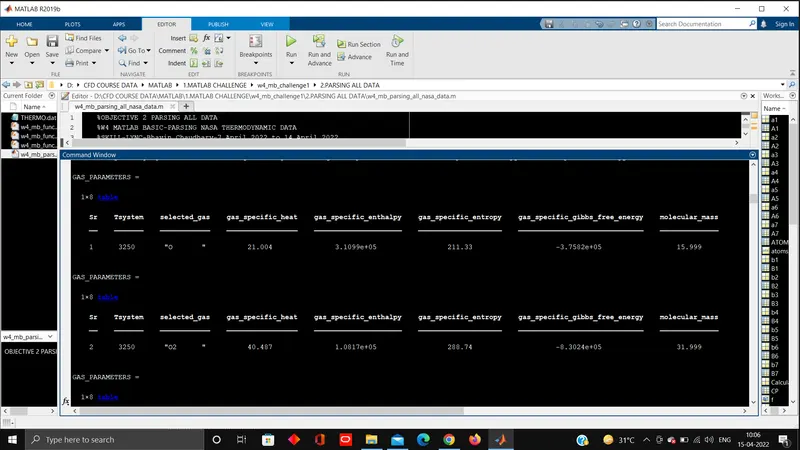

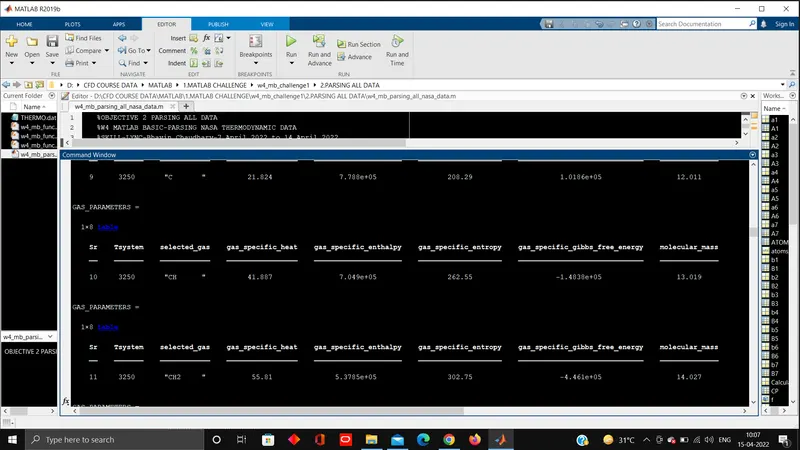

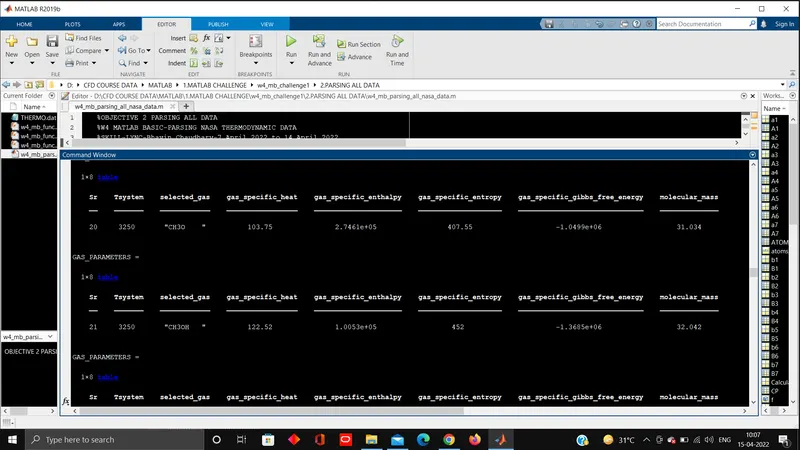

2. PARSE ALL DATA

2.1 CODE

%OBJECTIVE 2 PARSING ALL DATA
%W4 MATLAB BASIC-PARSING NASA THERMODYNAMIC DATA
%SKILL-LYNC-Bhavin Chaudhary-7 April 2022 to 14 April 2022


%OBJECTIVE
%To parse or read the NASA Thermodynamic data into simplified and easy to interprete data format.

%METHODOLOGY
%1. Generate string from file (read the data)
%2. Filter or extract the individual gas data
%3. Convert the data into table(easy to read)
%4. extract the elements and calculate the specific heat, enthalpy and entropy
%5. calculate the molecular mass of gas
%6. plot the specific heat, enthalpy,and entropy w.r.t temperature


%CITATION
%Understanding the data structure
%1.Understanding the NASA Thermodynamic data formatting method- pdf link- https://shepherd.caltech.edu/EDL/PublicResources/sdt/formats/nasa.html
%2.Understanding the NASA data of ideal gas thermodynamic properties in chemkin format- site link for pdf- https://jingweizhu.weebly.com/uploads/1/3/5/4/13548262/ideal_gas_thermodynamic_properties_in_chemkin_format.pdf
%3.Book to refer the chemkin plot data - https://www.osti.gov/servlets/purl/7073290
%4.Check thermodynamic values -http://combustion.berkeley.edu/gri-mech/data/thermo_table.html
%5.Basic of table in MATLAB-youtube video- https://www.youtube.com/watch?v=SbR5_i4UY0w
%6.Convert string to number youtube video -https://www.youtube.com/watch?v=DdOPybjKpkE
%7.MATLAB Video 4: Basic Strings, Concatenating Strings, and Char Function-youtube video- https://www.youtube.com/watch?v=NlUCU-0MXn4
%8.MATLAB/Otave for Beginners- Extracting Data From Tables, Matrices and Vectors -youtube video- https://www.youtube.com/watch?v=lh10T_uWIak
%9.Use of subplot command-youtube video- https://www.youtube.com/watch?v=BO5tqj_0bKQ
%10.To save multiple plot in folder by Moninka Shivhare -https://www.mathworks.com/matlabcentral/answers/403782-how-can-i-save-multiple-plots-in-a-specified-folder

%use of commands
%1.Use of fprint f command - https://www.mathworks.com/help/matlab/ref/fprintf.html
%2.Use of split line command -https://www.mathworks.com/help/matlab/ref/splitlines.html
%3.Use of convert character to trings command -https://www.mathworks.com/help/matlab/ref/convertcharstostrings.html
%4.Use of switch case command -https://www.mathworks.com/help/matlab/ref/switch.html
%5.Use of extract Between command -https://www.mathworks.com/help/matlab/ref/extractbetween.html
%6.Use of table commands -https://www.mathworks.com/help/matlab/ref/table.html
%7.Use of concatenate array -https://www.mathworks.com/help/matlab/ref/double.cat.html
%8.Use of text to number command -https://www.mathworks.com/help/matlab/matlab_prog/converting-from-string-to-numeric.html
%9.USE OF ACCESS DATA IN TABLE -https://www.mathworks.com/help/matlab/matlab_prog/access-data-in-a-table.html
%10.Use of cell to array(mat) command -https://www.mathworks.com/help/matlab/ref/cell2mat.html
%11.Determine array element not a number -https://www.mathworks.com/help/matlab/ref/isnan.html
%12.Determine array element a number -https://www.mathworks.com/help/matlab/ref/isnumeric.html


close all
clear all
clc
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%Reading data from given file
f1=fopen('THERMO.dat','r'); %this format defines file as f1 commanding to open file(' file name', with input mode of MATLAB System to read=r file)
%this command outputs the file f1 as a string data A using a array specifier
% integer signed %d %i
%floating point number %f %e %g
%character conversion specifier %s %c
%here we will use %c character specifier which read any character,
%including white space and line change
global_character_line_A1=fscanf(f1,'%c');

%Now we will split the character array data with respect to its line and form individual CHARACTER CELL of data
individual_character_line_A2=splitlines(global_character_line_A1);
%We will convert the character value cells into string value cells
individual_string__line_A=convertCharsToStrings(individual_character_line_A2);

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%%GAS GENERAL CONFIGURATION DATA EXTRACTION
%%Here we will display the gas data and the minimum/median/maximum temperature so that the end user can select the gas
%for his calculation
%We will define a variable to select the first line from general string data
i1=linspace(6,214,53);

%here we will extrct the first line of each gas
gas_info_line_1=individual_string__line_A(i1(:,1:53));

%here we will extract the gas information string based on its position
gas=extractBetween(gas_info_line_1,1,8);
gas_identifier=extractBetween(gas_info_line_1,19,24);
atoms_number=extractBetween(gas_info_line_1,25,44);
Tmin=str2double(extractBetween(gas_info_line_1,45+4,45+10));
Tmax=str2double(extractBetween(gas_info_line_1,45+13,45+20));
Tmed=str2double(extractBetween(gas_info_line_1,45+23,45+30));

%%HIGH TEMPERATURE COEFFICIENT EXTRACTION
%We will define a variable to select the second and third line from general string data
i2=linspace(7,215,53);
i3=linspace(8,216,53);
%here we will extrct the second line of each gas
gas_info_line_2=individual_string__line_A(i2(:,1:53));
%here we will extrct the third line of each gas
gas_info_line_3=individual_string__line_A(i3(:,1:53));


%here we will extract the high temperature coefficients information from string based on position of E
line_2_positionE=cell2mat(strfind(gas_info_line_2,'E'));
line_3_positionE=cell2mat(strfind(gas_info_line_3,'E'));

%here we will extract the gas information string based on position of E and convert string into a number
a1=str2double(extractBetween(gas_info_line_2,1,line_2_positionE(:,1:1)+3));
a2=str2double(extractBetween(gas_info_line_2,line_2_positionE(:,1:1)+4,line_2_positionE(:,2:2)+3));
a3=str2double(extractBetween(gas_info_line_2,line_2_positionE(:,2:2)+4,line_2_positionE(:,3:3)+3));
a4=str2double(extractBetween(gas_info_line_2,line_2_positionE(:,3:3)+4,line_2_positionE(:,4:4)+3));
a5=str2double(extractBetween(gas_info_line_2,line_2_positionE(:,4:4)+4,line_2_positionE(:,5:5)+3));
a6=str2double(extractBetween(gas_info_line_3,1,line_3_positionE(:,1:1)+3));
a7=str2double(extractBetween(gas_info_line_3,line_3_positionE(:,1:1)+4,line_3_positionE(:,2:2)+3));


%%LOW TEMPERATURE COEFFICIENT EXTRACTION
%We will define a variable to select the fourth line from general string data
i4=linspace(9,217,53);
%here we will extrct the fourth line of each gas
gas_info_line_4=individual_string__line_A(i4(:,1:53));

%here we will extract the low temperature coefficients information from string based on position of E
line_4_positionE=cell2mat(strfind(gas_info_line_4,'E'));

%here we will extract the gas information string based on position of E and convert string into a number
b1=str2double(extractBetween(gas_info_line_3,line_3_positionE(:,2:2)+4,line_3_positionE(:,3:3)+3));
b2=str2double(extractBetween(gas_info_line_3,line_3_positionE(:,3:3)+4,line_3_positionE(:,4:4)+3));
b3=str2double(extractBetween(gas_info_line_3,line_3_positionE(:,4:4)+4,line_3_positionE(:,5:5)+3));
b4=str2double(extractBetween(gas_info_line_4,1,line_4_positionE(:,1:1)+3));
b5=str2double(extractBetween(gas_info_line_4,line_4_positionE(:,1:1)+4,line_4_positionE(:,2:2)+3));
b6=str2double(extractBetween(gas_info_line_4,line_4_positionE(:,2:2)+4,line_4_positionE(:,3:3)+3));
b7=str2double(extractBetween(gas_info_line_4,line_4_positionE(:,3:3)+4,line_4_positionE(:,4:4)+3));


%%CONVERSION OF INDIVIDUAL EXTRACTED STRING INTO TABLE
%Here we will convert the string array into individual table
SrNo=linspace(1,53,53)';
SRNO=array2table(SrNo);
GAS=array2table(gas);
GAS_IDENTIFIER=array2table(gas_identifier);
ATOMS=array2table(atoms_number);
TMIN=array2table(Tmin);
TMED=array2table(Tmed);
TMAX=array2table(Tmax);
A1=array2table(a1);
A2=array2table(a2);
A3=array2table(a3);
A4=array2table(a4);
A5=array2table(a5);
A6=array2table(a6);
A7=array2table(a7);
B1=array2table(b1);
B2=array2table(b2);
B3=array2table(b3);
B4=array2table(b4);
B5=array2table(b5);
B6=array2table(b6);
B7=array2table(b7);

%%COMBINING THE TABLE
%we will use concatenation to combine the individual tables into one united table
disp('NASA THERMODYNAMIC GAS DATA SELECTION TABLE')
TABLE=cat(2,SRNO,GAS,GAS_IDENTIFIER,ATOMS,TMIN,TMED,TMAX,A1,A2,A3,A4,A5,A6,A7,B1,B2,B3,B4,B5,B6,B7)

Calculation=input('do yo want to calculate thermodynamic parameter? if yes enter 1 if No enter 0 =');

%We will use while loop to calculate the parameters by selecting the gases selected gases

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%%CODE TO SELECT AND EVALUATE THE PARAMETERS
%0. Enter the temperature of system
Tsystem=input('Enter the temperature of system between 300K to 5000 K in Kelvin scale=');
Serial=1:1:53;

disp('The termodynamic properties at selected system temperature Tsystem-Specific heat(J/mol-K), Specifc enthalpy(J/mol) & Specific Entropy(J/mol-K)')
for i=1:length(Serial)
    Sr=Serial(i);
%Calculate the parameters
selected_gas=TABLE.gas(Sr:Sr);
[gas_specific_heat, gas_specific_enthalpy, gas_specific_entropy,  gas_specific_gibbs_free_energy]=w4_mb_function_parsing_nasa_data(TABLE,Tsystem,Sr);

%Calculate molecular mass
[molecular_mass]=w4_mb_function_parsing_nasa_data_molecular_mass(TABLE,Sr);

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%Here we will convert the calculated parameters into table so as to display as one
SRN=array2table(Sr);
T=array2table(Tsystem);
G=array2table(selected_gas);
CP=array2table(gas_specific_heat);
H=array2table(gas_specific_enthalpy);
S=array2table(gas_specific_entropy);
GFE=array2table(gas_specific_gibbs_free_energy);
M=array2table(molecular_mass);


GAS_PARAMETERS=cat(2,SRN,T,G,CP,H,S,GFE,M)

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

%Evaluate polynomial data and plot specific heat, enthalpy, entropy with respect to temperature ranges
[T1, T2, gas_specific_heat_array1, gas_specific_heat_array2, gas_specific_enthalpy_array1, gas_specific_enthalpy_array2, gas_specific_entropy_array1, gas_specific_entropy_array2, gas_specific_gibbs_free_energy_array1, gas_specific_gibbs_free_energy_array2]=w4_mb_function_plot_parsing_nasa_data(TABLE,Sr);

f=figure(Sr);
subplot(2,2,1)
plot(T1,gas_specific_heat_array1,T2,gas_specific_heat_array2)
xlabel('Temperature (K)')
ylabel('Cp/R')
title(['Specific heat vs temperature ',num2str(selected_gas)])
subplot(2,2,2)
plot(T1,gas_specific_enthalpy_array1,T2,gas_specific_enthalpy_array2)
xlabel('Temperature (K)')
ylabel('H/(R*T)')
title(['Sp. Enthalpy vs temperature ',num2str(selected_gas)])
subplot(2,2,3)
plot(T1,gas_specific_entropy_array1,T2,gas_specific_entropy_array2)
xlabel('Temperature (K)')
ylabel('S/R')
title(['Sp. entropy vs temperature ',num2str(selected_gas)])
subplot(2,2,4)
plot(T1,gas_specific_gibbs_free_energy_array1,T2,gas_specific_gibbs_free_energy_array2)
xlabel('Temperature (K)')
ylabel('G/(R*T)')
title(['Gibbs energy vs temperature ',num2str(selected_gas)])

path='D:\CFD COURSE DATA\MATLAB\1.MATLAB CHALLENGE\w4_mb_challenge1\2.PLOTTING ALL GAS DATA';
saveas(figure(Sr),fullfile(path,['Gas_Thermodynamic_data_Plot_Sr_' num2str(Sr) '.jpeg']));

end

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
function [gas_specific_heat, gas_specific_enthalpy, gas_specific_entropy, gas_specific_gibbs_free_energy]=w4_mb_function_parsing_nasa_data(TABLE,Tsystem,Sr)
% we will extract the data from table to evaluate the parameters for selected gas
T=Tsystem;
Tmed_local=TABLE.Tmed(Sr:Sr);
%Specific gas constant in J/K.mol
R=8.31446;
if T>Tmed_local
    %we will extract the high temperature coefficient data from table
    a1=TABLE.a1(Sr:Sr);
    a2=TABLE.a2(Sr:Sr);
    a3=TABLE.a3(Sr:Sr);
    a4=TABLE.a4(Sr:Sr);
    a5=TABLE.a5(Sr:Sr);
    a6=TABLE.a6(Sr:Sr);
    a7=TABLE.a7(Sr:Sr);

    %evaluate the parameters of gas
    gas_specific_heat= (a1 + a2*T + a3*T^2 + a4*T^3 + a5*T^4)*R;
    gas_specific_enthalpy= (a1 + (a2*T)/2 + (a3*T^2)/3 + (a4*T^3)/4 + (a5*T^4)/5 + a6/T)*R*T;
    gas_specific_entropy= (a1*log(T) + a2*T + a3*T^2/2 + (a4*T^3)/3 + (a5*T^4)/5 + a7)*R;
    gas_specific_gibbs_free_energy=gas_specific_enthalpy-T*gas_specific_entropy;
else
    if T

2.2 OUTPUT

NASA THERMODYNAMIC GAS DATA SELECTION TABLE

TABLE =

53×21 table

do yo want to calculate thermodynamic parameter? if yes enter 1 if No enter 0 =1
Enter the temperature of system between 300K to 5000 K in Kelvin scale=3250
The termodynamic properties at selected system temperature Tsystem-Specific heat(J/mol-K), Specifc enthalpy(J/mol) & Specific Entropy(J/mol-K)

GAS_PARAMETERS =

1×8 table

1 3250 "O " 21.004 3.1099e+05 211.33 -3.7582e+05 15.999

GAS_PARAMETERS =

1×8 table

2 3250 "O2 " 40.487 1.0817e+05 288.74 -8.3024e+05 31.999

GAS_PARAMETERS =

1×8 table

3 3250 "H " 20.786 2.7935e+05 164.37 -2.5485e+05 1.0079

GAS_PARAMETERS =

1×8 table

4 3250 "H2 " 37.6 98061 204.96 -5.6806e+05 2.0159

GAS_PARAMETERS =

1×8 table

5 3250 "OH " 37.435 1.3846e+05 259.35 -7.0444e+05 17.007

GAS_PARAMETERS =

1×8 table

6 3250 "H2O " 57.546 -99867 290.79 -1.0449e+06 18.015

GAS_PARAMETERS =

1×8 table

7 3250 "HO2 " 60.875 1.6754e+05 343.13 -9.4764e+05 33.007

GAS_PARAMETERS =

1×8 table

8 3250 "H2O2 " 79.516 67385 383.39 -1.1786e+06 34.015

GAS_PARAMETERS =

1×8 table

9 3250 "C " 21.824 7.788e+05 208.29 1.0186e+05 12.011

GAS_PARAMETERS =

1×8 table

10 3250 "CH " 41.887 7.049e+05 262.55 -1.4838e+05 13.019

GAS_PARAMETERS =

1×8 table

11 3250 "CH2 " 55.81 5.3785e+05 302.75 -4.461e+05 14.027

GAS_PARAMETERS =

1×8 table

12 3250 "CH2(S) " 55.945 5.7482e+05 296.75 -3.8962e+05 14.027

GAS_PARAMETERS =

1×8 table

13 3250 "CH3 " 78.992 3.4493e+05 336.66 -7.4922e+05 15.035

GAS_PARAMETERS =

1×8 table

14 3250 "CH4 " 113.61 1.8809e+05 365.9 -1.0011e+06 16.043

GAS_PARAMETERS =

1×8 table

15 3250 "CO " 37.362 -7685.4 277.54 -9.0971e+05 28.01

GAS_PARAMETERS =

1×8 table

16 3250 "CO2 " 62.473 -2.2511e+05 341.32 -1.3344e+06 44.01

GAS_PARAMETERS =

1×8 table

17 3250 "HCO " 57.477 1.9402e+05 338.86 -9.0728e+05 29.018

GAS_PARAMETERS =

1×8 table

18 3250 "CH2O " 80.106 94522 365.68 -1.0939e+06 30.026

GAS_PARAMETERS =

1×8 table

19 3250 "CH2OH " 99.441 2.3905e+05 428.37 -1.1531e+06 31.034

GAS_PARAMETERS =

1×8 table

20 3250 "CH3O " 103.75 2.7461e+05 407.55 -1.0499e+06 31.034

GAS_PARAMETERS =

1×8 table

21 3250 "CH3OH " 122.52 1.0053e+05 452 -1.3685e+06 32.042

GAS_PARAMETERS =

1×8 table

22 3250 "C2H " 63.73 7.3735e+05 341.52 -3.726e+05 25.03

GAS_PARAMETERS =

1×8 table

23 3250 "C2H2 " 87.085 4.5035e+05 363.3 -7.3036e+05 26.038

GAS_PARAMETERS =

1×8 table

24 3250 "C2H3 " 103.58 5.6156e+05 421.99 -8.0992e+05 27.046

GAS_PARAMETERS =

1×8 table

25 3250 "C2H4 " 126.92 3.6634e+05 440.4 -1.065e+06 28.054

GAS_PARAMETERS =

1×8 table

26 3250 "C2H5 " 146.66 4.8035e+05 501.9 -1.1508e+06 29.062

GAS_PARAMETERS =

1×8 table

27 3250 "C2H6 " 170.13 3.3124e+05 518.89 -1.3552e+06 30.07

GAS_PARAMETERS =

1×8 table

28 3250 "CH2CO " 104.45 2.24e+05 441.88 -1.2121e+06 42.037

GAS_PARAMETERS =

1×8 table

29 3250 "HCCO " 80.951 3.9525e+05 409.79 -9.3656e+05 41.029

GAS_PARAMETERS =

1×8 table

30 3250 "HCCOH " 108.09 3.6089e+05 443.2 -1.0795e+06 42.037

GAS_PARAMETERS =

1×8 table

31 3250 "H2CN " 80.022 4.5453e+05 371.1 -7.5154e+05 28.037

GAS_PARAMETERS =

1×8 table

32 3250 "HCN " 61.608 2.9217e+05 321.07 -7.513e+05 27.029

GAS_PARAMETERS =

1×8 table

33 3250 "HNO " 66.44 2.7013e+05 337.23 -8.2587e+05 31.017

GAS_PARAMETERS =

1×8 table

34 3250 "N " 21.099 5.3414e+05 203.09 -1.259e+05 14.01

GAS_PARAMETERS =

1×8 table

35 3250 "NNH " 56.683 4.0084e+05 336.97 -6.9431e+05 29.028

GAS_PARAMETERS =

1×8 table

36 3250 "N2O " 63.513 2.5283e+05 348.28 -8.7907e+05 44.019

GAS_PARAMETERS =

1×8 table

37 3250 "NH " 39.031 4.5826e+05 258.61 -3.8221e+05 15.018

GAS_PARAMETERS =

1×8 table

38 3250 "NH2 " 59.984 3.3993e+05 302.03 -6.4167e+05 16.026

GAS_PARAMETERS =

1×8 table

39 3250 "NH3 " 79.727 1.4896e+05 329.34 -9.2138e+05 17.034

GAS_PARAMETERS =

1×8 table

40 3250 "NO " 37.689 1.9574e+05 291.38 -7.5125e+05 30.009

GAS_PARAMETERS =

1×8 table

41 3250 "NO2 " 61.791 1.9805e+05 362.82 -9.8112e+05 46.009

GAS_PARAMETERS =

1×8 table

42 3250 "HCNO " 81.68 3.9186e+05 406.73 -9.3001e+05 43.028

GAS_PARAMETERS =

1×8 table

43 3250 "HOCN " 77.365 1.961e+05 396.58 -1.0928e+06 43.028

GAS_PARAMETERS =

1×8 table

44 3250 "HNCO " 81.085 98773 401.03 -1.2046e+06 43.028

GAS_PARAMETERS =

1×8 table

45 3250 "NCO " 61.588 3.0194e+05 361.27 -8.7218e+05 42.02

GAS_PARAMETERS =

1×8 table

46 3250 "CN " 42.908 5.4663e+05 283.53 -3.7485e+05 26.021

GAS_PARAMETERS =

1×8 table

47 3250 "HCNN " 81.301 6.8256e+05 415.62 -6.682e+05 41.039

GAS_PARAMETERS =

1×8 table

48 3250 "N2 " 37.172 1.0201e+05 270.09 -7.758e+05 28.02

GAS_PARAMETERS =

1×8 table

49 3250 "AR " 20.786 61358 204.39 -6.029e+05 39.948

GAS_PARAMETERS =

1×8 table

50 3250 "C3H8 " 238.52 4.8195e+05 670.5 -1.6972e+06 44.097

GAS_PARAMETERS =

1×8 table

51 3250 "C3H7 " 214.83 6.3218e+05 656.01 -1.4998e+06 43.089

GAS_PARAMETERS =

1×8 table

52 3250 "CH3CHO " 147.68 2.047e+05 523.05 -1.4952e+06 44.053

GAS_PARAMETERS =

1×8 table

53 3250 "CH2CHO " 124.43 3.4281e+05 493.74 -1.2618e+06 43.045

2.3. SCREENSHOTS

OUTPUT SCREENSHOT

GAS PARAMETERS

PLOT DATA

PLOT SAVING FOLDER SCREENSHOT

CITATION

Understanding the data structure

1.Understanding the NASA Thermodynamic data formatting method- pdf link-https://shepherd.caltech.edu/EDL/PublicResources/sdt/formats/nasa.html

2.Understanding the NASA data of ideal gas thermodynamic properties in chemkin format- site link for pdf- https://jingweizhu.weebly.com/uploads/1/3/5/4/13548262/ideal_gas_thermodynamic_properties_in_chemkin_format.pdf

3.Book to refer the chemkin plot data - https://www.osti.gov/servlets/purl/7073290

4.Check thermodynamic values - http://combustion.berkeley.edu/gri-mech/data/thermo_table.html

5.Basic of table in MATLAB-youtube video- https://www.youtube.com/watch?v=SbR5_i4UY0w

6.Convert string to number youtube video- https://www.youtube.com/watch?v=DdOPybjKpkE

7.MATLAB Video 4: Basic Strings, Concatenating Strings, and Char Function-youtube video- https://www.youtube.com/watch?v=NlUCU-0MXn4

8.MATLAB/Otave for Beginners- Extracting Data From Tables, Matrices and Vectors -youtube video- https://www.youtube.com/watch?v=lh10T_uWIak

9.Use of subplot command-youtube video- https://www.youtube.com/watch?v=BO5tqj_0bKQ

10.To save multiple plot in folder by Moninka Shivhare- https://www.mathworks.com/matlabcentral/answers/403782-how-can-i-save-multiple-plots-in-a-specified-folder

Use of commands

1.Use of fprint f command - https://www.mathworks.com/help/matlab/ref/fprintf.html

2.Use of split line command- https://www.mathworks.com/help/matlab/ref/splitlines.html

3.Use of convert character to trings command - https://www.mathworks.com/help/matlab/ref/convertcharstostrings.html

4.Use of switch case command - https://www.mathworks.com/help/matlab/ref/switch.html

5.Use of extract Between command - https://www.mathworks.com/help/matlab/ref/extractbetween.html

6.Use of table commands - https://www.mathworks.com/help/matlab/ref/table.html

7.Use of concatenate array - https://www.mathworks.com/help/matlab/ref/double.cat.html

8.Use of text to number command - https://www.mathworks.com/help/matlab/matlab_prog/converting-from-string-to-numeric.html

9.USE OF ACCESS DATA IN TABLE - https://www.mathworks.com/help/matlab/matlab_prog/access-data-in-a-table.html

10.Use of cell to array(mat) command - https://www.mathworks.com/help/matlab/ref/cell2mat.html

11.Use of switch case command - https://www.mathworks.com/help/matlab/ref/switch.html

12.Determine array element not a number - https://www.mathworks.com/help/matlab/ref/isnan.html

13.Determine array element a number - https://www.mathworks.com/help/matlab/ref/isnumeric.html

14.Use of while loop - https://www.mathworks.com/help/matlab/ref/while.html

NASA Thermodynamic data file via skill lync- https://drive.google.com/file/d/1AikCHDlz9s_fu8whE81qee_GD4AyYpCP/view

Project 1 - Parsing NASA thermodynamic data

Ship work like this
in your own course.

Talk to a career counsellor

Ship work like thisin your own course.

Talk to a career counsellor

Ship work like this
in your own course.
