Project 1 - MODELLING, ANALYSIS & DESIGN OF TALL BUILDINGS IN ETABS

aim -

to model a tall building in it up for given architectural drawing along with the given parameter and two design their frames element

Procedure in ETAB modelling -

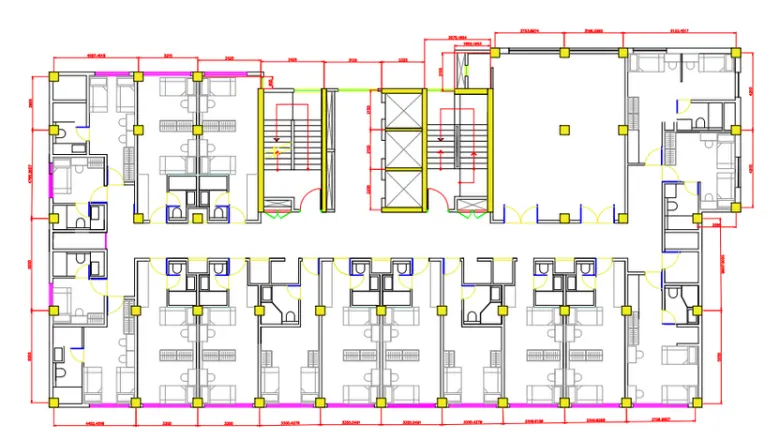

a ) columns pressing and all spacing making the architectural drawing

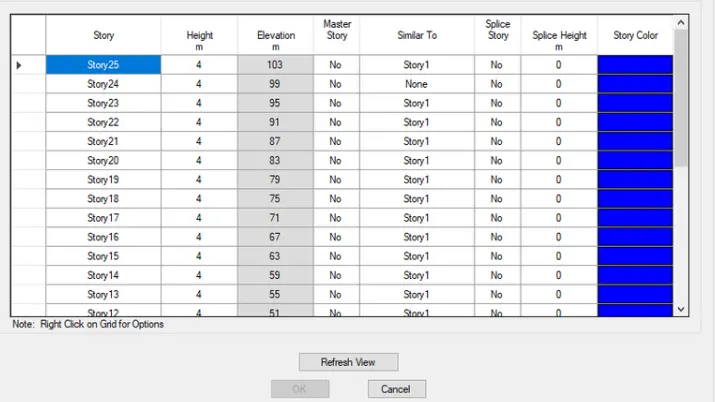

b) Story assignment

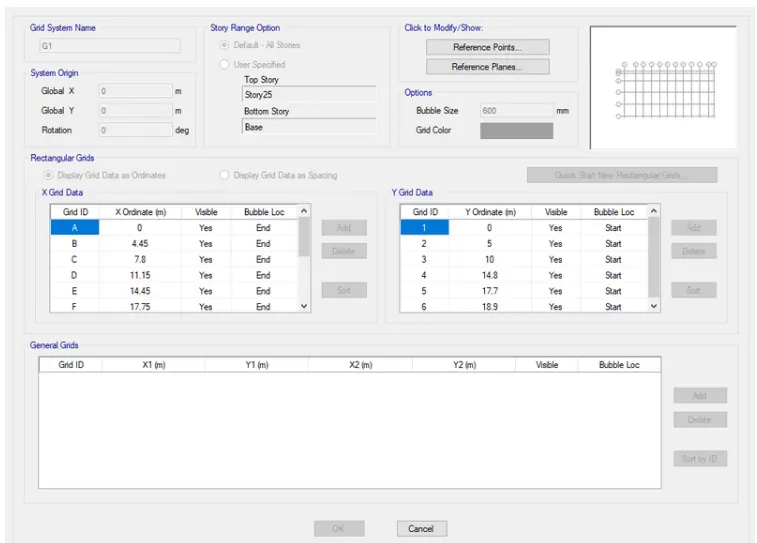

c ) Grid assignment

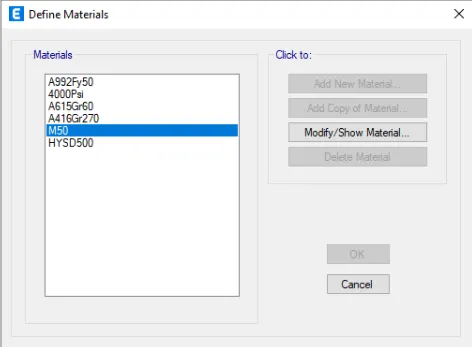

d) Material assignment

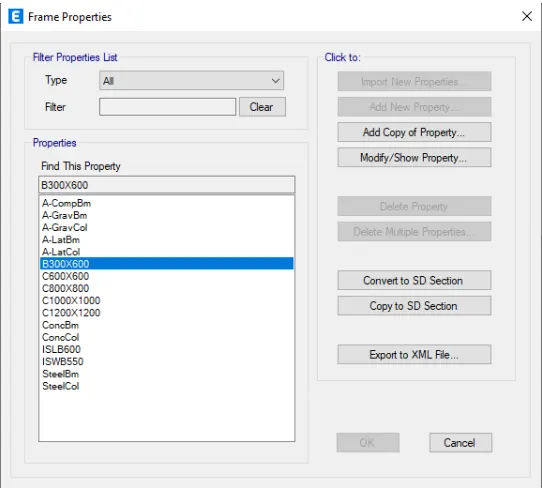

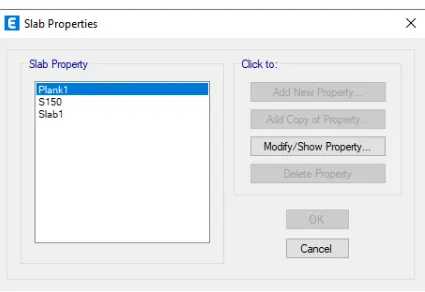

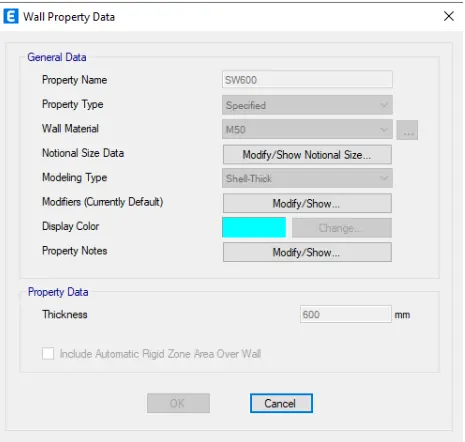

e) Frame sections slab section wall section assignment

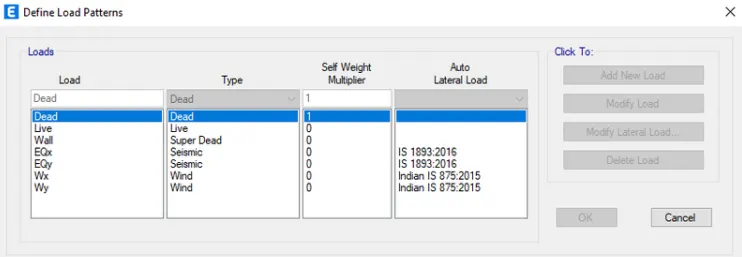

f) Load pattern

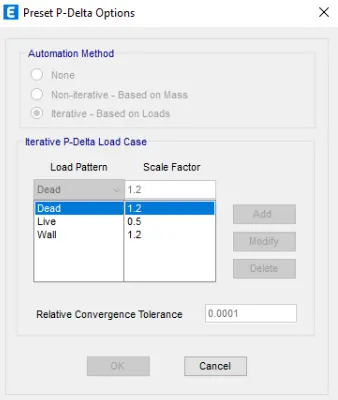

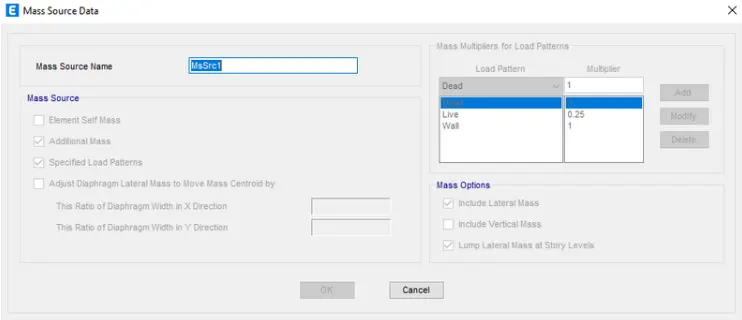

g) Mass source and p Delta assignment

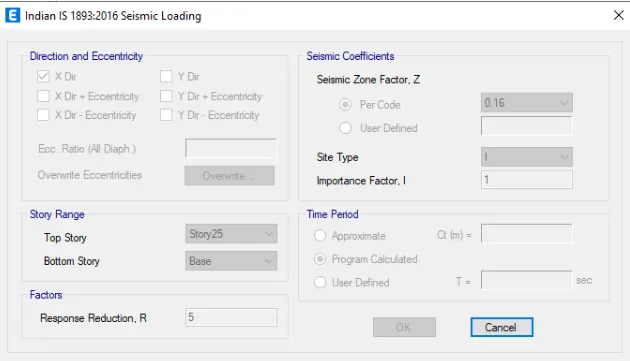

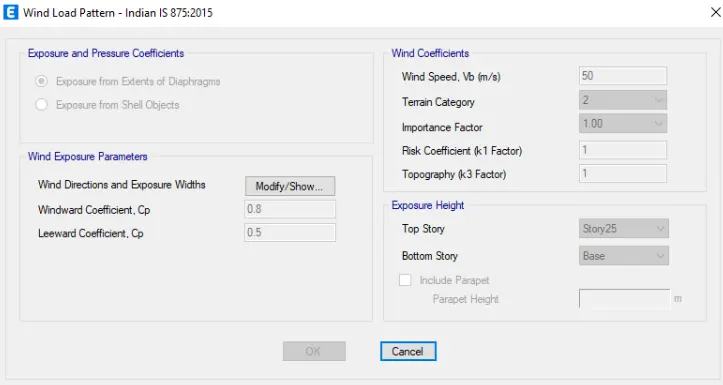

h) Load case definition for earthquake and wind

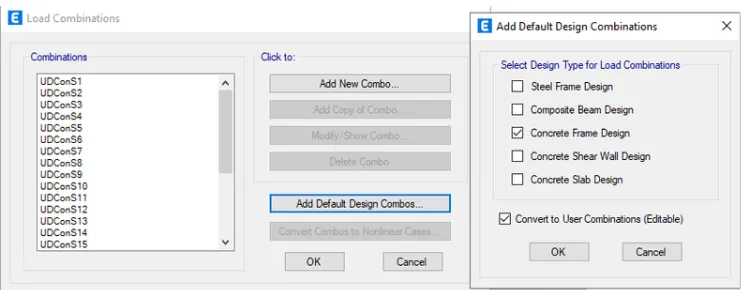

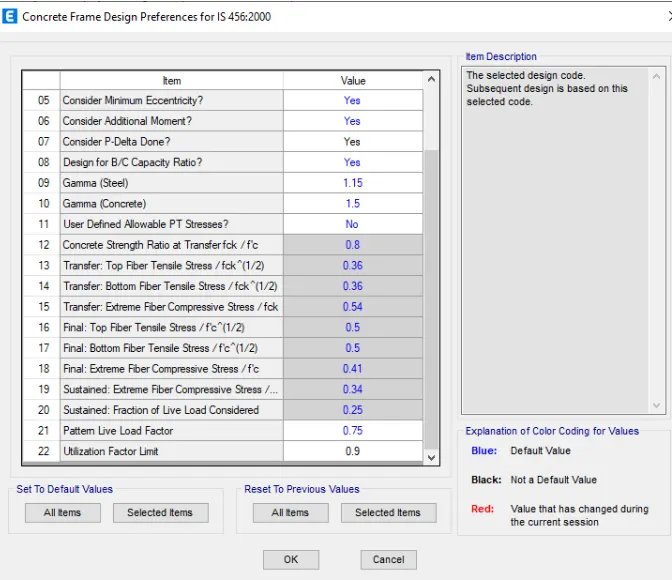

Load combination for concrete frame design

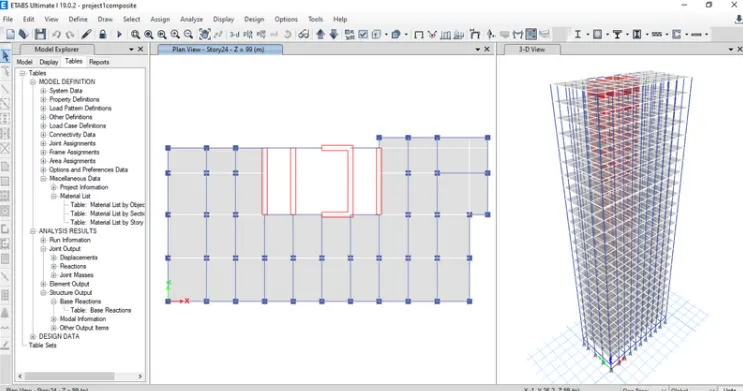

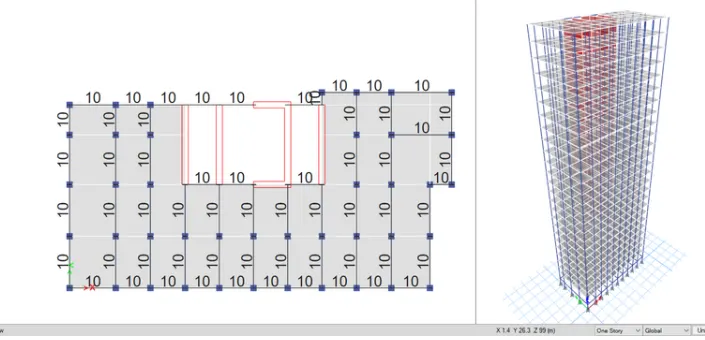

Modelling of column beam slab and shear wall

Wall load and floor live load assignment

Run analysis and check a design of frame

Verification of gravity load and base reaction
Floor area of each level = m^2

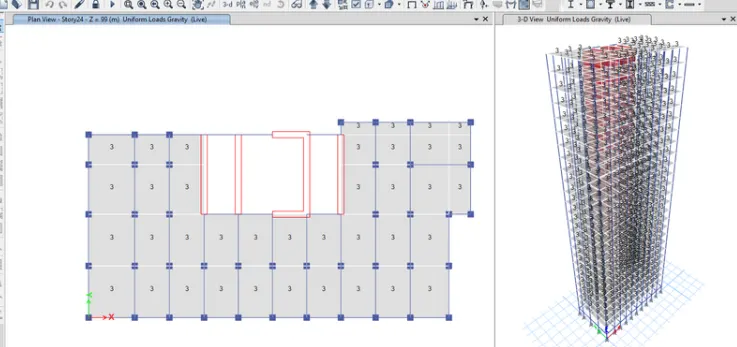

live load assignment = 3 kn/m^2

total live load at each level = kn
overall live load in the tall building = 25 x kn = kn

this is verified with etabs live load base reaction result As given below

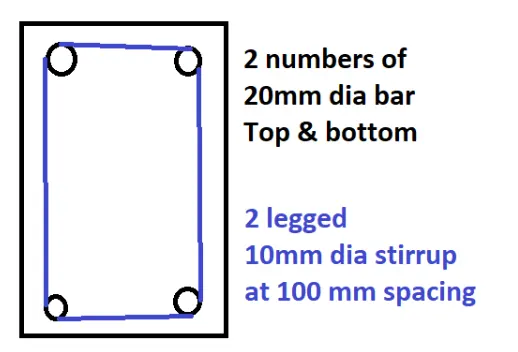

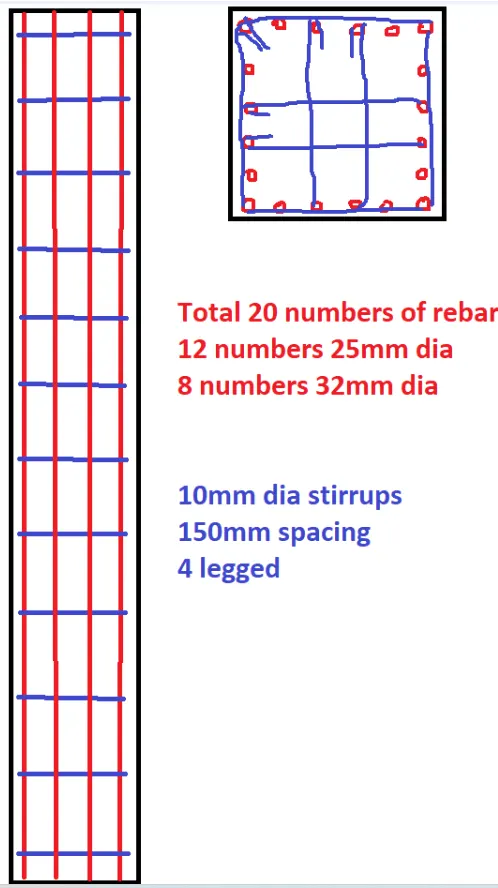

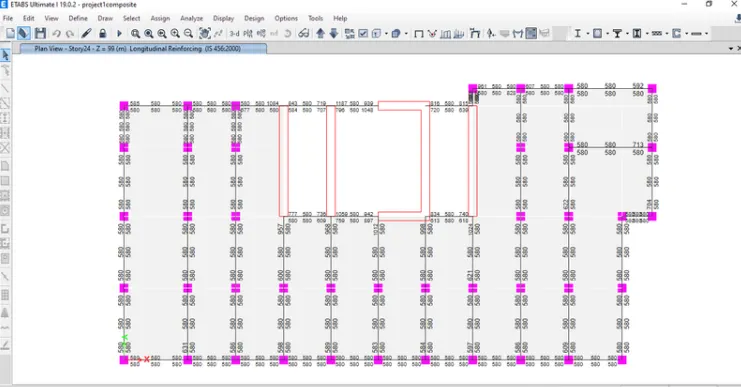

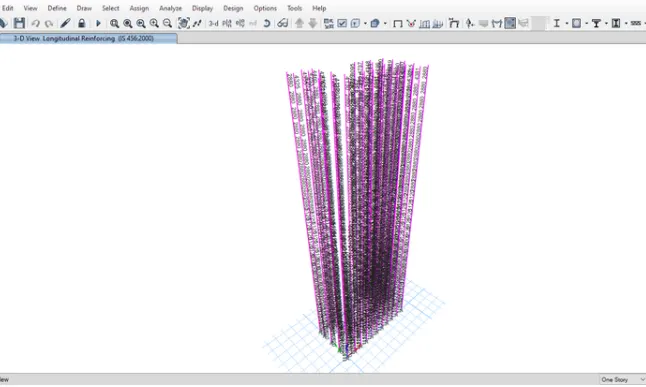

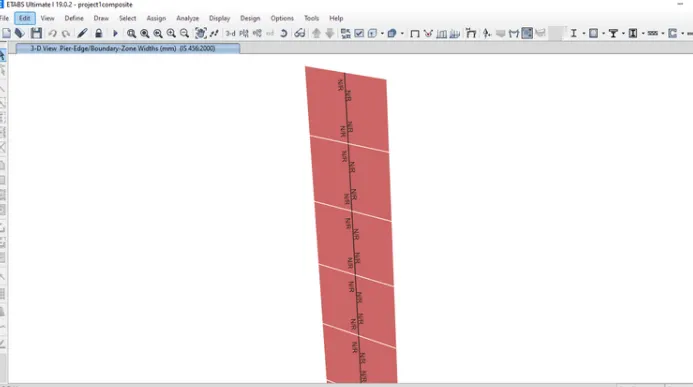

Design of column and beam rebar

beam

coloumn

Conclusion

does a tall building with all given parameter and for the given architectural drawing is modeled and designed. also detail report of model working file or attached in the submission
