Project 1 (Mini Project on Vehicle Direction Detection

Objective of Project:

1. Development of MATLAB Simulink model as per requirement.
2. Tag the requirements to the simulink model; tagging requirement 1 & requirement 2 to their corresponding subsystems is fine.
3. MBD compliant changes, Data Dictionary creation & code generation is added advantage, and that is not scope of this project.
4. If choosing code generation, Storage class for Input signals: ImportedExtern; Storage class for Output signal: Export to File; Storage class for local signals: localizable; Storage class for calibration signals: Const.
5. Choose sample time for all signals as 0.01s.

Answer:-

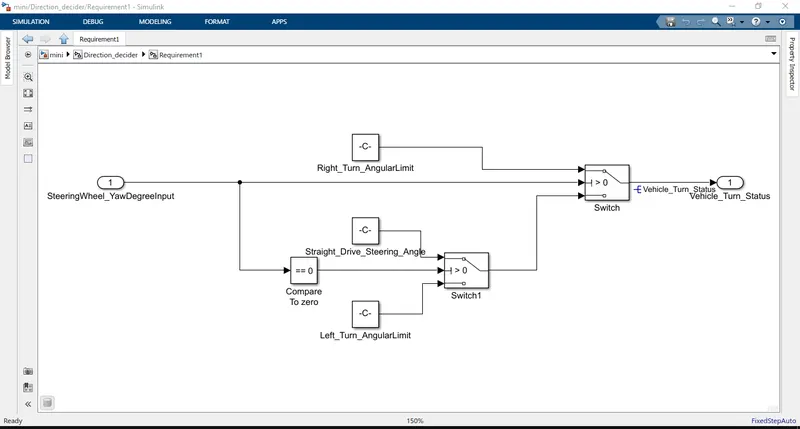

• Step1:-Create a model as per given reqirenment-1.

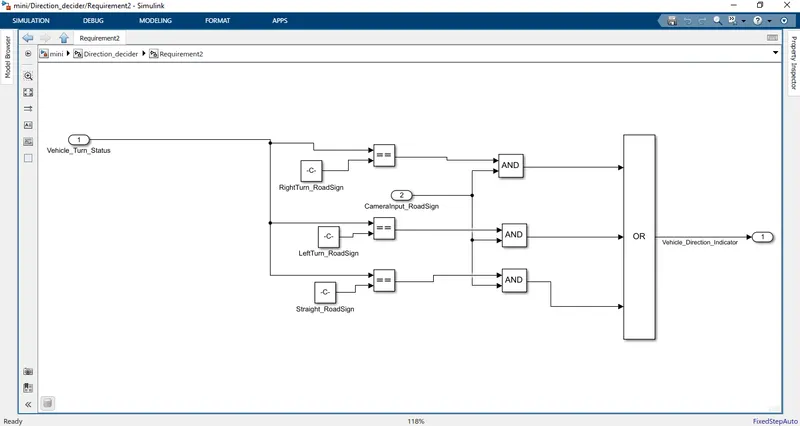

• Step 2:- Create a another model as per reqirement-2.

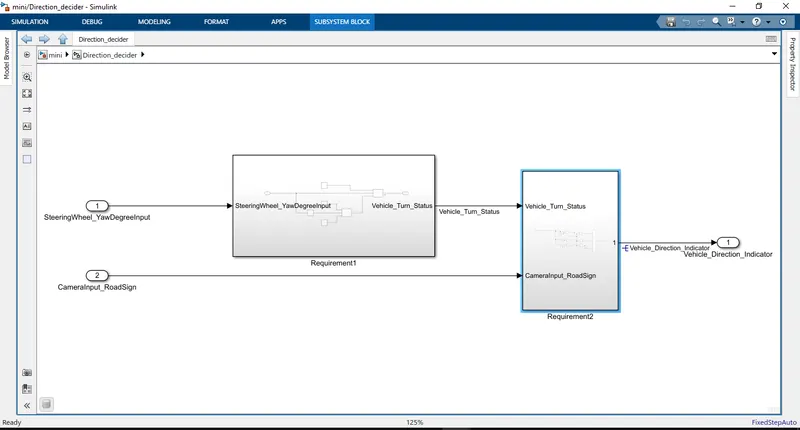

• after that convert both the model into seperate sub-system and join to each other.

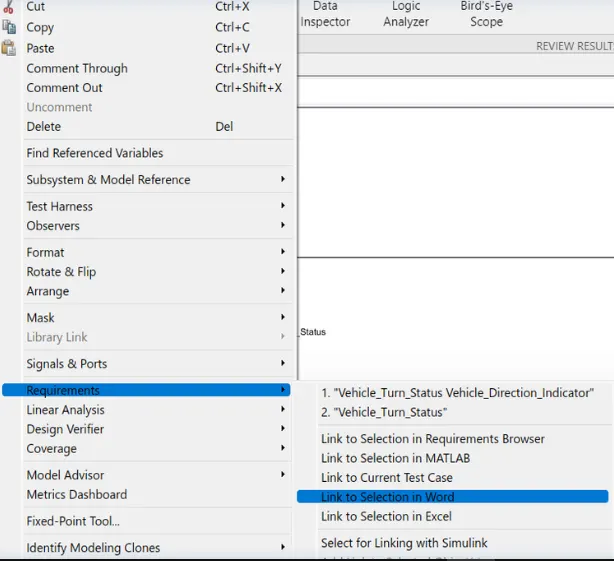

• Now create a word file of requirement 1 & 2 and do a tagging of both requirement.

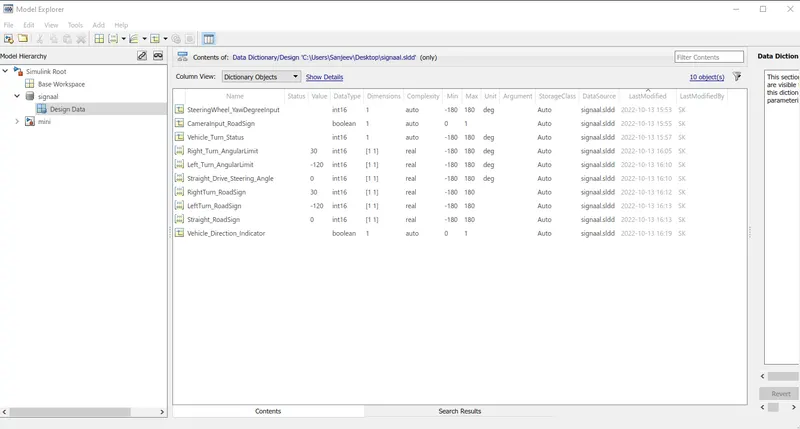

• Now create a Sldd file for signal.

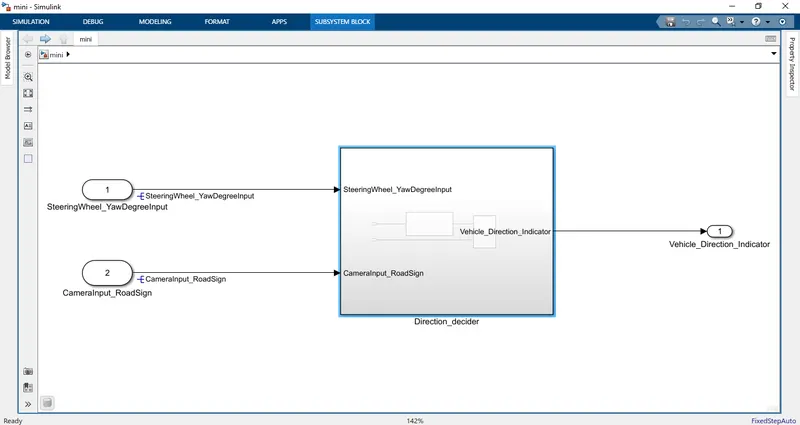

• Now link the Sldd file to model and run, Now model will look like this as below.

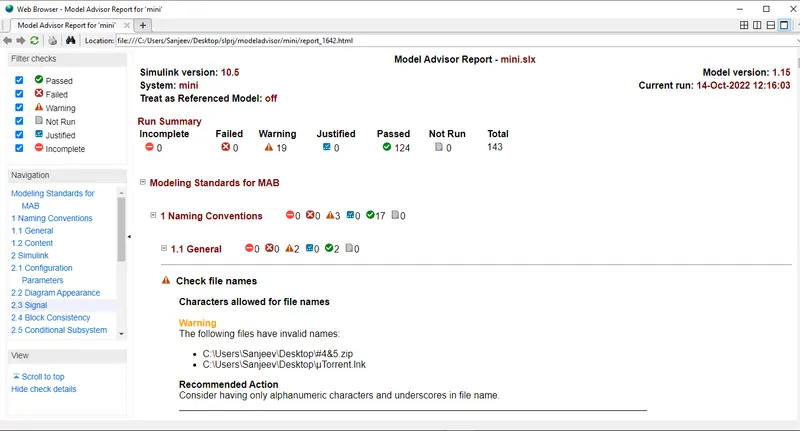

• Now use the Model advisor and check the errors and warnings and try to reduce the warnings.

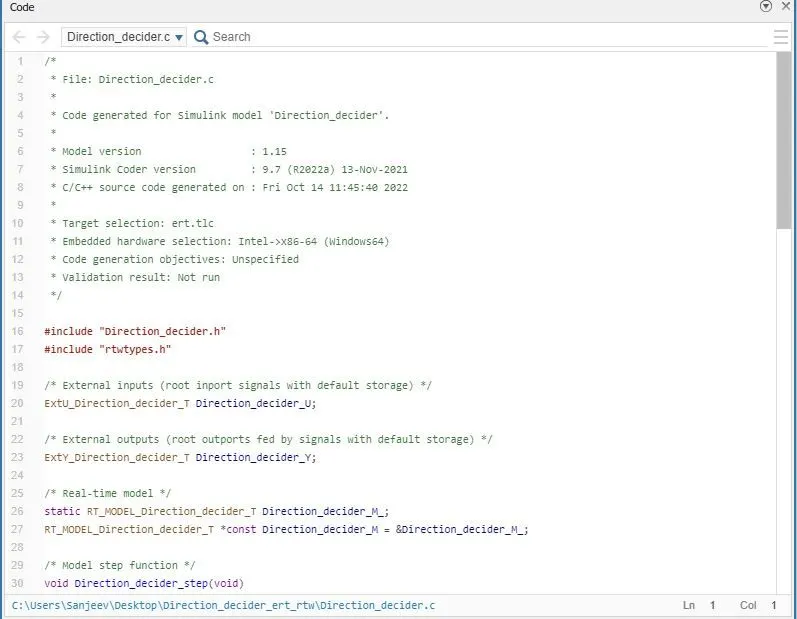

• After that generate a C-code for this model.
