Project 1-Meshing of Rear Wheel Holder challenge

Aim : is to extract a mid surface for the given model and perform 2-D meshing for the given quality criteria

objectives

1. To import the model into the Hypermesh module and check for geometrical errors and clear them so that we can extract a Mid surface.

1. To set the quality criteria and mesh the parts using 2-D Shell mesh.
2. Make sure that the flow of mesh is maintained and avoid rotating quads, pattern trias and opposite tria

Start doing mid surface extraction

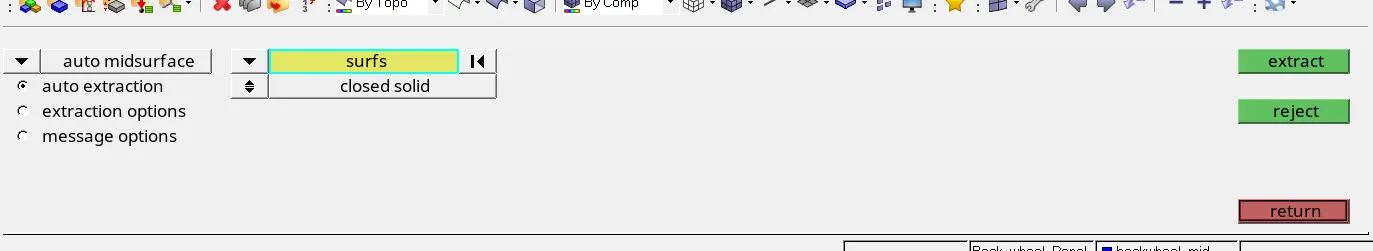

i preffered to to auto midsurface extraction using automid

after midsurface extraction

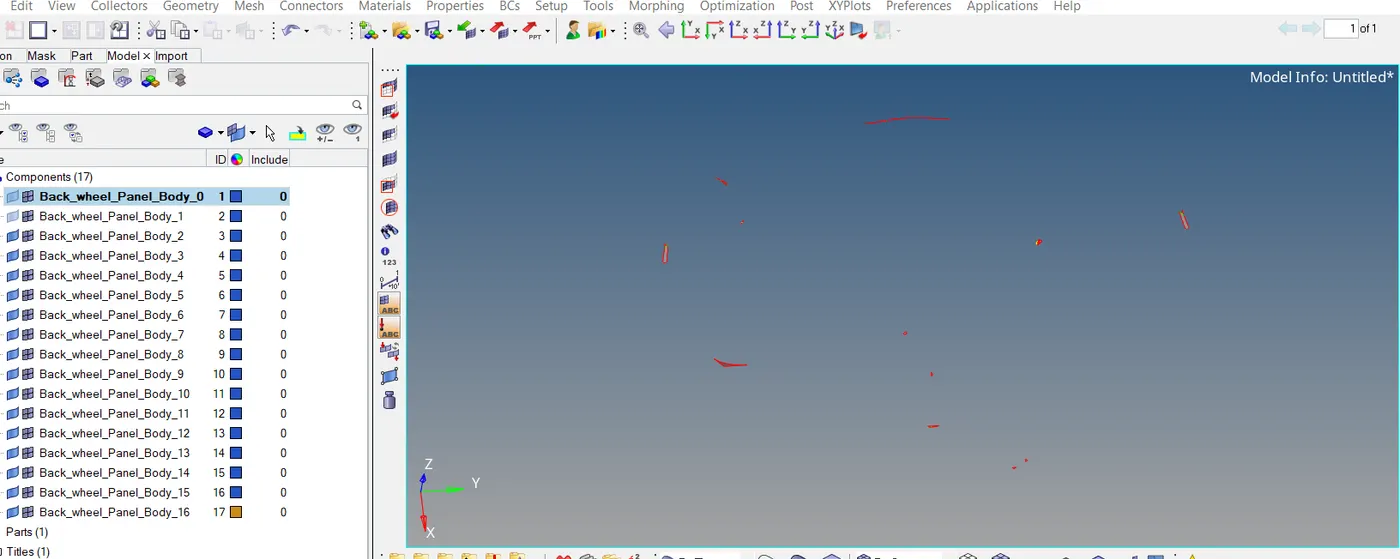

clearing topological errors

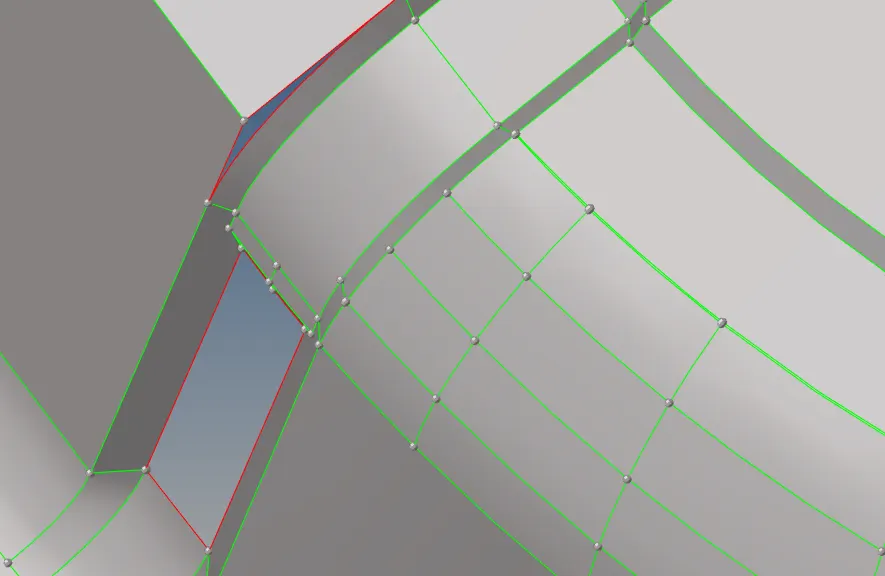

missing surfaces

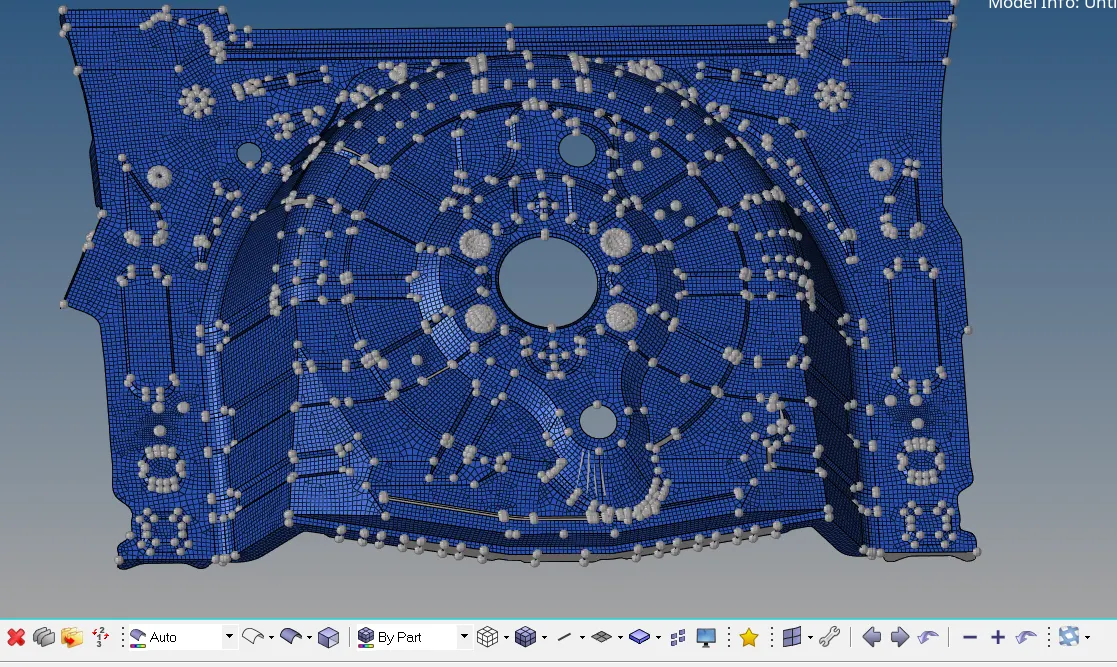

final mesh

 Final link

https://drive.google.com/file/d/1VySR8kxKz5zsM48M3GdgKf30NgD_FQ1L/view?usp=sharing
