Project 1-Meshing of Rear Wheel Holder challenge

Aim:

The Aim of the project is to mesh the back wheel panel with the mesh size of about 5mm and assign the thickness of the component

Procedure:

1.The CAD is imported first check for the geometrical errors and the buttons are removed so that the mesh will be proper

2.By using the quick edit option the geometric edit is done and using the delete option the buttons are removed

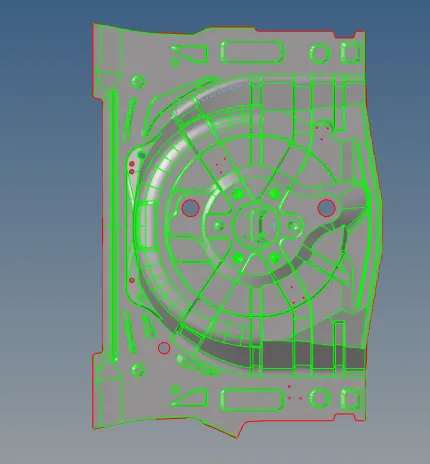

3.After the checking of the geometrical edit the component is to be defeature so that the mesh flow will be good.

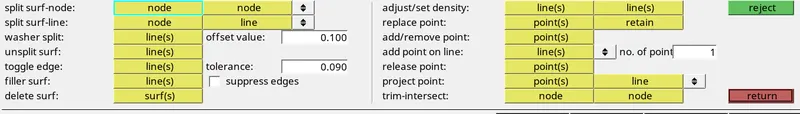

4. The same quick edit option like toggle edge, split surface to node, split surface to line option are used so that the mesh flow will be good.

5.After that the symmetry check is done for the component the component is not symmetry

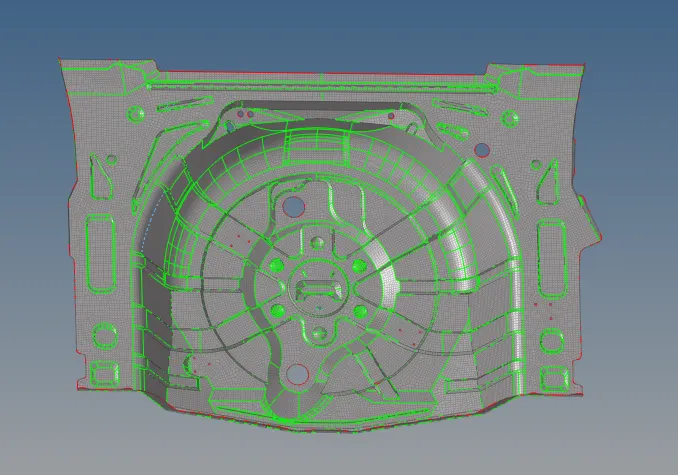

6.Next the meshing is done as per the criteria of 5mm

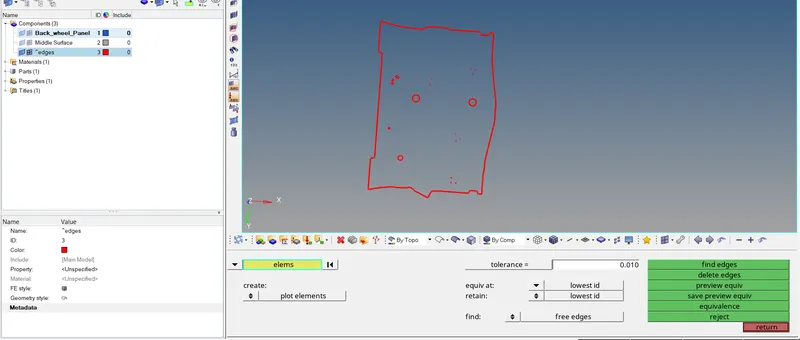

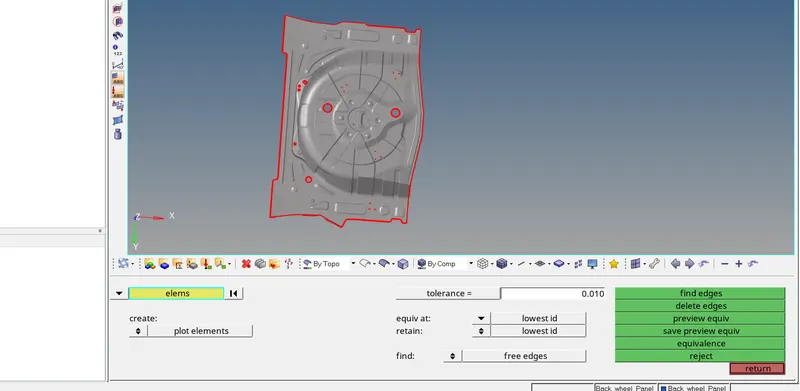

7. After meshing is done the option of edges can be used to check the connectivity of the mesh and also by using the equivalence option the connectivity of the mesh can be cleared

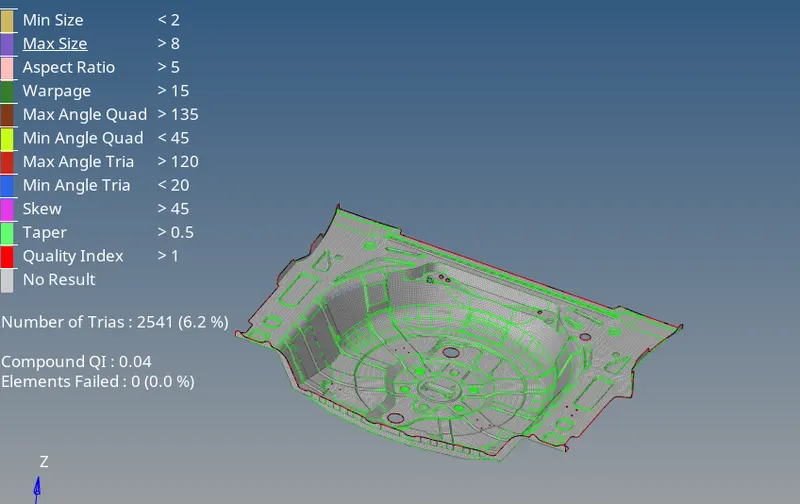

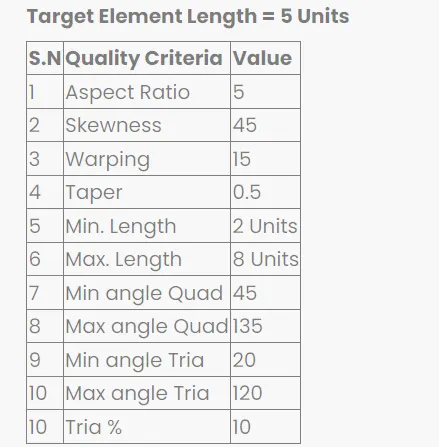

8.The mesh is edited for the given criteria and the errors are cleared.

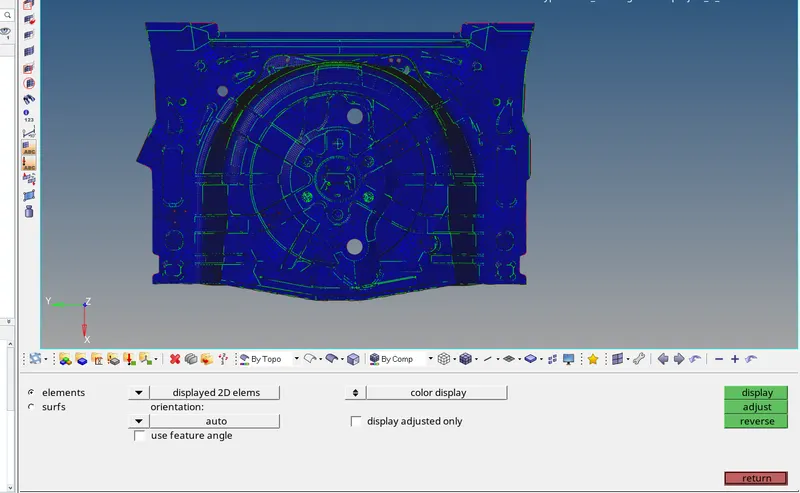

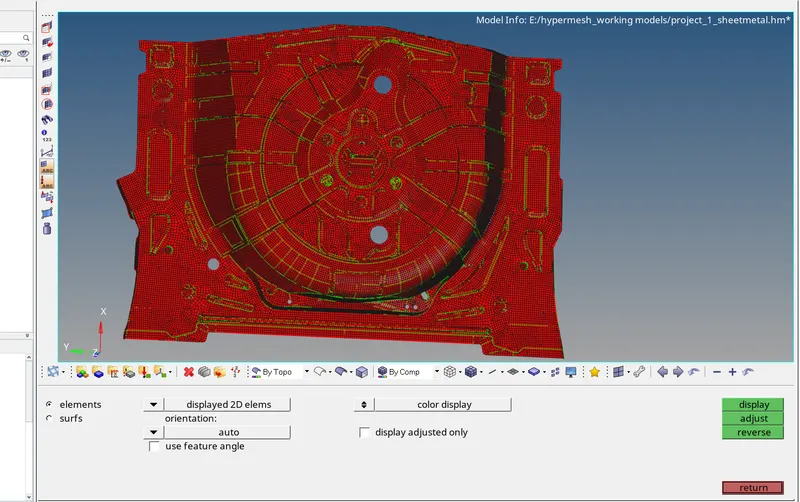

9.After that normals is checked so that the thickness can be assigned properly

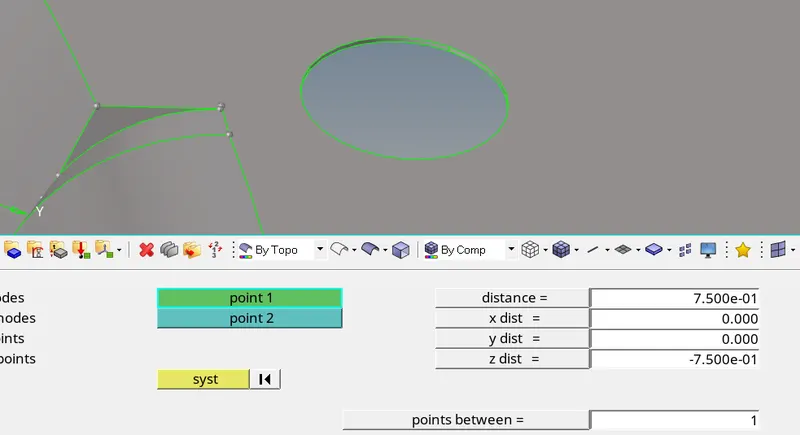

10.After the meshing the thickness of the component is checked in the CAD of about 0.75mm

11. The mesh is checked with the cad and it is perfectly matching with the Cad.

Conclusion:

The Project for the back wheel is done with the criteria of 5mm mesh size and the thickness of the component is about 0.75mm
