Project 1 - Meshing of Floor Panel

for meshing the given floor panel, following procedures required.

1. TOPO: topo eradicates the single cons by connecting the surfaces.

2.GEOMETRY CHECKUP: need to check the geometry of the floor panel and to rectify the errors.

3.CREATING MID SURFACE:two methods to create the mid surface either manually/automatically midsurface/offset.

4.SETPID: after creating the midsurface save it into PID

5.GEOMETRY CLEANUP: it helps inorder to get the quality of meshing by joining /hiding the cons to get the desired dimensions of meshing.

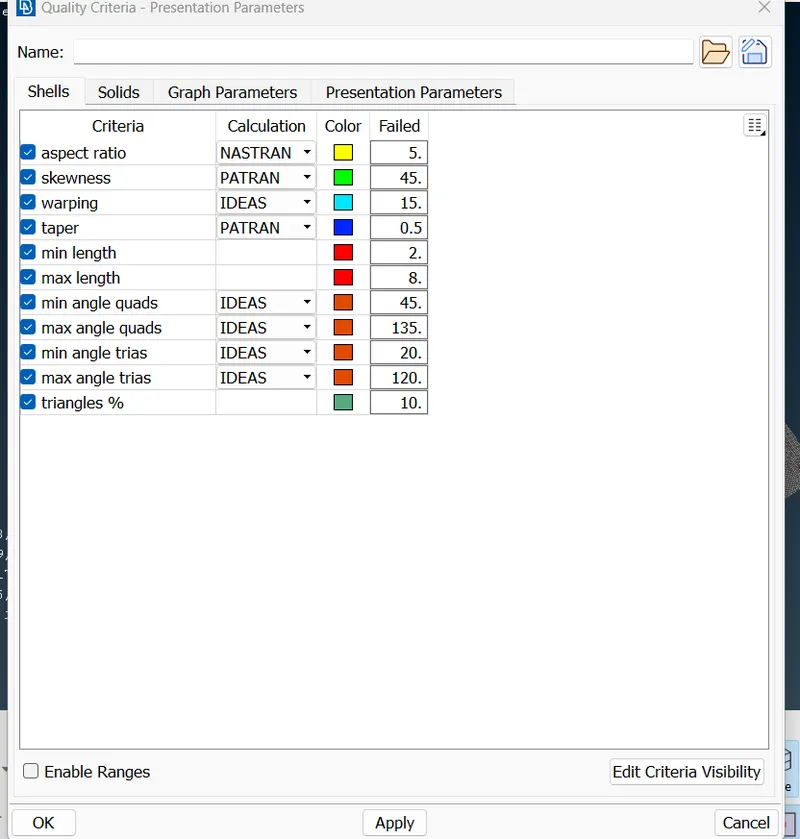

6.QUALITY PARAMETRES:

given the parametres as mentioned in the question.

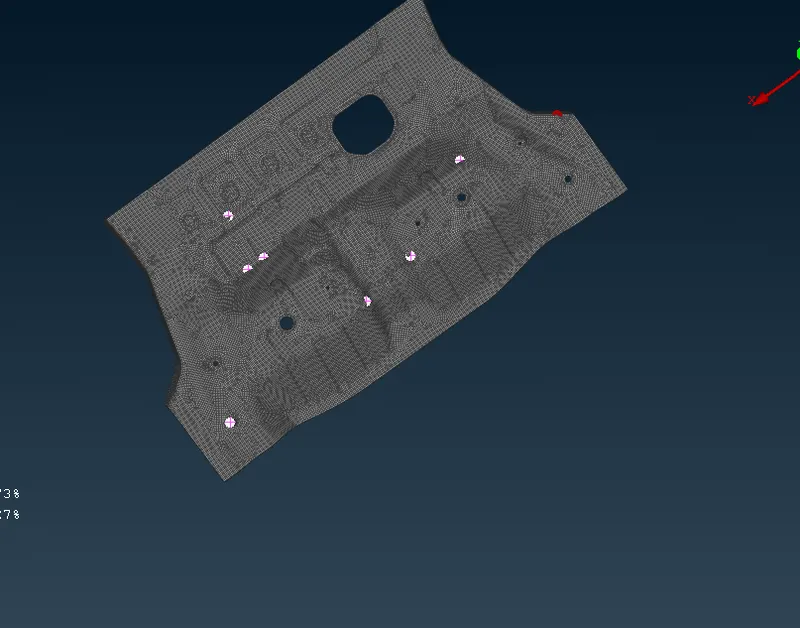

7.MESHING:select the best mesh inorder to get the better meshing quality.

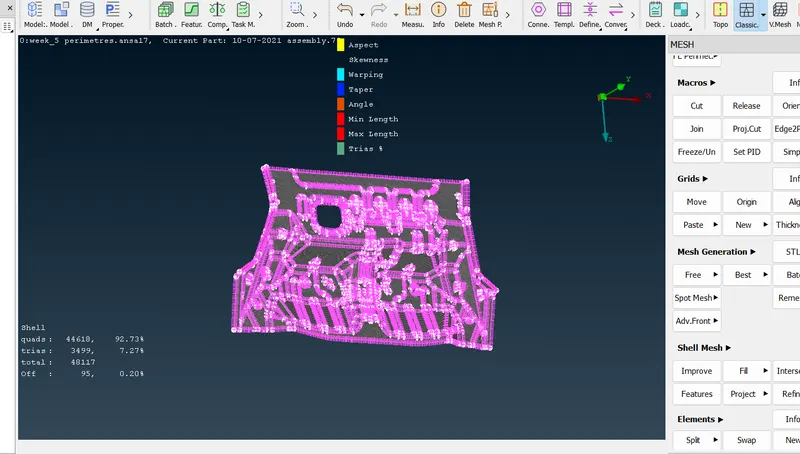

8.INSPECT: check whether the meshing is under the given parametres or it will highlight the in the colours as shown in quality parametres if it exceeds.
