Project 1 - Meshing of Floor Panel

OBJECTIVE

To carry out mid surface generation for the given CCB model after checking all the geometrical errors and mesh the mid surface with the given element quality criteria.

PROCEDURE

1-Open the file which has been downloaded in ANSA.

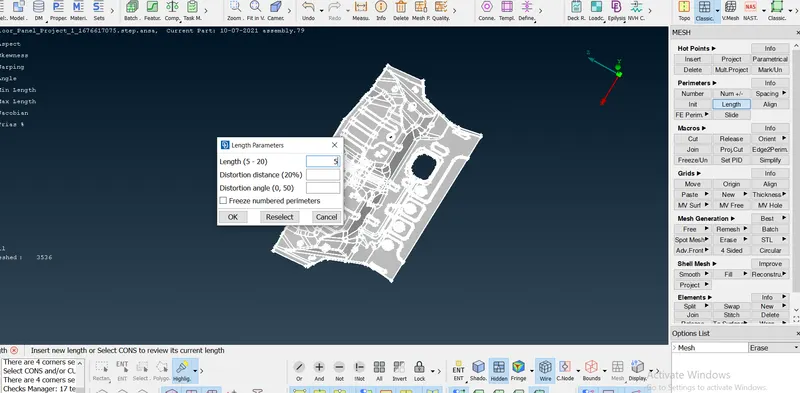

2-Set up the length criteria of the object for both perimeters and macros which is 5 mm and set the mesh parameter.

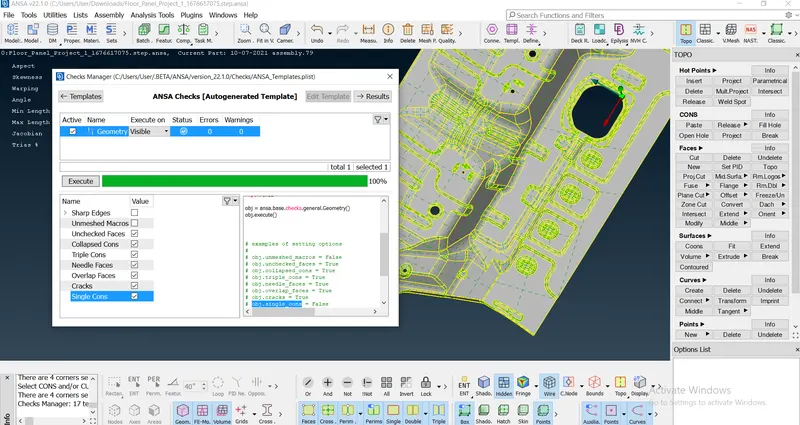

3-Carry out geometry check for the given object and resolve all the error and discontinuities by up using different tools of TOPO

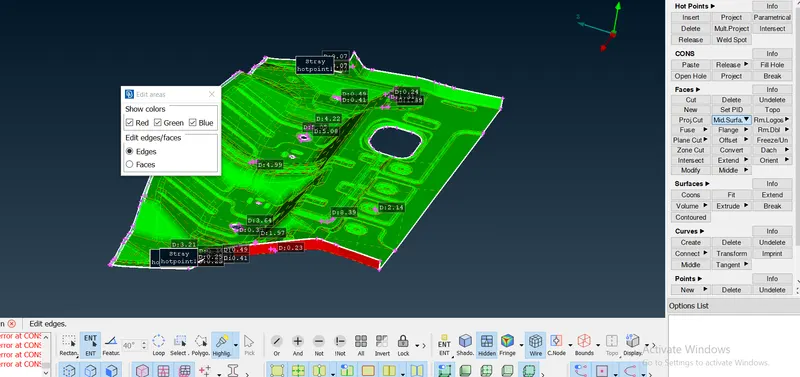

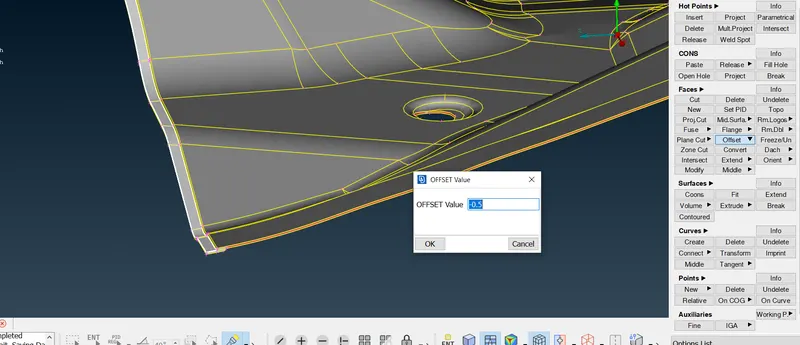

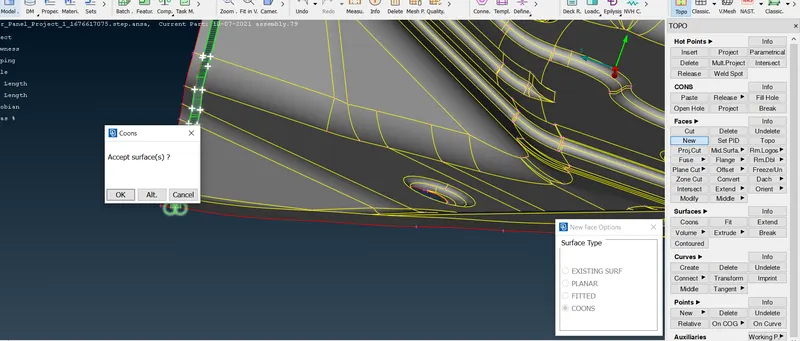

4-Made some part mid-surface with directly using mid-surface tool with skin and some with manual which has been remained.

`

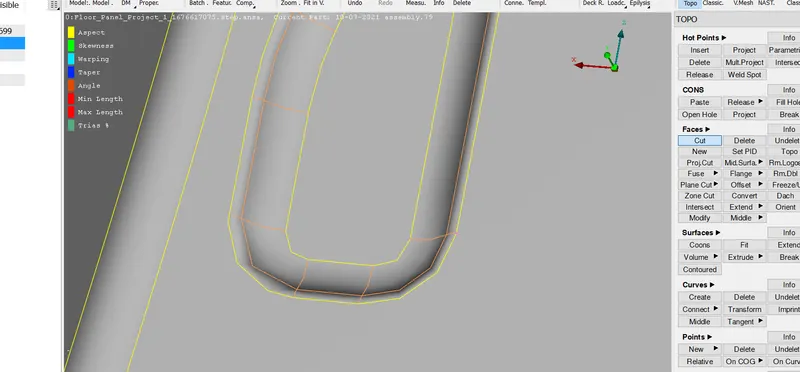

5-Eliminate the unwanted line and clean up the mid surface for smooth and good mesh development .

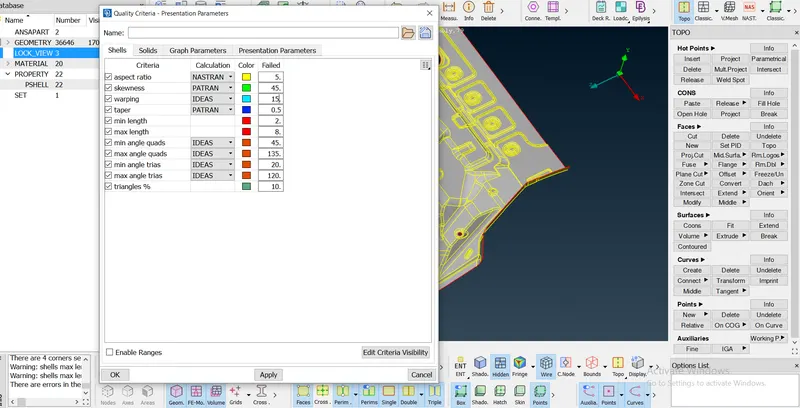

6-Set up the quality parameter befor meshing.

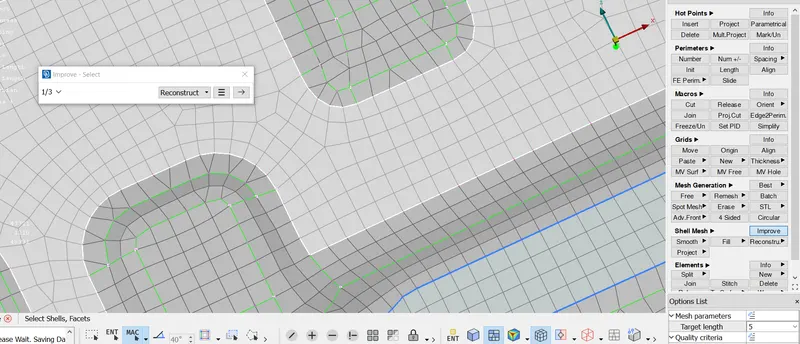

7-Went to mesh option, tried best mesh to different face and made out the best mesh flow with different options like reconstruct ,smooth, spilts etc.

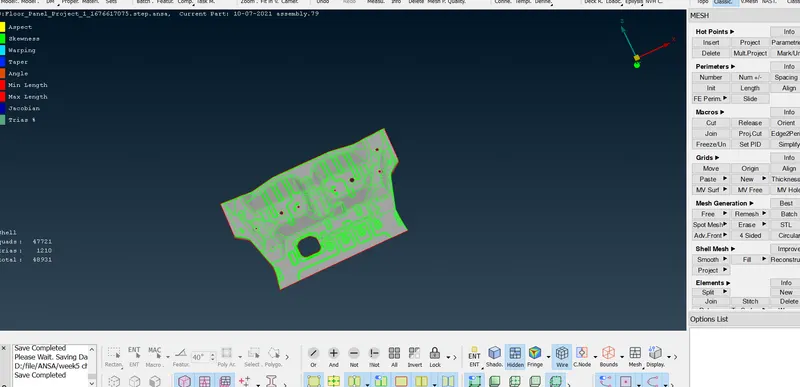

8-Generate the total mesh flow in whole object.

9-Applied thickness to total midsurface.
