Project 1 - Meshing of Floor Panel

Aim: Mesh the given floor panel for the given quality criterias without any failures in the elements.

given:quality criteria value is given below.

Target Element Length = 5 Units

objectives:

1. geometry cleanup.

2. Measure thickness.

3. Mid surface extraction.

4. Quality criteria match.

5. Meshing of floor panel.

Procedure:

1. Geometry cleanup:

perform topo first from faces section.

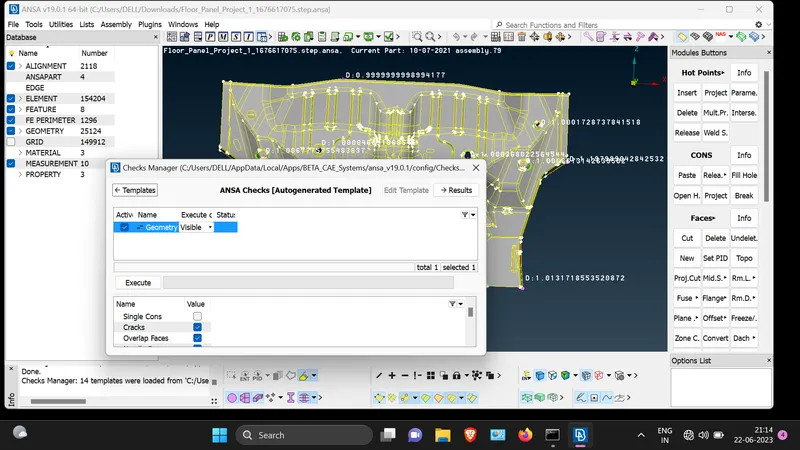

go in checks section/click on geometry/execute.
Solve the error by right click and click on fix automatically.
rest error is solved manually.
error surface is deleted and make manually by using cut,project cut,delete from faces section.

2. Measure thickness:

go in utility section click on measure then click on two cons to measure the thickness.

3. Mid surface extraction:

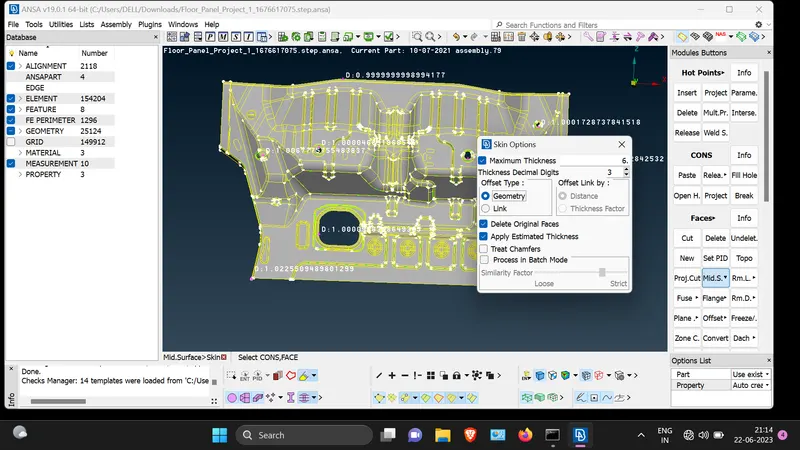

go in faces section/select mid surface/select on geometry options/and confirm not to delete original surface.

4. Quality criteria matched:

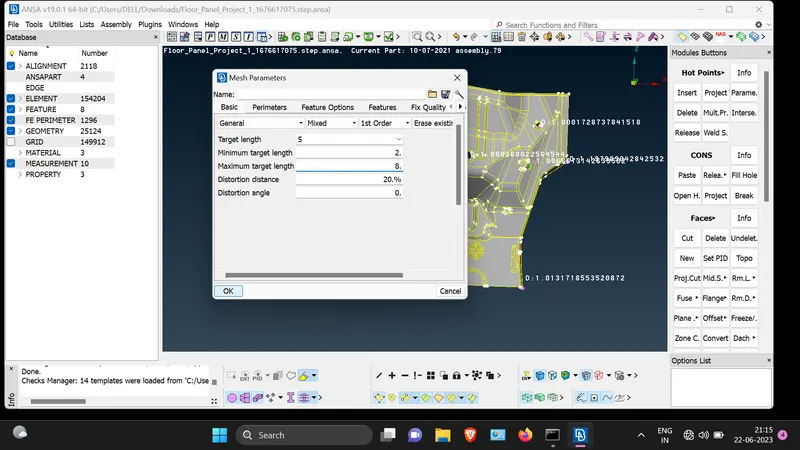

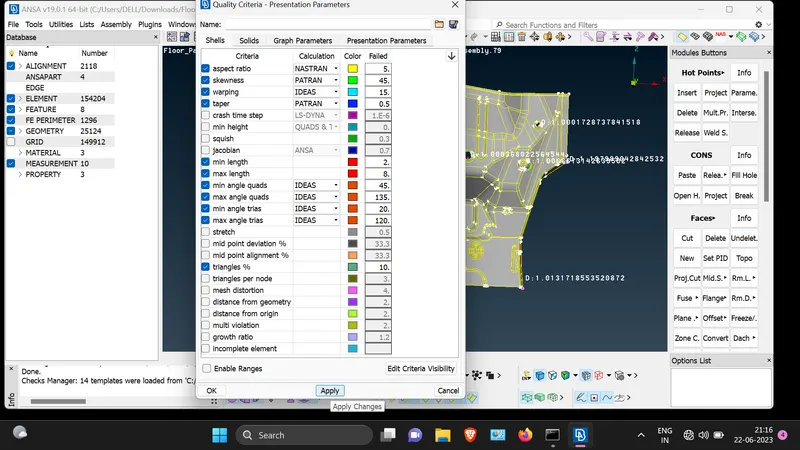

Go in utility section where the quality matching popup is generated which is shown below and fill as per given value in question.

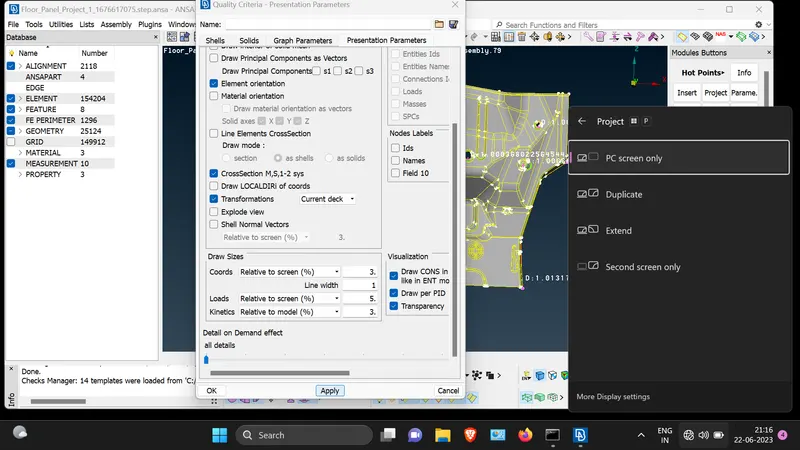

Now go in presentation perameter and select element% then slide below and slide the detailed to initial position then apply.
the below figure shows the detailed demand effect.

5. Meshing of floor panel:

Select length from perimeter section and fixed it to 5 as per given target length in question.
Using cut/project cut/delete from faces section to maintain mesh flow.
Delete hot points by select the delete from hot points section.
Use batch mesh from mesh generation section.
Use split/join from elements section and improve from shell mesh where we use reconstruction and smooth option for better mesh flow.

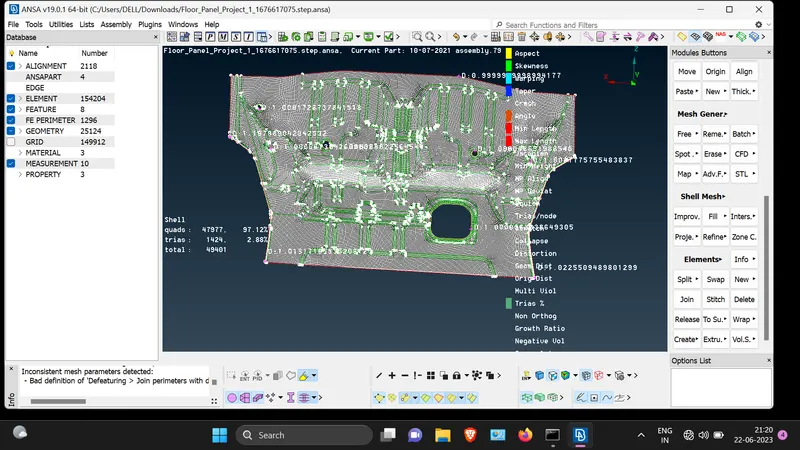

Meshing with better mesh flow without failing quality criteria is generated.
