Project 1 Mechanical design of battery pack

Aim : To design 18kWh capacity battery pack.

Objective :

• Battery pack capacity: 18 kWh
• Cell: ANR26650M1-B
• Prepare a detailed battery pack drawing along with its enclosure.

Theory :

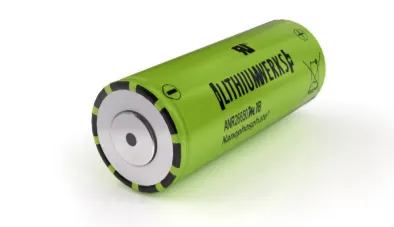

This is a lithium-ion cell which is manufactured by Lithium Werks. 26650 cells are capable of delivering very high power due to its use of patented Nanophosphate ® battery technology. Based on lithium iron phosphate chemistry(LiFePO4), the cells are inherently safe over a wide range of temperatures and conditions.Whether the application requires outstanding cycle life or stable float reliability, the Lithium Werks’ 26650 cells are suitable for a wide variety of power, pulse, or stand-by applications.

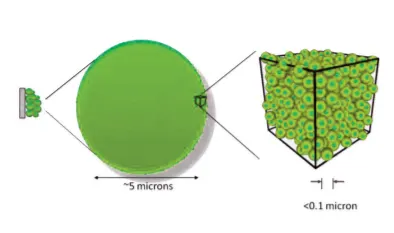

Nanophosphate® battery technology offers stable chemistry, faster charging, consistent output, excellent cycle life and superior cost performance. It provides the foundation for safe systems while meeting the most demanding customer requirements. Multiple layers of protection are employed at the chemistry, cell and system level to achieve an energy storage solution with superior safety and abuse tolerance compared to metal oxide lithium-ion chemistries.

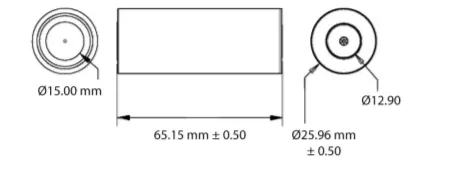

Cell Dimension:

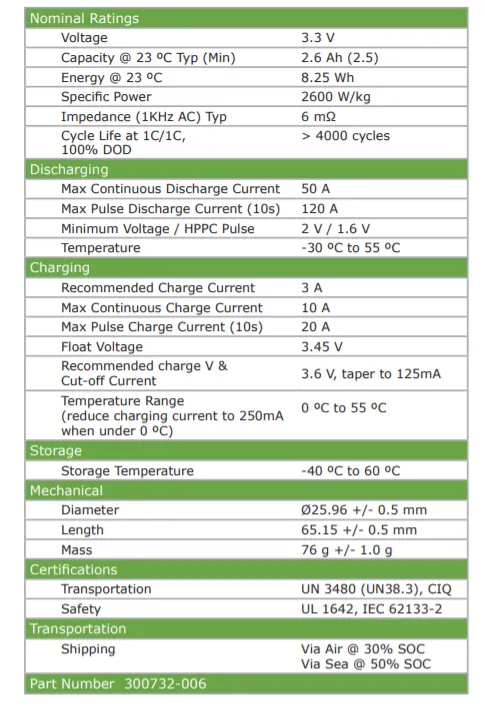

Cell Specifiction:

Cell Data:

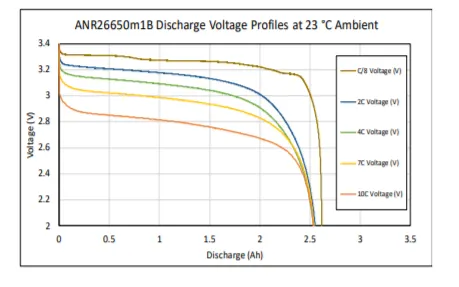

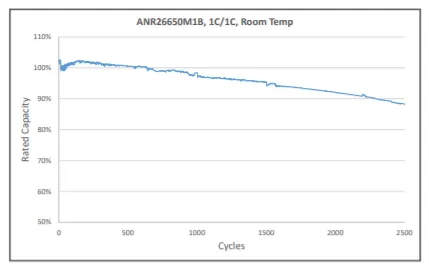

Discharge voltage and Cycle life with respect to different temperature from data sheet.

from above graph we assume that the overall voltage required to operate the motor and other devices of electric vehicle as 400 V. So we have construct the battery pack of 18 kWh for a 400V input voltage motor.

Calculation of Battery Pack:

Single cell voltage 3.3V and capacity of 2.56Ah.Energy priovided from single cell is given 8.25Wh.

18kWh battery pack (18000/8.25 = 2182 cells)

We need 400V battery pack(400/3.3 = 122 cells)

Single module (122*8.25Wh = 1006.5Wh)

18kWh/1006.5Wh = 17.88 which gives nearly 18 similar modules in parallel connection.

This battery names as "122S18P" (122 series and 18 parallel connections) 2496*8.25Wh = 18117 Wh which is higher than 18kWh.

Overall Capacity(Ah)2.5Ah*18 = 45Ah.

The length of the module = No.of cell in row *(cell dia + margin at both side of cells)+clerance at side (2(cell dia + margin))

=61*(26+4)+60 = 1890 mm.

The bredth of the module = (cell dia +margin of both side of the cell + clearance )

=26+4+60 =90mm

Height of the module = Height of cell + connecting strip thickness wire say 35 mm

=65+35 = 100 mm.

Thus the volume required for single module is 1.8*0.09*0.1 = 0.0162 m3.

Total no.of module assumed are 18*2 =32

0.0162*36 = 0.583 m3

from above expression we assumed that 1m3 of volume should be used for EV battery pack with additional ventilation spaces for pack.

Battery Pack:

Battery cells are like eggs. Cells come in fixed voltages and capacities. If you need more voltage, you can deal with multiples of the cell voltage. You can't get half an egg, and you can't get half a cell, at least in voltage. Cell capacities do vary, particularly with a supplier like PowerStream that has a great variety of cell sizes available, but voltages don't. All NiCad or NiMH cells are 1.2 volts nominal, lead acid is 2.0 volts nominal and the various lithium technologies are about 3.6 volts per cell. If you need more voltage you have to add them in series, if you need less voltage you need some kind of voltage regulator or DC/DC converter.

If you need more current than a single cell can supply you may need to put cells in parallel. If you need more capacity to give longer run time you may also put cells in parallel.

Many times the physical configuration makes it more attractive to use many small cells rather than a few large cells, since a large block is harder to fit than several small subunits.

Geometry and Topology Considerations for Assembling Batteries

There are an infinite variety of battery pack combinations. Here are the most popular:

Case 1: Ladder, linear, F type, or radial

Note that the straps will both come off the top when there are an even number of cells, and one off the top, the other off the bottom when there is an odd number of cells. With a connector and heat shrink wrap they look like this:


The size of a ladder pack is D x nD x H where D is the diameter of the cell, n is the number of cells, and H is the height of the cells.

Case 2: Multi-row cells

There are two ways to start packing them. One could be called the cubic, and the other face centered cubic, or nested.

Cubic packing is in neat rows. The size of such a pack is nD x mD x H, where n is the number of cells in a row, m is the number of rows, D is the cell diameter, and H is the cell height.

Case 3: Face centered "cubic"

Face centered cubic packing is nested to take up less room. Calculating the size takes a little geometry, which follows:

The size is L x W x H where

L = (n +½)D
W = [0.866(p-1)+1] D
H=H
p is the number of rows wide.

Case 4: FCC with alternating long and short rows

If there are alternating long and short rows, such as the 3,4,3 ten cell pack, the formulas are

L = mD
W = [0.866(p-1)+1] D
H = H

Where m is the number of cells in the longest layer, and p is the number of layers. With heat shrink it looks like this:

Case 5: Fixed channel width optimization

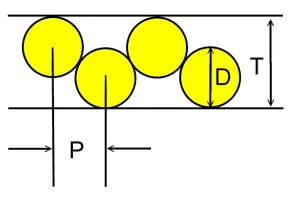

What if you have a fixed width channel and want to stagger the cells to maximize the number of cells per unit width? Pull out your high school geometry book, this is trickier!

The distance P between the cells of Diameter D in a channel with height T is P = sqrt (2TD-T^2)
So if you have 18mm diameter batteries fitting into a 25.4mm channel, the distance between the cells is 16.8mm. In this case you can fit in an extra cell for every 15 cells, or save 1.2 mm of width per cell.

Case 6: Packing cells in a tube, 3 cells.

For a 3 cell pack, you can put the cells in a tube



The diameter of the outer circle is 2.16 D.

Case 7: Packing cells in a tube, 4 cells.

For a four cell pack in a circular tube



The diameter of the circumscribing circle is 2.41 D.

Case 8: Packing cells in a tube, up to 91 cells

Case 9: Linear, or L-type, or Axial

This is a stack of cells end to end.

These packs are usually constructed by standing two cells side-by-side, and welding a nickel strip across the terminals, as in the ladder pack. The cells are then bent end to end by bending the nickel connecting strip in a "U" shape. Allow a thickness increase of ½ to 1 mm per junction for this.

Thermistor

Please do not invent your own temperature control system. The industry standard thermistor is NTC 10K at 25°C and B=3950.

Pack assembly

Most battery packs are spot welded together using nickel strip for contacts. Soldering directly to the cells is dangerous for the cells. It is easy to melt or disturb the safety vent, thwack the seals, or cause internal shorting if the heat is too high. This damage might not be noticeable until later.

However, not everyone has a capacitive discharge spot welder, so PowerStream has instituted a program where we can spot weld nickel solder tabs at the factory. This is cheap, and allows the end user to solder together custom packs easily without fear of damaging the battery.

For information about the resistance of the nickel foil weld strips click here:

Heat Shrink Tubing

The most common way to hold the pack together is to use heat-shrink tubing. This has sufficient strength for small packs, but as the weight increases more structural strength is necessary. This is done by adding a sheet of structural material, usually plastic or fish paper, to the top and the bottom of the pack. If the battery is to be put into another structure, either a plastic case, or the system box, it is still important to tie it together with heat shrink or tape for ease of handling.

When building and using battery packs be careful not to inadvertently short the cells. A pack of cells wired in series will become shorted if the cases of adjacent batteries touch, since the outer case is a terminal. This can happen if the cells are shrink wrapped, film wrapped or painted and the batteries rub against each other. Brittle shrink wrap is known to shred under stress, leaving the bare cell walls to touch. If there is danger of this happening cardboard sleeves are used instead of just the heat-shrink tubing.
Another source of strength is the use of glue where the cells touch. Cyanoacrylates are sometimes used to tack things together, but can weaken the vinyl heat-shrink if not reinforced. A hot-melt glue is more forgiving.

Battery Holders

When using or designing battery holders make sure there is adequate provision for short cells, long cells, or wide cells. Keep sharp clip edges from touching the cell where they could cut the film or paint, causing a short between cells held by the same clip.

Potting Batteries?

Batteries expand and contract during charge and discharge. Potting a battery is not a good idea, unless there is some provision made for this dimension change. This can be compensated for by including a foam pad to absorb the stress of expansion. There is also a problem with venting unless the potting is such that the seals are not covered. You don't want the pressure to build up to the point it blows the potting material apart.

Cases and Cabinets?

Over the course of life most batteries release hydrogen, and sometimes oxygen. Take this into account if you are designing a closed system, such as waterproof lights, weatherproof installations, etc. Some method of releasing or absorbing the hydrogen, flooding with air or inert gas should be used. In closed cabinets some provision for ventilation is necessary to prevent hydrogen gas from accumulating.

Electrical and System Considerations

How many amp-hours do I need?

Cell capacity is rated in amp-hours or milliamp hours. The symbol for capacity is C. This is amps times hours. Divide by hours and you get amps, divide by amps and you get hours. For example a 5 amp hour battery is the same as a 5000 milliamp-hour battery. If you want to discharge in 10 hours, you can get a current of 5/10 = 0.5 amps. If you need 100 milliamps current, then you can run for 5000/100 = 50 hours.

Often a discharge or charge rate is given proportional to C. So a discharge rate of C/5 means C/(5 hours), or the constant current to fully discharge the battery in 5 hours.

The calculation of run time versus current is a rough estimate, but is accurate under the right conditions. The faster you discharge, the lower the capacity of a battery. This trade-off depends on the battery chemistry and construction. Usually the capacity of a battery is quoted at a C/20 discharge rate. So an 12 amp hour battery sealed lead acid battery will actually put out a steady 0.6 amps for 20 hours. However, if you discharge the same battery at 12 amps, you would expect to run an hour, but you will only last for 22 minutes. Also, if you wan to run at 10 milliampere you will get less than the expected 1200 days, since self-discharge of the battery will limit your run time.

Different battery chemistries differ in this respect. Lead acid batteries are probably the worst at the rapid discharge end of the scale. NiCads and NiMH are much better.

How do you determine the current that your system draws?

The best way is to measure with a current meter and an adjustable power supply (usually the current meter is built into the power supply). Set the power supply to the highest voltage that the system is rated at and measure the current, then set the power supply to the lowest voltage that the system is rated at and record that current. Adding a measurement half way between the two will give you an idea of where the lowest power consumption point is (power is voltage times current). The idea is that you want to design your pack so that the voltage swing of the batteries (see below) is adequate, and where the power consumption is the least. Some systems will show approximately constant power consumption no matter what the battery voltage is, and some will have a sweet spot where the power is lowest.

If a variable power supply is not available, chart the current versus the voltage of the battery during a discharge cycle.

If making actual measurements is not possible, use the system data sheet, or the "boilerplate" sticker on the back to find the rated wattage or input current. This will usually give you a high estimate, or a peak value.

Batteries in Series and Parallel.

With NiCad and NiMH cells are best used in series, not in parallel. This is because keeping the battery pack equally yoked during repeated charge and discharge conditions can be a problem. So a good approach is to choose the cells that will give you the capacity and current that you need and put them in series to get the voltage you need.

With lead acid and lithium batteries parallel and even series + parallel packs are common.

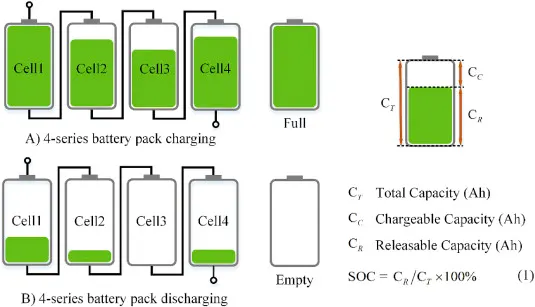

Series

To connect a group of batteries in series you connect the negative terminal of one battery to the positive terminal of another and so on until all batteries are connected, you would then connect a link/cable to the negative terminal of the first battery in your string of batteries to your application, then another .

Parallel

When connecting batteries in parallel the negative terminal of one battery is connected to the negative terminal of the next and so on through the string of batteries, the same is done with positive terminals, ie positive terminal of one battery to the positive terminal of the next.

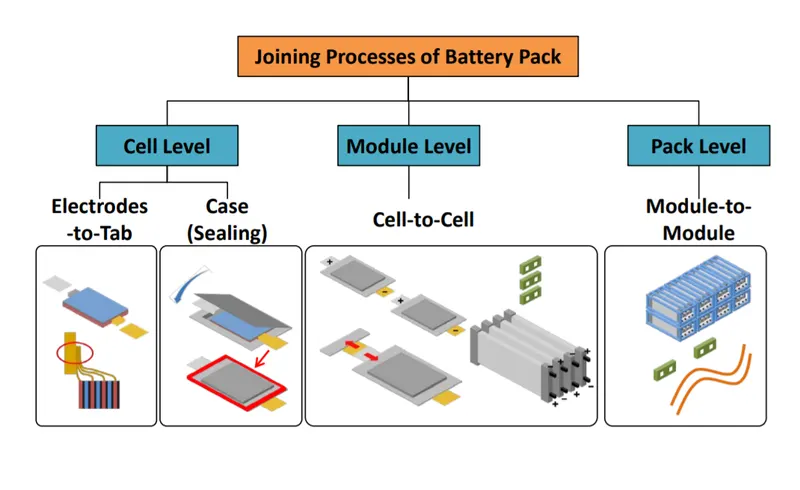

Joining Technology of Battery Pack:

Ultrasonic Welding or Ultrasonic Metal Welding (UMW)

Ultrasonic metal welding (UMW) is one of the most commonly used joining methods for battery systems manufacturing and has been applied to a wide range of metals and thin metal films (e.g., foils). It utilises high frequency ultrasonic vibration, typically 20 kHz or above, to join substrate materials by creating solid-state bonds under a clamping pressure . In principle, high frequency relative motion creates progressive shearing and plastic deformation between mating interfaces and produces an atomic bond at elevated temperature (i.e., typically at 0.3 to 0.5 times the absolute melting temperature of the substrate materials) . However, it needs two sided access, as shown in Figure 2a; one side uses an anvil to support the parts to be joined, and the other side a sonotrode that passes ultrasonic energy to the assembly. Ultrasonic welding is applied for joining of multiple thin foils, dissimilar materials, or highly conductive materials (e.g., Al, Cu, or others) , especially for pouch cells . However, it may not be suitable for terminal-to-busbar joints of cylindrical or prismatic cells as vibration under pressure may damage structural integrity. UMW has been used for various EVs/PHEVs, including Nissan LEAF, General Motors Chevrolet-Volt, Spark, and Bolt.

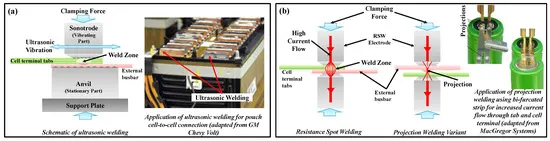

Figure 2. Schematic of working principles and applications: (a) ultrasonic welding and (b) resistance/projection welding. RSW—resistance spot welding.

Micro-TIG or Pulsed Arc Welding (PAW)

Pulsed arc welding, also known as micro-TIG welding, uses a pulsed TIG arc without filler wire to join thin materials by localised fusion, see Figure 3a . The arc pulse has a very short duration, in tens of milliseconds, such that heat input is much less than in conventional TIG welding, and can be used for welding dissimilar materials . However, even with a significantly reduced heat input, it is still crucial to control the welding parameters to avoid overheating of the battery. PAW is suitable for nickel, copper, or steel tabs and copper bus bars. Al tabs and bus bar joining using PAW is difficult and not preferable (because of the typical direct current (DC)–electrode negative configuration). Alternating current (AC) PAW is more typically used for Al welding, this is because of the cleaning mechanism, which breaks down the electrically resistive aluminium oxide skin of aluminium alloys. AC pulsed arc welding has not yet been commercially developed for micro-joining applications. For copper tab to copper bus bar welding, micro-TIG can produce a single spot nugget in diameter up to 4 mm. There is no report of the application of pulsed arc welding for joining of existing EV or HEV battery packs.

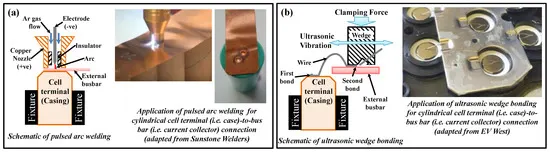

Figure 3. Schematic of working principles and applications of (a) pulsed arc welding and (b) ultrasonic wedge bonding. EV—electric vehicle.

Micro-Clinching

Clinching or micro-clinching is a mechanical interlocking mechanism of sheet metal parts, especially used for automotive body-in-white, domestic appliances, or electronics joining applications . Clinching is a joining process in which a mechanical interlock (i.e., local deformation without use of any additional joining elements) is created by a tooling set (a punch and a die) , as shown in Figure 4a. Clinching is a simple technique for point joining of metal sheets typically from 0.2 mm to 4 mm thick, to a total joint thickness of about 6 mm. Using the clinching, tab-to-tab joints are feasible. The feasibility of clinching as an alternative method of joining for pouch cell tab joining has been reported. Clinching may not be feasible for cylindrical/prismatic cells joining as access to the both sides of the assembly is required. Further, clinch joints are prone to becoming loose under vibration, moisture ingress, and so on.

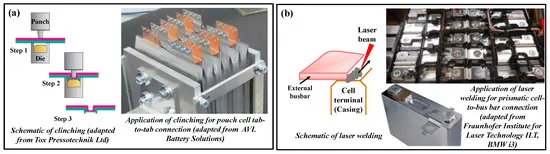

Figure 4. Working principles and applications of (a) clinching and (b) laser welding.

Magnetic Pulse Welding (MPW)/Electromagnetic Pulse Technology (EMPT)

Magnetic pulse welding is a solid state welding process that uses a magnetic pulse to accelerate one part into another, creating a high speed (up to 500 m/s) collision that results in bonding (See Figure 5a). The advantages of this process include low heat input, high joint strength, and the capability to join dissimilar materials . However, as the technology has the potential to create an induced current in the cell, because of the pulsed magnetic field necessary for the joining process, damage may occur, which renders it unsuitable for battery joining. However, MPW/EMPT has the potential for joining pouch cell tab-to-tab or tab-to-bus bar. Furthermore, detailed investigation is required as induced eddy currents may affect the electrochemistry/physical parts (e.g., potential cracks or internal joining between current collectors, which lead to battery internal short-circuit) of the pouch cell. To mitigate the risk of damaging the pouch cell or module sensors, a specially designed weld head and shielding plate may be required during welding.

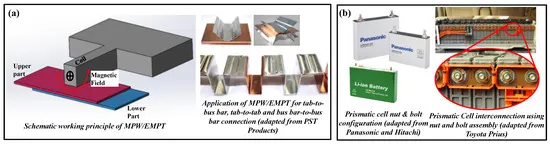

Figure 5. Working principles and applications of (a) magnetic pulse welding/electromagnetic pulse technology (MPW/EMPT) and (b) nut and bolt assembly.
