Project 1 _Creating an Architectural plan for the provided plot size and develop relevant basic structural drawings

QUE 1]

AIM - To design and draft a layout of a residential building with plot size (18.3m x 6m)

INTRODUCTION AND PLANNING

before going to draw a plane first we have to plan

how to drow so.

1]drow a planned plane (site plan)

2] section plan

3] elevation

then structural drawing

1] Colum

2]beam

3]fotting

NOW

COMMAND USED

1. xline
2. offset
3. trim
4. extend
5. ADC
6. rectangular
7. line type
8. arc
9. line

PROCEDURE

step 1

first set the some units

• in the command prompt units meters
• in the command prompt type limmax 100 x 100
• in the command prompt type 0,0
• in the command prompt type zoom

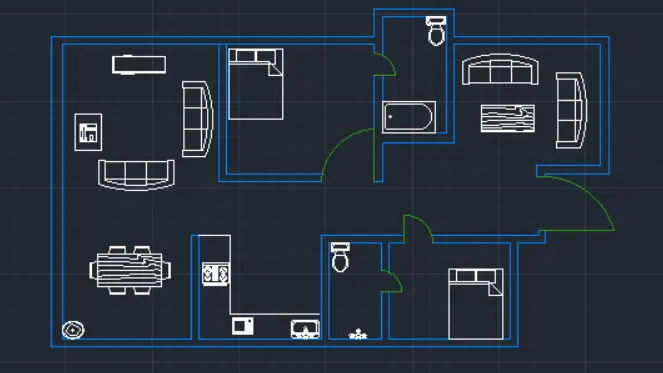

step 2

• take the command xl and drow the line horizontally and vertically
• then take offset to desired lines
• then command trim and trim the unwanted lines
• the main entrance of the plan is in the east
• after taking command ADC, door window sofa WC sink table, etc

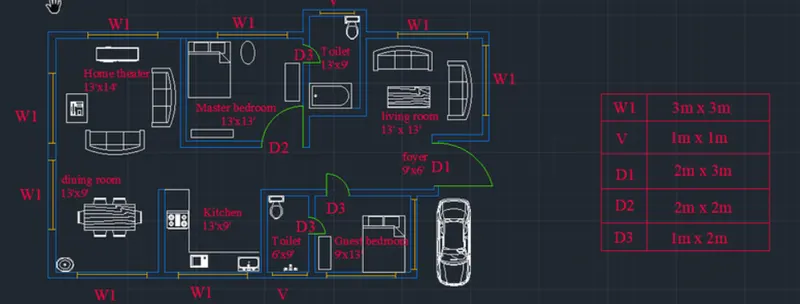

step 3 ]

• take dtext command the drow the dimension and name
• give the door and window schedule
• then the architecture plan is ready

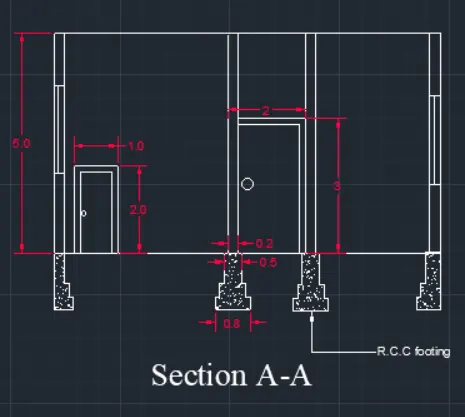

step 4] section plne for A-A

• drow the xl line with the corner of the plane and
• then take the offset with respect to the dimension
• command hatch for the concrete
•

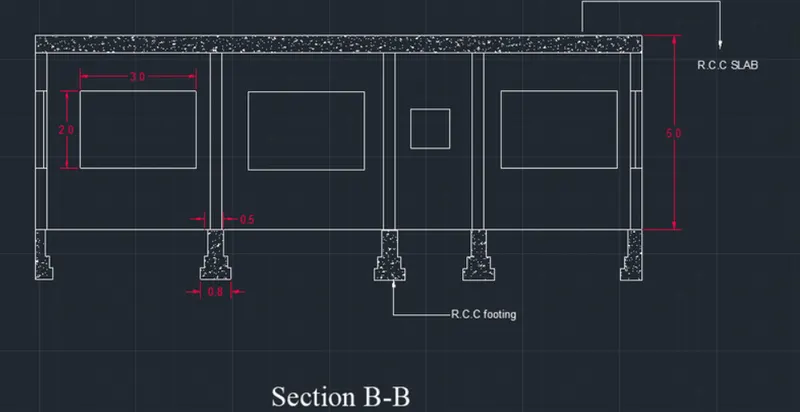

step 5] for the section B-B

• drow the xl line with the corner of the plane and
• then take the offset with respect to the dimension
• command hatch for the concrete

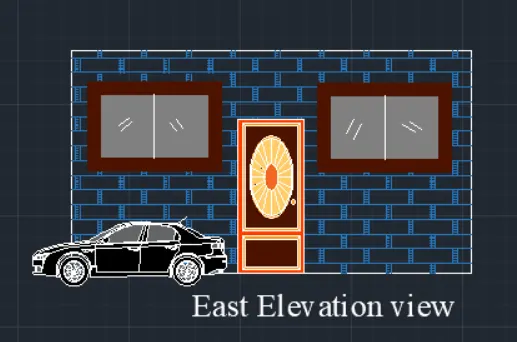

step 7 ] for the elevation

• command line and draft line
• command hatch and give the desired annotation color to the elevation
• command ADC for the door window and car
•

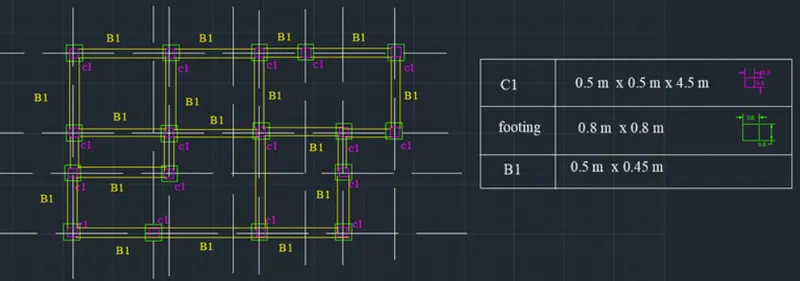

step 8] for the structural plan

• in the command type xl drow the horizontal and vertical line
• then type LT and take dotted line

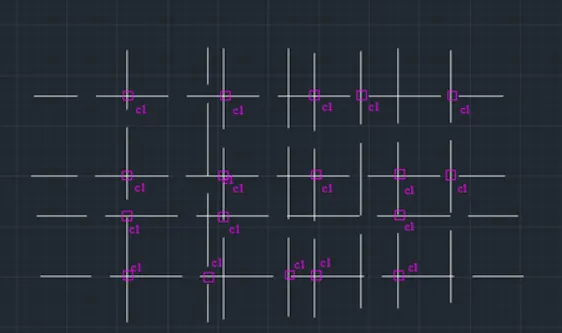

• command rec and take rectangular fo 0.5 x0.5 for column
•

step 9]

• take rec and for the footing dim is 0.8 x 0.8
• command line and drow the beams
• the structural plane is ready
•

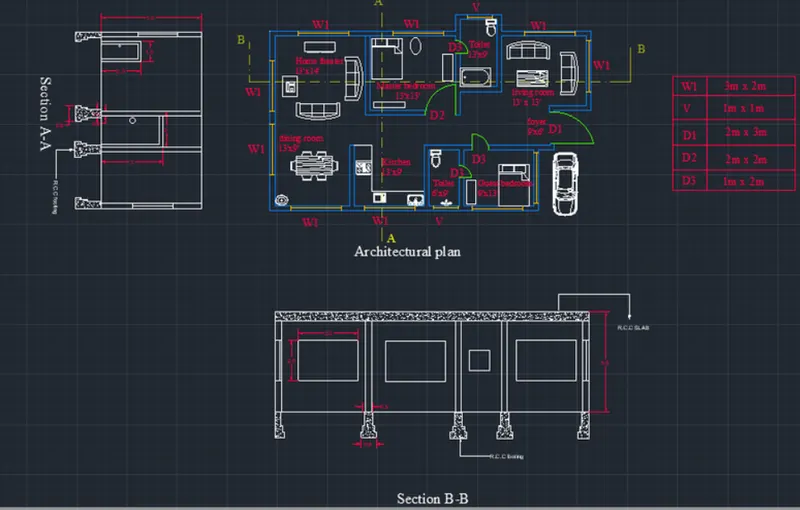

FINAL RESULT ]
