Project 1 _Creating an Architectural plan for the provided plot size and develop relevant basic structural drawings

Project : - Creating an Architectural plan for the provided plot size and develop relevant basic structural drawings

• Aim :- To draw the Residential Building in the plot size of 60’ X 20’ ( 18.3m X 6m ) facing East direction with the following drawings :

• Architectural Drawing

1. Site Plan
2. Ground Floor Plan
3. First Floor Plan
4. Elevation
5. Section

• Structural Drawing

1. Column Layout Plan
2. Beam Layout Plan
3. Footing Layout Plan

• Introduction :-

• The general commands used for drawing the building is as follows :

1. Line
2. Polygon
3. Rectangle
4. Circle
5. Erase
6. Copy
7. Trim
8. Mirror
9. Offset
10. Extend
11. Array
12. Move
13. Rotate
14. Dimension
15. Text
16. Fillet

Etc.

• The dimensions:

1. For external wall – 230mm
2. For internal wall – 150 mm
3. For Staircase : - Treads : 250 mm, Rise : 170mm

• The assumed dimensions :

For Windows:

1. W – 1000 X 1500
2. V – 700 X 500

For Doors:

1. D1 – 1000 X 2000
2. D2 – 900 X 2000
3. D3 – 800 X 2000

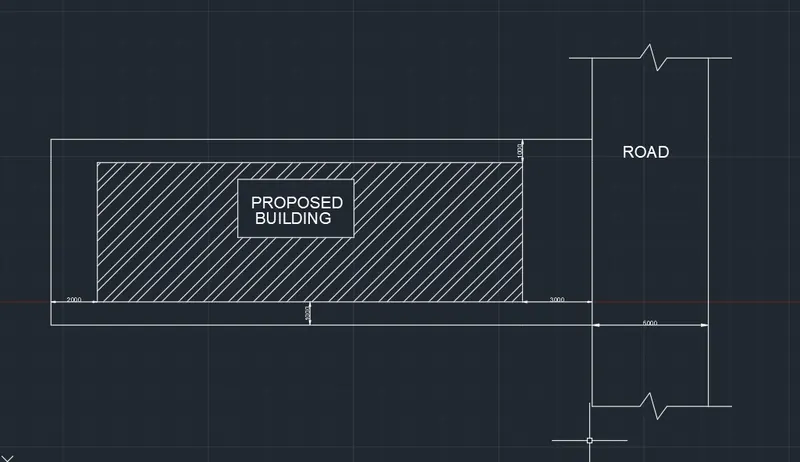

• Site Layout :

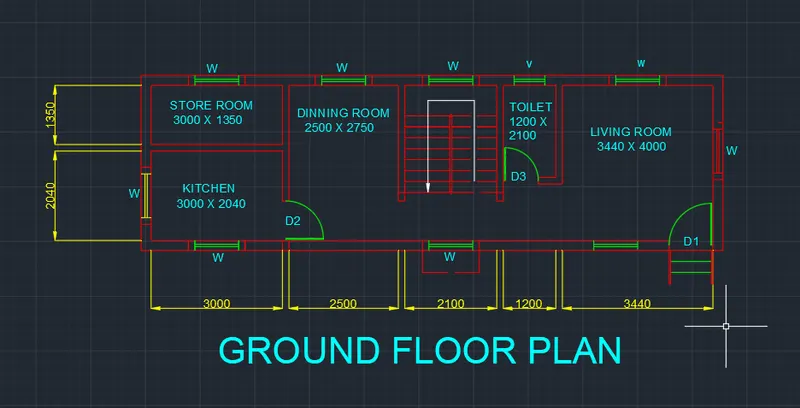

• GROUND FLOOR PLAN

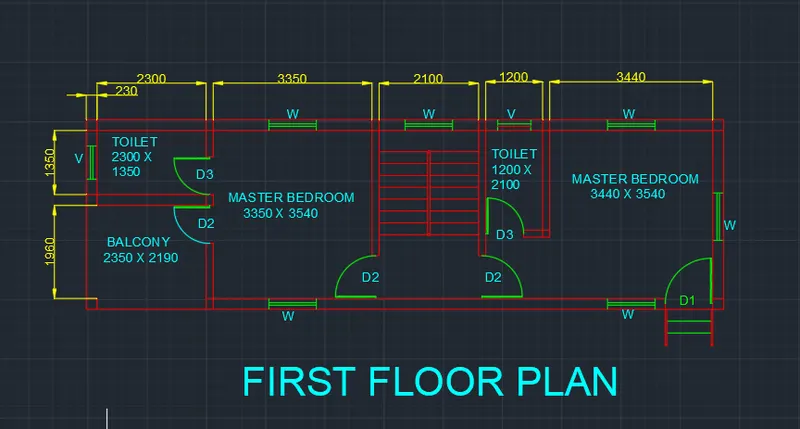

• First Floor Plan :

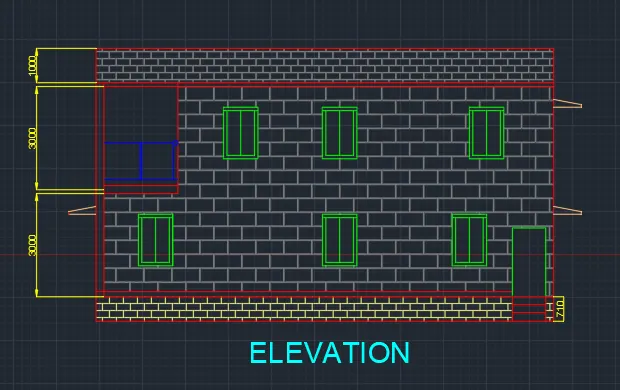

• Elevation :-

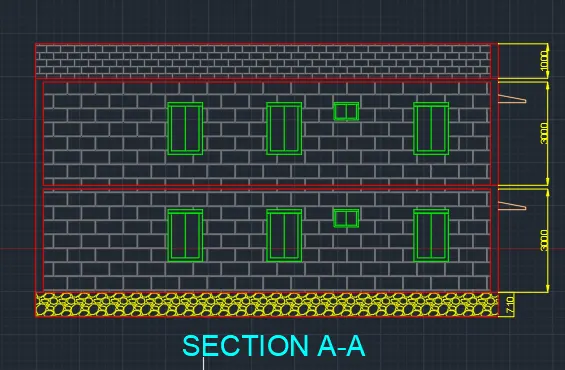

• Section AA :-

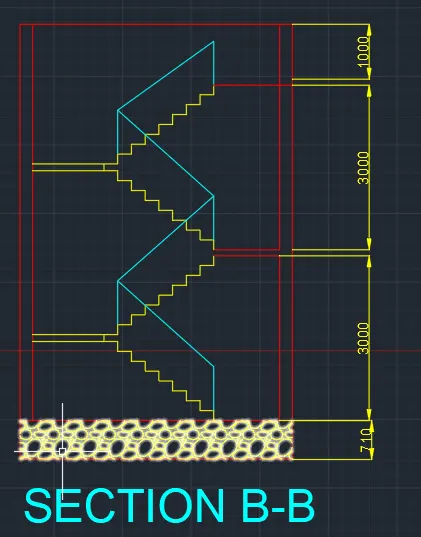

• Section BB :-

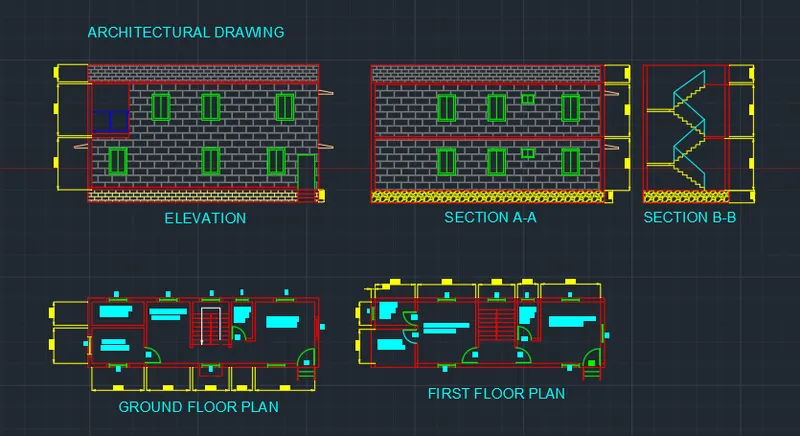

• RESULT:-

• Strctural Drawing

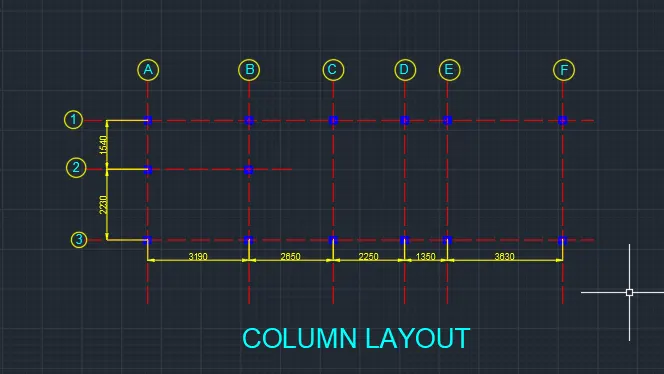

• Column Layout :-

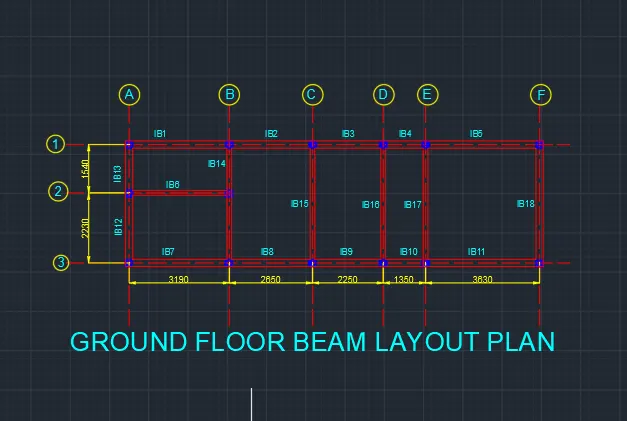

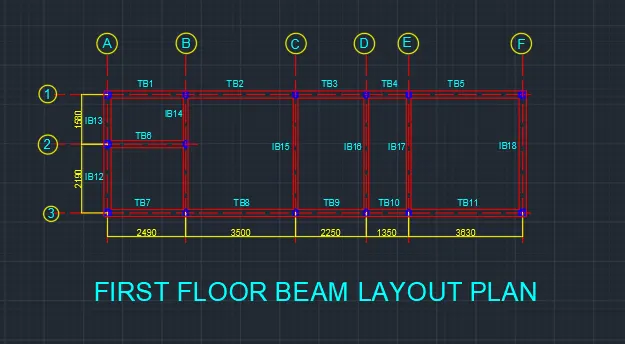

• Beam Layout :-

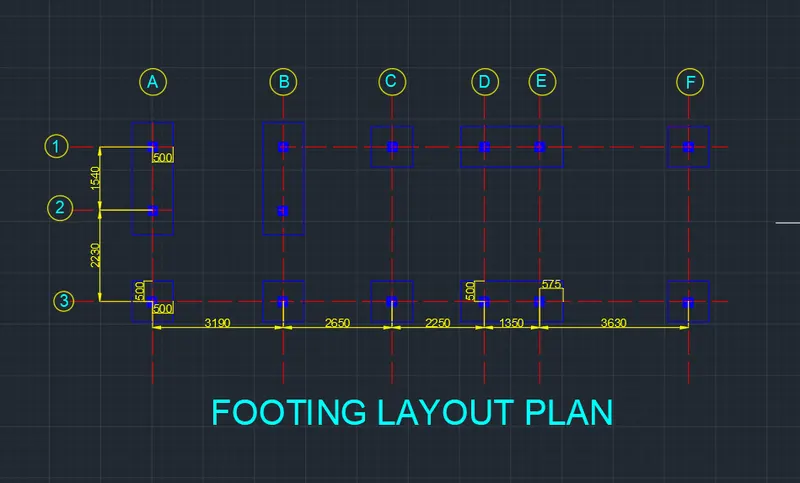

• Footing Layout :-

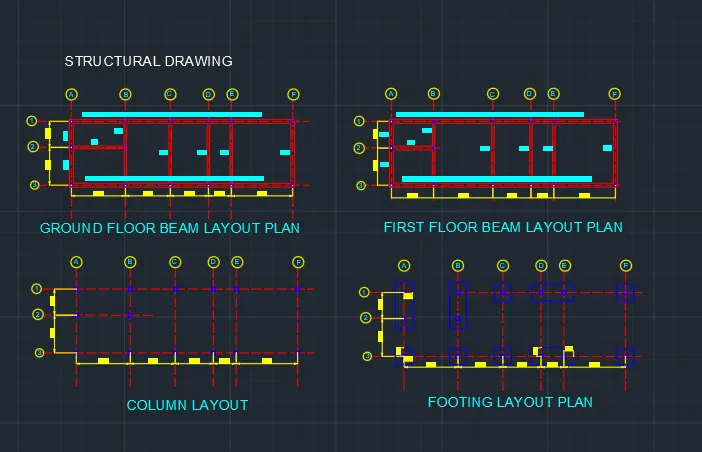

• RESULT:-
