Project 1 _Creating an Architectural plan for the provided plot size and develop relevant basic structural drawings
Design and Draft a layout of a residential building with the following details:
a. Plot Size: 60’x20’(18.3m x6m)
b. Orientation- Facing East
c. Develop the following: 1. Architectural Drawing (Floor Plan, Elevations, and Sections) 2. Structural Drawing (Column, Bean, Footing Plan)
AIM:
To Design and Draft a layout of a residential building with plot size (18.3 m x 6 m)
Commands Used:
- xl
- offset
- trim
- Extension
- ADC (design centre )
- line
- rectangle
- lt (linetype)
- arc
Procedure:
step 1:
- In the command prompt type Units >meters
- In the command prompt type limmax >100,100
- In the command prompt type limits >0,0
- In the command prompt type zoom >a
step 2:
- In the command prompt type xl to draft the infinite lines .
- In the command prompt type offset , to offset it to the desired lines .
- In the command promt type trim to remove the extra lines
- The main enterance of my plan is in the east direction
- In the ribbon bar > layers >walls , grids , furnitures ,doors
- In the command prompt type ADC( design centre ) to add the components
- In the command prompt type arc (to draw the doors )
- In the command prompt type lines (to draw the windoors )
- The architectural plan is completed
- In the ribbon bar type Annotate to text the dimensions
- In the command prompt type table to give the door and window schedule

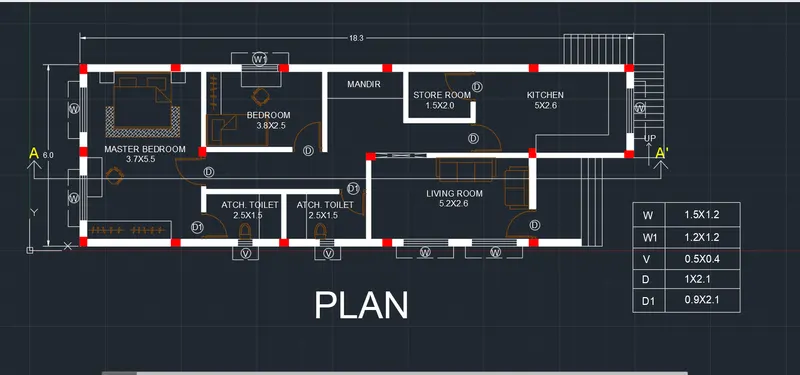

Final result of architectural plan
Step 3:(structural drawings )
- In the command prompt type xl to draw the grid lines
- In the command prompt type LT(to get the dotted lines ) to get the dotted lines

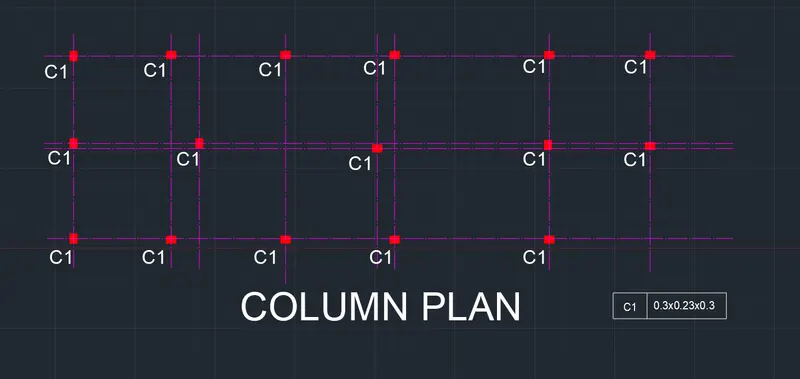

- In the command prompt type rec of dimensions 0.3 x0.23 for columns

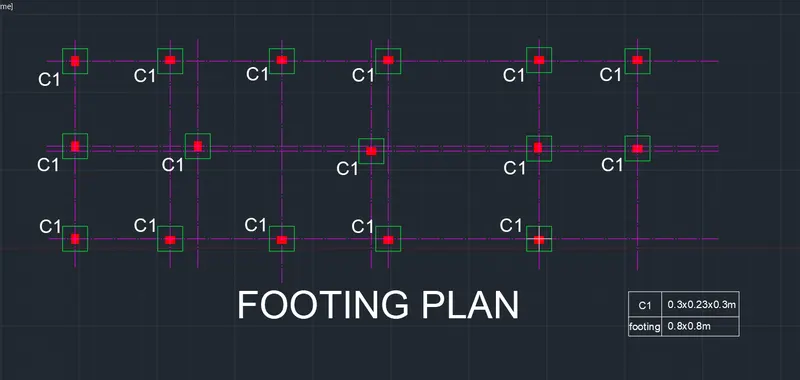

- In the command prompt type rec of dimensions 0.8x0.8 for footings

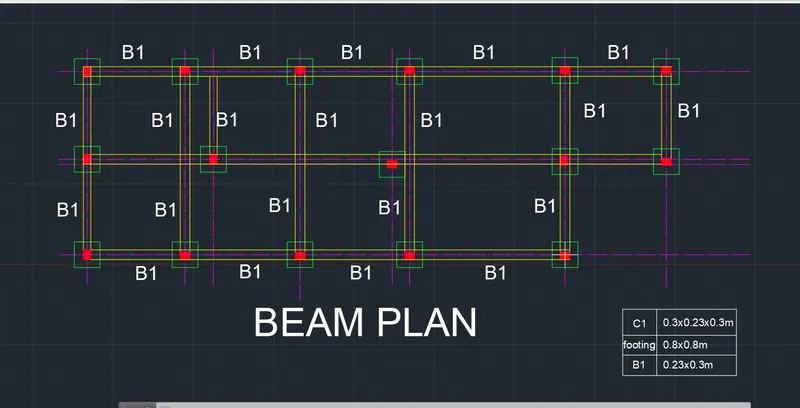

- In the command prompt type line to draft the beams
final result for strutural drawing

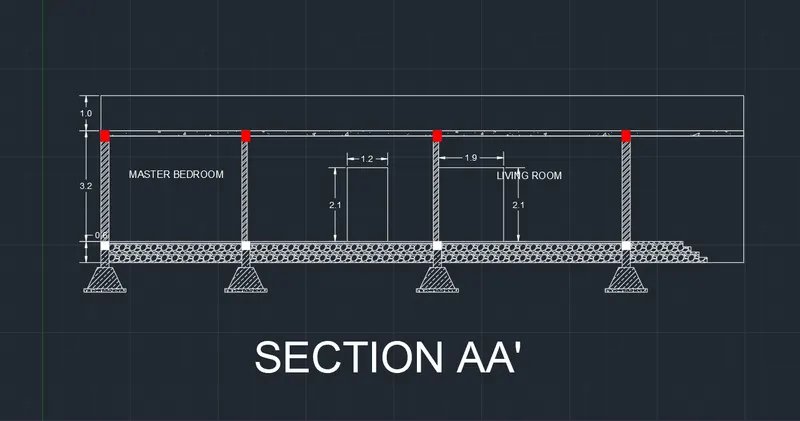

Step 4: (to give section views )
- using dotted line horizantal section is created
Step 5 ( to create elevation)
- In the command prompt type L to draft the lines
- In the command prompt type Hatch > solid to give the desired annotations , colour to the elevation
- In the command prompt type adc > for car, door etc components

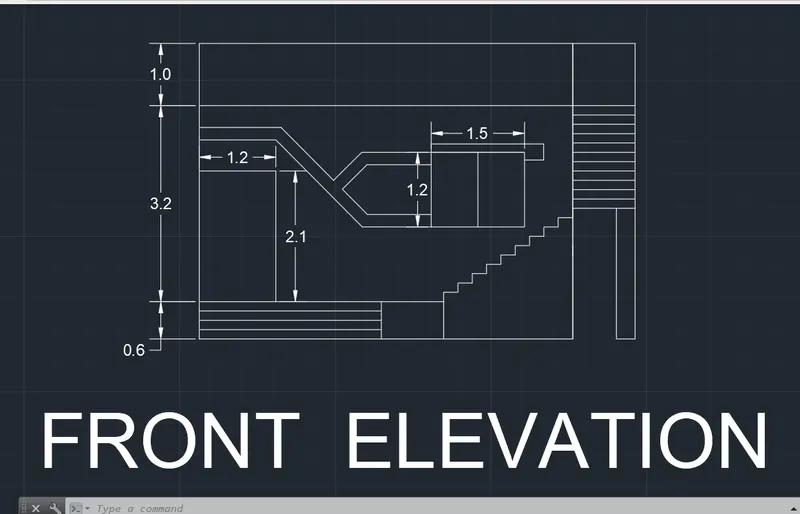

final result for elevation drawing
