Project 1 _Creating an Architectural plan for the provided plot size and develop relevant basic structural drawings
Aim: To draw residential building of dimensions 60'*20' with the following drawing
1) Architectural drawing
Plot drawing
Ground floor plan
First floor plan
Elevation view
2. Structural drawing
Section view
Footing layout
Column layout
Beam layout
Introduction
Residential building dimension:60'*20' (18.3m*6m)
Plinth dimensions are chosen 30' *18'
The G+1 Floor is Designed as duplex house with stairs inside the house
The plot is easy facing
The building is Designed with following rooms
Ground floor great room
Kitchen (open)
In ground floor 2 Bed room
First floor great room
In first floor 2 bed rooms
Balcony
Staircase to roof
Building is Designed with main door at the north east facing and main gate at east north position
Note: All dimensions are inches and feet

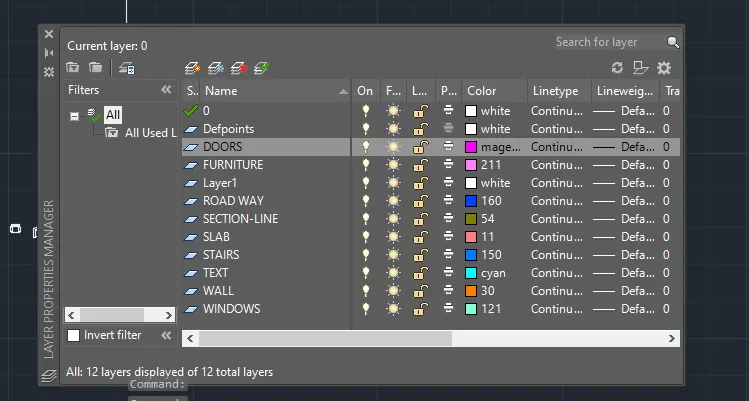

The components of house are as follows
1.Wall
Thickness of main wall=9''
Thickness of internal wall=4.5"
2. Column and beam
All columns size are 9" X 12"
All beams size are 9" X 9"

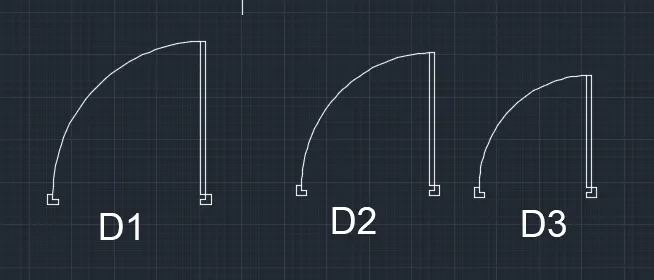

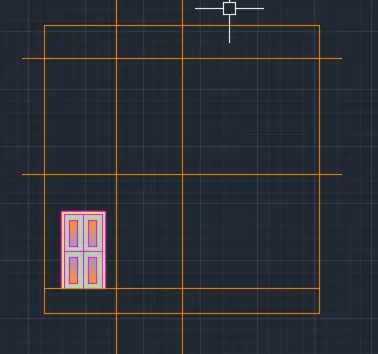

3.Doors
Doors are 3 types are used
Main door ( D1 ) size is 4' X 7'
D2 door size is 3'6" X 7'
D3 door size is 3' X 6'

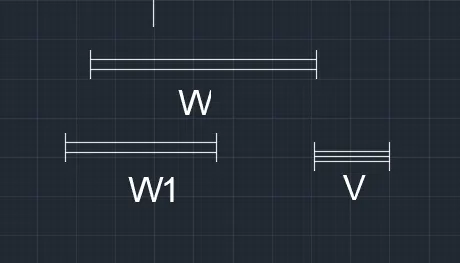

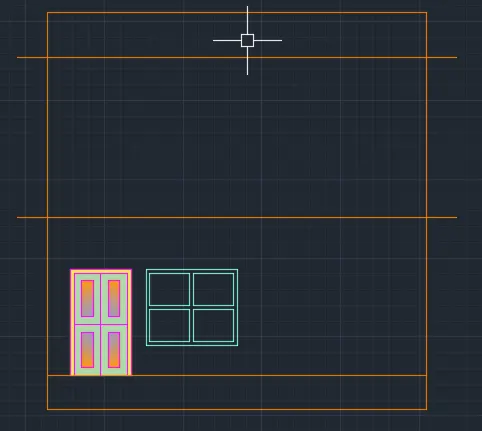

4.Windows
Windows are 2 Types
W window size is 6' x5'
W1 window size is 4'x5'
5. Ventilators
V ventilator size 2'x 2'
6. Staircase
Inner staircase consist of 21 steps
Thread=10"
Riser=6"
Hand rails= 2"dia
Height=3'
7. Compound wall
Height=6'
Thickness=9"
Result:
Architectural drawing

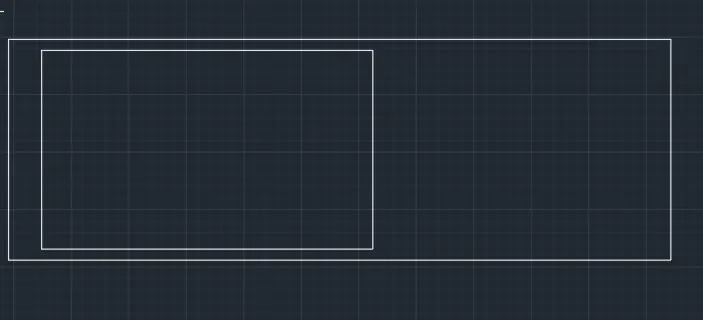

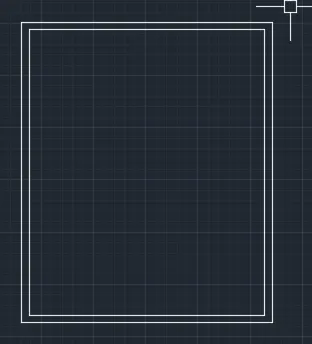

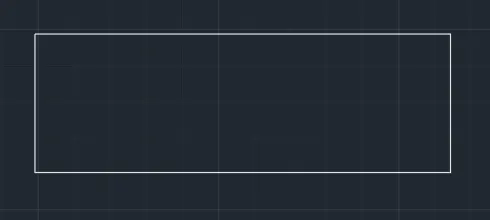

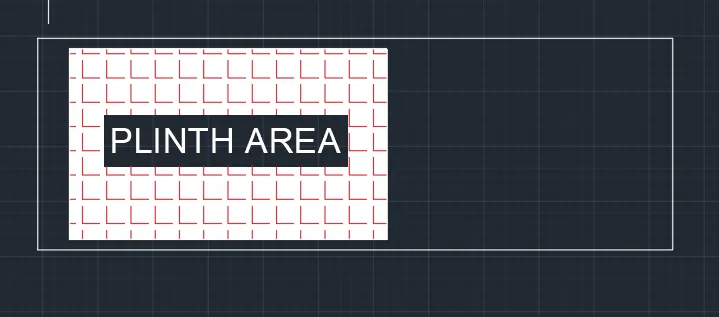

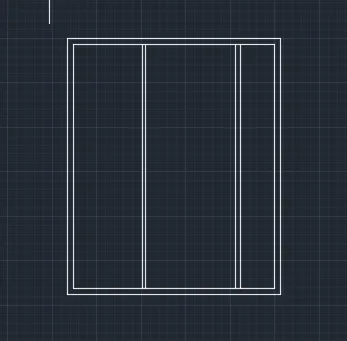

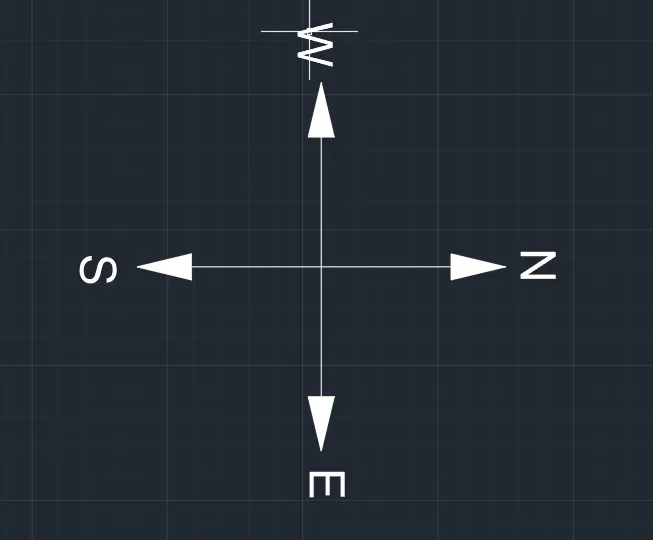

1.Plot drawing

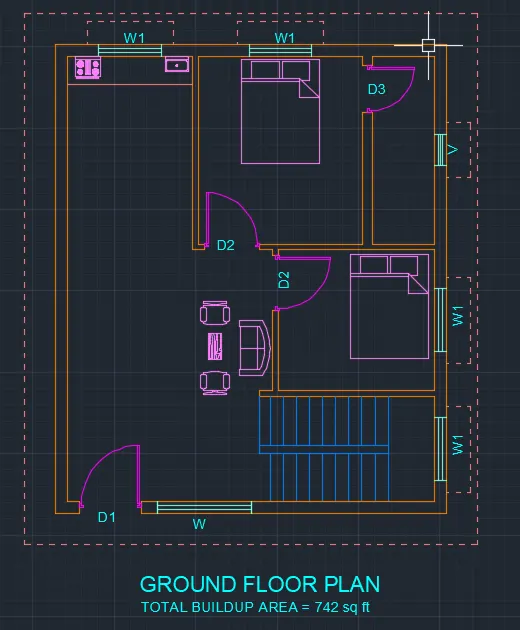

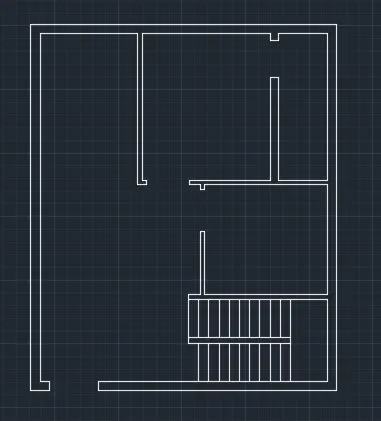

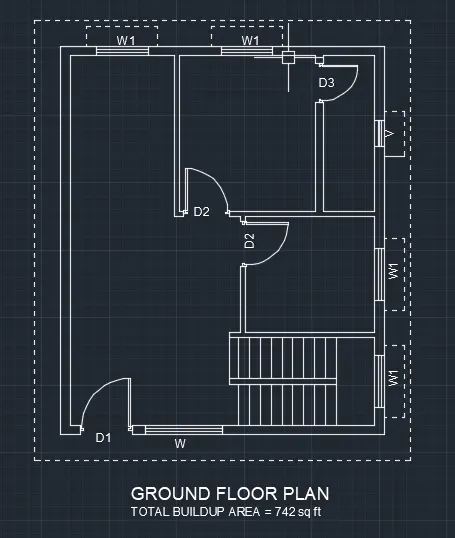

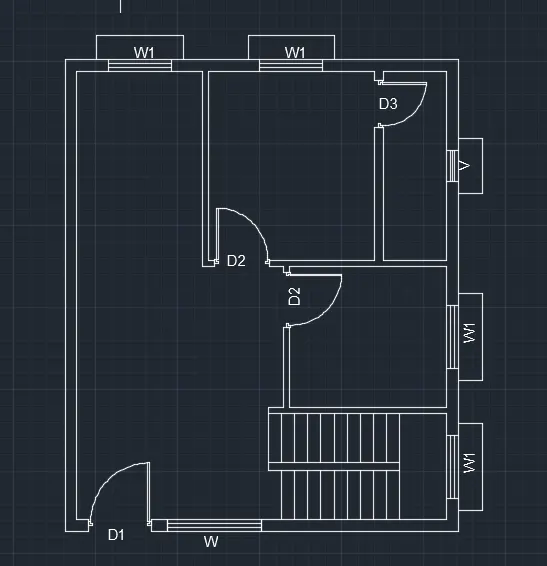

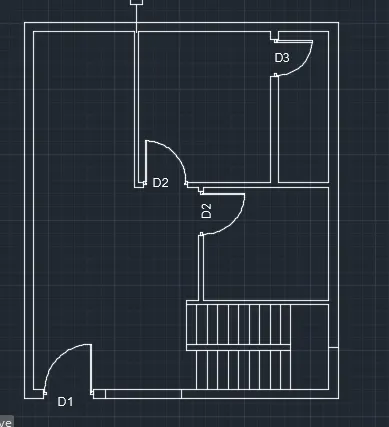

2.Ground floor plan

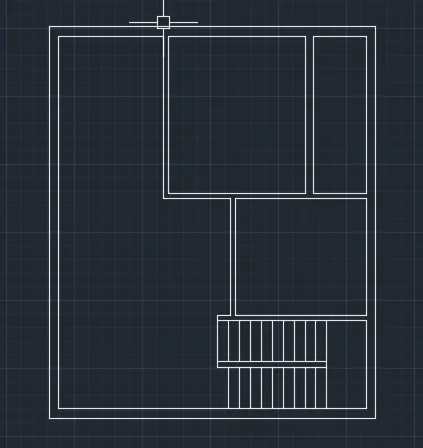

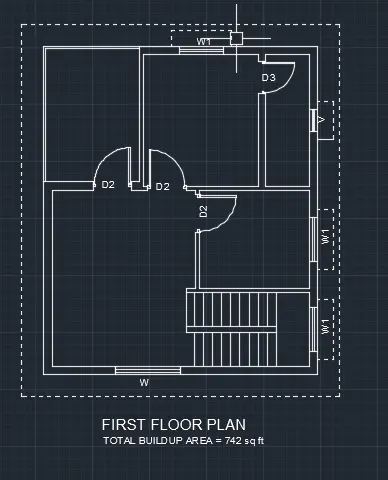

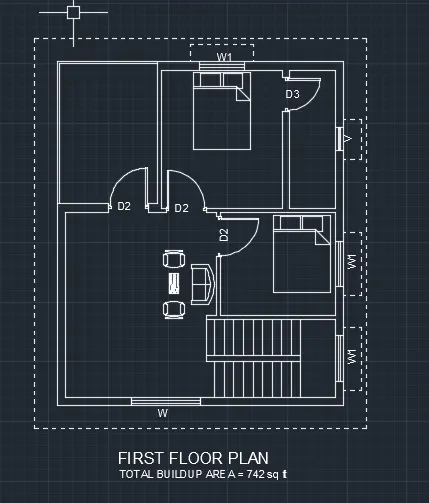

3.First floor plan

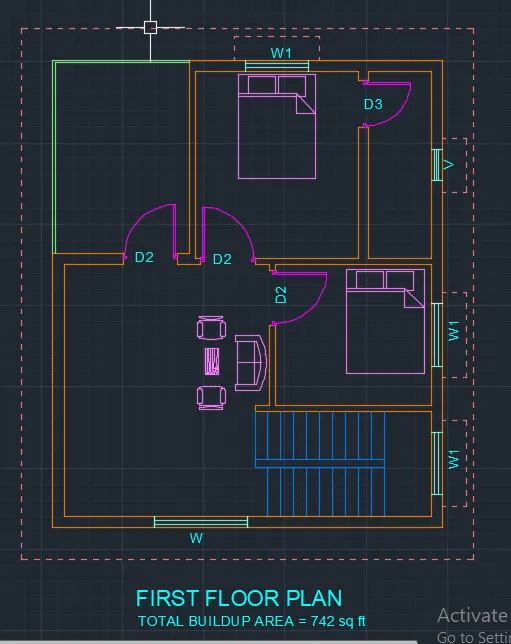

3 FIRST FLOOR PLAN

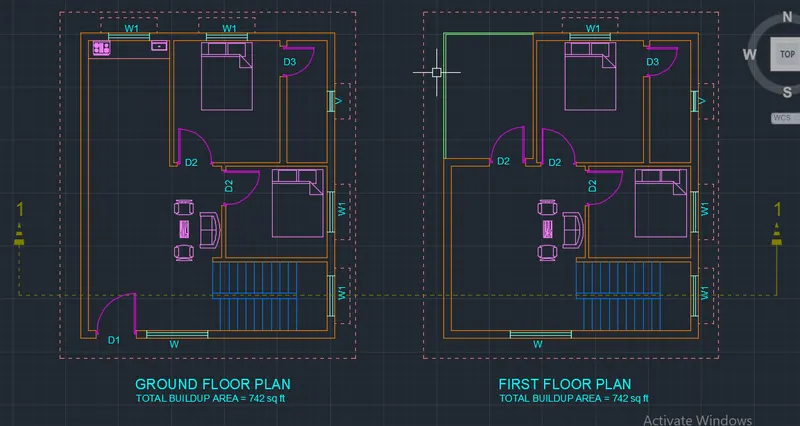

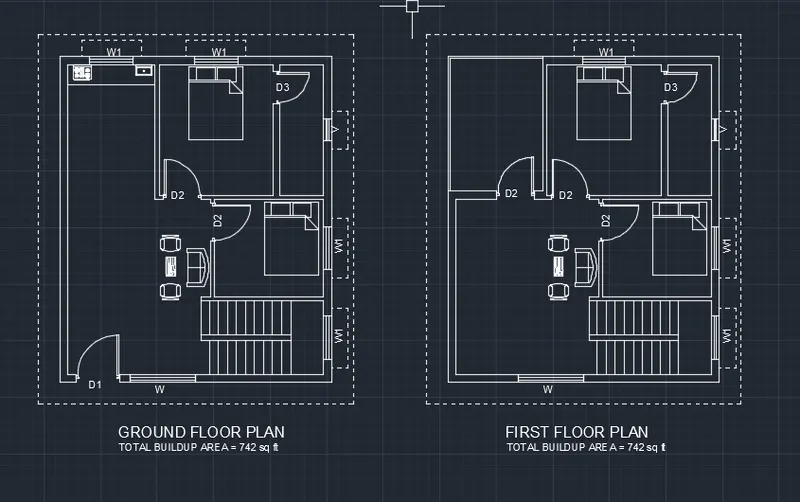

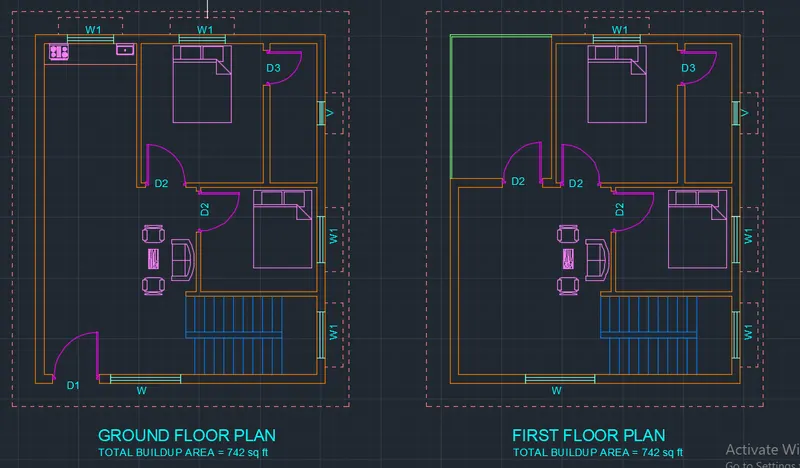

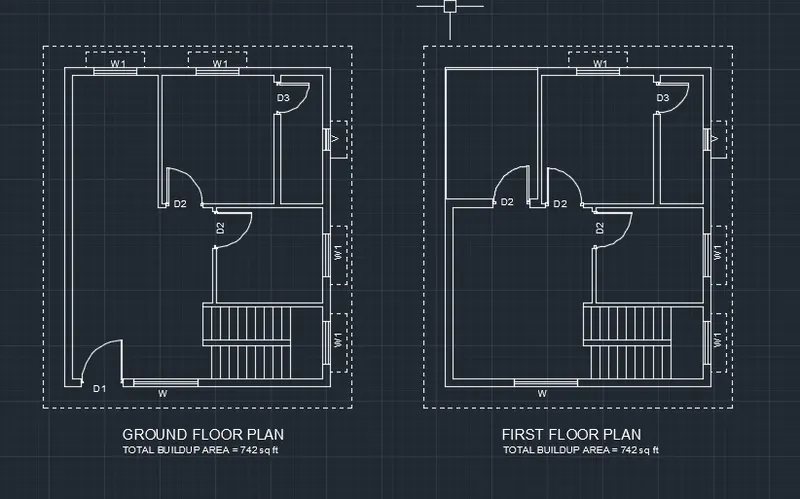

4.Both
BOTH

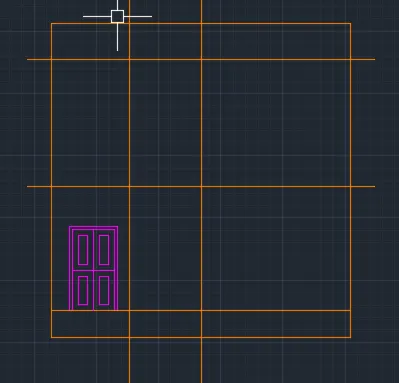

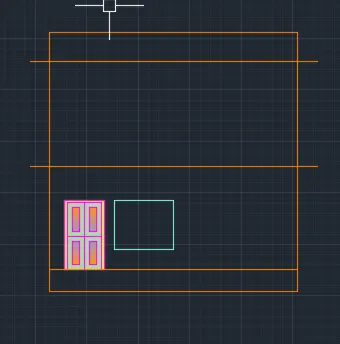

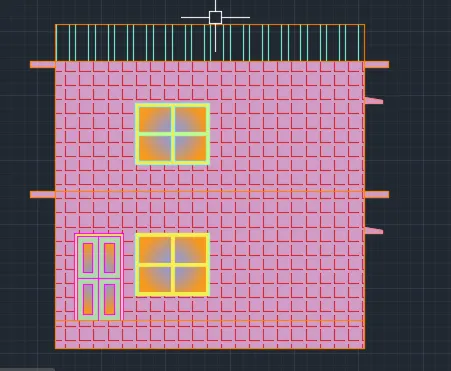

5.Elevation view

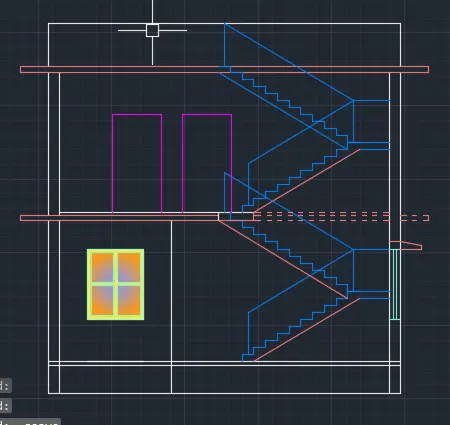

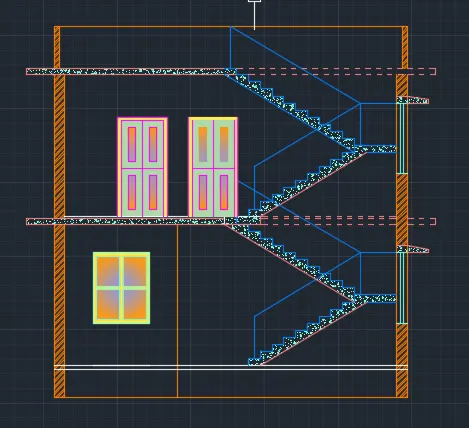

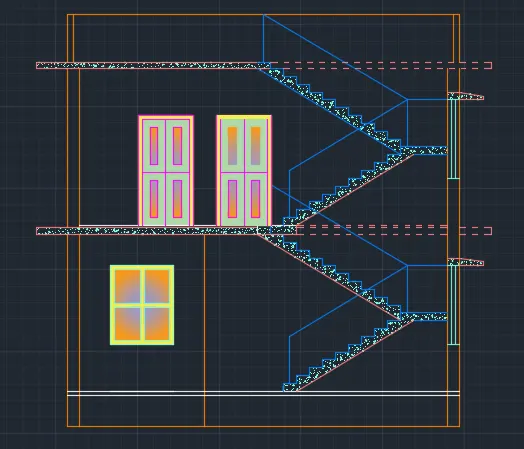

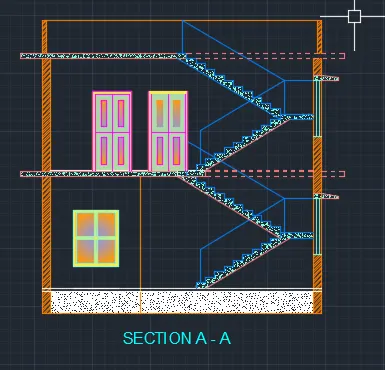

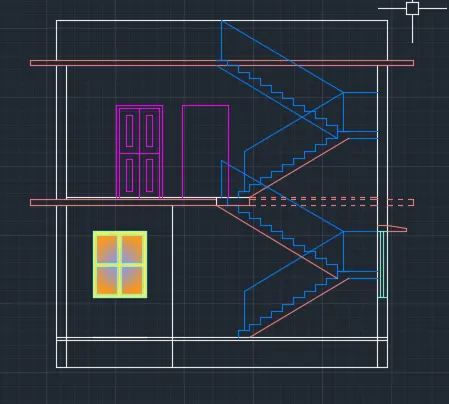

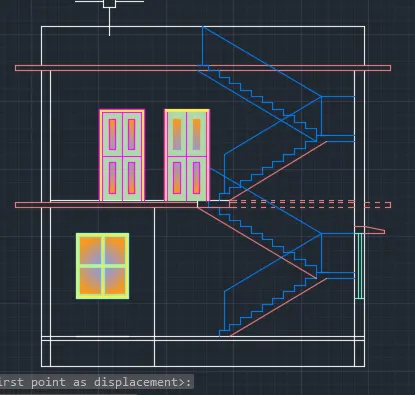

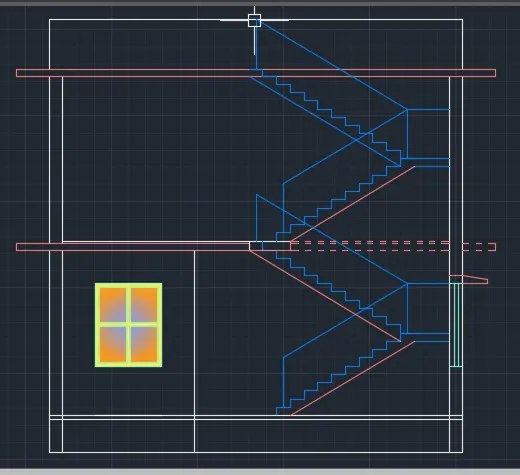

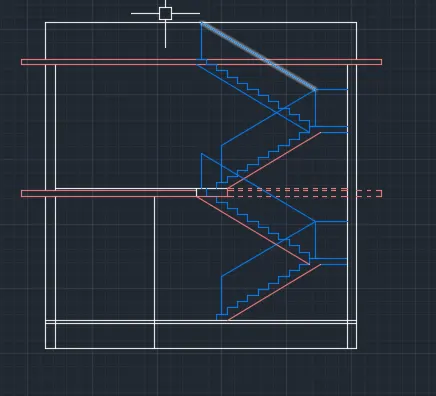

5.Sectional view
Structural drawing

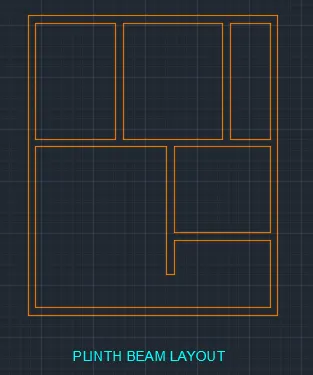

1.Plinth bem layout

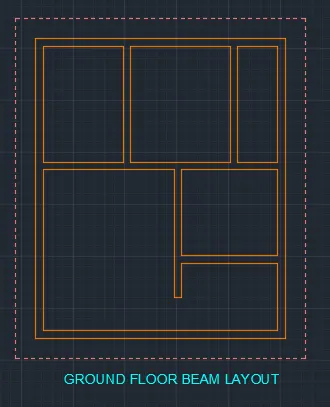

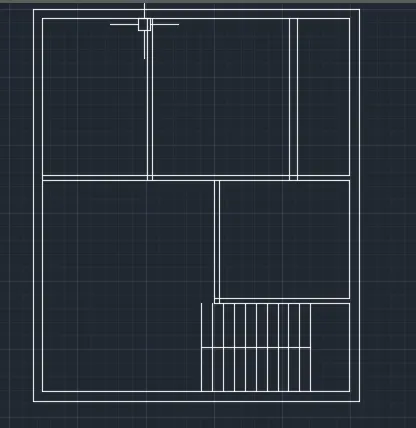

2.Ground floor beam layout

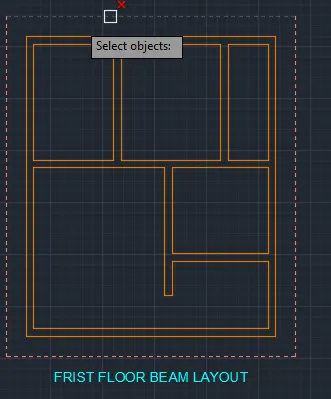

3.First floor beam layout

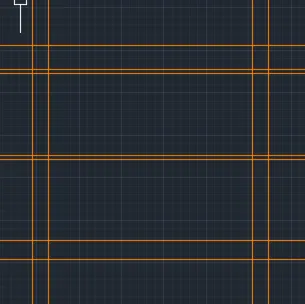

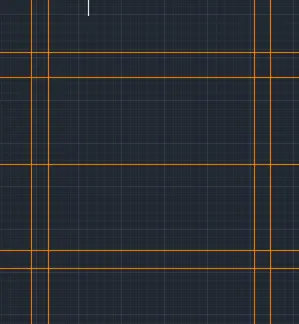

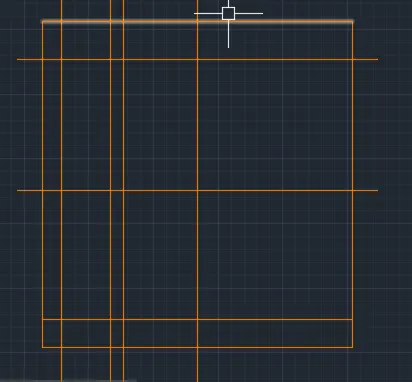

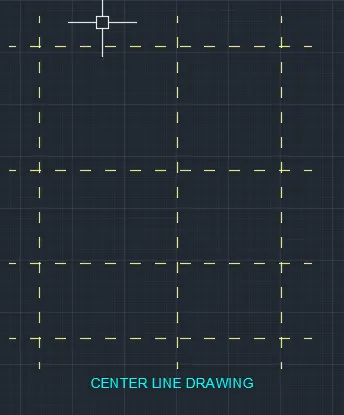

4. Center line drawing

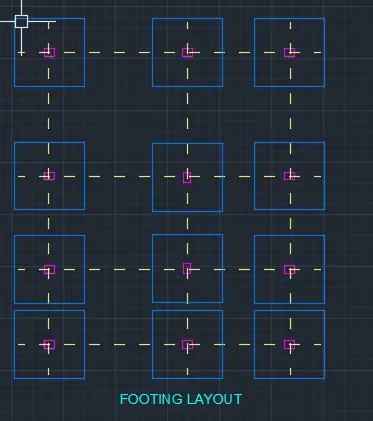

5.Footing layout

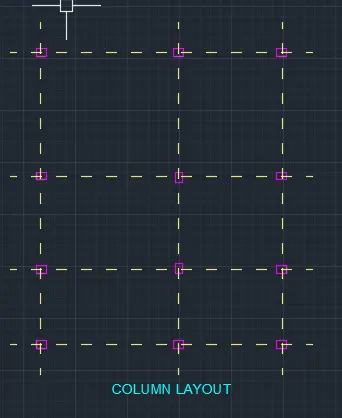

6.Column layout
