Project 1 _Creating an Architectural plan for the provided plot size and develop relevant basic structural drawings
Aim: To design and draft a layout of a residential building with the following details:
Plot Size: 60’x20’(18.3m x6m)

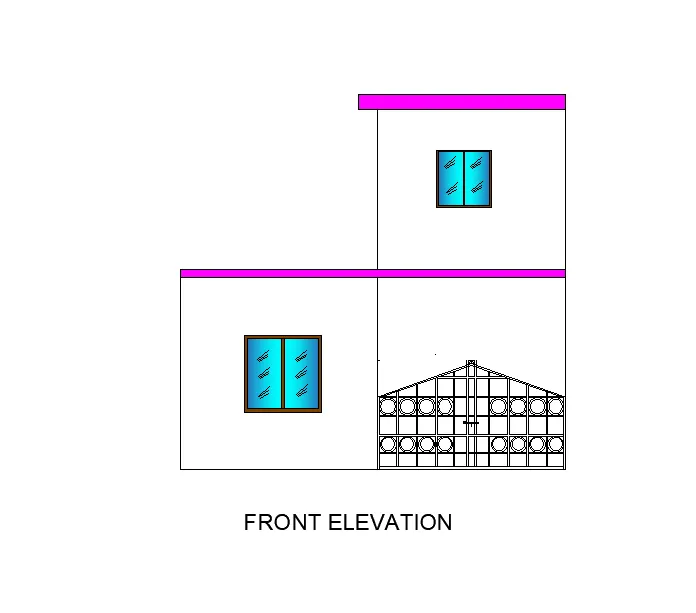

Orientation- Facing East- Develop the following: 1. Architectural Drawing (Floor Plan, Elevations, and Sections) 2. Structural Drawing (Column, Bean, Footing Plan)
XLINE
Specify a point or [Hor/Ver/Ang/Bisect/Offset]:
Creating a horizontal and vertical Xline
TRIM
Trim the unwanted lines

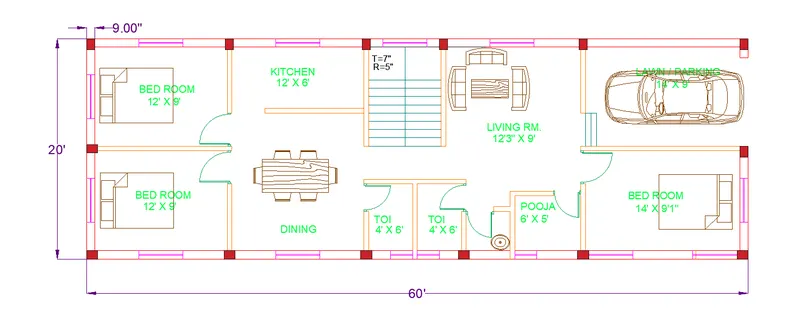

To create plan layout of 60’ X 20’
Command: o
OFFSET
Specify offset distance or [Through/Erase/Layer] <Through>: 60’
Specify offset distance or [Through/Erase/Layer] <Through>: 20’
To create exterior wall
Command: o
OFFSET
Specify offset distance or [Through/Erase/Layer] <Through>: 9”
To create a bedroom of 12’X9’
Command: o
OFFSET
Specify offset distance or [Through/Erase/Layer] <Through>: 12’
Specify offset distance or [Through/Erase/Layer] <Through>: 9’
To create another bedroom of 12’X9’
Command: o
OFFSET
Specify offset distance or [Through/Erase/Layer] <Through>: 12’
Specify offset distance or [Through/Erase/Layer] <Through>: 9’
To create interior wall outside bedroom take offset of 5”
To create a Kitchen of 12’X6’
Command: o
OFFSET
Specify offset distance or [Through/Erase/Layer] <Through>: 12’
Specify offset distance or [Through/Erase/Layer] <Through>: 6’
To create interior wall outside kitchen take offset of 5”
To create a Dining room of 12’6”X12’
Command: o
OFFSET
Specify offset distance or [Through/Erase/Layer] <Through>: 12’6”
Specify offset distance or [Through/Erase/Layer] <Through>: 12’
To create a Toilet of 4’X6’
Command: o
OFFSET
Specify offset distance or [Through/Erase/Layer] <Through>: 4’
Specify offset distance or [Through/Erase/Layer] <Through>: 6’
To create another Toilet of 4’X6’
Command: o
OFFSET
Specify offset distance or [Through/Erase/Layer] <Through>: 4’
Specify offset distance or [Through/Erase/Layer] <Through>: 6’
To create interior wall outside Toilet take offset of 5”

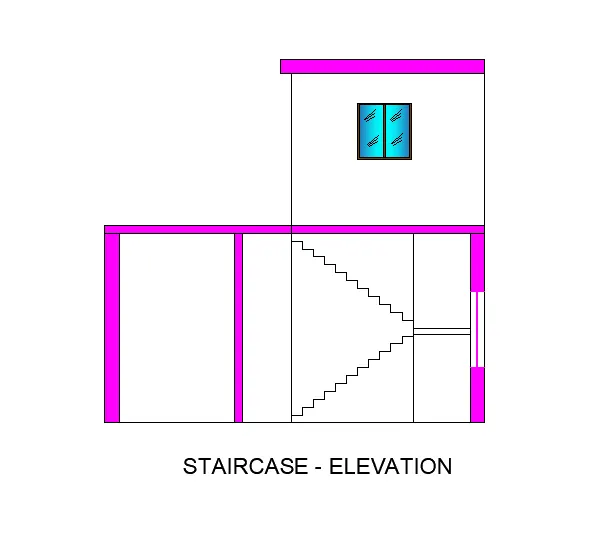

To create staircase in which Tread =7”,Riser=5” at 6’7” wider
Command: o
OFFSET
Specify offset distance or [Through/Erase/Layer] <Through>: 7” (To create steps)
Command: o
OFFSET
Specify offset distance or [Through/Erase/Layer] <Through>: 6’7”
To create a living room of 12’3”X9’
Command: o
OFFSET
Specify offset distance or [Through/Erase/Layer] <Through>: 12’3”
Specify offset distance or [Through/Erase/Layer] <Through>: 9’
To create interior wall outside living-room take offset of 5”
To create a wash area of 4’X3’7” and Pooja room of 6’X 5’
Command: o
OFFSET
Specify offset distance or [Through/Erase/Layer] <Through>: 6’
Specify offset distance or [Through/Erase/Layer] <Through>: 5”
To create interior wall outside Pooja room and wash area take offset of 5”
To create a bedroom of 14’X9’ and a parking area for car parking
Command: o
OFFSET
Specify offset distance or [Through/Erase/Layer] <Through>: 14’
Specify offset distance or [Through/Erase/Layer] <Through: 9’
Command: o
OFFSET
Specify offset distance or [Through/Erase/Layer] <Through>: 14’
Specify offset distance or [Through/Erase/Layer] <Through: 9’
To create interior wall outside bed room and parking take offset of 5”
To make the Column of 9”X12” wherever required
Command:
RECTANGLE
Create a rectangle of 9”X12”
Using HATCH command Fill the column for a different colour to differentiate columns
Command:
INSERT
Insert the proper blocks like Bedroom, Sink, Car, Dining table, Sofa, Window.
Command:
DTEXT
Fill the proper dimensions of every room
Command:
DIMLINEAER
Take all the dimensions wherever required
Command:
LAYERPROPERTIES
Create the layer for all the requirement
i.e. Exterior Wall, Interior Wall, Door, Window, Text, Dimensions, Furniture, Stairs, Columns
