Project 1 _Creating an Architectural plan for the provided plot size and develop relevant basic structural drawings

8)

AIM:

To design and draft a layout of a residential building with plat size (60' -20')

COMMANDS USED:

XL

TRIM

EXTENSION

ADC (DESIGN CENTRE)

LINE

RECTANGLE

LT (LINETYPE)

ARC

PROCEDURE:

• In the command prompt type units > ft
• In the command prompt type limmax > 100',100'
• In the command prompt type limits > 0,0
• In the command prompt type zoom > a
• In the command prompt type "XL" to draft the infinite lines.
• In the command prompt type "OFFSET" to "OFFSET" IT to the desired lines.
• In the command prompt type to "TRIM" to remove the extra lines.
• The main enterance of my plan is in the north direction.
• In the ribben bar > layers > walls,grids, furnitures,doors.
• In the command prompt type ADC( DESIGN CENTRE) to add the components.
• In the command prompt type ARC( TO DRAW THE DOORS)
• In the command prompt type lines ( TO DRAW THE WINDOWS)
• The architectural plan is completed.
• In the ribbon bar type annotate to text the dimensions.
• In the command prompt type table to give thedoor and window schedule.

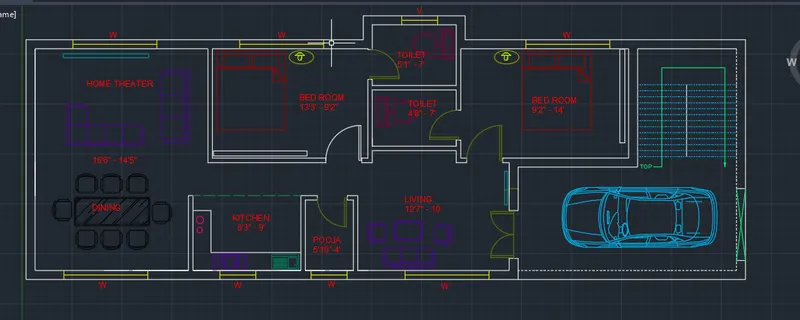

FINAL RESULT OF ARCHITECTURAL PLAN

ARCHITECTURAL PLAN

STRUCTURAL DRAWINGS:

• In the command prompt type "XL" to draw the grid lines.
• In the command prompt type LT(to get the dotted lines) to get the dotted lines.
• In the command prompt type "REC" of the dimensions 9" - 12"
• In the command prompt type " rec" of the dimensions 2'8"-2'2"
• In the command prompt type line to draft the beams.

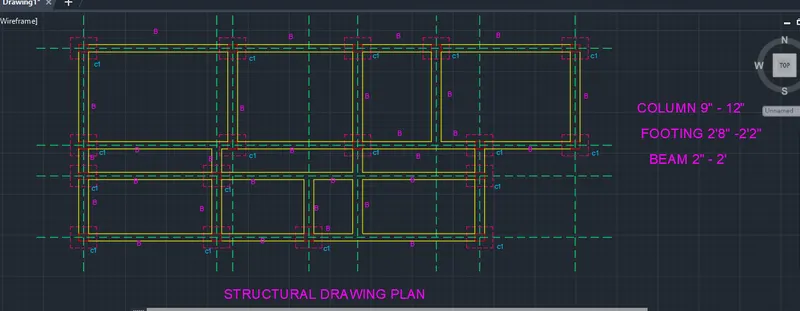

FINAL RESULT FOR STRUCTURAL DRAWING:

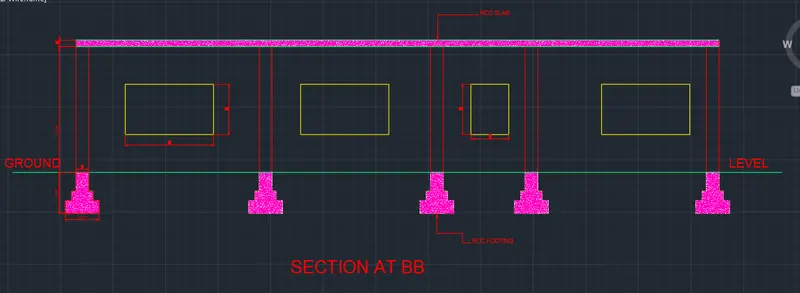

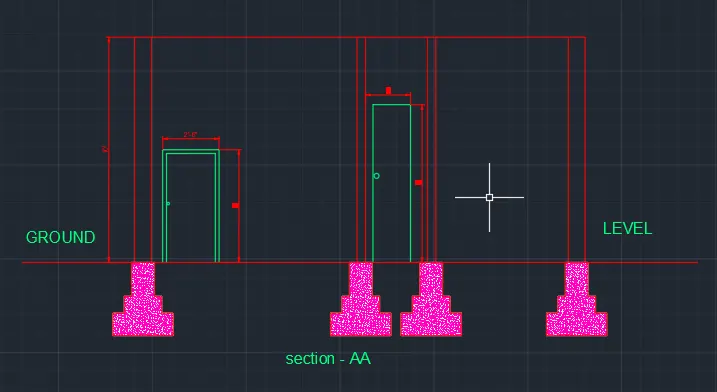

SECTION VIEWS:

Using dotted lines the horizontal and vertical sections are created.

• In the ribbon tab > Hatch(To annotations for concrete)

FINAL RESULTS FOR SECTION VIEW:

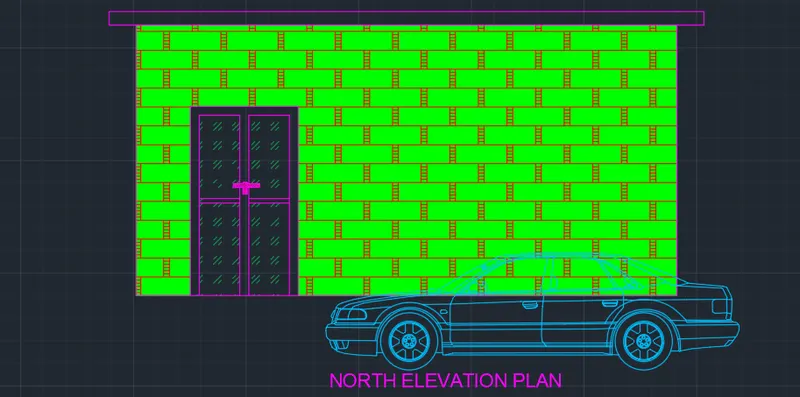

TO CREATE ELEVATION:

• In the command prompt type "L" to draft the lines.
• In the commandprompt type "HATCH" > Solid to give the desired annotations, colour to the elevation.
• In the command prompt type ADC > for car, door etc. components.

FINAL RESULT:
