Project 1 _Creating an Architectural plan for the provided plot size and develop relevant basic structural drawings

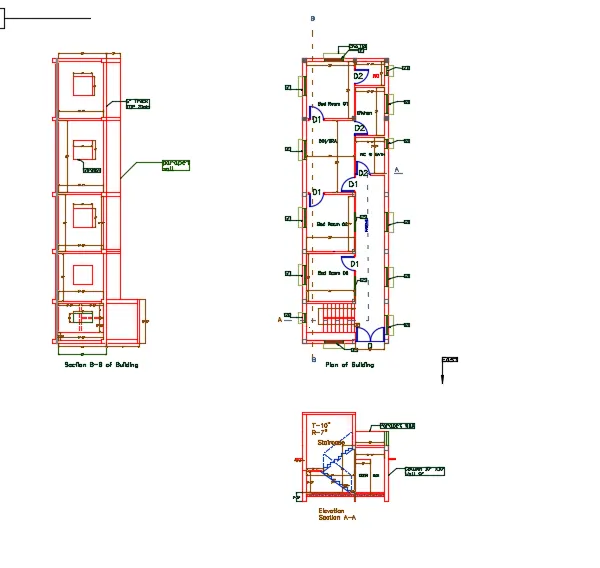

1. Architectural Drawing (Floor Plan, Elevations, and Sections)

:- First Set units and Dimensions in Engineering.and Put the East Direction Arrow.

:- Creat Layers for all the components of the building and work in their respective Layers.

:- Now with the help of "Rectangle" command Draw a rectangle of Size 60' X 20'.

:- Take offset of 1' inside the rectangle.

:- Now "Xplode) the rectangle to take offset from these lines.

:- Now with the help of OFFSET and TRIM Commands draw the walls of 9", 5" , columns of 10" x 10", Bed rooms, kitchen, WC, bath, Passage,Drawing/ Dining hall.

:- Put hatchins in the columns.

:- Now make blocks for Doors and Windows with Line, Trim, "Rect" and offset commands.

:- Now Insert the Doors and windows wherever required.

:- Now witht the help of offset command and Trim Command, draw Staircases.

:- Now with Multileader command Show the direction of staircase.

:- Again with Line Command Draw chajja for all windows.

:- With the Helpmof Text and Dimension Command Write texts and Show dimensions for all Rooms.

:- Now show the section lines A-A and B-B.

:- Finally Floor Plan is ready.

:- Again with "Xline" Command draw reference lines for creating Elevation and Section.

:- With the help of Offset and Trim command draw the columns and Beams for Elevation A-A and Section B-B.

:- Again Draw walls and windows for elevation A-A and Section B-B with Xline, Offset and terim command.

:- Now show the Staircase sections in the both Elevations and section.

:- Now show the parapet wall and columns extending above Roof slab.

:- Again with Dimension and Text command show the dimensions and names of particular components.

:- take "MT" and "MLD" command and write the section Names, Component names and show all the dimensions.

:- hence the Floor Elevation A-A nd Section B-B is finally ready.

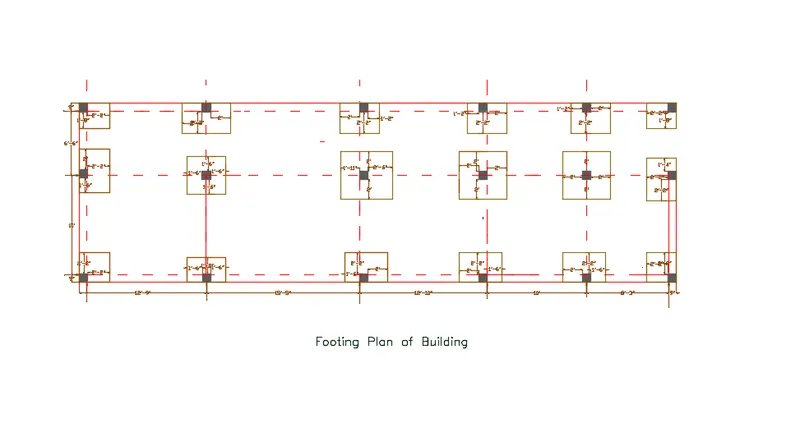

2.0 Footing Plan of the Building.

:- first copy the Floor plan and Trim or delet all the interior walla and Staircase, etc.

:- With the help of Line/ Pl command draw footing plans for all columns of required sizes.

:- Show the Section lines for all the columns.

:- Put hte hatchings int he columns and show the Dimensions of the Footing with Dimlinear command.

:- Also Put all of them into their respinve layers.

:- Now show the dimensions of column to column and wall to wall, etc.

:- Hence we have created the Footing Plan details is ready.
