Project 1 - Controlling a DC motor using PWM and monitoring its Running status
Implement a system on the simulator for controlling a DC motor using L293 motor driver, monitor its status and print the running status of motor on the LCD Display

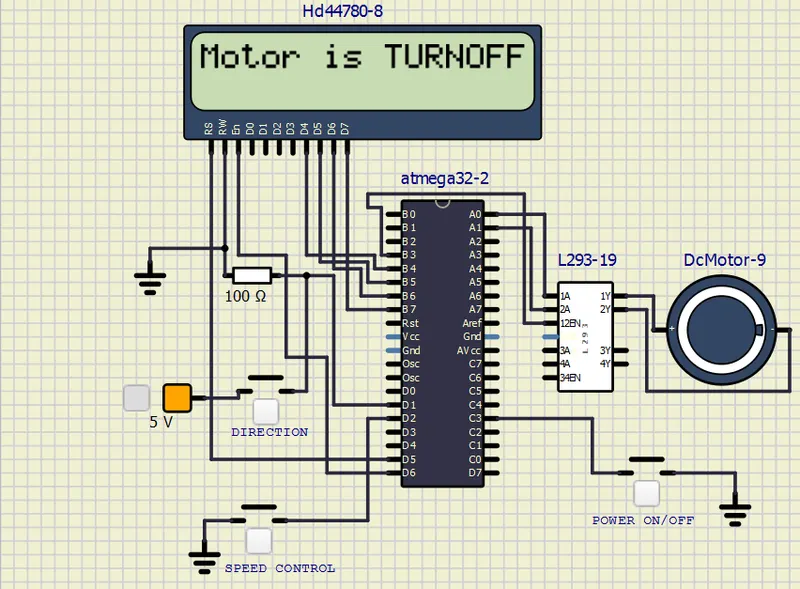

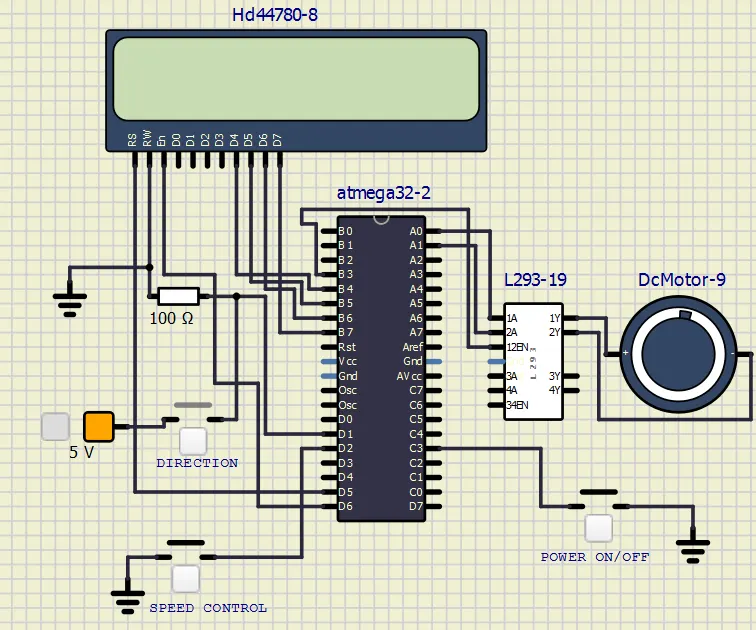

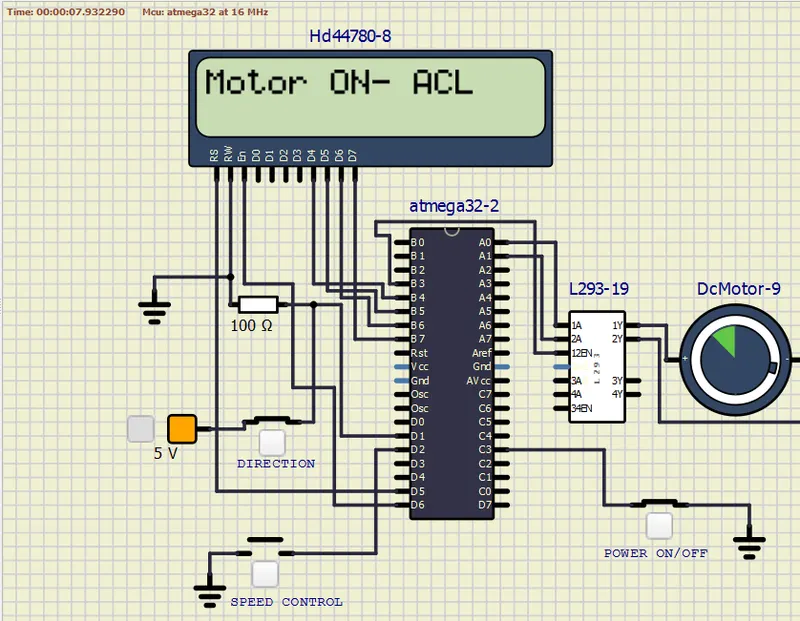

CIRCUIT DIAGRAM IN simulIDE
COMPONENTS
- atmega32
- L293 motor driver
- DC motor
- LCD Dispaly
- resistor
- Push button
- Fixed voltage

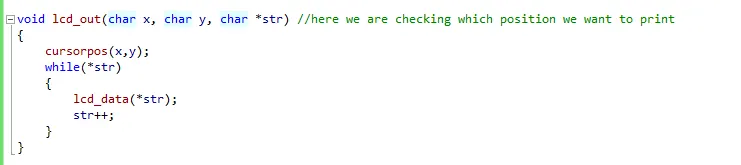

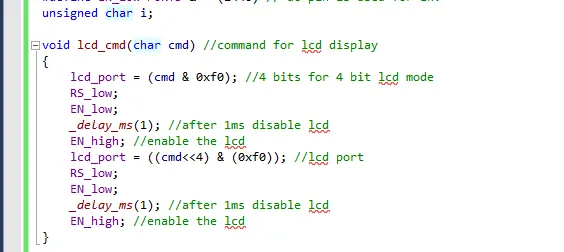

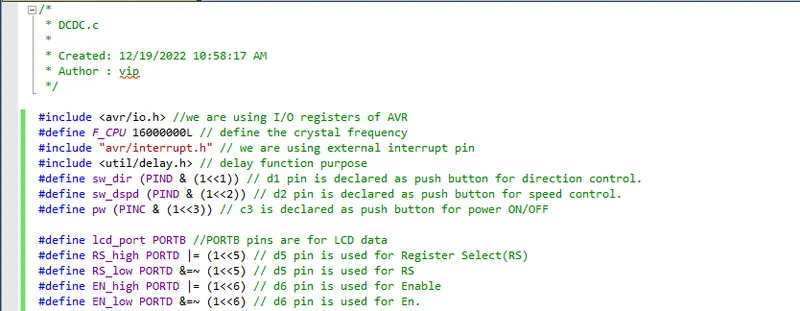

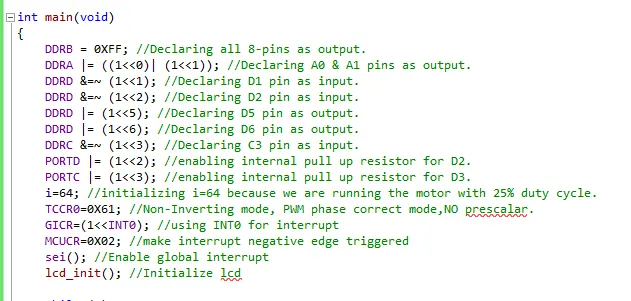

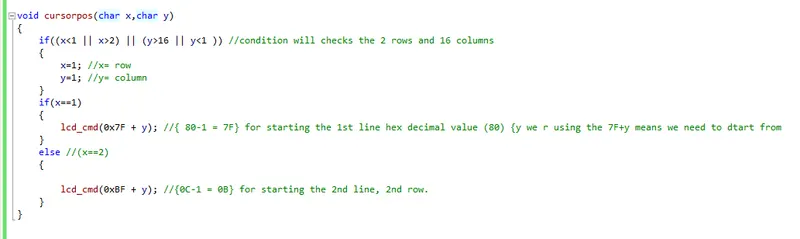

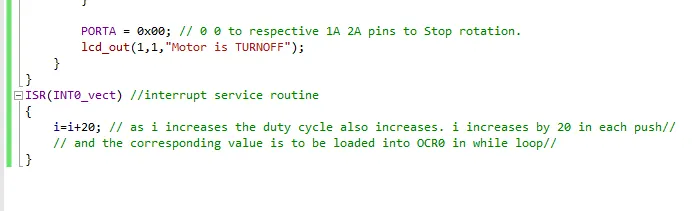

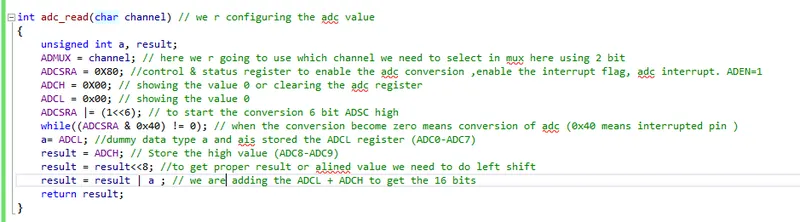

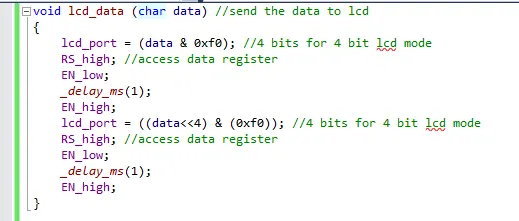

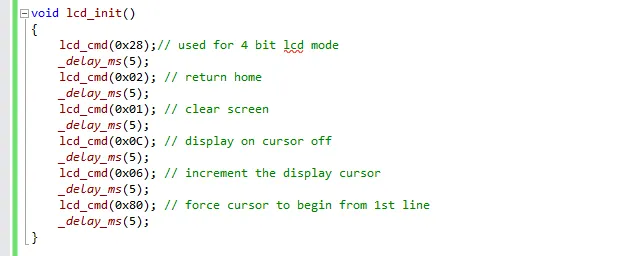

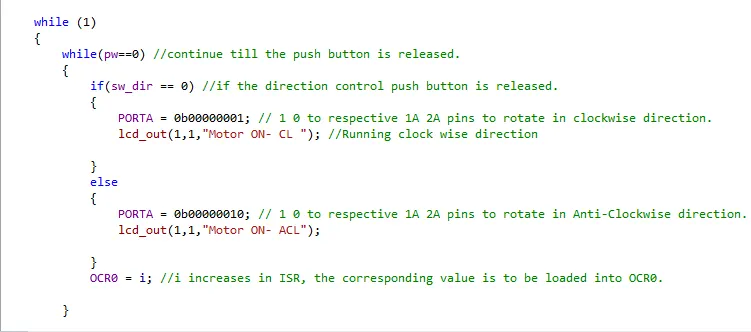

CODE

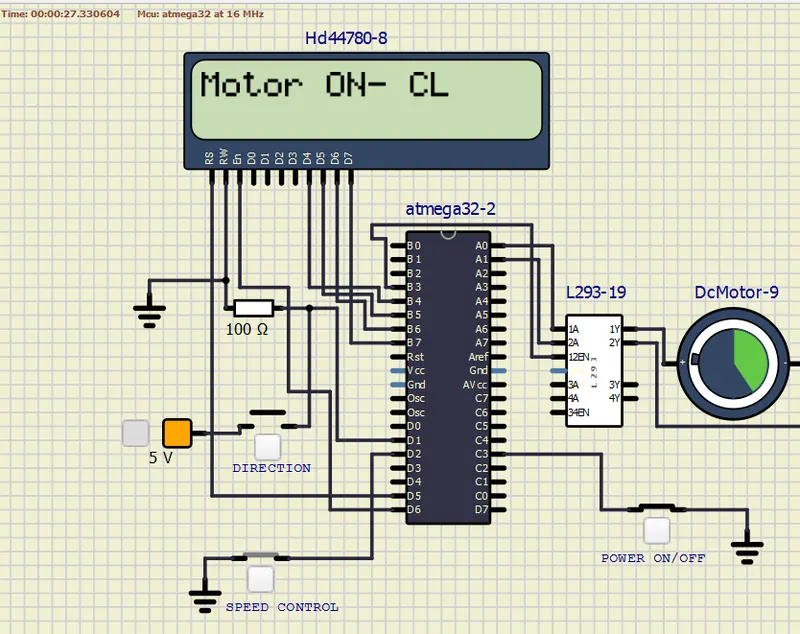

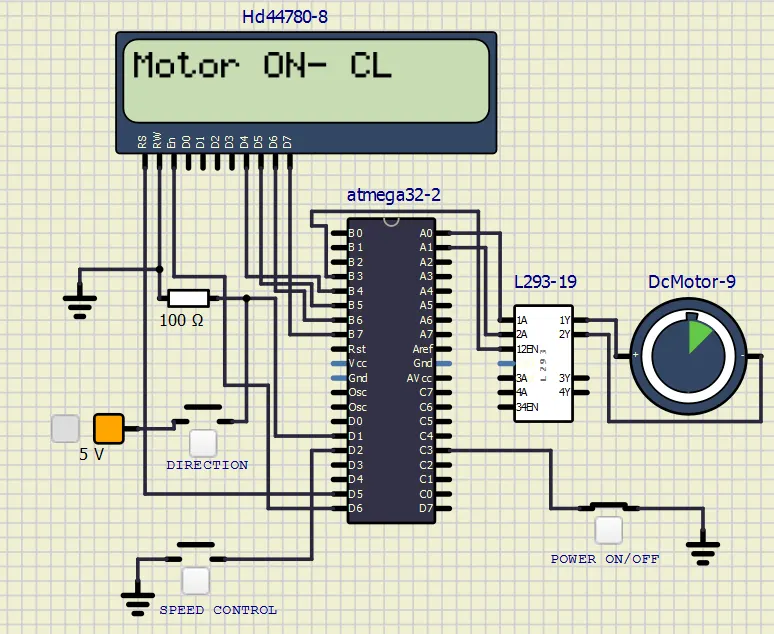

OUTPUT
Power Switch: OFF, Direction Switch: OFF, Speed Switch: OFF :: Motor is TURN OFF Condition
Power Switch: ON, Direction Switch: OFF, Speed Switch: OFF :: Motor is TURN ON Condition
Power Switch: ON, Direction Switch: ON, Speed Switch: OFF :: Motor is TURN ON and Direction of Rotation: REVERSE
Power Switch: ON, Direction Switch: OFF, Speed Switch: ON :: Motor is TURN ON and Speed of Motor: INCREASED
