Project 1 - Controlling a DC motor using PWM and monitoring its Running status

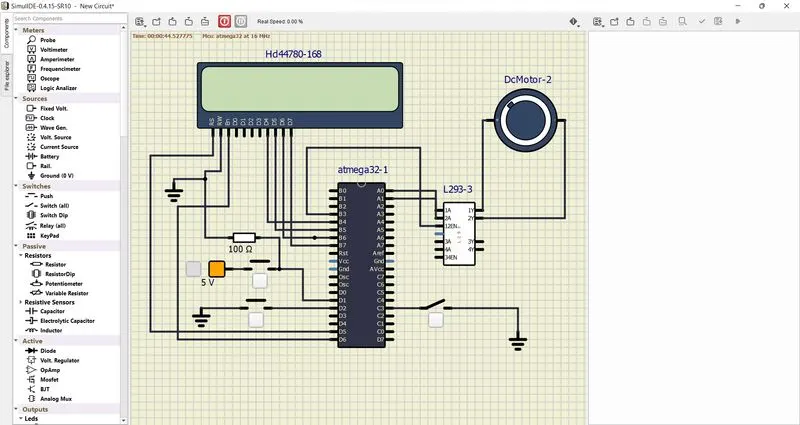

mplement a system on the simulator for controlling a DC motor using L293 motor driver, monitor its status and print the running status of motor on the LCD Display.

• The DC motor can be controlled by using L293 motor driver.
• The speed of a DC motor can be controlled by varying its input voltage, for doing this is to use PWM (Pulse Width Modulation).
• L293D IC is a typical Motor Driver IC which allows the DC motor to drive on any direction.

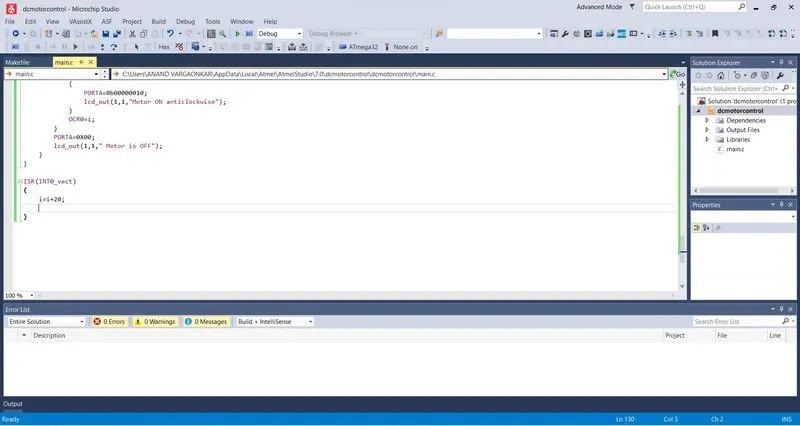

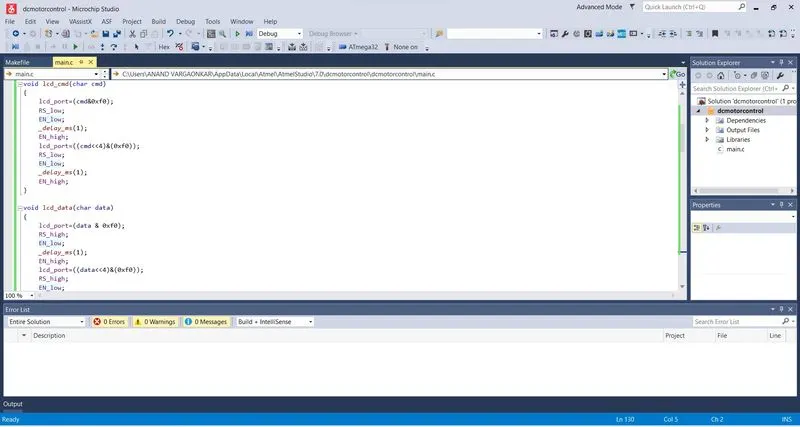

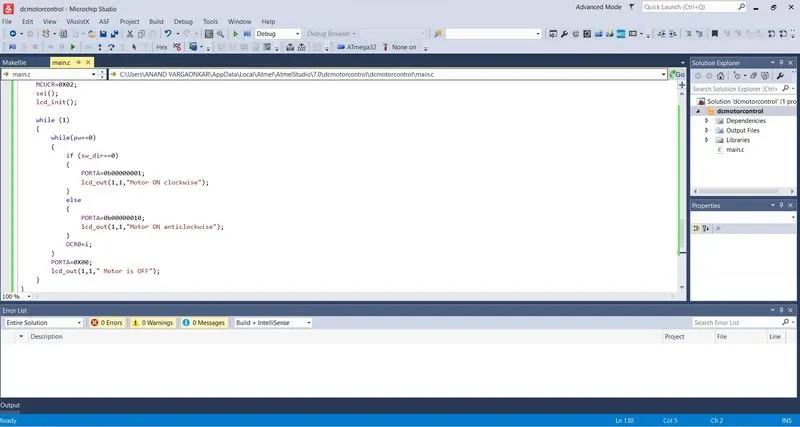

code -

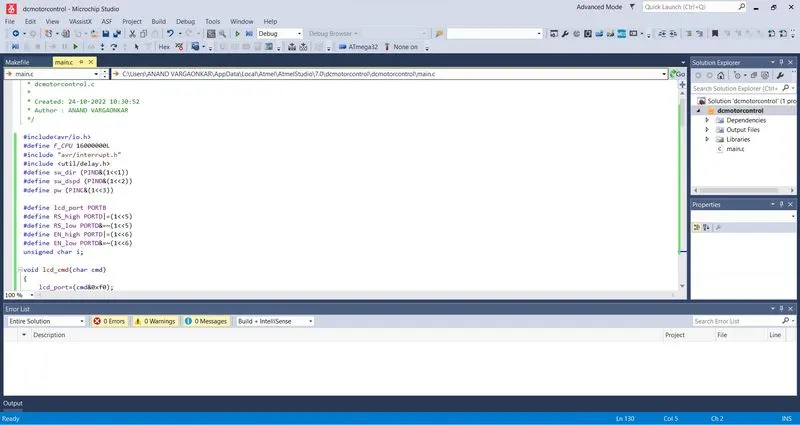

#include
#define F_CPU 16000000L
#include "avr/interrupt.h"
#include
#define sw_dir (PIND&(1<<1))
#define sw_dspd (PIND&(1<<2))
#define pw (PINC&(1<<3))

#define lcd_port PORTB
#define RS_high PORTD|=(1<<5)
#define RS_low PORTD&=~(1<<5)
#define EN_high PORTD|=(1<<6)
#define EN_low PORTD&=~(1<<6)
unsigned char i;

void lcd_cmd(char cmd)
{
	lcd_port=(cmd&0xf0);
	RS_low;
	EN_low;
	_delay_ms(1);
	EN_high;
	lcd_port=((cmd<<4)&(0xf0));
	RS_low;
	EN_low;
	_delay_ms(1);
	EN_high;
}

void lcd_data(char data)
{
	lcd_port=(data & 0xf0);
	RS_high;
	EN_low;
	_delay_ms(1);
	EN_high;
	lcd_port=((data<<4)&(0xf0));
	RS_high;
	EN_low;
	_delay_ms(1);
	EN_high;
}

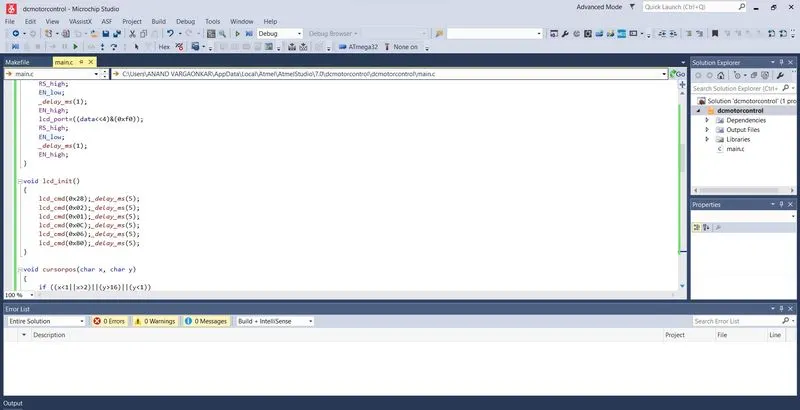

void lcd_init()
{
	lcd_cmd(0x28);_delay_ms(5);
	lcd_cmd(0x02);_delay_ms(5);
	lcd_cmd(0x01);_delay_ms(5);
	lcd_cmd(0x0C);_delay_ms(5);
	lcd_cmd(0x06);_delay_ms(5);
	lcd_cmd(0x80);_delay_ms(5);
}

void cursorpos(char x, char y)
{
	if ((x<1||x>2)||(y>16)||(y<1))
	{
		x=1;
		y=1;
	}
	if (x==1)
	{
		lcd_cmd(0x7f+y);
	}
	else
	{
		lcd_cmd(0xBF+y);
	}
}

void lcd_out(char x, char y, char *str)
{
	cursorpos(x,y);
	while (*str)
	{
		lcd_data(*str);
		str++;
	}
}

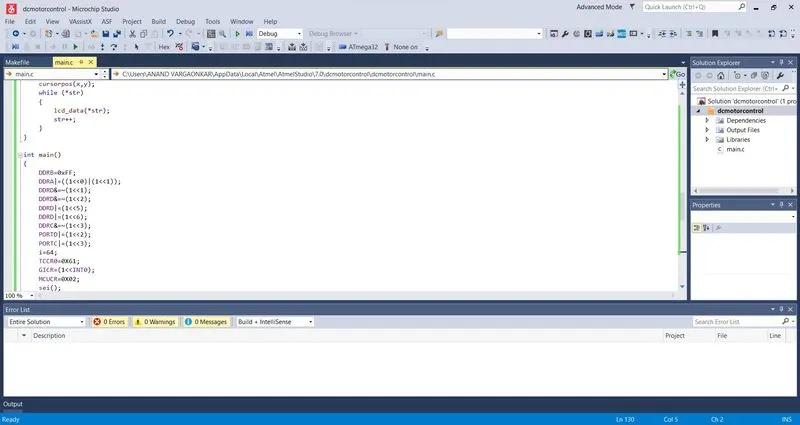

int main()
{
	DDRB=0xFF;
	DDRA|=((1<<0)|(1<<1));
	DDRD&=~(1<<1);
	DDRD&=~(1<<2);
	DDRD|=(1<<5);
	DDRD|=(1<<6);
	DDRC&=~(1<<3);
	PORTD|=(1<<2);
	PORTC|=(1<<3);
	i=64;
	TCCR0=0X61;
	GICR=(1<

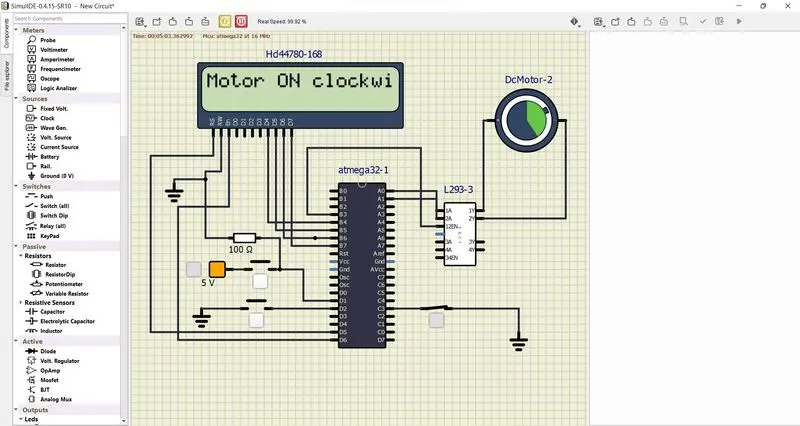

motor run clockwise -

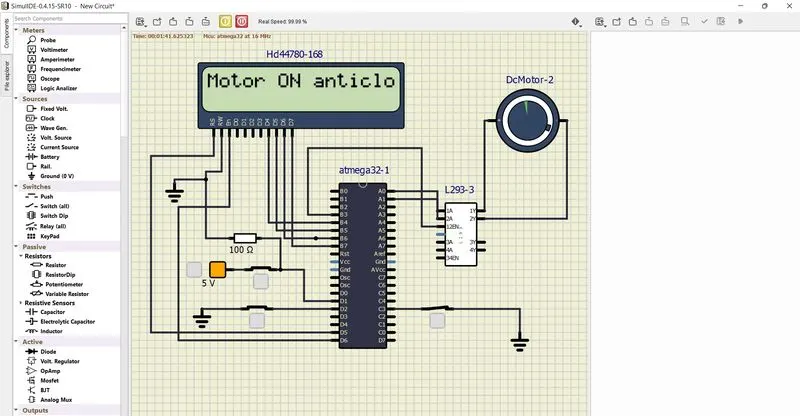

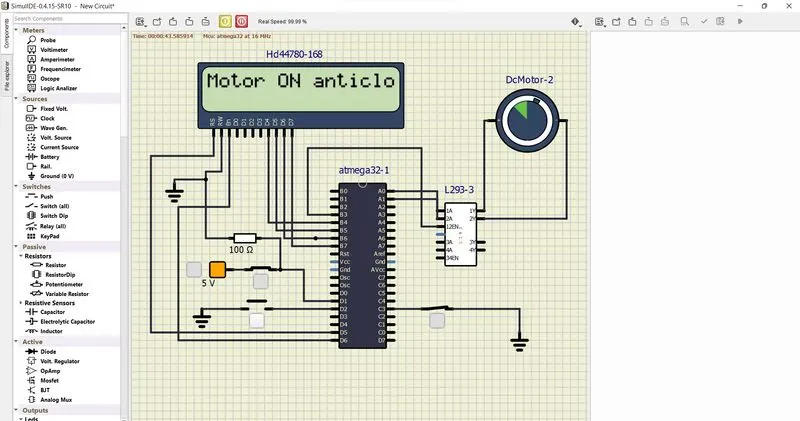

motor run anticlockwise -
