Project 1_Comparative study of different storey buildings for Seismic forces

OBJECTIVE OF CHALLANGE

1. Know how to extract different seisic responce for the structure
2. how to easily alter certain properties in ETABS model
3. know the factor influencing the dynamic charecterstucs of building
4. know the factor influencing time period of building
5. know the factor influencing mode shape of building

PROCEDURE

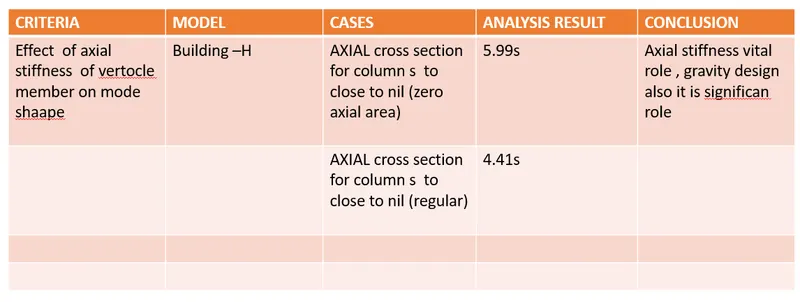

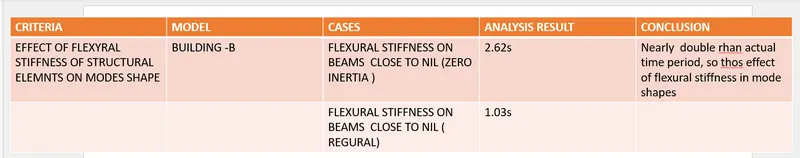

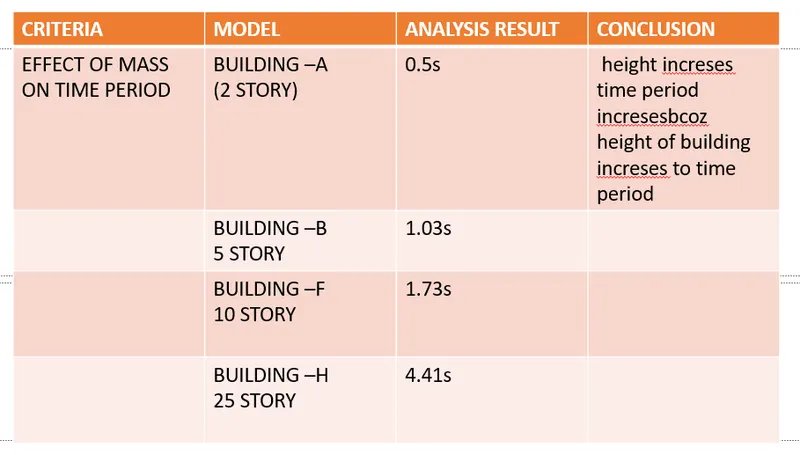

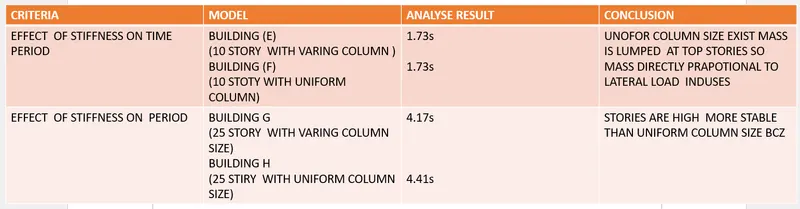

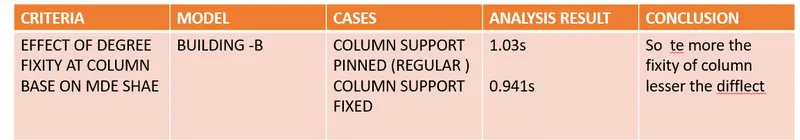

Effect of stiffnes on time period , effect of mass on time period , effect of column orientation on time period, effect of flexural stiffness of structural elemens on mode shape ,Effect of axial stiffness of vertocle member on mode shaape,Effect of degree fixicity of column base on mode

ALL THESE GIVE HAVE TO CALCULATE

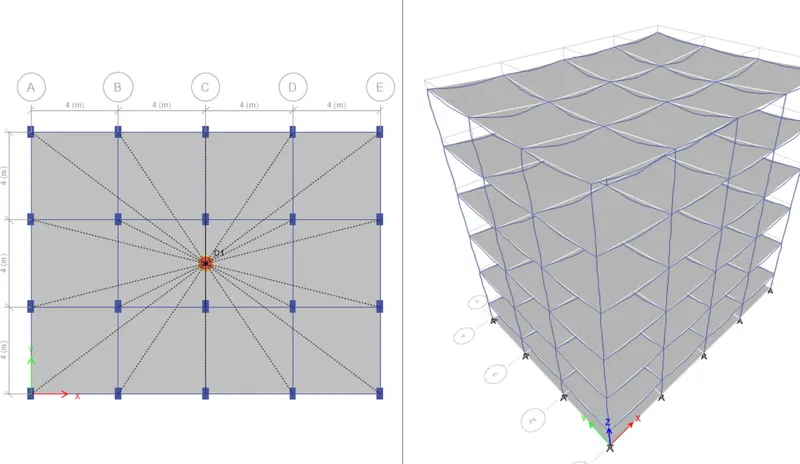

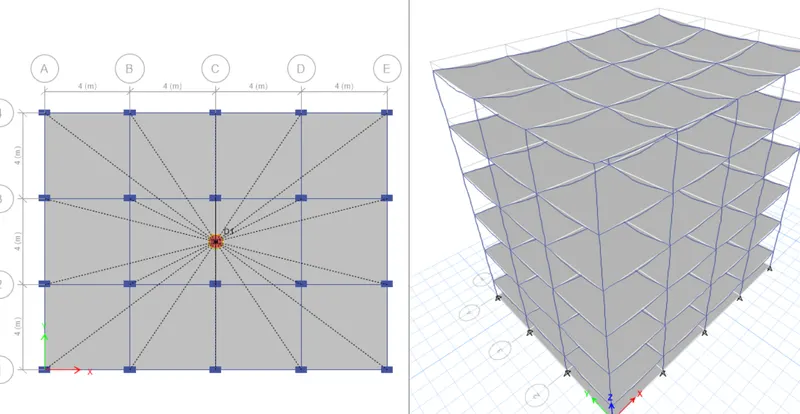

MODEL A

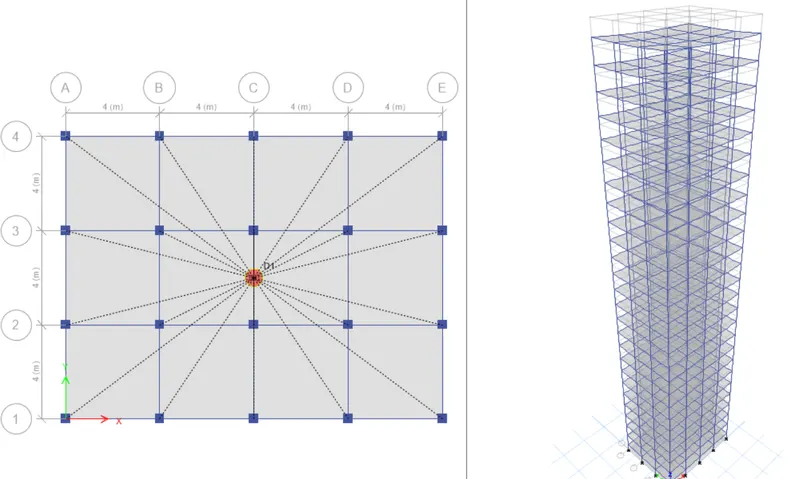

MODEL B

FLOORS COLUMN SIZE 400x400mm

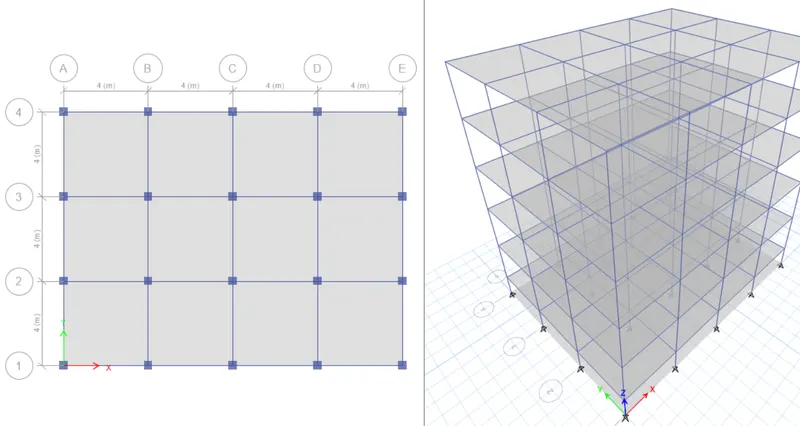

MODEL (C)

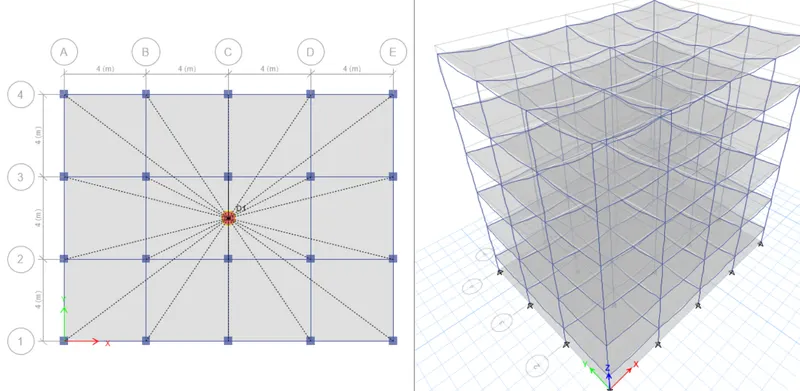

MODEL D

COLUMN SIZE 300X500 mm ORIENTATION X-DIRECTION

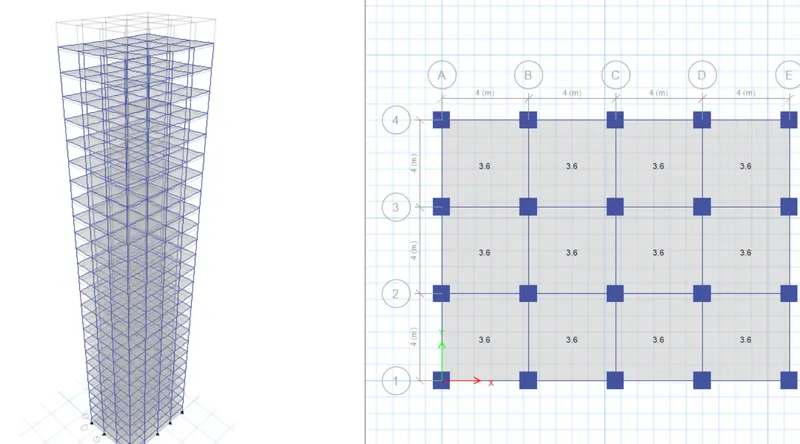

MODEL (E)

COLUMN SIZE 300X500 mm ORIENTATION Y-DIRECTION

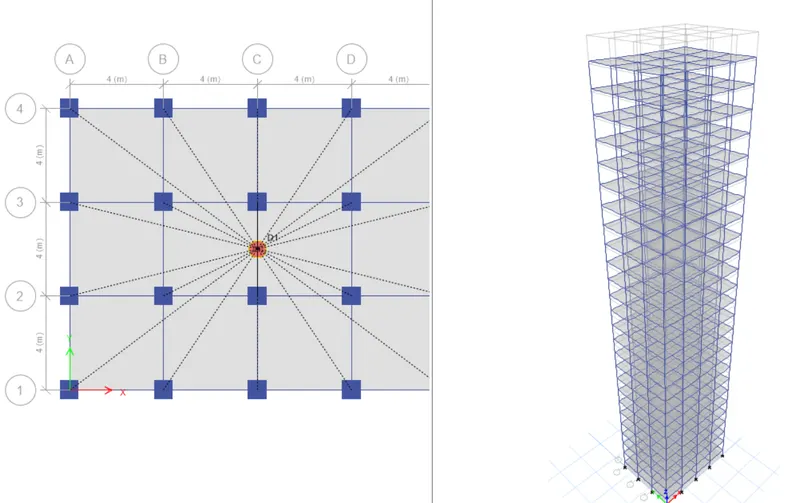

MODEL (F)

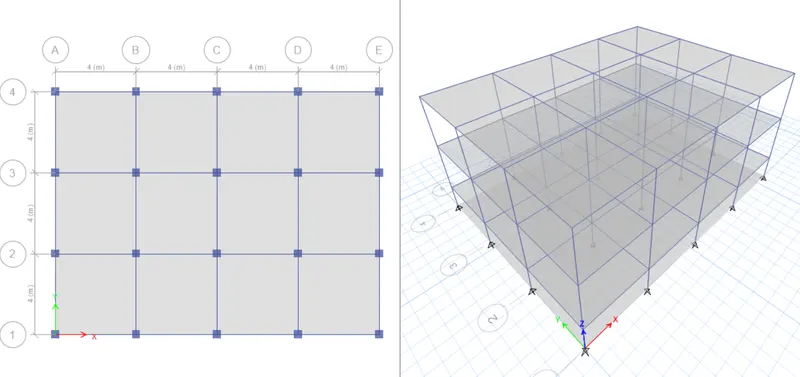

MODEL (G)

MODEL (H)

MODEL (I)

MODEL j

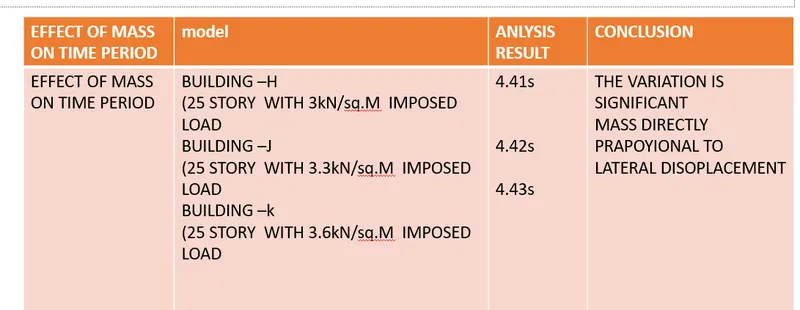

:10% INCRESE OF LOAD

MODEL k

: 20% INCRESE OF LOAD

RESULT:as per given quetion calculated the factor influencing the dynamic charecterstrics of a building

factor influencing natural period of building, factor influencing mode shape of oscillation
