Project 1

1.Design and Develop a PWM controlled fan load with DC motor.

A)Objective of this Project: To model a fan type load in Simulink and to control its speed by using the PWM method.

Main Keywords of this Project: PWM, H bridge, DC Motor,Ideal Rotational Motion Sensor,Controlled PWM voltage.

Introduction & Explanation of the Project

This Simulink Project presents the work for the design of the fan speed control system using Pulse Width Modulation by establishing a connection between an H bridge circuit and a Dc motor. A fan type load equation has been used to analyze the output results instead of a physical model of a fan in Simulink. The speed of the fan is varied according to the input voltage using PWM technique.

By changing or modulating the timing of these pulses the speed of the motor can be controlled. A stepwise change in the speed variation is given and the full load speed is observed. In this model, all input ports of the H-Bridge block except the PWM port are connected to ground. As a result, the H-Bridge block behaves as follows:

1. When the motor is on, the H-Bridge block connects the motor terminals to the power supply.
2. When the motor is off, the H-Bridge block acts as a freewheeling diode to maintain the motor current.

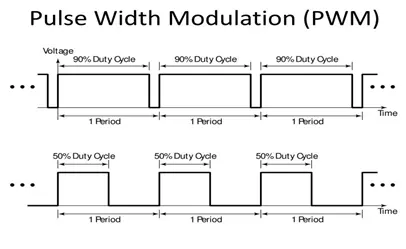

Role of Pulse Width Modulation(PWM) in this Project

Pulse Width Modulation, or PWM, is a technique for getting analog results with digital means. Digital control creates a square wave, a signal switched between on and off. This on-off pattern can simulate voltages in between full-on and off by changing the portion of the time the signal spends on versus the time that the signal spends the duration of "on time" is called the pulse width. To get varying analog values, we change or modulate, that pulse width.

To get varying analog values, we change or modulate, that pulse width.

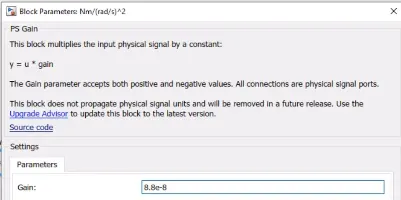

Torque-Speed characteristics of a FAN

The torque speed curve of a load is a plot showing its torque requirement on the y-axis versus the speed on the x-axis. It’s the torque requirement of the load from zero speed to full speed. It is application/load specific and varies with different load types. Loads like centrifugal pumps and fans follow quadratic speed torque curve, where torque varies square times the speed. These are also called as constant torque loads or applications

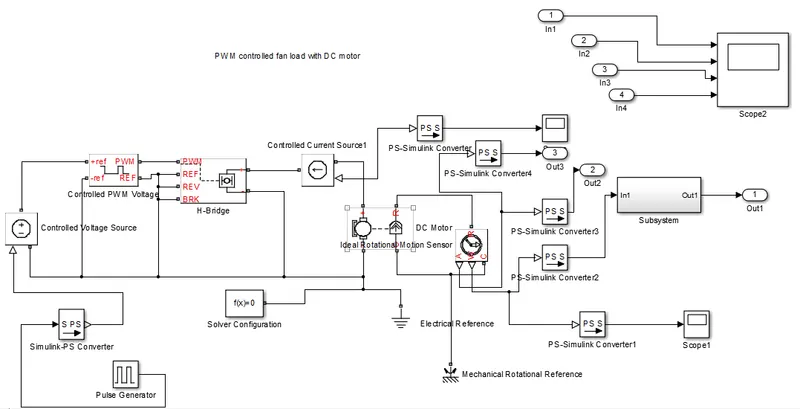

Model Diagram in Simulink:

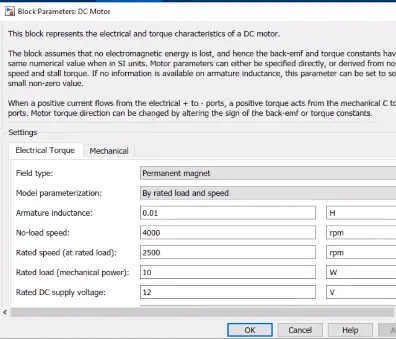

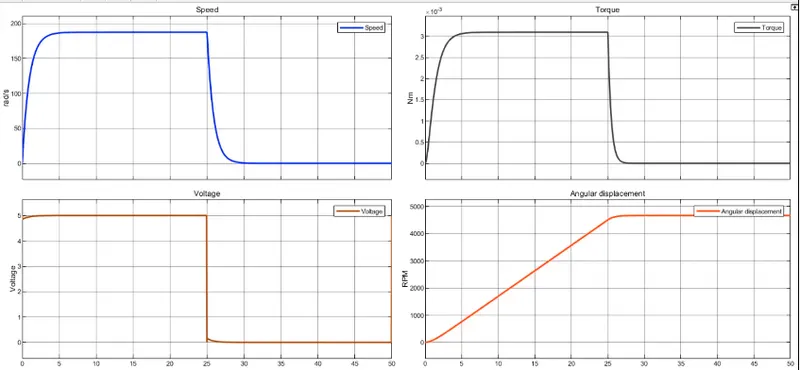

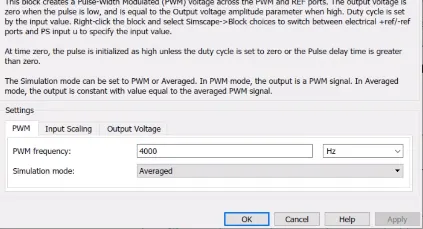

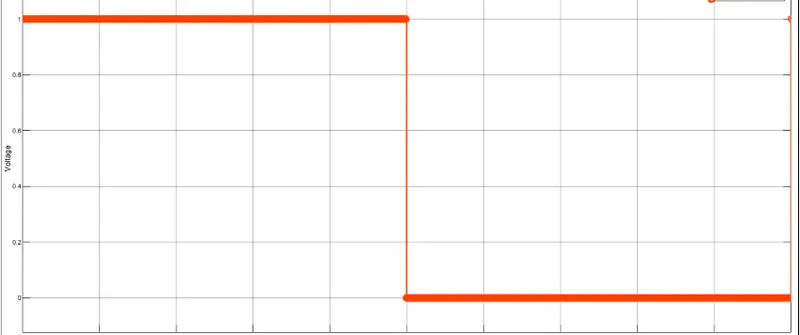

Outputs

Conclusion

A PWM controlled DC motor using an H bridge circuit was modelled in Simulink and results were analyzed. The output plots justified the theory discussed. The load torque characteristics of a fan is obtained. The full speed was observed for a full voltage of 12V from DC motor.
