Project 1

AIM : Design a multi storey residential building located in Bangalore using STADD Pro Connect Edition

PROCEDURE :

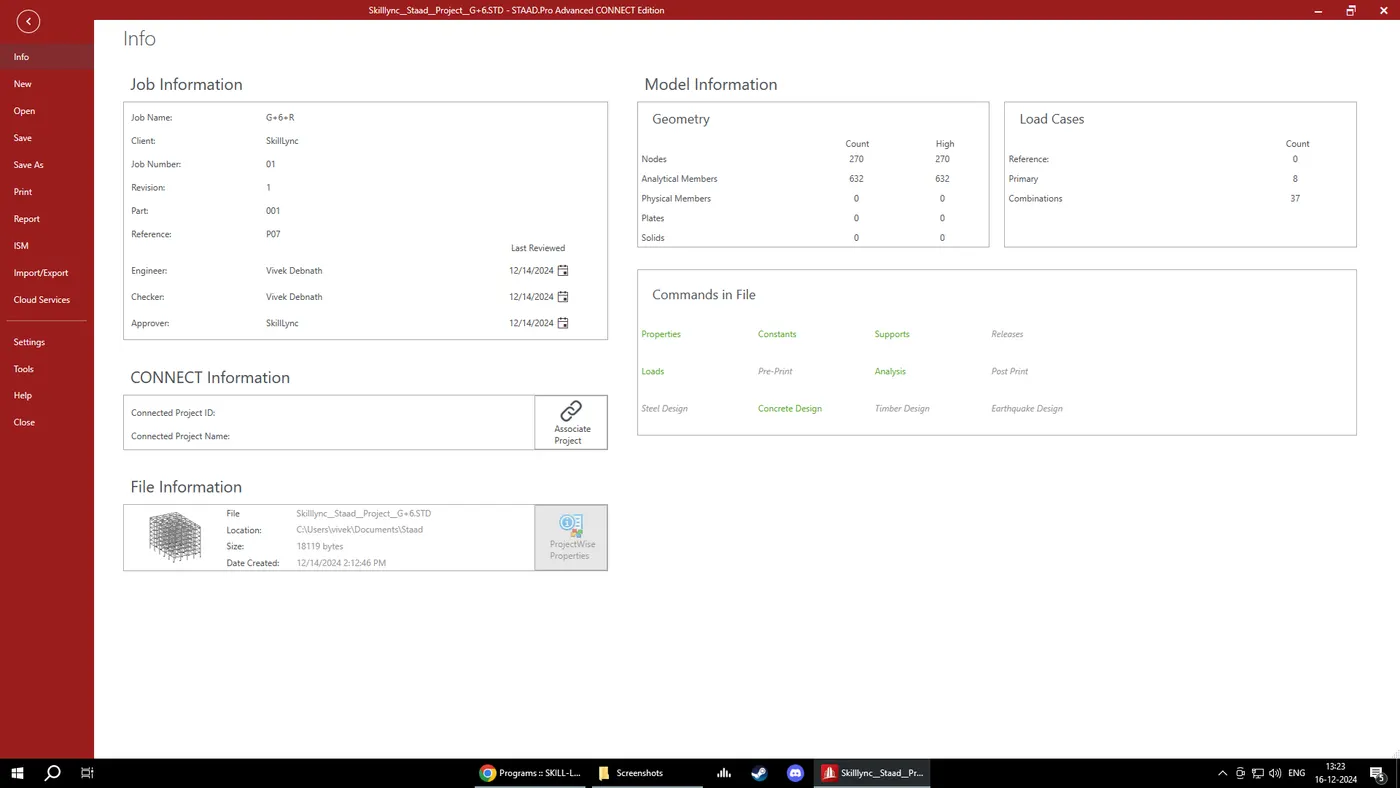

Open the Staad.Pro software and save the project by giving the appropriate file name

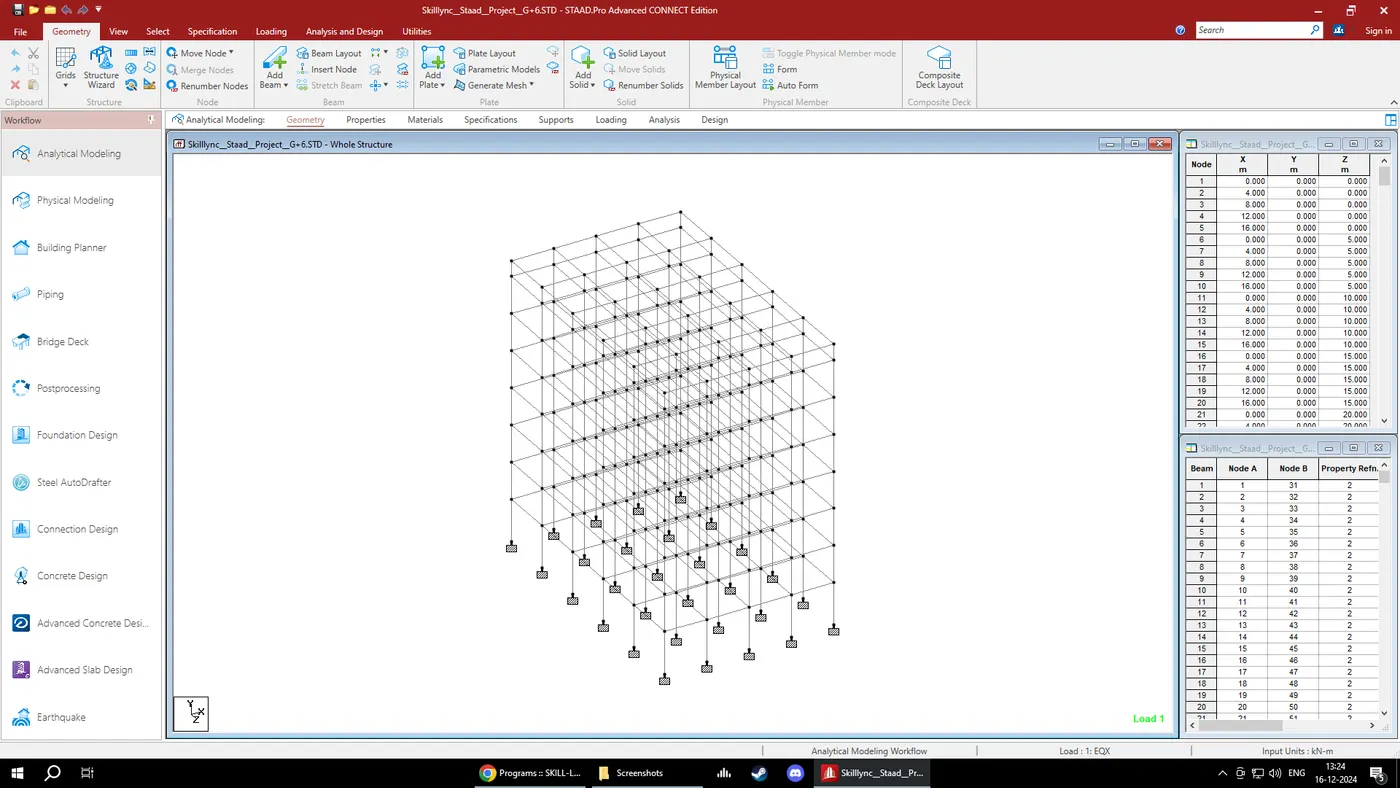

Go to geometry tab and create a node

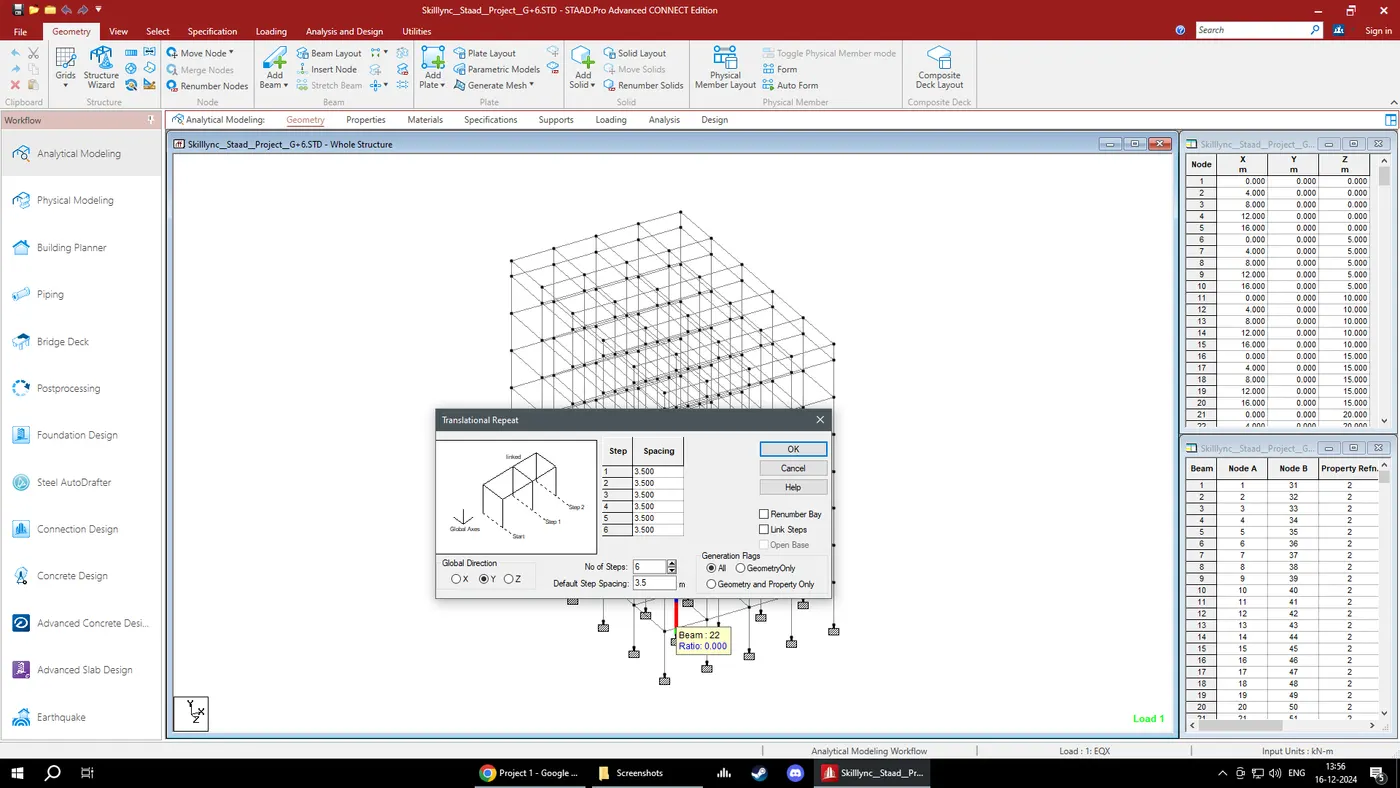

Select Translational repeat command and give the nodes in x , y and z directions as per required inputs given.

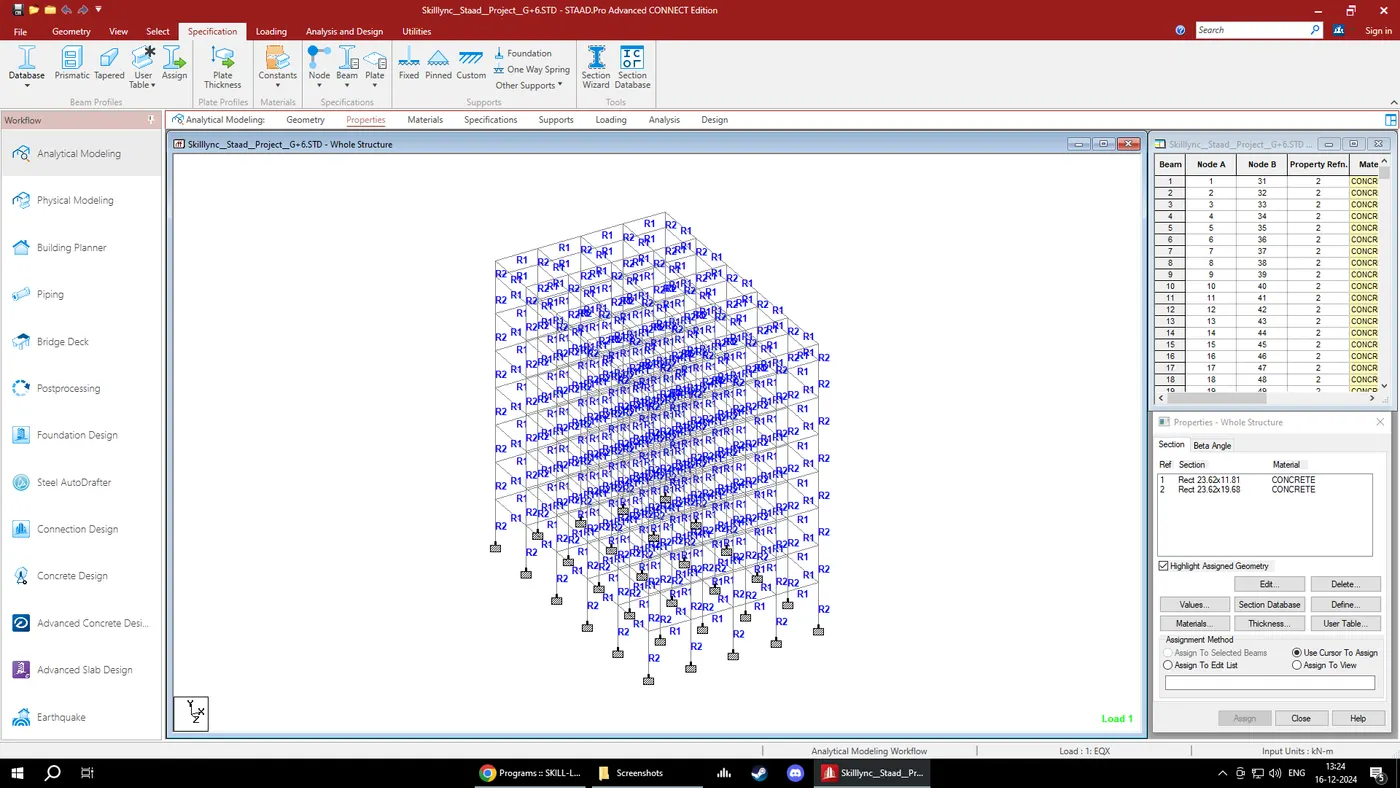

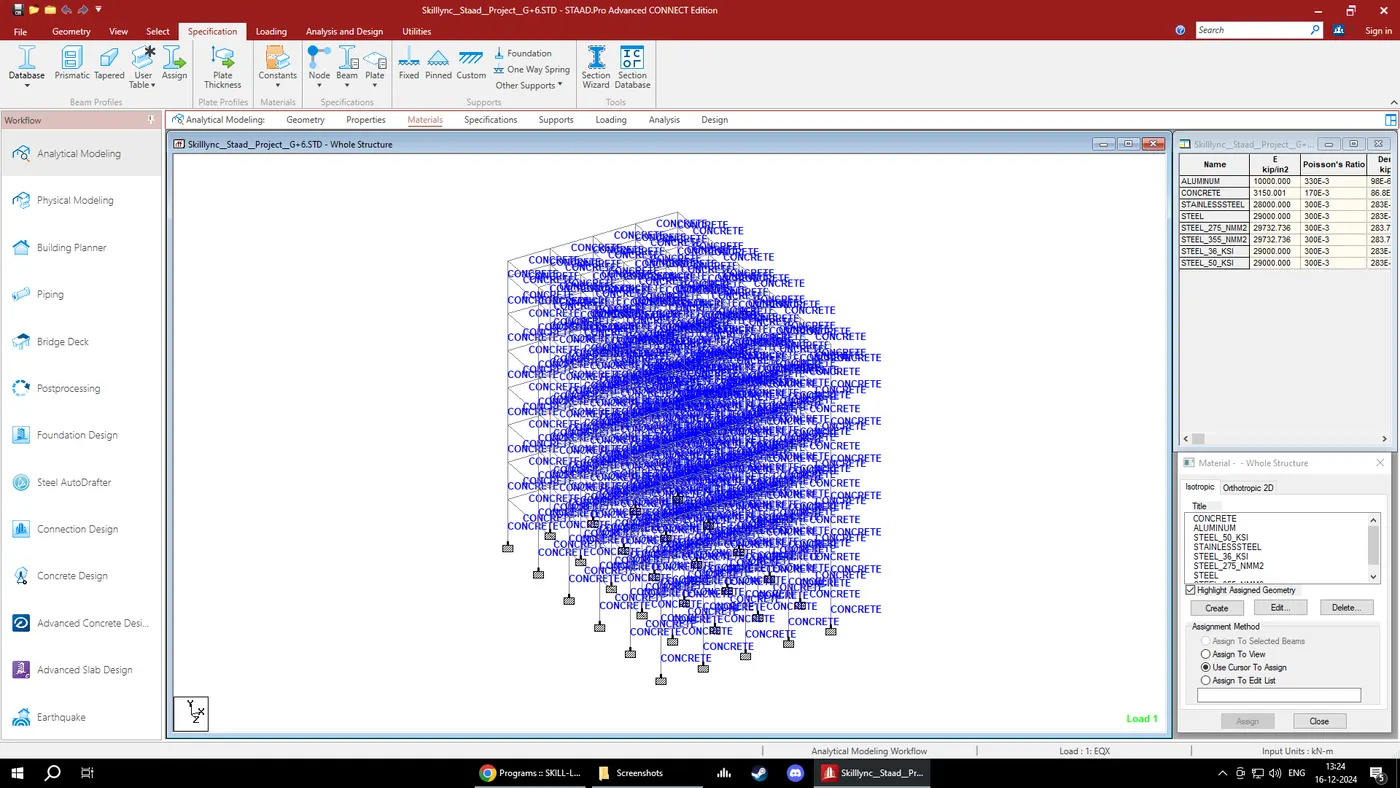

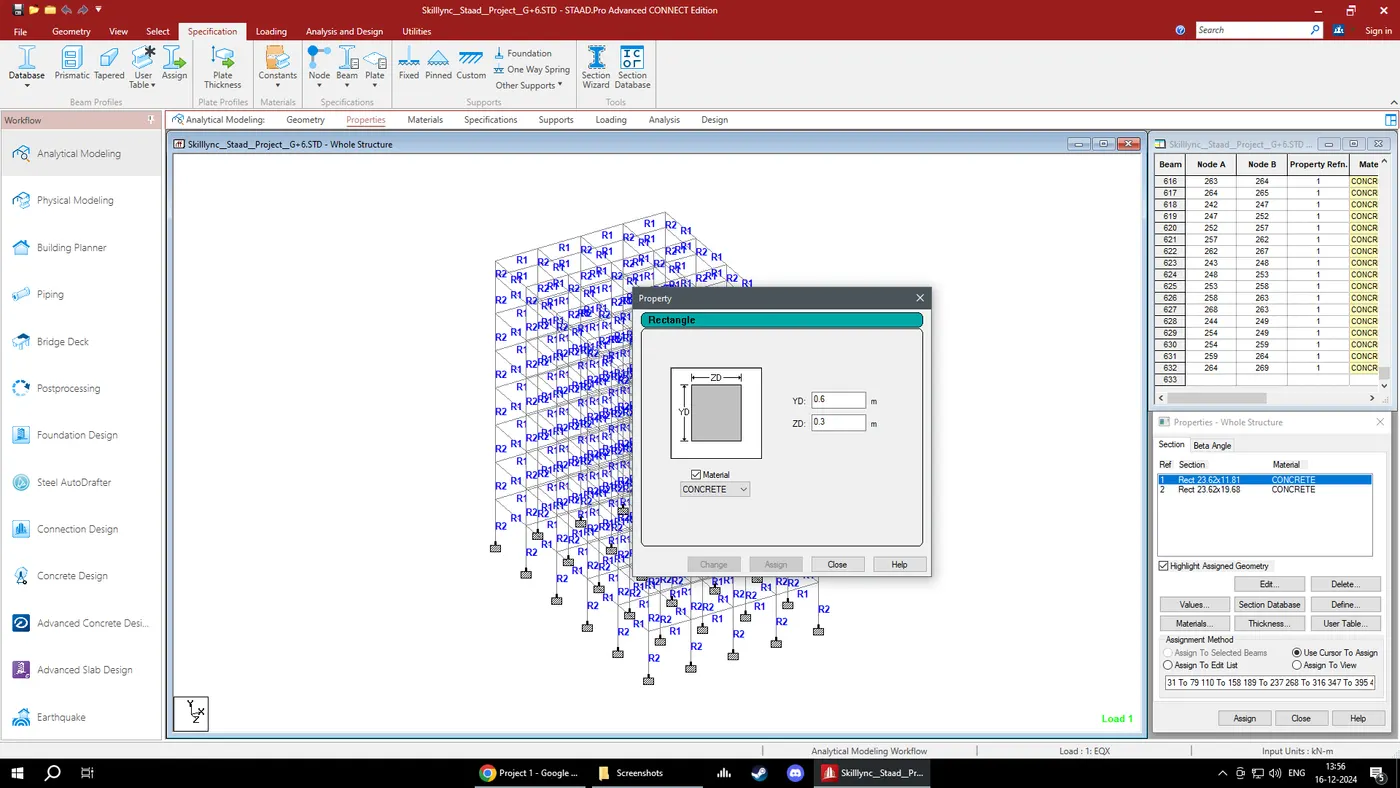

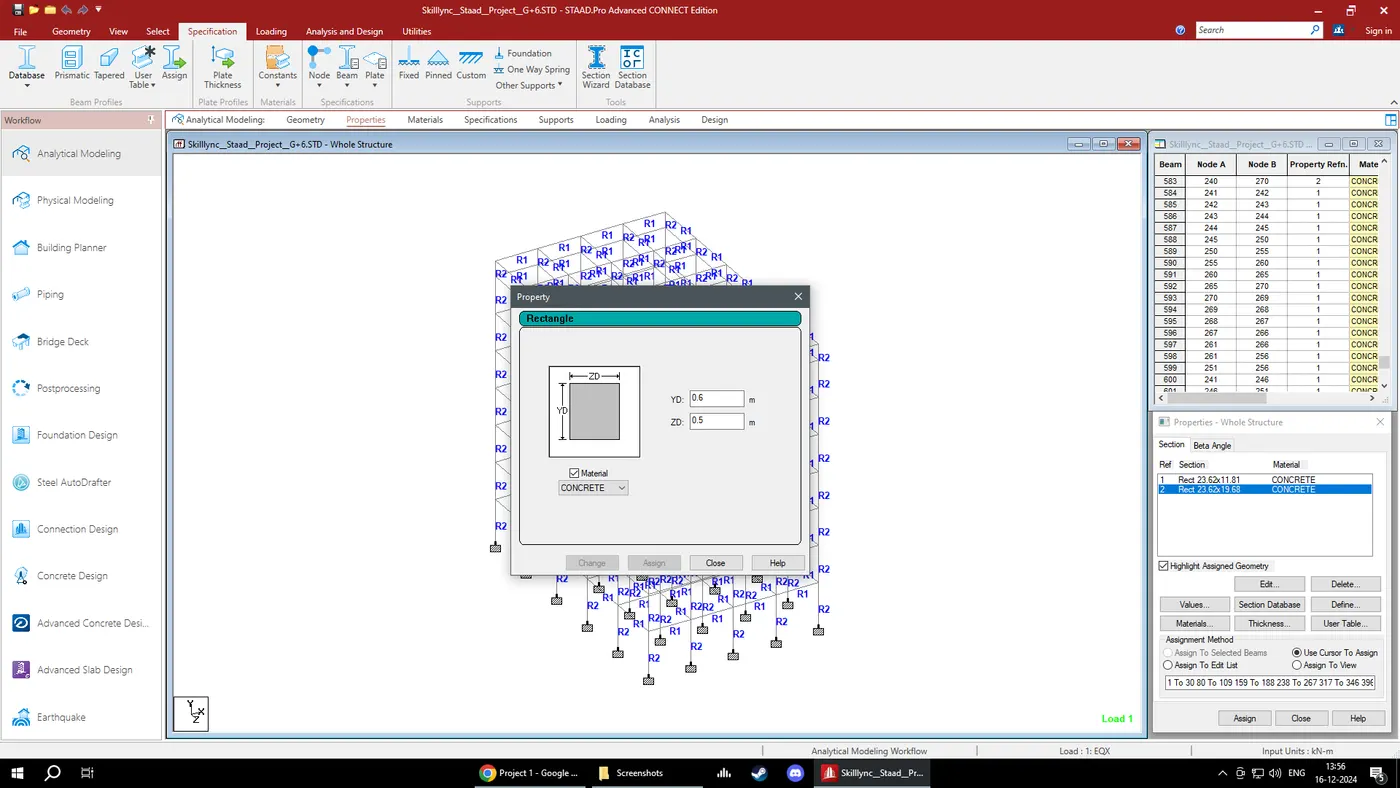

Go to properties tab and define the properties for column and beams.

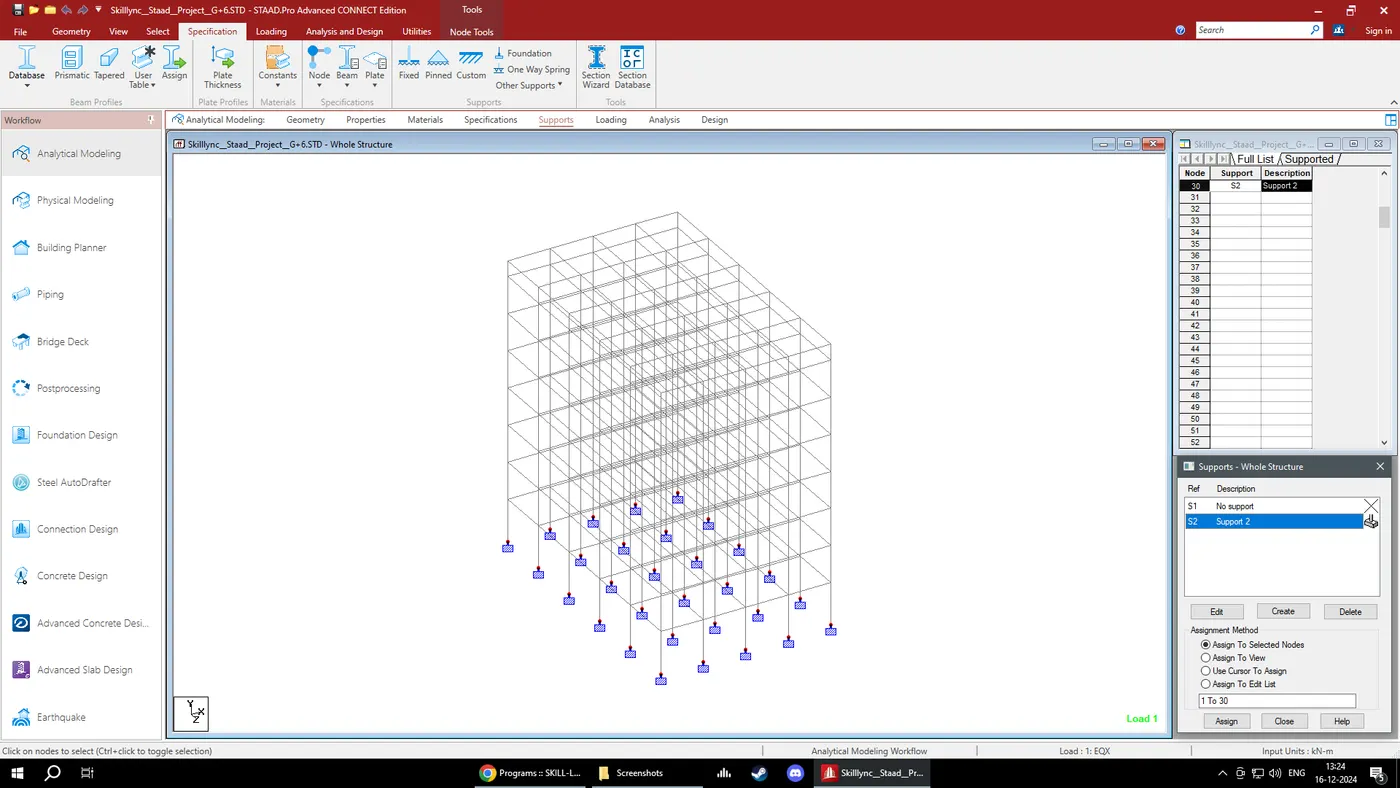

Go to supports tab and create a fixed support and assign it to the model created

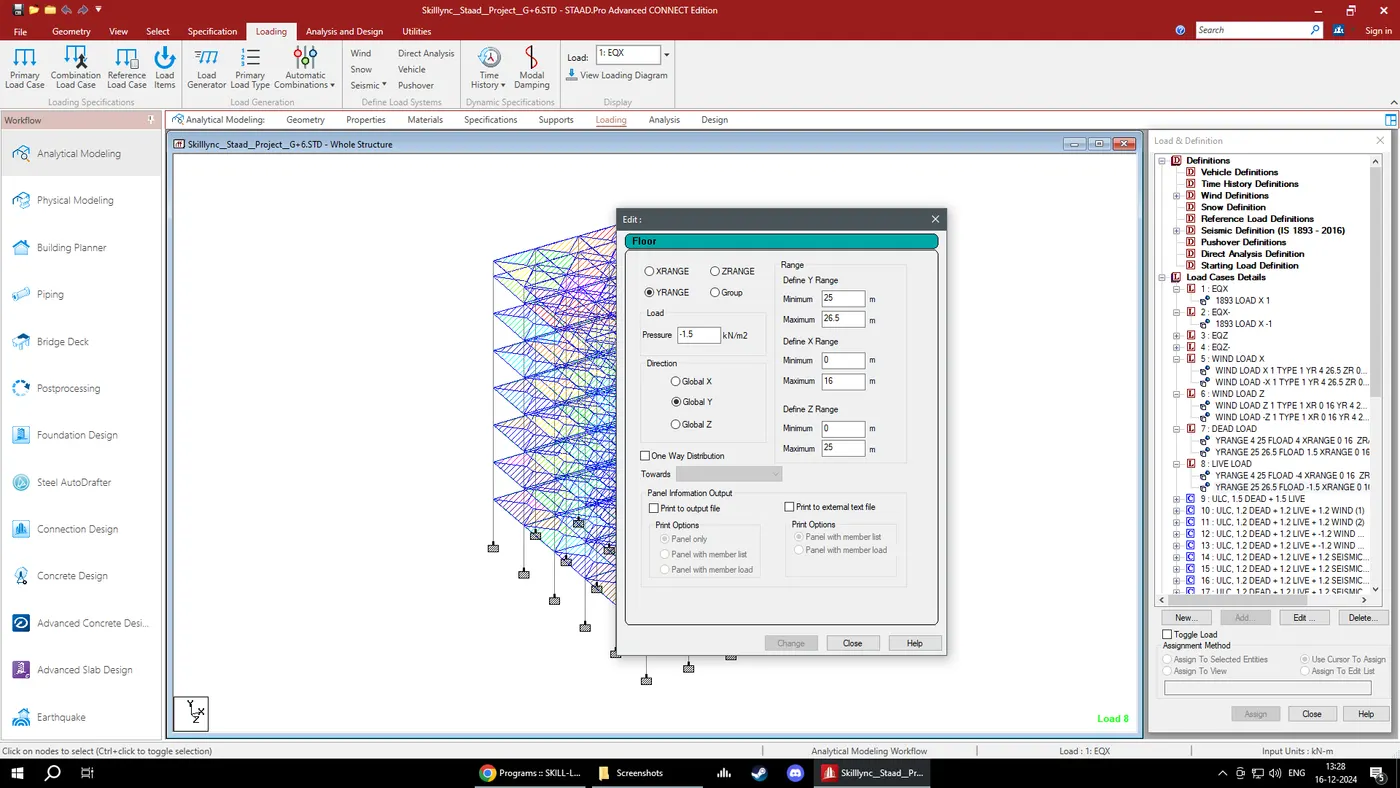

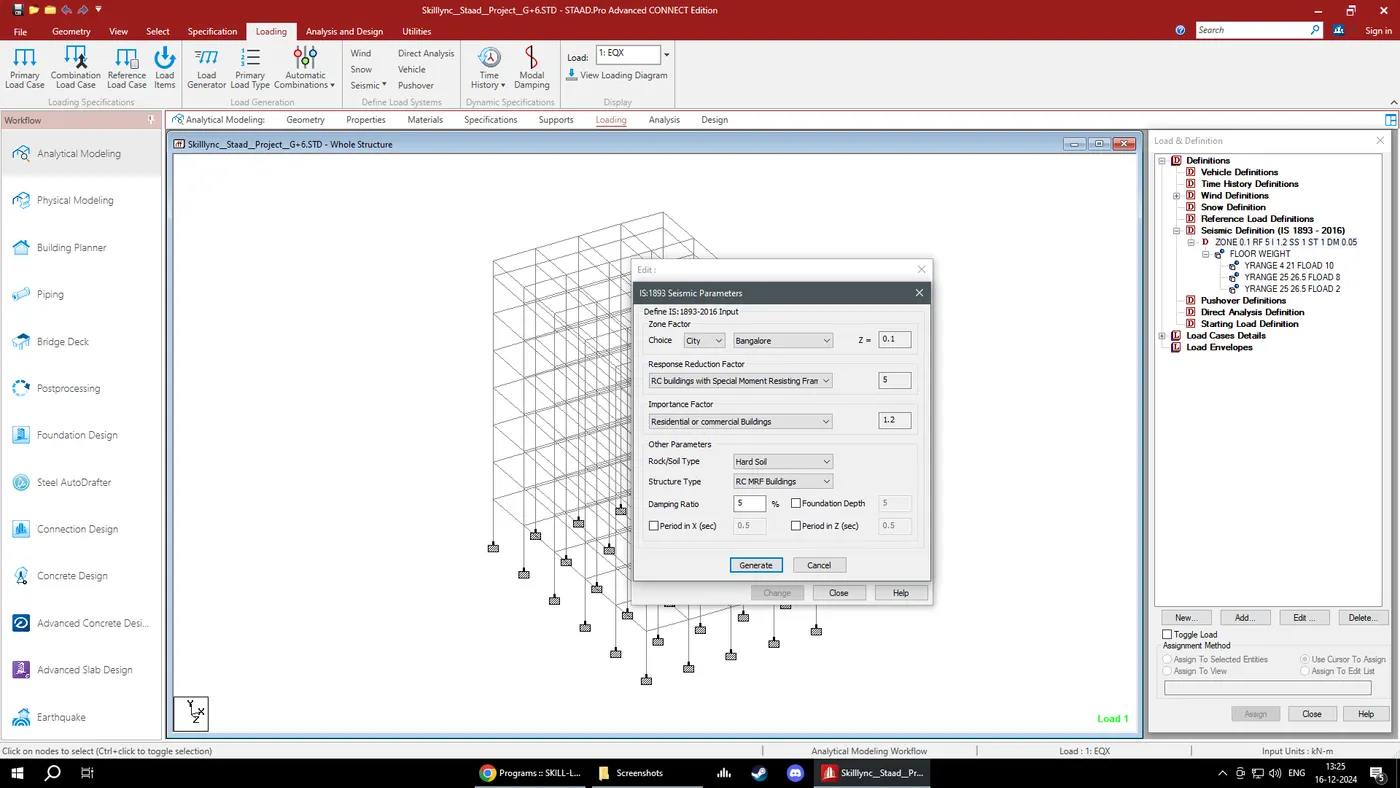

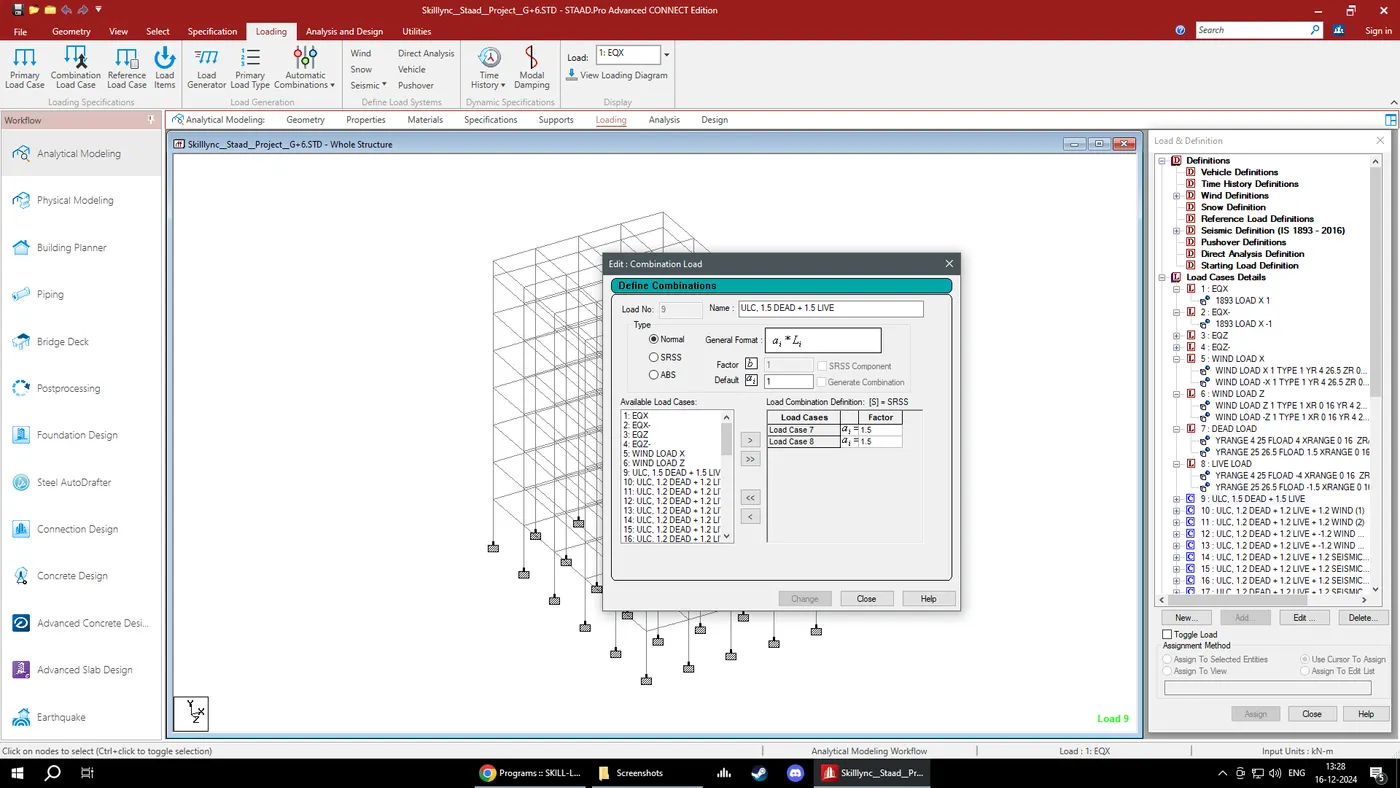

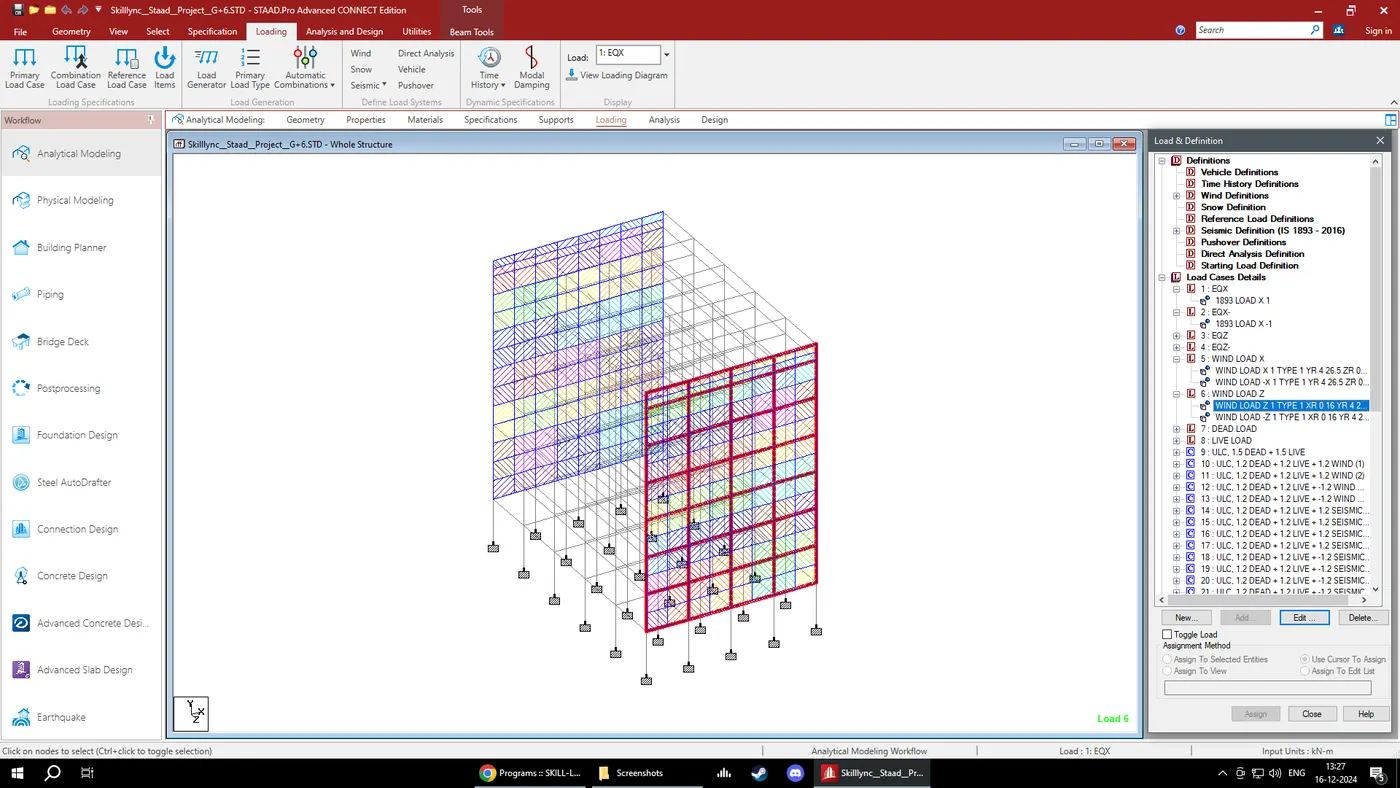

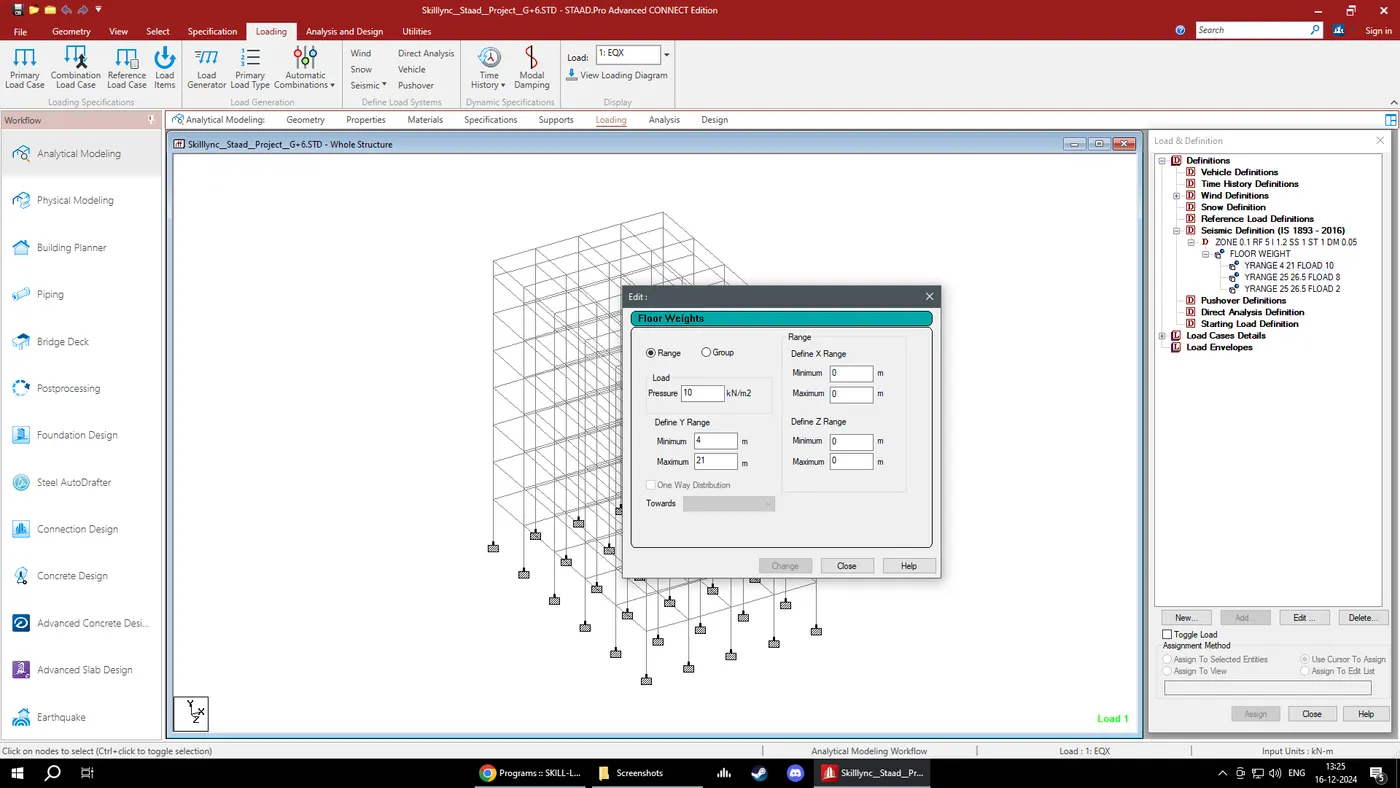

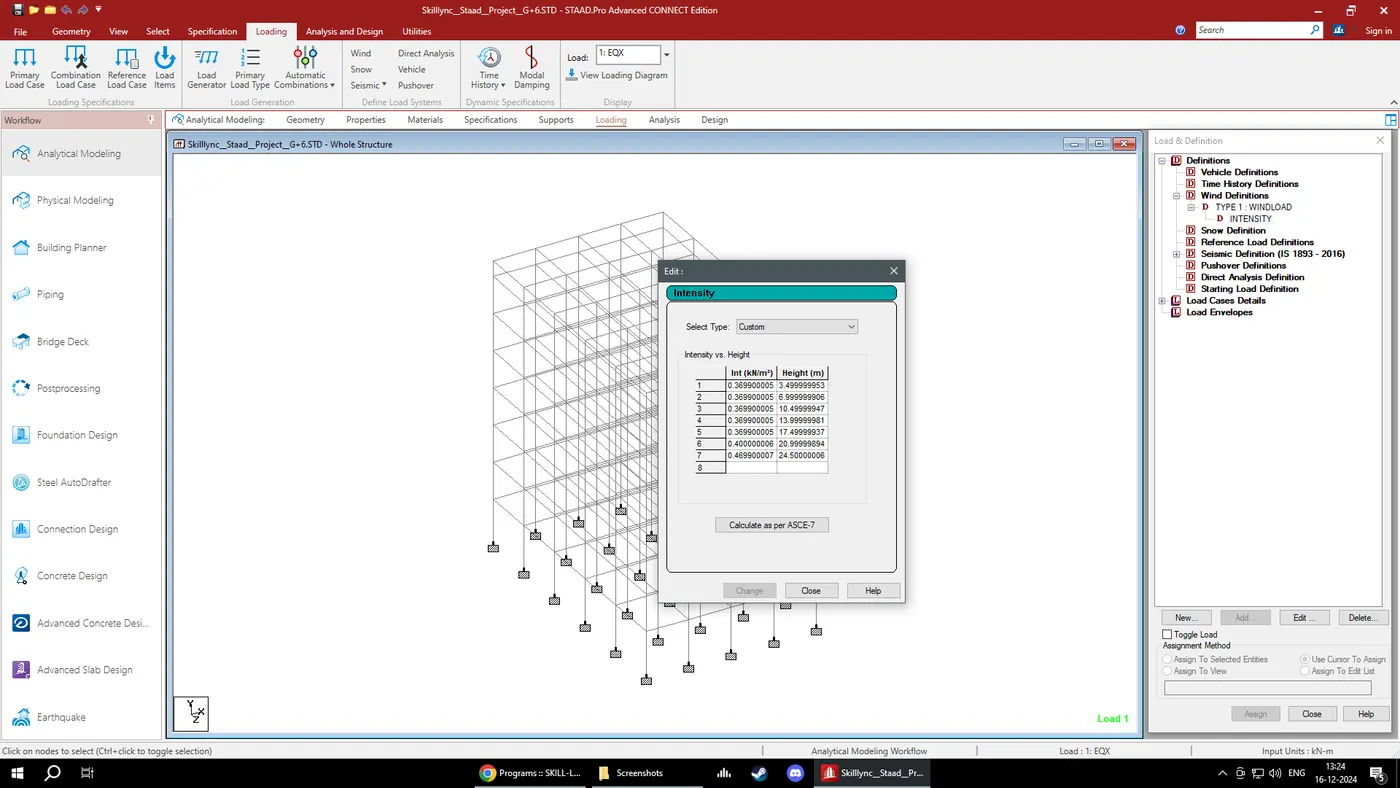

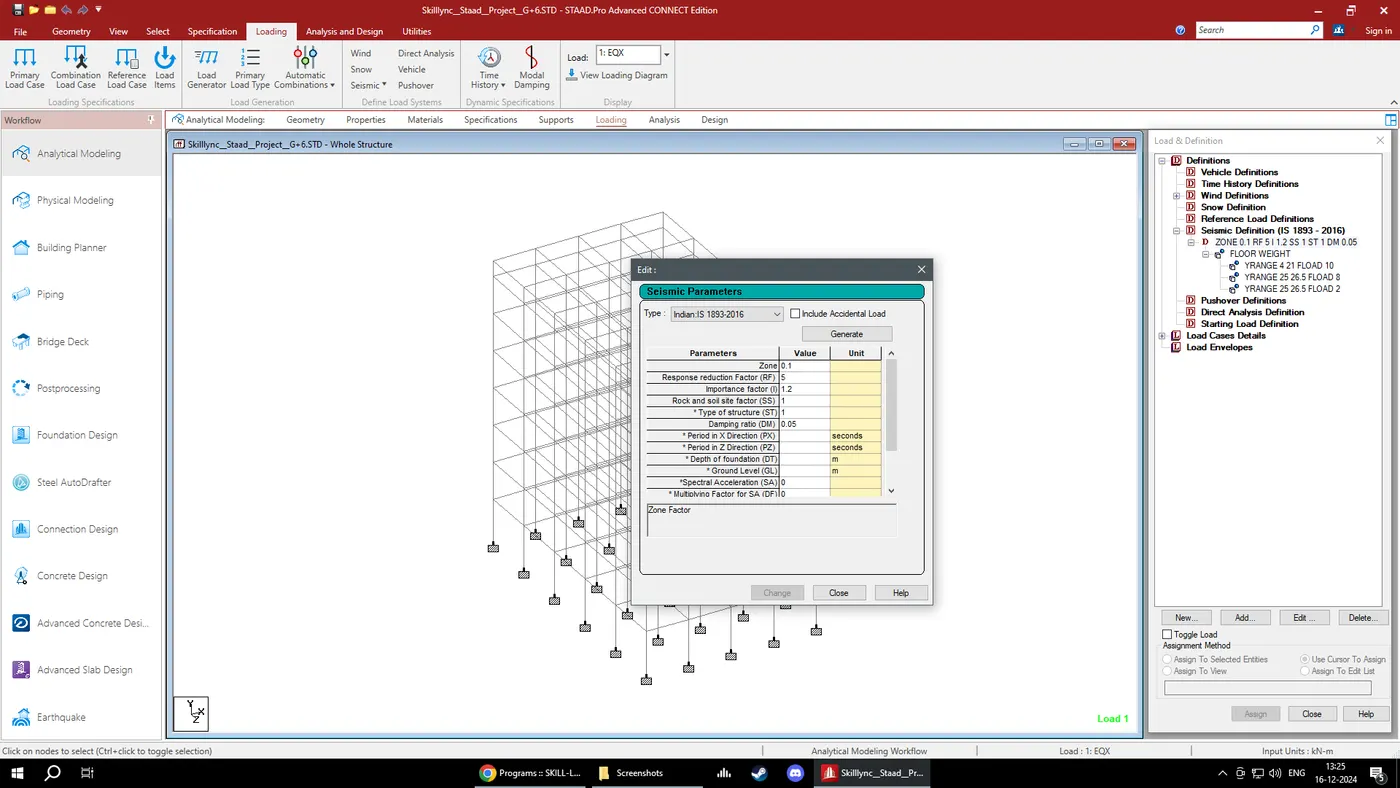

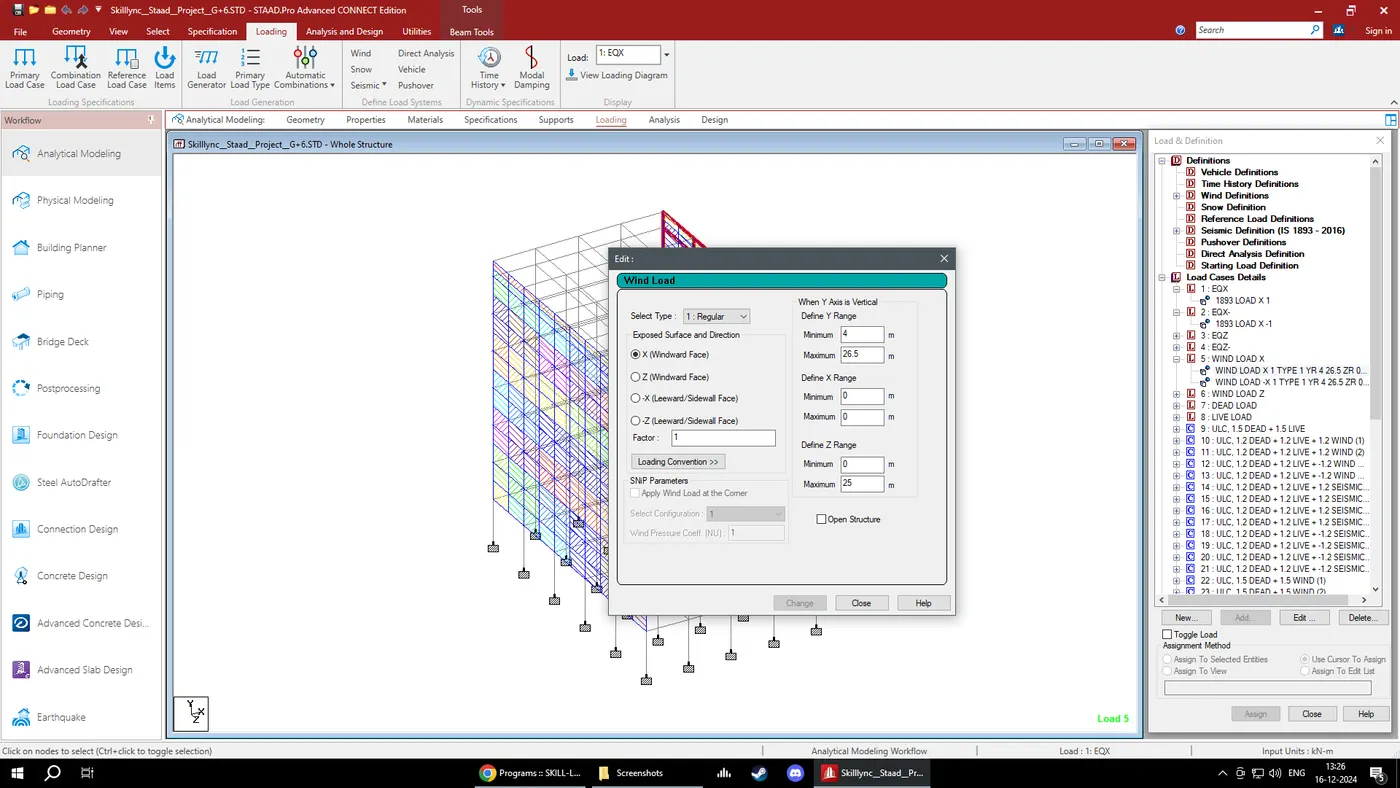

Go to loading tab and create a loads and load cases as per requirements, and go to load definitions and add seismic definition and wind definition.

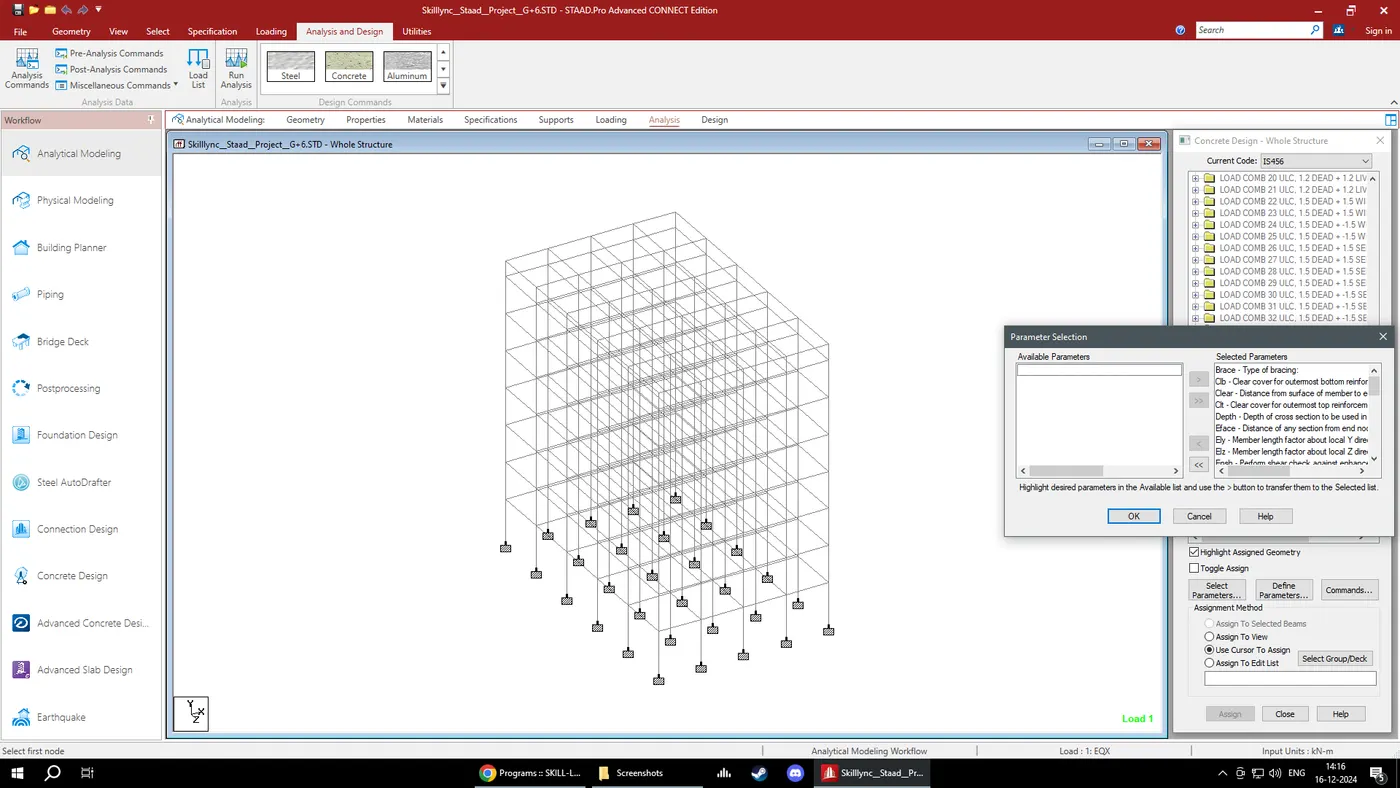

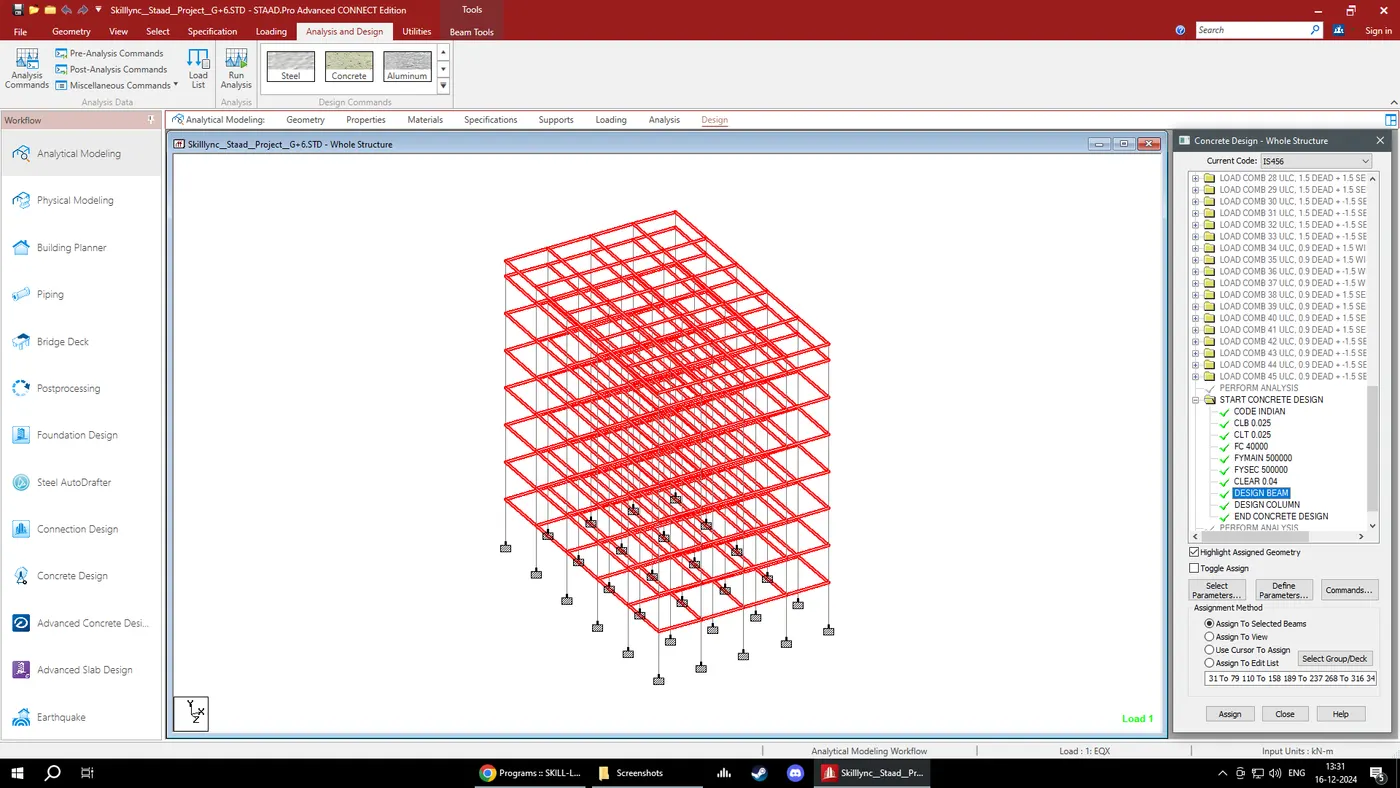

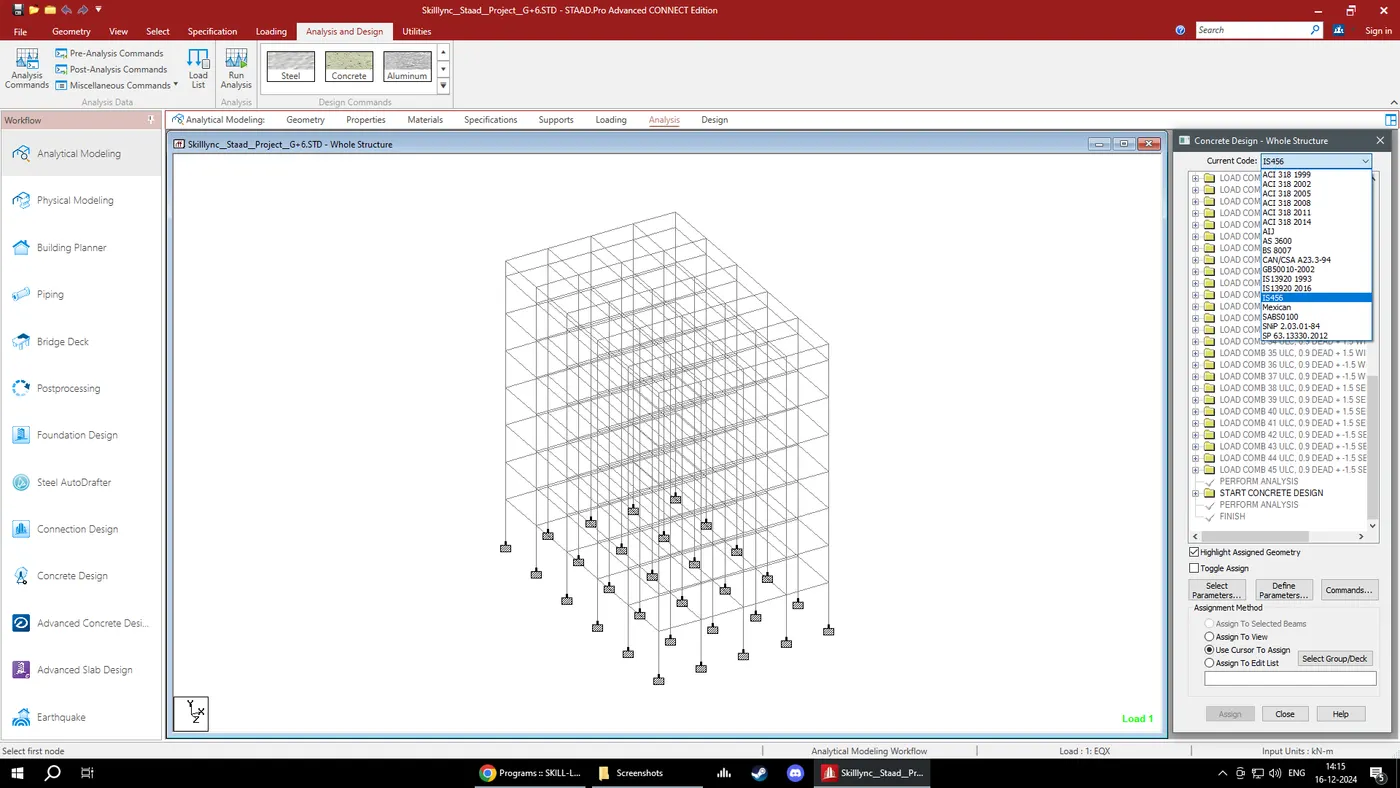

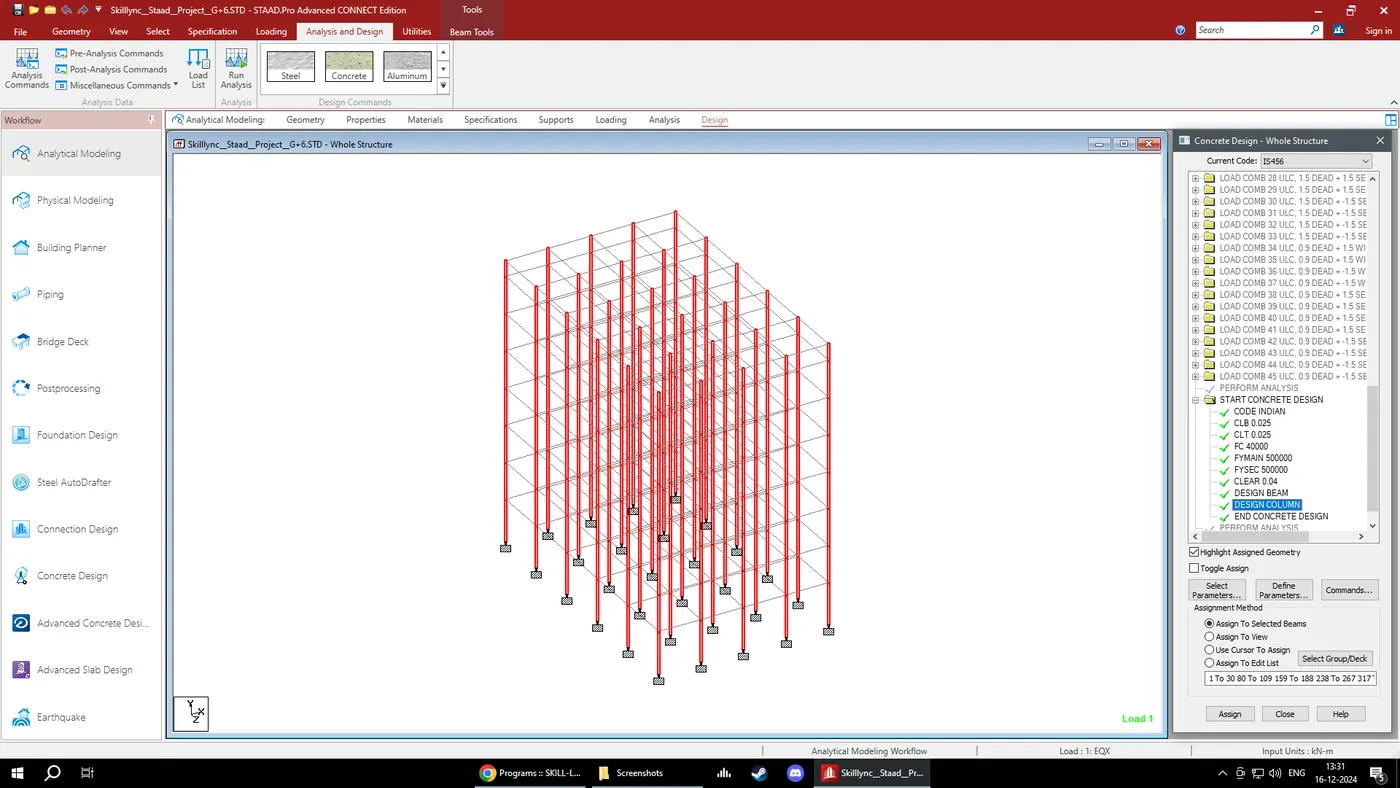

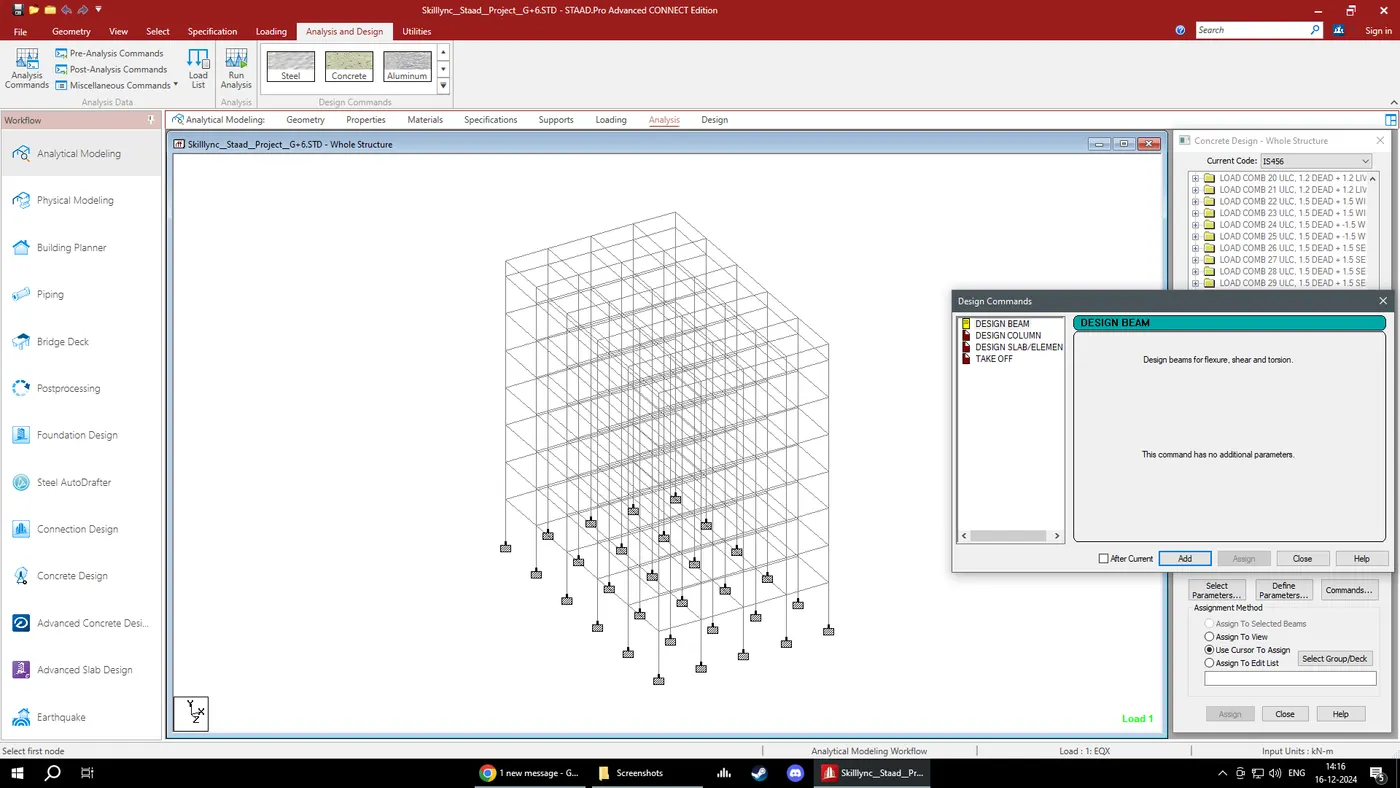

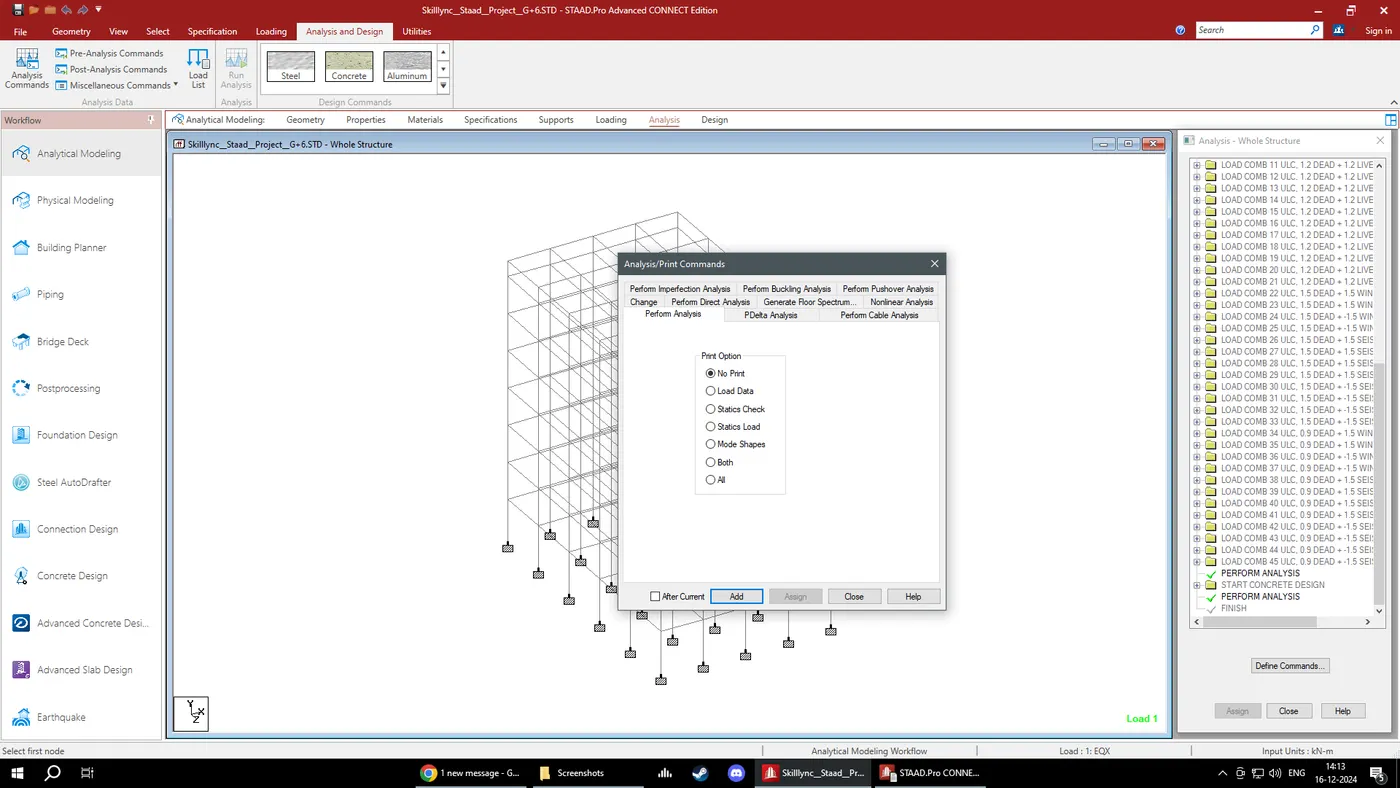

Go to design tab select concrete as material and code as IS 456 and select the select parameters and click on ok.

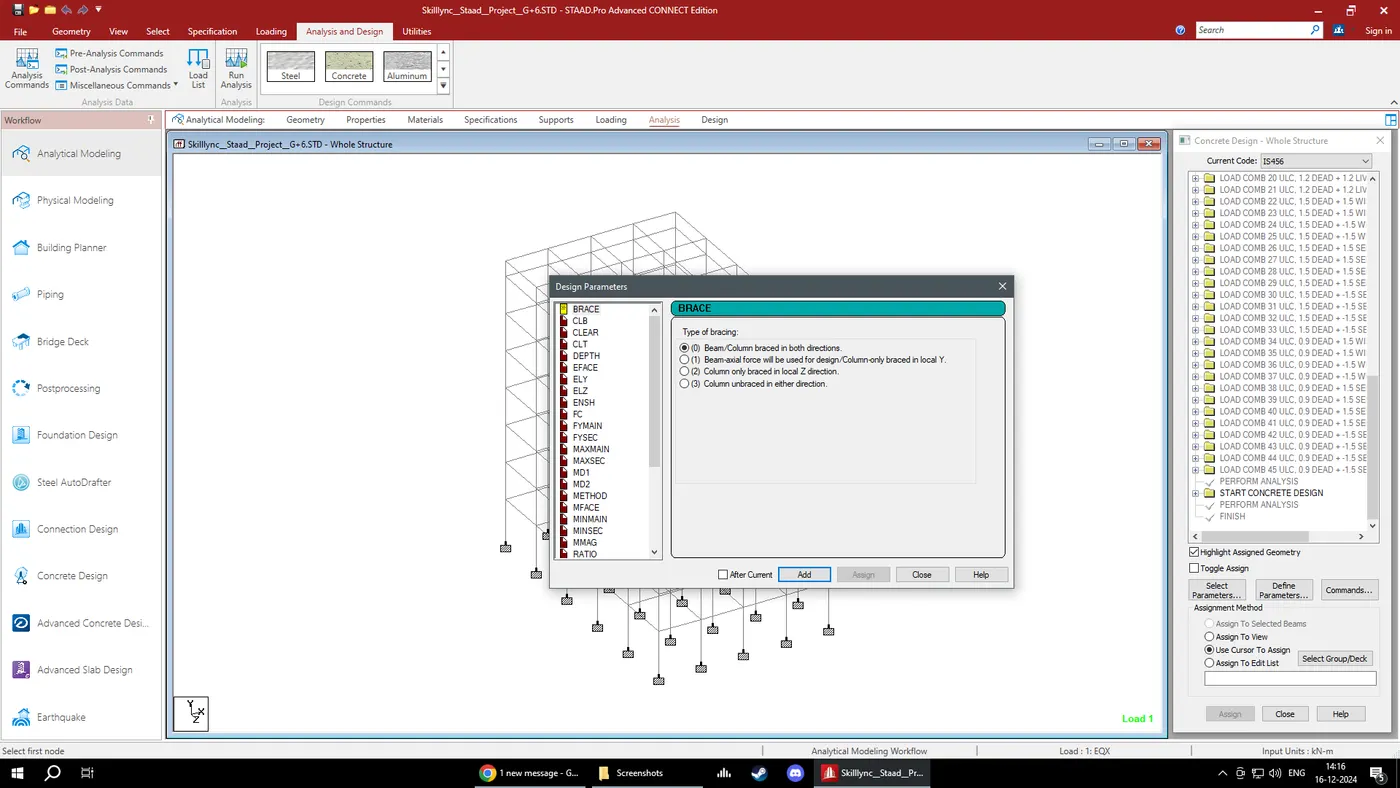

Click on define parameters and add clear cover and compressive strength of concrete and steel and assign it to the columns and beam

Assign cover 40mm for columns and cover 25mm for beams and compressive strength of concrete and steel for both beams and columns.

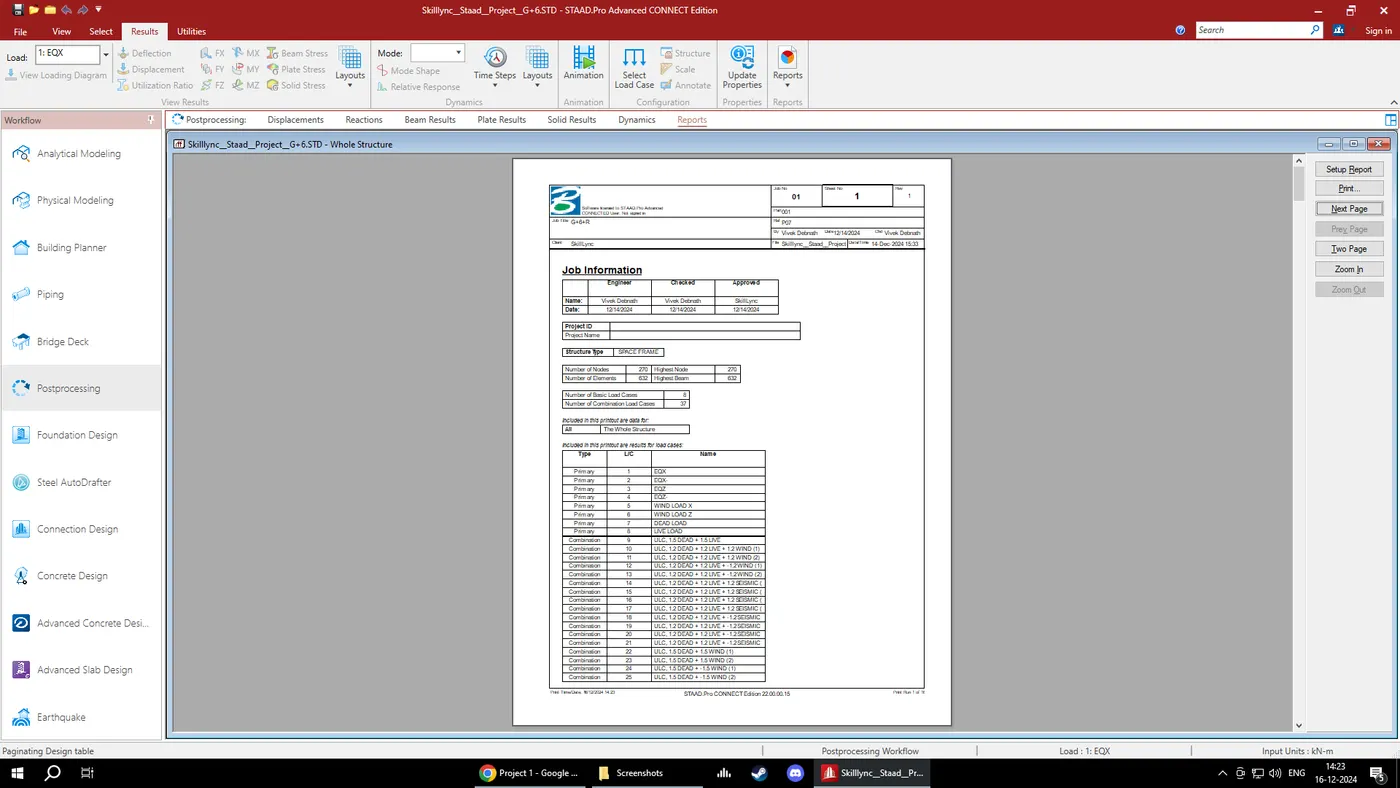

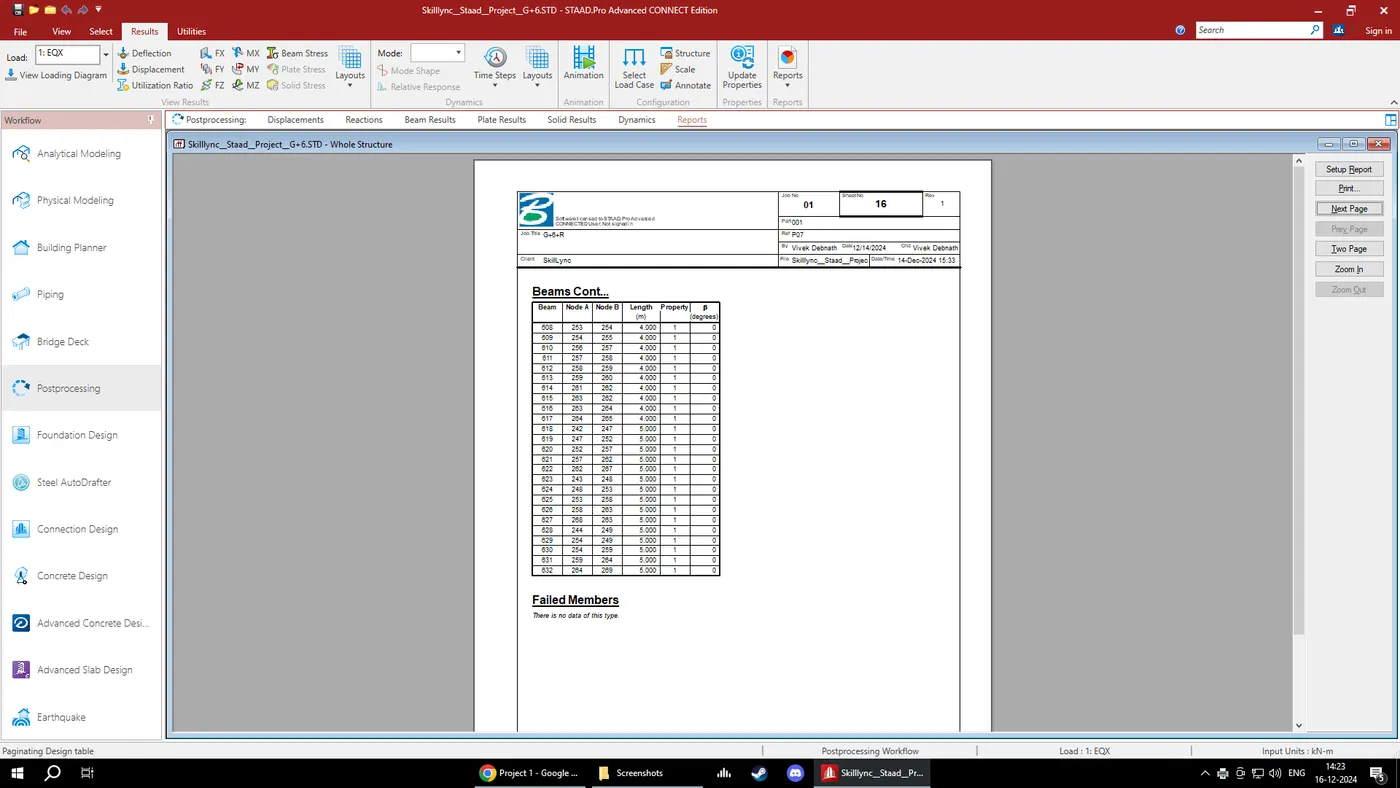

Go to reports and select the parameters which are to given in design basis report and click on ok

Select advanced concrete design in that select RCDC and click on accept

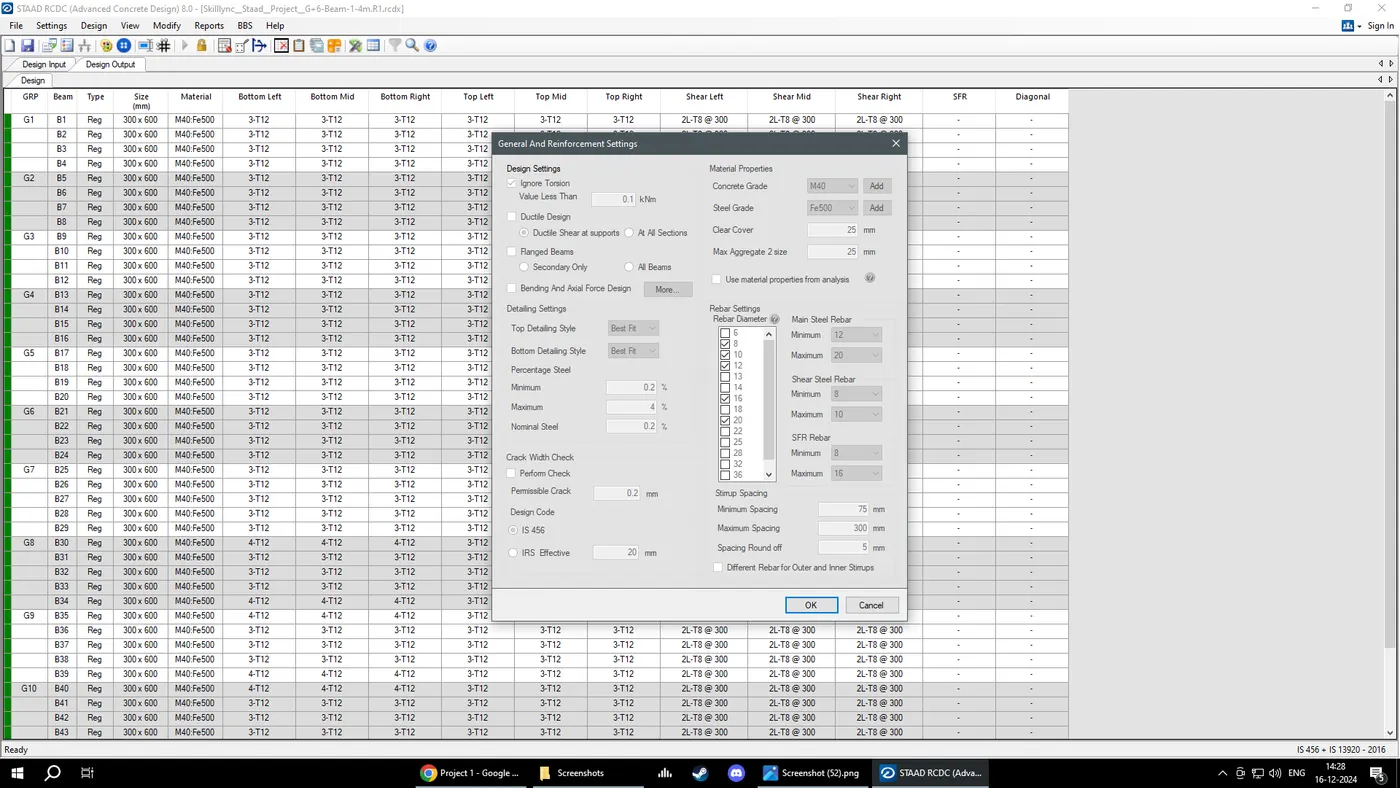

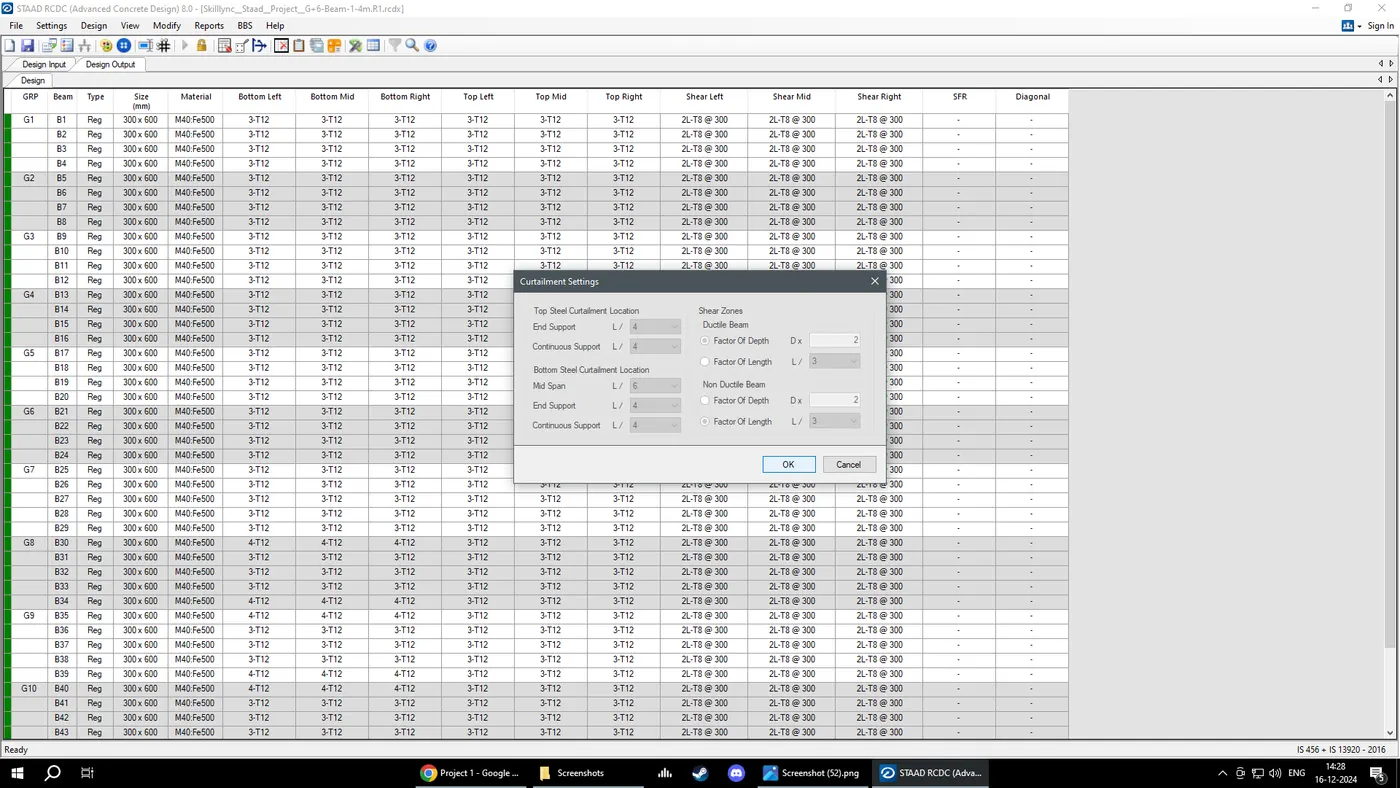

Go to settings tab and Do general and reinforcement setting, Rebar curtailment setting and detailing and drawing setting as per IS 456

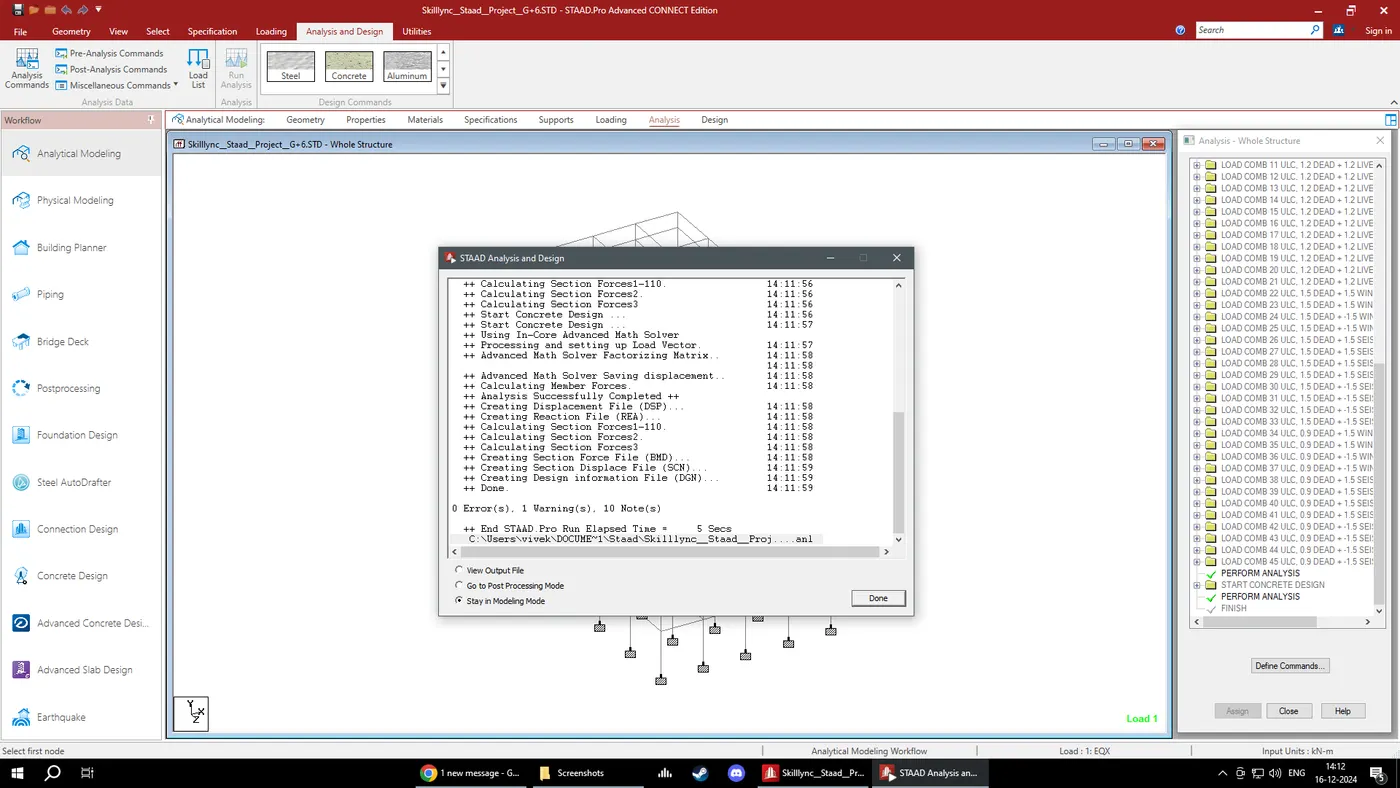

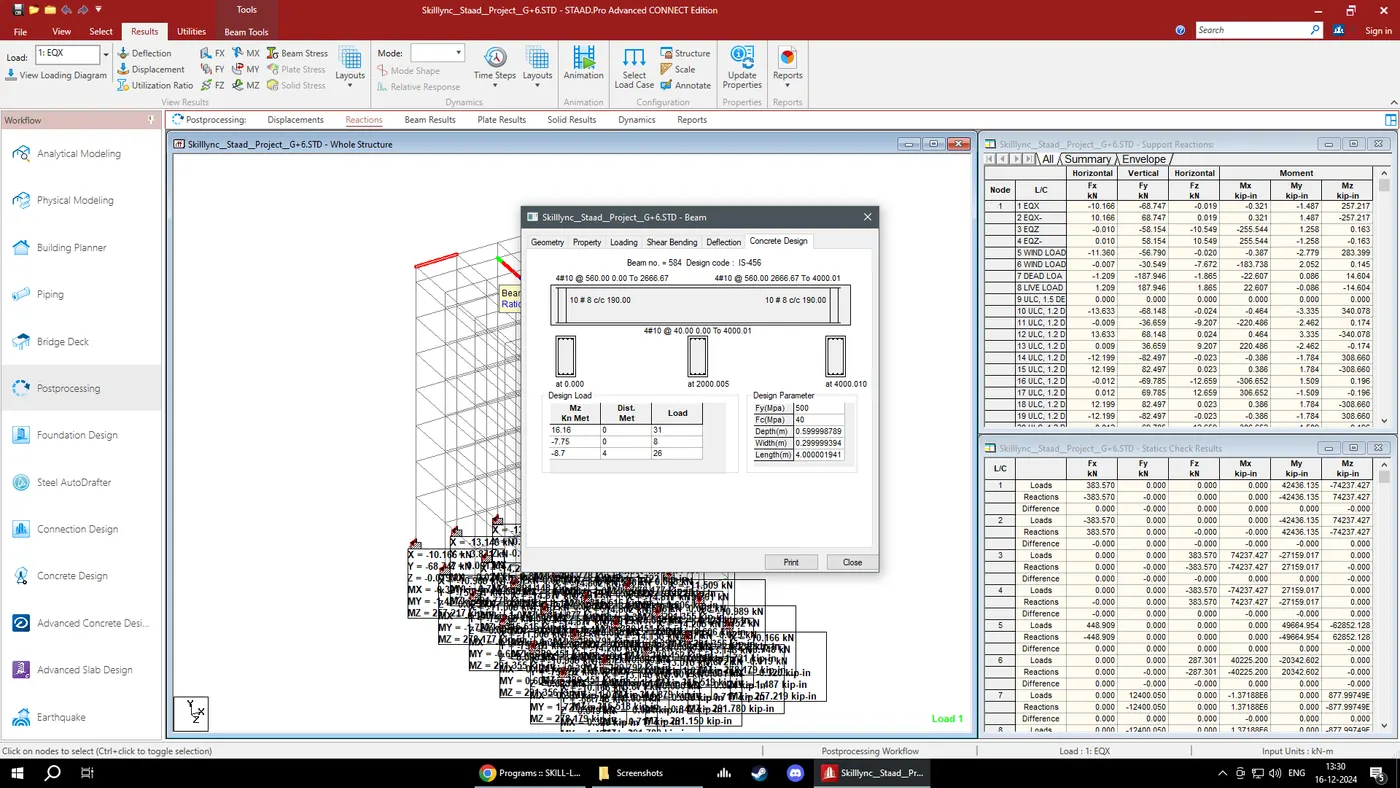

Go to design tab and select auto design and select basic load cases and click ok and select add from analysis so that load combination will be taken from the Staad pro model and click ok

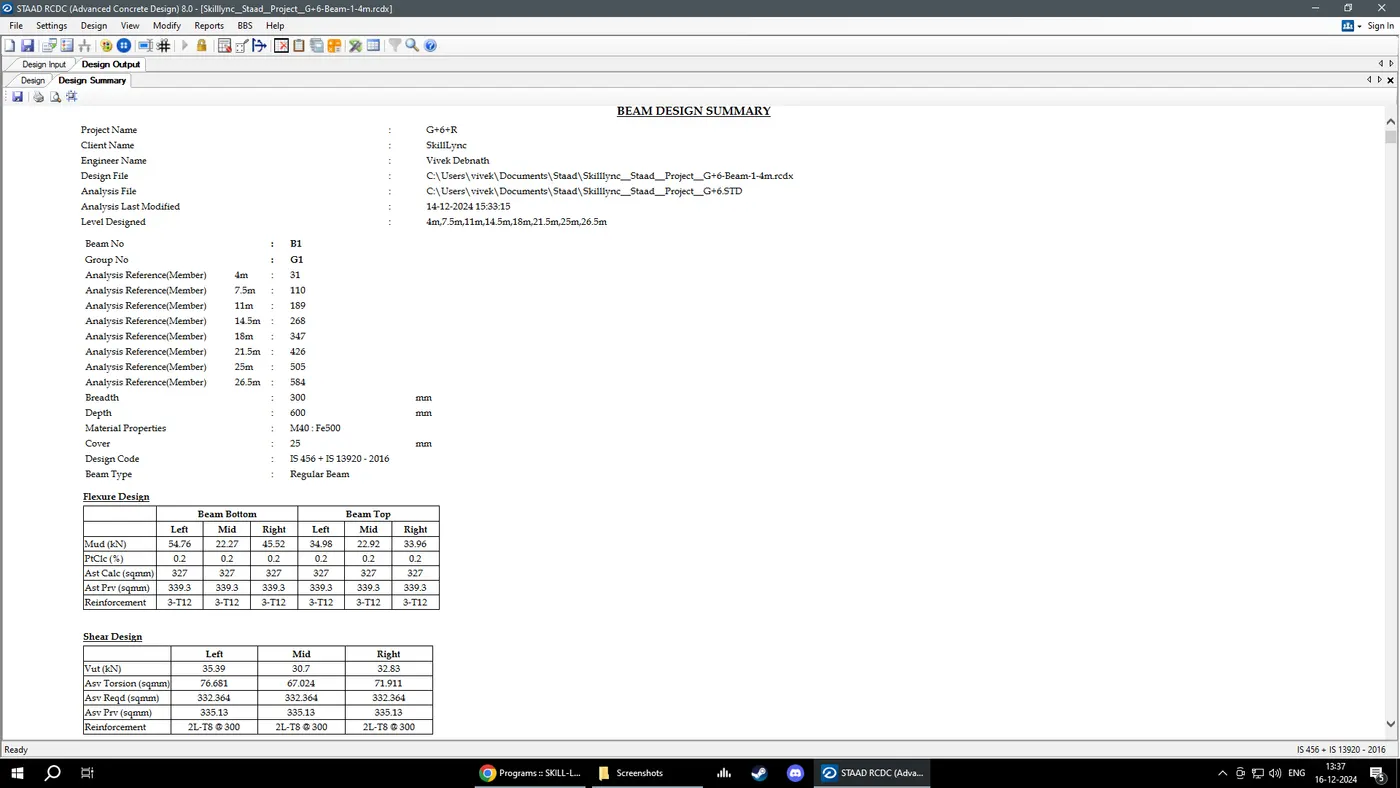

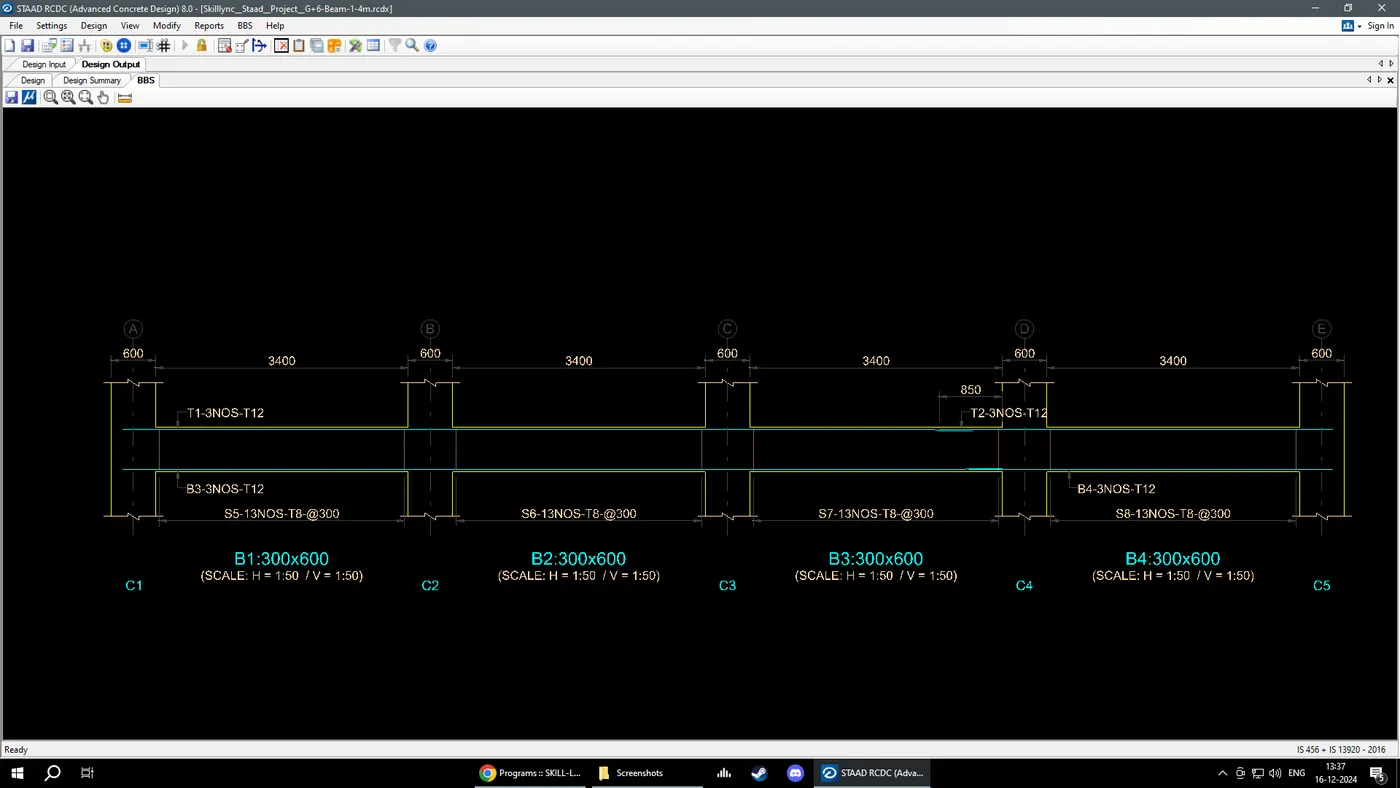

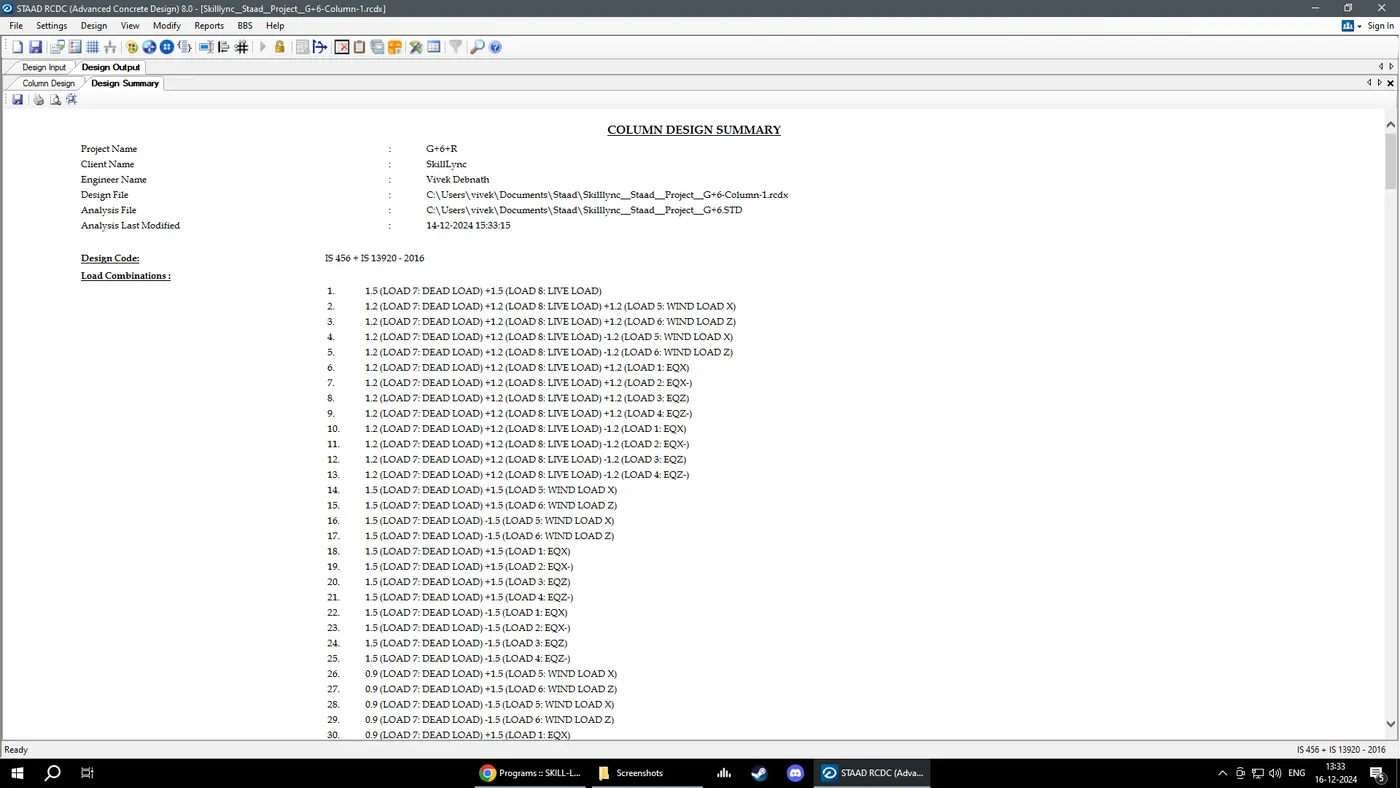

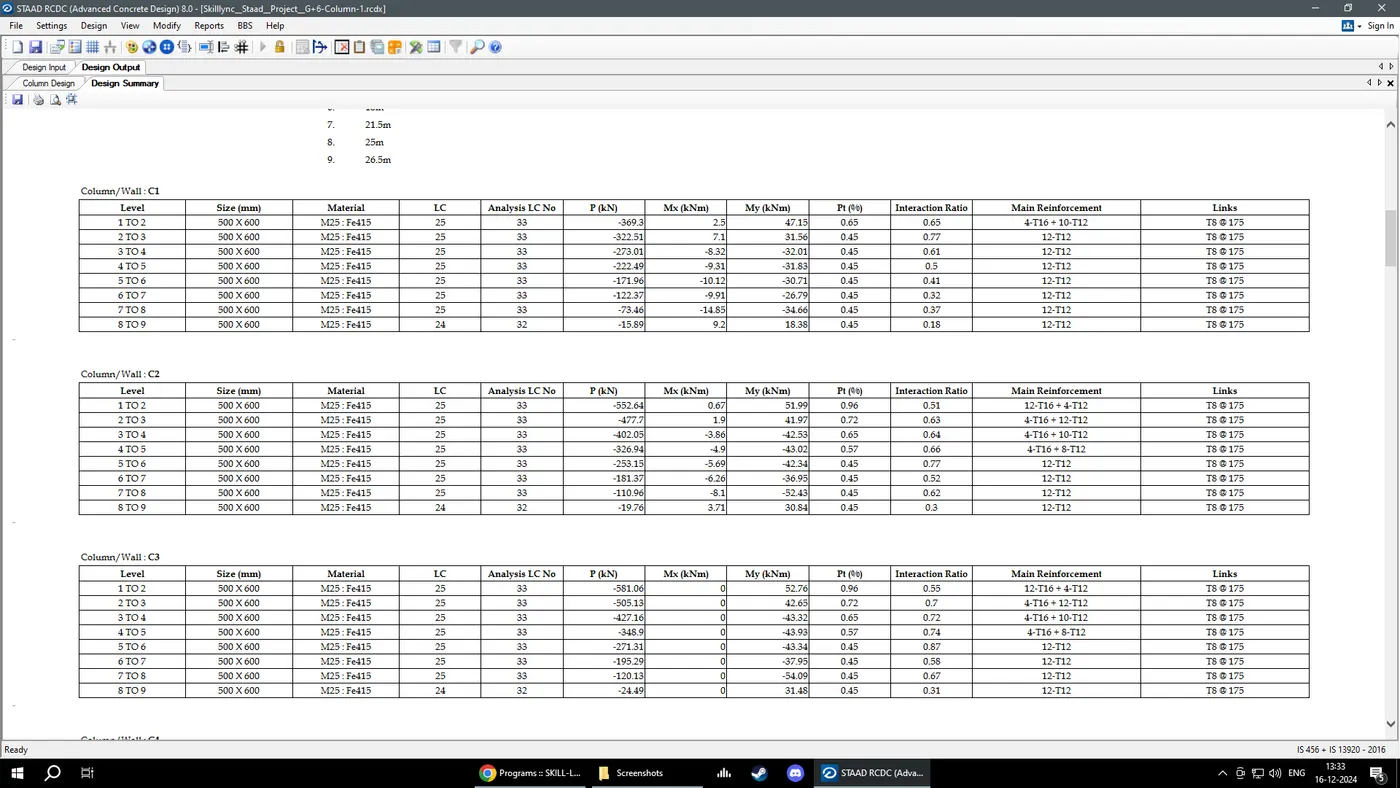

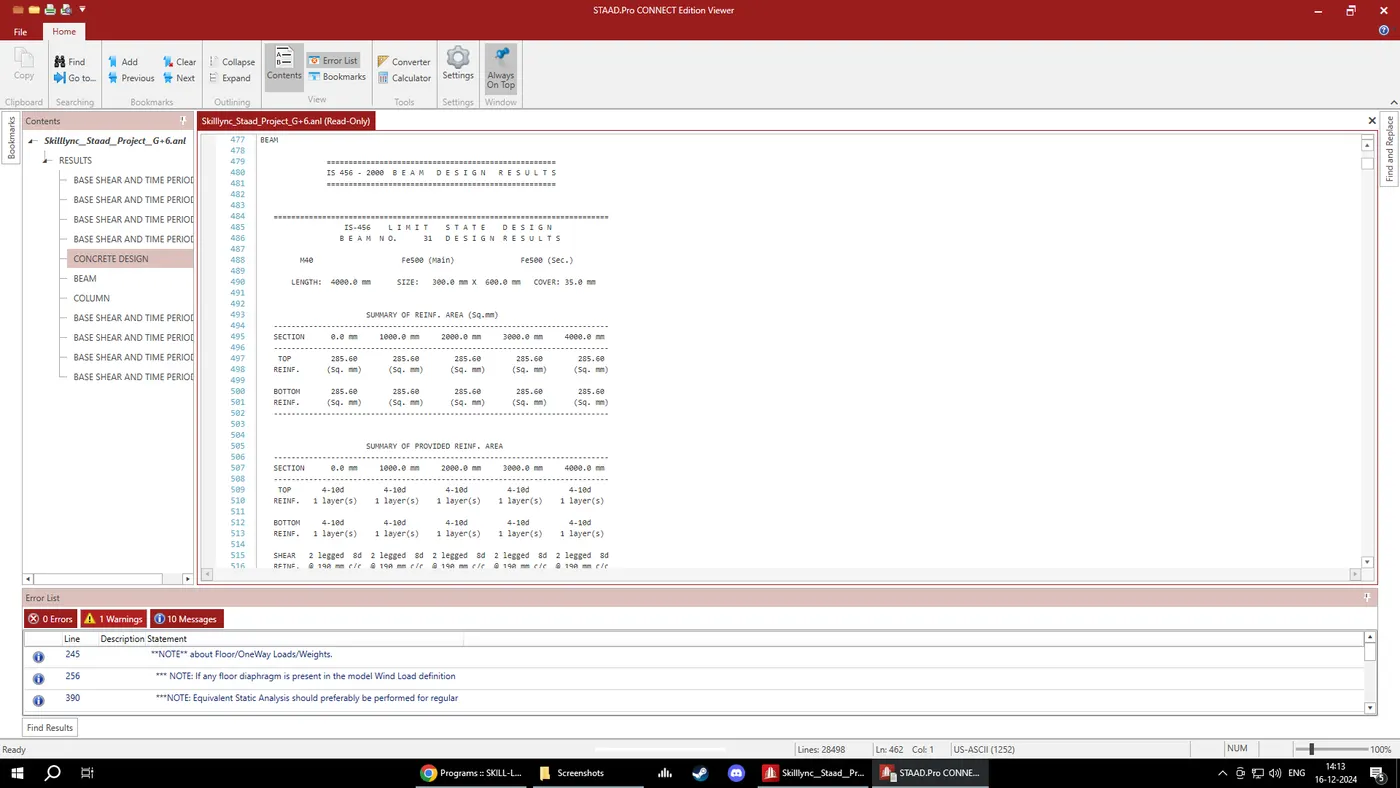

Go to reports tab and select design calculation report select all beams and click ok

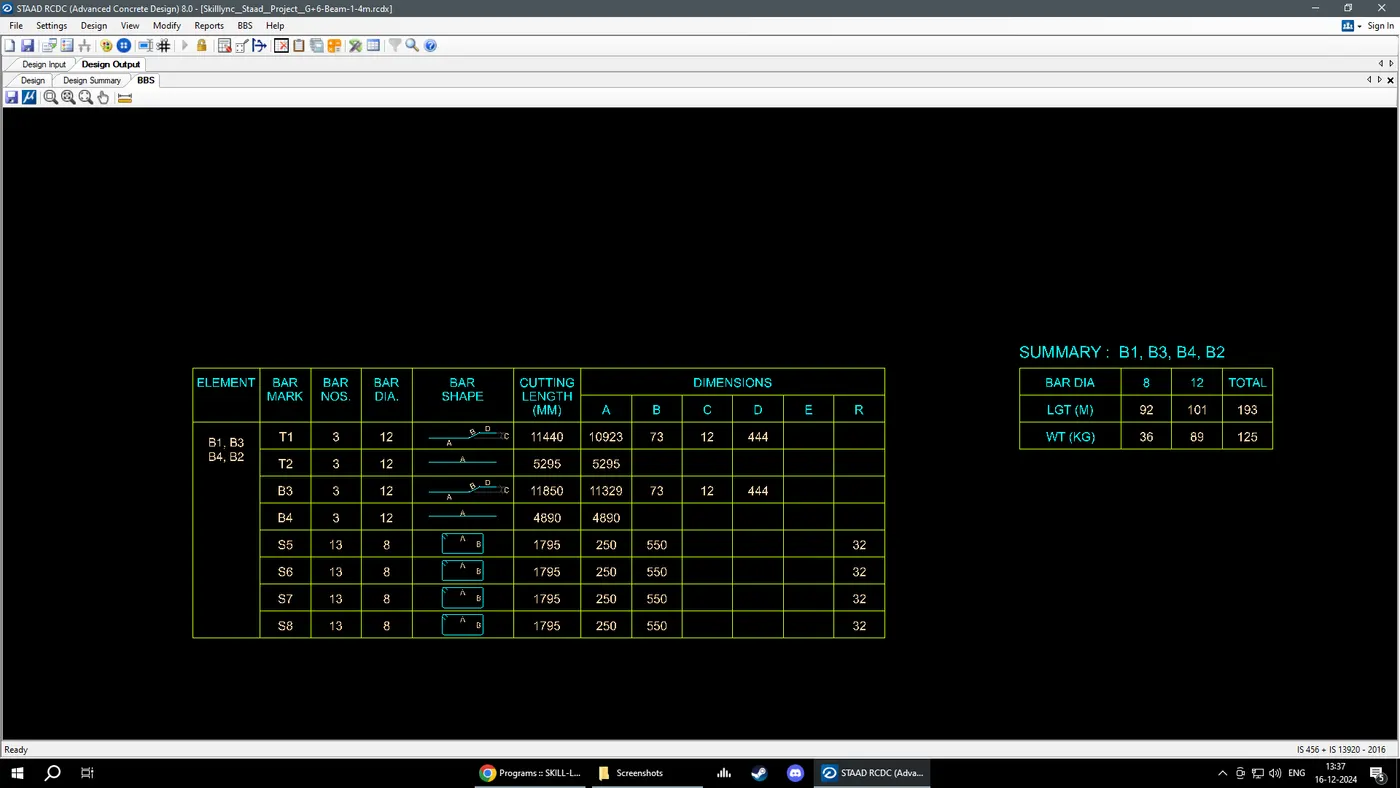

Go to BBS tab and click on generate and select all the beams and click on generate

Select advanced concrete design in that select RCDC and click on accept

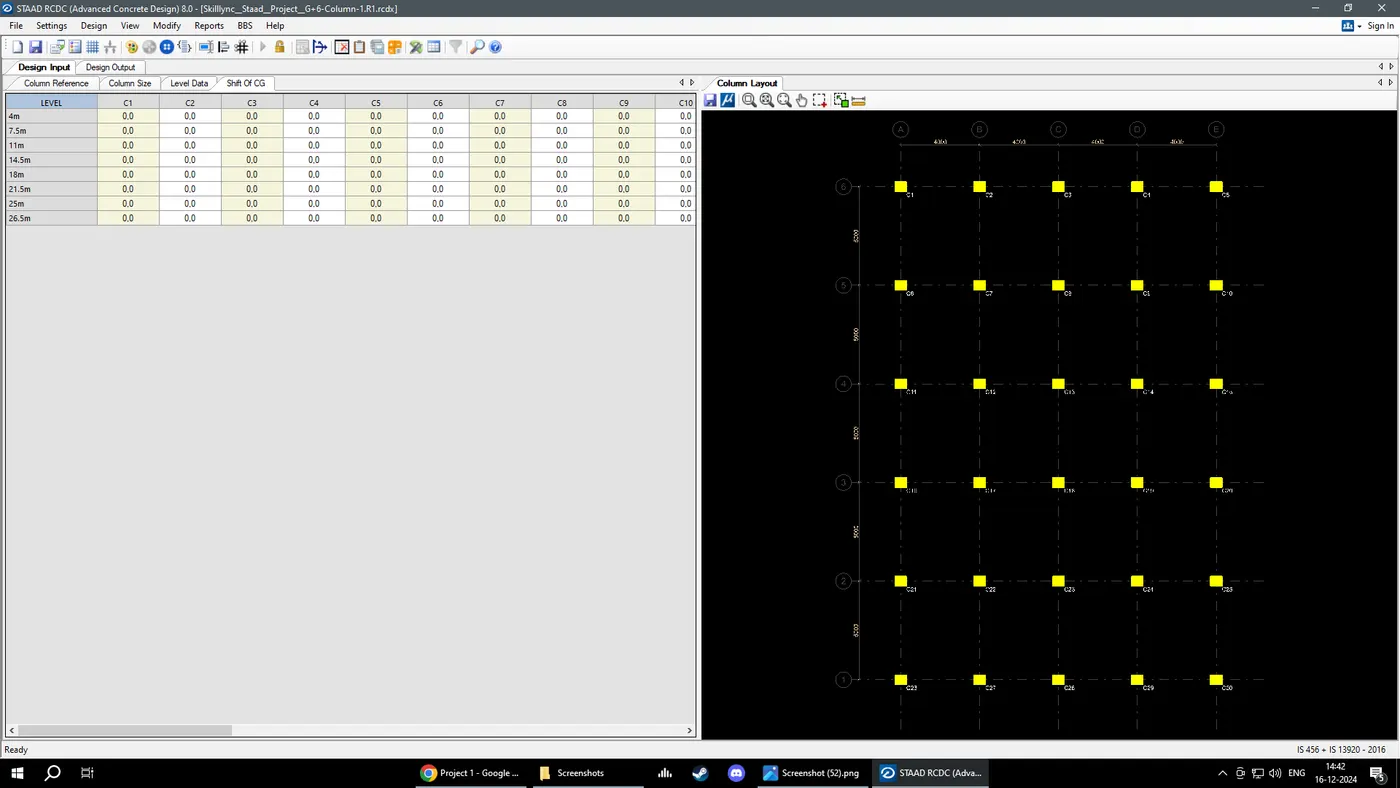

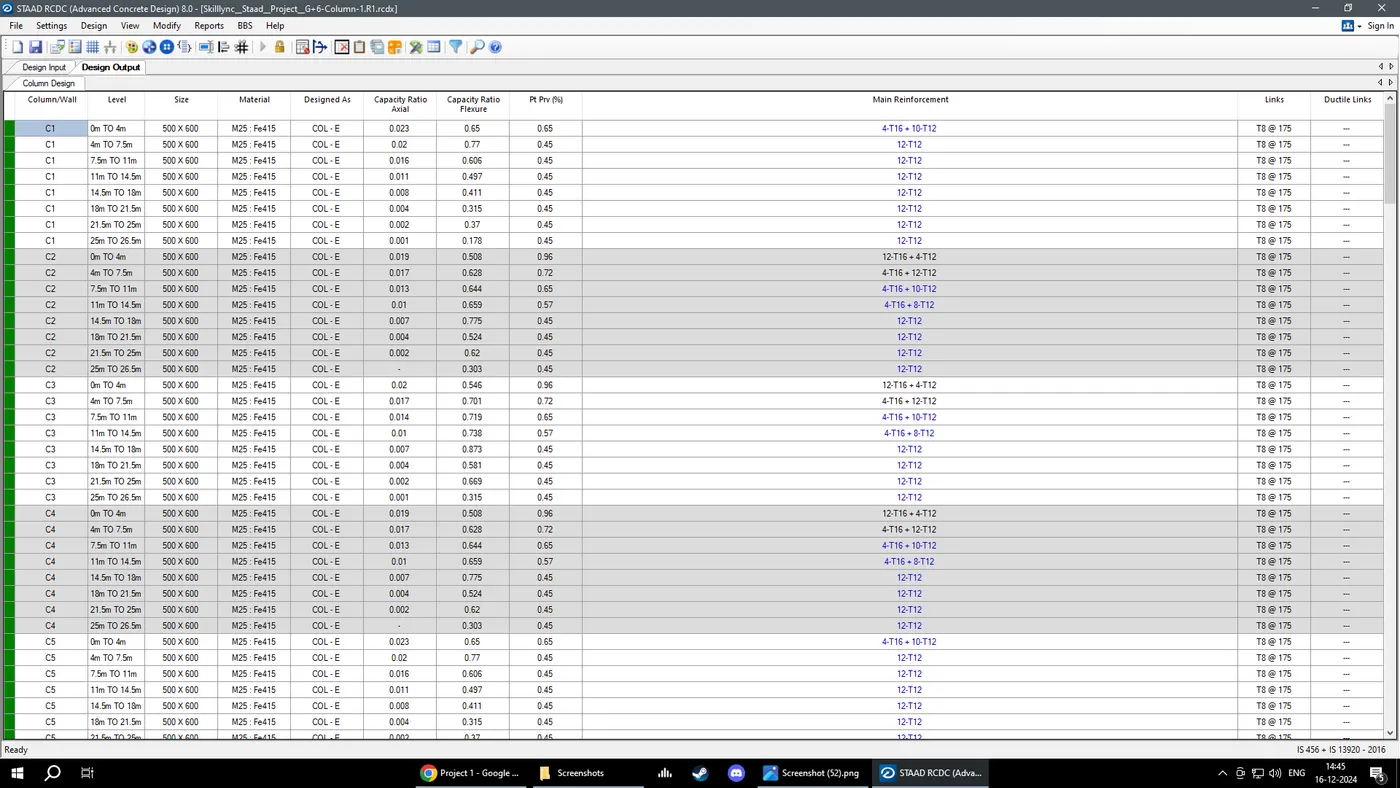

Give the project and other information and select the columns click on create project

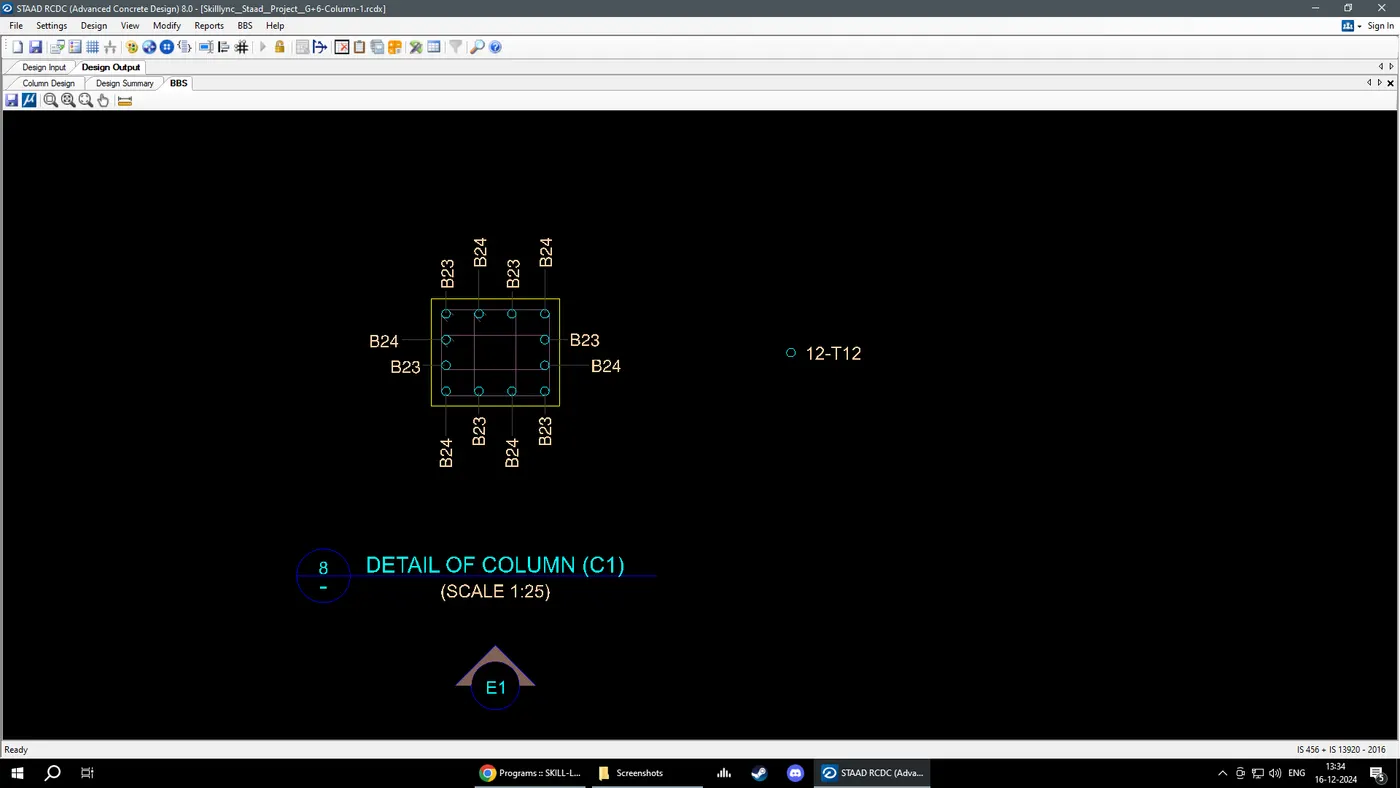

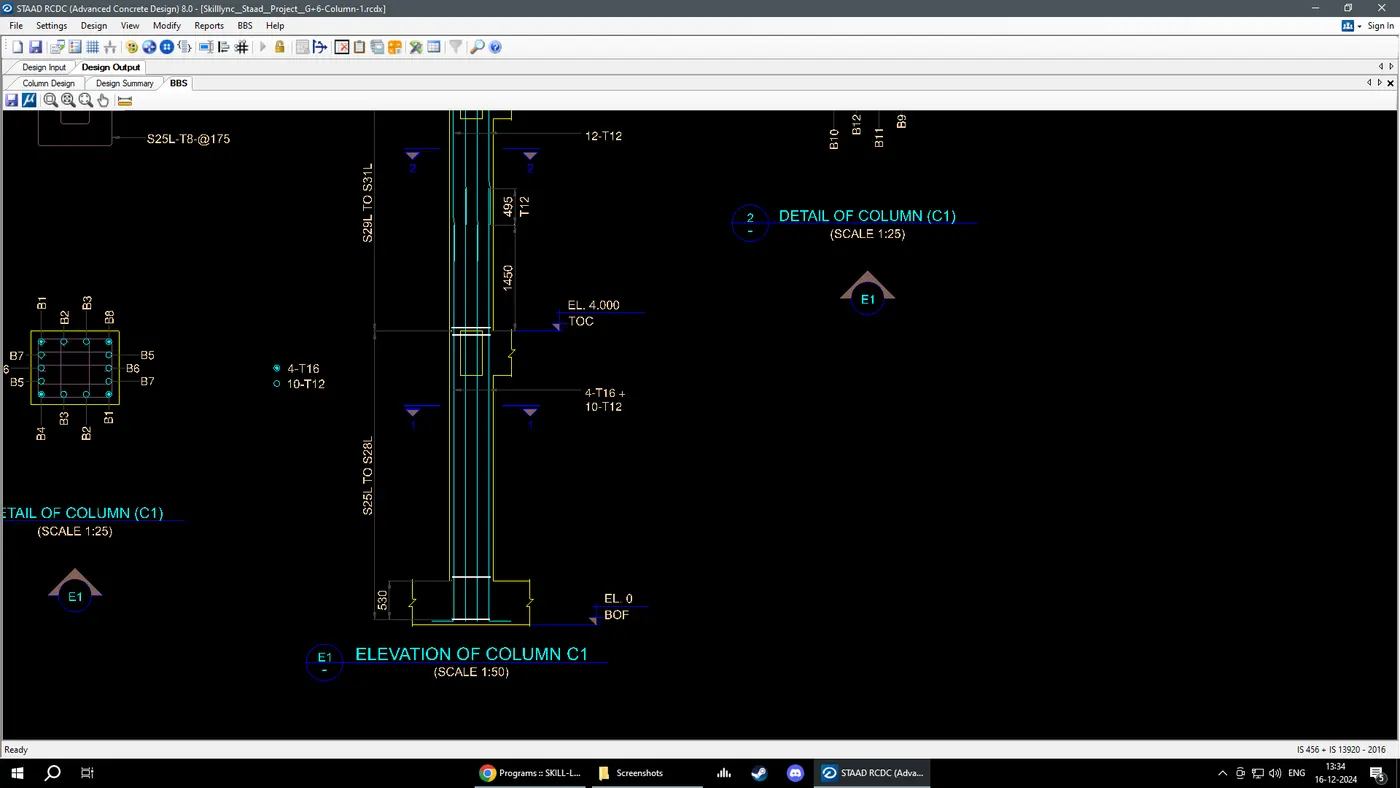

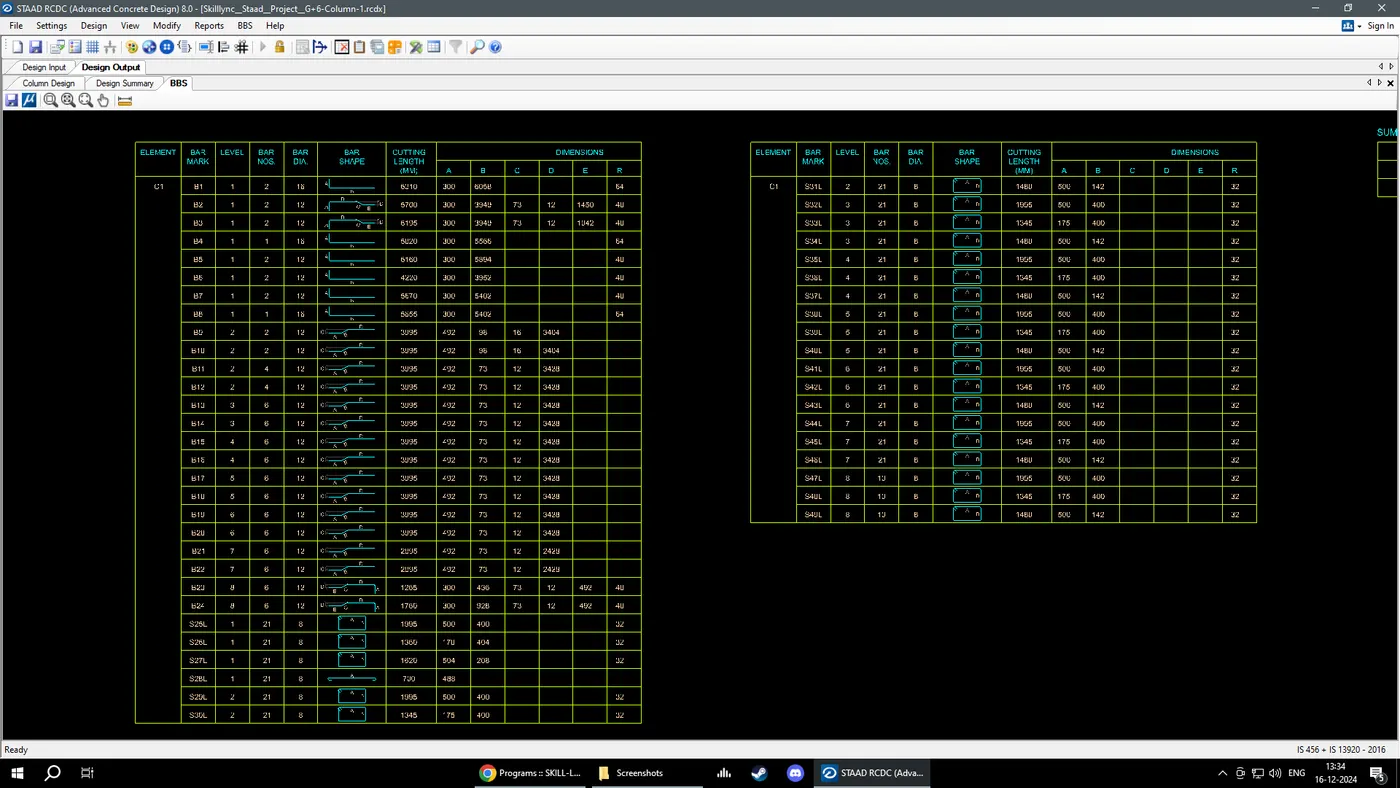

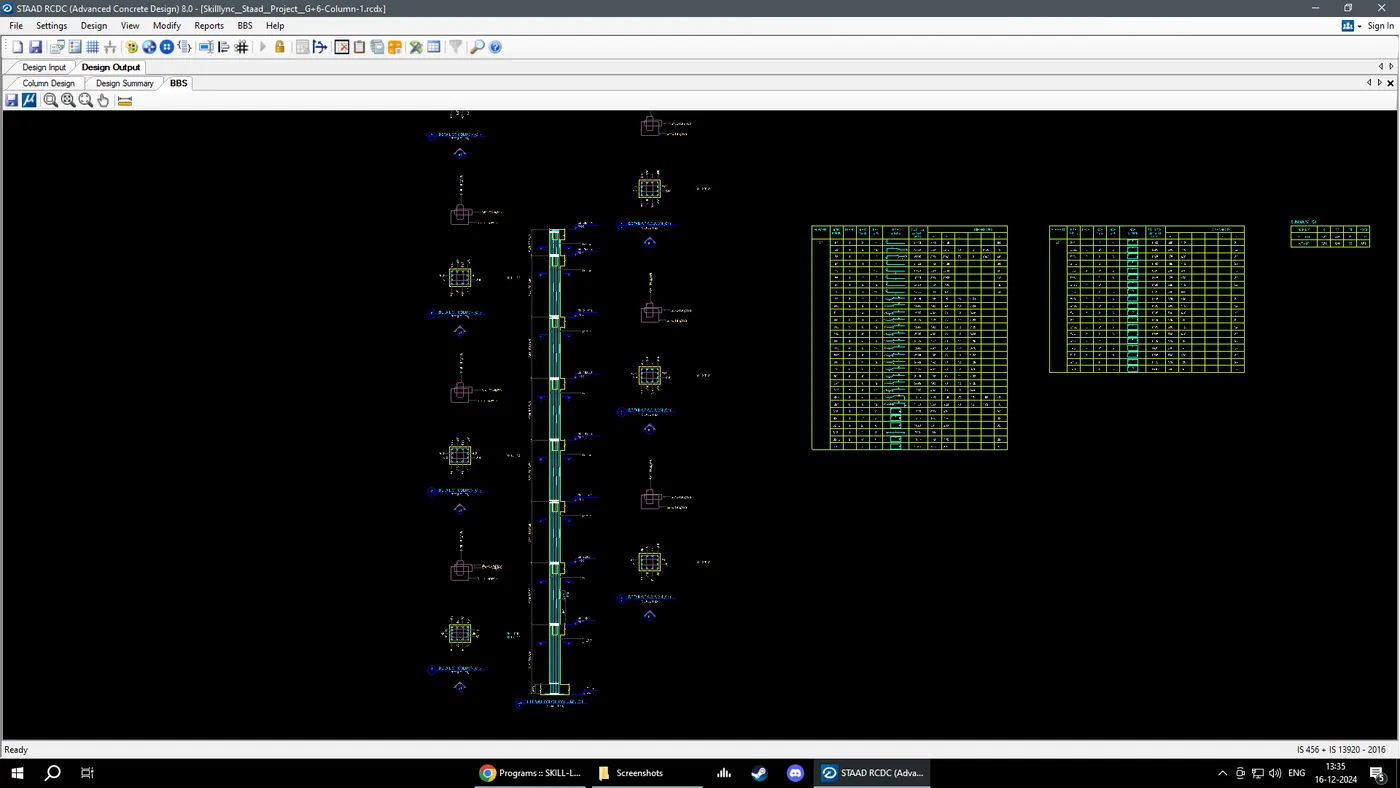

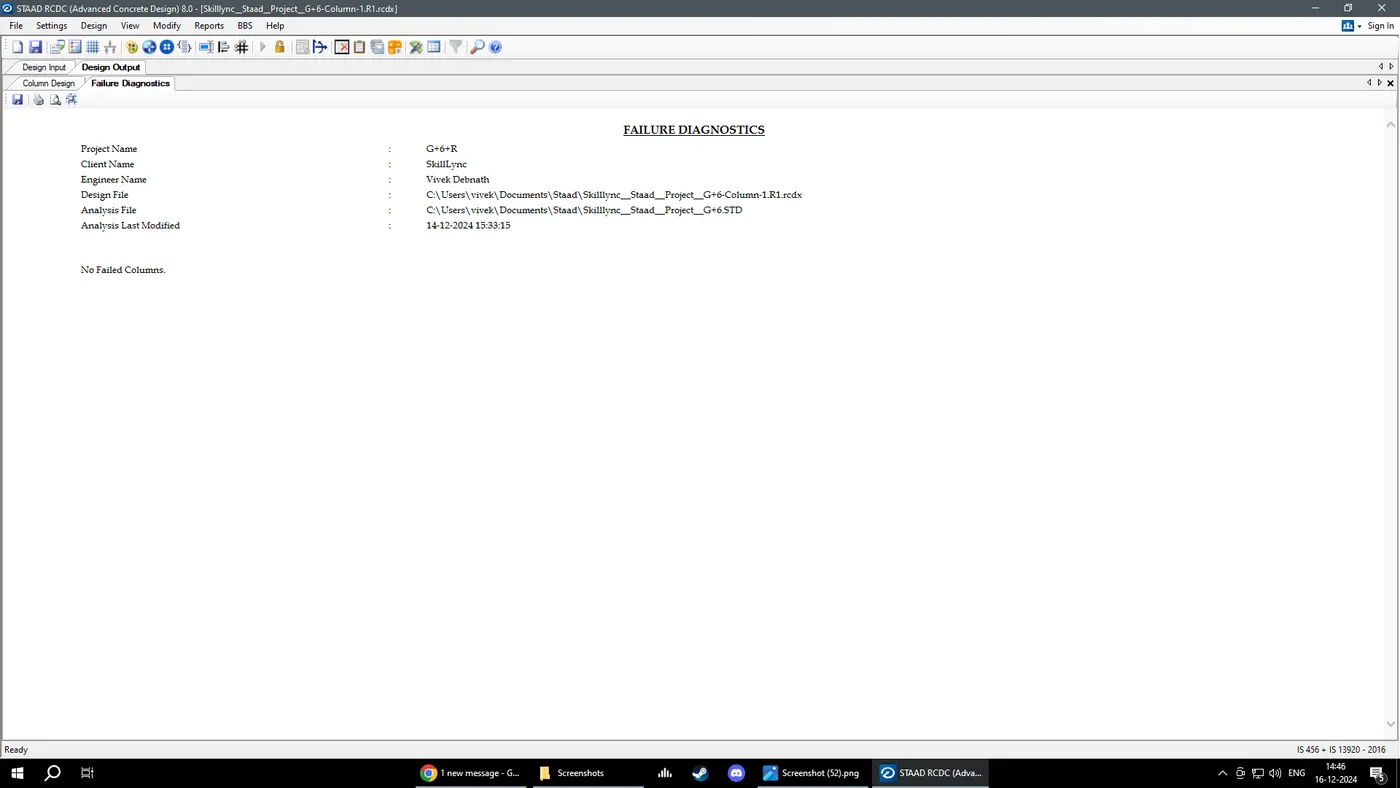

Go to BBS tab and click on generate and select all the columns and click on generate

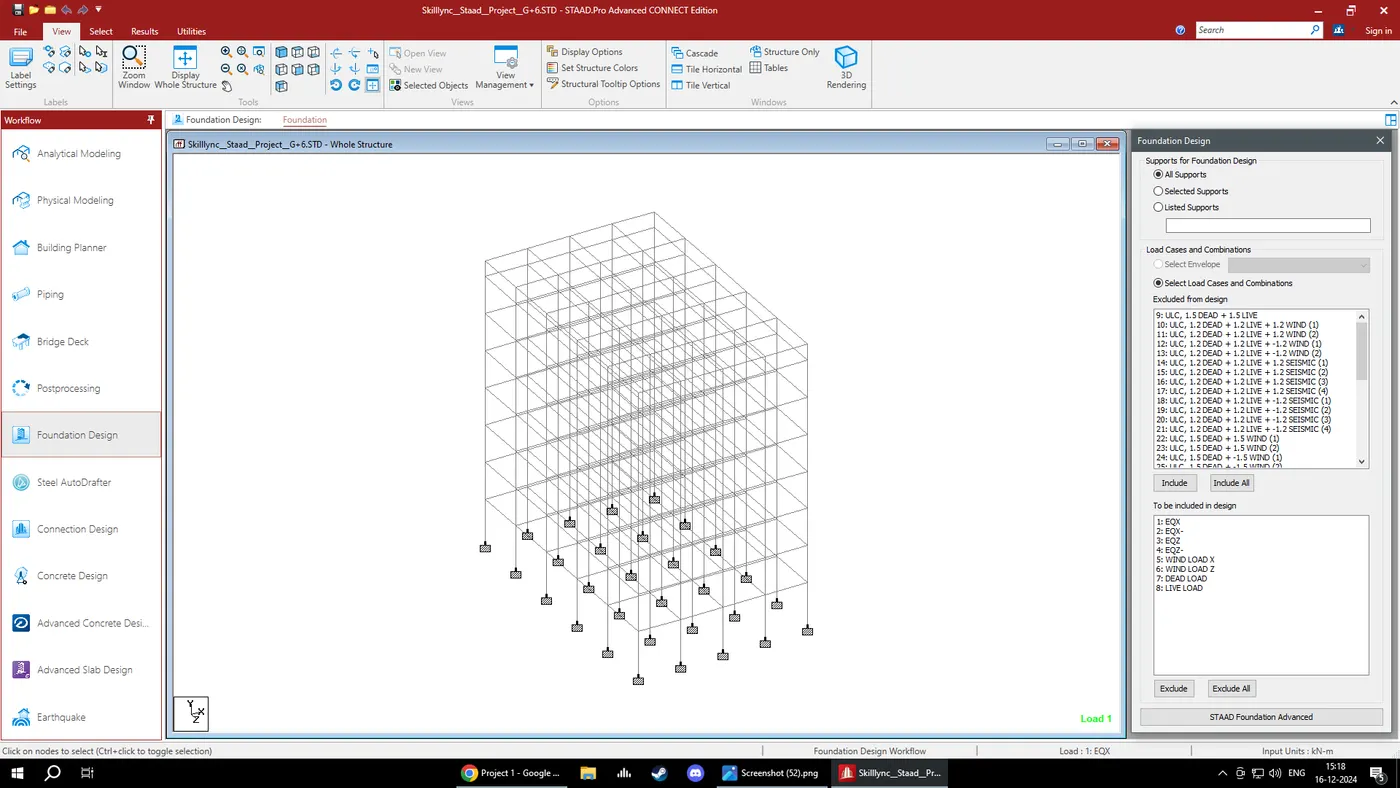

For foundation design select foundation design in the stadd pro workflow tab select Staad foundation advanced licence and click on ok

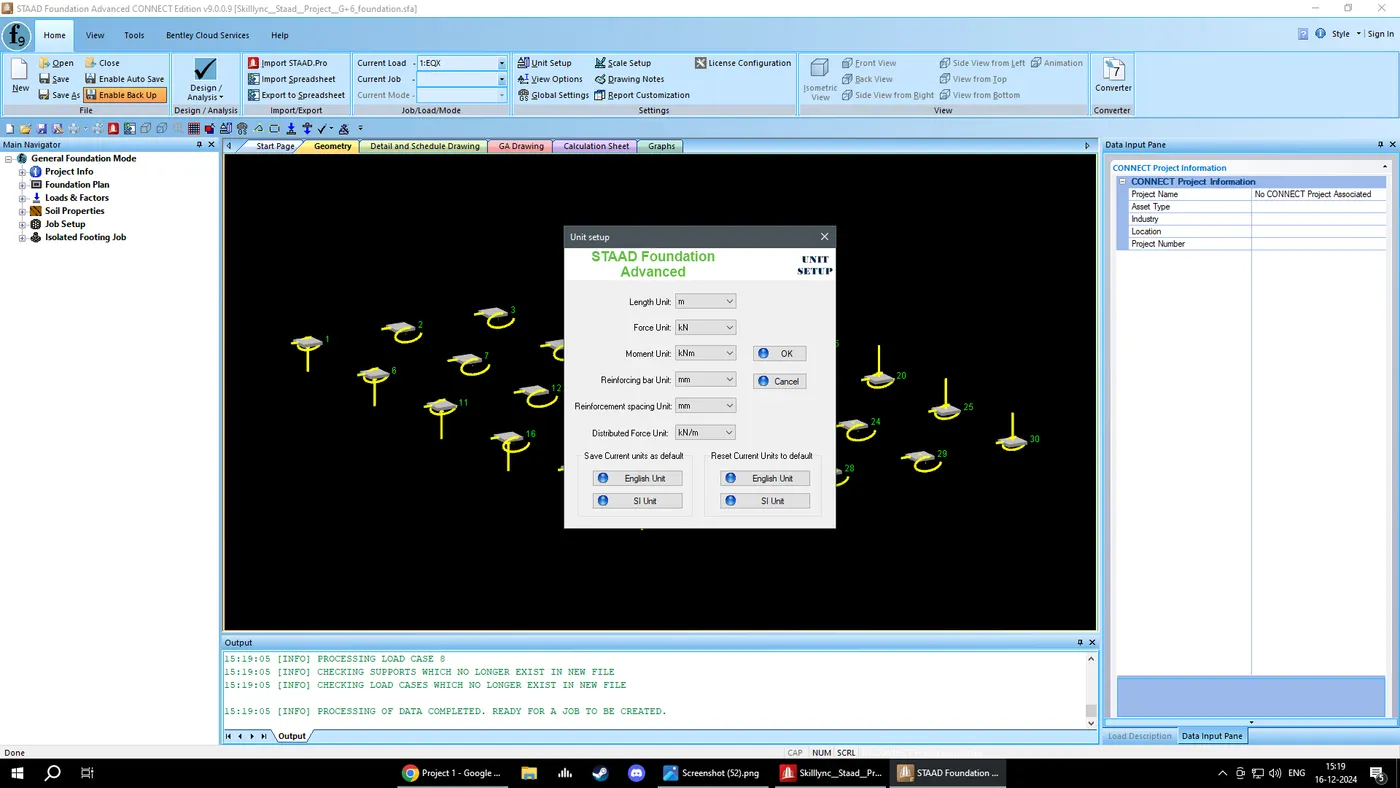

In home tab select unit setup and give units in metric system and select SI units

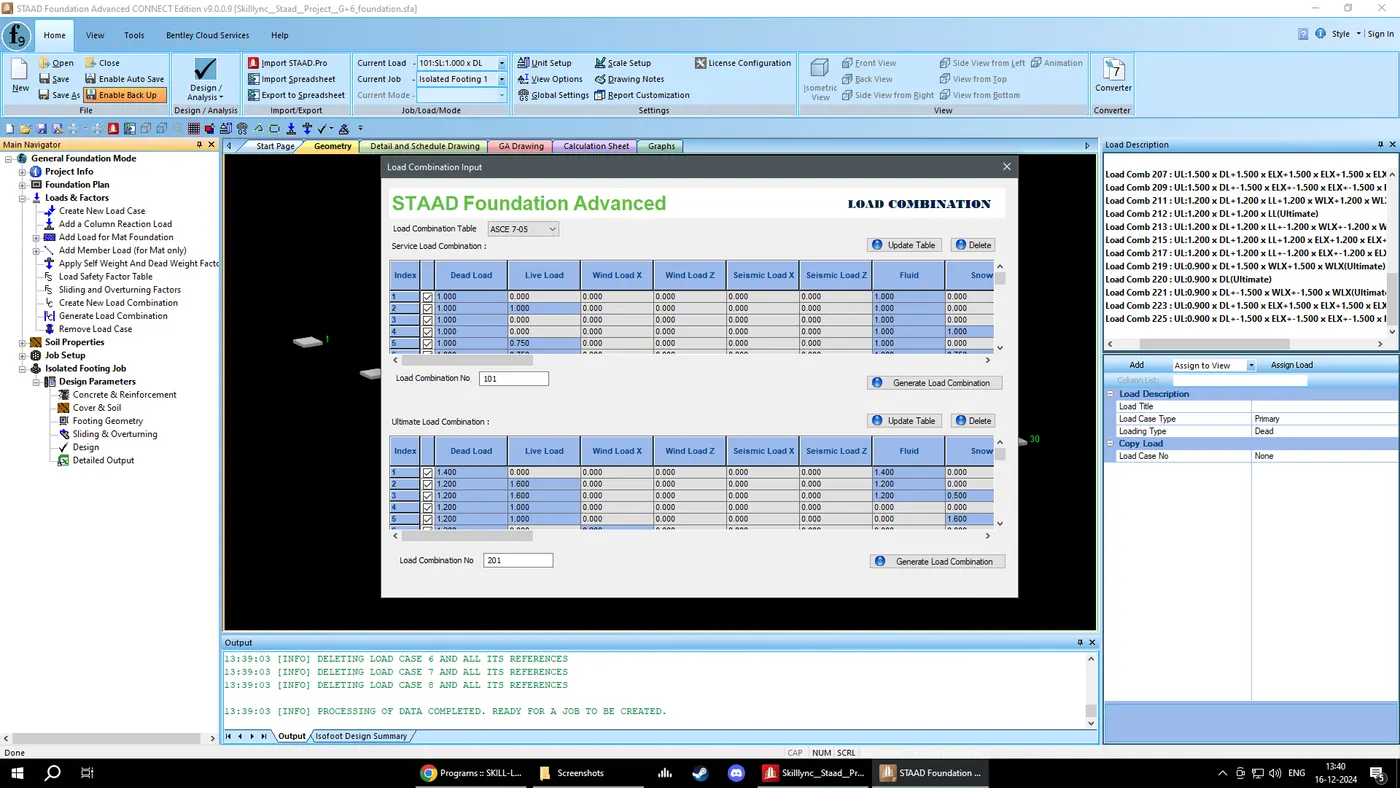

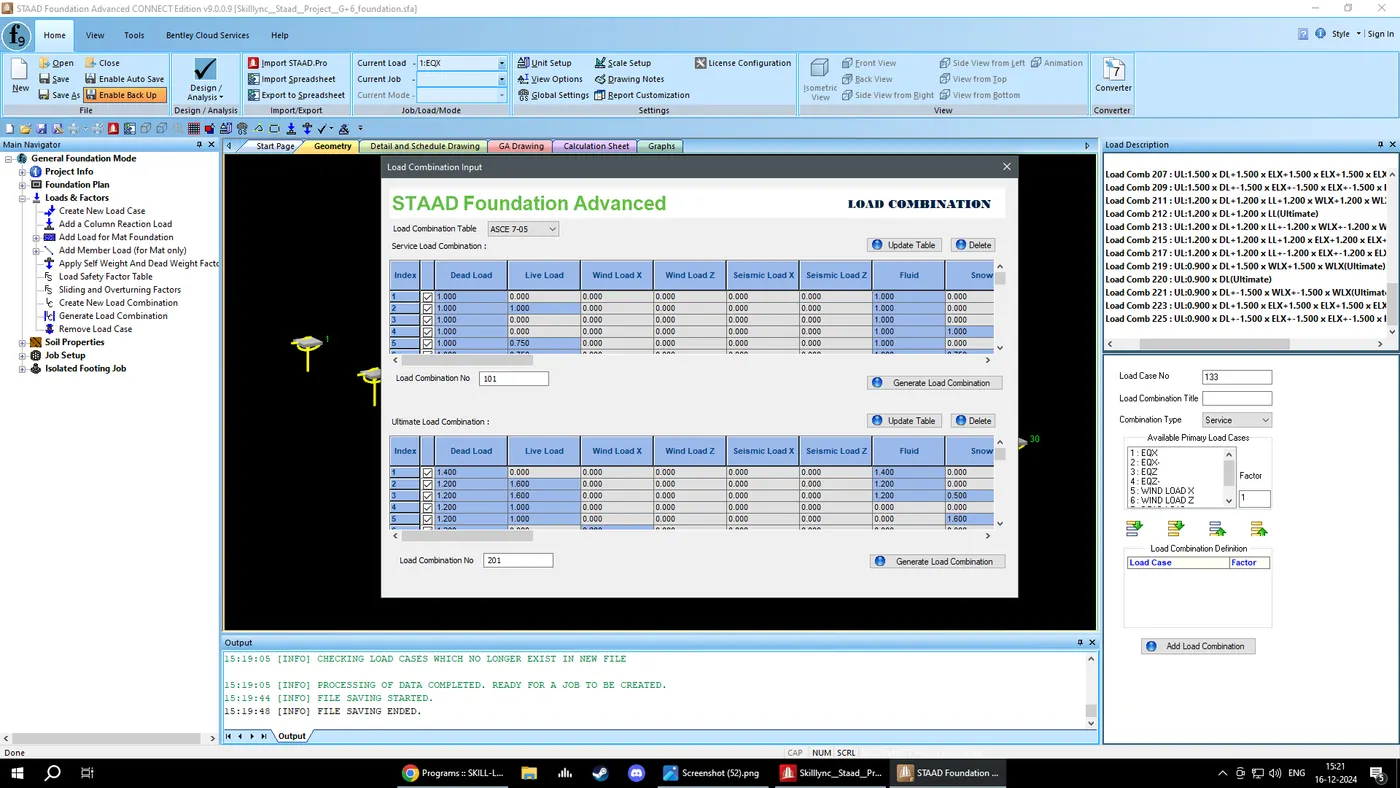

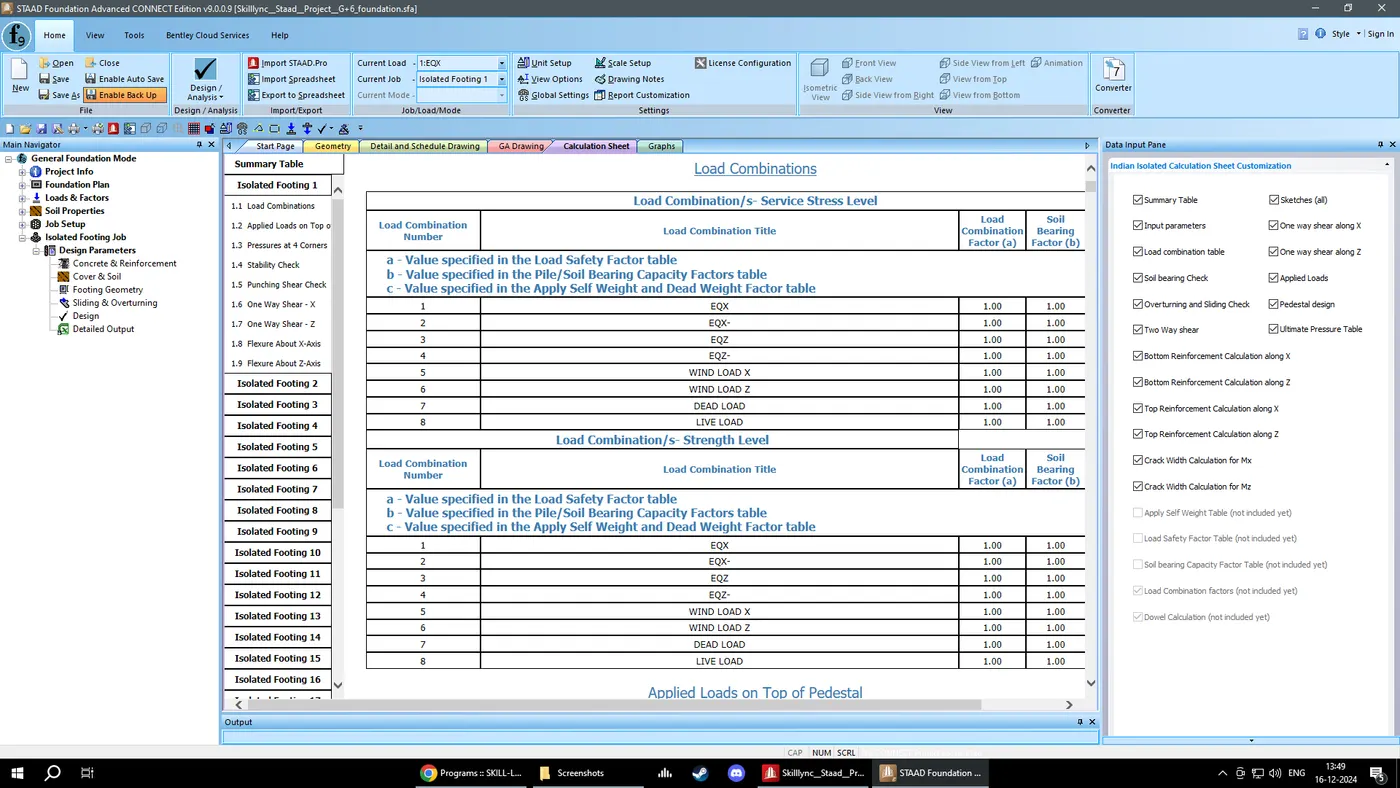

Select generate load combinations and select Indian and generate load combination separately for service and ultimate load combinations

Go to job setup and create the job and select only the load cases and click on create job

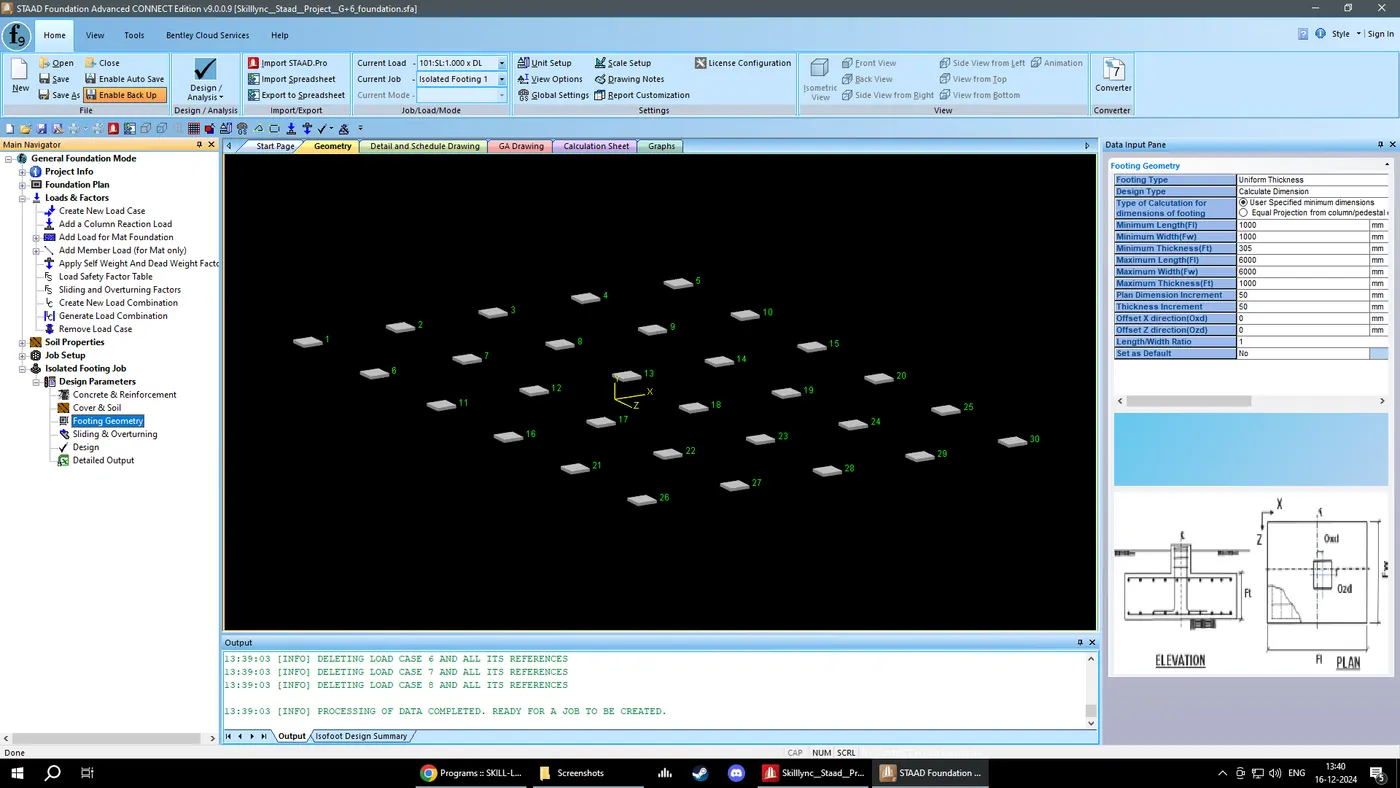

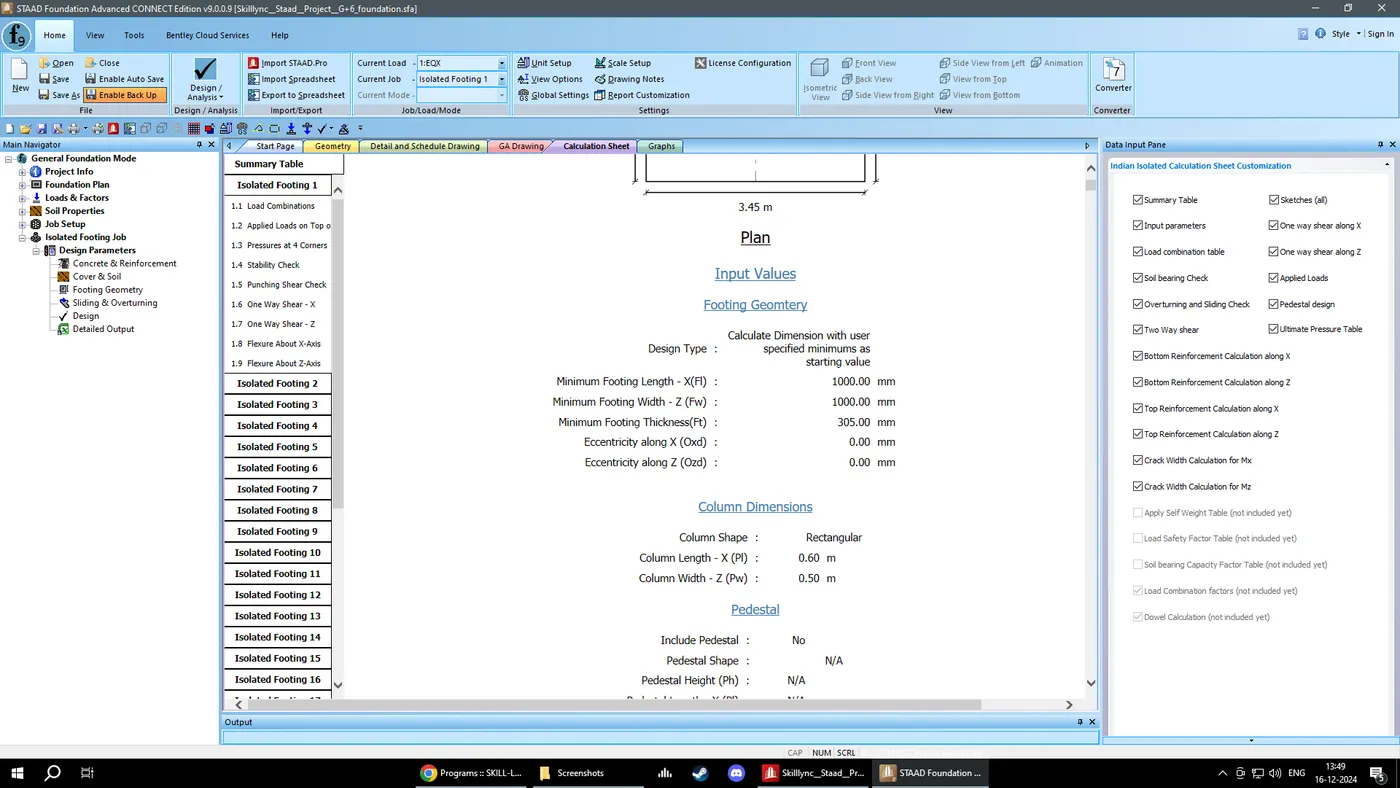

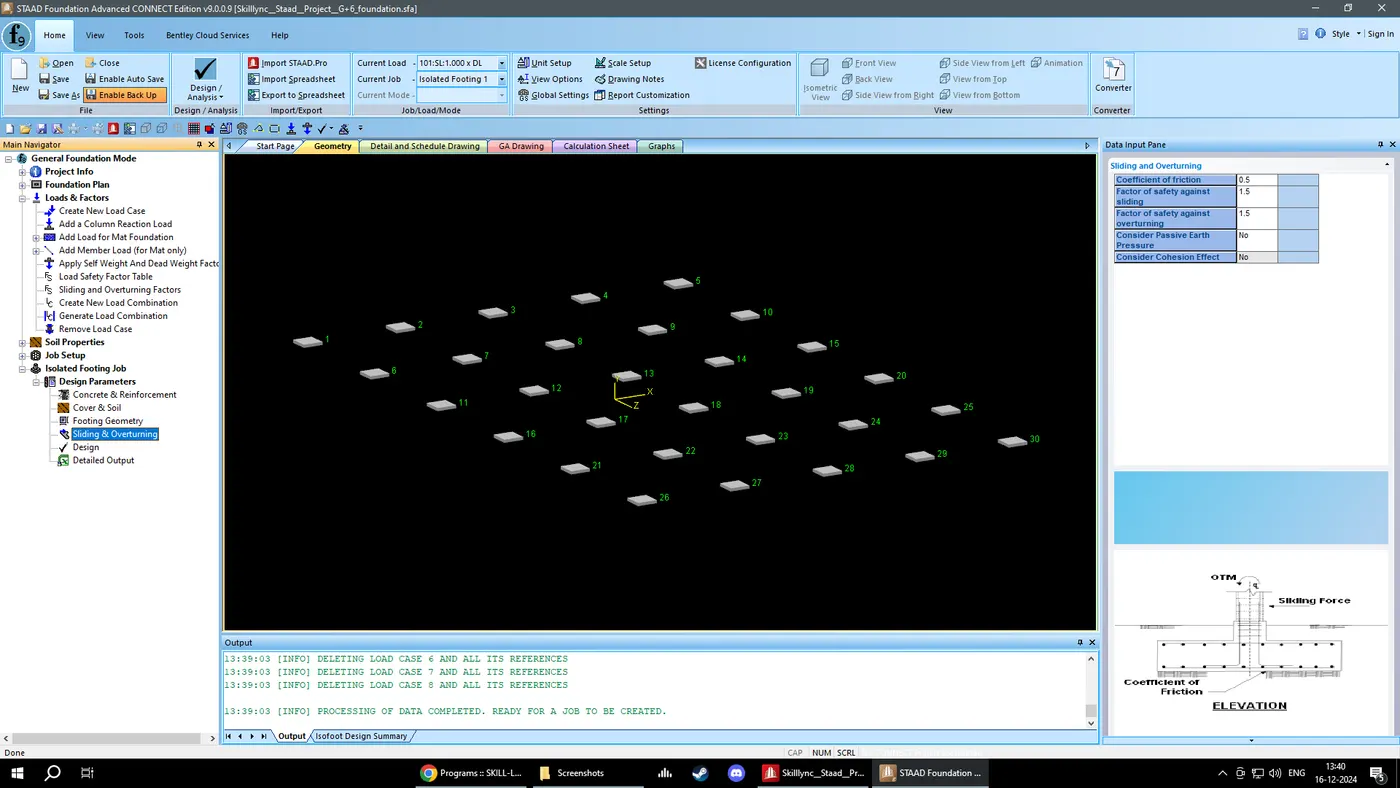

Go to isolated footing job in that click on design parameters and select concrete and reinforcement

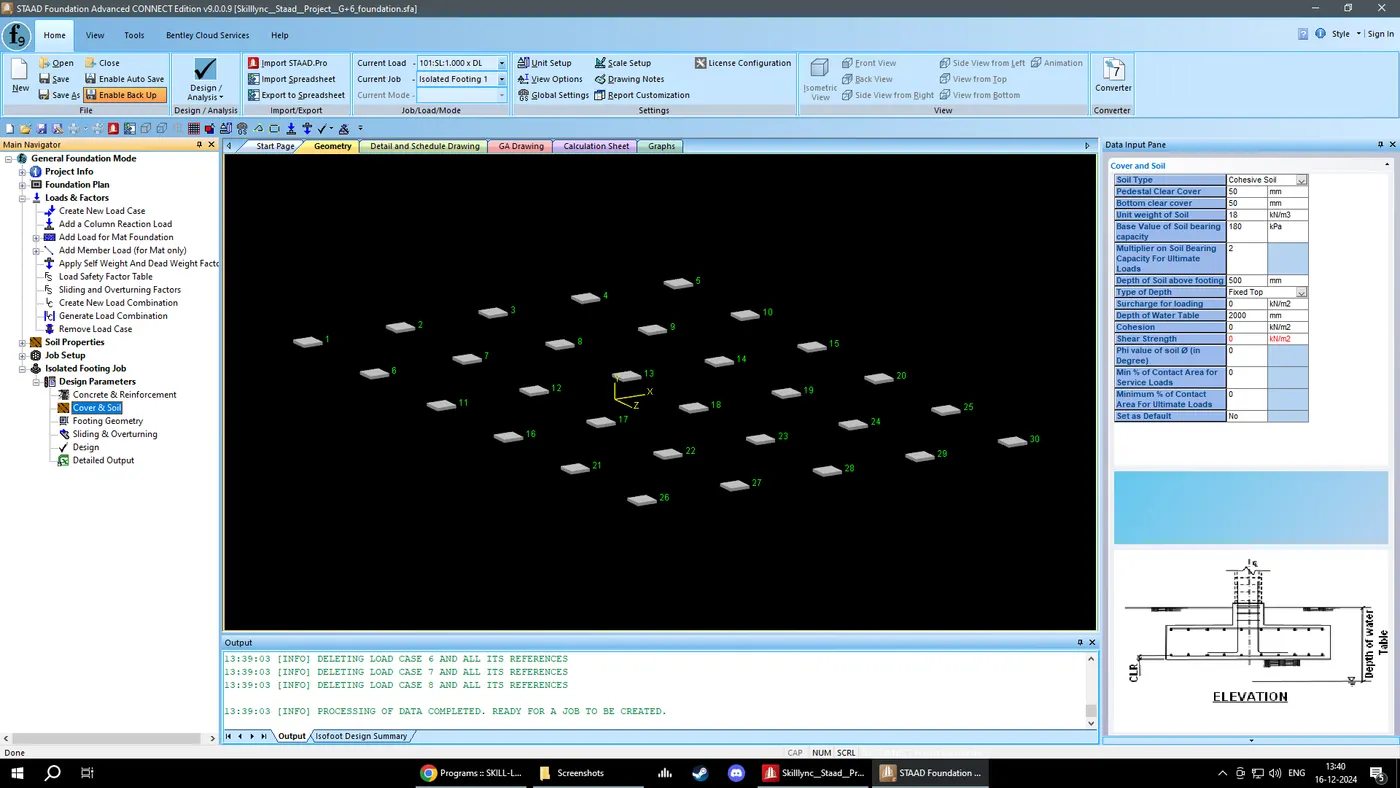

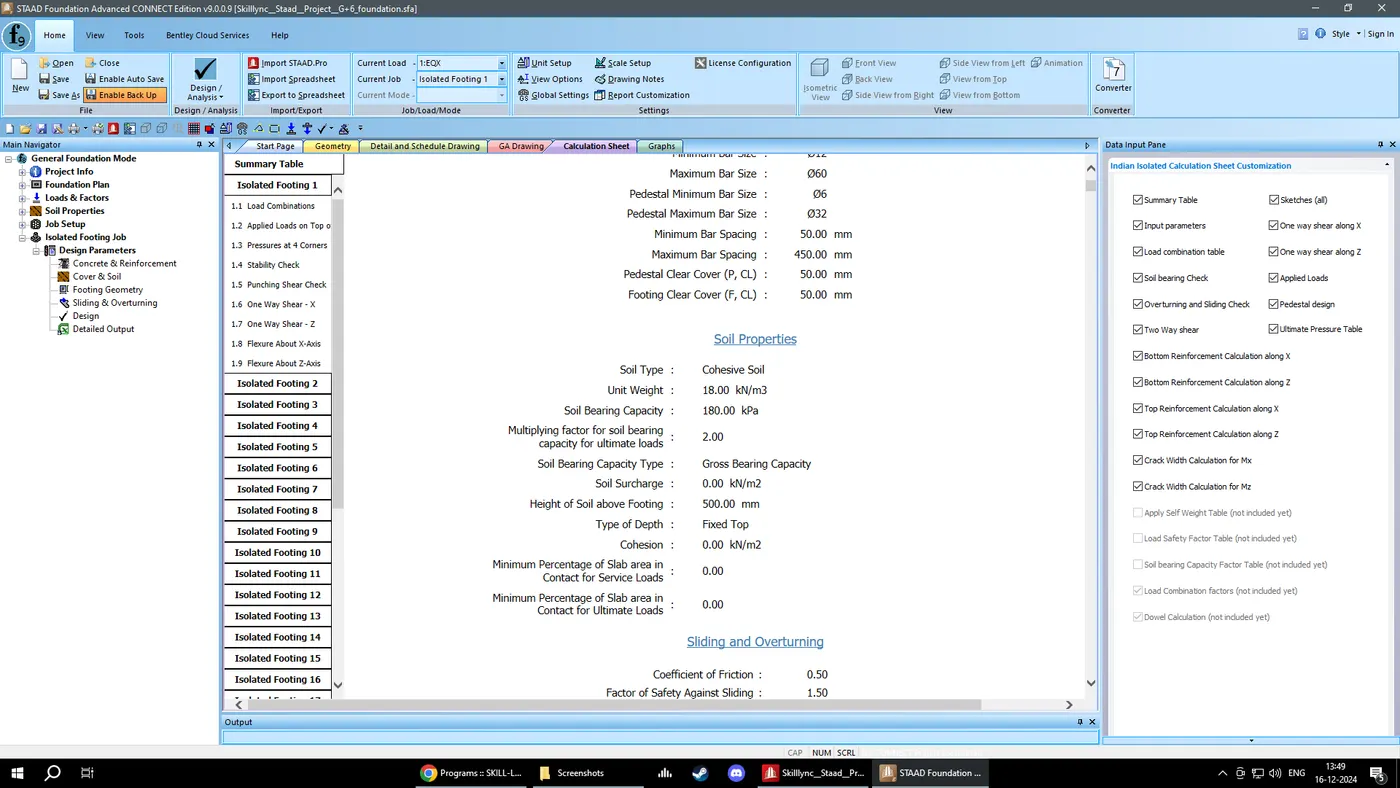

Select cover and soil and give the information accordingly

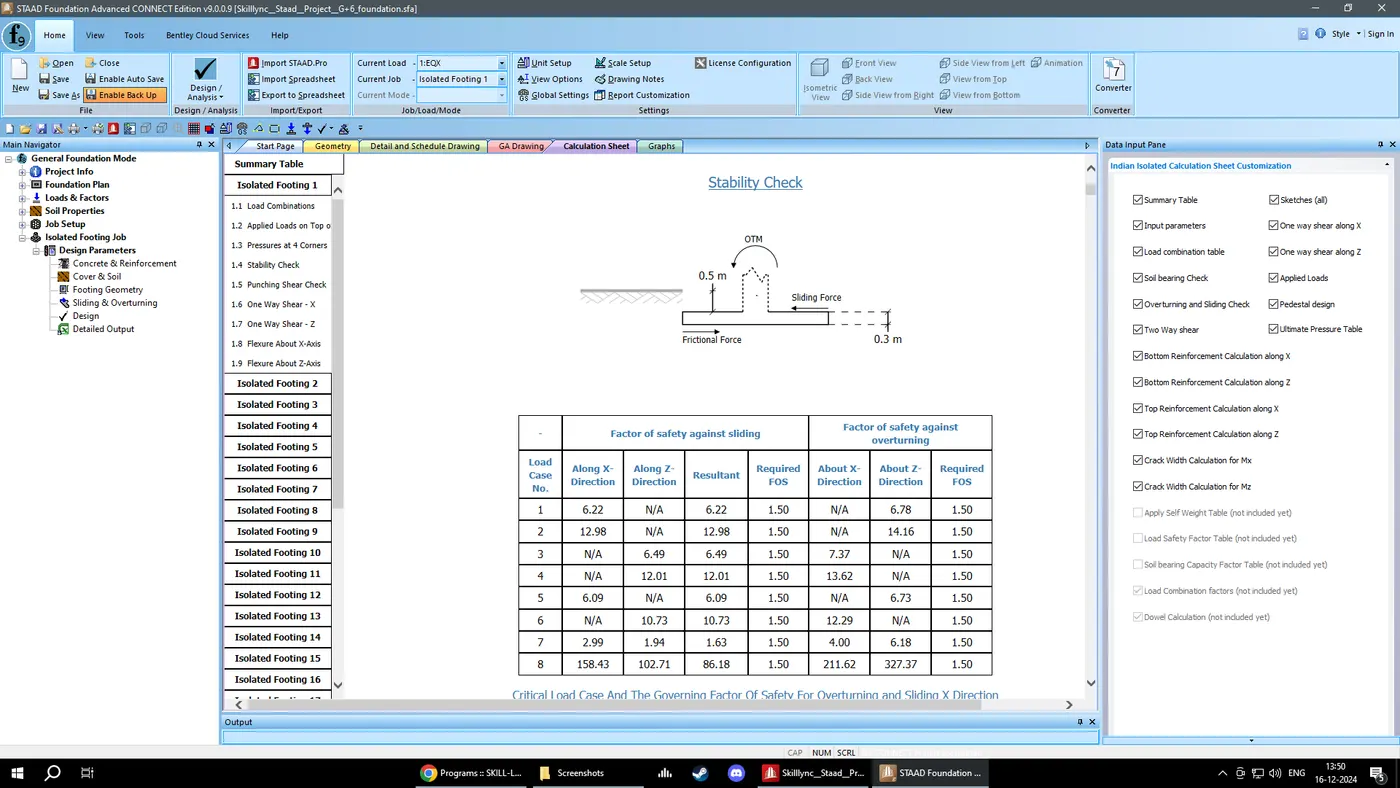

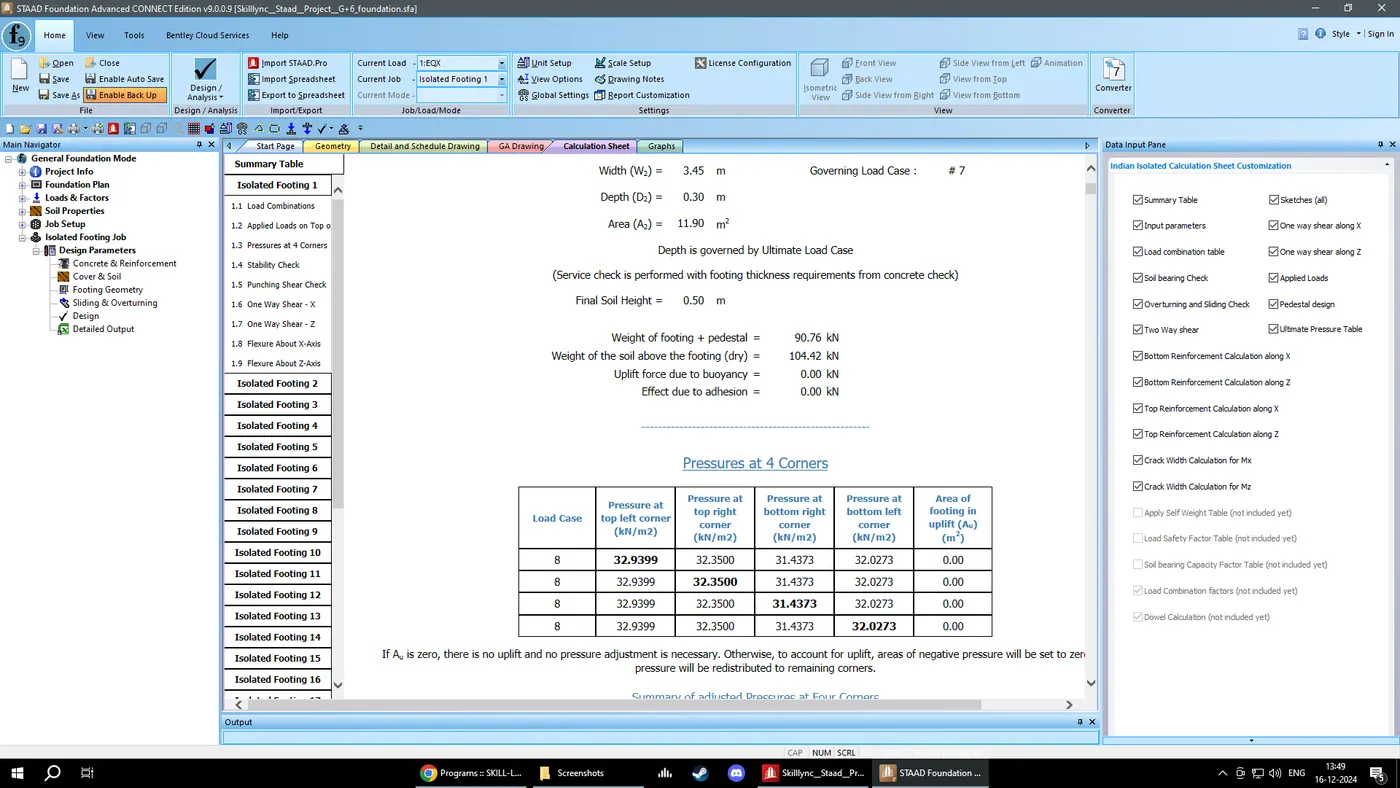

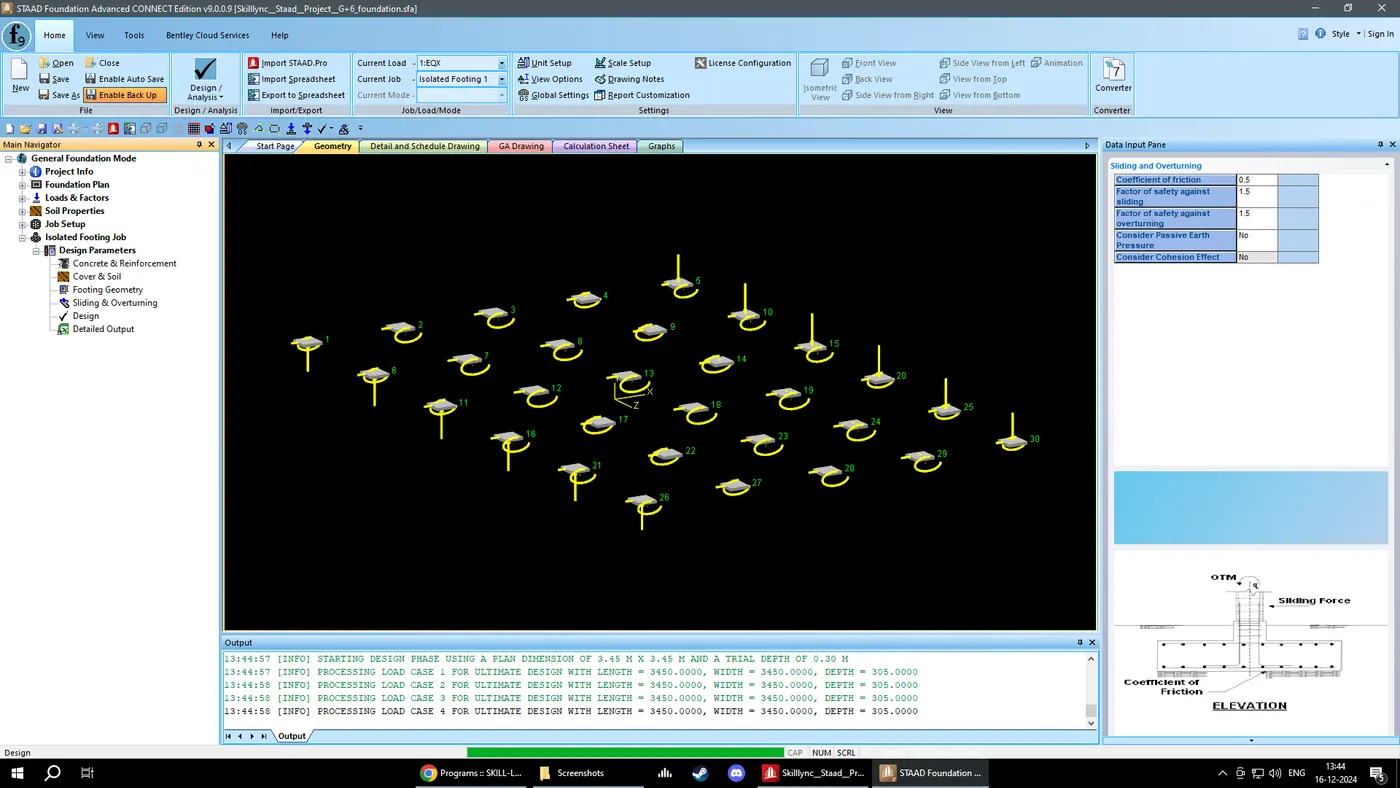

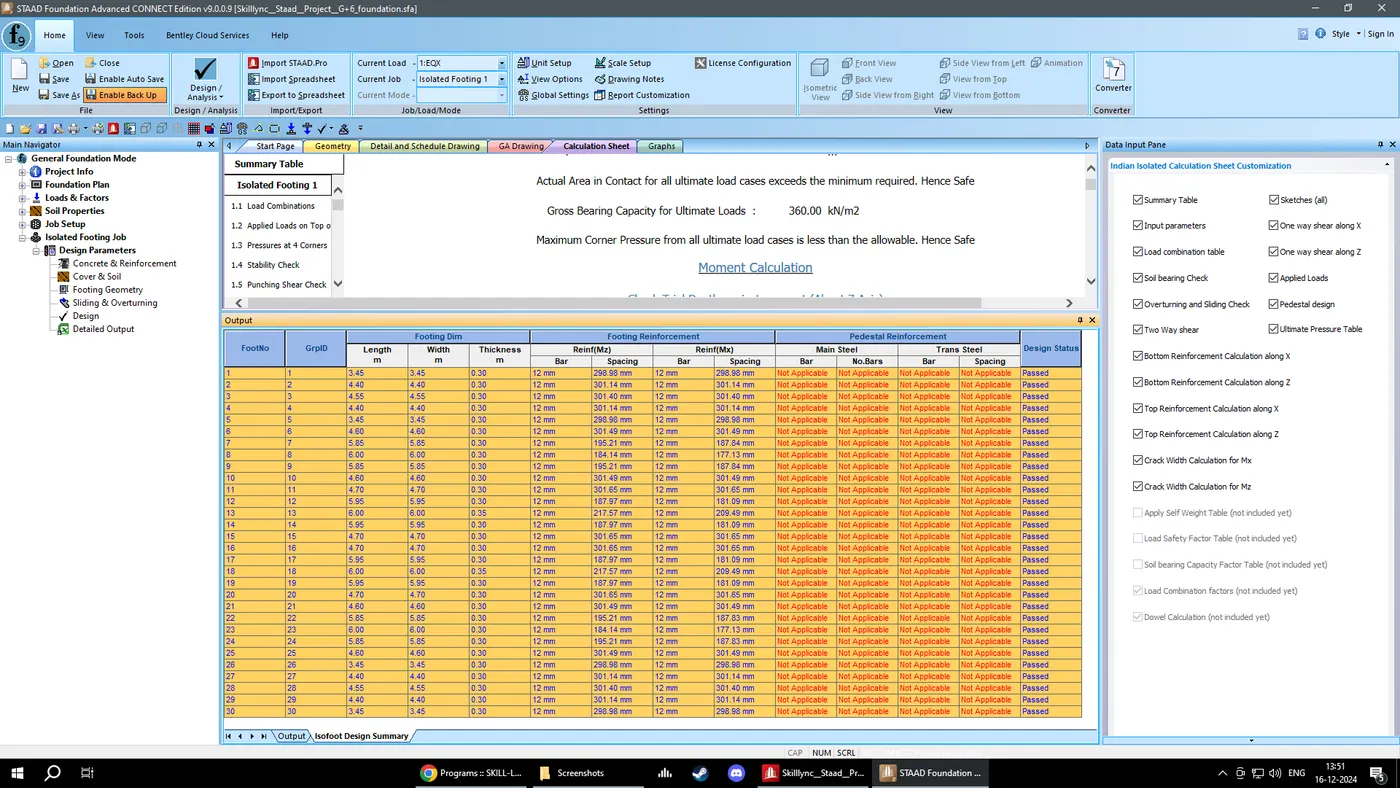

Now select design and design the foundation

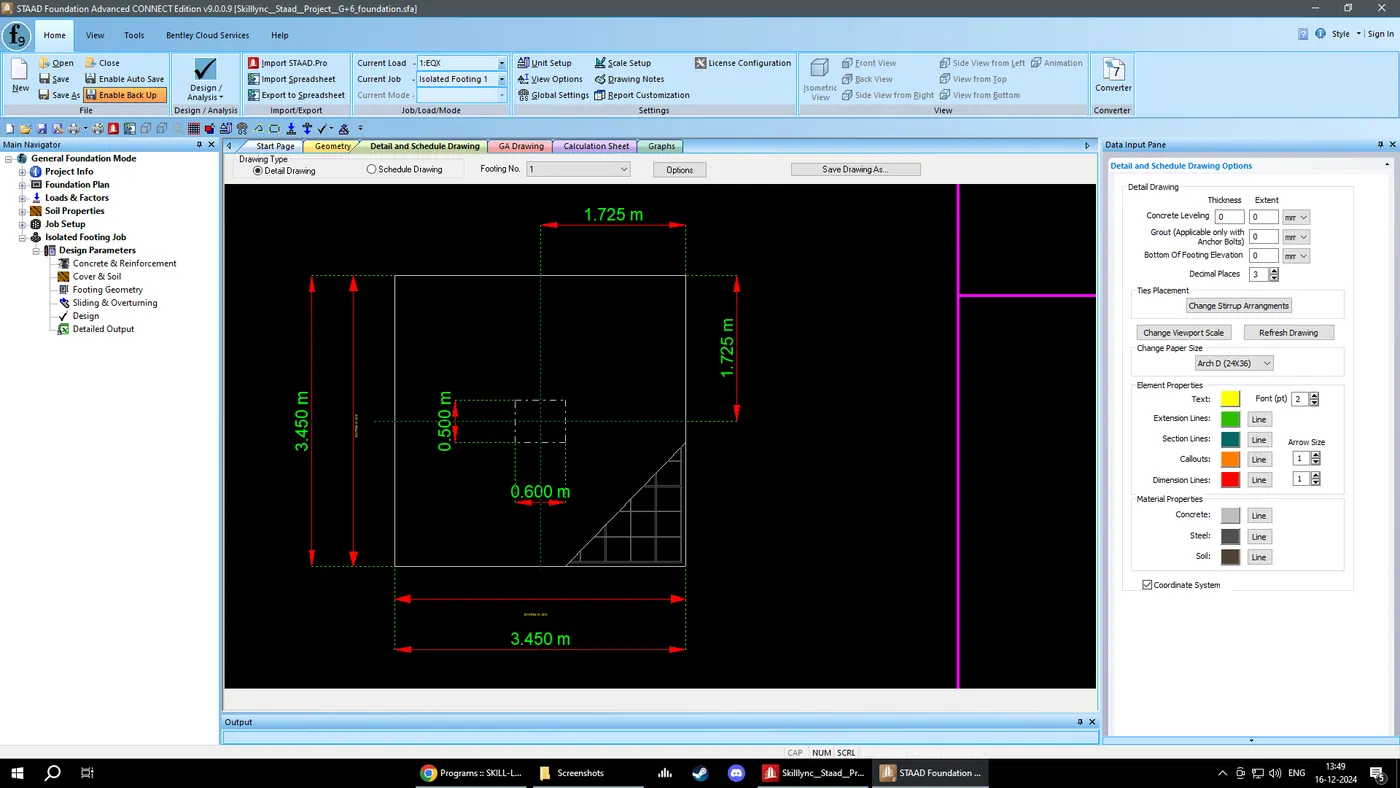

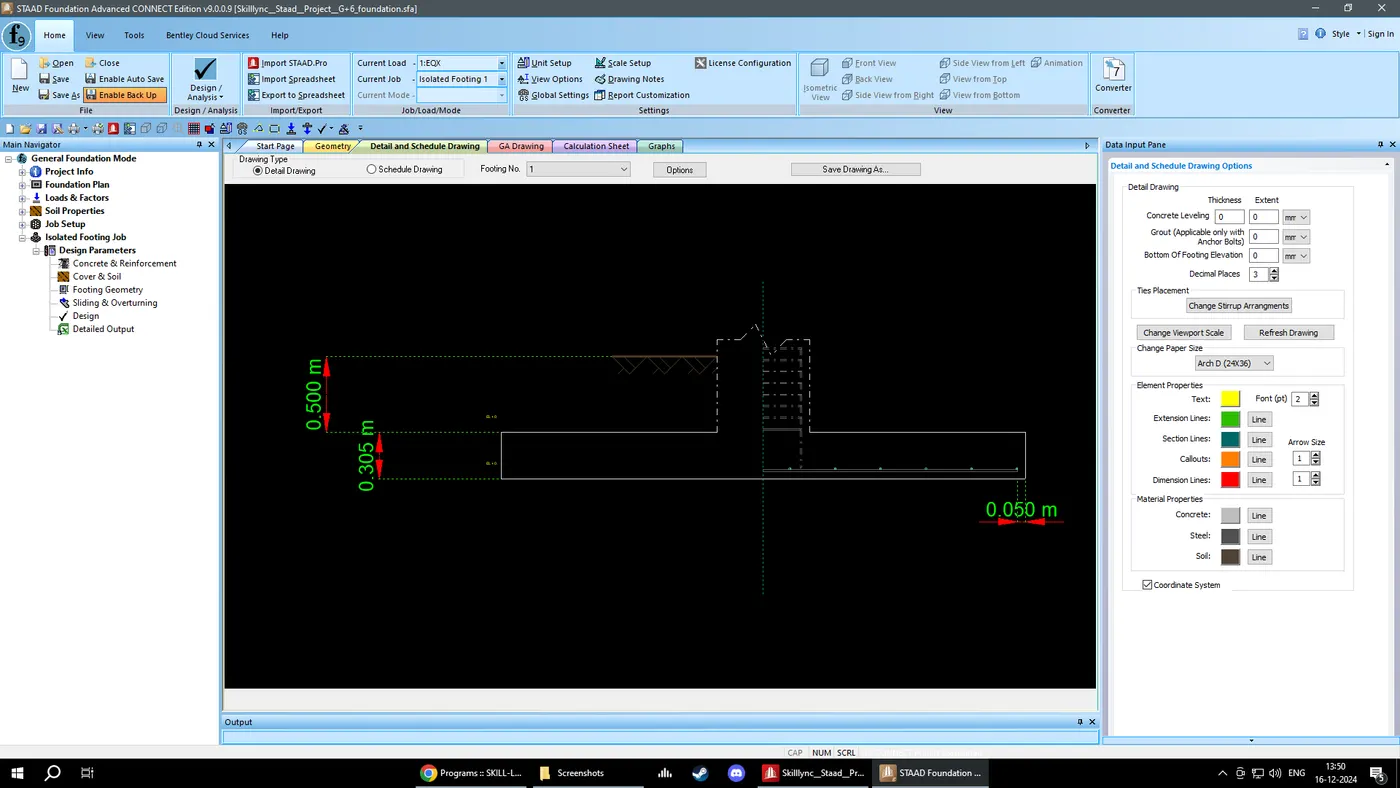

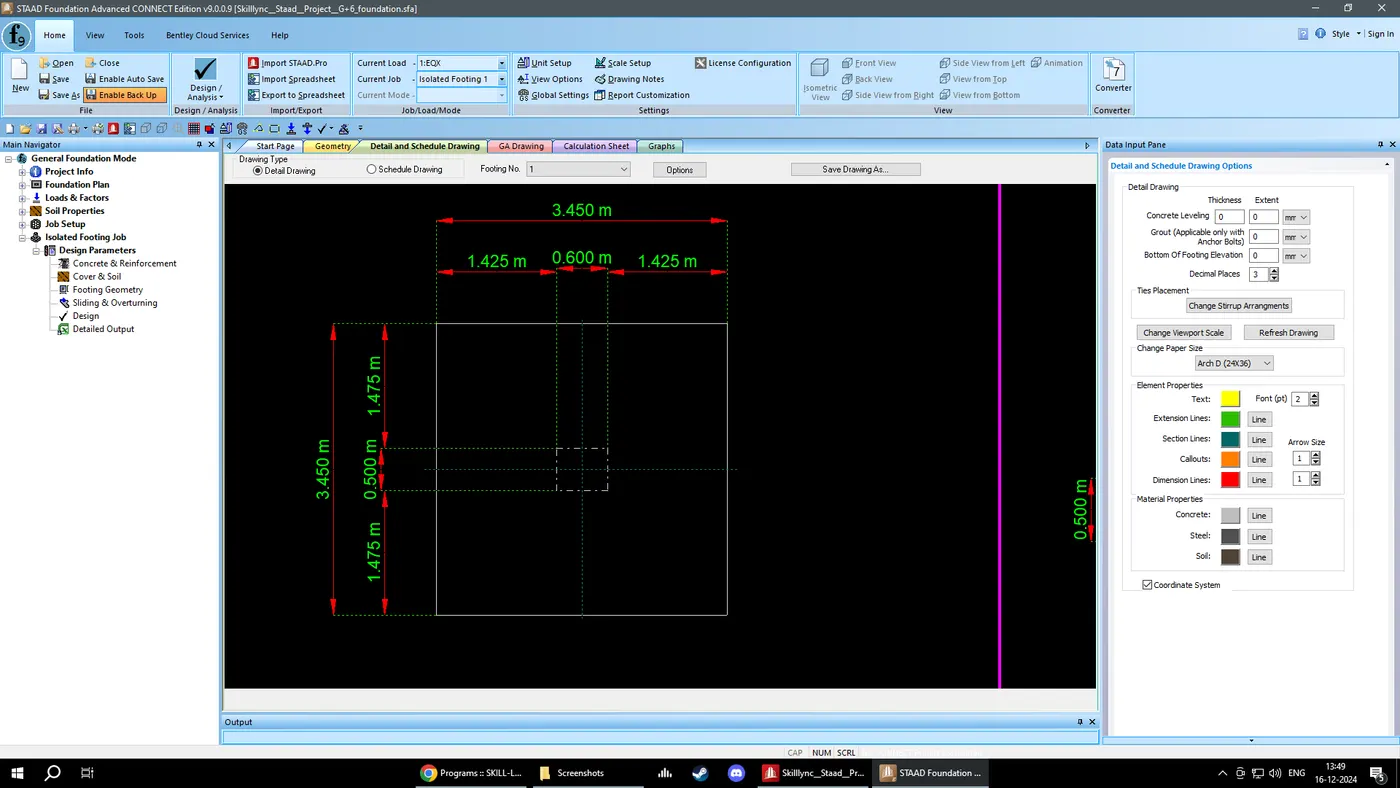

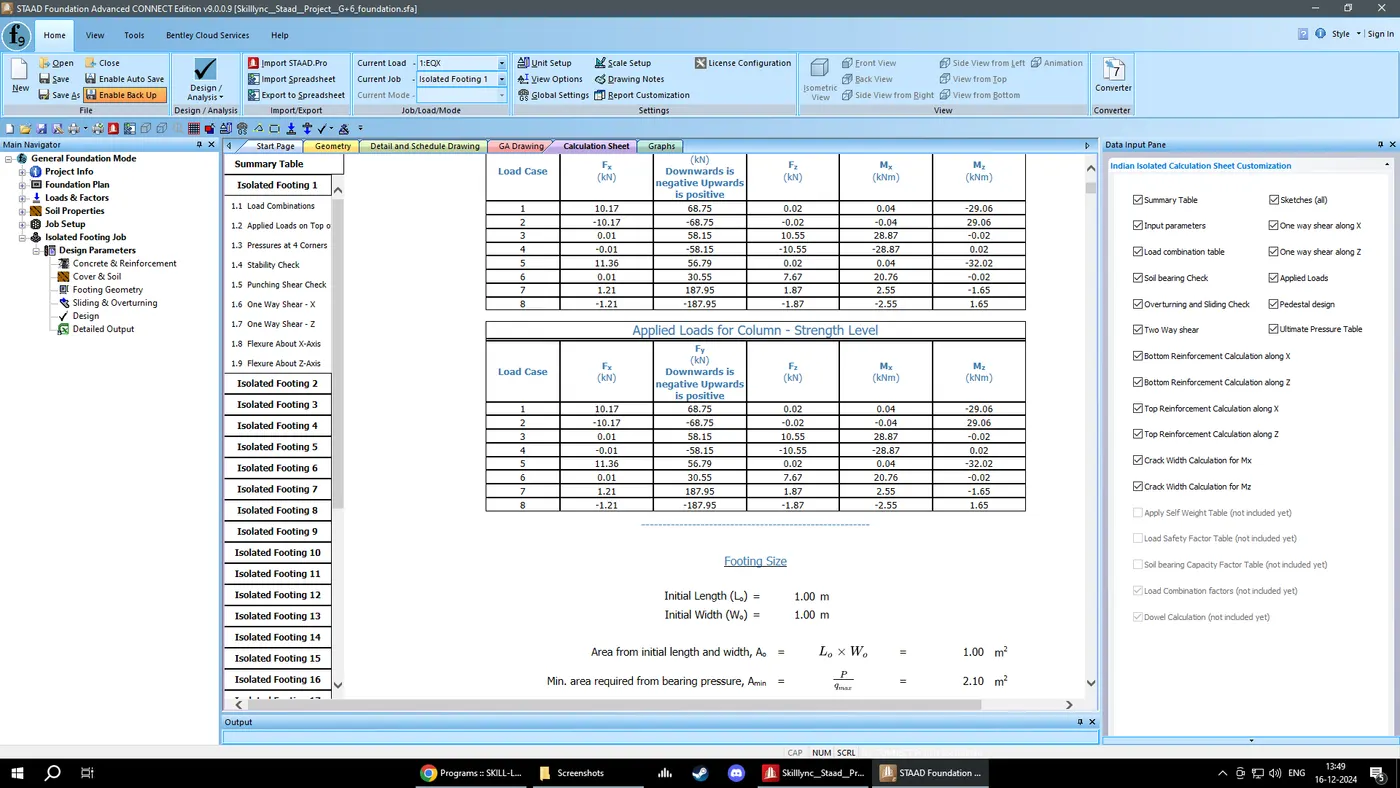

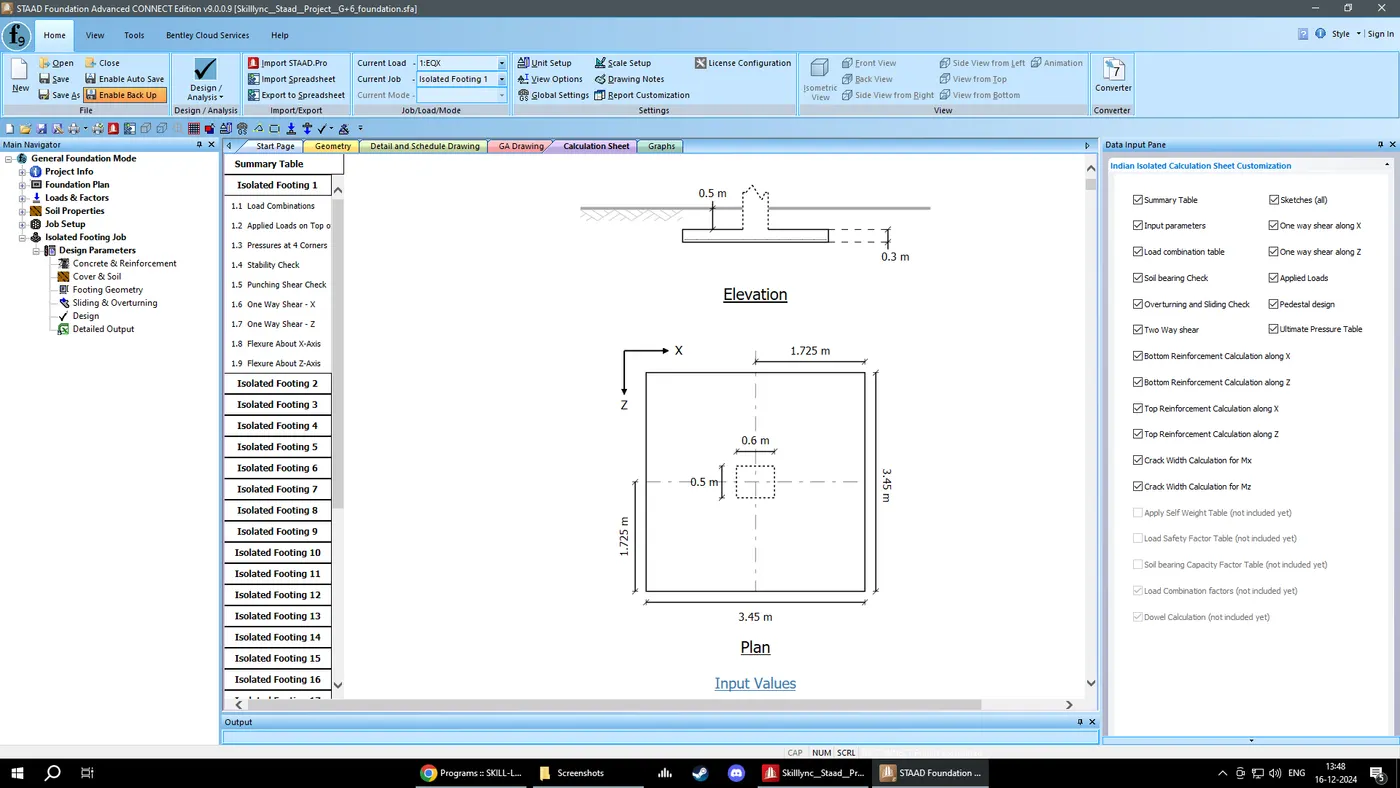

Go to detail and schedule drawing , GA drawing, calculation sheet and graph

RESULT : The given project is completed using the necessary tools in STAAD pro, RCDC and foundation design.
