Project 1

Sol:

Wind Load

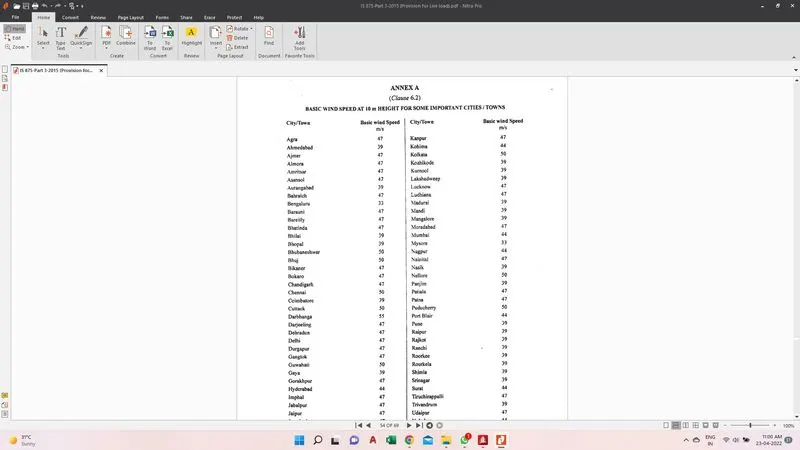

Ahmedabad basic Wind Speed As Per IS 875 (Part-3) 2015 (P. no.-51)

=39 m/s

V2 = Vb*k1*k2*k3*k4

k1 = (39m/s) 1.06

k2 =1

l3=1

k4=1

= 39*1.06*1*1*1=41.34

Wind Pressure = 0.6*V2

=0.6*41.34=1025.40

=1.03 kn

Soil Wight= 18Kn/m3

Earth pressure = Ko * 18*20 = 180 kn

IRS = Metro Rail Load.

Seismic Load

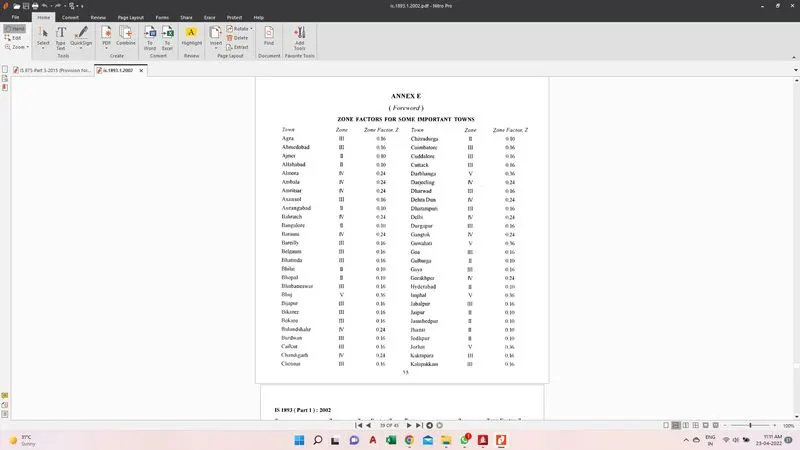

Ahmedabad secmic Zone is II

(As per IS1893 (Part 1) 2002 (P.No-35)

Annex -E

All Load Applyed in Staad pro File

1.Dead Load

2. IRS Load

3.Earth Pressure

4.Wind Load

5. Seismic Load
