Project 1 - 2D meshing on the instrumental Panel

AIM :

          To do the FE model for the given instrument panel(CAD) by following the quality criteria and parameters in the challenge.

PROCEDURE :

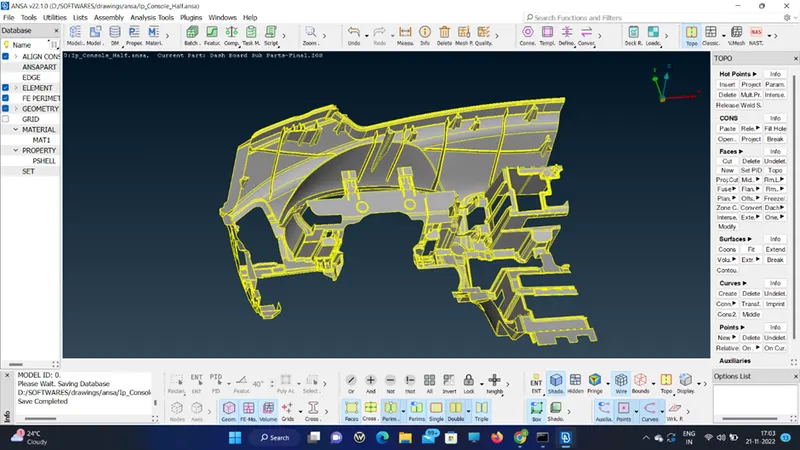

1. Check the model for any errors like tiple cons or free edges in between the faces.
2.

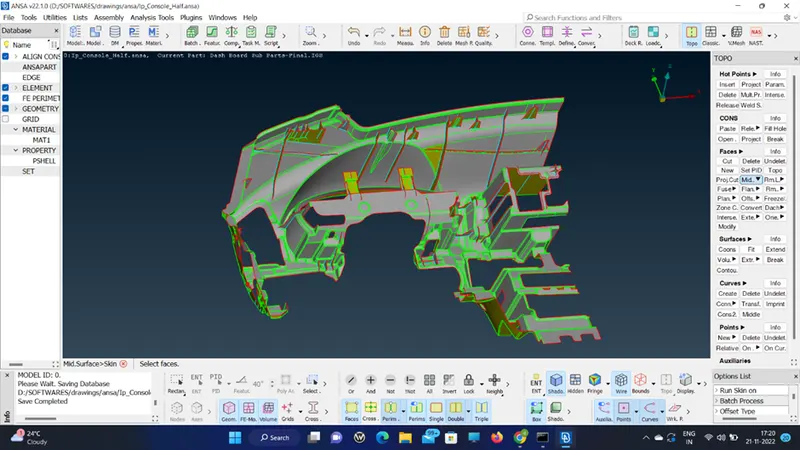

3. I went through the auto mid-surfacing option by clicking the mid-surface and casting.
4.
5. So, I got the mid-surface as well as the mesh, the mesh did not look good bad feature capturing occurred.

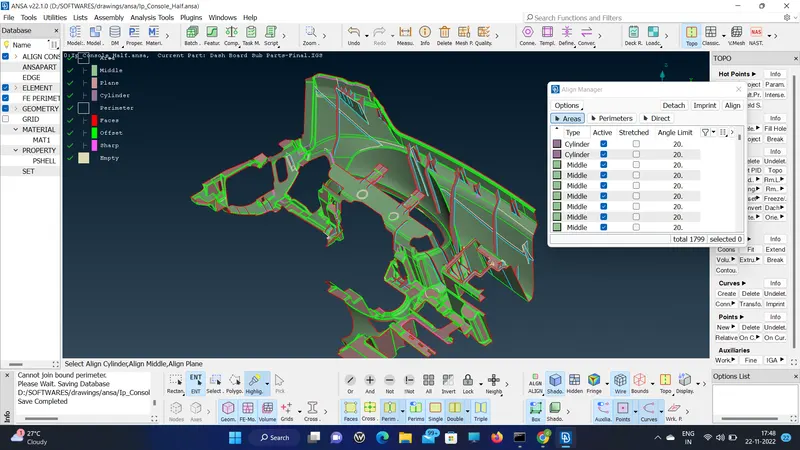

6. To make them look good, by improving options and using align manager to middle the FE elements which are deviating from the parent geometry.
7.
8. For the deviated elements I created the curves and filled them with the elements.
9. Thus the major usage of align manager was a good experience in this challenge.

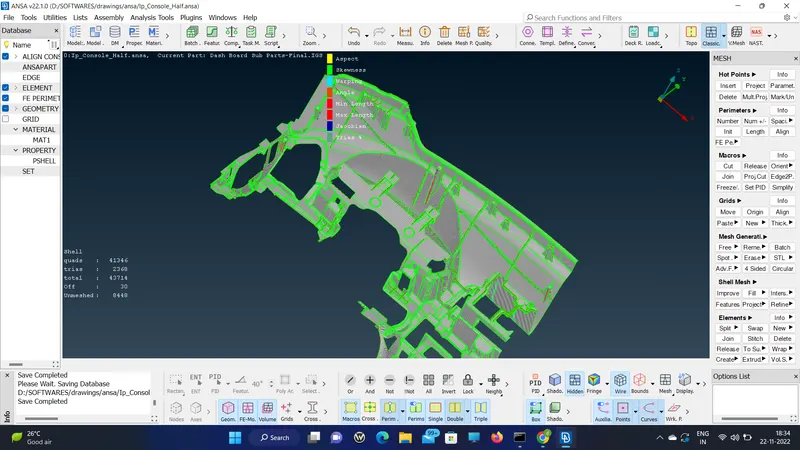

10. Thus elements failed 31 are can't able to clear due to cons near each other.

RESULT:

             Thus the learning outcomes are good practice in the align manager and mid-surfacing for difficult parts.
