Project 1 - 2D meshing on the instrumental Panel

AIM:- To mesh the given components.

OBJECTIVE:-

1. To check for geometrical errors.

2. To mesh the element with the given Quality criteria.

3. To assign the thickness to the model.

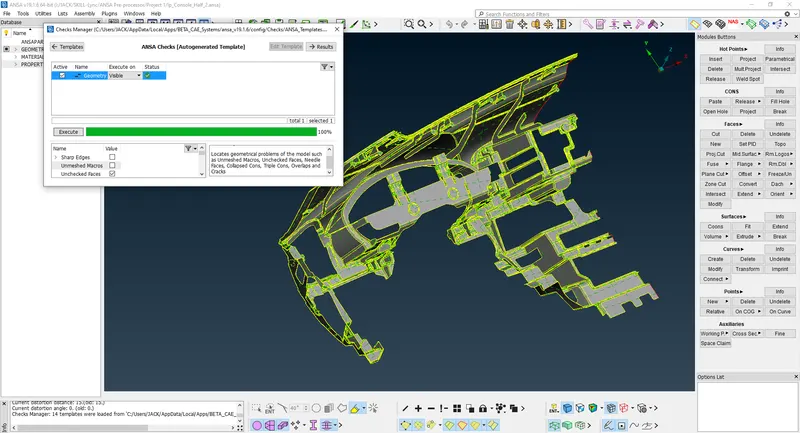

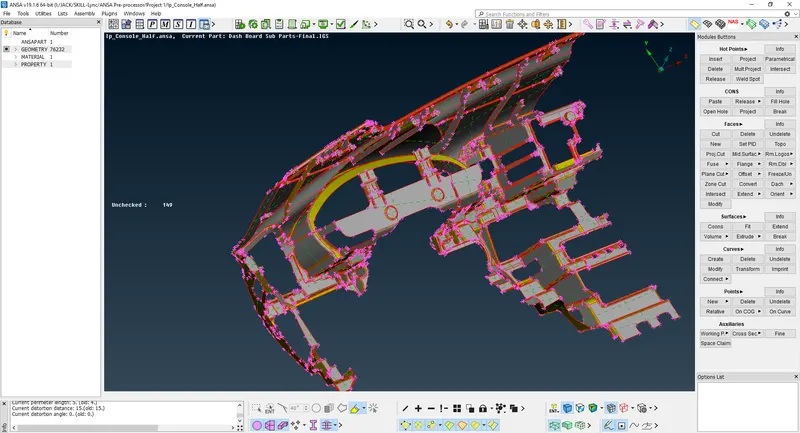

A. Geometry Clean-Up:-

The geometry is checked for any single con, triple con, cracked faces, etc, and fixed using the Topo module. Then go to check - geometry and click on execute.

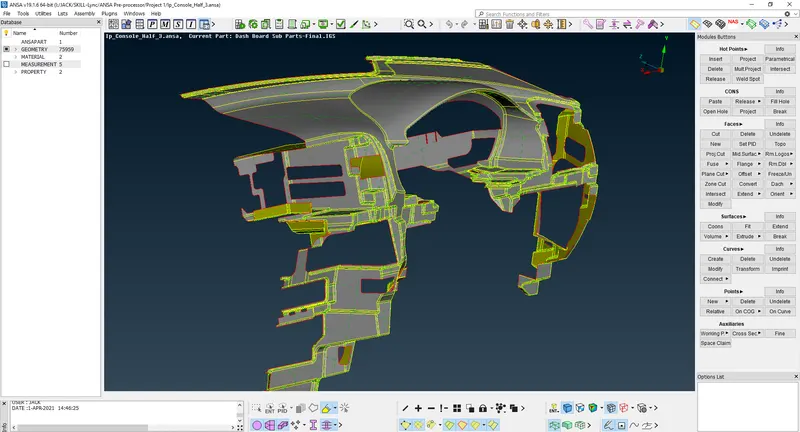

B. Midsurfacing:-

Auto midsurface is used: Topo-midsurface -casting/extrusion-give element quality criteria and extract the mesh

mor mid-surfacing,

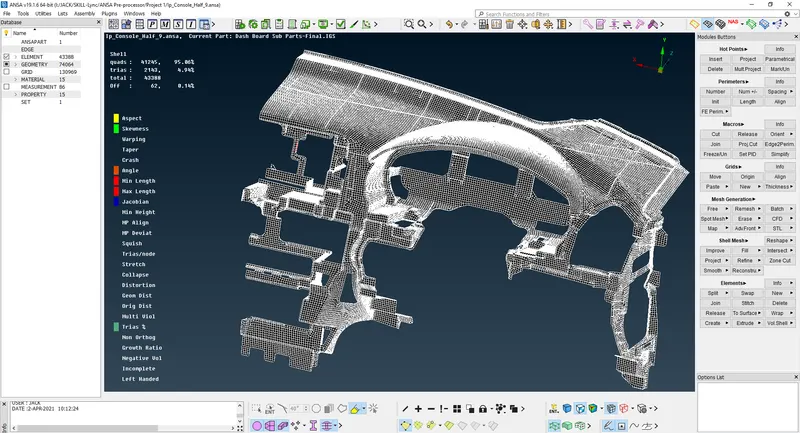

C. Meshing

 Meshing is done in accordance with given quality criteria.

S.No	Quality Criteria	Value
1	Target/Average length	4
2	Minimum Length	2
3	Maximum Length	6
4	Aspect	3
5	Warpage	15
6	Skewness	45
7	Jacobian	0.7
8	Minimum Quad Angle	45
9	Maximum Quad Angle	135
10	Minimum  Tria Angle	30
11	Maximum Tria Angle	120
10	Tria Percentage	15

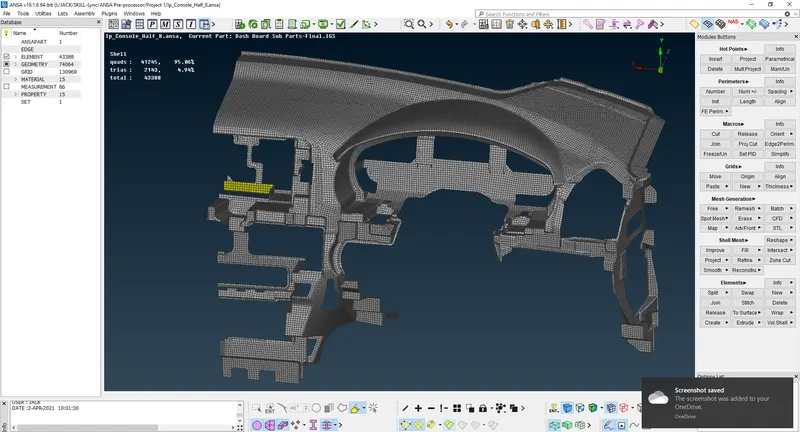

Component after thickness applied:-

LEARNING Outcomes:-

Learned to take mid of given component and meshing the given component with taking out the off elements.

CONCLUSION:-

The given model is meshed with given quality criteria and tried to remove as many as off elements to get good mesh flow. Also, the tria percentage is reduced.
