Project 1 - 2D meshing on the instrumental Panel

Aim: To Create Mid mesh for the Instrumentation panel using Casting tool.

Procedure : 1) Clean up the geometry , closing single cons and geometry issues.

2) change resolution to 1 mm for better visuaisation.

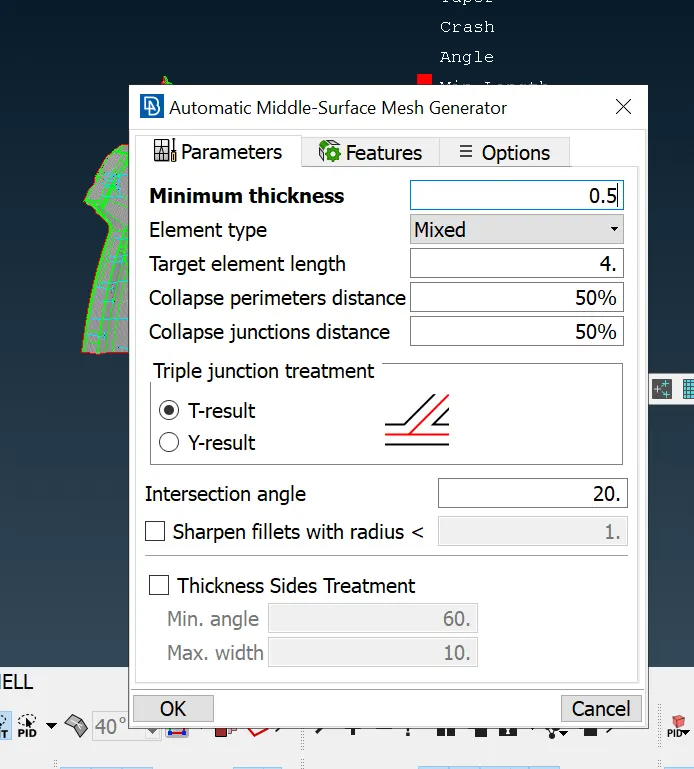

3) Select Casting option using the options mentioned in the image.

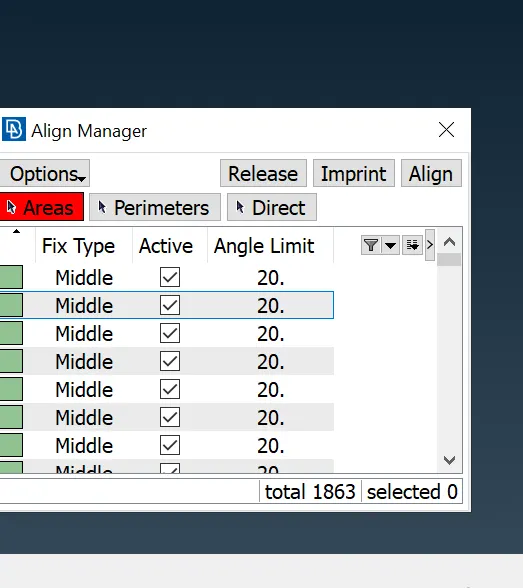

4) Using Allign manager, clear all the empty features t either mid or plane

6) Clear all mesh quality issues and create features as in geometry using project and extrude options .
