Project 1

Report:-

Starting with assembly:

here we have to download all the data with clips and connectors, next step is we have to create catalogues according to requirements, then we have to define all the clips and connectors electrically, then we can add everything into the catalogue.

Steps to create wiring harness on engine

step 1: open the assembly

step 2: create two sub assemblies (1: electrical harness geometric bundle)(2: clips)

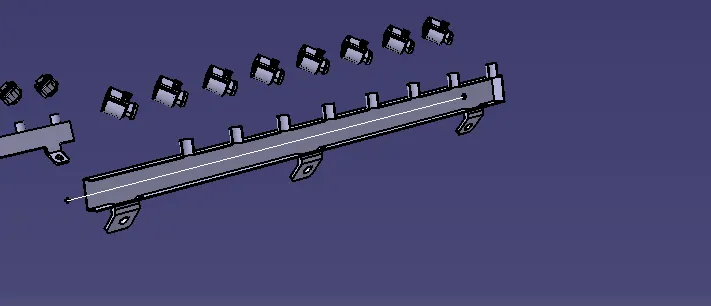

Step 3:- place all the connectors on the position we want to create assembly

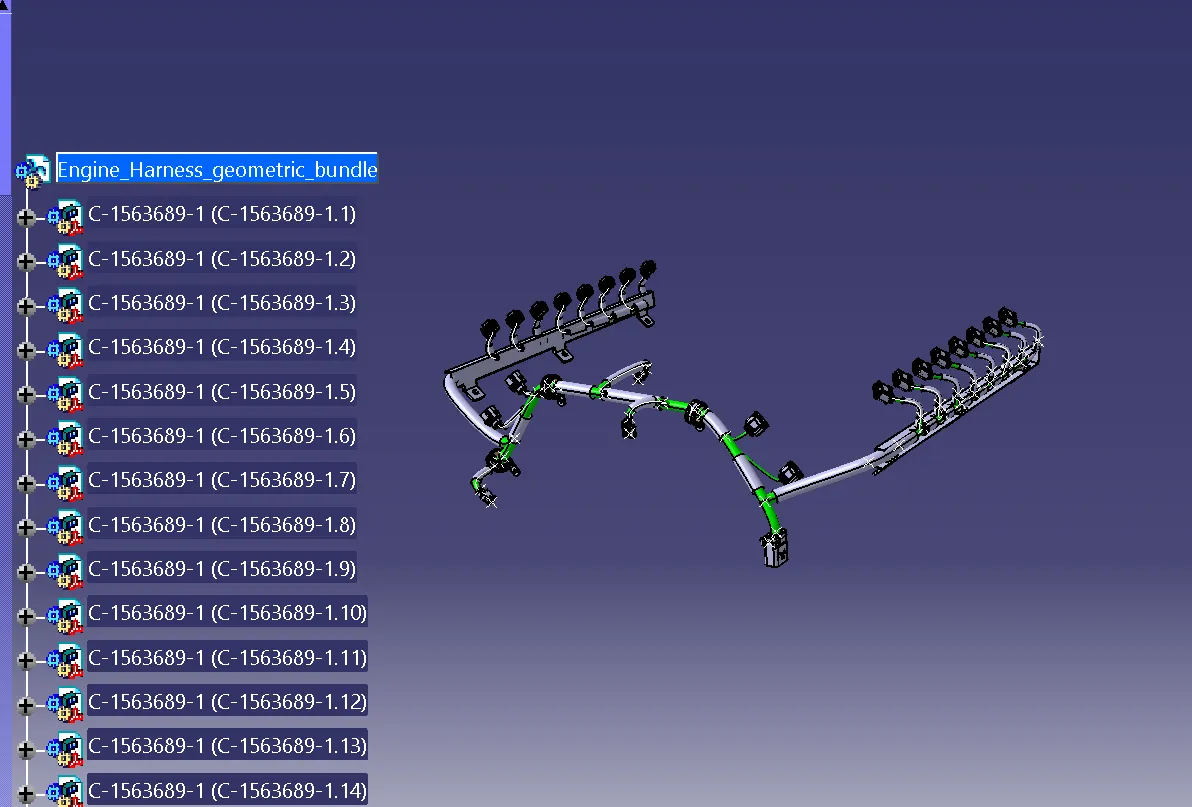

Step 4:- create wiring harness according to attachments using clips and connectors from the catalogue

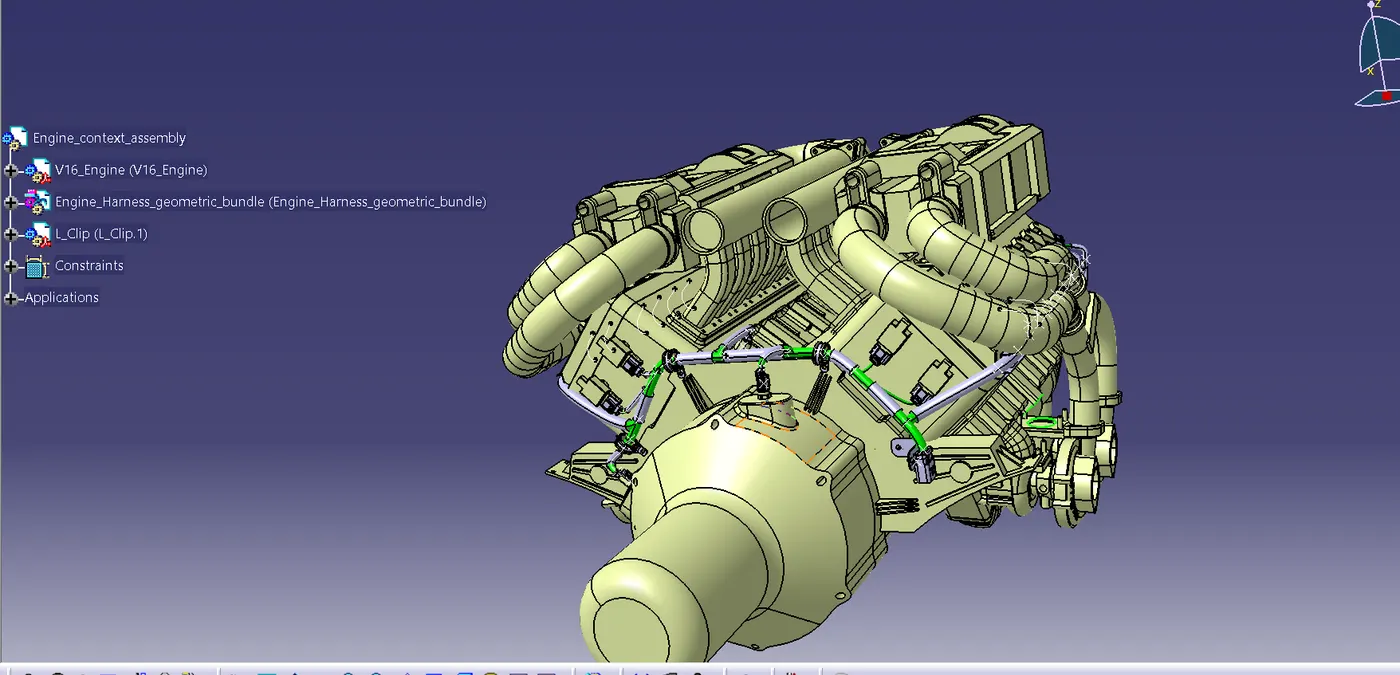

step 5:- create sketech to create wiring harness points for clips provided on both sides of the engine and also define the points for all the circular ways.
