Project 1

AIM: To Routing of engine harness for v16 engine and should apply all packaging rules.

GIVEN DATA:

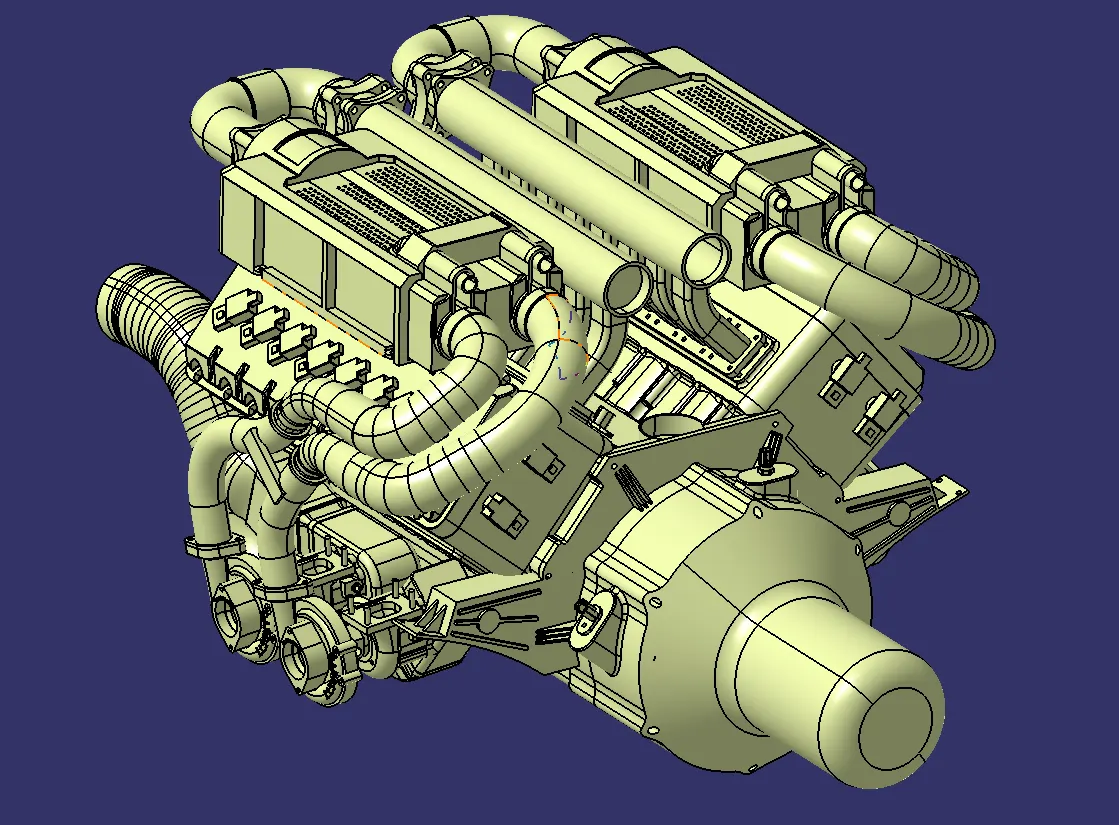

<!-- [if !supportLists]-->·        <!--[endif]-->Given engine is V16 engine as shown in above image.

<!-- [if !supportLists]-->·        <!--[endif]-->Data analysis of engine as follows-

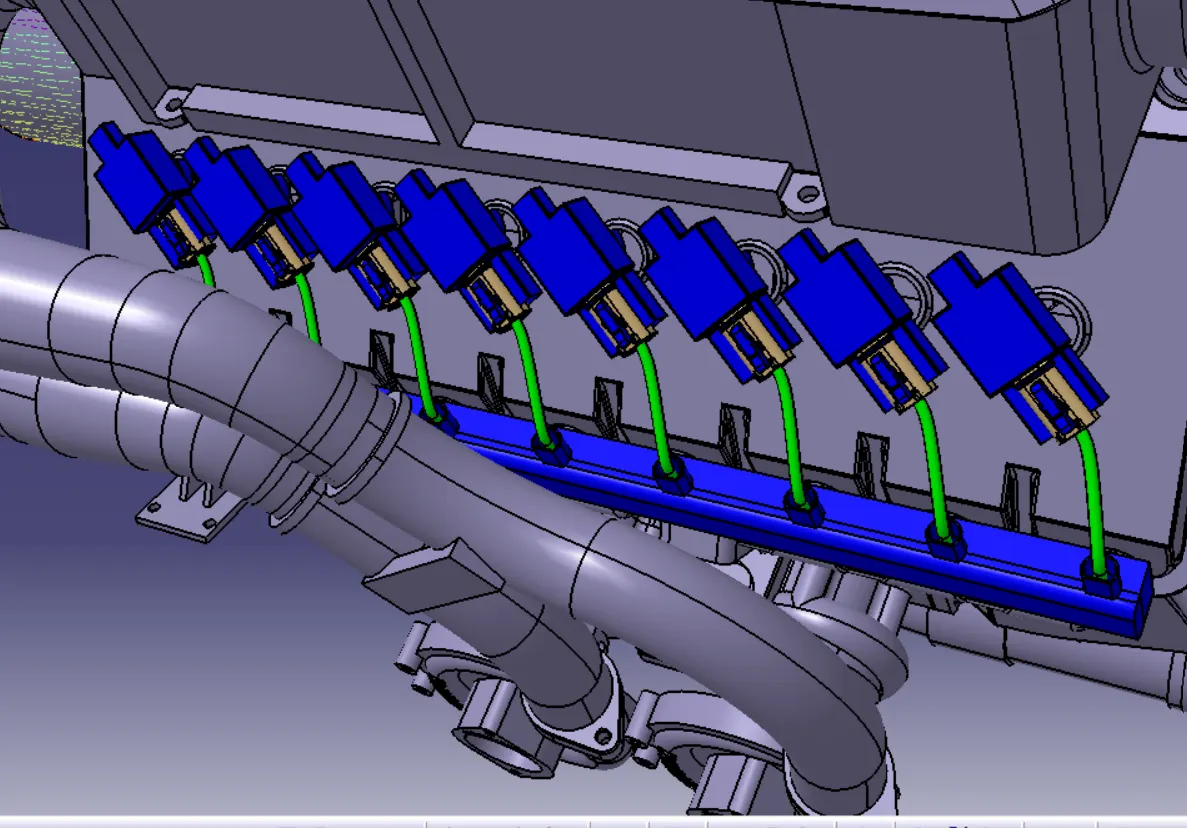

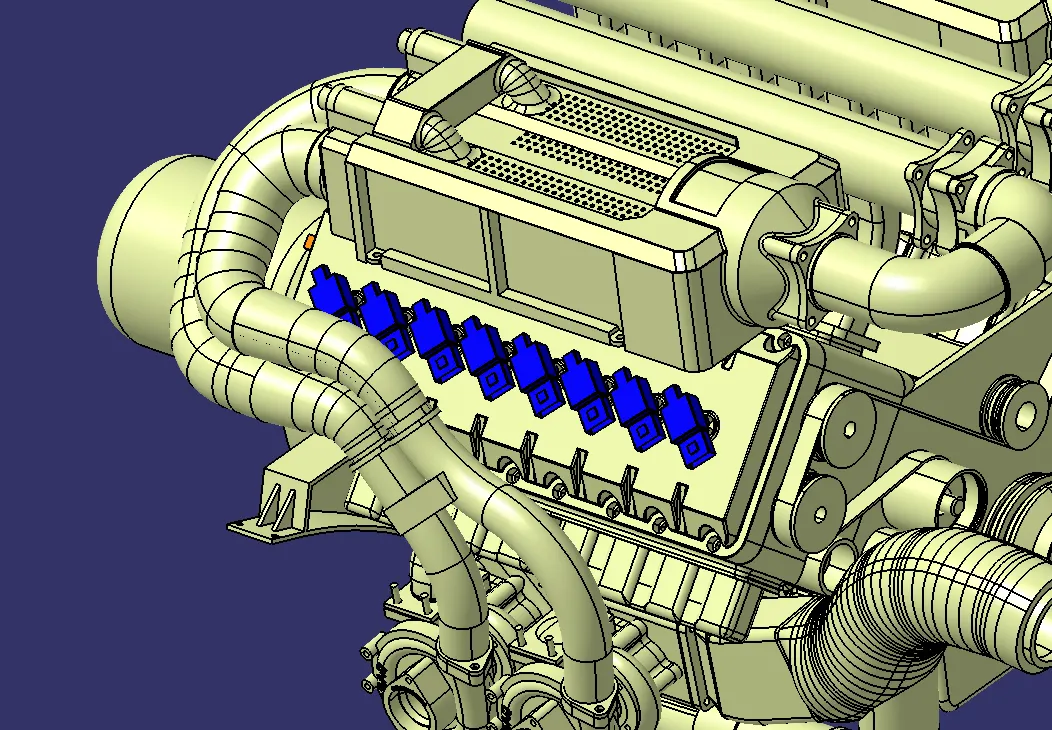

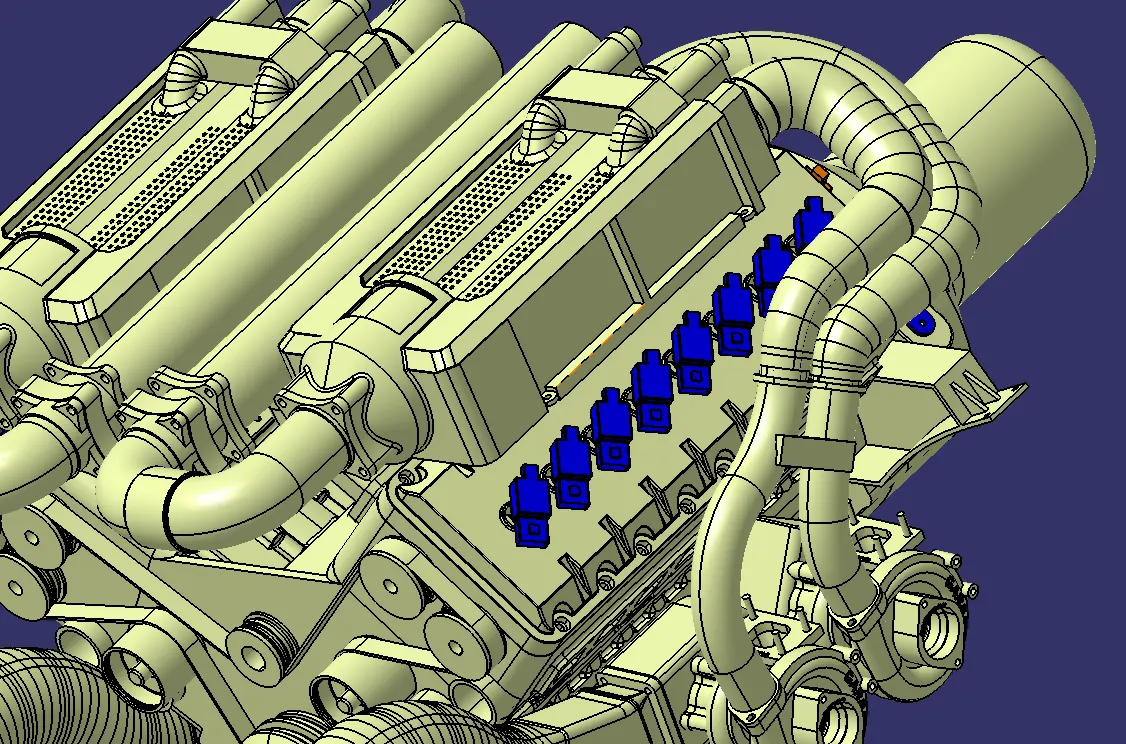

<!-- [if !supportLists]-->·        <!--[endif]-->There are 8 injectors are placed on 8 cylinders on the left side of the engine, sententiously on the right side of the v16 engine. I have coloured them in bule colour. As you can see in below images.

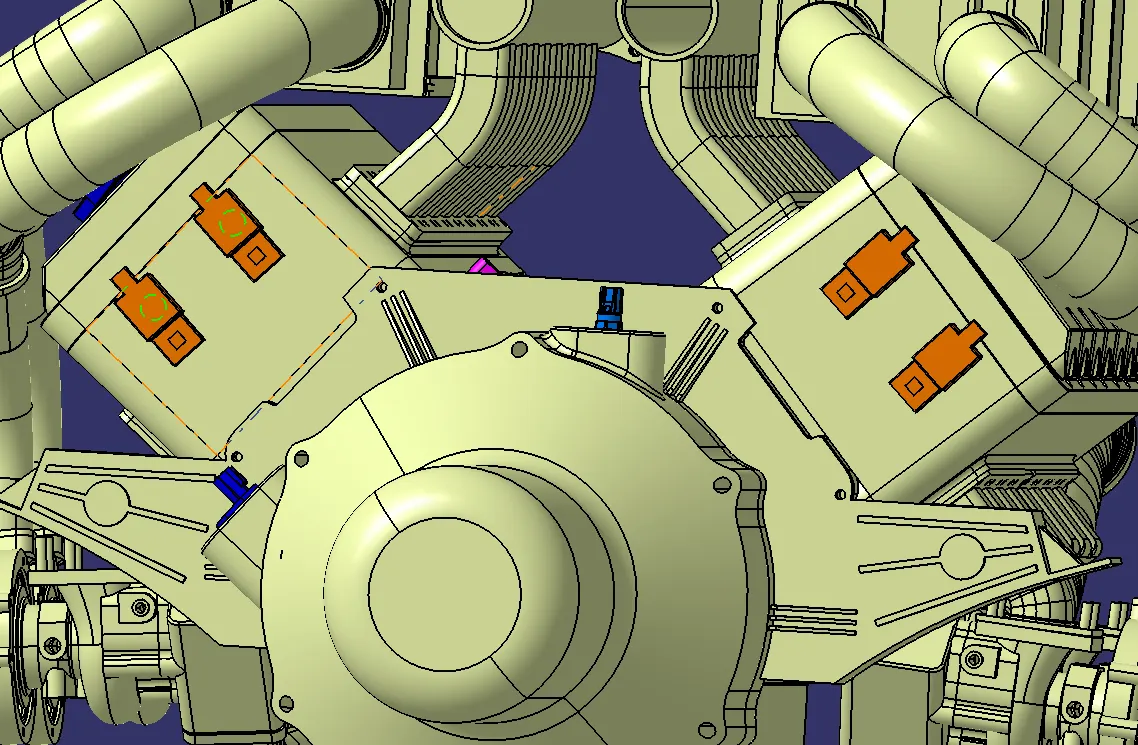

<!-- [if !supportLists]-->·        ·        On Two block of engine there are total 4 camshaft sensors present. Each block contains 2 sensors. I have coloured them in orange colour.

<!-- [if !supportLists]-->·        <!--[endif]--><!-- [if gte vml 1]> <![endif]--><!-- [if !vml]-->

<!--[endif]--><!-- [if gte vml 1]><![endif]-->

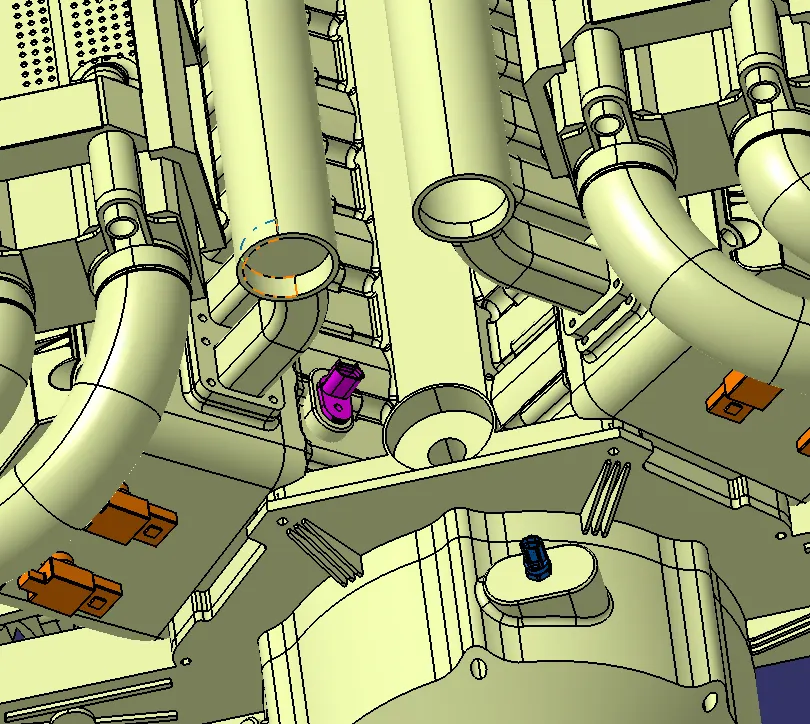

In centre of the engine block, we have temperature sensor. I have coloured in violent colour.

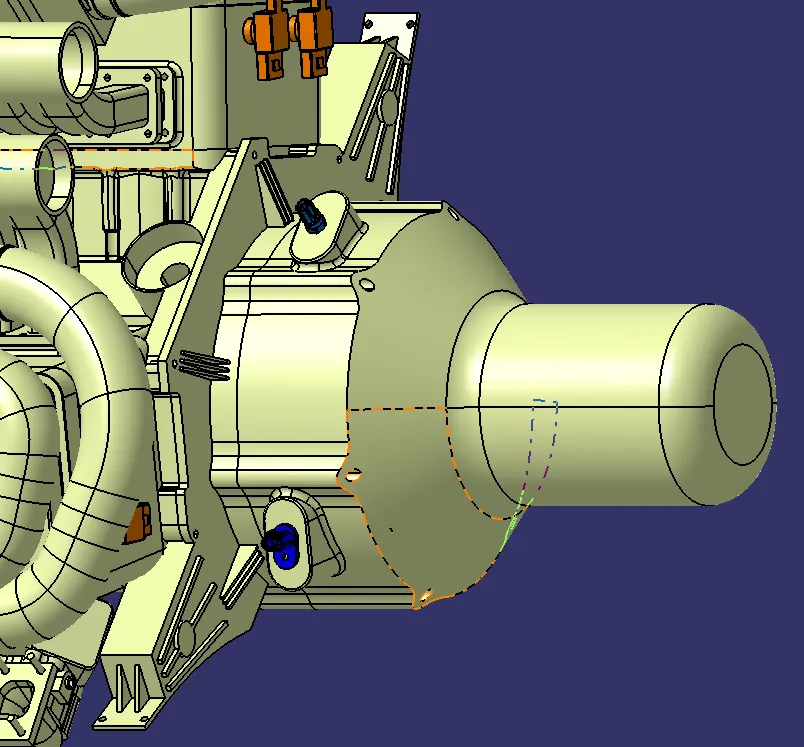

<!-- [if !supportLists]-->·    On the transmitter block we have two other sensors, one is for vehicle speed and another is for neutral position oof the vehicle. I have coloured them in bule colour.

CATALOG USED :

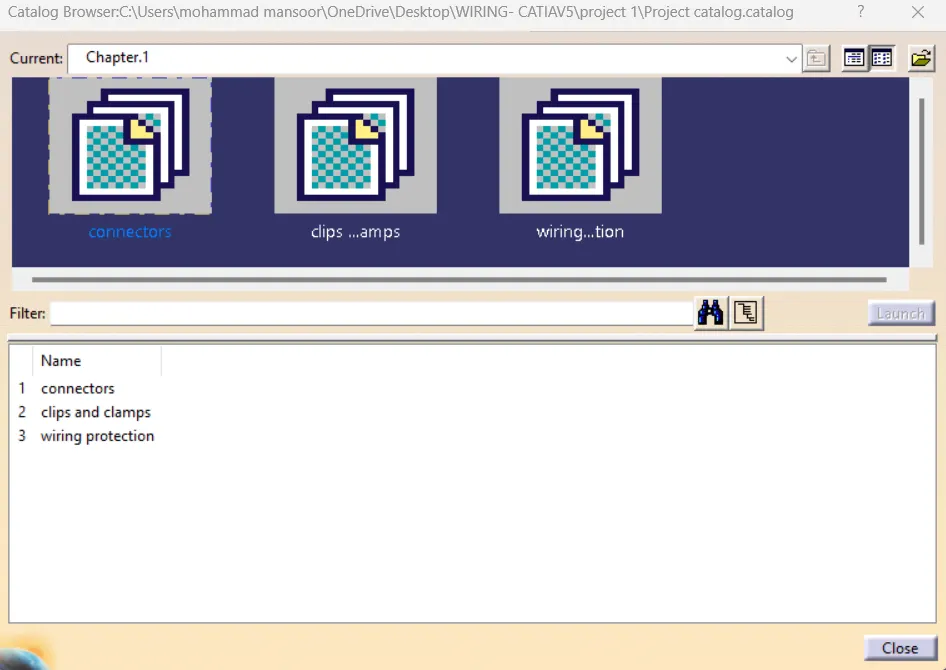

Project Catalog:

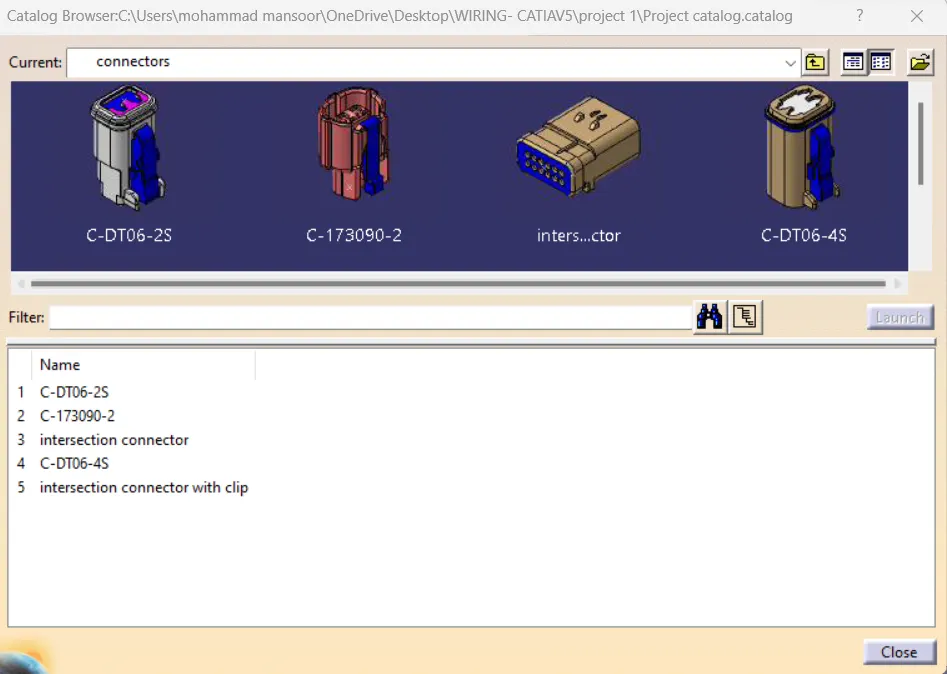

All the connector are electrically defined and added into catalog:

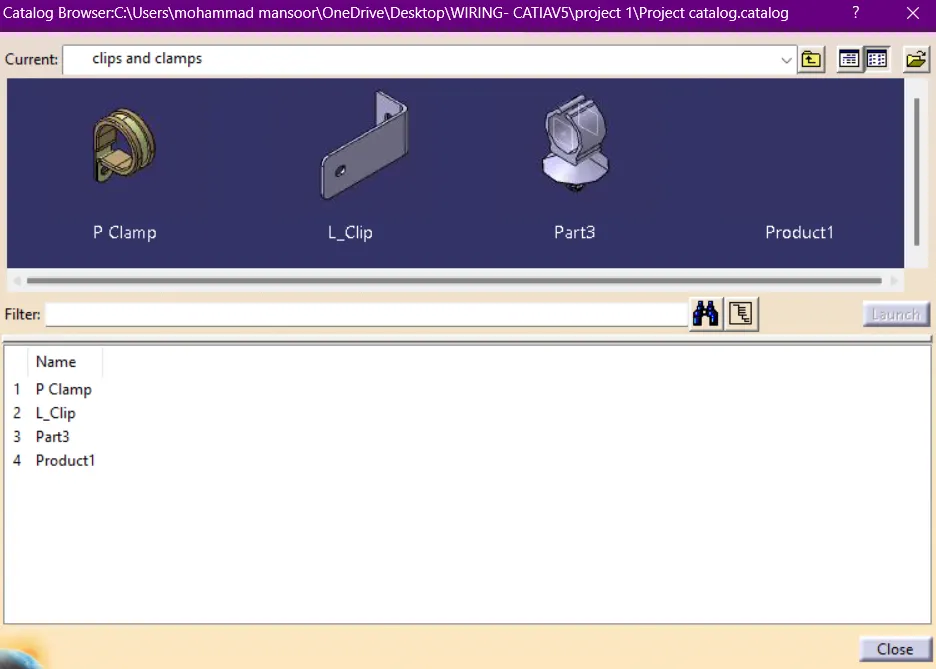

All clip are defined as support or electrical equipment and added into catalog:

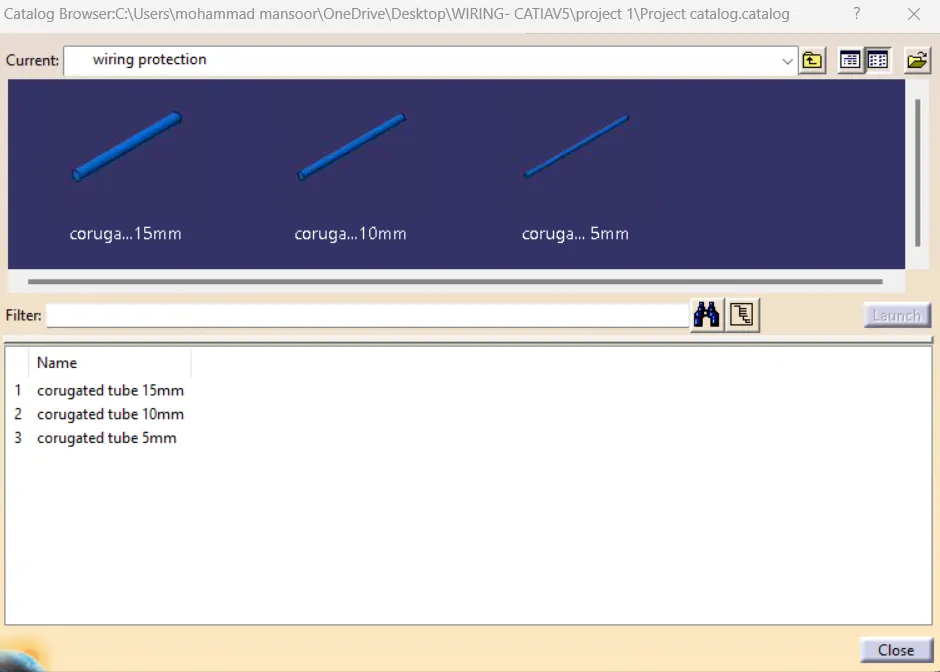

All wiring protection and corrugated tubes added into catalog :

 All the connector are placed according to analysis given above and as sown in below images :

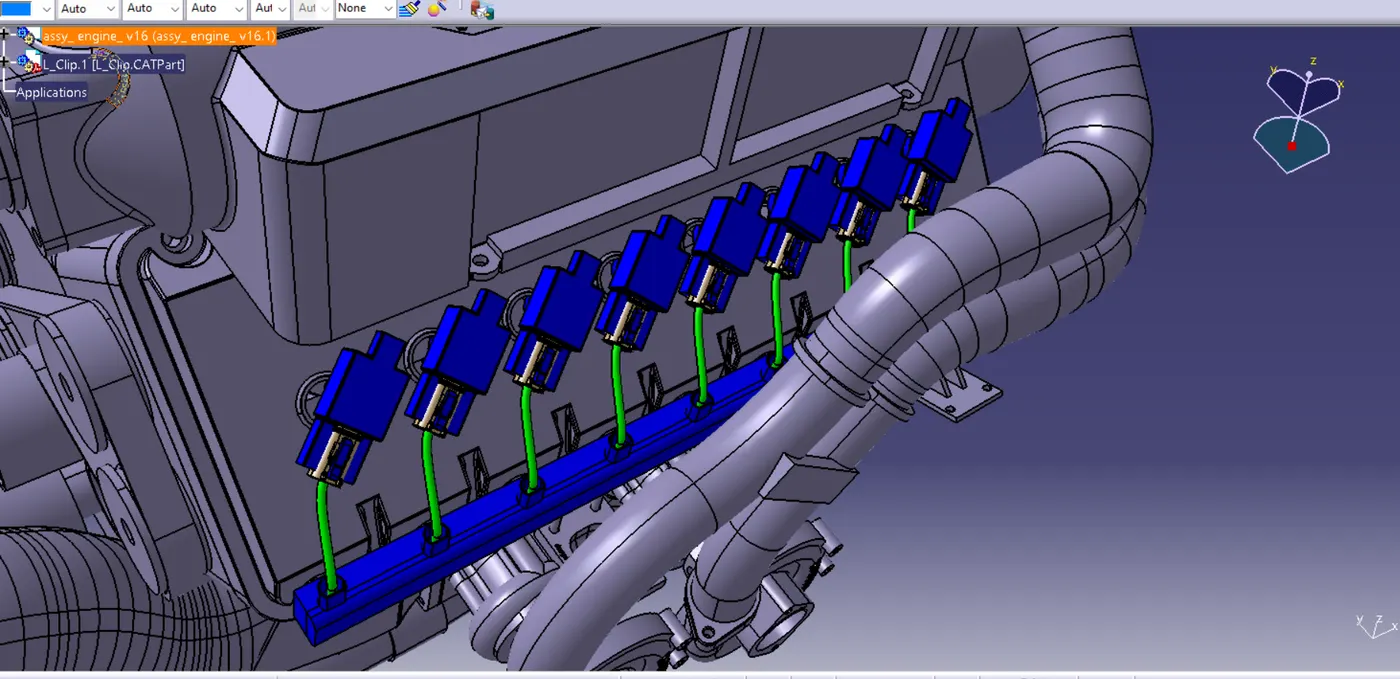

There are 8 injectors are placed on 8 cylinders on the left side of the engine, sententiously on the right side of the v16 engine. for those injectors 4 pole connectors are connected to the those injector sensors. for manageble wiring harness a channel is clamped on each side on the engine block.

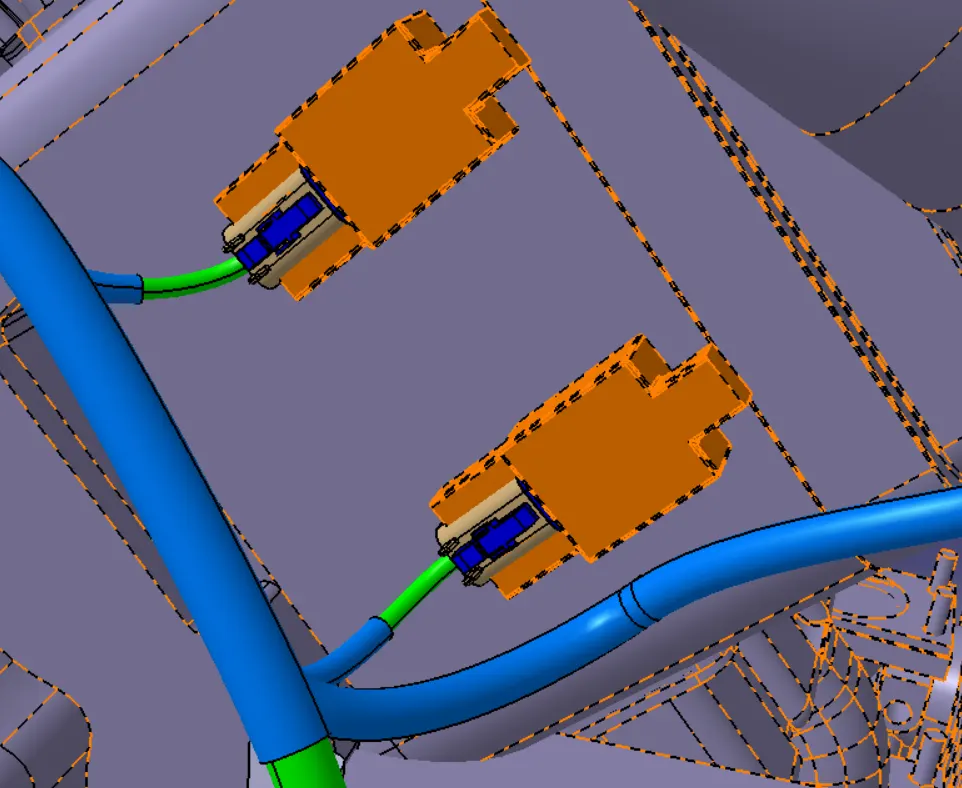

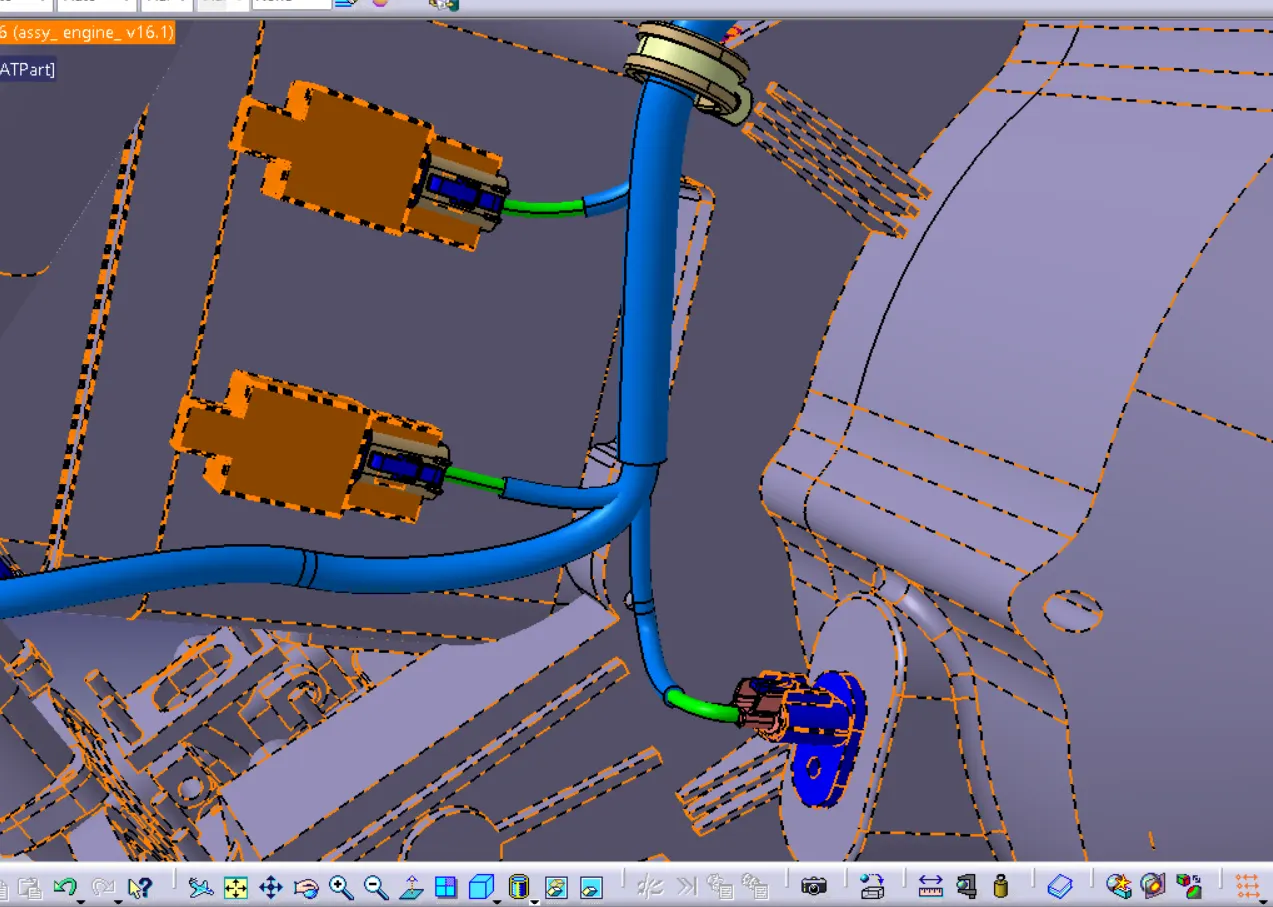

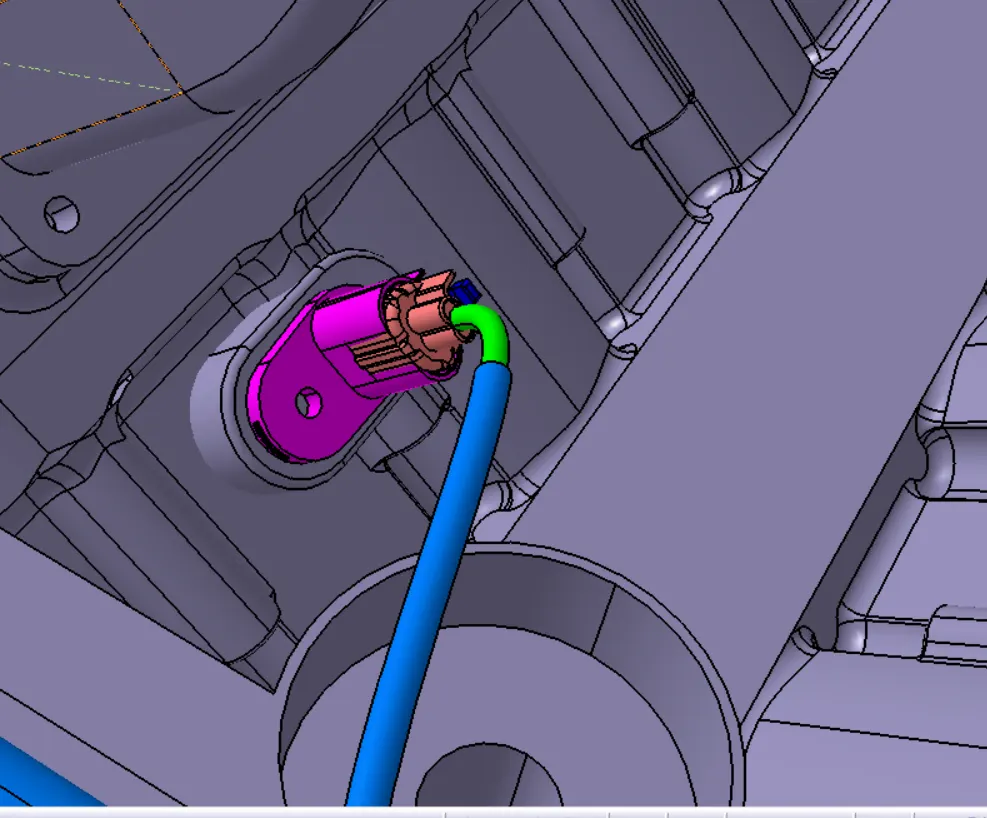

in below image we can see one camshaft sensors present. Each block contains 2 sensors so two four pole conectors are connected to the sensors and one On the transmitter block we have  another sensors, it is for vehicle speed and 2 pole connector is connected to that sensor.

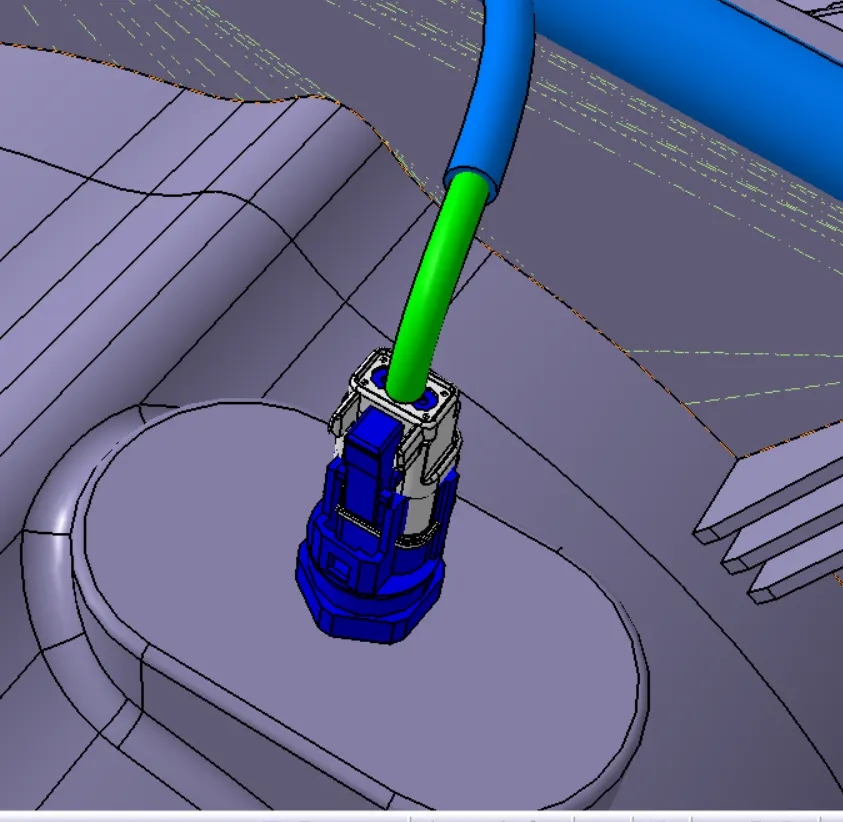

In centre of the engine block, we have temperature sensor. a 2 pole connector is connected to temperature sensor.

On the transmitter block we have  another sensors, it is for vehicle speed and 2 pole connector is connected to that sensor.

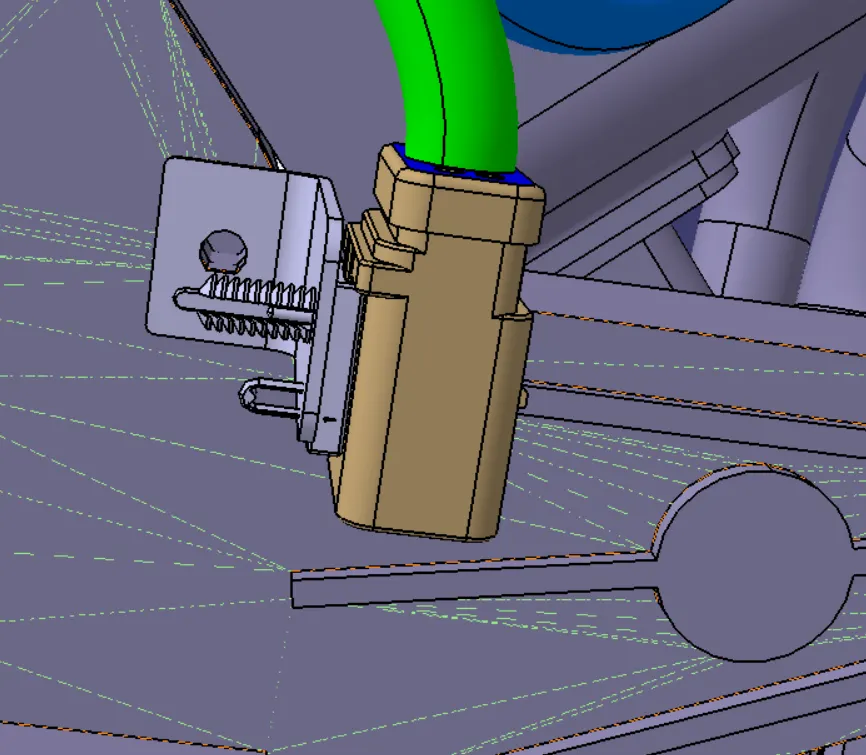

 Interconnection connector is clamped on L clamp and with help of cavity block.

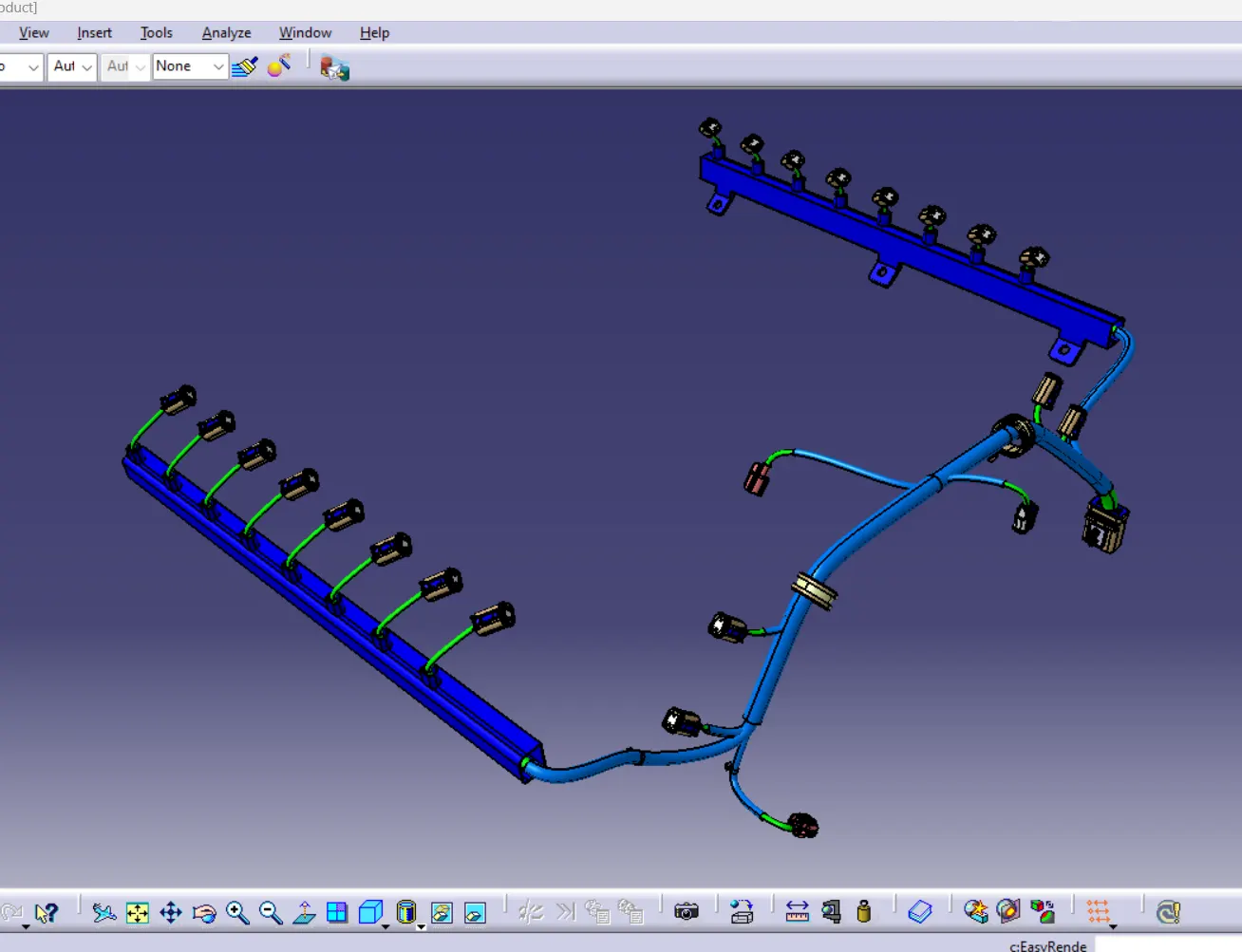

Wiring harness of v16 engine : wiring harness bundle with wire protection (corugatted tube ).

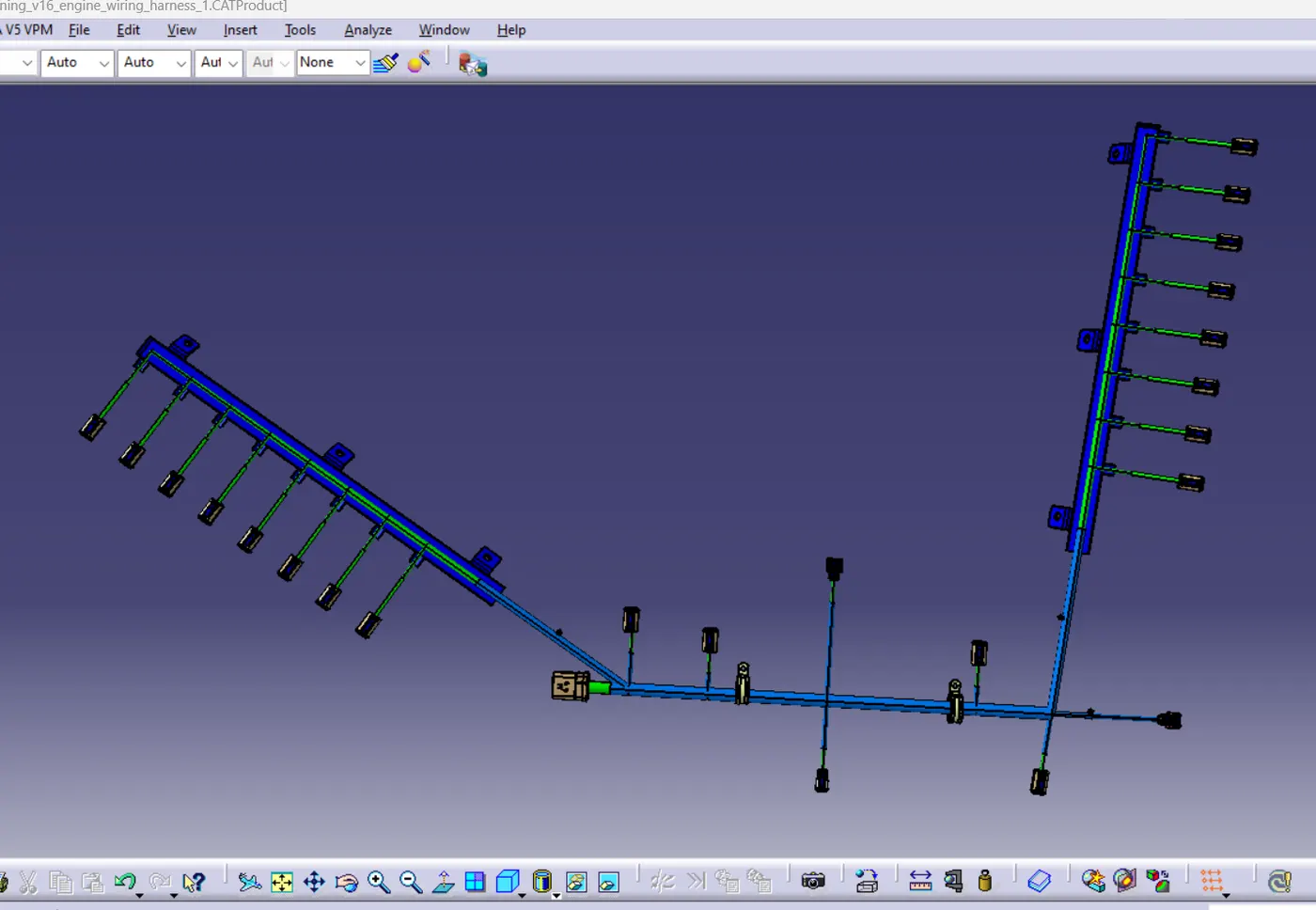

Flattening of wiring harness of v16 engine:

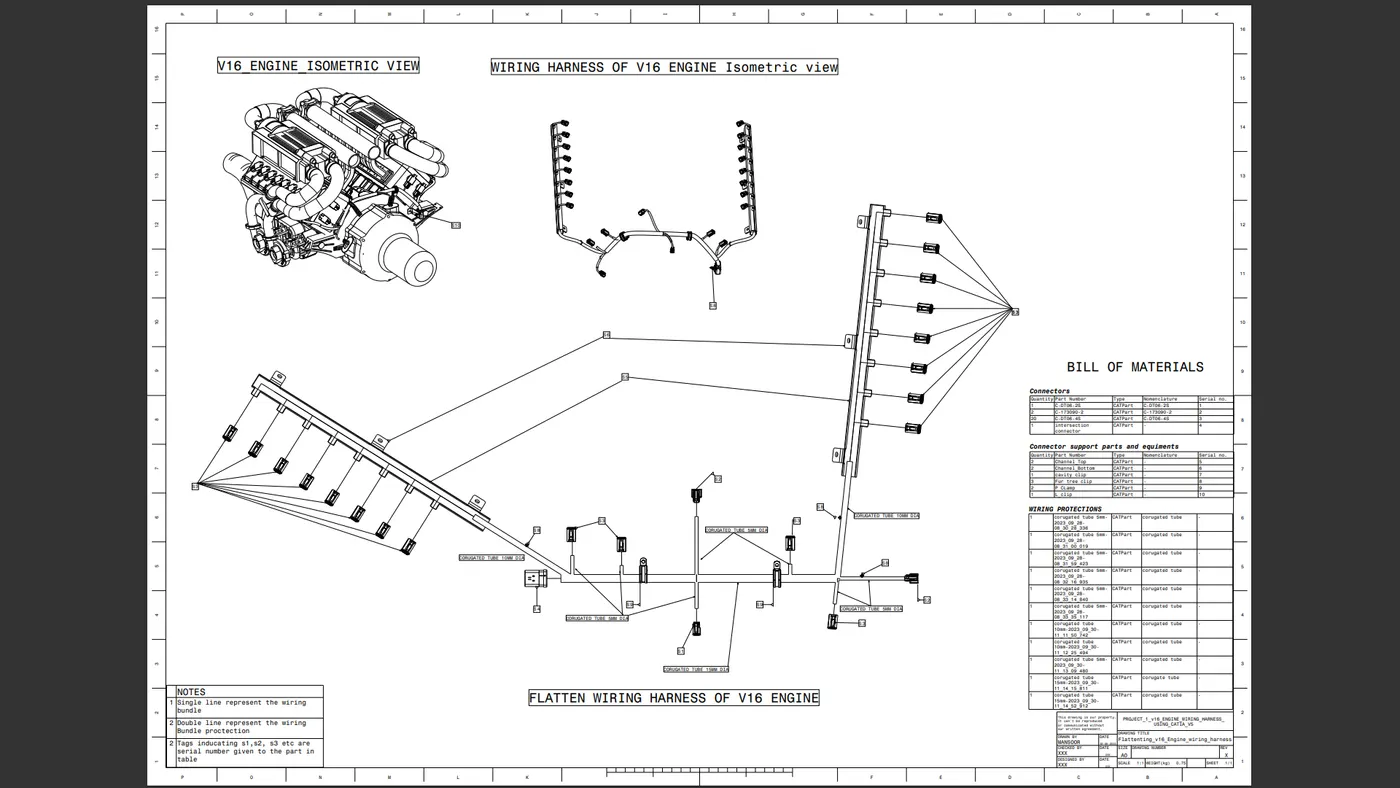

Drawing of wiring harness of v16 engine (2d):
