WIRING HARNEDSS DESIGNNING

Downloaded the required connectors,channels clips and defined it as electrically

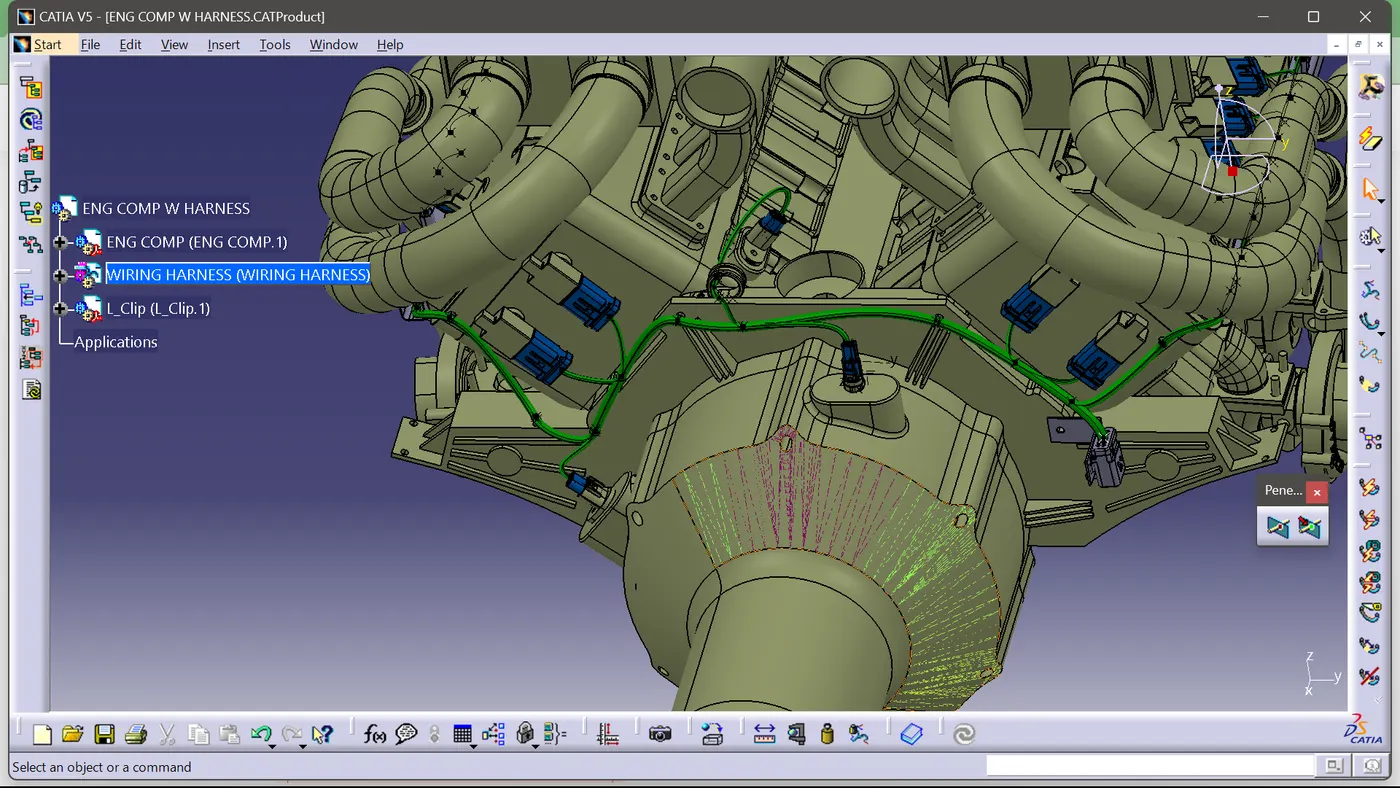

Arranged the proper famale connectors to appropriete area also provided the fir tree clips to required area.

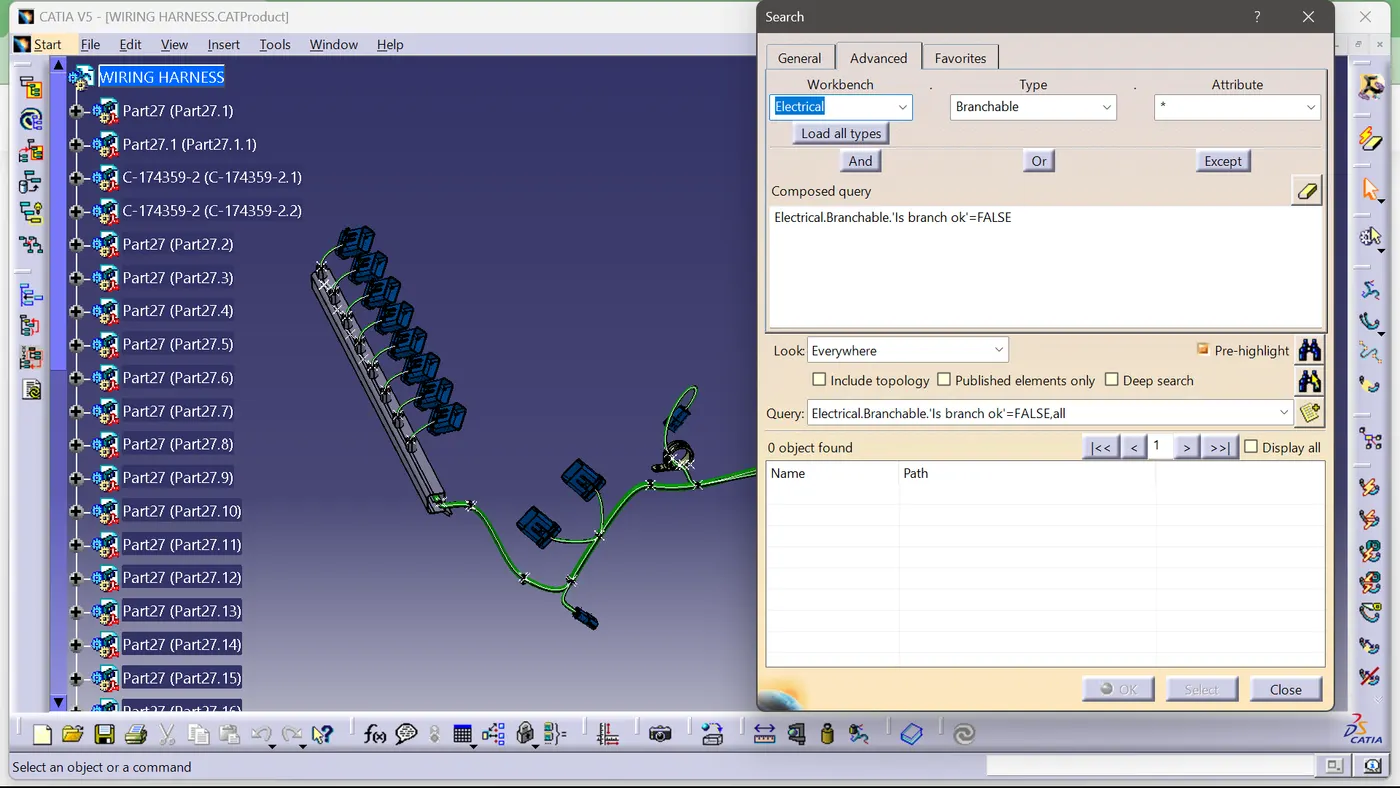

Then moved to electrical harness assembly workbench and first defined all the parts agin as a electrical component.

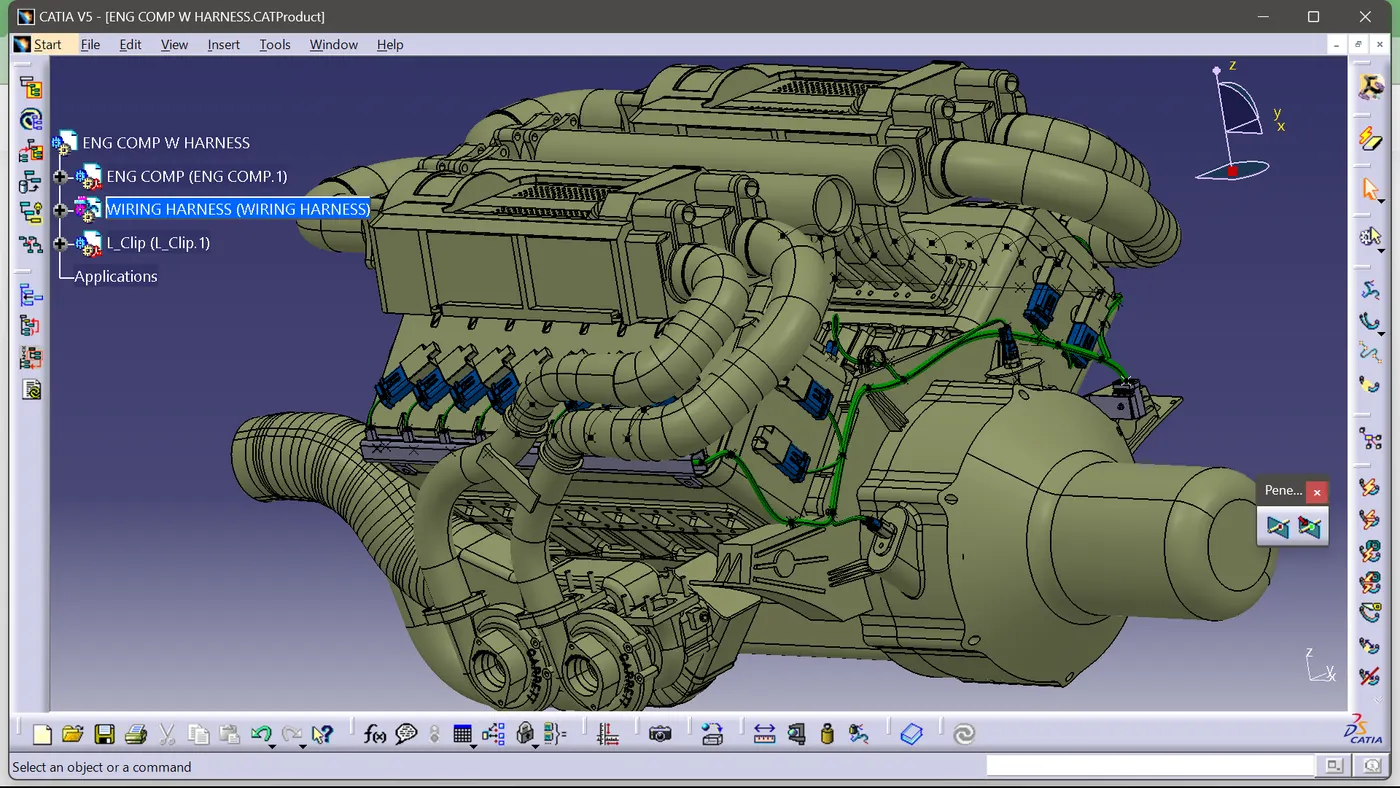

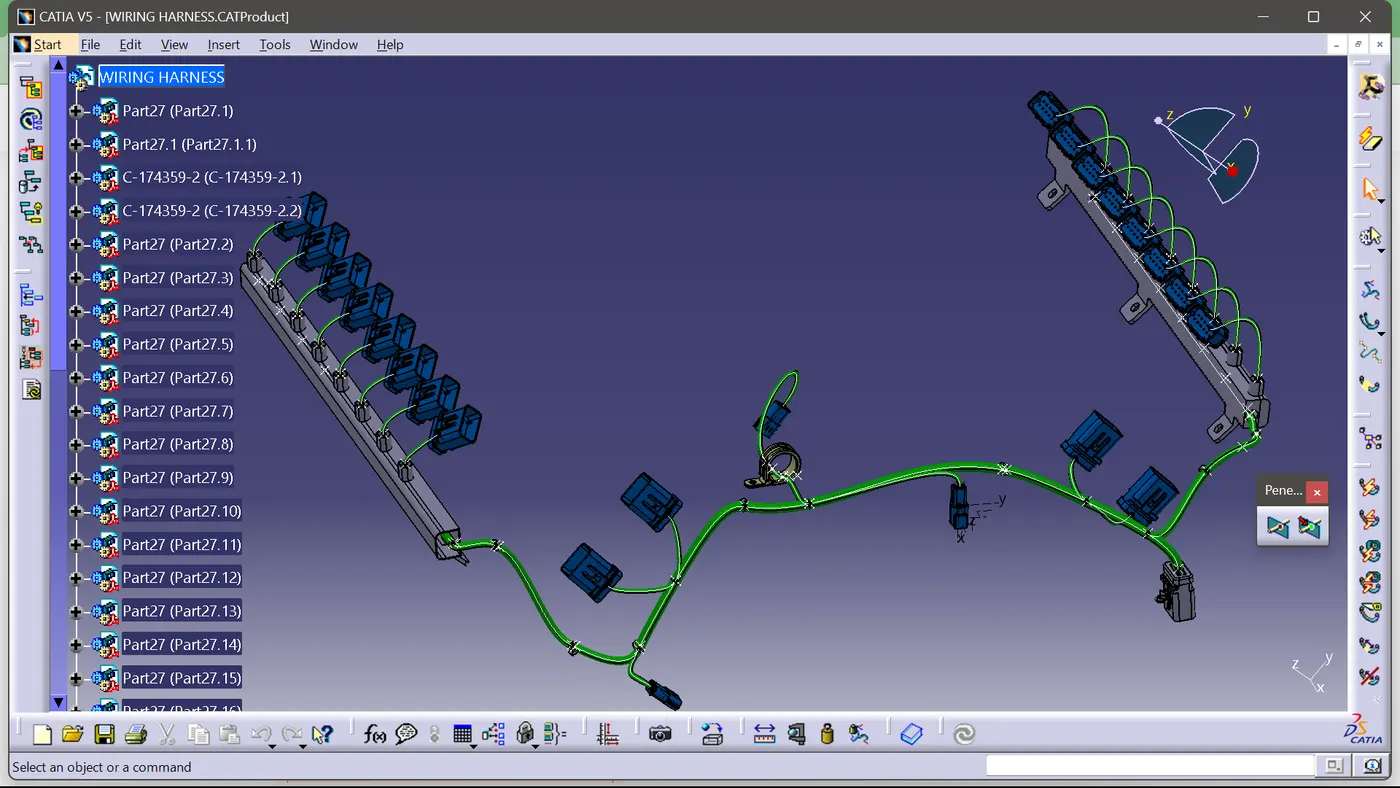

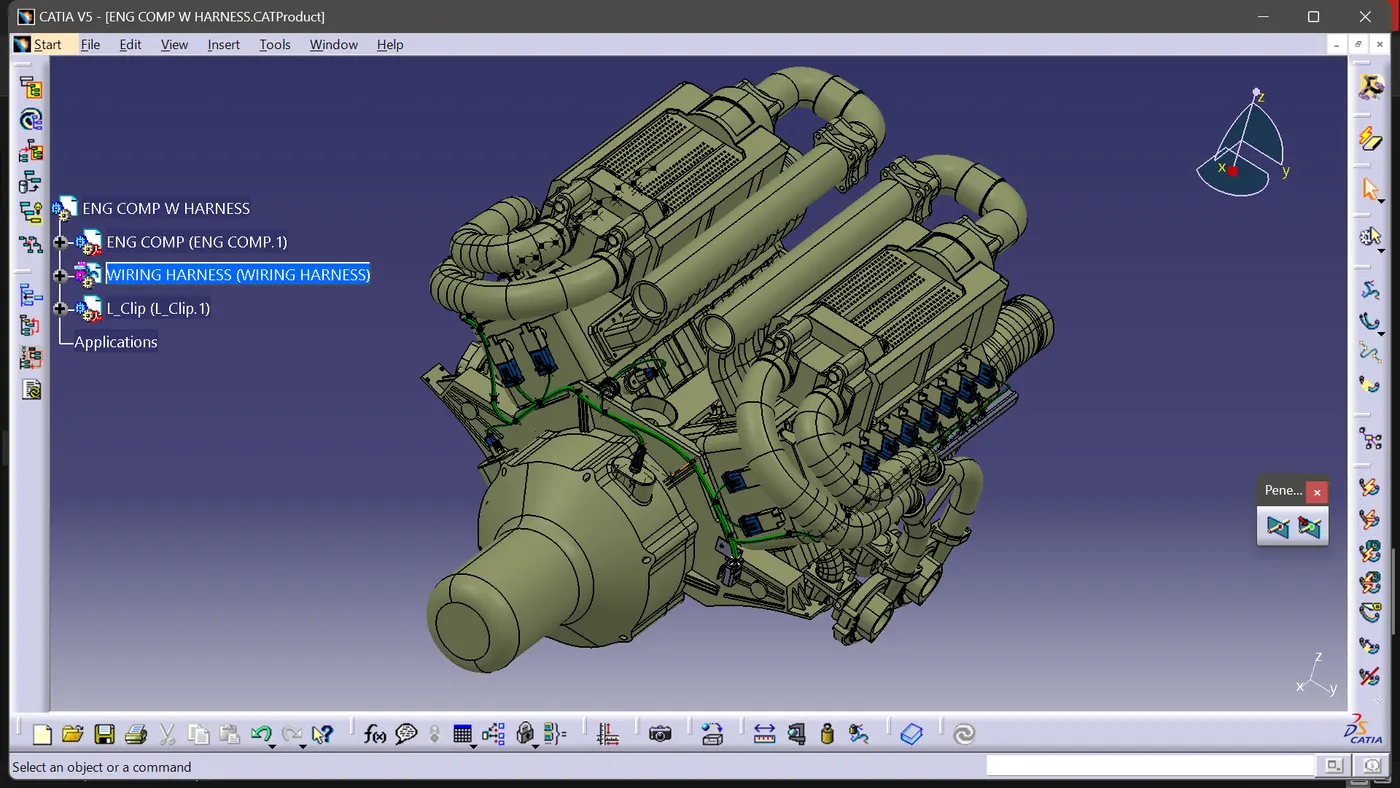

Then started working on the connection of wring harness.
Added some more fir tree clips and p clamps and arranged in correct manner and in pokayoke

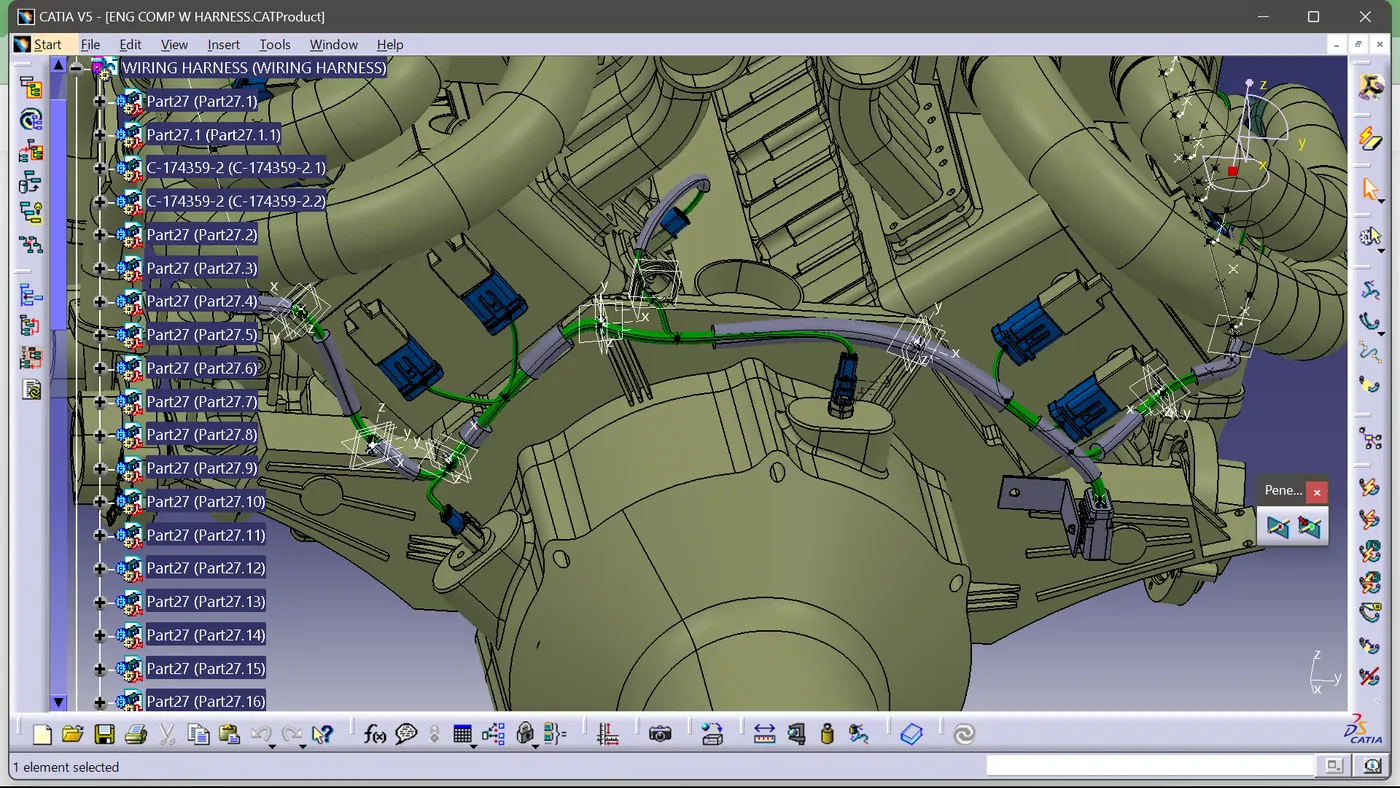

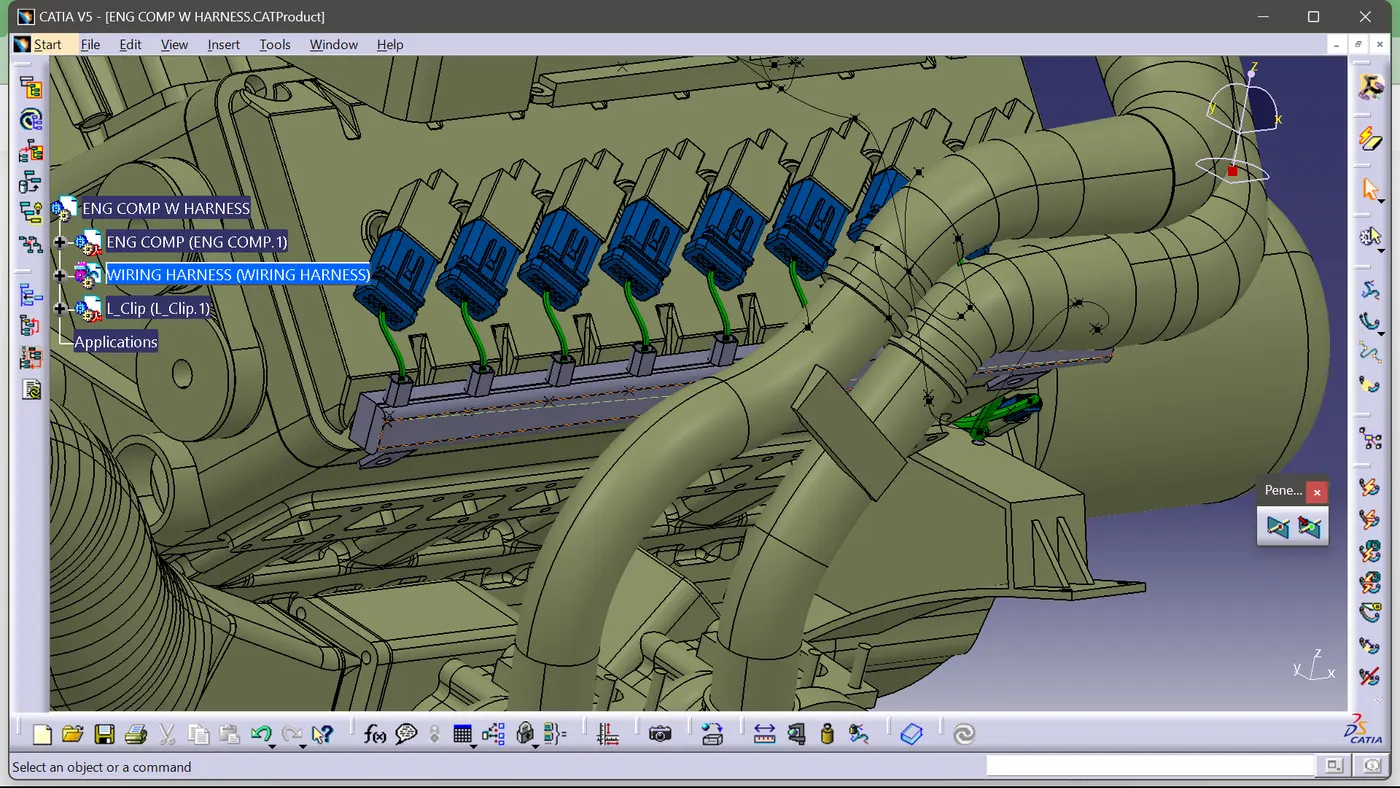

In the case of channels provided external curve to connect with the connectors that provided on the engine
Done as same as to the other side channel.
The second channel was not properly fitted so done some changes in channel bottom side to provide a correct path to the wiring.
After that fited proper cottube addition for the wiring to have retension from the heat.

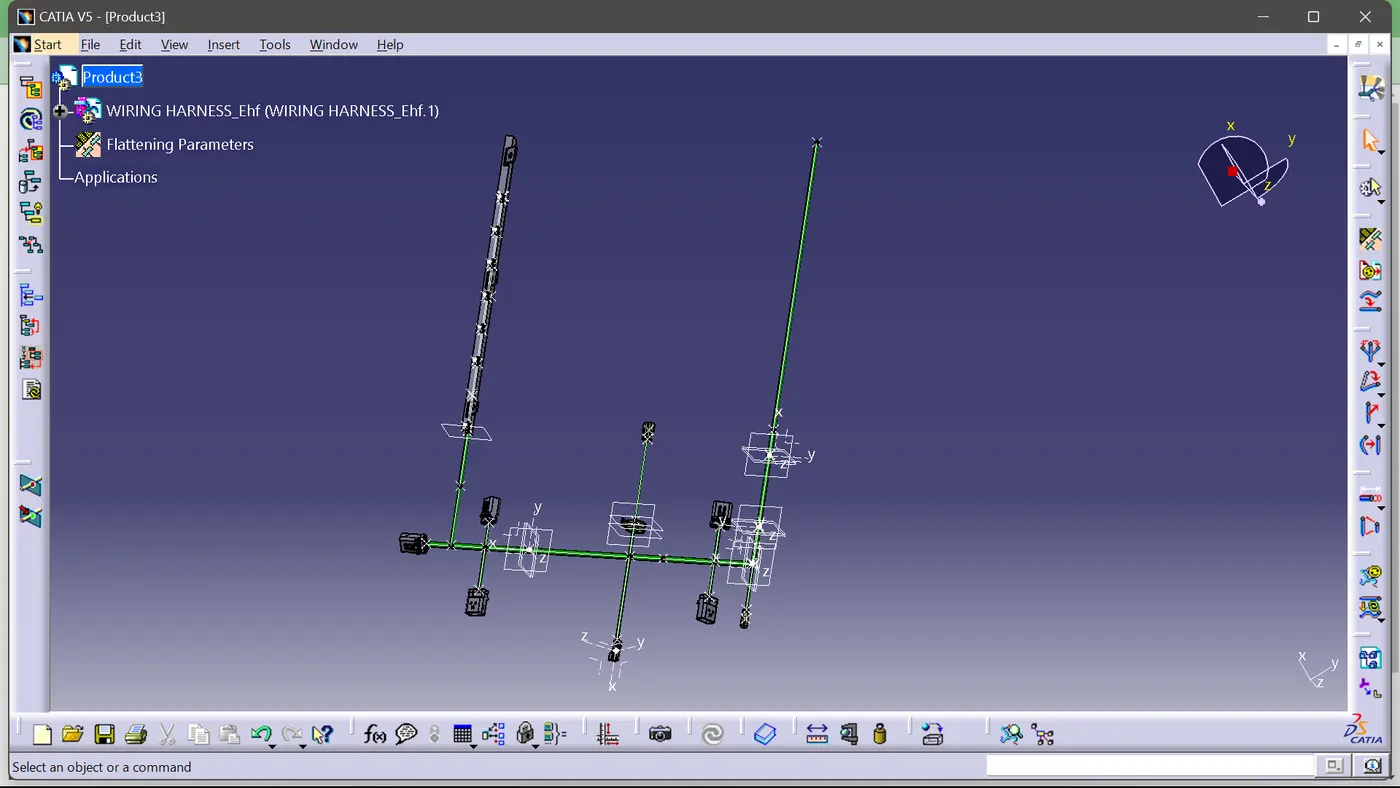

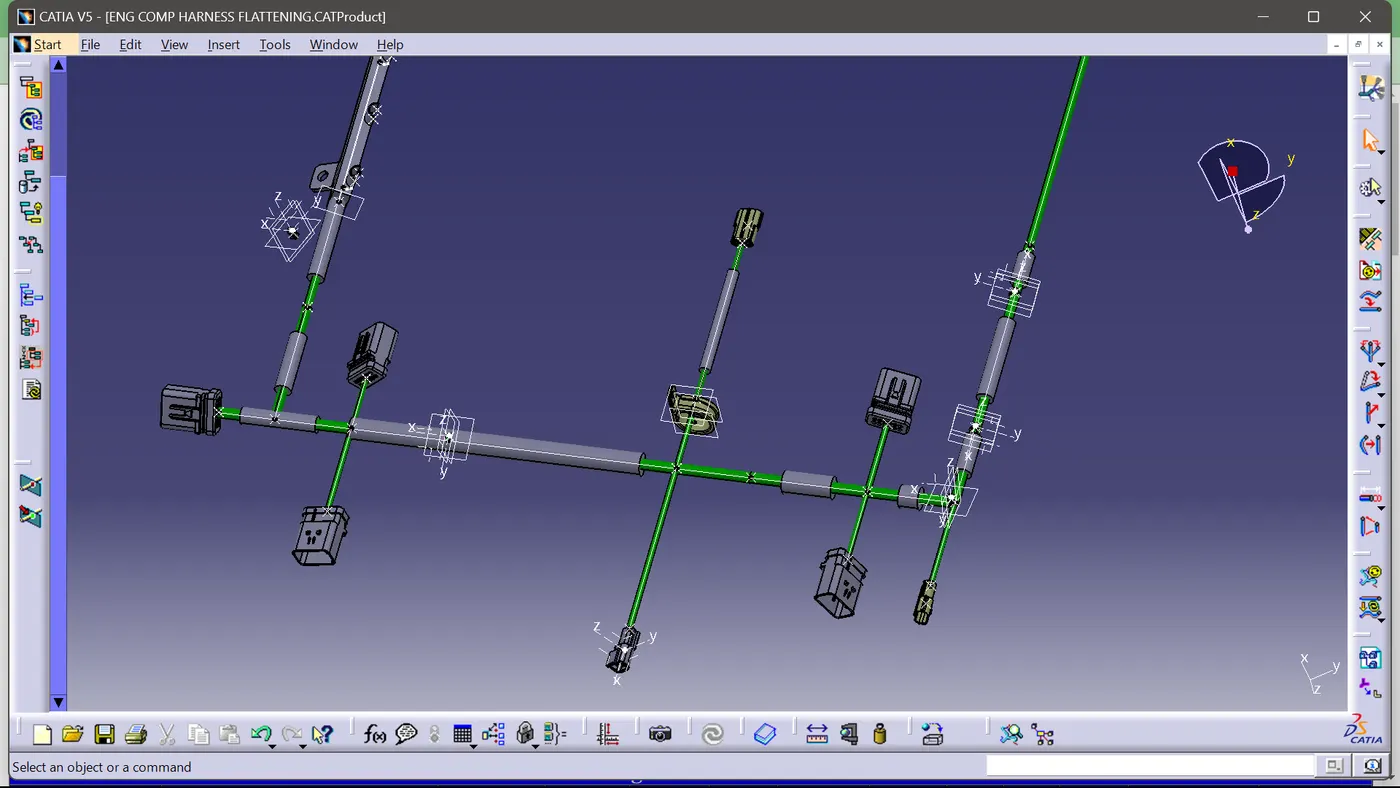

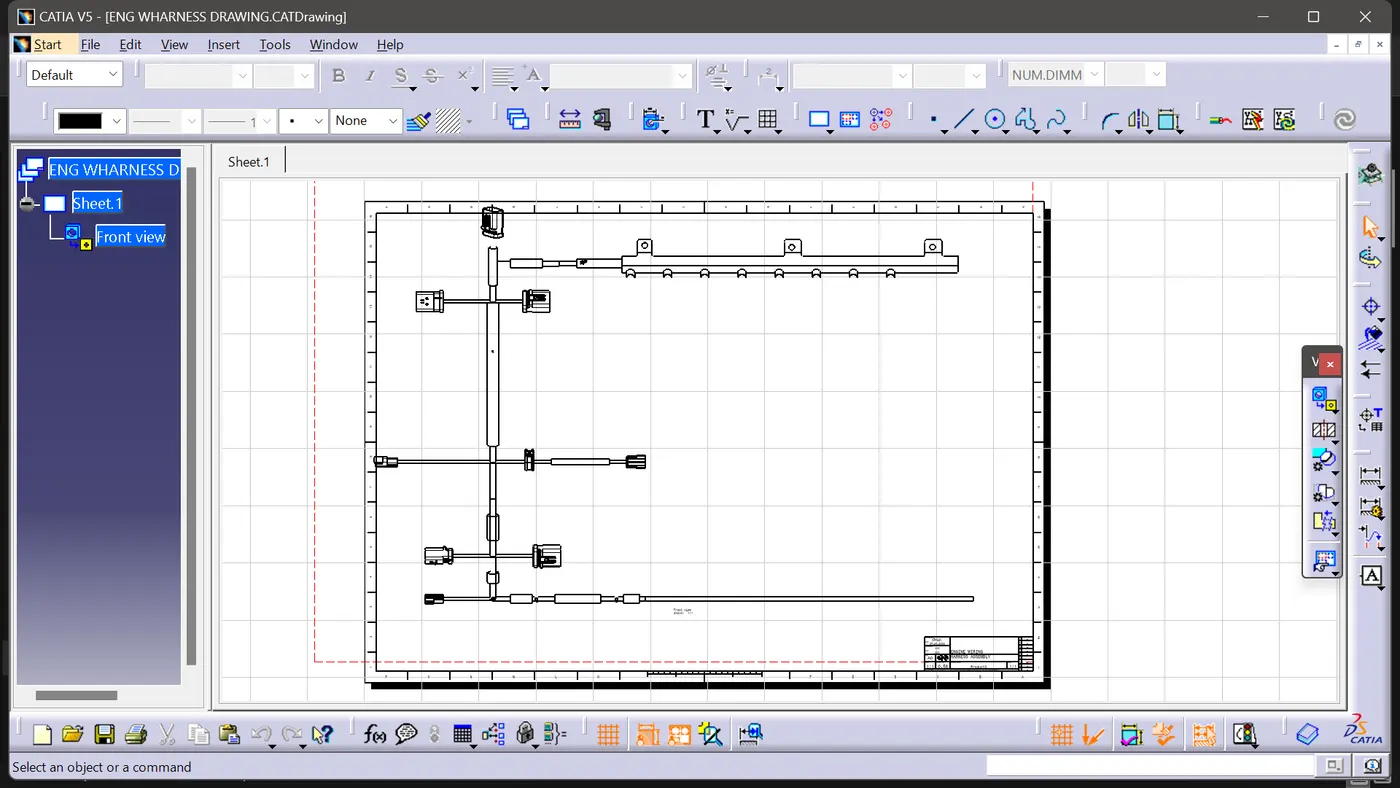

Finally prepared flattening in wiring harness for better clarifiy in the routing
