Project 1

MMukesh Purbey12 Aug 2023

Part A:

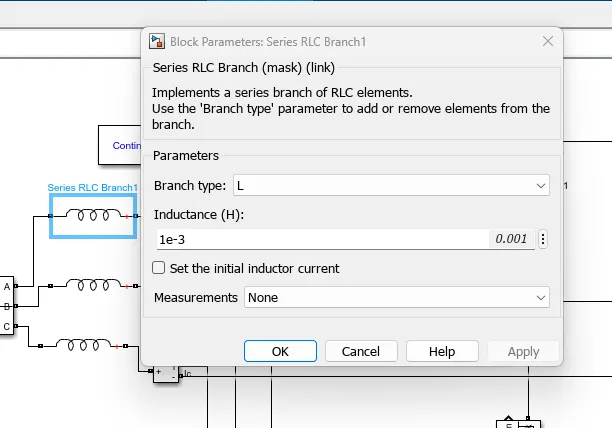

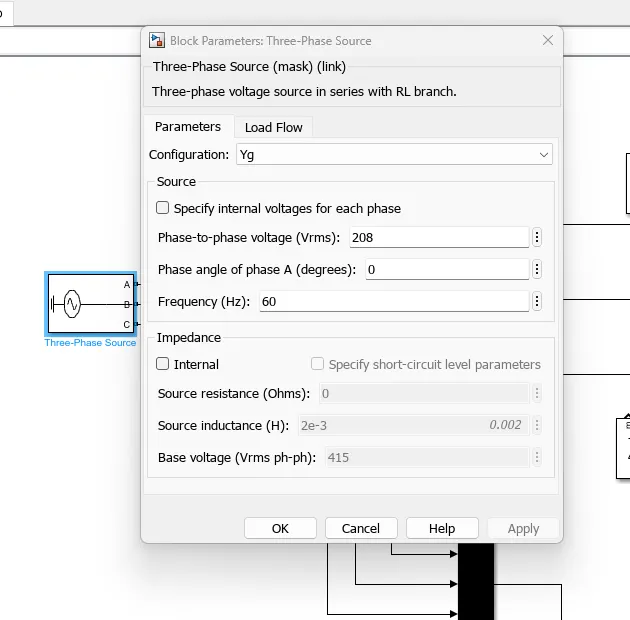

Parameter:

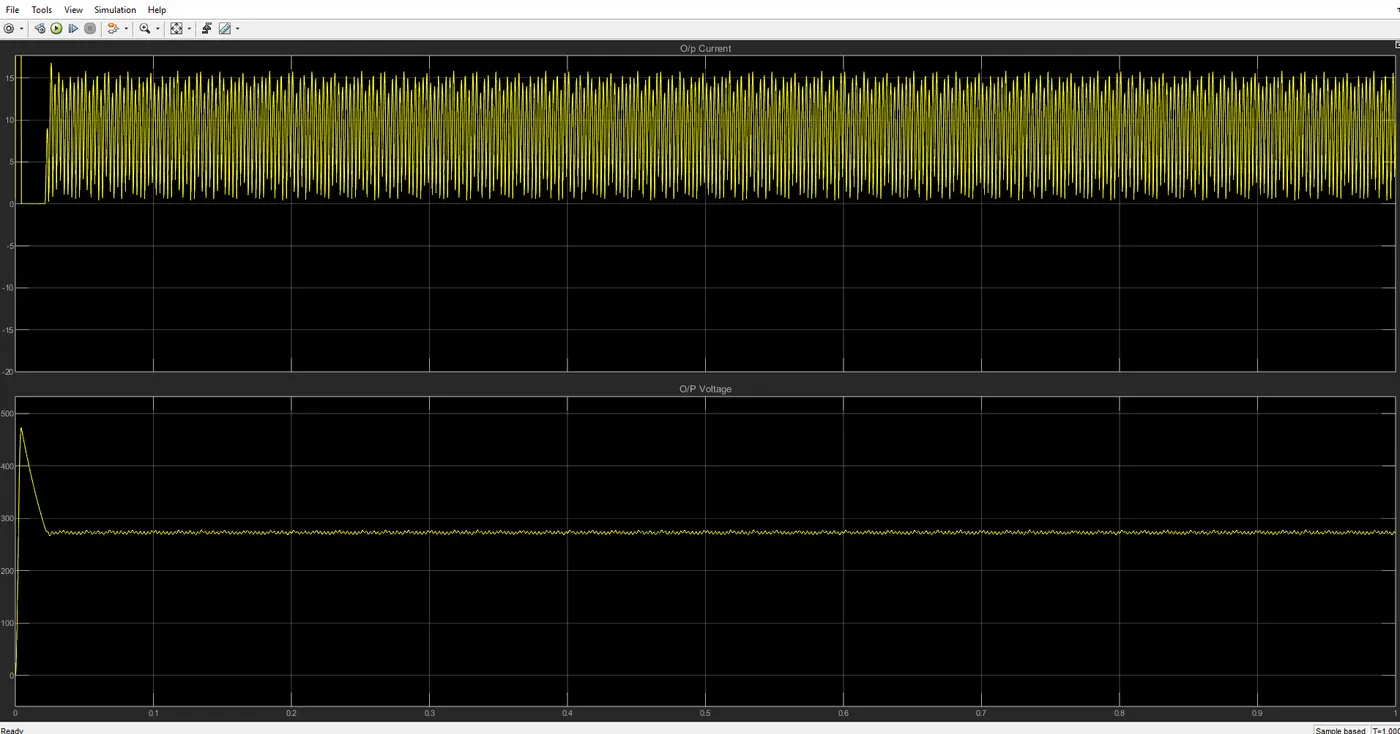

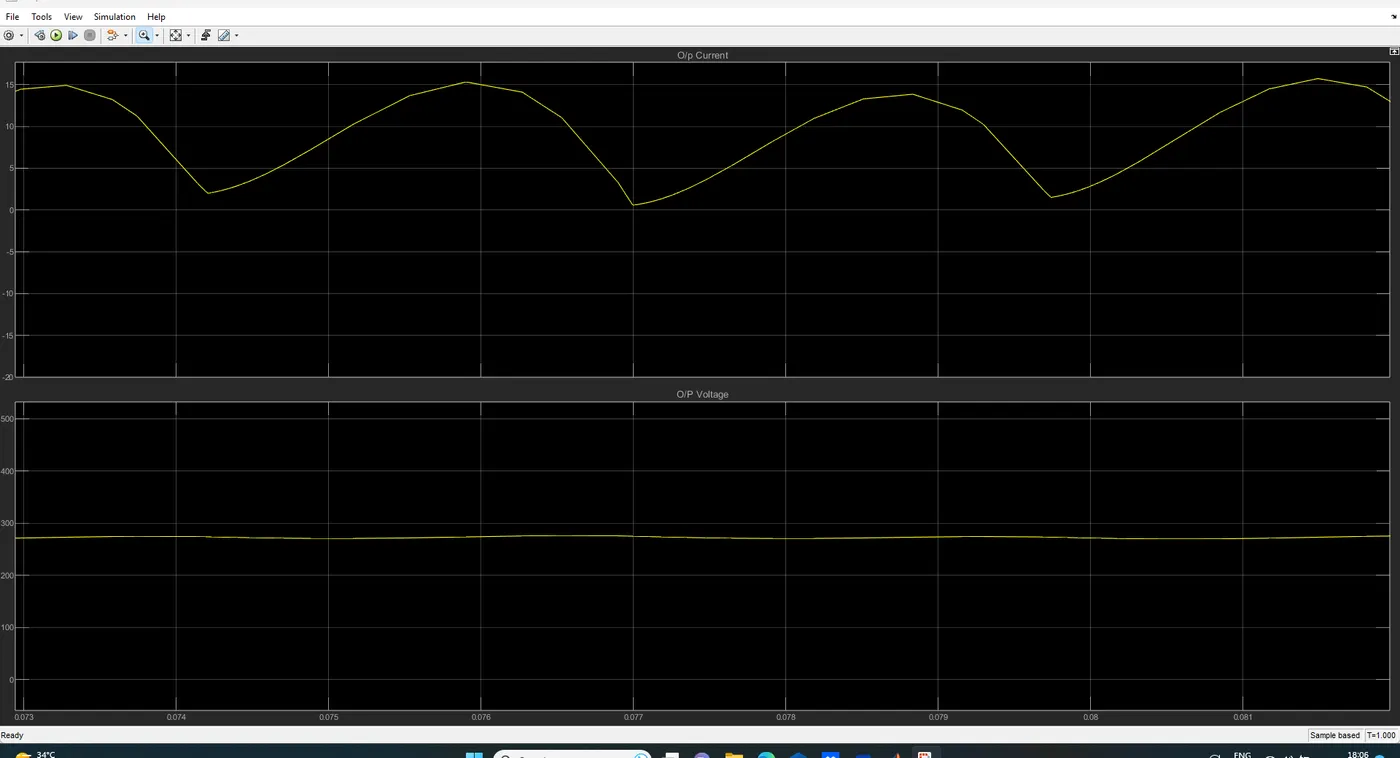

Waveform:

Current=9.528A

Output Voltage=271.5V

50A 400V Diode selected for this rectifier.

Part B:

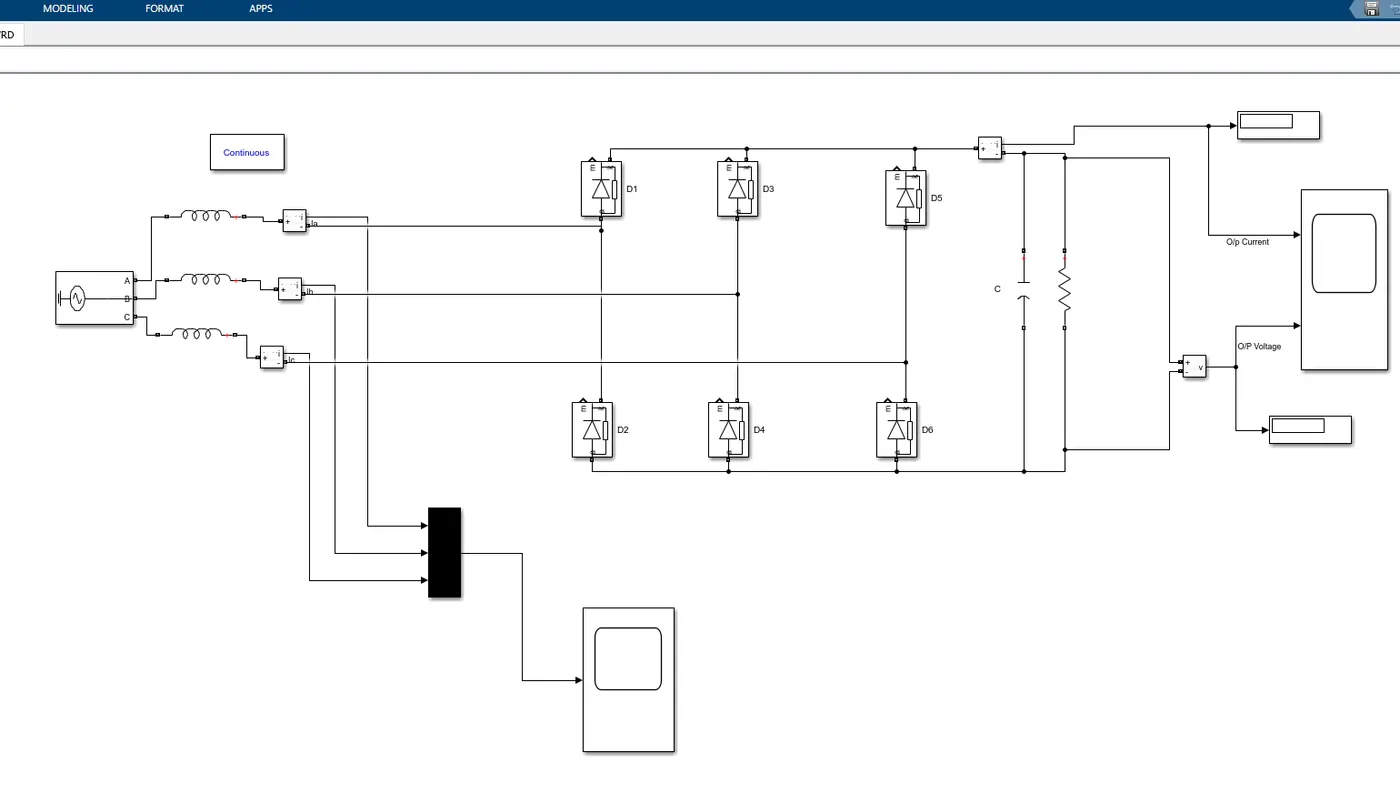

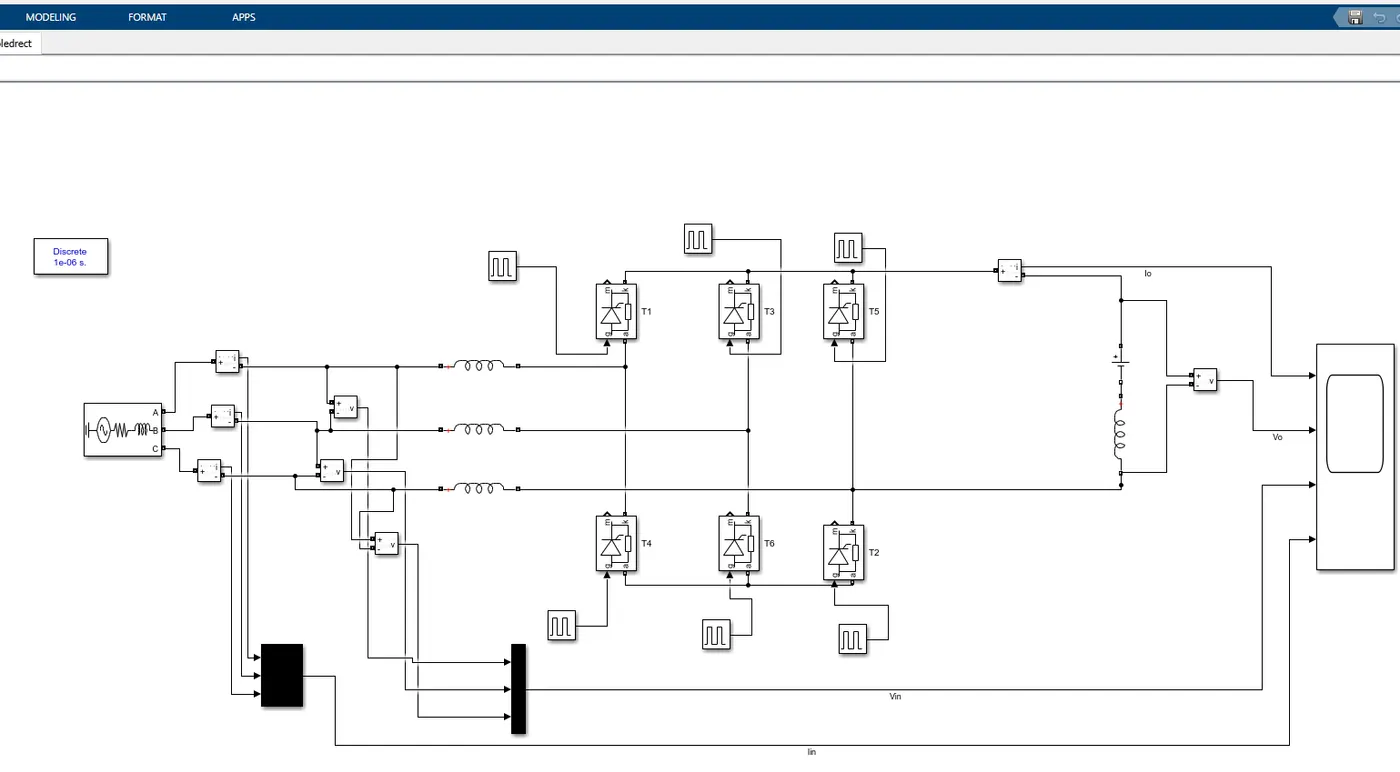

Circuit:

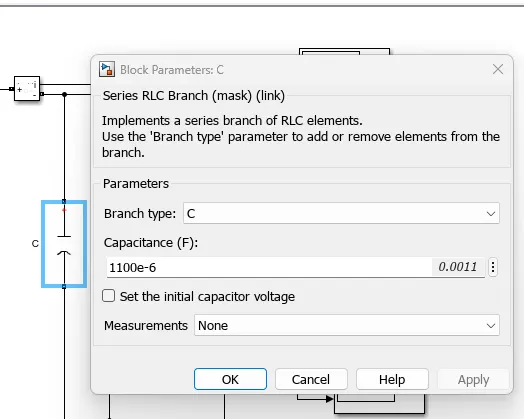

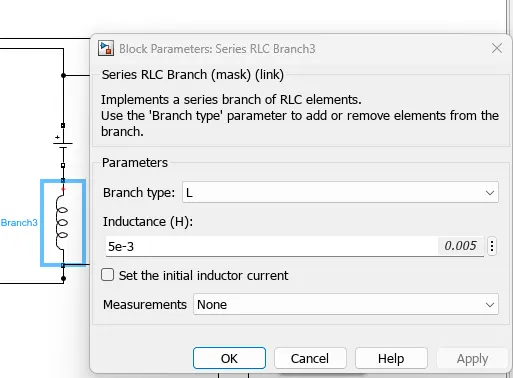

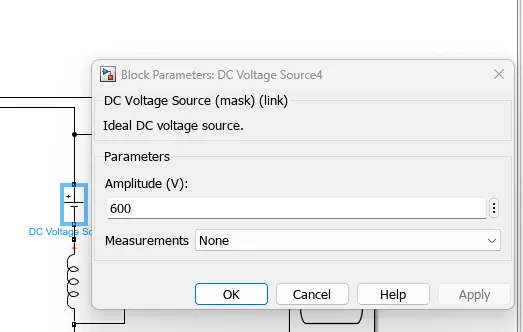

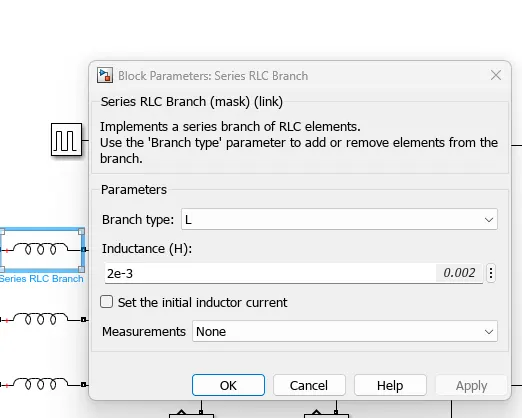

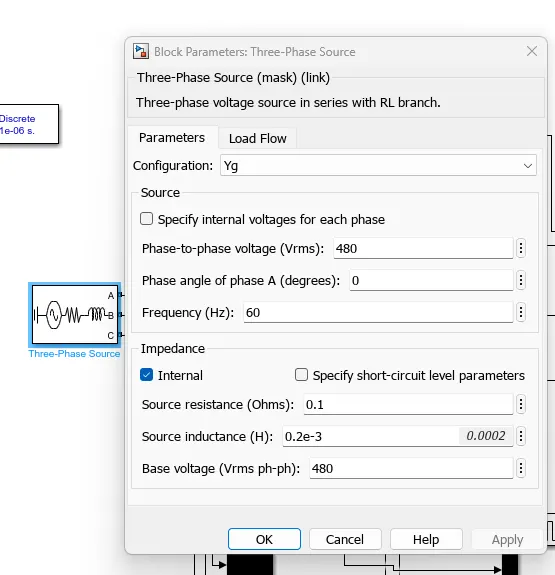

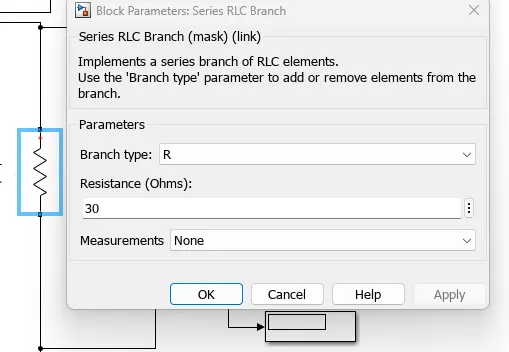

Parameter:

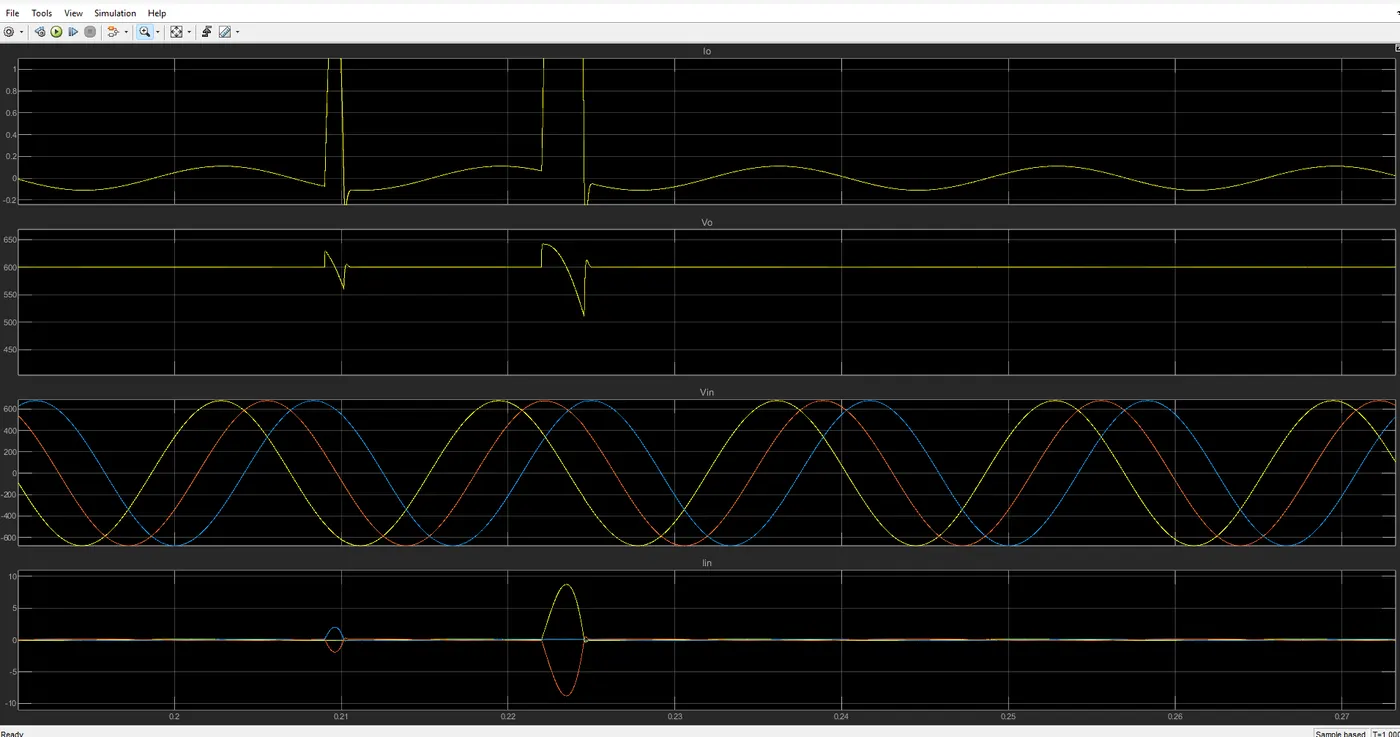

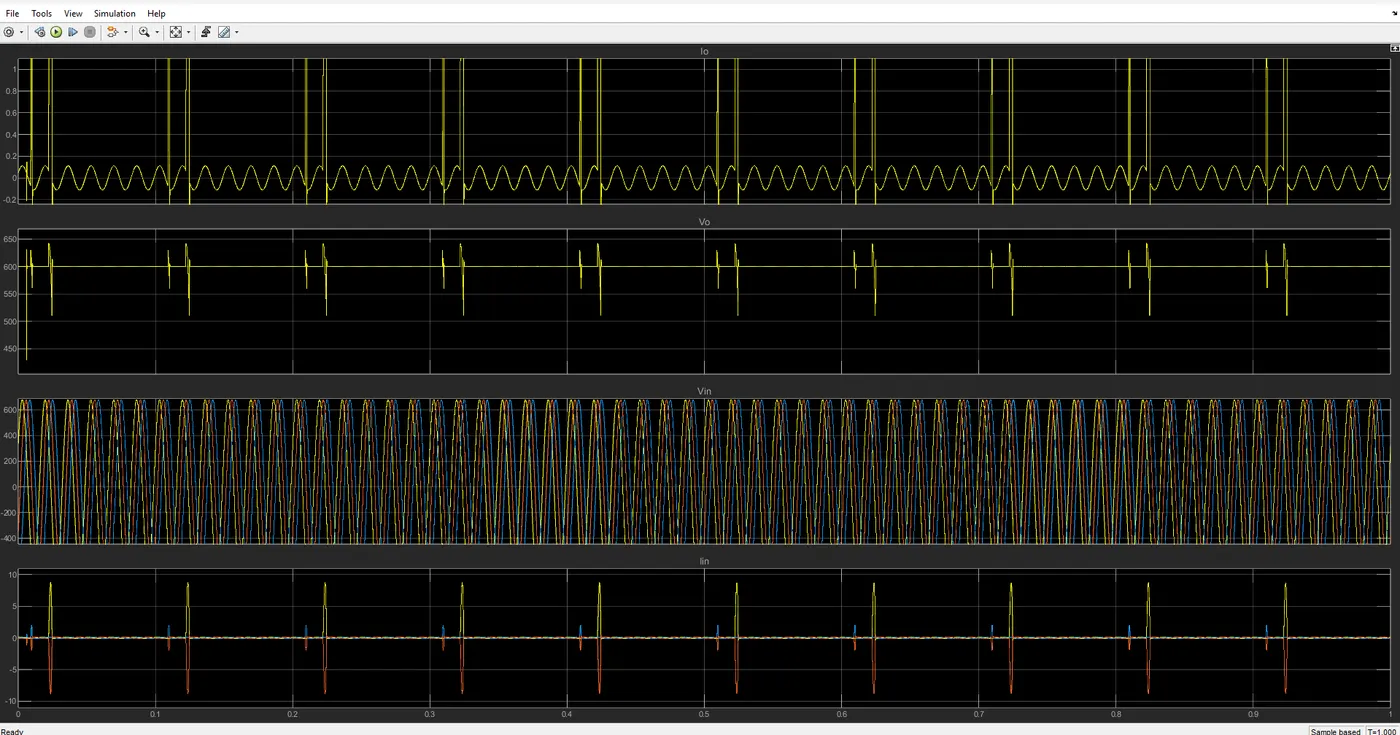

Waveforms:

Output Current=0.5A

Output Voltage =600.2V

800V 50A SCR selected for this rectifier

DPF=Cos(a+0.5u)=Cos(20+2x0.5x0.001)=0.93

Is1=0.78Id

Is=0.8Id

PF=(Is1/Is)xcos(a+0.5u)=(0.78/0.8)x0.93=0.906
