Automotive seating design in Catia v5:

Project 1:

The Cad provided is a IGS file without any history. It is front row back foam. Use Under build / Over build technology. Make use of the foam terminology. Make foam parametric and use standards for making the parts.

1 – The Complete design should be parametric.

2 – Use Best Practices as Explained.

3 – Use of best practice and maximum use part design.

The Cad provided is a IGS file without any history. It is front row cushion foam. Use Under build / Over build technology. Make use of the foam terminology. Make foam parametric and use standards for making the parts.

1 – The Complete design should be parametric.

2 – Use Best Practices as Explained.

aking of seat back:

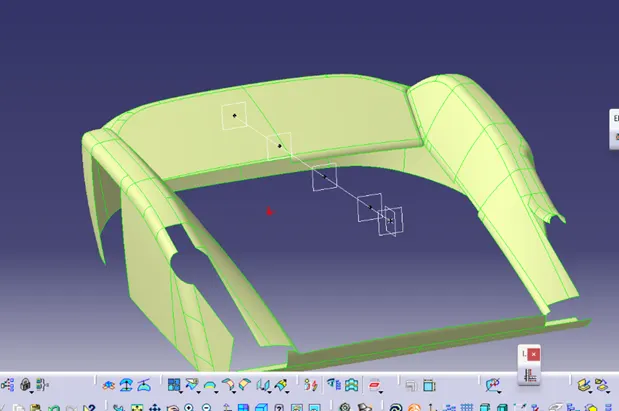

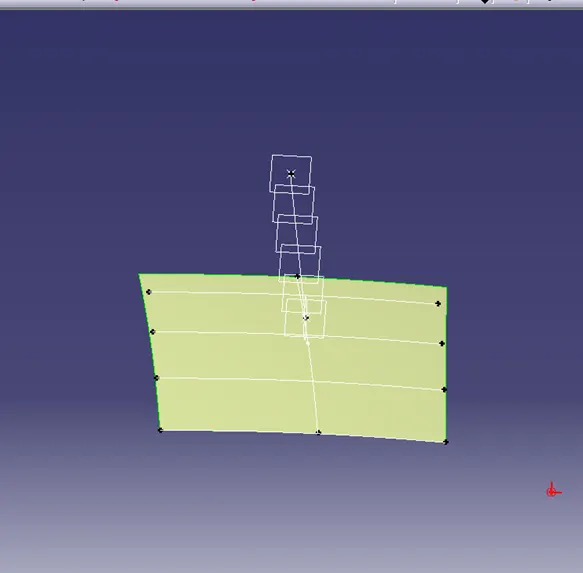

In this case we've got provided with dump solid of seat back and head rest so we'll have to creatte sto then we'll have to create the solid foam so for that i extracted the surfaces of the dump solid and repair some dameges over the surfaces then i've created sto.

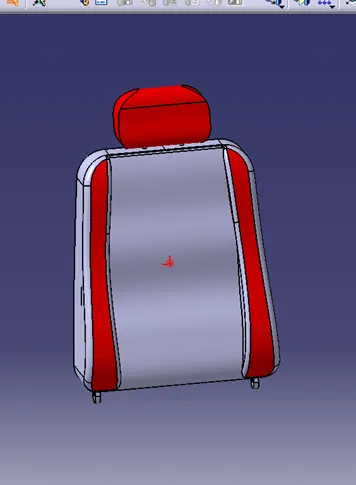

Then i created proper seat trim outline

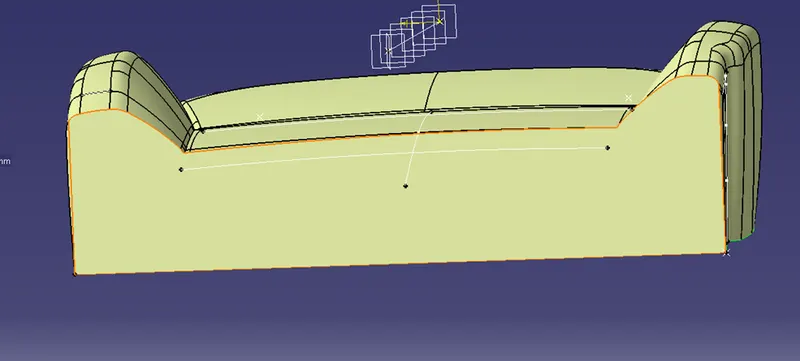

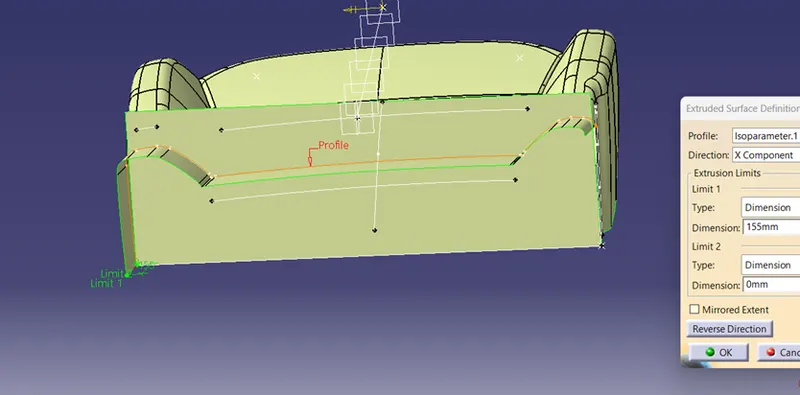

Clear gape

File the all foam aira

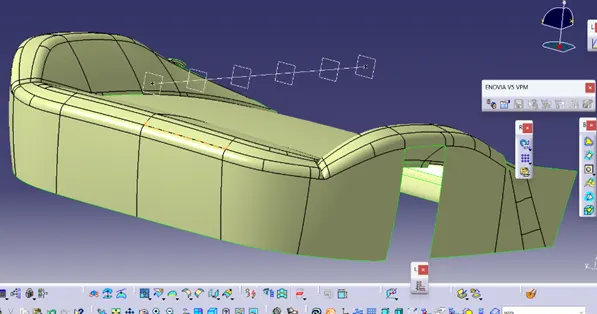

Compelet all final part

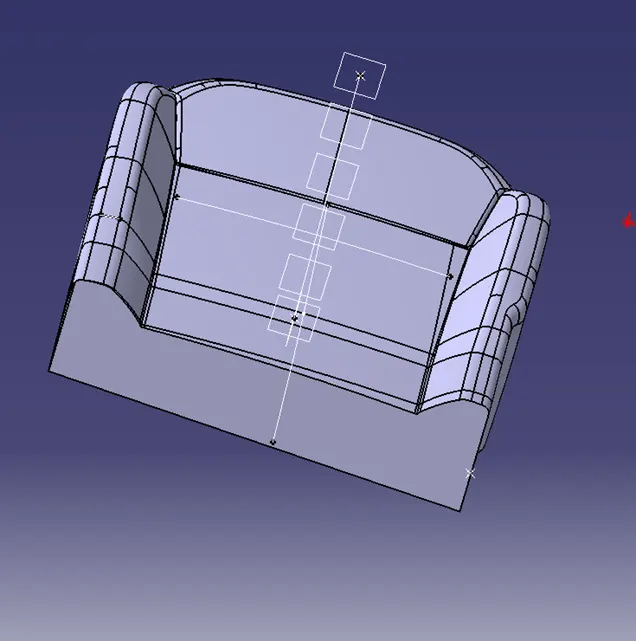

Close surface
