Aim: To use STAAD Pro Connect Edition to design a multi-story residential building in Bangalore.

Procedure:

Data:

• Material weight in a unit
• 25 kN/m3 for reinforced cement concrete
• Concrete Cement Screed = 20 kN/m3
• 22 kN/m3 in cement masonry units
• Steel Structural = 78.5 kN/m3
• Steel Structural = 78.5 kN/m3
• 18 kN/m3 for soil
• Weight of a slab is 3.75 kN/m2 (0.15m25 kN/m3).
• Partition = 1.5 kN/m2
• Finished Floor = 2.5 kN/m2
• Miscellanous = 1 kN/m2
• Floor Load as a Whole = 8.75 kN/m2

Roof Slab

• Weight of a slab is 3.75 kN/m2 (0.15m25 kN/m3)
• Insulation and water resistance = 0.5 kN/m2
• Services for MEP = 0.5 kN/m2
• Differential = 0.5 kN/m2
• Roof load overall is 5.25 kN/m2.
• Common Corridor = 3kN/m2
• Floor Load Overall = 3 kN/m2
• Accessible roof = 1.5kN/m2
• Roof load overall = 1.5kN/m2

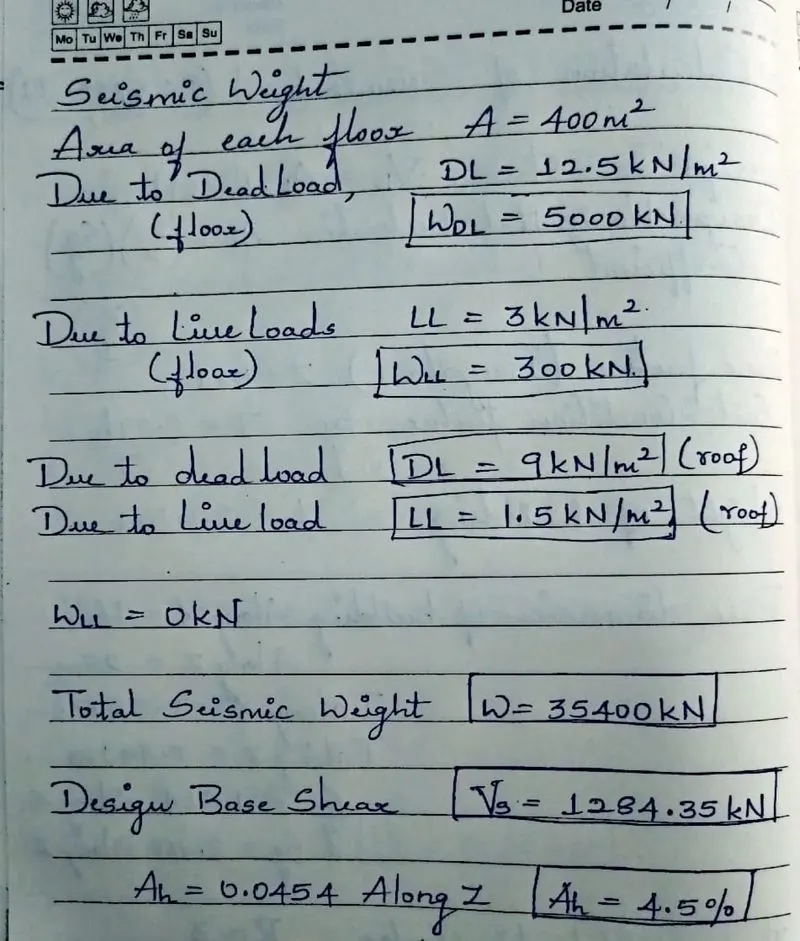

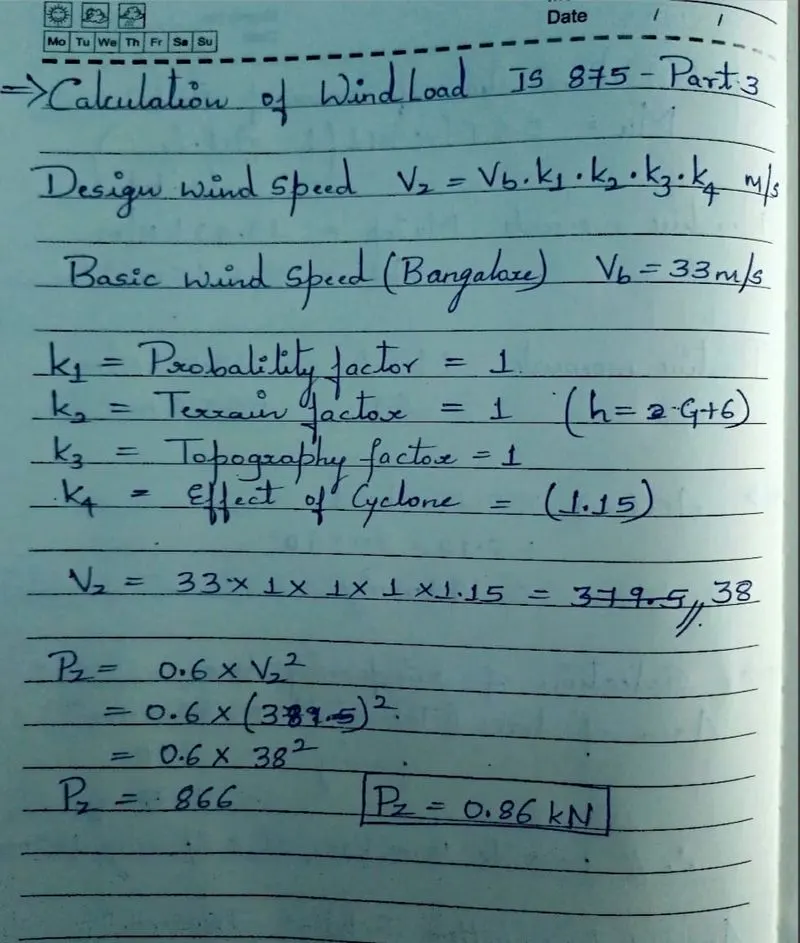

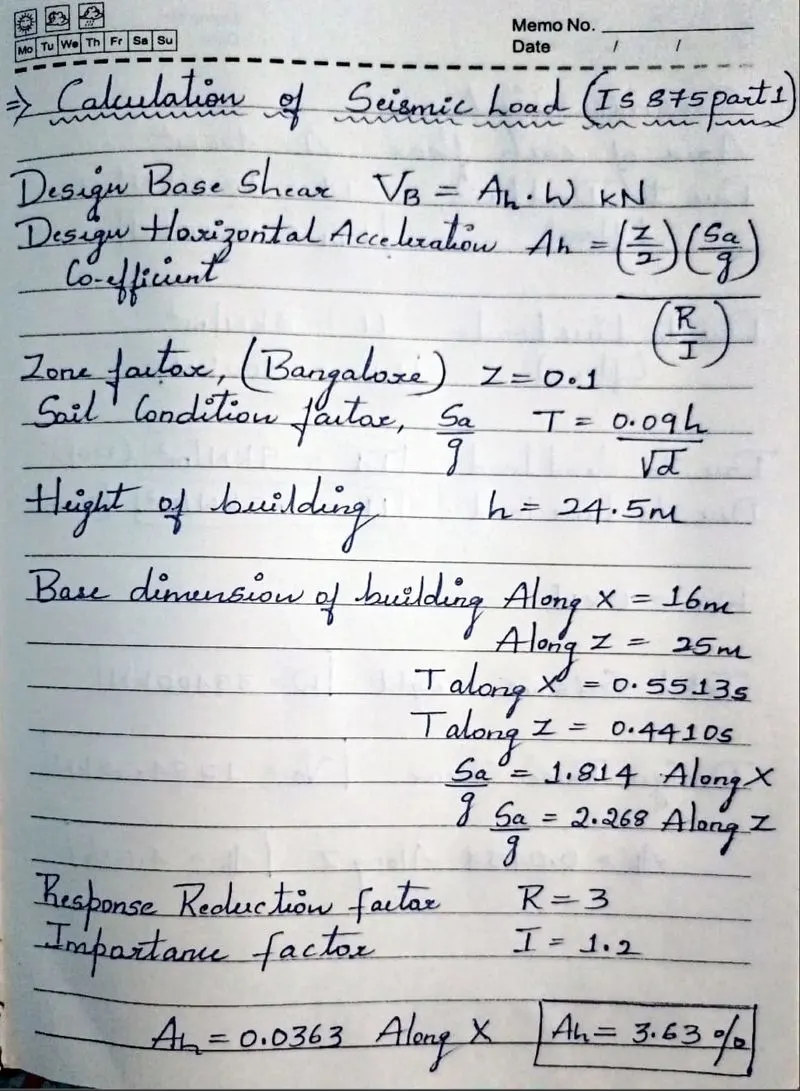

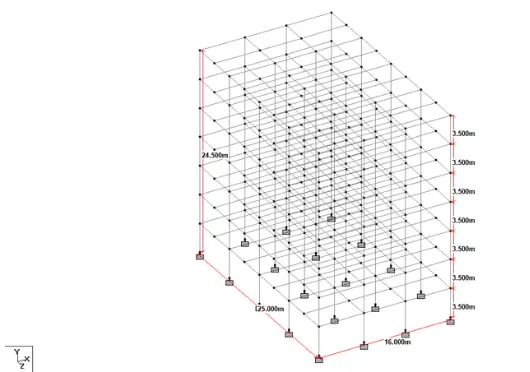

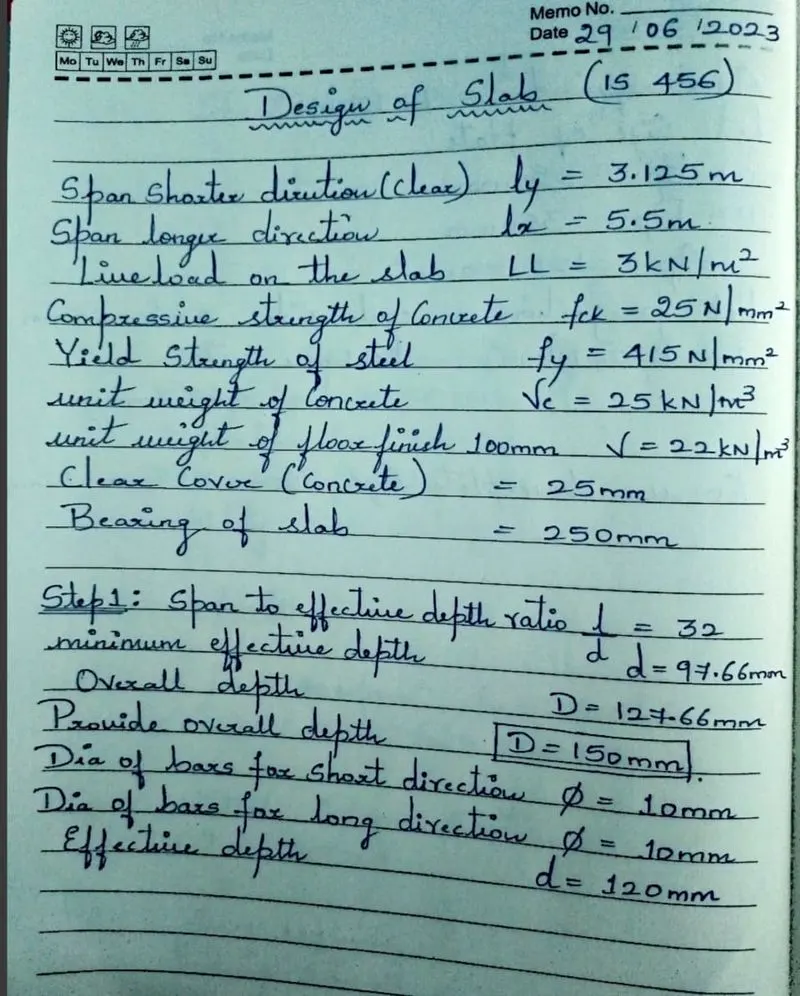

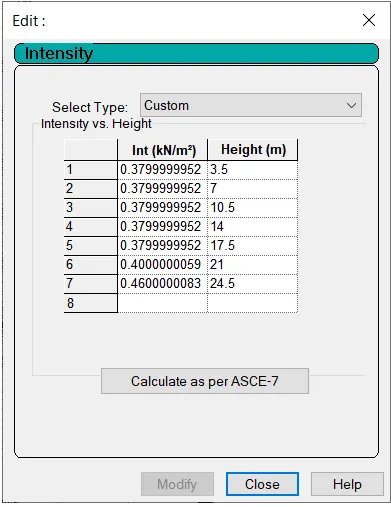

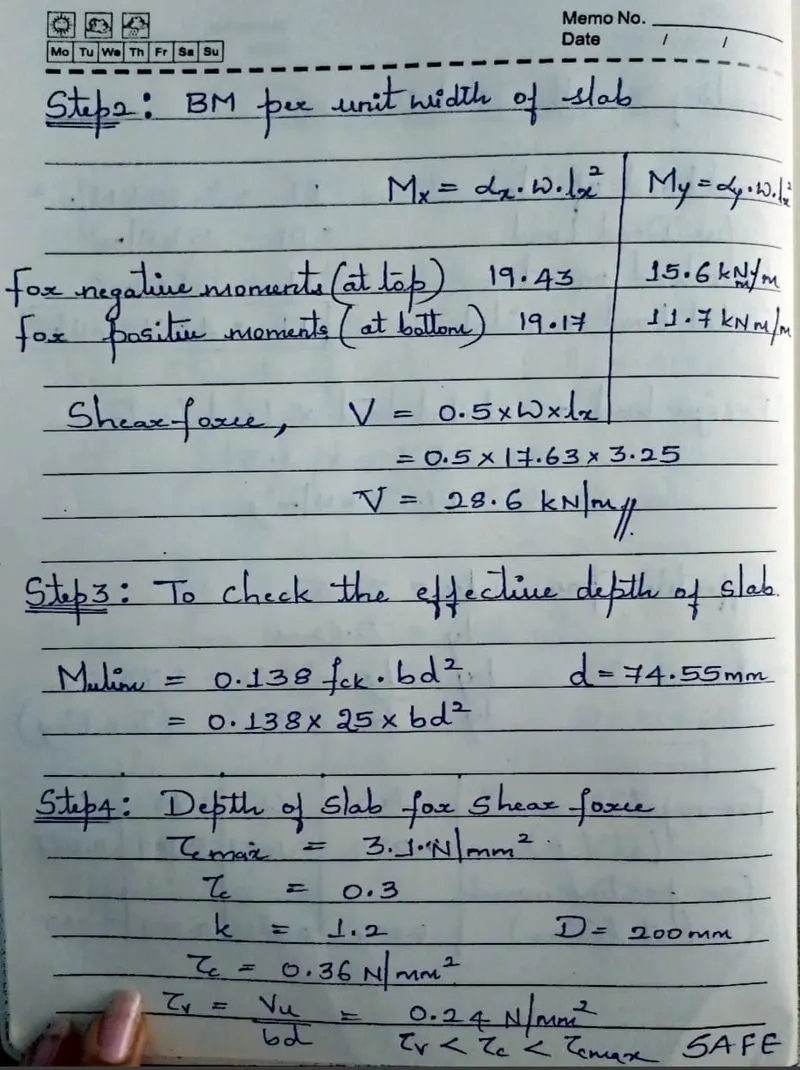

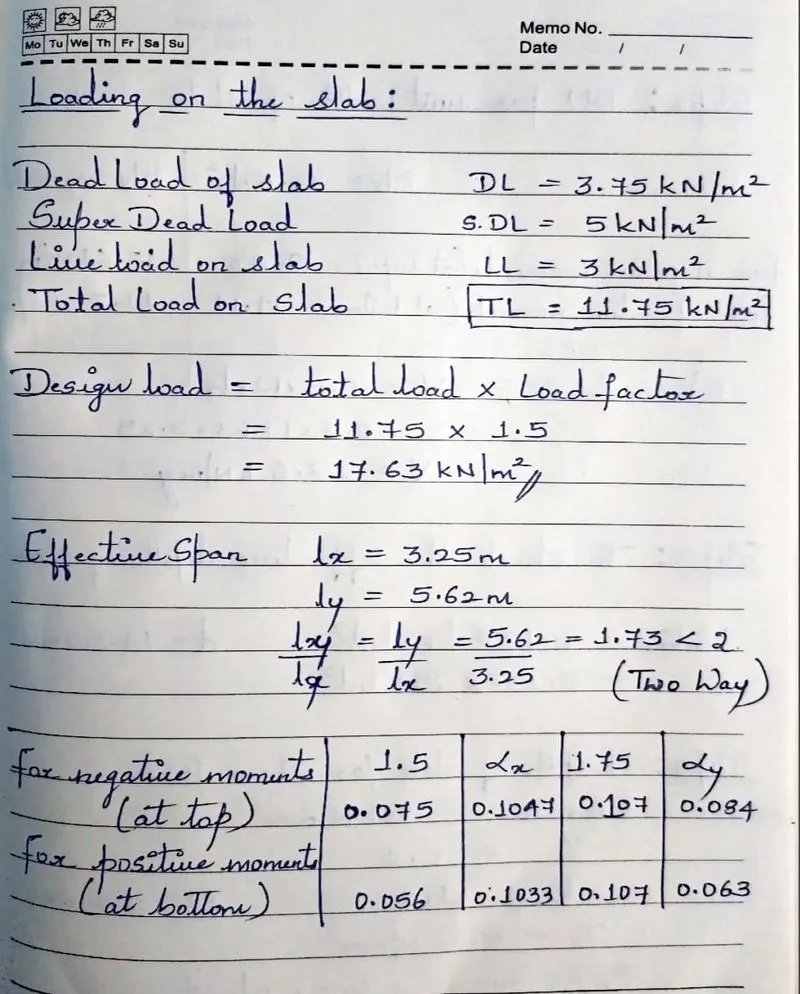

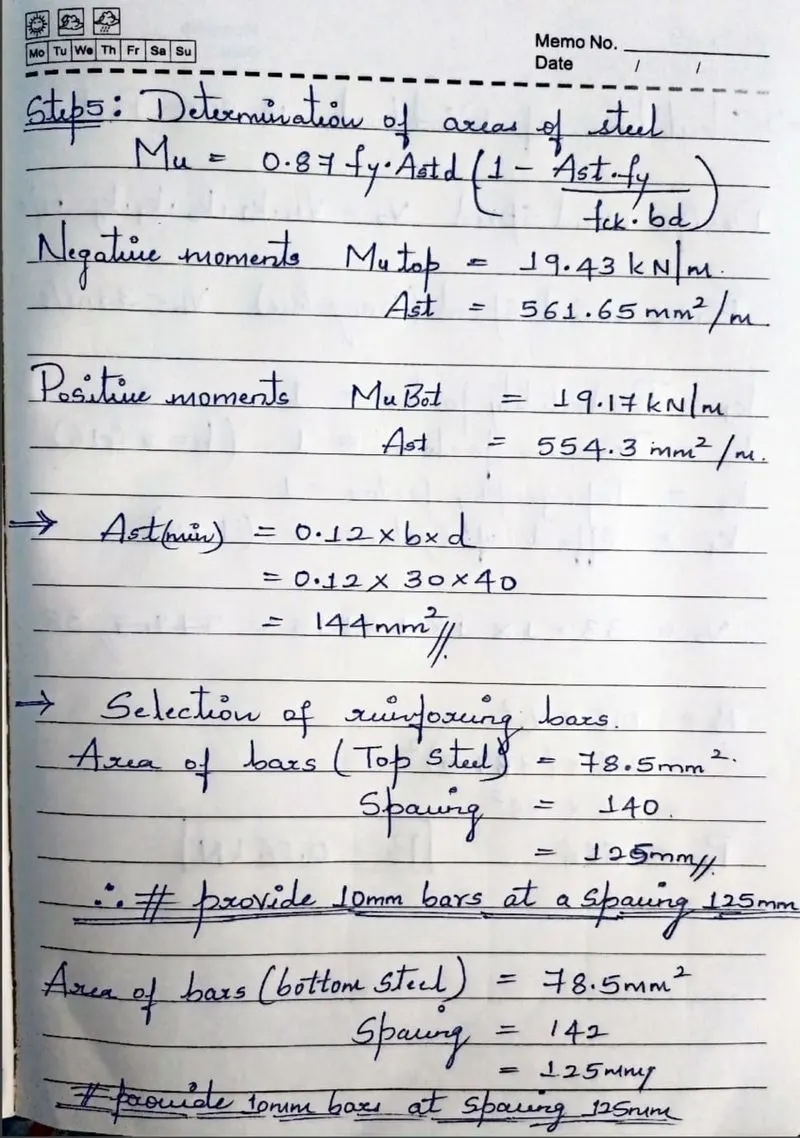

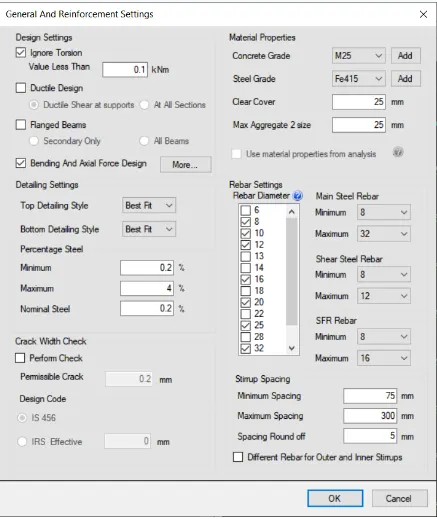

Design of slab:

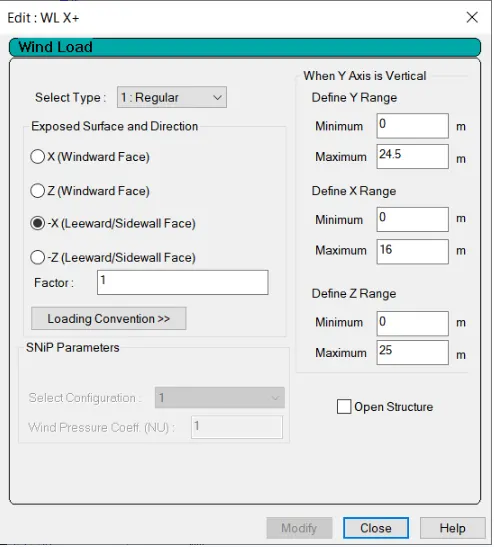

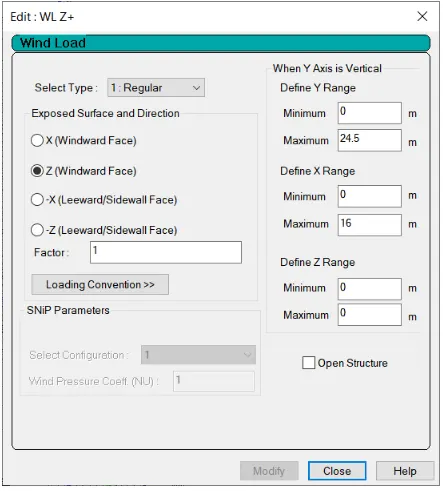

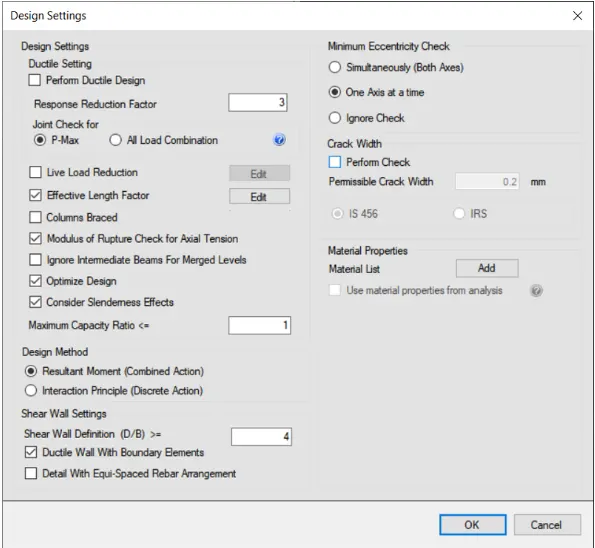

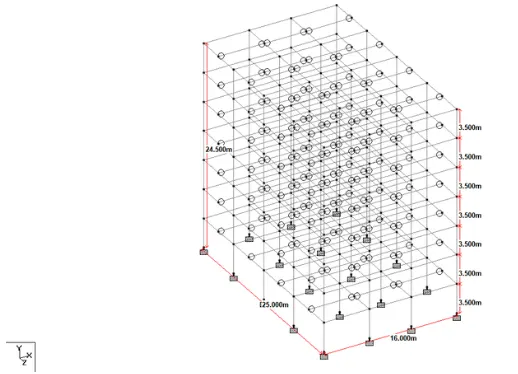

STAAD Result:

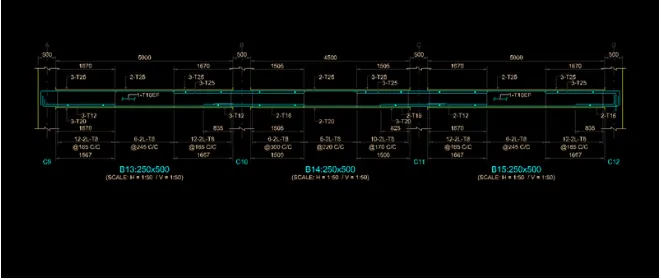

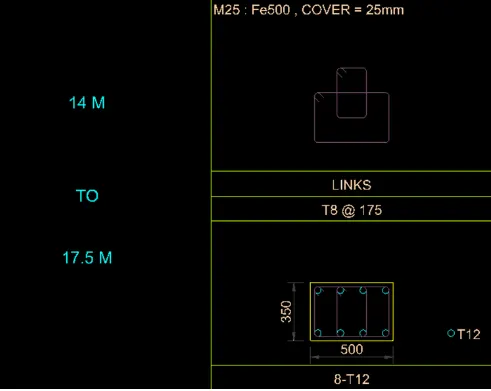

Result:
As a result, a multi-story residential building in Bangalore was created using STAAD Pro Connect Edition.
