Project 1

Electrical definition

Electrically defined the part to use it as an electrical component to connect with the bundle connection and also with corrogated tube as per the requirement.

the required connectors are need to be defined by electrically by declaring the point and axis system for the desired conductor to prepare it to work as electricall equipment. declare it to the connector connection point and axis system for connector connection.

from the point declared assume it to the bunddle entry connection point

Catalogue:

catalogue is the storage area which we can stor the defined component to reuse again same we need. it can store all the type of connectors and even carogated tube we can store and reuse again.

Catalogue creation

to creating the catalogue the part must be saved as a filr and select the catalogue to create the new catalogue file. after creating the catalogue file select the save as catalogue. we can save the many file into the catalogue and reuse again we need the same

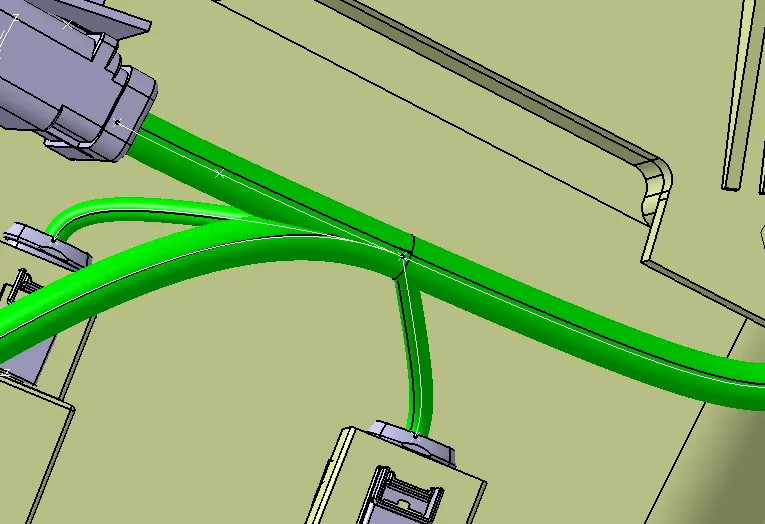

Bundle continuity and annotation craetion

Creation of bundle which is to be routing of the electrical equipment which has to be with proper bent radious

corrogated tube:

it is the external layer to prevent the wiring surface it may produce according to the diameter of the tube.

creation of interconnection

Interconnection between two seperate product into the single component by connect electrically device option.

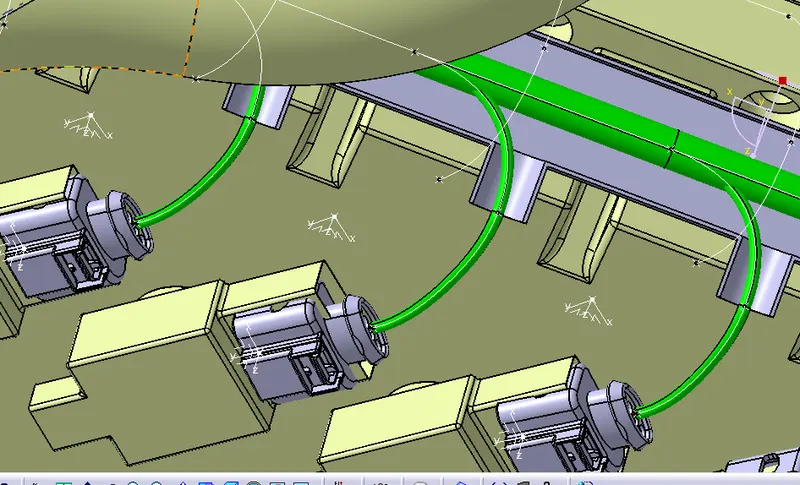

Connectors

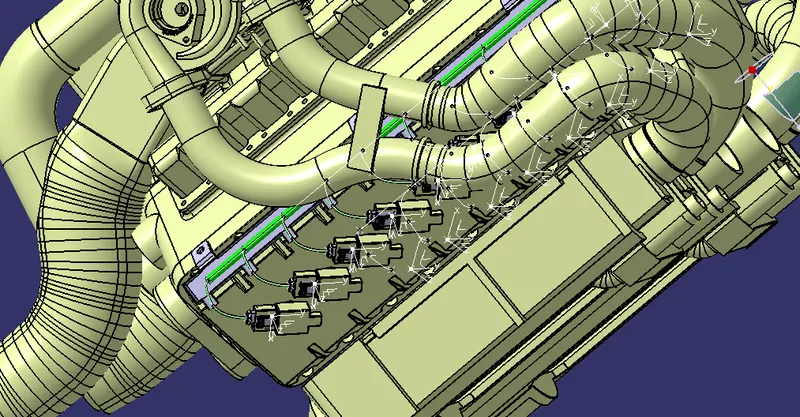

The connectors are connected in the portion of engine to be placed in routing of wire

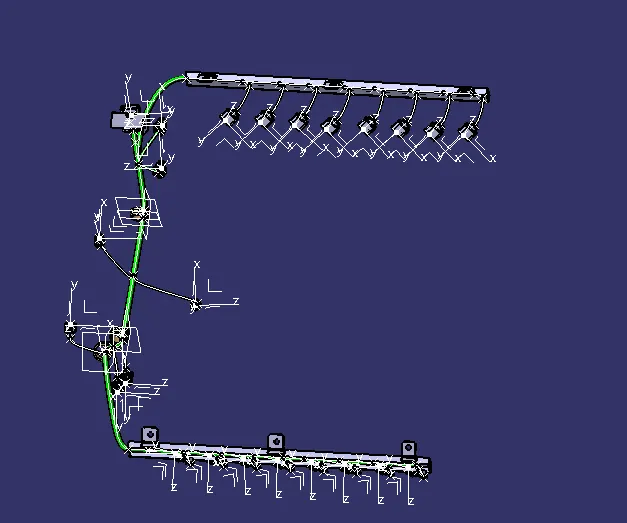

wire routing

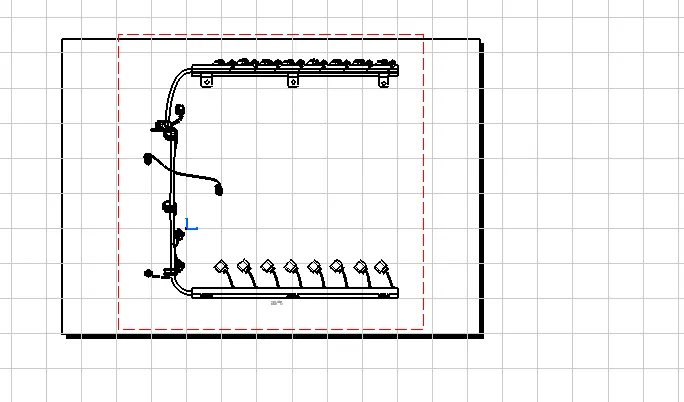

Flatenning
