Project 1

AIM-:

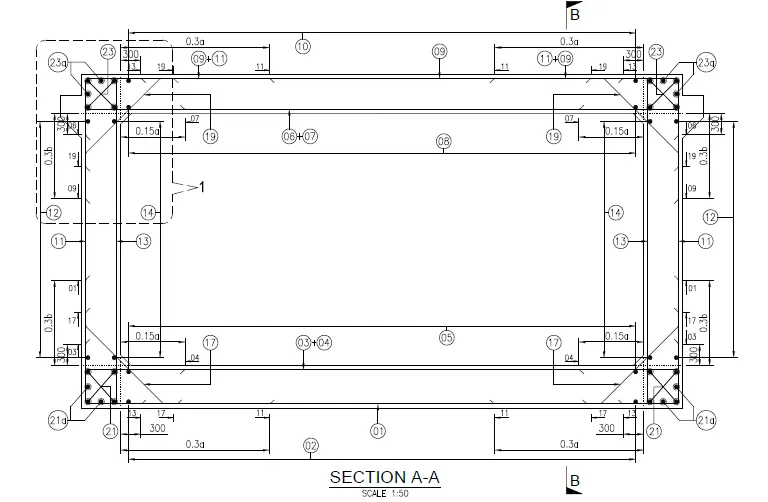

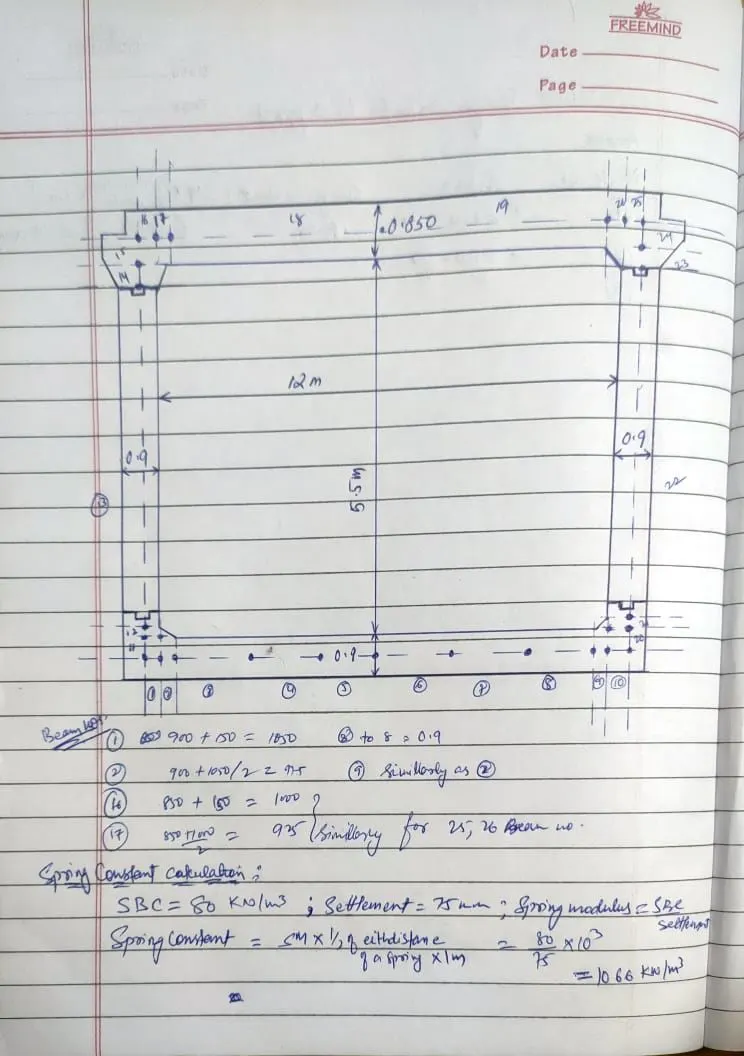

Design raft foundation of a box bridge having dimensions “12” m span and “5.5” m height. (considering 1 m width) in stadd pro.

And having safe bearing capacity of 80 kn/m2.

Fill on top 1.5 meters including wearing coat.

Size also to be fixed as per design. (optimise the size)
Use haunch (200*200 mm )
M35 concrete and Fe500 steel

ANS-:

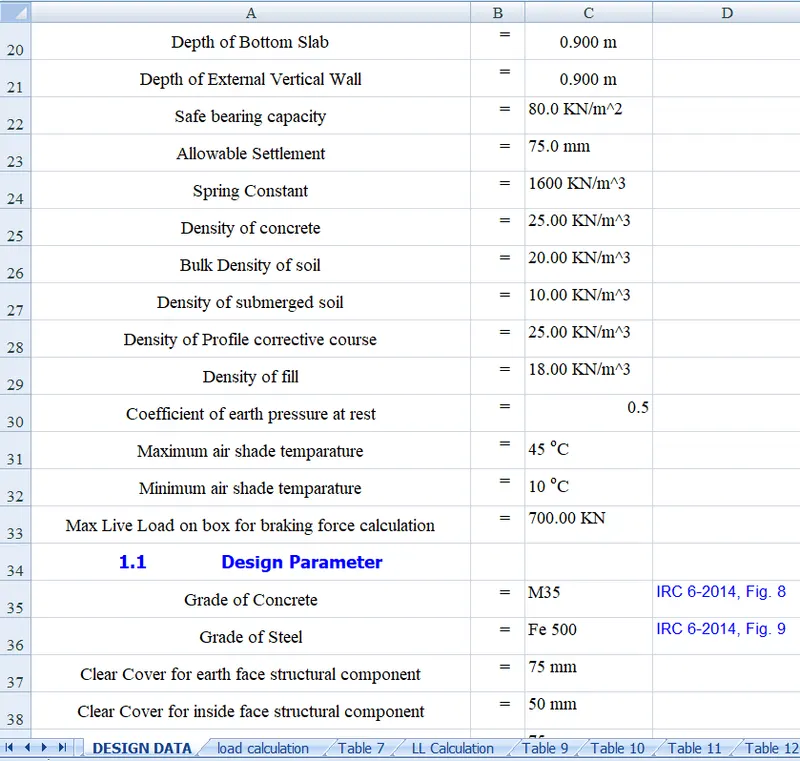

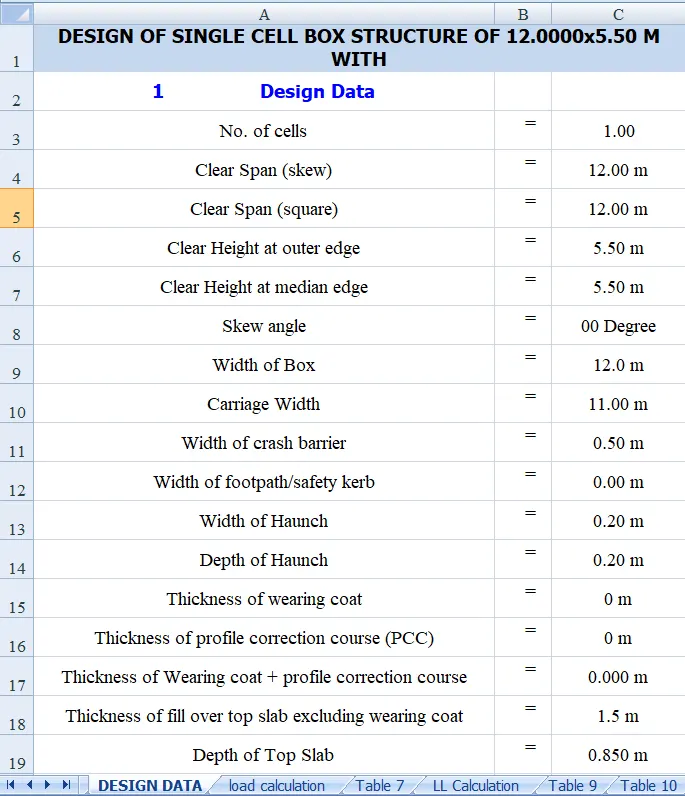

• The span of structure = 12 M
• Height of structure = 5.5 M
• Safe bearing capacity of soil = 80 kN/m2
• Wearing coat fill on structure = 1.5 M
• Haunch size = 200 x 200 MM
• Soil density = 18 kN/m3
• Concrete M35
• Steel Fe500

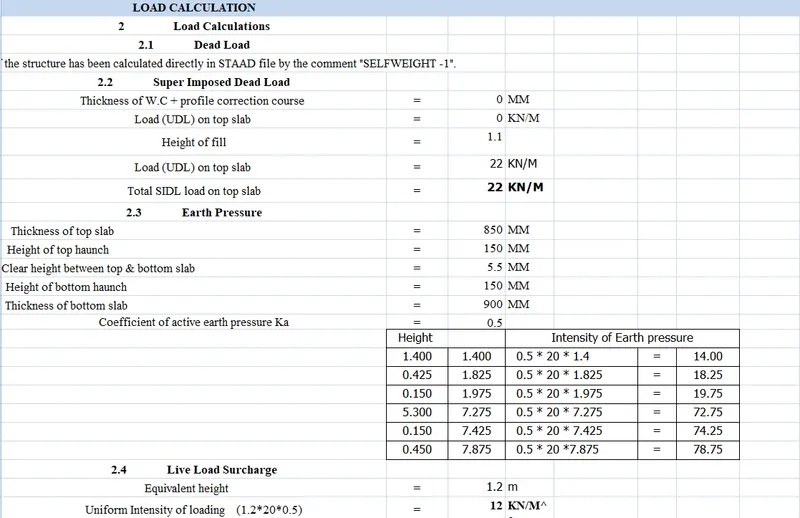

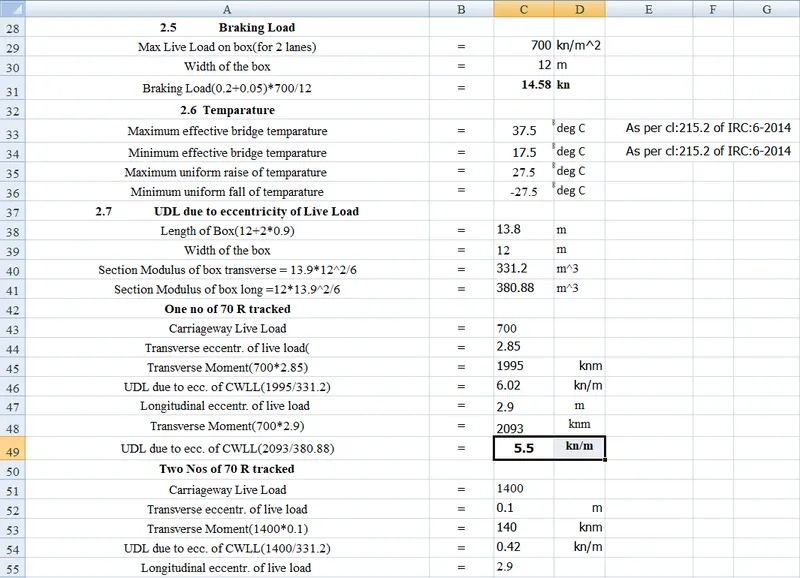

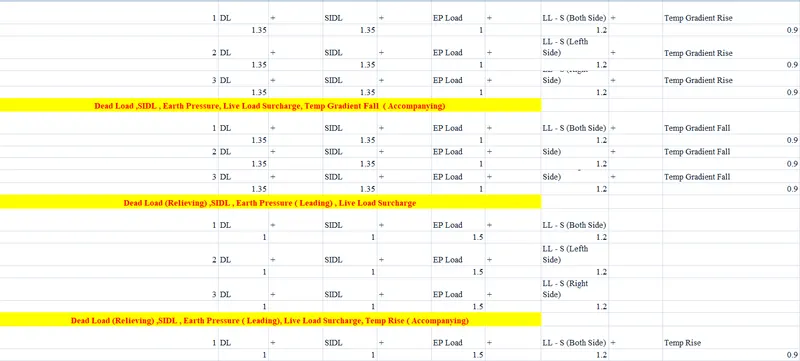

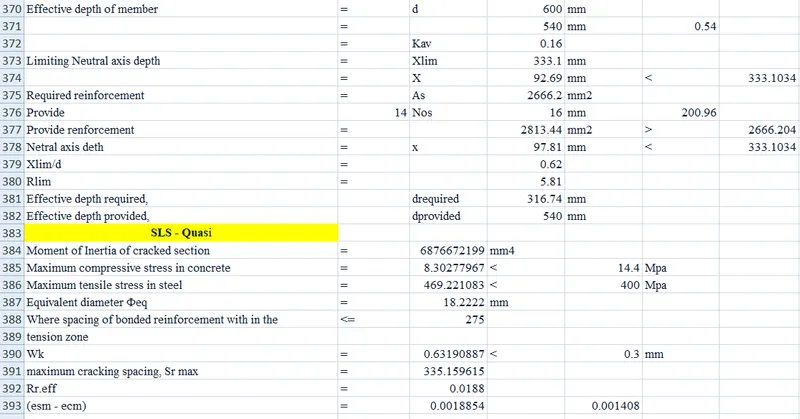

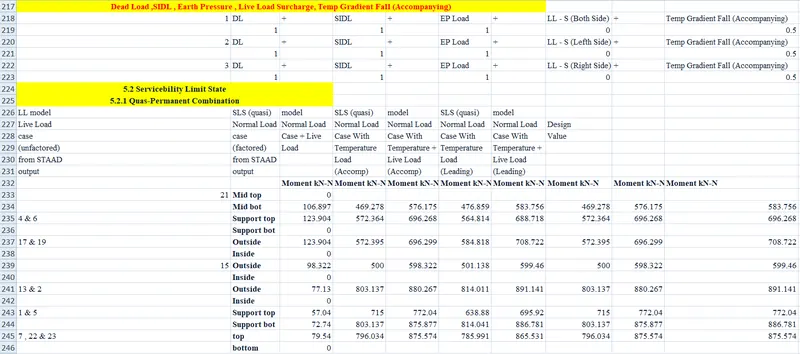

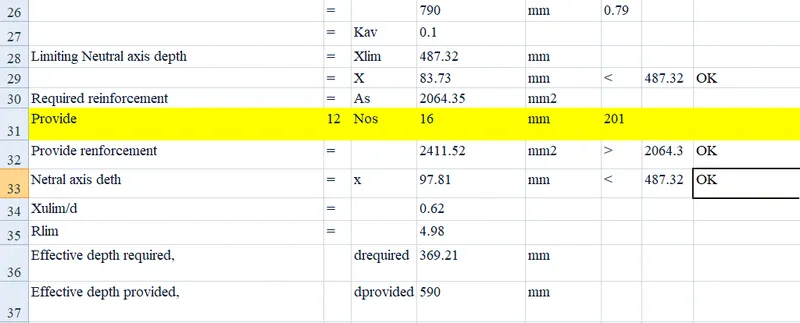

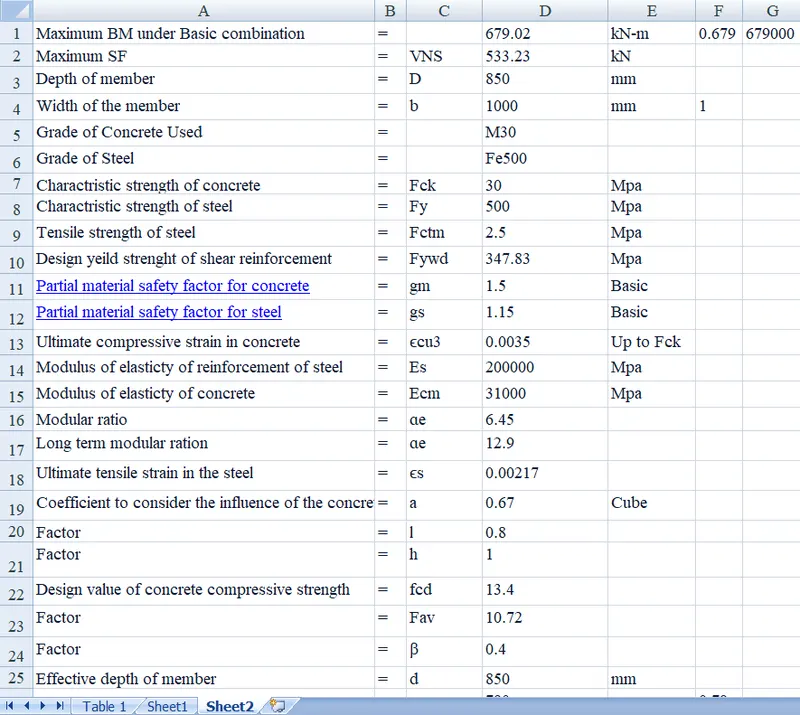

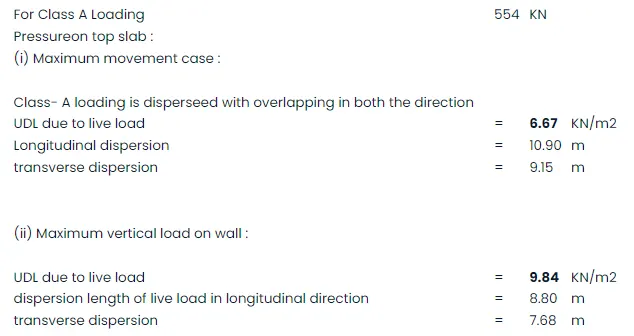

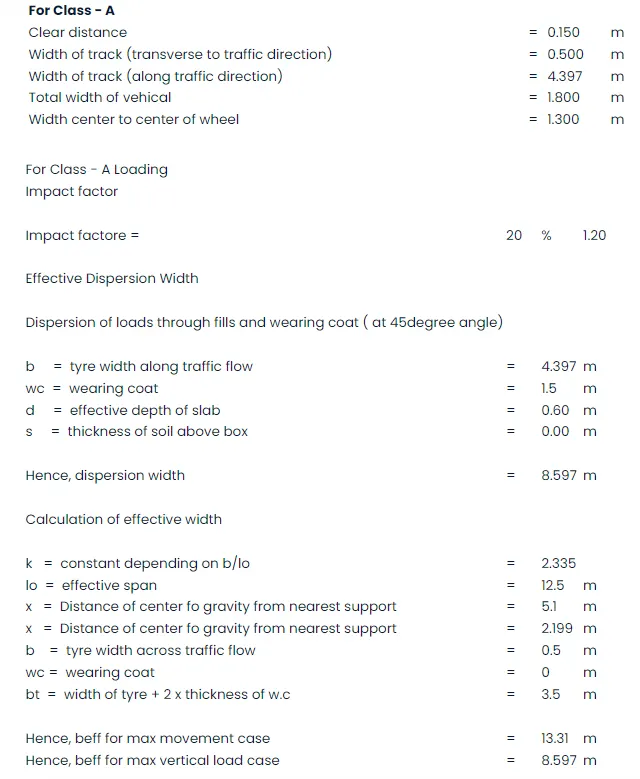

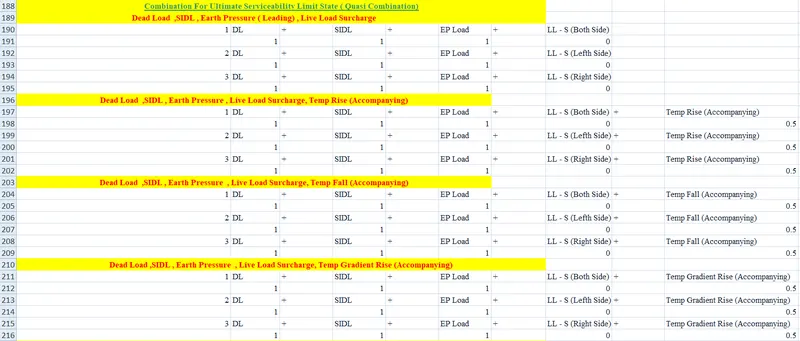

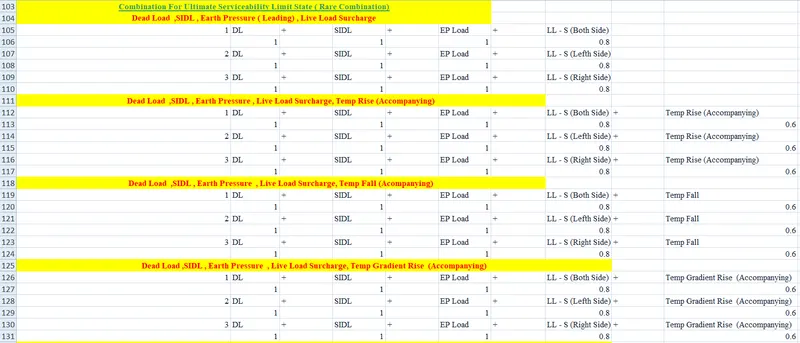

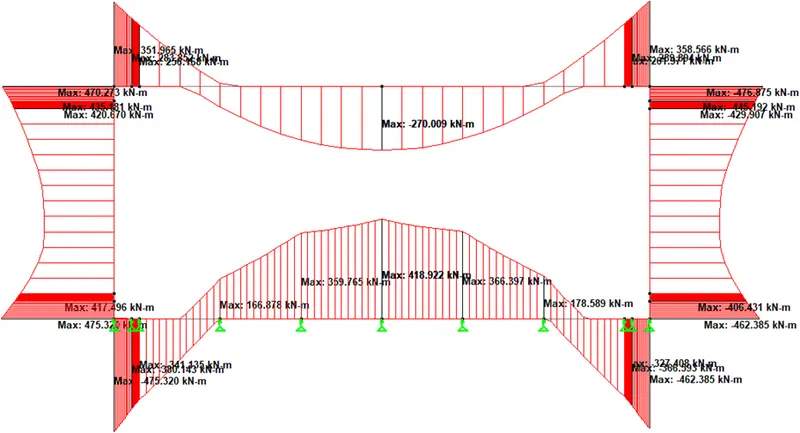

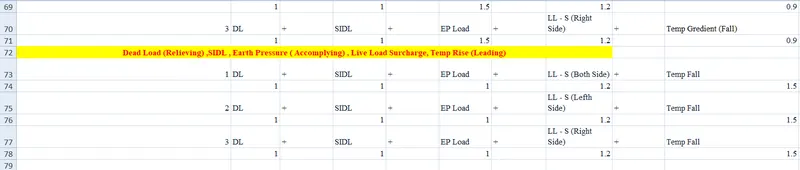

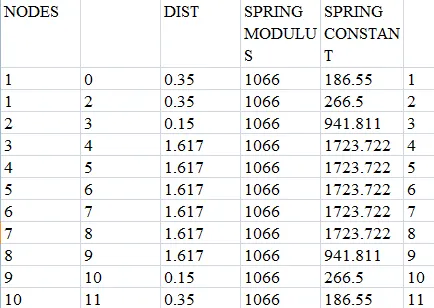

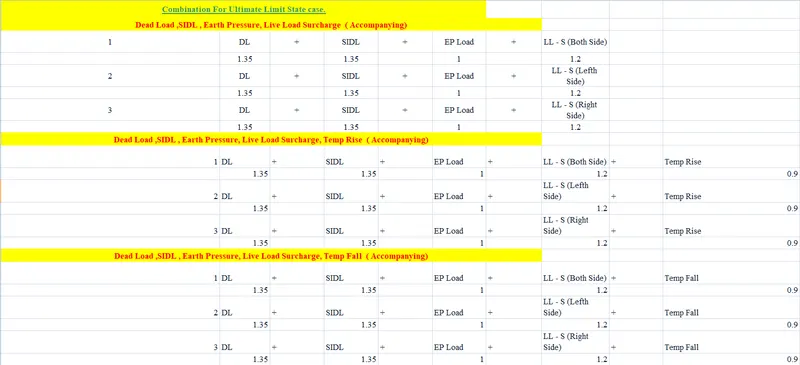

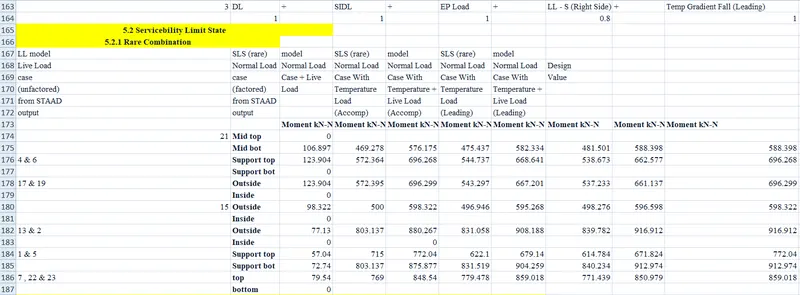

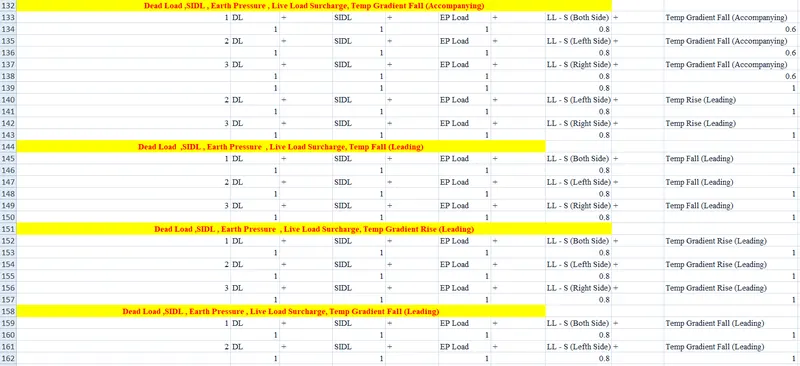

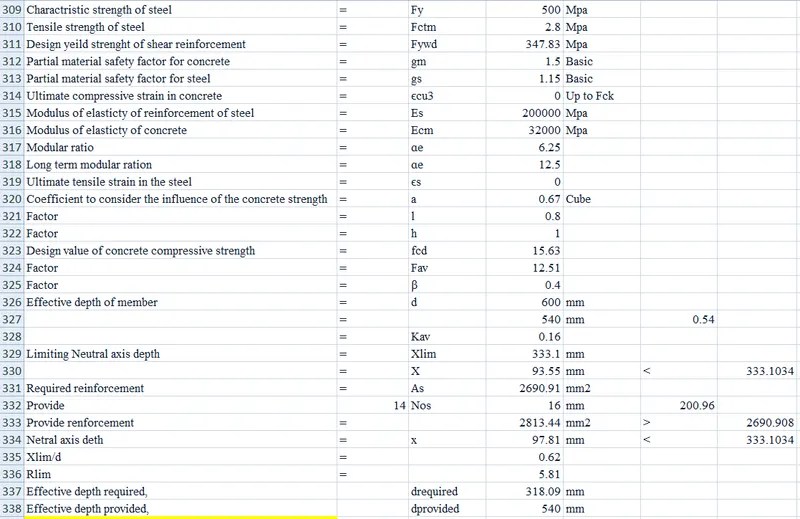

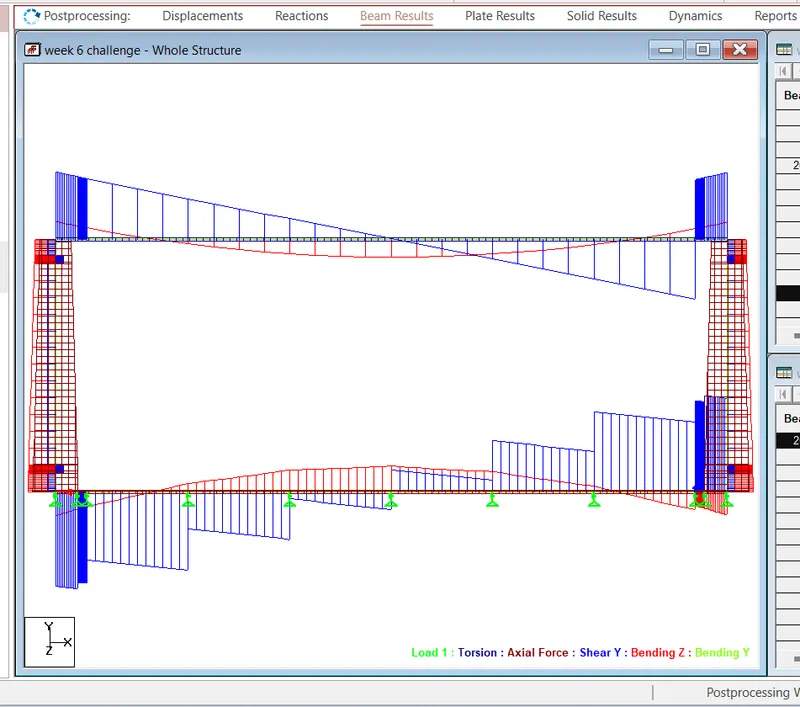

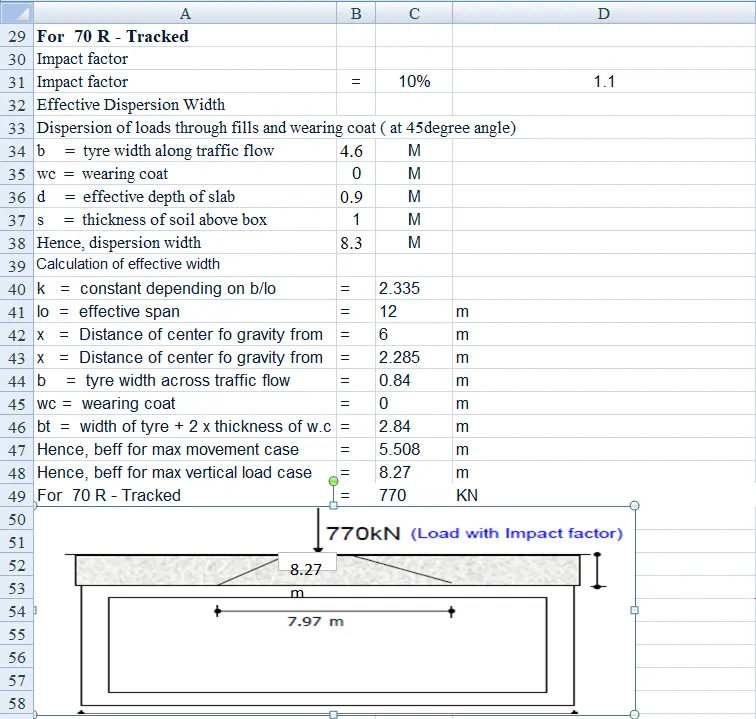

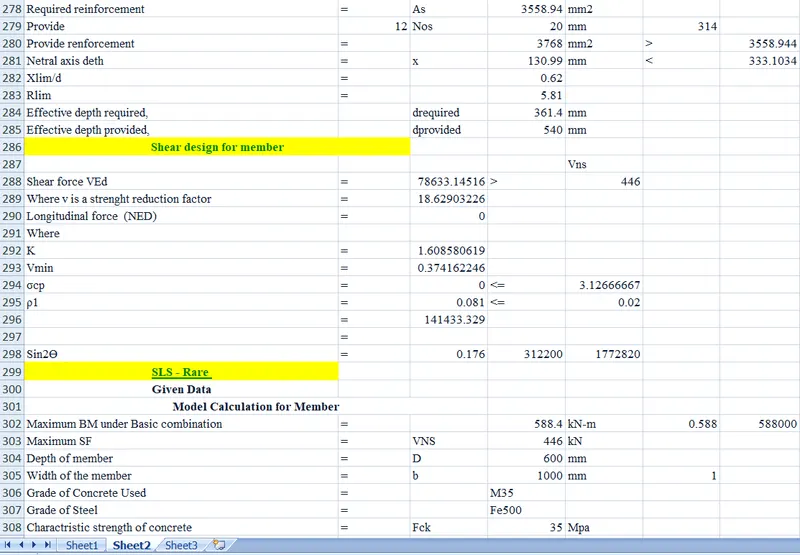

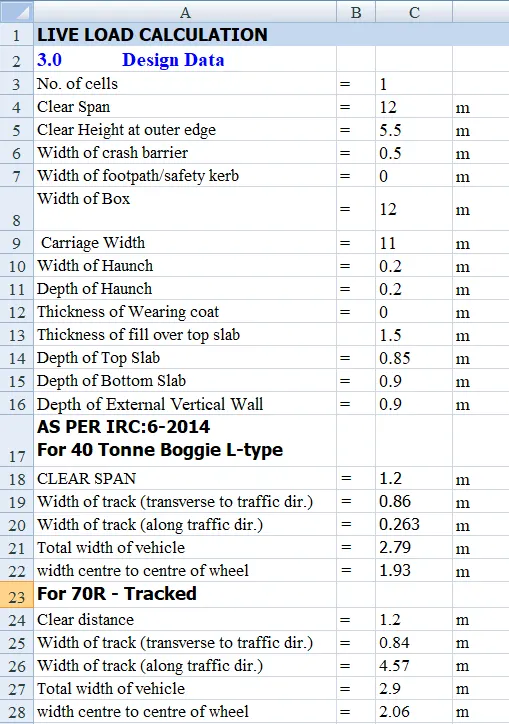

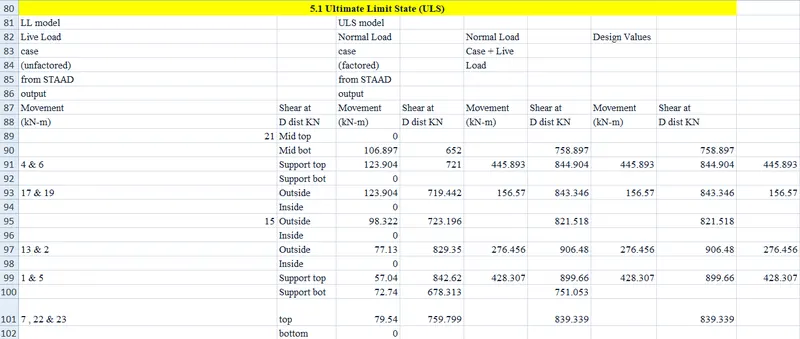

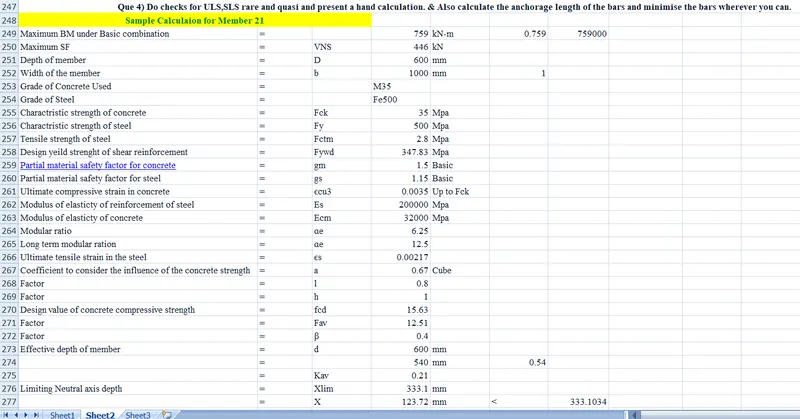

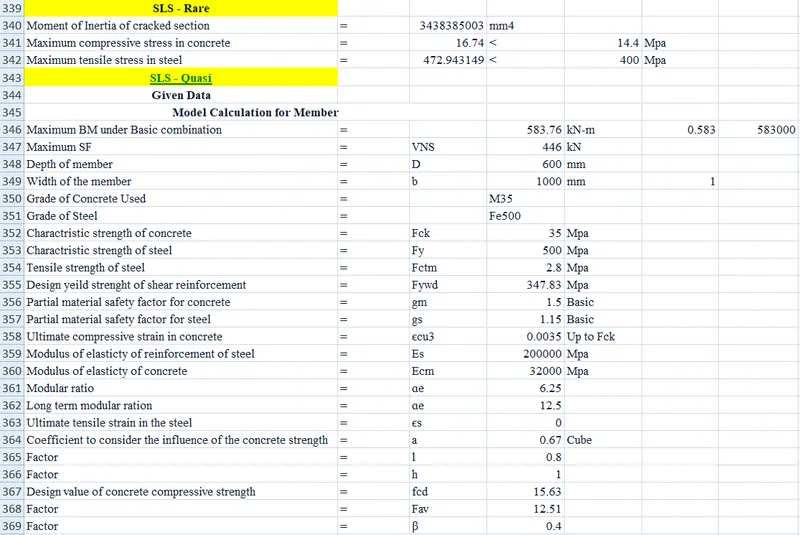

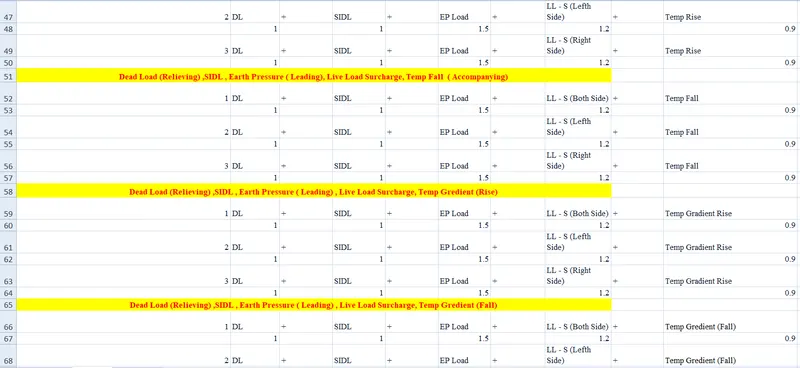

AFTER ANALYSE IT IN STADD RESULTS ARE AS FOLLOWS

APPLYING IT IN STADD AS FILE ATTACHTED
