Project 1

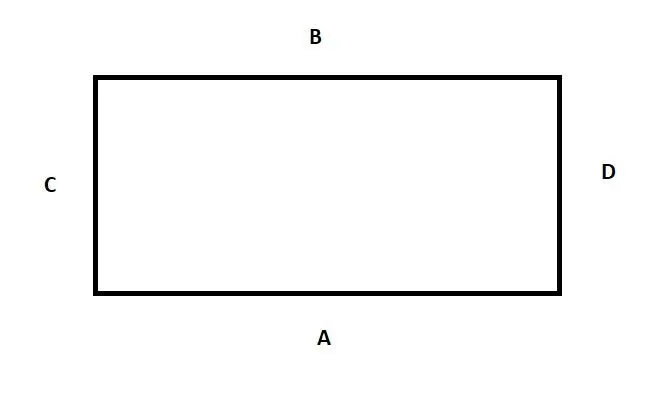

Analyze and design a steel building to 10T CRANE as per IS standard code in TEKLA STRUCTURAL DESIGNER. Refer to the attached plan and elevation. Provide bracings and moment connection for lateral stability.
Consider dead, live, equipment, and wind loading. Consider the brick wall loading for 150mm thick and 1.5 KN per sq m for wall and roof cladding.

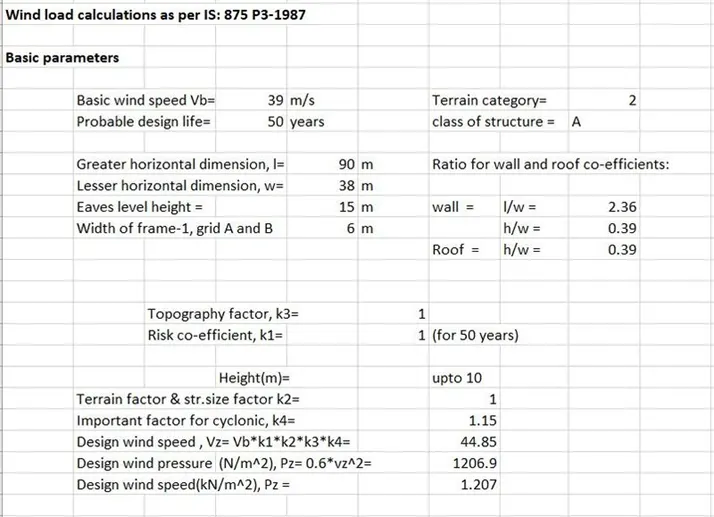

Assume wind loading basic speed as 39m/s
Report of each member to be generated and extract drawings of structural plans from the software.
ANS )
AIM: To analyze a building to 10T crane load. Create a structure as per the given plan in the attachments provided.
TOOLS USED :
- Grids.
- Levels.
- File.
- Model.
- Manage property sets.
- Column.
- Beams.
- Frames.
- Loads.
- Load cases.
- Wall panels.
- Roof panels.
- Analyze.
PROCEDURE :
- First, open a new file to start the structure as per the plan given in the attachments.

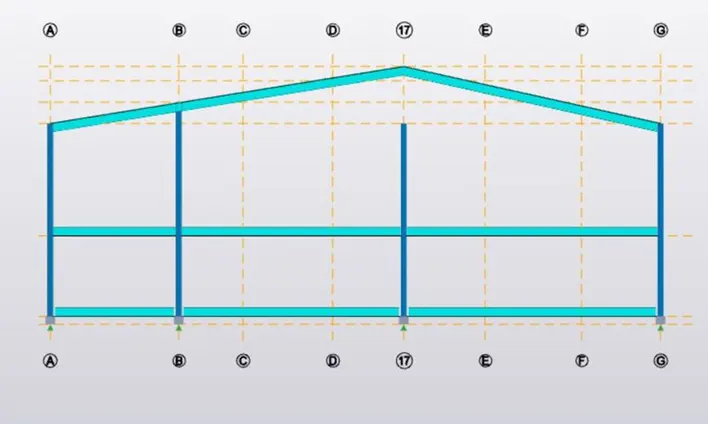

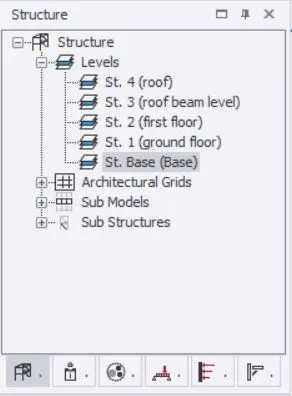

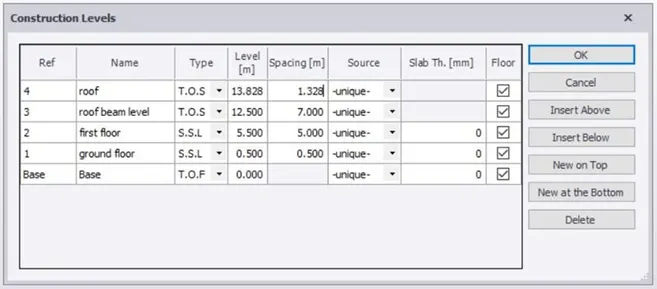

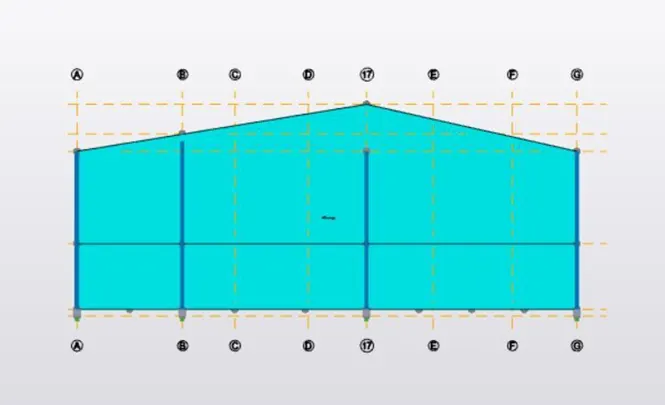

- Click on construction levels and add all the levels as per the cross-section plan given.

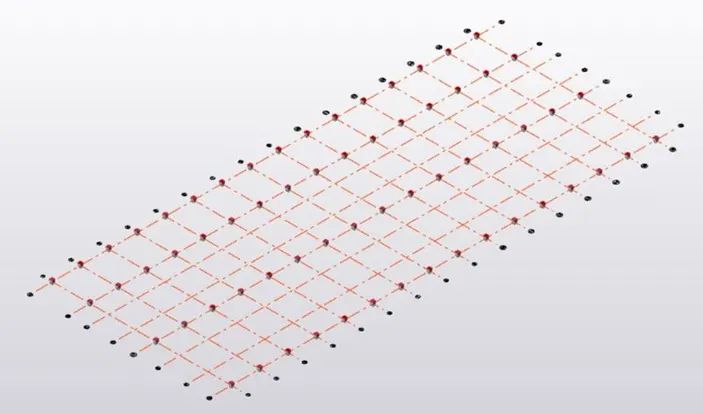

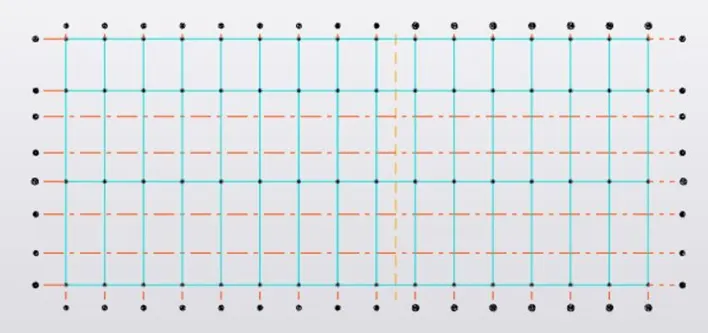

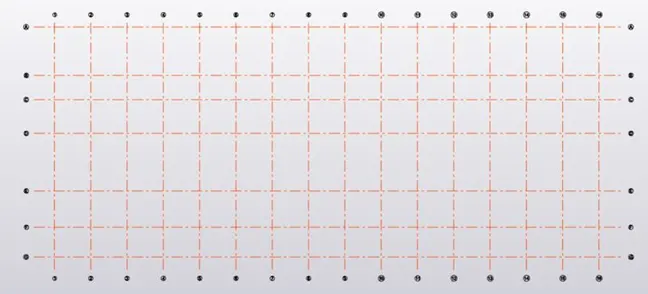

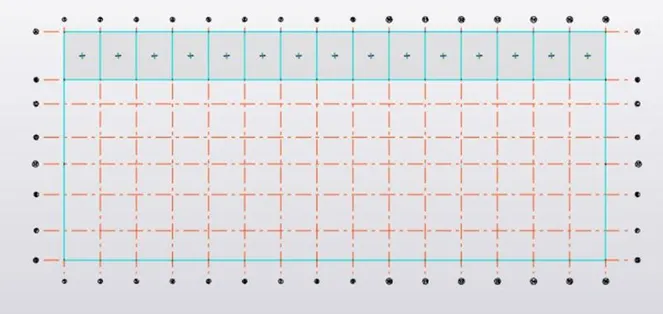

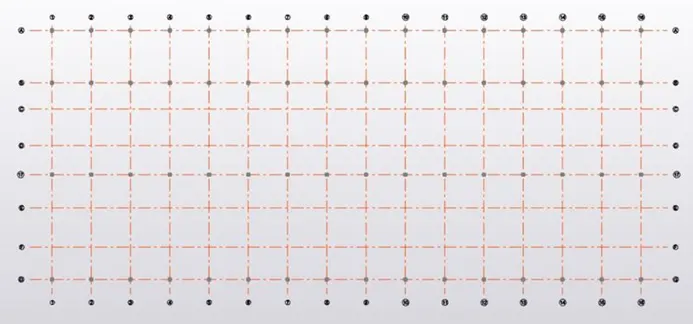

- Select the grids tool and draw a horizontal grid line.
- With the option parallel quick to draw the remaining grid lines.

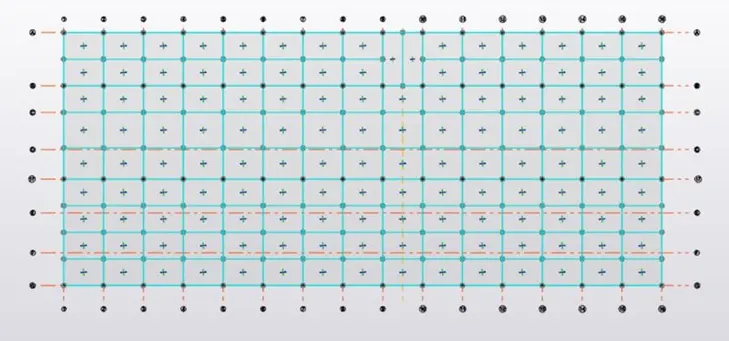

- Repeat the same procedure for the vertical grid lines also.

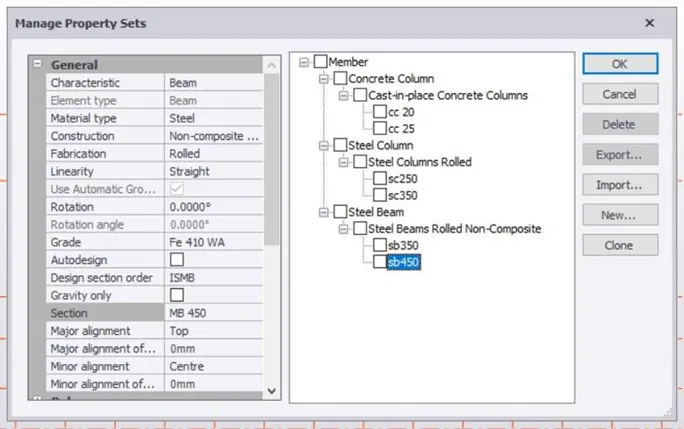

- Now click on the manage property sets tool and create members like concrete column, steel column, and steel beams of different grades.
- Now construct concrete column where ever necessary.

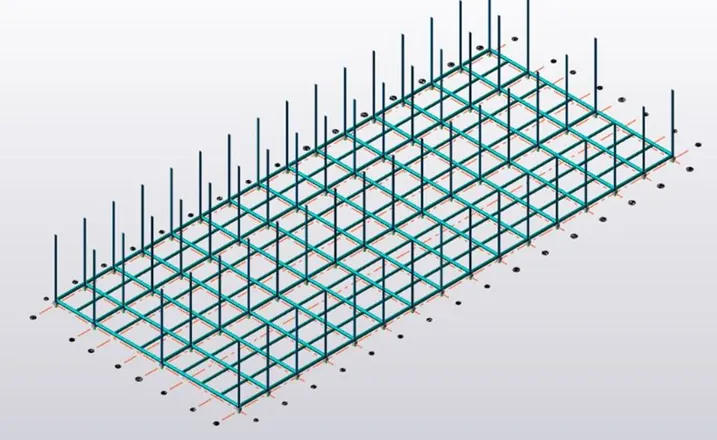

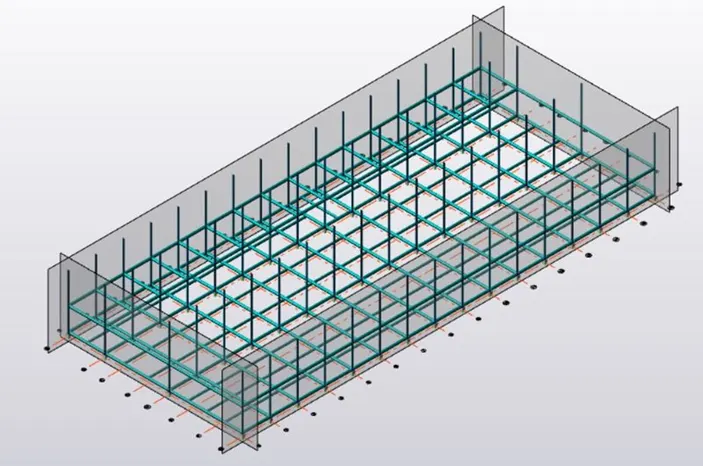

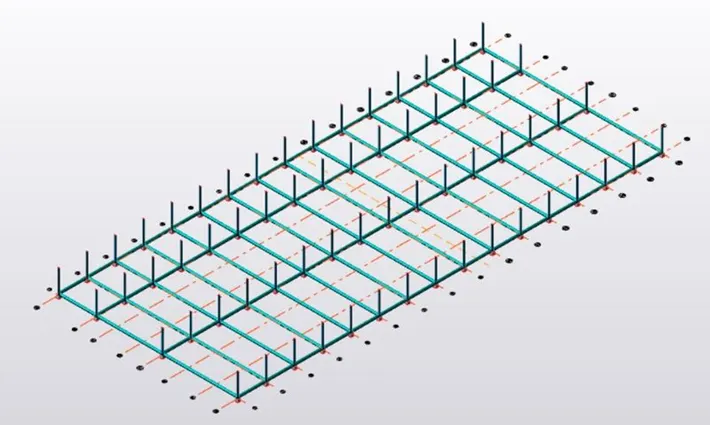

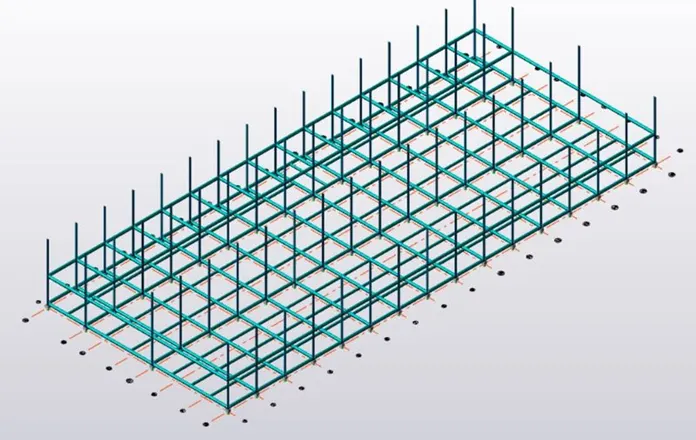

- Next on the concrete column construct steel columns and join the using primary beams.
- To give extra strength and support to the structure provide secondary beams.

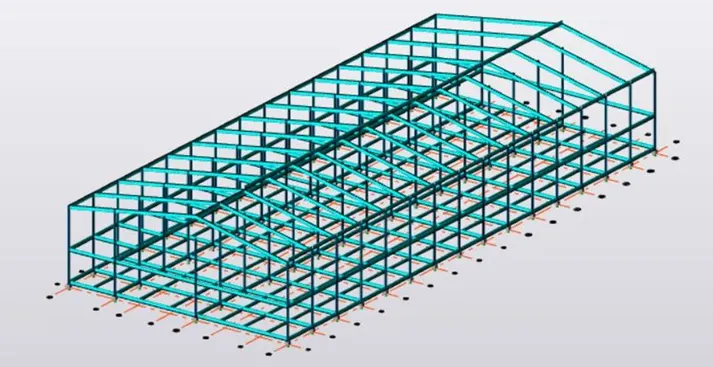

- Next, select the frames tool and create frames that will be helpful to do the remaining work.
- Validate the model to check whether there are any errors.
- Now on selecting the particular frame construct the rafter and the roof using high-grade steel bars.

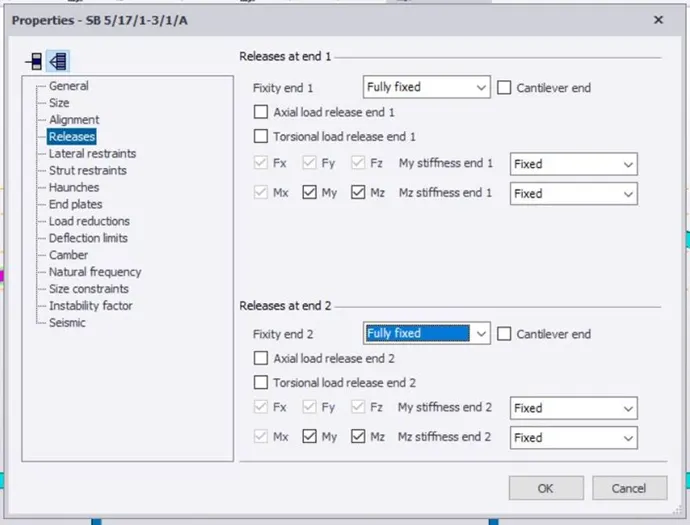

- After construction of the roof convert the beams to fully fixed support.

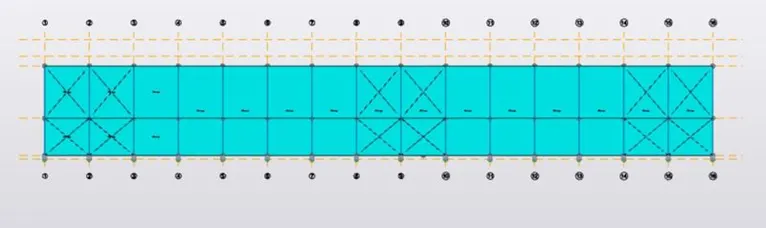

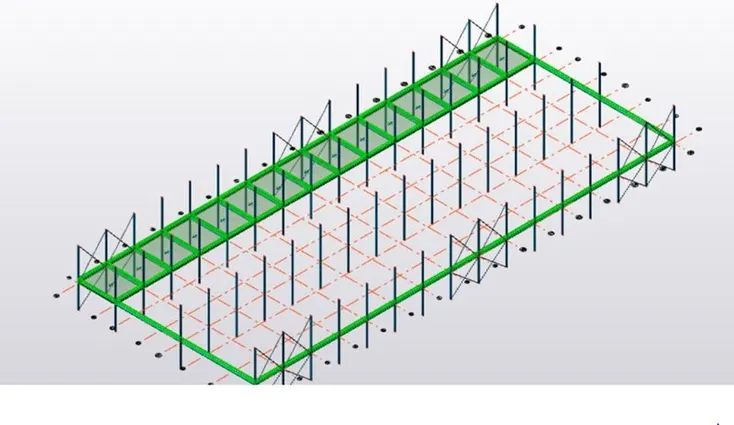

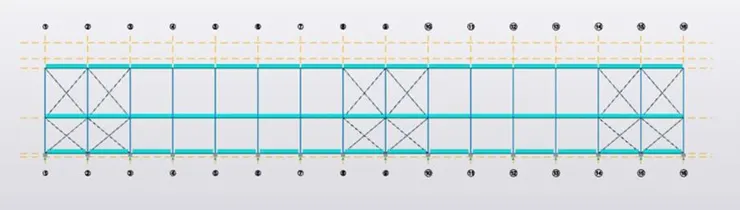

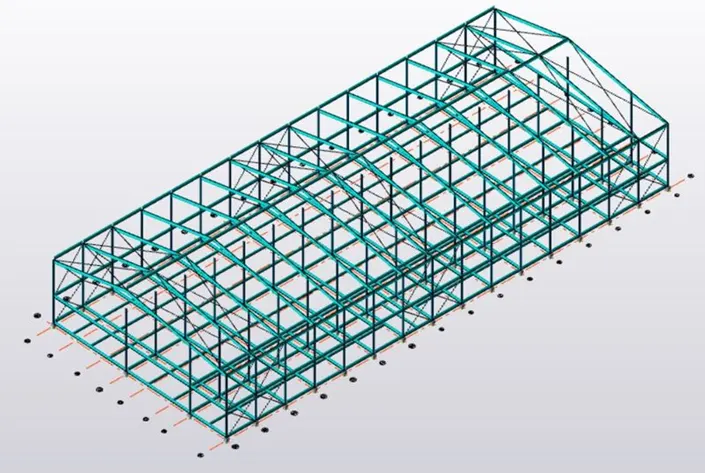

- With the help of the x braces tool construct x braces on both sides of the structure and the roof.

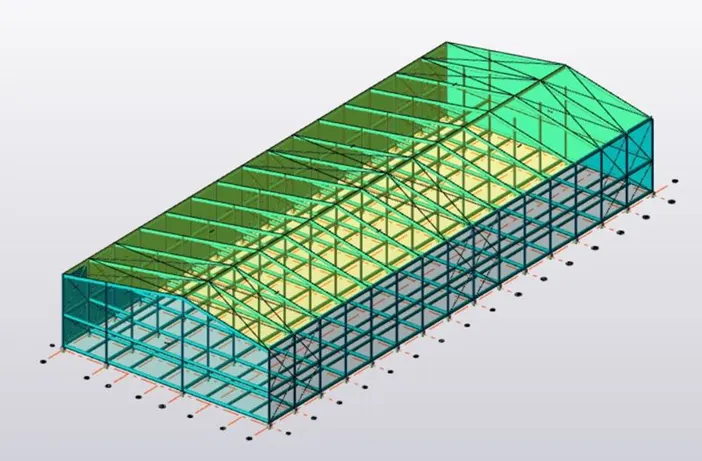

- Now create wall and roof panels to the structure on all sides.

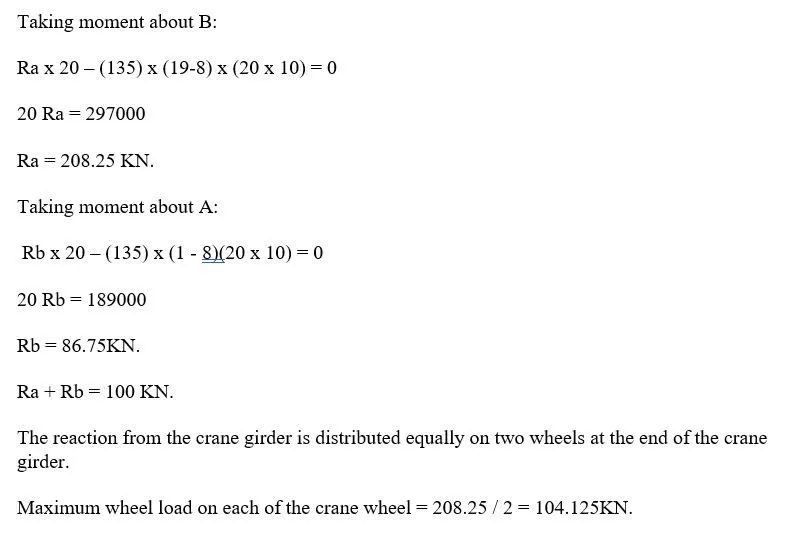

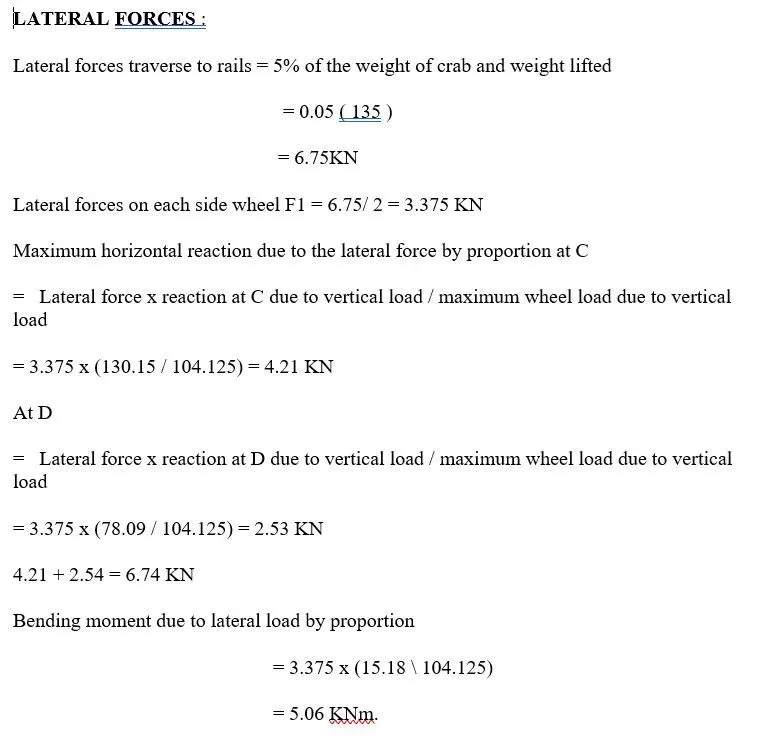

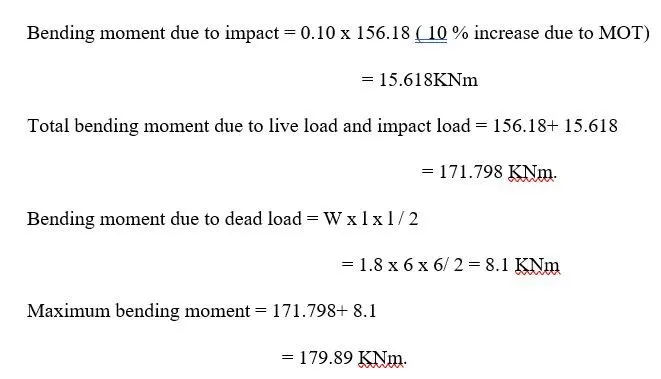

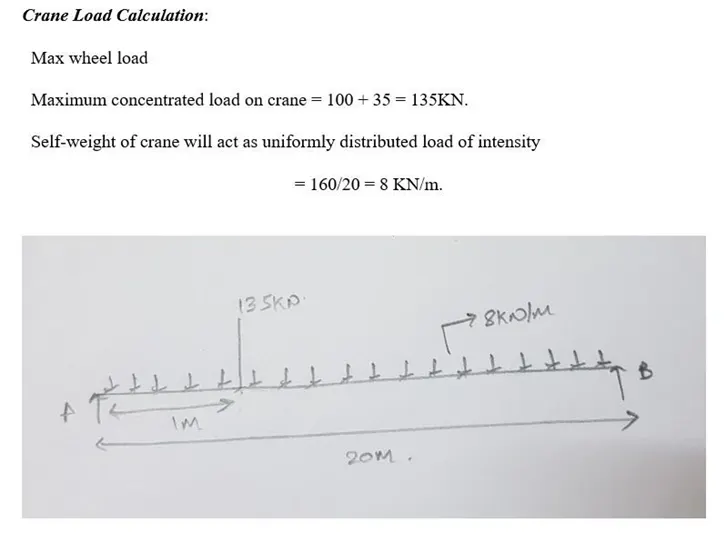

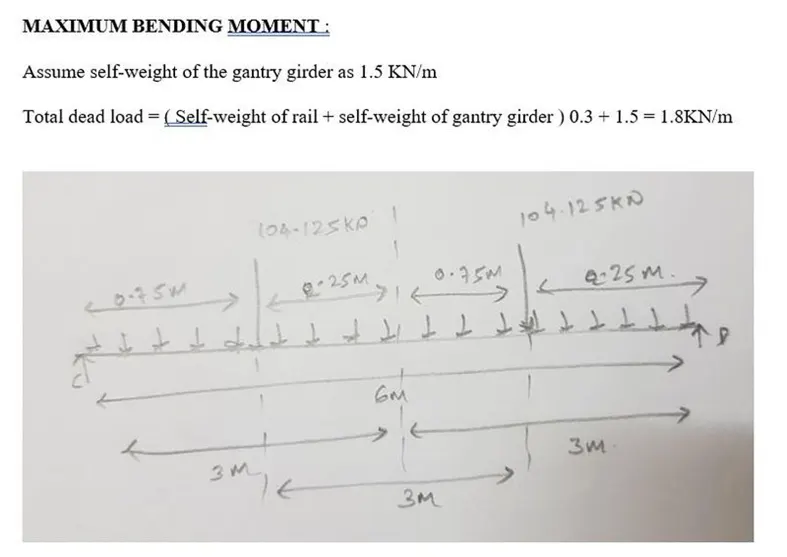

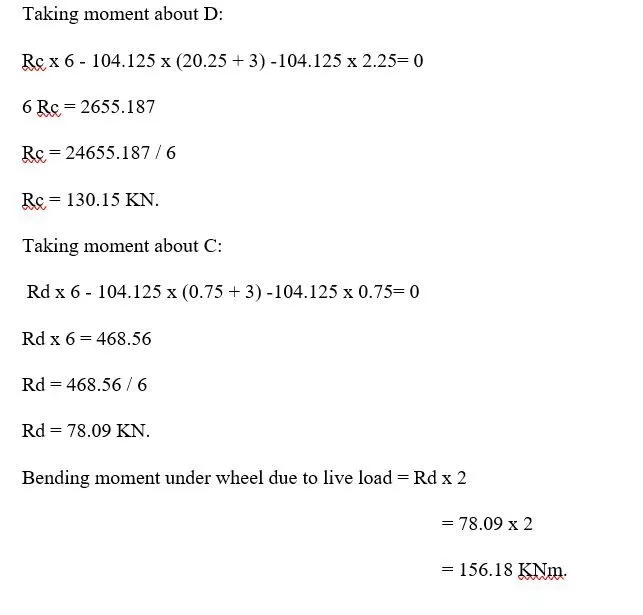

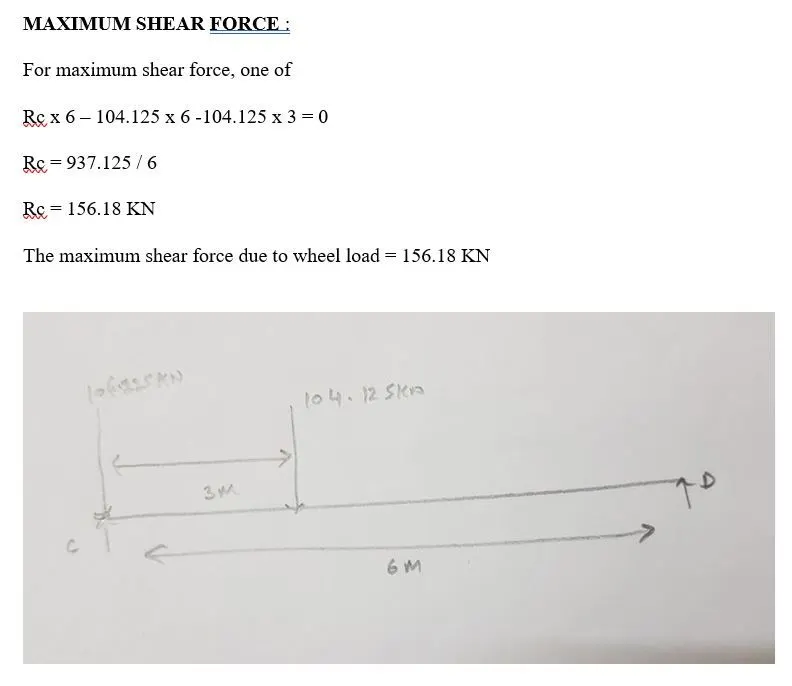

- Perform the clane loading calculations.

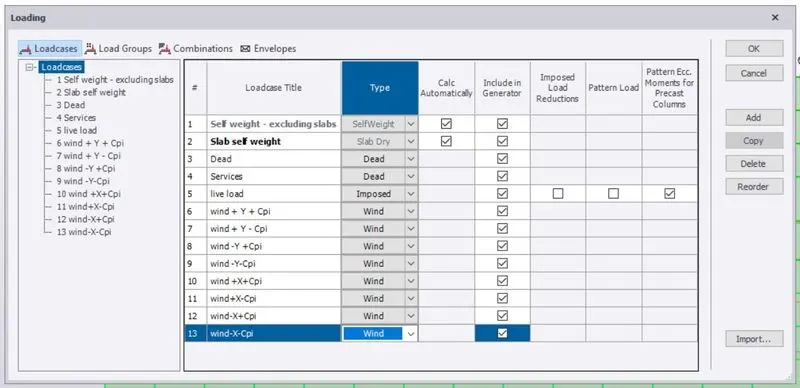

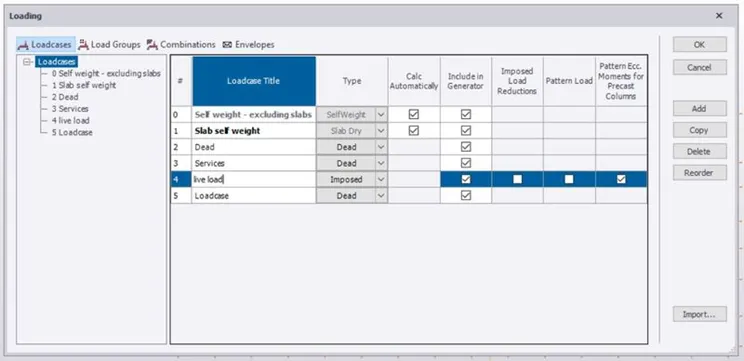

- Now click on loads and create new loads like dead and live loads.

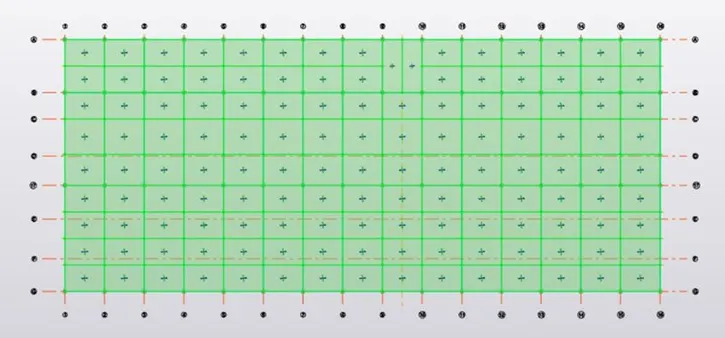

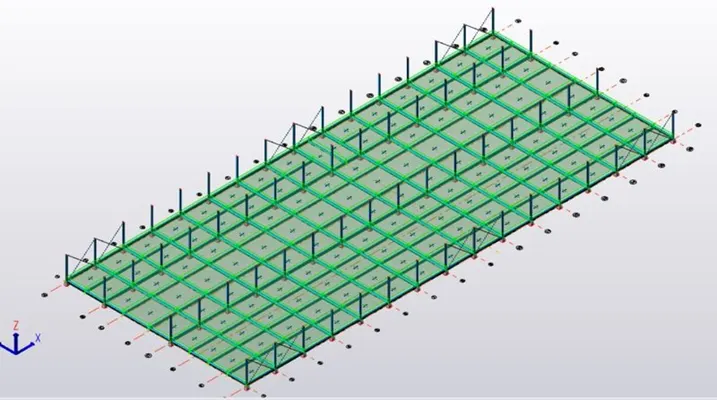

- Create slabs to the structure by clicking on the slabs on the beam option.

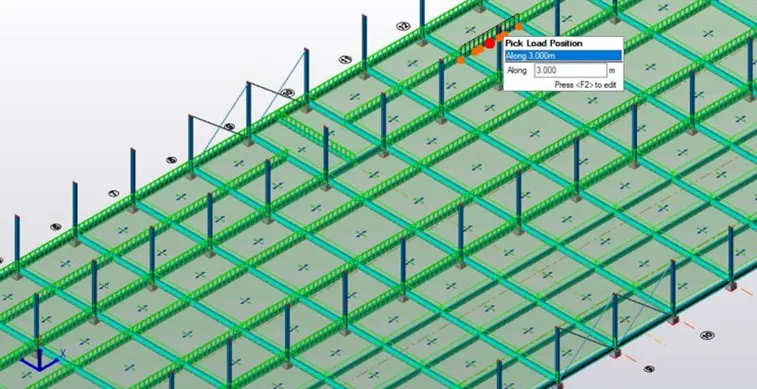

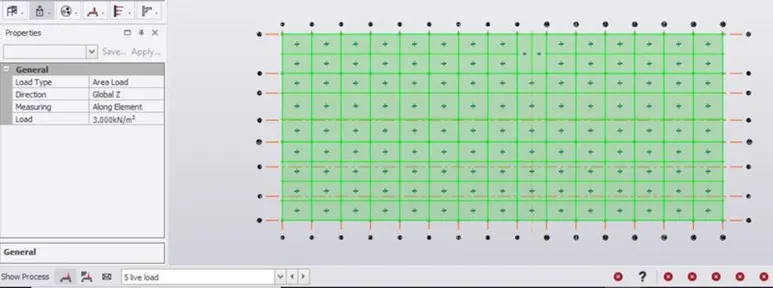

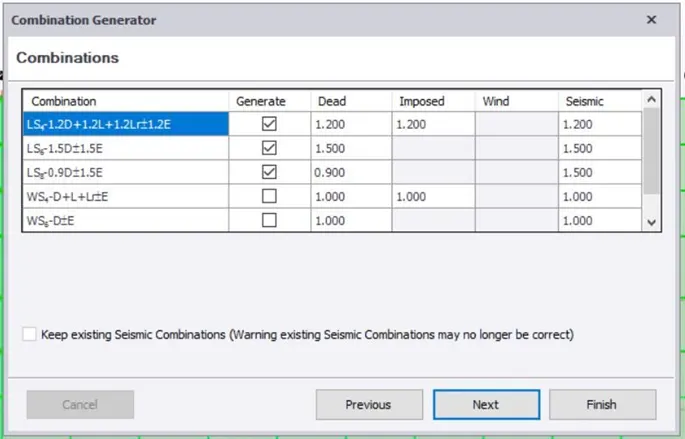

- Now place live and dead load on the structure as per IS standard codes.

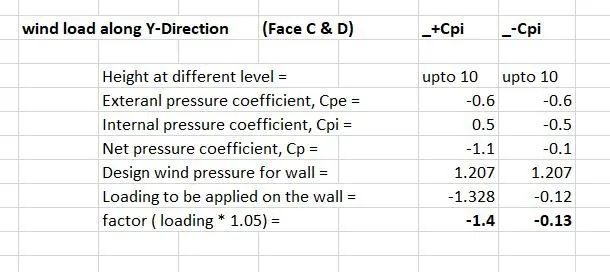

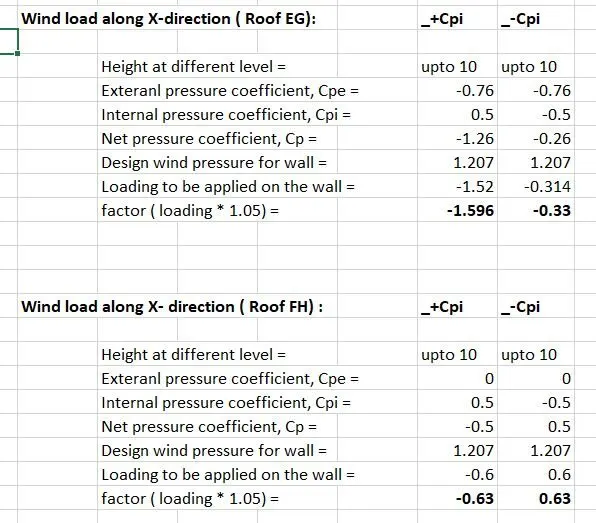

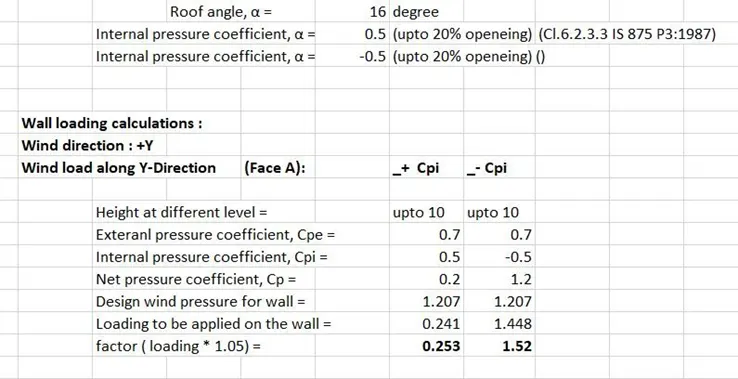

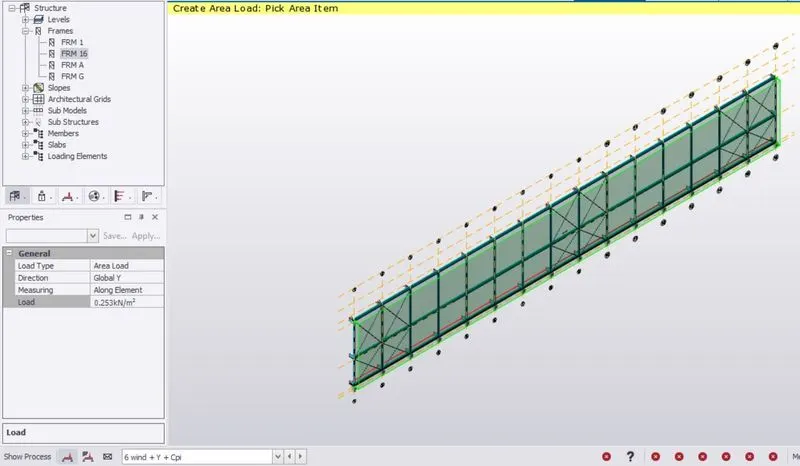

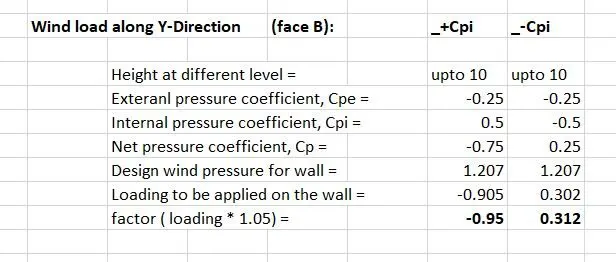

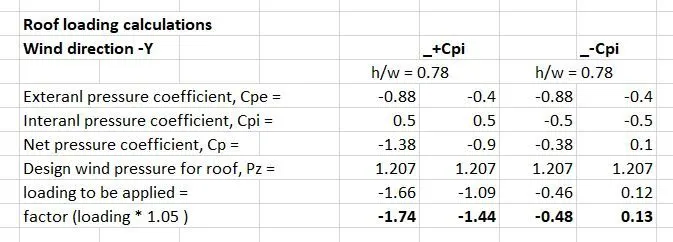

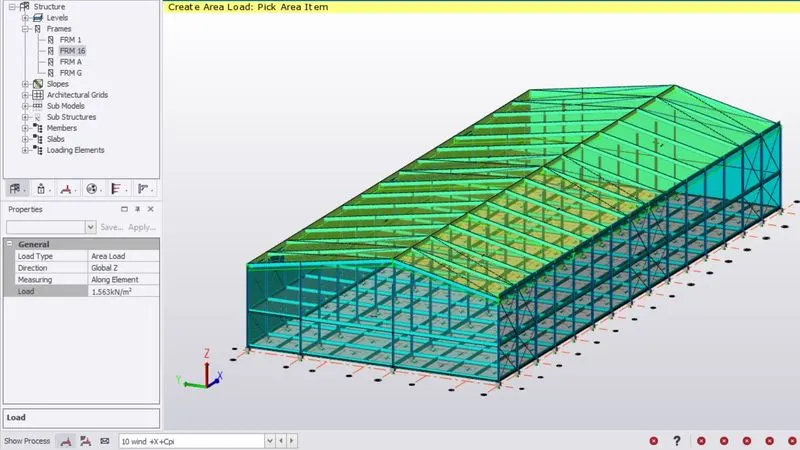

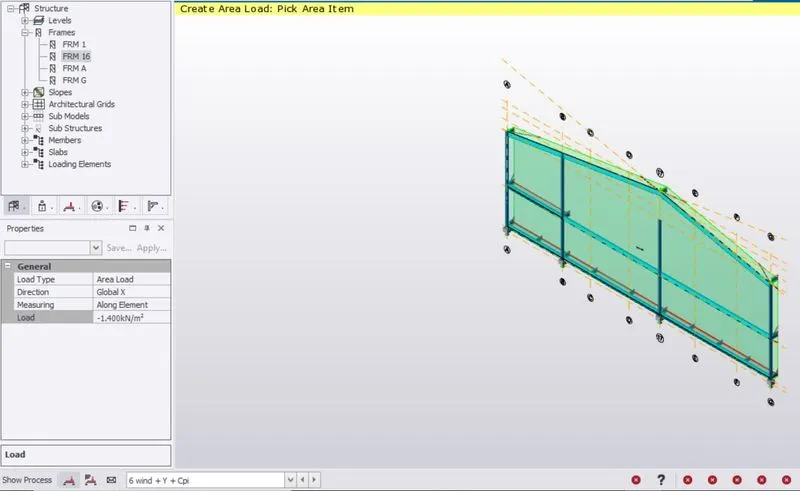

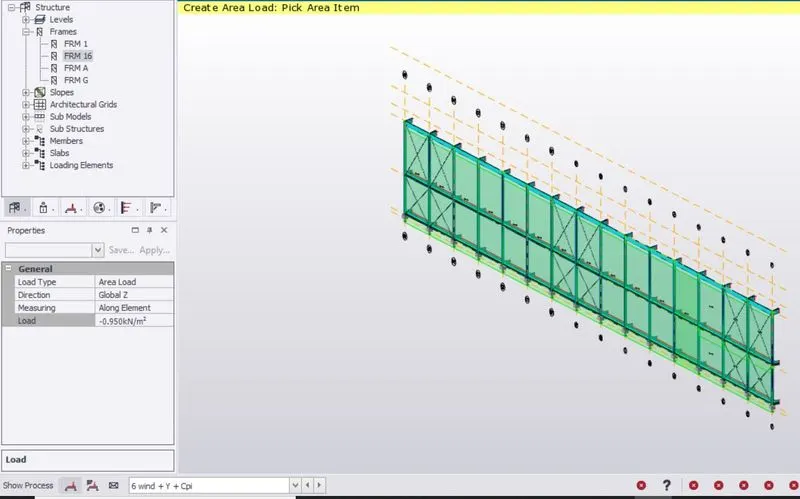

- Now create new wind loads with both + Cpi and -Cpi values.

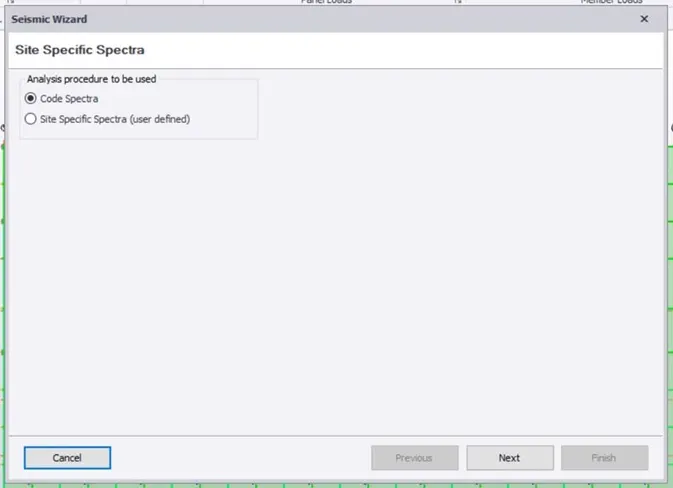

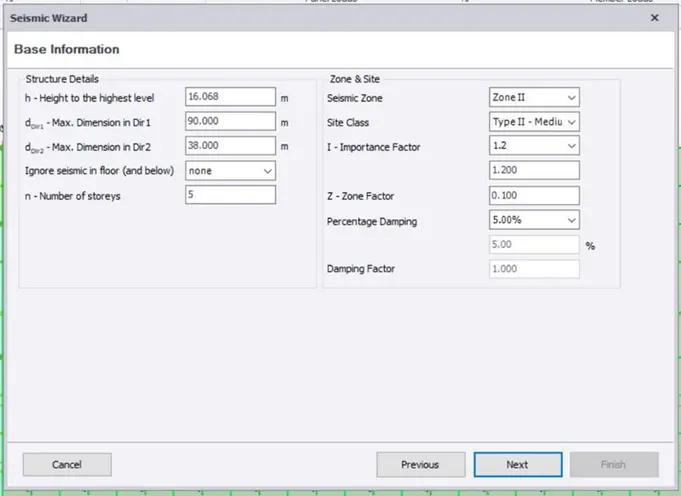

- At last, add seismic load to the structure.

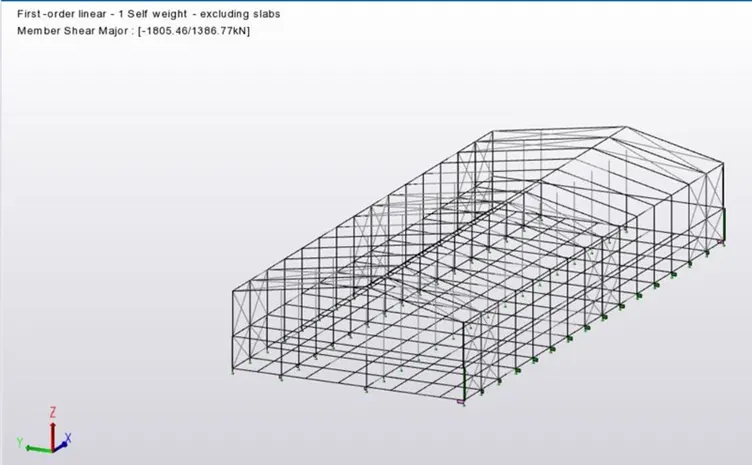

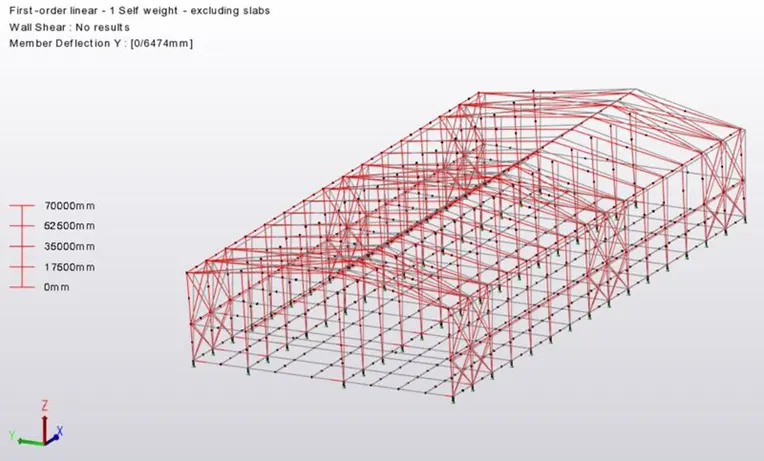

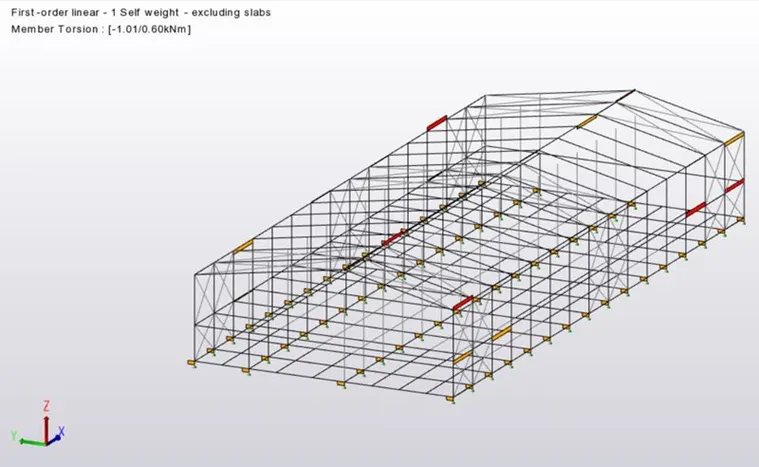

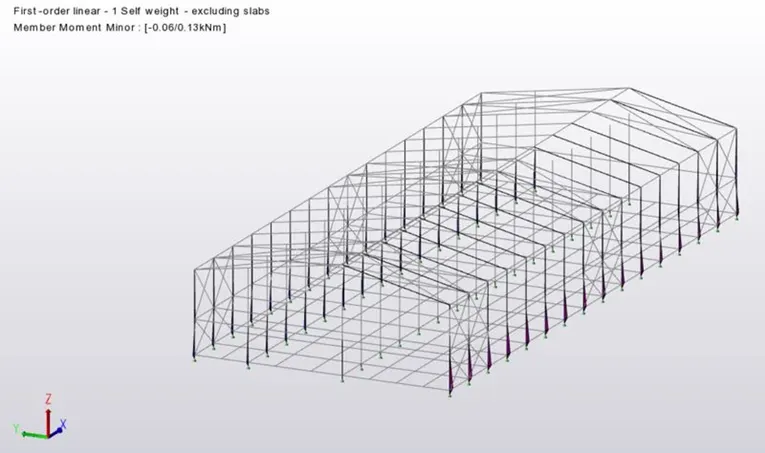

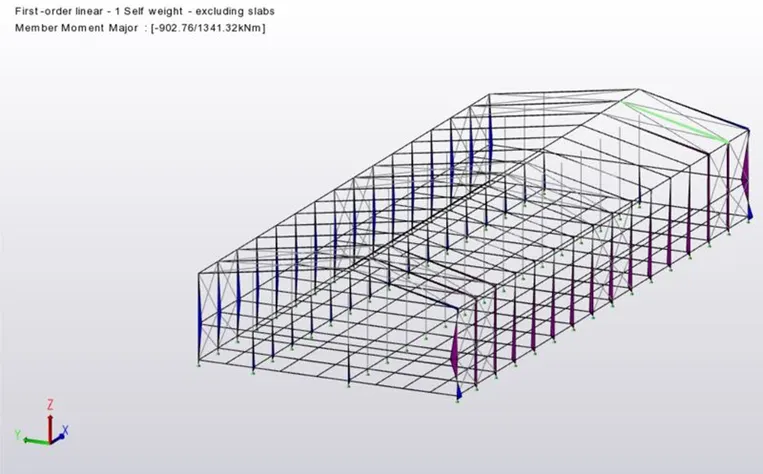

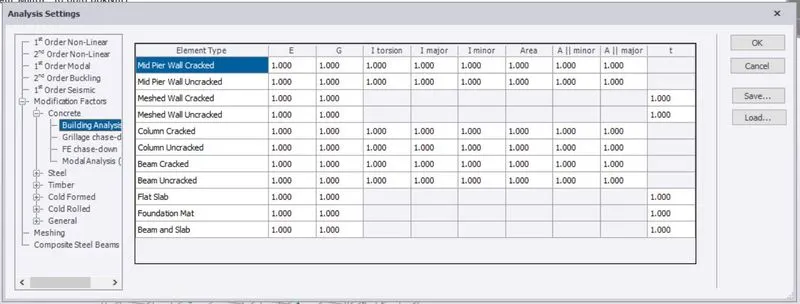

- Analyze the structure and do necessary changes to correct the errors.
RESULT :
With the above steps, we can construct a steel structure, add different loads, and analyze the structure.
