REVIT_Usage of Collabrate tool_Week 6

1) Open an architectural template. Using the Manage tab set project base point and project shared coordinates for the project

ans)

Aim: To open an architectural template. Using the Manage tab set project base point and project shared coordinates for the project

Tools Used:

1. manage
2. architecture
3. grid
4. collaborate

Procedure:

1)from the architectural tab select grid and draw grids

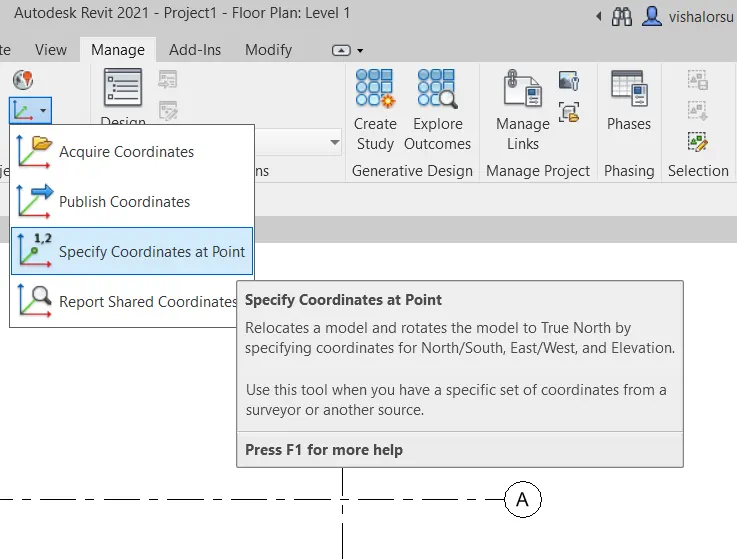

2)from the manage tab select the specify coordinates option

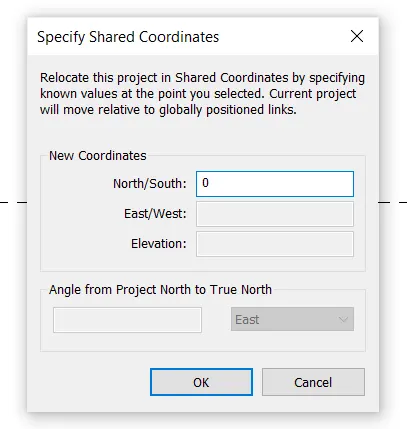

3)select the grid and set the coordinates to 0'0"

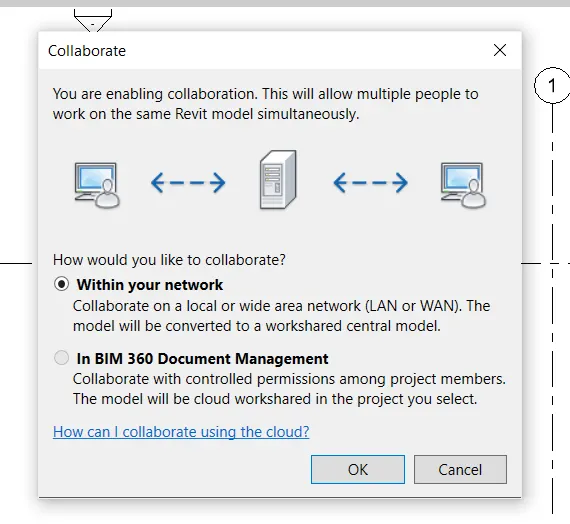

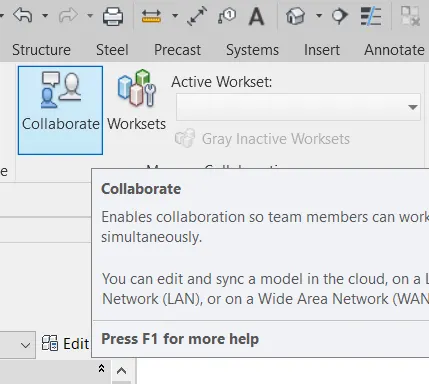

4)click on the collaborate option and save the file

Result: setting coordinates and collaboration completed successfully.

________________________________________________________________________________________________________________________________________________________________________

2) Open another new file but with a structural template. Using the manage tab set project parameters the same as the architectural model. Copy the parameters from the architectural model to the structural template or enter the parameters manually into the structural model

ans)

Aim: To open another new file but with a structural template. Using the manage tab set project parameters the same as the architectural model. Copy the parameters from the architectural model to the structural template or enter the parameters manually into the structural model

Tools Used:

1. manage
2. architecture
3. grid
4. collaborate

Procedure:

1)open a structural template and from the architectural tab select grid and draw grids

2)from the manage tab select the specify coordinates option

3)select the grid and set the coordinates to 0'0"

4)click on the collaborate option and save the file in the same folder where the architectural plan was saved

Result: collaboration completed between architectural and structural plan successfully.

________________________________________________________________________________________________________________________________________________________________________

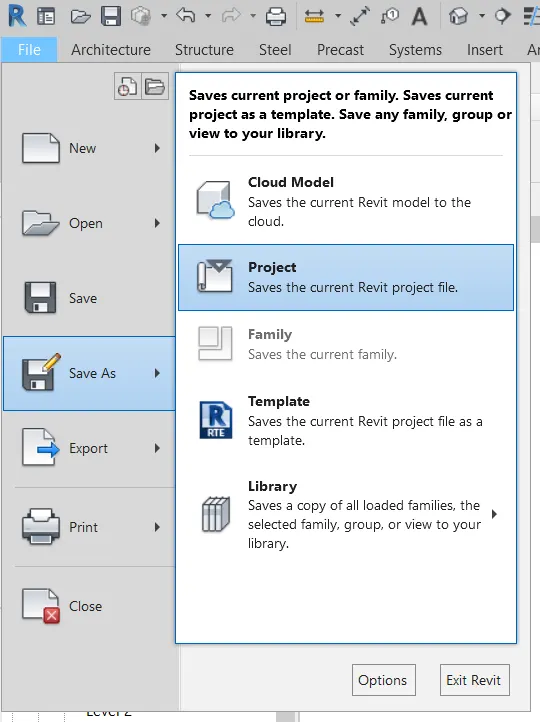

3) Re-open the architectural model. Using the tools under the Collaborate tab make the architectural model a central model ( enabling simultaneous working on the model )

ans)

Aim: To re-open the architectural model. Using the tools under the Collaborate tab make the architectural model a central model ( enabling simultaneous working on the model )

Tools Used:

1. file
2. save as
3. options

procedure:

1)open the saved architectural template file

2)click in file and click save as

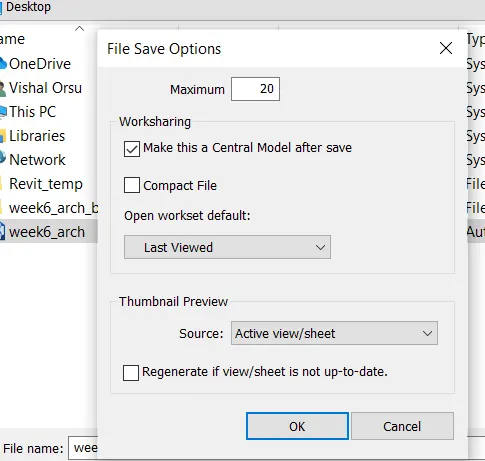

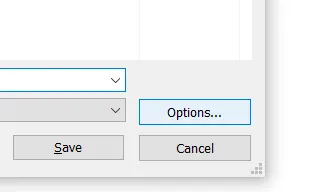

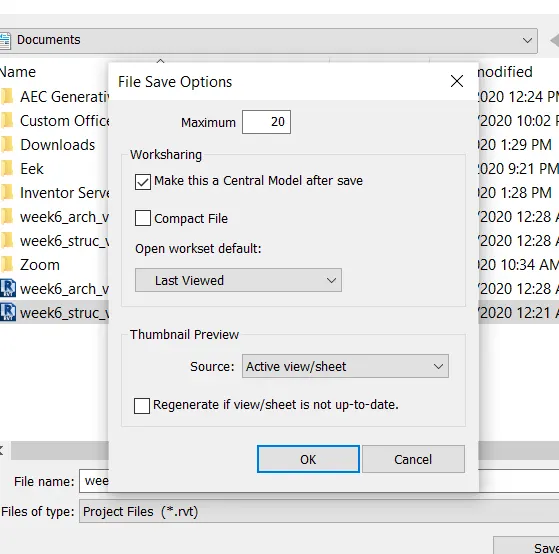

3)from the dialog box opened select options and select "mark this a central model after save"

Result: the architectural model was made the central model successfully.

________________________________________________________________________________________________________________________________________________________________________

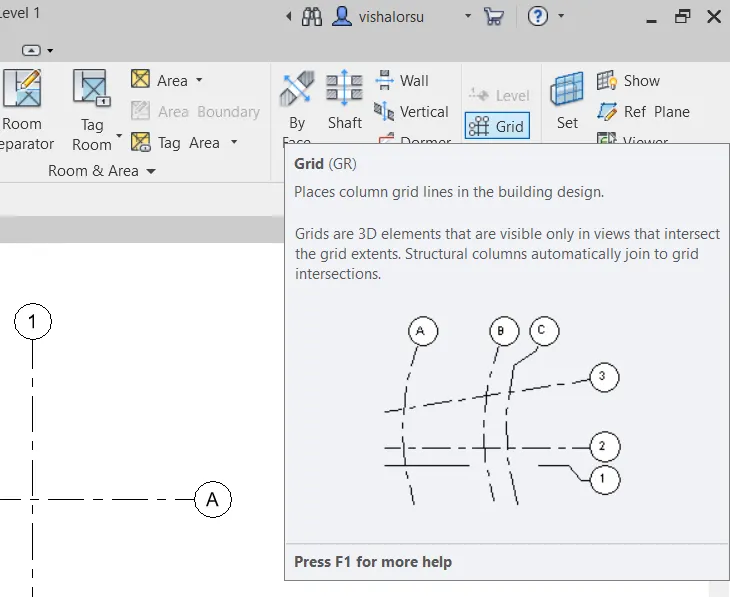

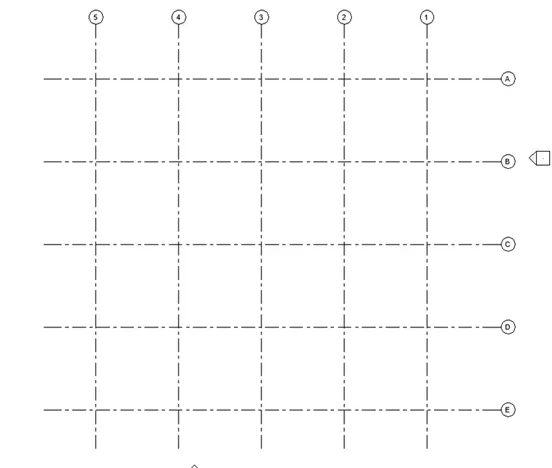

4) Create the Grids Longitudinal and Transverse pattern for the project similar to the task done in Week 2

ans)

Aim: To create the Grids Longitudinal and Transverse pattern for the project similar to the task done in Week 2

Tools Used

1. architecture
2. grid

procedure:

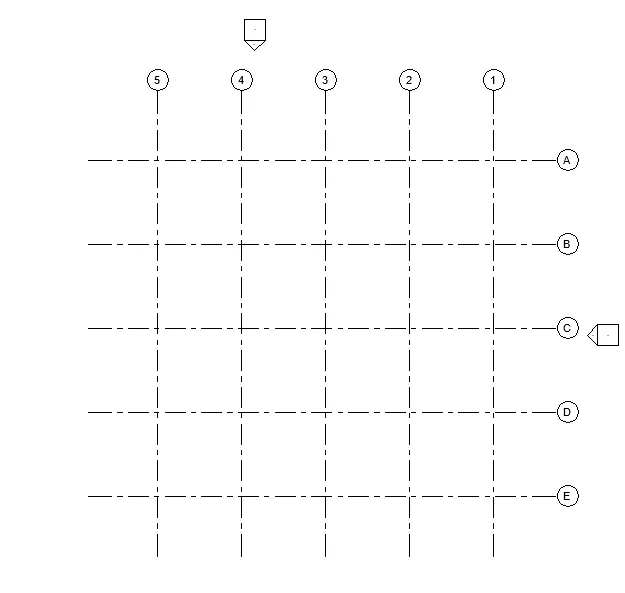

1)from the architecture tab select grid

2)place longitudinal and traverse grids with equal distance
3)rename the grids

Result: grids were created successfully.

________________________________________________________________________________________________________________________________________________________________________

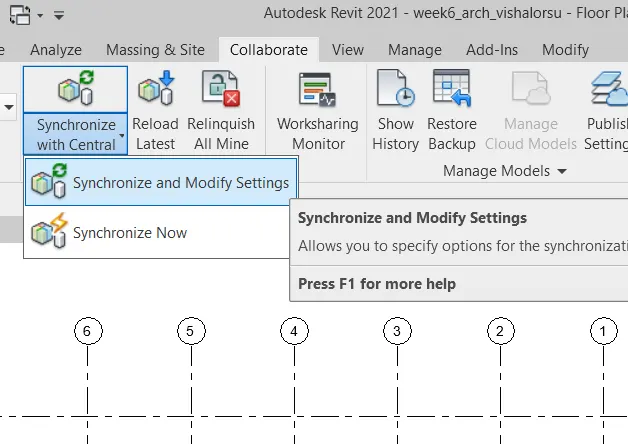

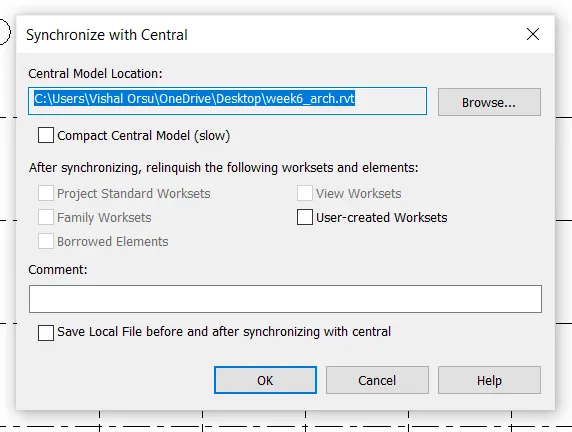

5) Synchronize the changes from the local copy to the central file of the architectural model.

ans)

Aim: To synchronize the changes from the local copy to the central file of the architectural model.

Tools Used:

1. collaborate
2. synchronize

procedure:

1)go to the collaborate tab

2)click on synchronize with central

3) click ok on the dialog box opened

Result: synchronization with the central file is done successfully.

________________________________________________________________________________________________________________________________________________________________________

6) Open the structural model and using the collaborate tools to save the model as a central file.

ans)

Aim: To open the structural model and using the collaborate tools to save the model as a central file.

Tools Used:

1. file
2. save as
3. options

procedure:

1)open the saved structural template file

2)click in file and click save as

3)from the dialog box opened select options and select "mark this a central model after save"

RESULT: the structural model was saved as a central model successfully.

________________________________________________________________________________________________________________________________________________________________________

7) Under the Collaborate tab, select the grids and levels from the architectural model, and using Copy Monitor try to copy the grids to the structural model. See what happens when the copy monitored grid is moved around in the structural model

ans)

Aim: To select the grids and levels from the architectural model, and using Copy Monitor try to copy the grids to the structural model. See what happens when the copy monitored grid is moved around in the structural model

Tools Used:

1. collaborate
2. copy monitor

Procedure:

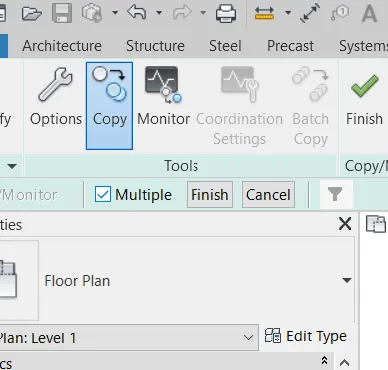

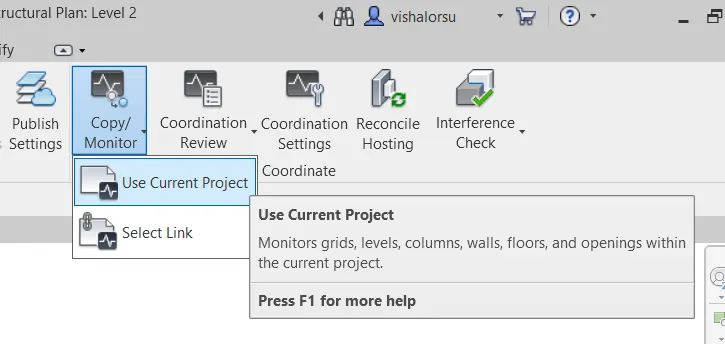

1) from collabarate tab select copy moniter

2)select copy and click on multiple select the grids wanted to be linked

3) click finish

________________________________________________________________________________________________________________________________________________________________________

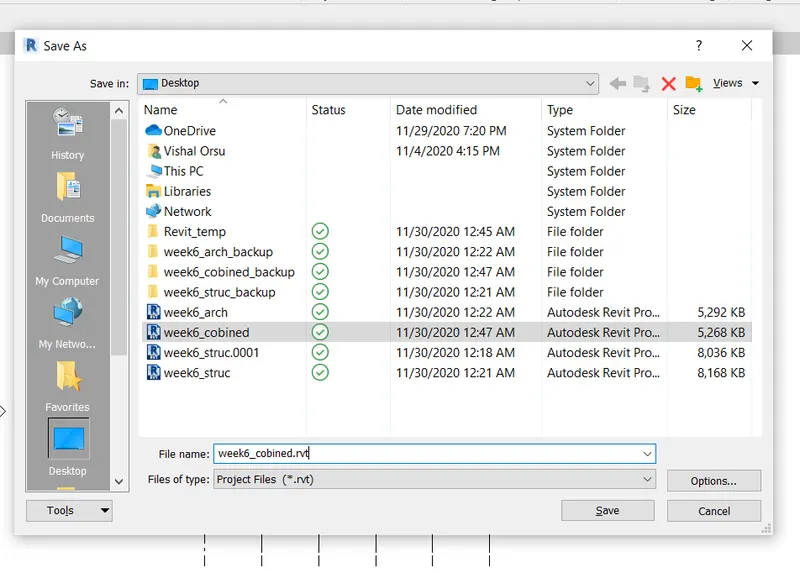

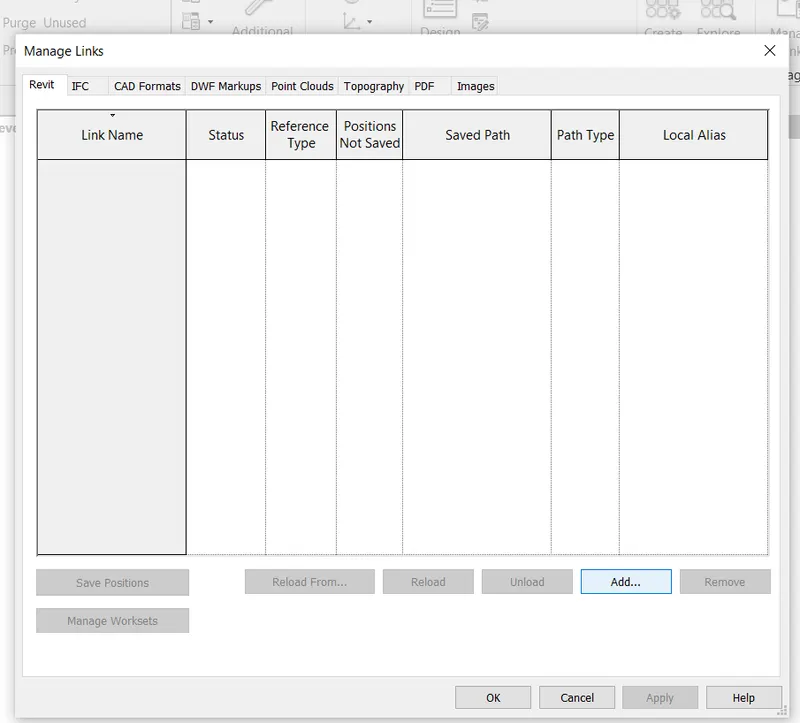

8) Create another new file with a construction template. Save the new file as a central model. This file will include both architectural and structural model. Under the manage tab, Click manage links to link both architectural and structural files. Save the file and close all the files.

Aim: To create another new file with a construction template. Save the new file as a central model. This file will include both architectural and structural model. Under the manage tab, Click manage links to link both architectural and structural files. Save the file and close all the files.

Tools Used:

1. manage
2. manage links

Procedure:

1)after creating a file in the constructional template, follow the procedure in question 1 & 2 to make it the central model

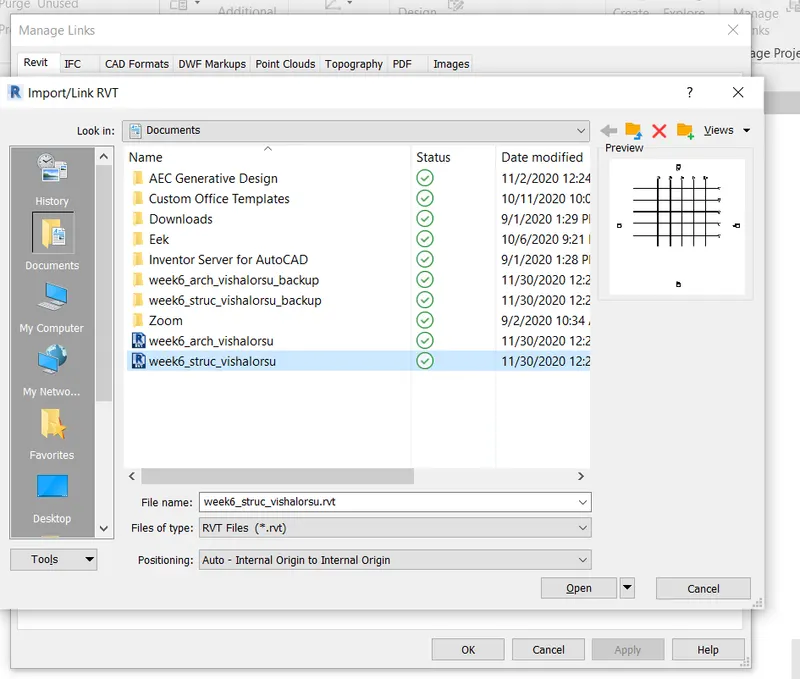

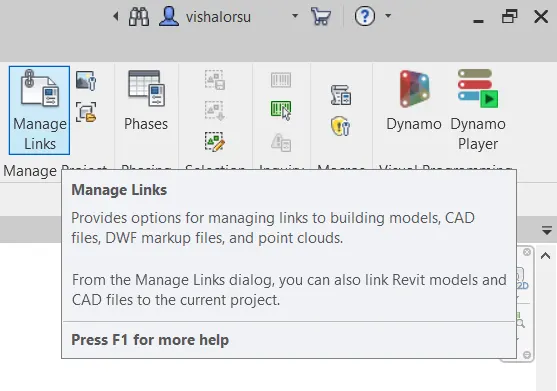

2) from the manage tab select manage links and add the architectural and structural plans

Result: combined constructional template created successfully.

________________________________________________________________________________________________________________________________________________________________________

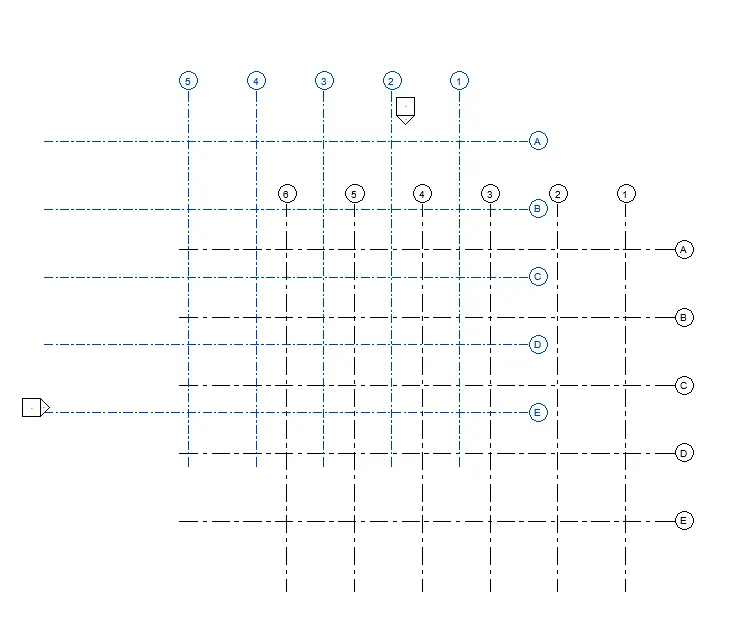

9) Are the grids from structural and architectural model matching in the construction template created? If yes the model is set up for project 2. If not work on the shared parameters and linking options under Manage links

ans)

Aim: the grids from structural and architectural model matching in the construction template created? If yes the model is set up for project 2. If not work on the shared parameters and linking options under Manage links

Tools Used:

1. move

Procedure:

1) select the link

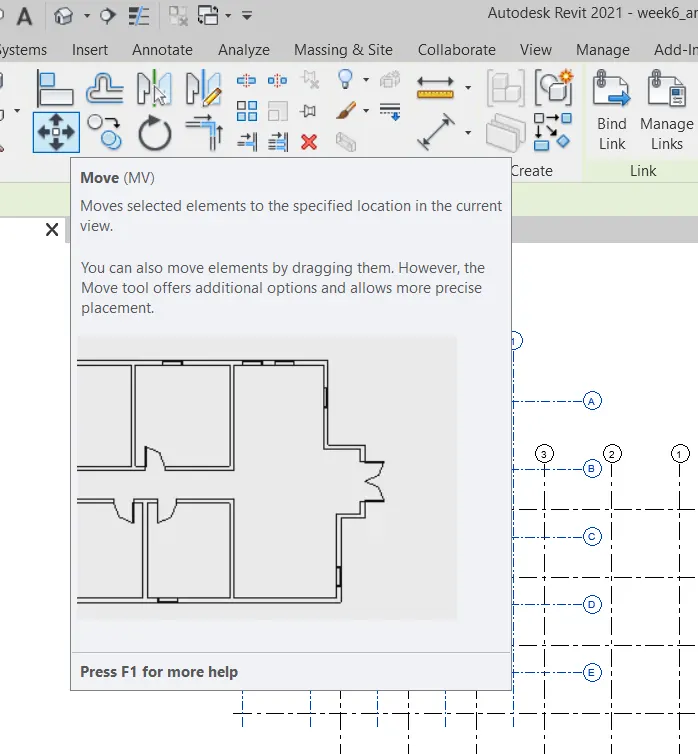

2)click on the move option

3) move it to make them aligned

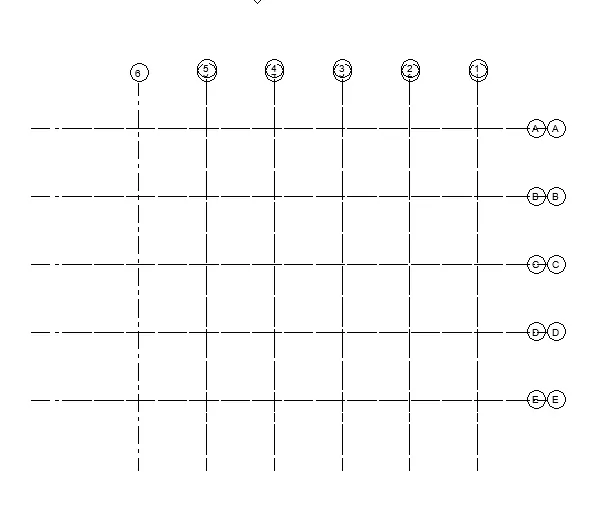

Result: grids matched in the architectural and structural model successfully.

________________________________________________________________________________________________________________________________________________________________________

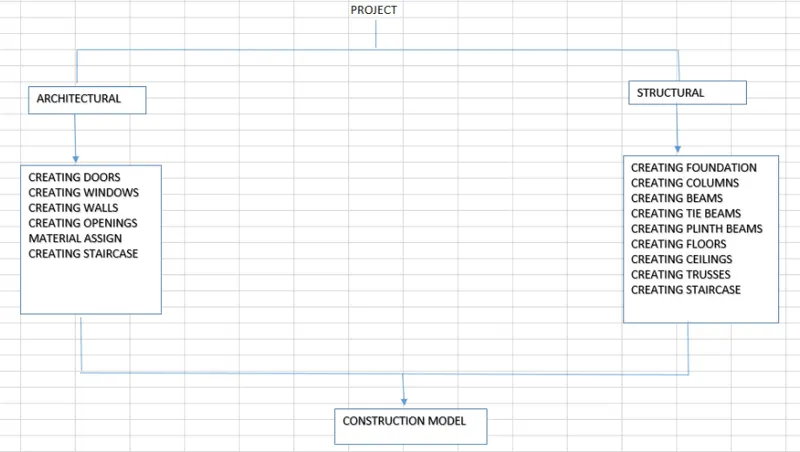

10) List a flow chart of a project tree set up in terms of Construction model, Architecture & Structure model, in this exercise and understand how many people can work on the same project using Revit simultaneously

ans)
