Project 1

ENGINE HARNESS ASSEMBLY

Aim

To route the wiring harness for a V16 Engine

Objectives

• To Route the wiring harness for the given engine and apply protection coverings based on the need
• To create a flattened view and 2D drawing of the bundle in Catia v5

Steps followed during the creation of wiring harness for the given engine

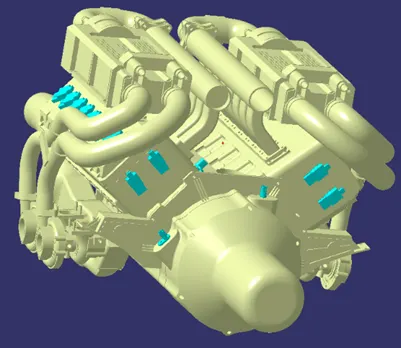

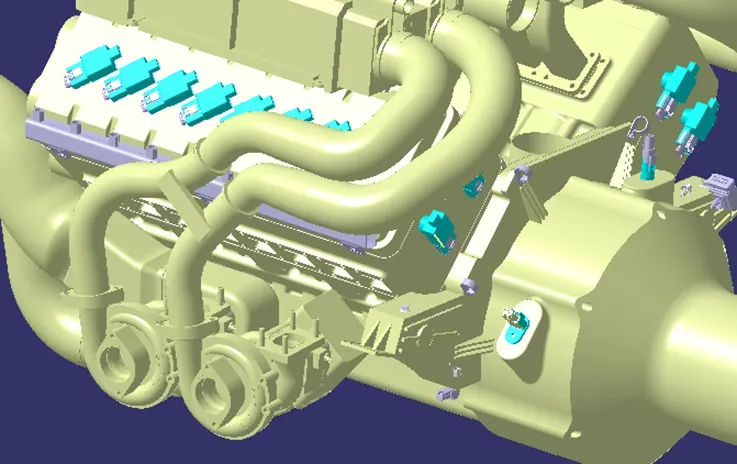

engine that needed to be routed

Downloading required components and electrically defining them

Connector’s, clip, clamps and protection coverings are downloaded and defined electrically

12 pole connector and its anti-rotational mounting clip

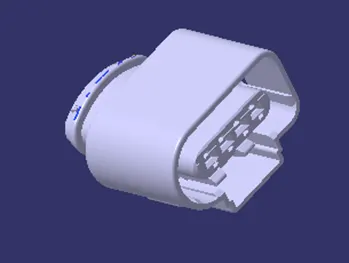

4 pole connector C-1563689

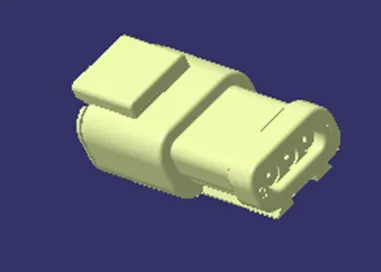

3 pole connector C-DTM04-3P

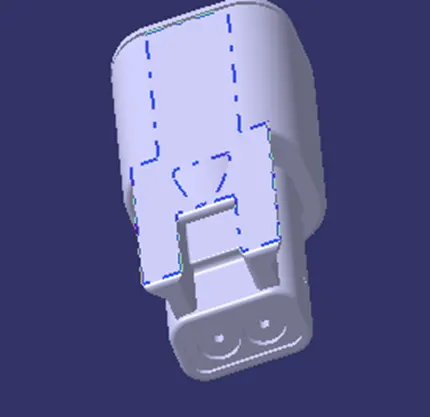

2 pole connector

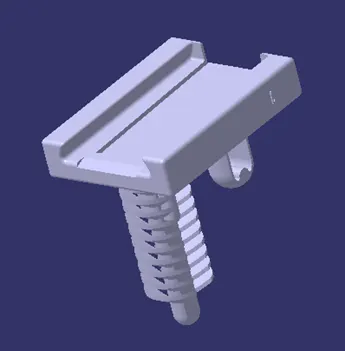

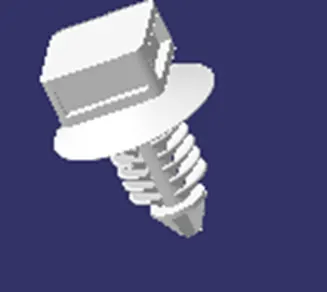

Furr Clip 20mm

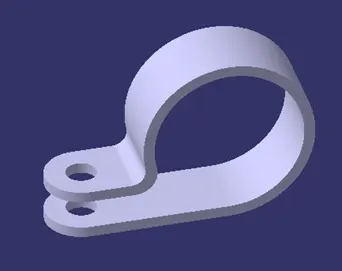

P clamp

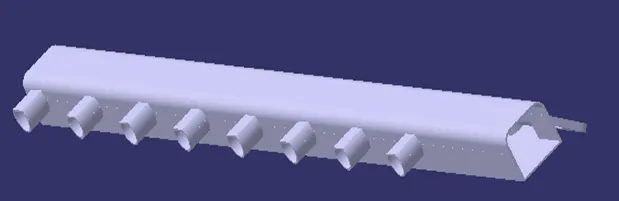

Protectional covering

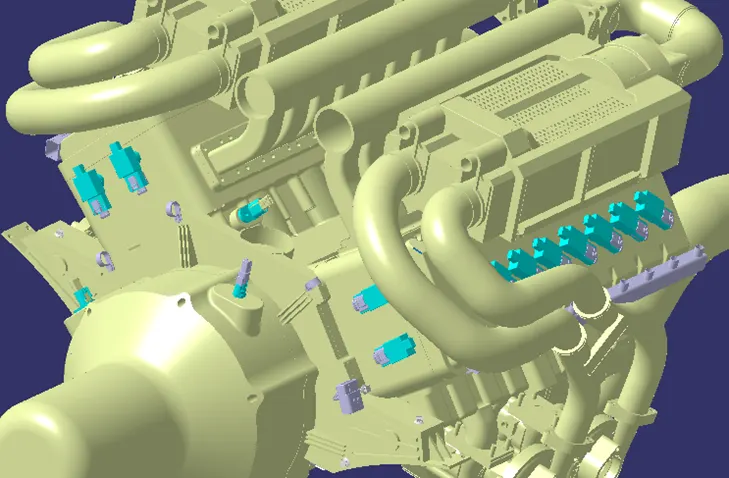

Electrical components are fixed into the required positions on the engine

Wiring harness routing

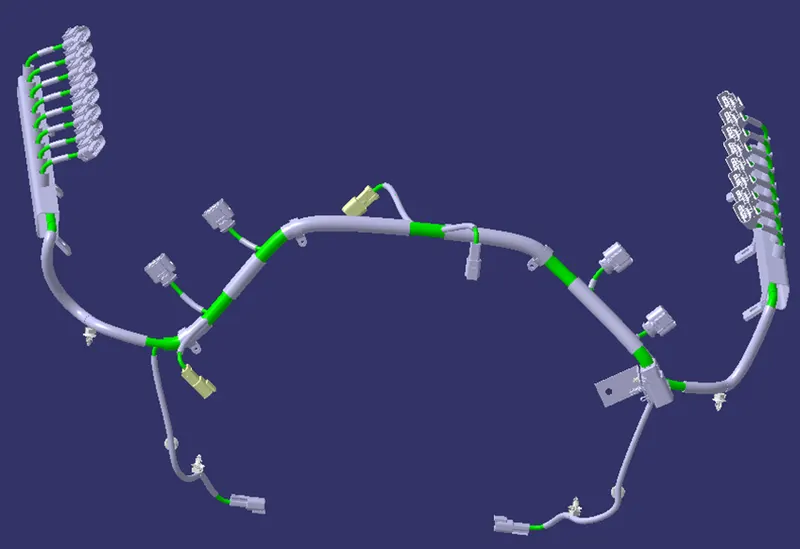

Inter connectors and connectors are connected together by routing bundle. Add branch points are used to create branches on the bundle to connect with individual connectors

Corrugated tubes are provided for protection and required distance are provided between them for taping

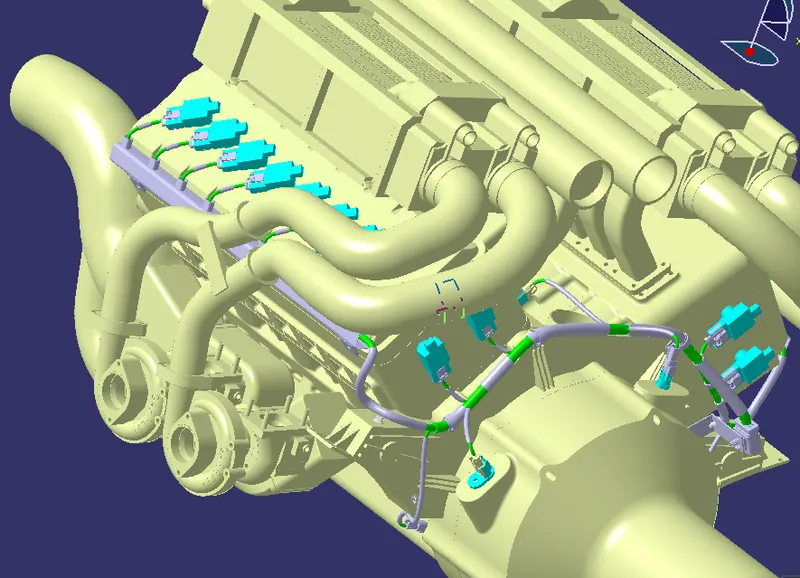

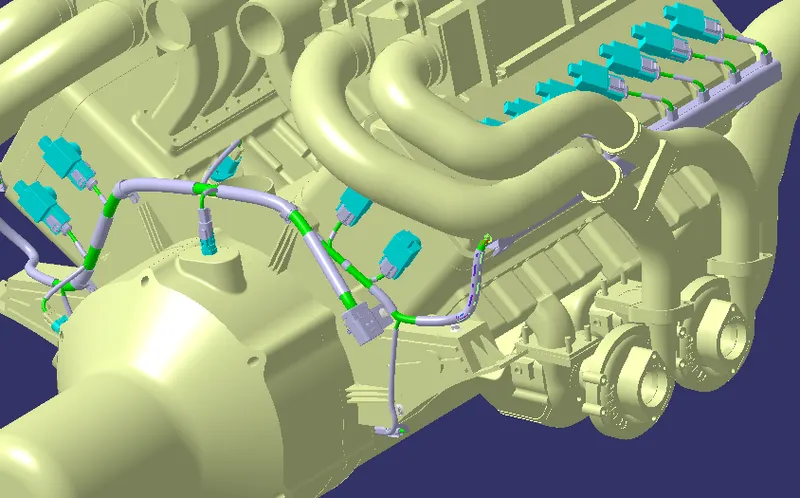

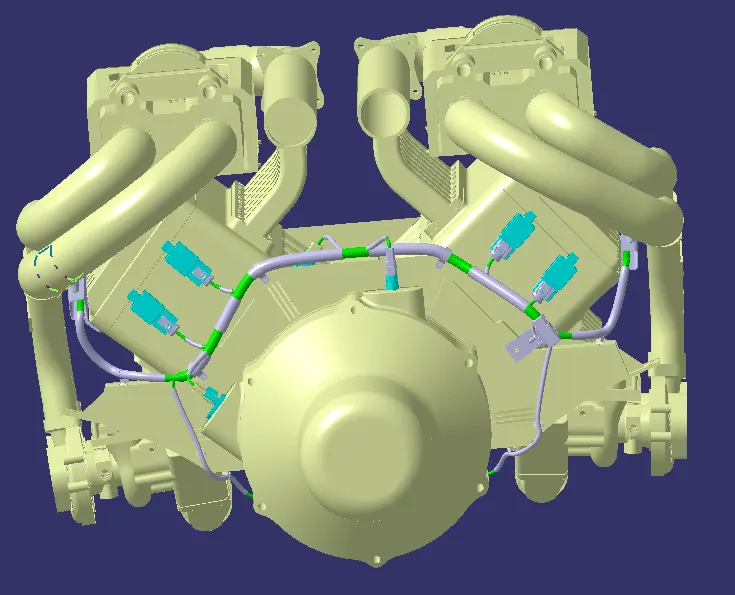

Completed wiring harness assembly of the engine

Electrical continuity check

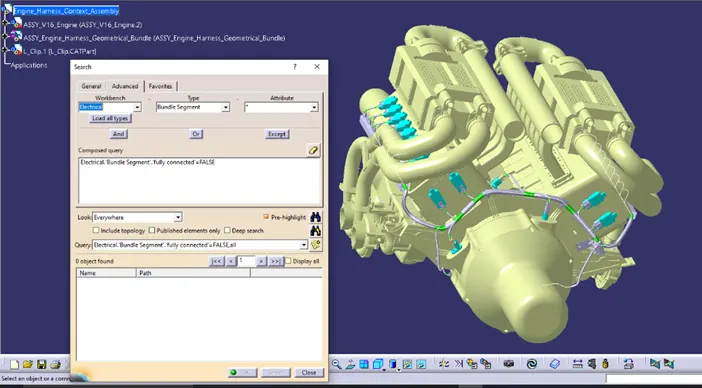

To check continuity, go to edit-search-advanced

Select workbench as electrical, type as bundle segment and attributes as fully connected

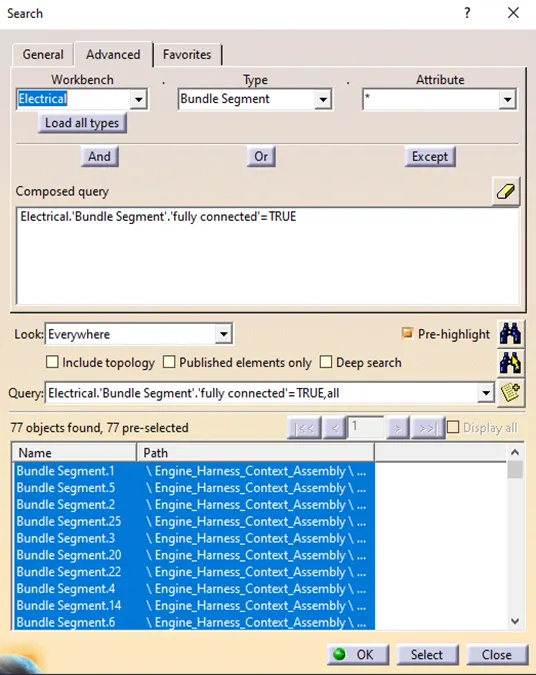

The select result should be true or false then search to analyze the continuity of the bundle segment. It the bundles are continuous the result will be as shown below

if it is false the result will be as shwon below

If it is selected true all the bundle segments should be shown in the result

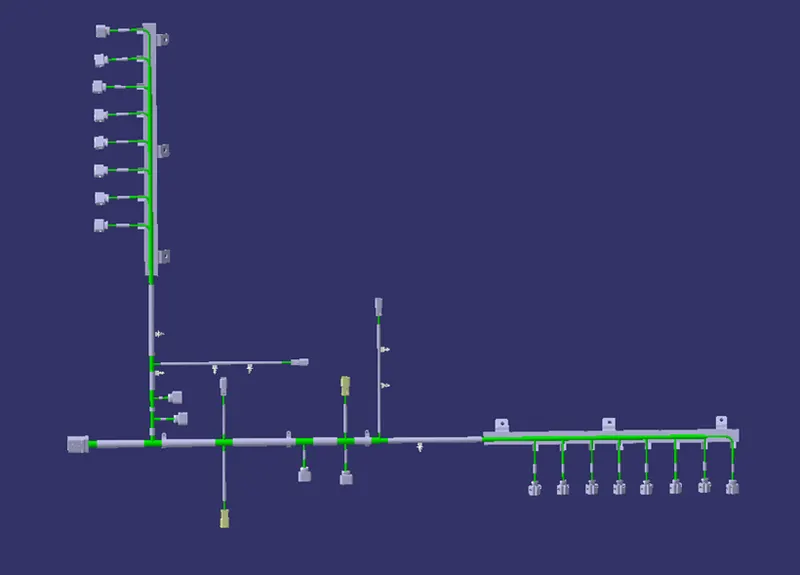

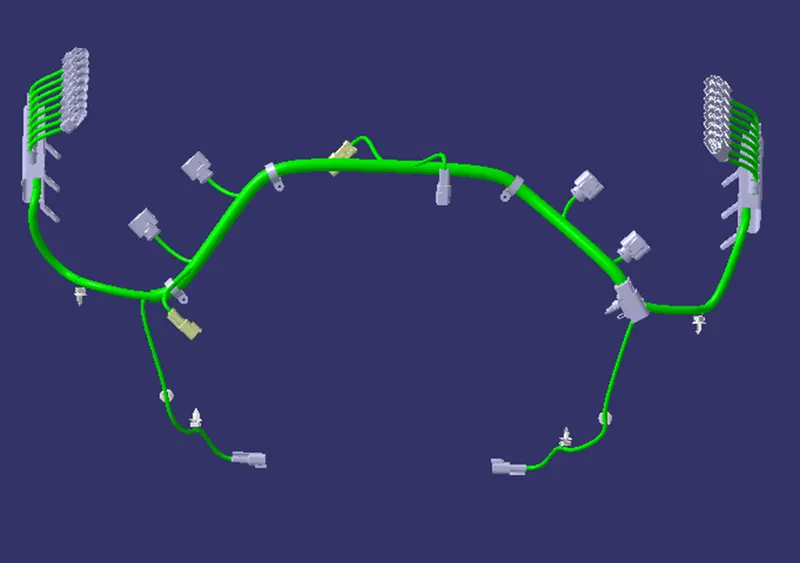

The bundle circuit is flattened using the Electrical Harness Flattening Workbench

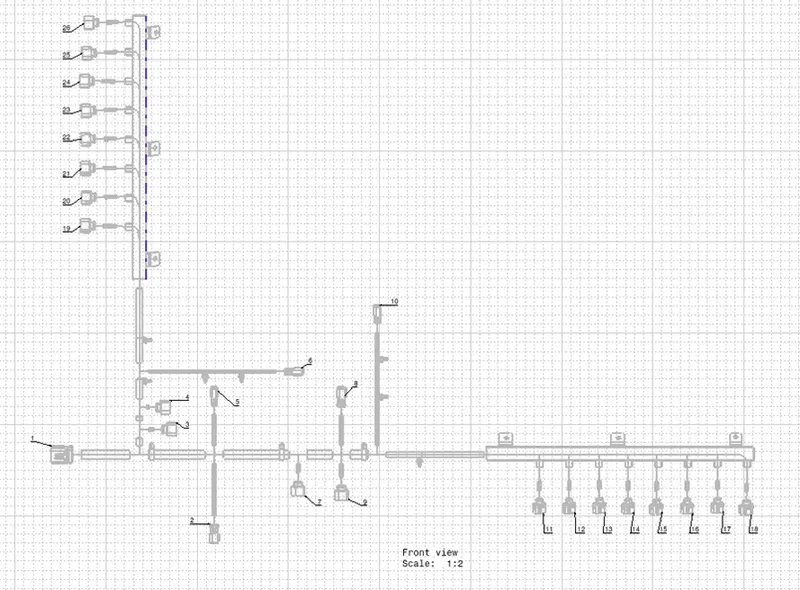

2D drawing of the bundle is created using Drafting Workbench

Conclusion

In this project I have successfully completed the routing for the wiring harness of the given V16 engine, flattened view and 2D drawing in Catia V5
