Preparing Schedule & Cost Estimation for a building using REVIT

Q.1)

Aim: Using shortcut keys in revit to do given task

Procedure:

a) Using 3D model create a section box - BX

b) To create similar doors and windows in a floor plan layout - CS

c) To reduce the thickness of lines visible in plan views - TL

d) To apply overrides setting to a floor in the model section view - VG

e) To increase the range of visibility in a plan view - VR

f) To select the previously selected items -Ctrl+<

g) To add annotations to the model views - DI

h) To bring the model element in line - AL

i) To rotate the model element - RO

j) To move an object to another location - MV

k) To copy the model element - CO

l) To mirror an element about an axis - MM

m) To create an array of model element - AR

Q. 2)

Aim - To prepare the schedule for the following

Procedure -

• Open the architectural model created previously.

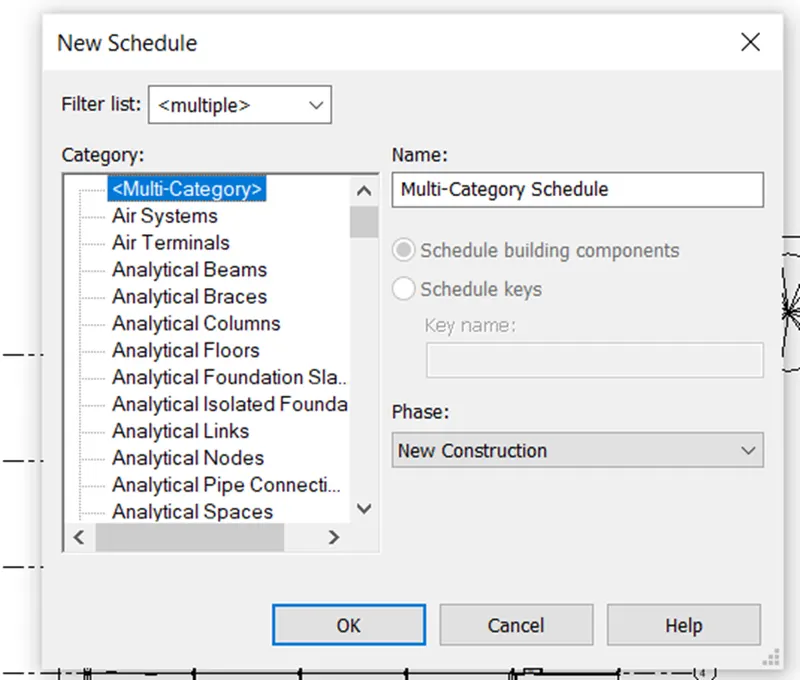

• Go to view tab then Schedule then select Schedule/Quantities

• Now,select the field

a) Wall Schedule -

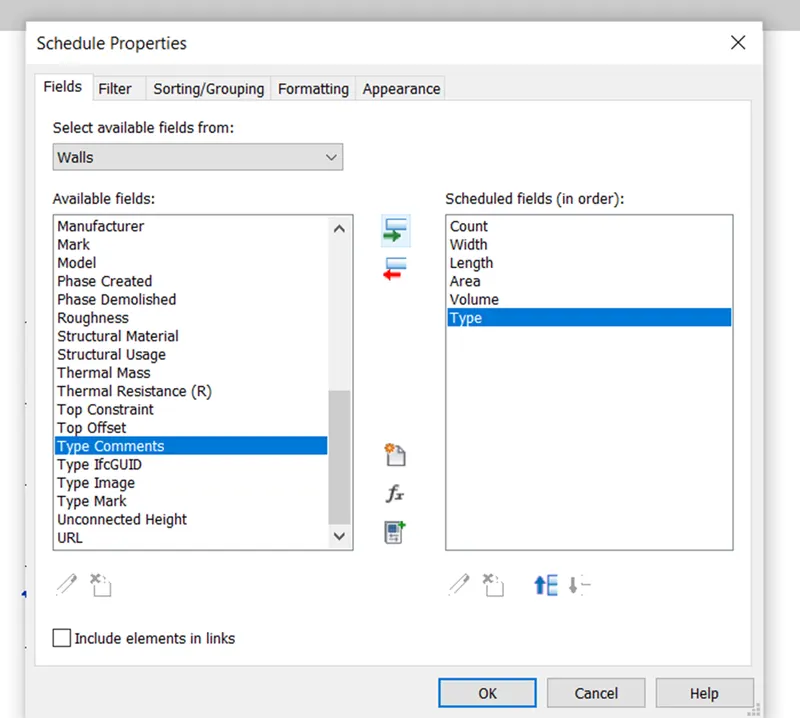

• For wall schedule choose the parameters for scheduling and then click ok

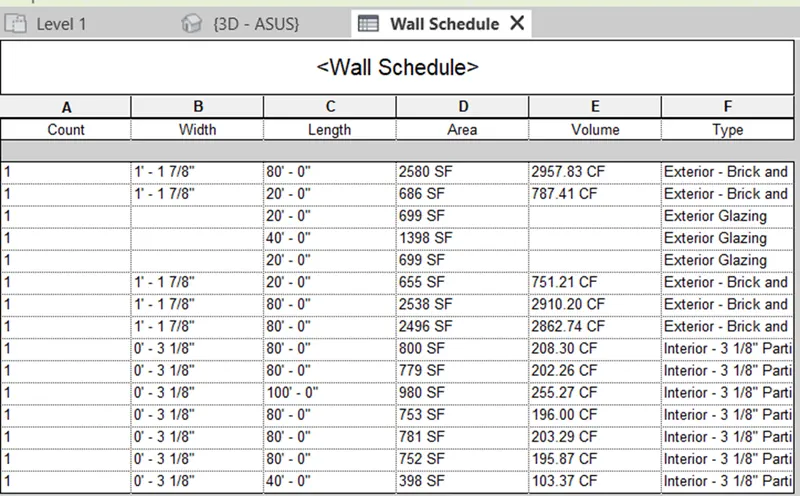

• The wall schedule is prepared as given below

• Hence ,the wall schedule is prepared.
• Similarly,we prepare door schedule,window schedule, and material concrete/wood schedule

b) Door Schedule -

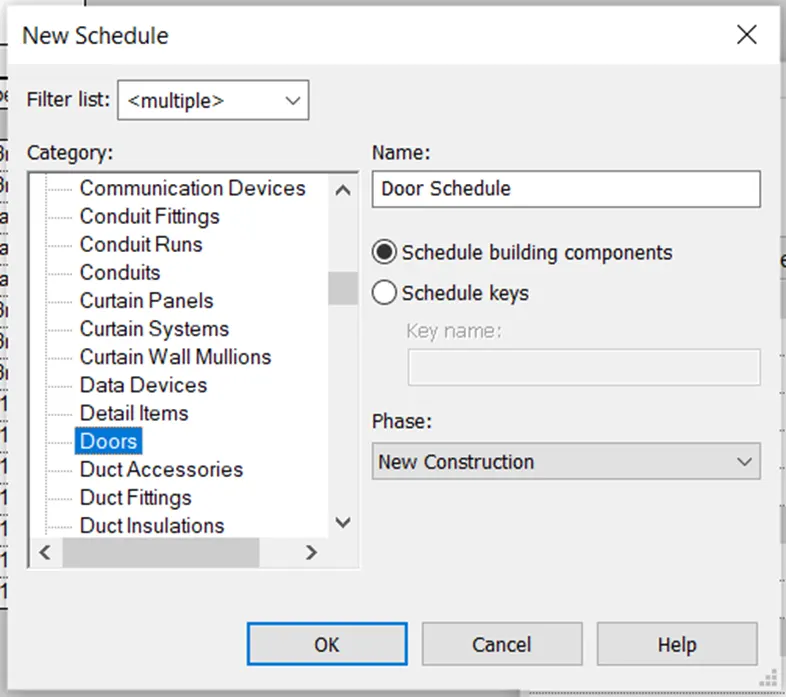

• Go to view tab then select Schedule then Schedule/Quantities
• Select door

• Select the parameters to be considered for doors

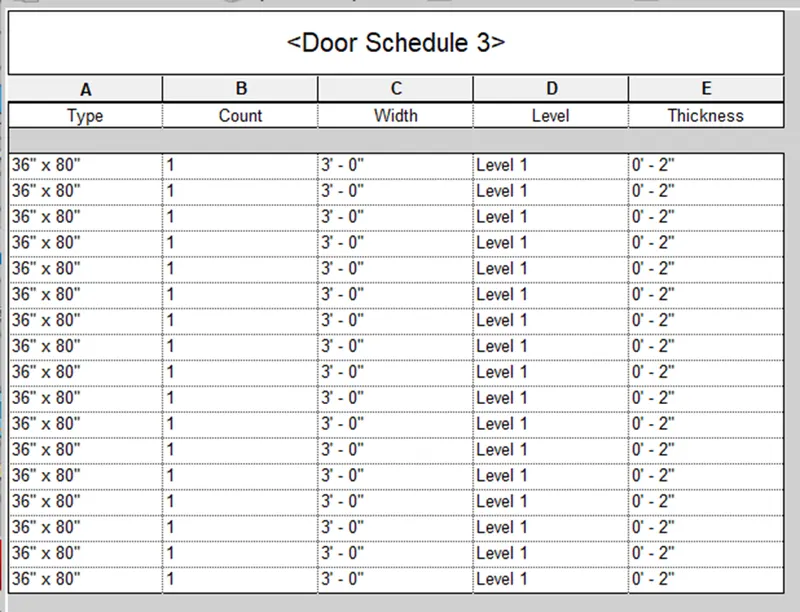

• Door Schedule is given below

c) Window Schedule -

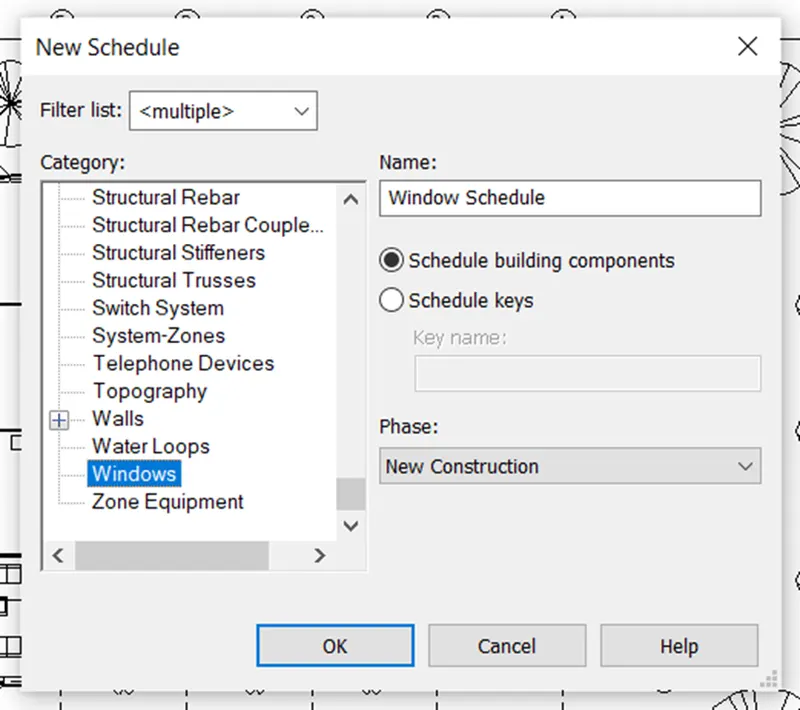

• Go to view tab then schedule then select Schedule/Quantities
• Then select the category as window

• Select the parameters to be considered for windows

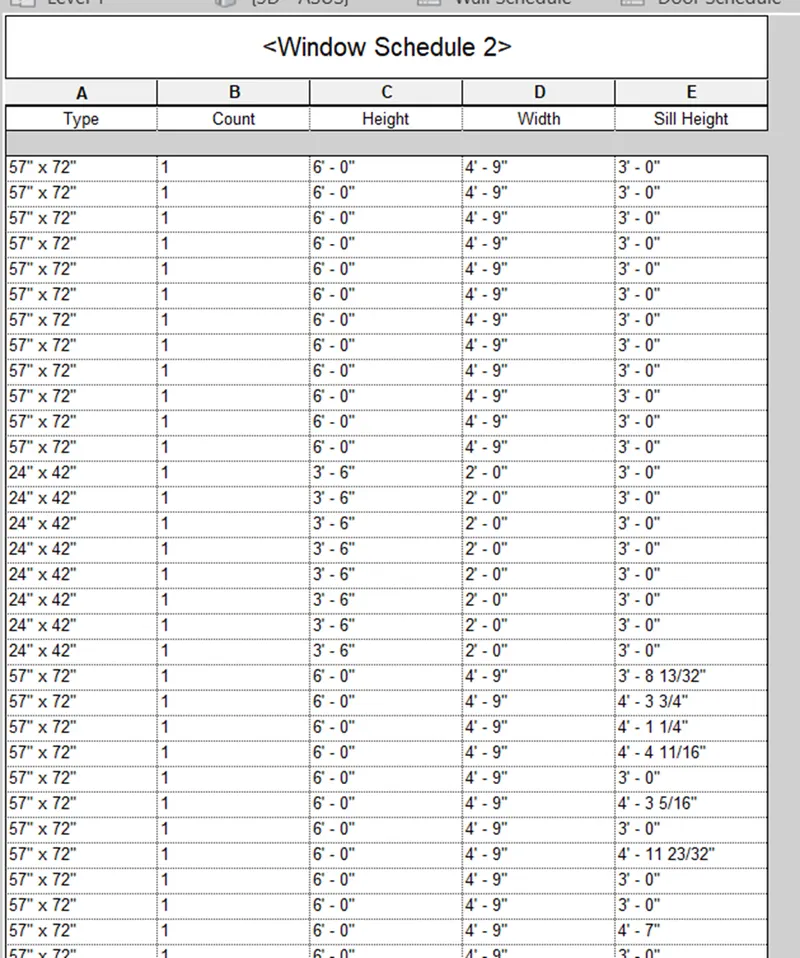

• The window schedule is prepared given below

d) Material concrete/wood -

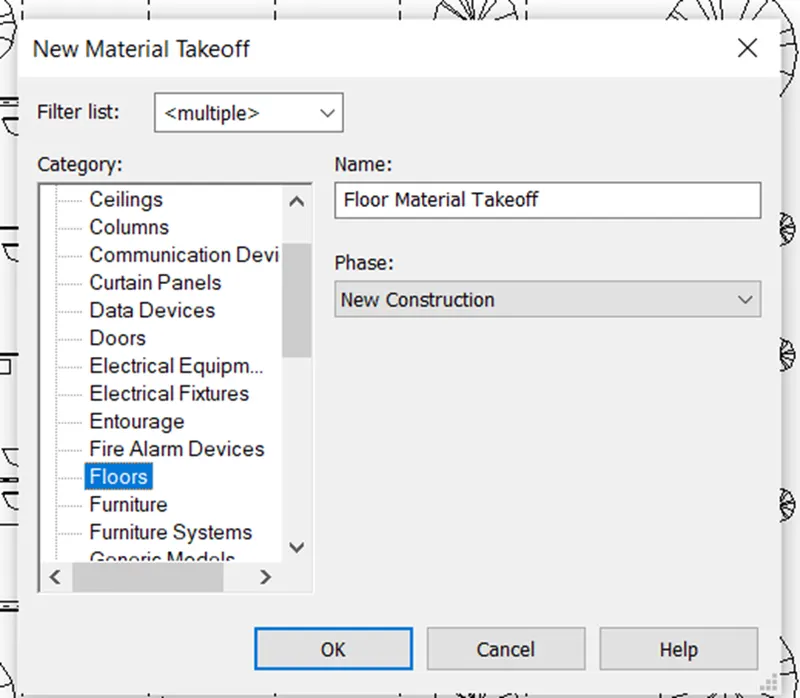

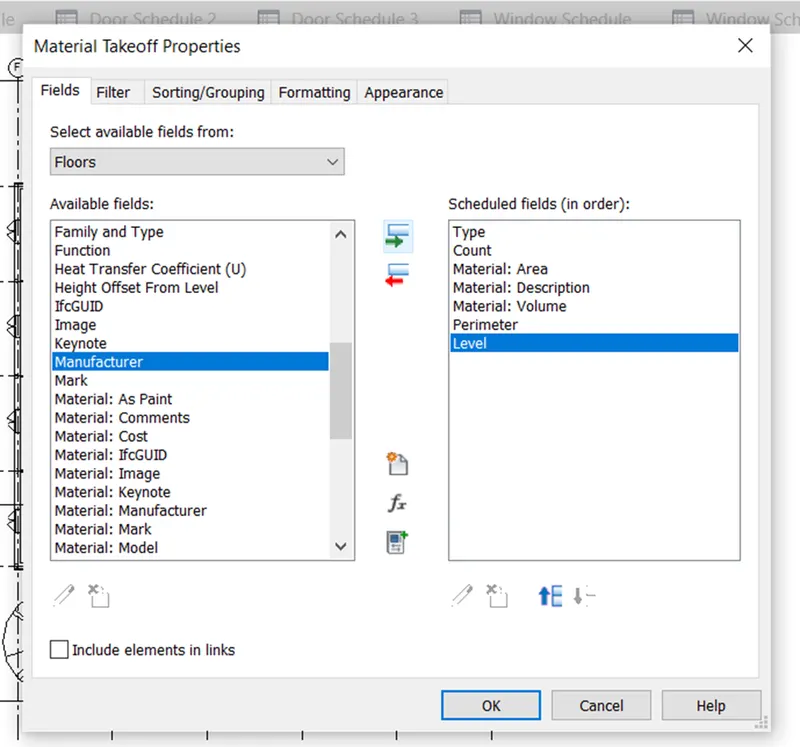

• Go to view tab then schedule then select material takeoff
• Select the category as floor

• Select the parameters to be considered for floor material

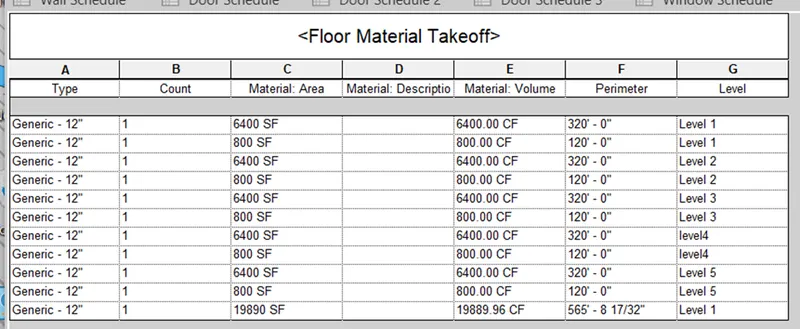

• Material takeoff schedule is given below

• Similarly,material takeoff for doors is prepared

Result -

• The wall,door,window and material schedule have been prepared.

Q. 3)

Aim - To prepare the schedule report for area and volume of each room

Procedure -

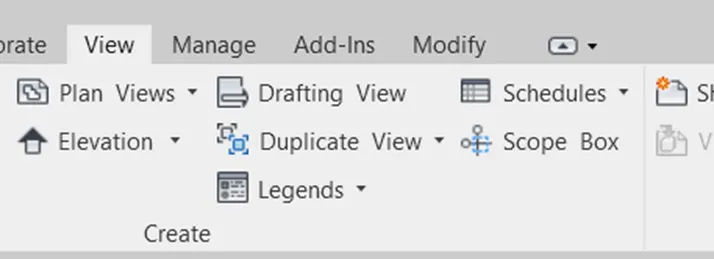

• Go to view tab then select schedule then select schedule/quantities

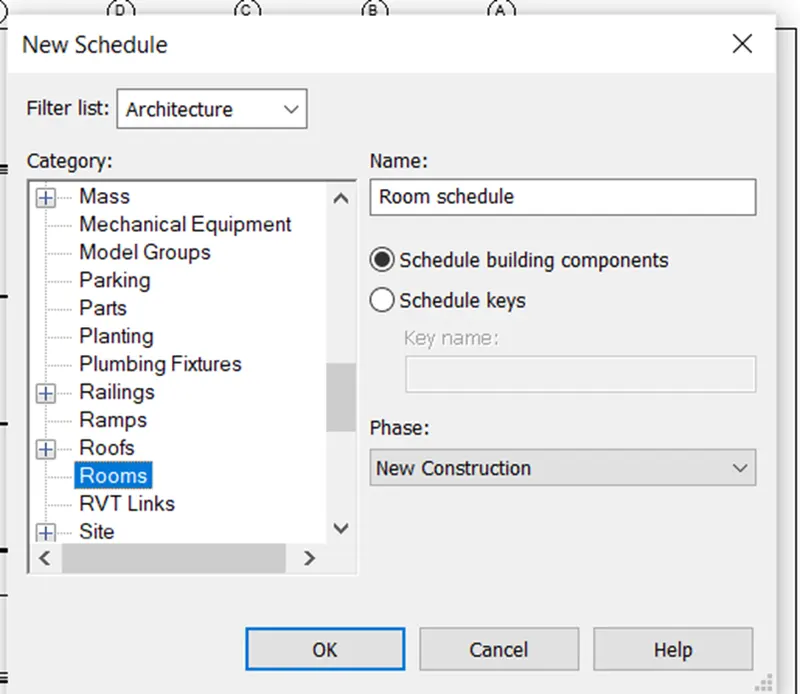

• Select the category as room

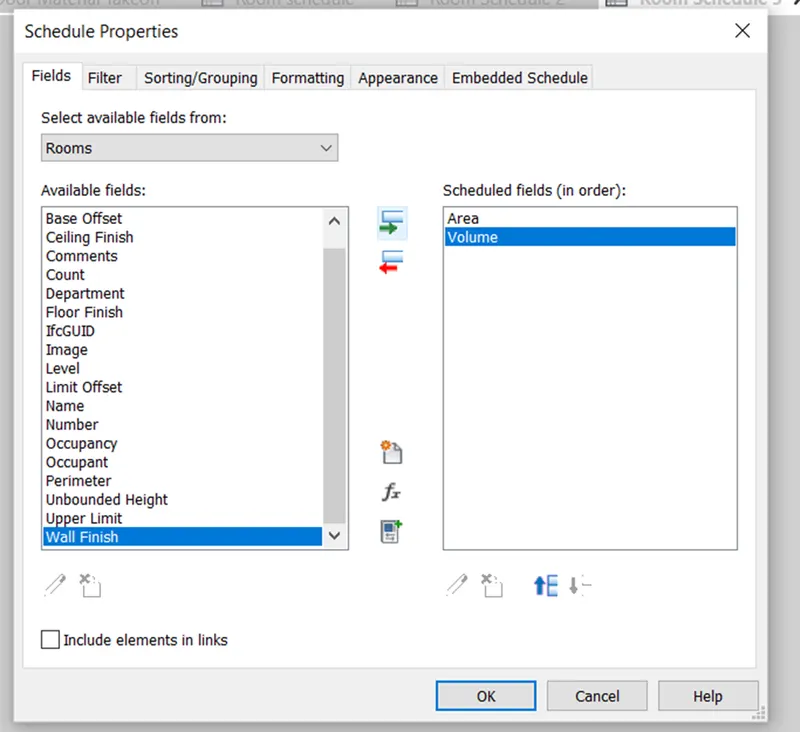

• Select the parameters to be considered for room

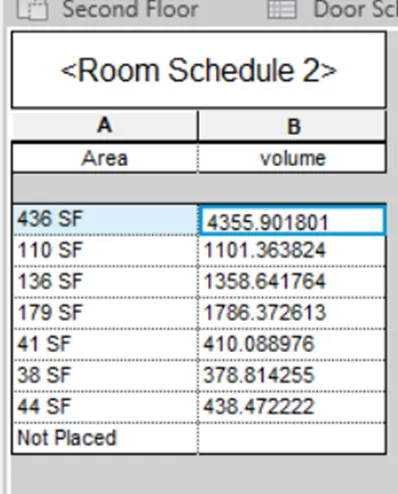

• The room area schedule is given as -

Result -

• Hence,room area schedule is prepared

Q. 4)

Aim - To prepare the schedule of total cost of materials

Procedure -

1) For walls

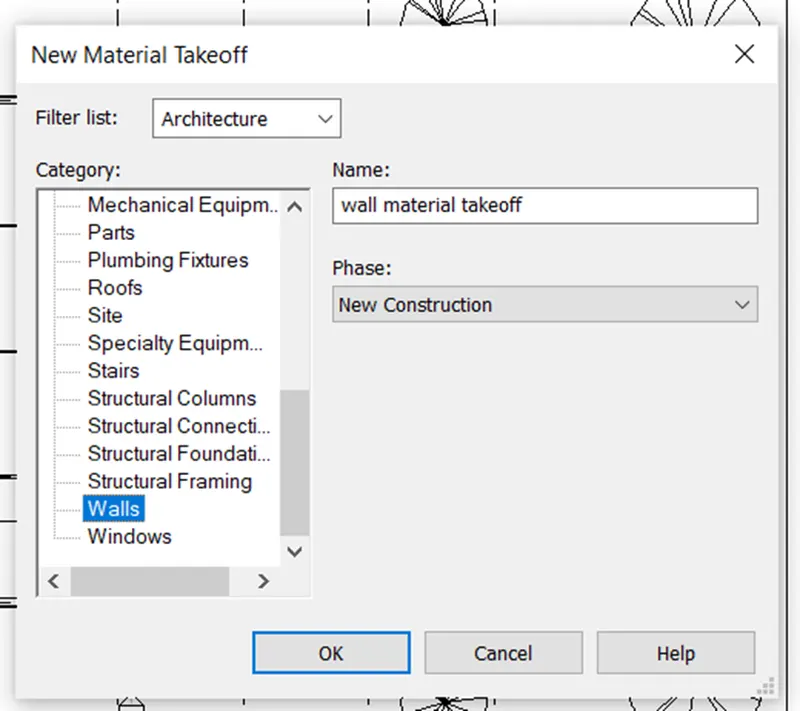

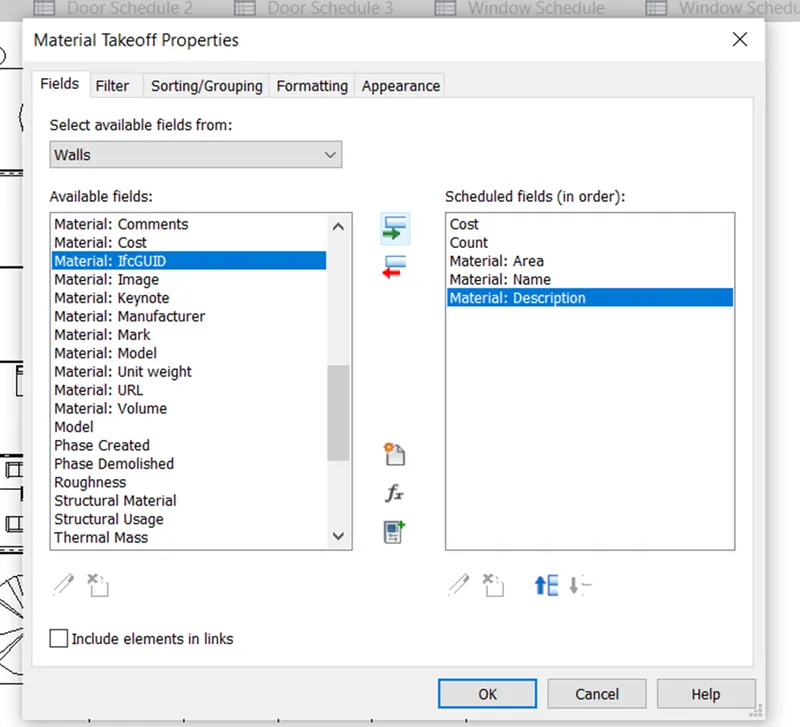

• Go to view tab then select schedule then select material takeoff
• Select the category

• select the parameters for walls

• Now we have to include the total cost parameters which is a calculated quantity
• For this go to add calculated quantity

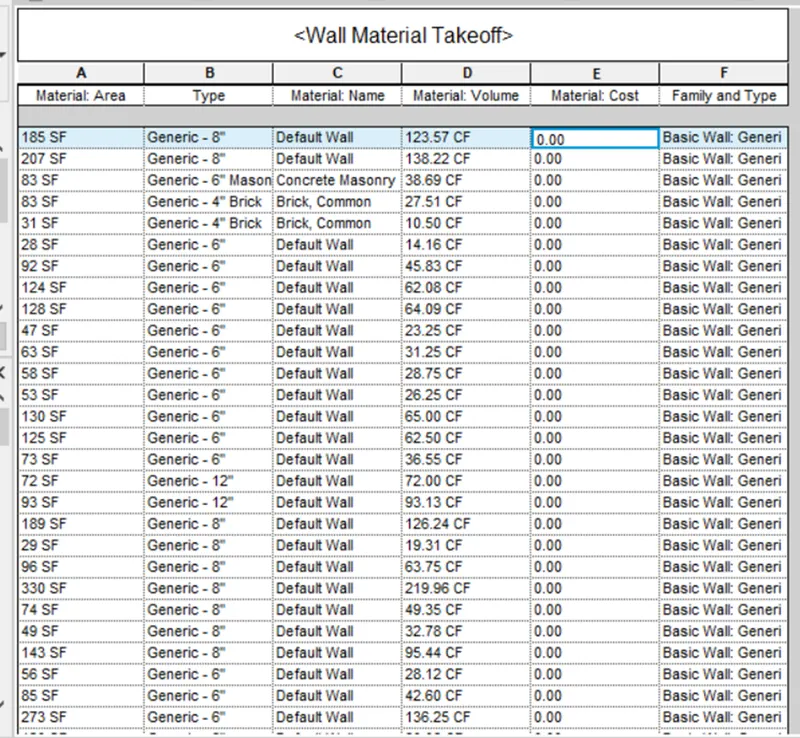

The wall material takesoff is given as

• Similarly,prepare for doors,windows,floors material takeoff schedule

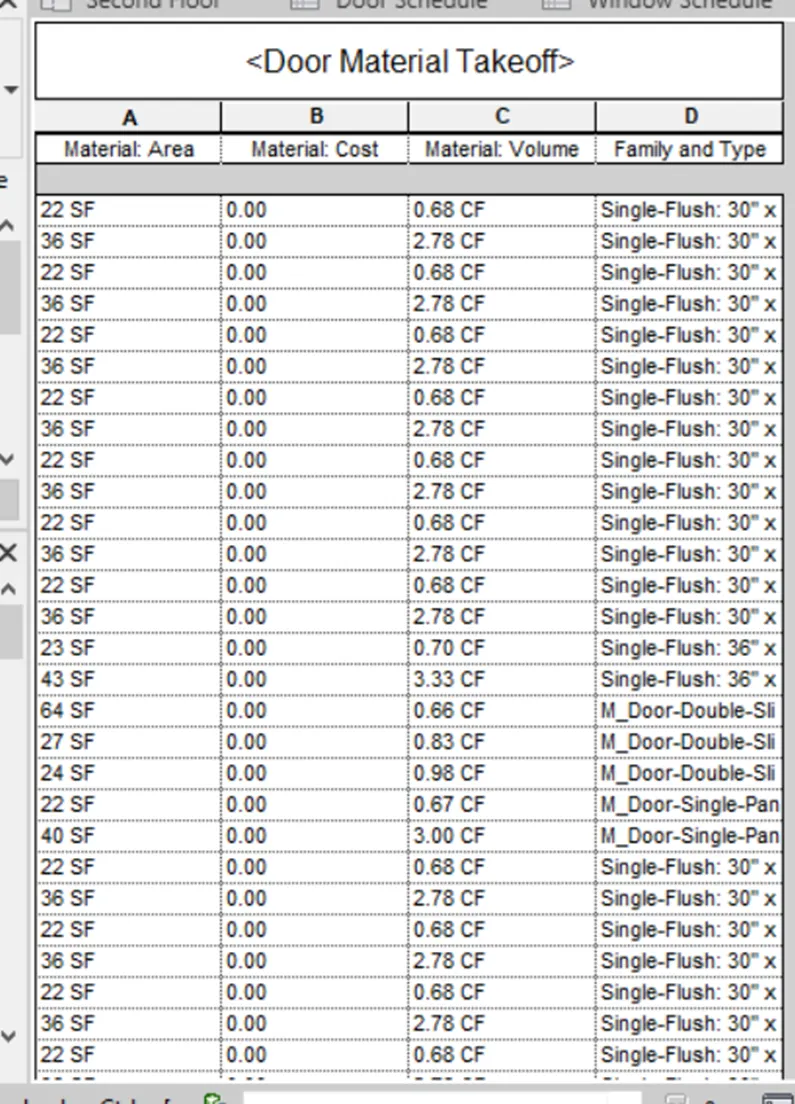

Doors material takeoff schedule -

Result -

• Hence the total cost and individual material takeoff schedule has been prepared

Q. 5)

Answer -

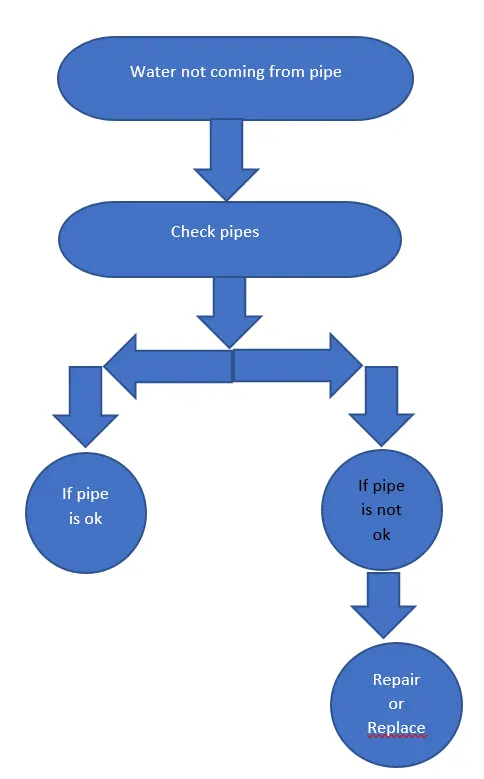

a)

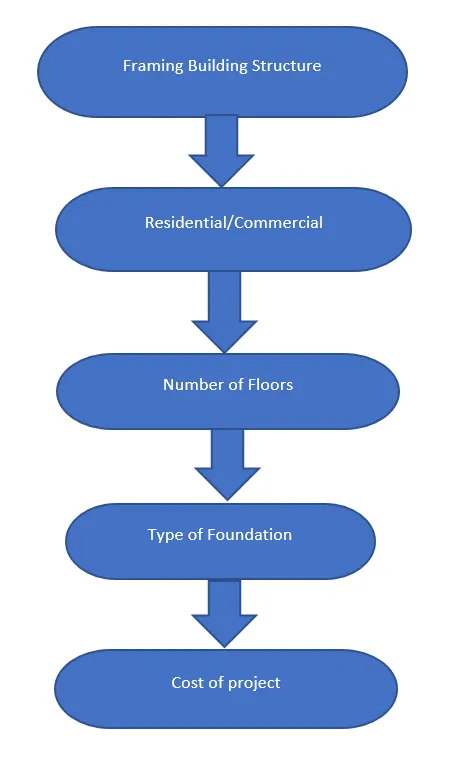

b)

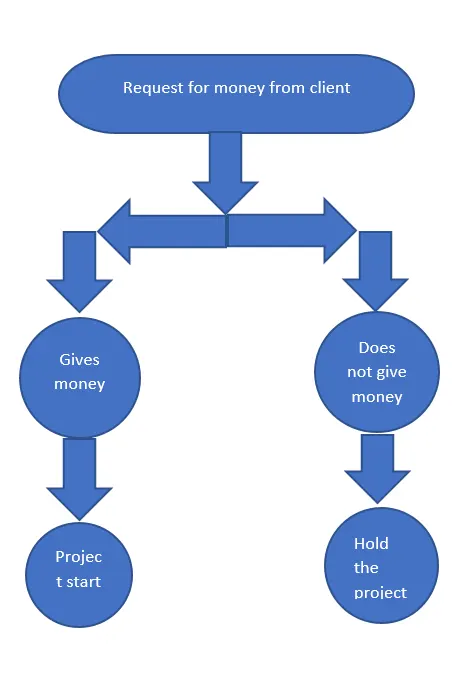

c)

Q. 6 )

Answer -

a) Wall -

• Wall type
• Wall length
• Wall height
• Wall thickness
• Wall material
• Wall location
• Wall description
• Material cost

b) Floor -

• Floor type
• Floor area
• Floor thickness
• Floor material
• Floor cost
• Floor description

c) Door -

• Door type
• Door height
• Door width
• Door material
• Door description
• Door cost

d) Window -

• Window type
• Window height
• Window width
• Window material
• Window cost

e) Table -

• Table type
• Table length
• Table width
• Table weight
• Table material
• Table cost

f) Building -

• Building type
• Building height
• Building floor area
• Building location
• Building material
• Building perimeter
