Preparing Schedule & Cost Estimation for a building using REVIT

1) Use the shortcut keys in Revit discussed in class to complete the following tasks and list them below

ANSWER -

a. Using 3D model create a section box - BX

b. To create similar doors and windows in a floor plan layout - CS

c. To reduce the thickness of lines visible in plan views - TL

d. To apply override settings to a floor in the model section view

e. To increase the range of visibility in a plan view - VR

f. To select the previously selected items - CTRL + <

g. To add annotations to the model views - DI

h. To bring the model elements in line - AL

i. To rotate the model elements - RO

j. To move an object to another location - MV

k. To copy a model element - CO

l. To mirror an element about an axis - MM

m. To create an array of model elements - AR

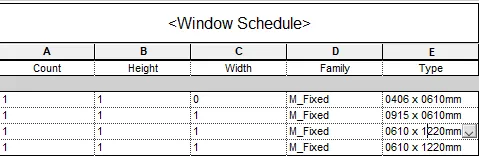

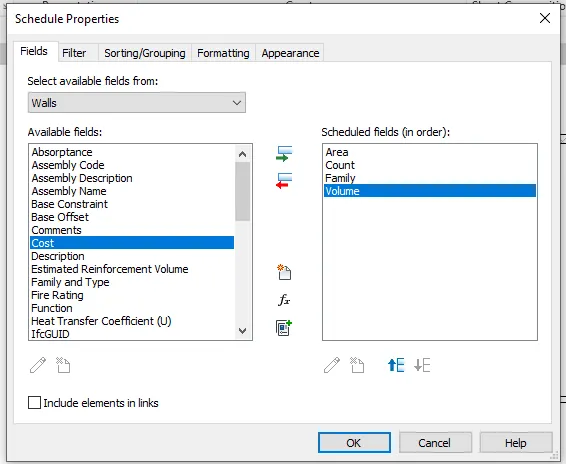

2) Using Revit and the project used from week 6 to 8 prepare a schedule for the following

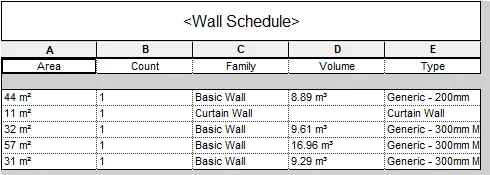

a. Walls

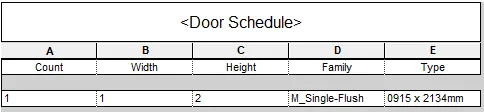

b. Doors
c. Windows
d. Material – Concrete/Wood

ANSWER

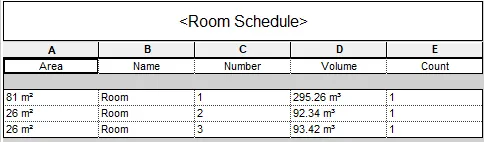

3) Using Revit Calculate area and volume of each room in the model with appropriate room tags applied to each room. Prepare a schedule report for area and volume of each room.

ANSWER -

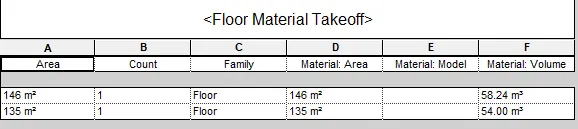

4) Using the same schedule using the unit cost rate for materials available in the internet, prepare total cost of materials used in the project
a. Total Cost of Materials

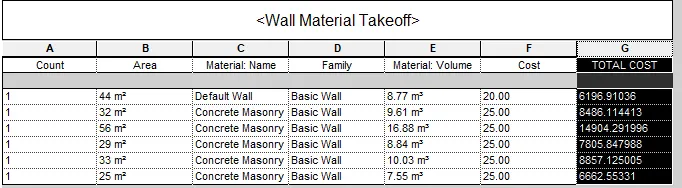

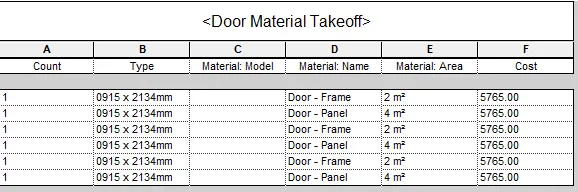

b. Individual Material Take off

ANSWER -

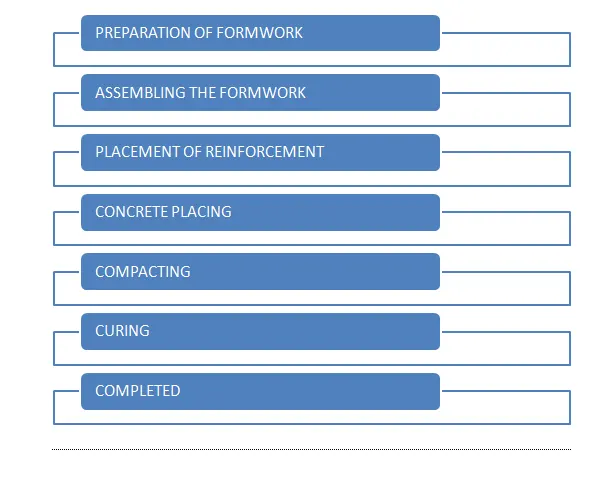

5) Using the concept of Visual Programming discussed in class, list a flowchart for the following scenario
a. How to decide framings for a structure using Dynamo ?

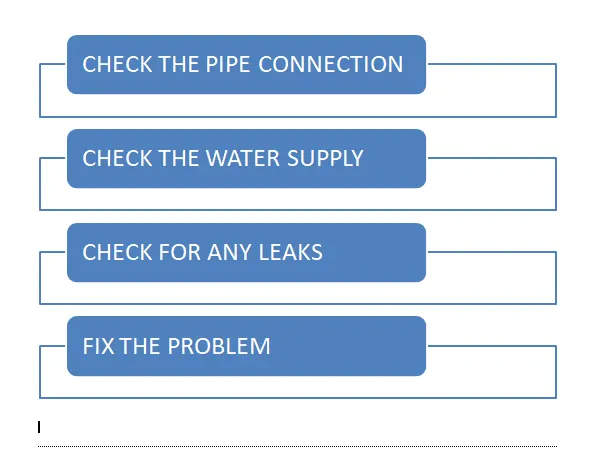

b. If there is no water coming from the pipes

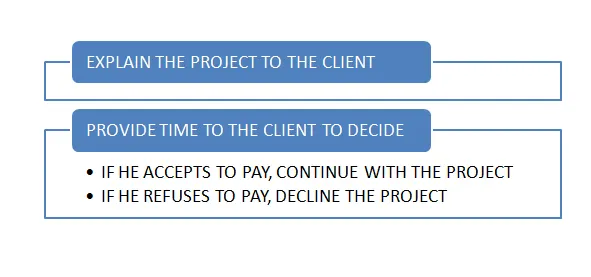

c. If request for money from client has been declined for the project

ANSWER -

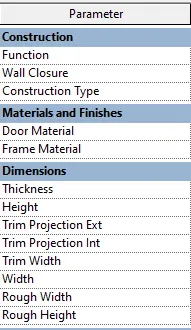

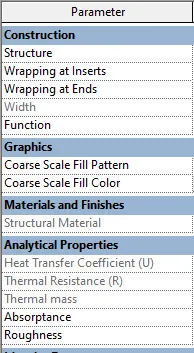

6) List the parameters associated with each model element

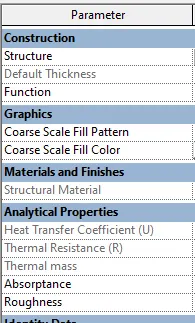

a. Wall
b. Floor

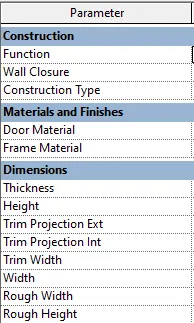

c. Door
d. Window
e. Table
f. Building

ANSWER -
