Preparing Schedule & Cost Estimation for a building using REVIT

Ans.1

AIM- use of all shortkey to work  with saving time and do the task in fast mannner

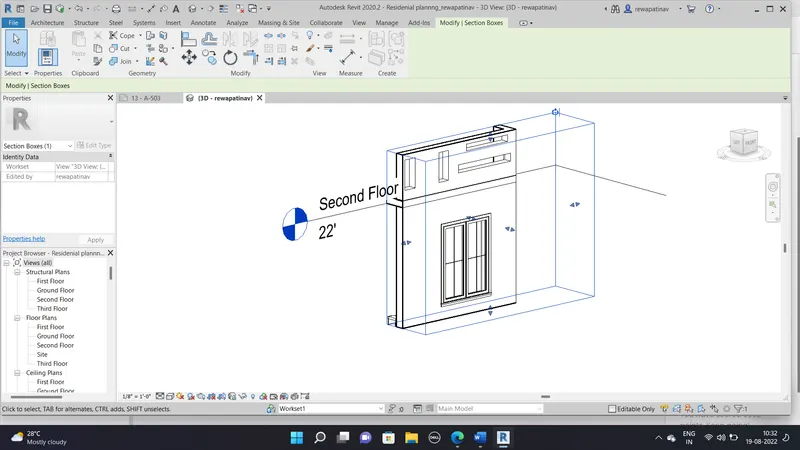

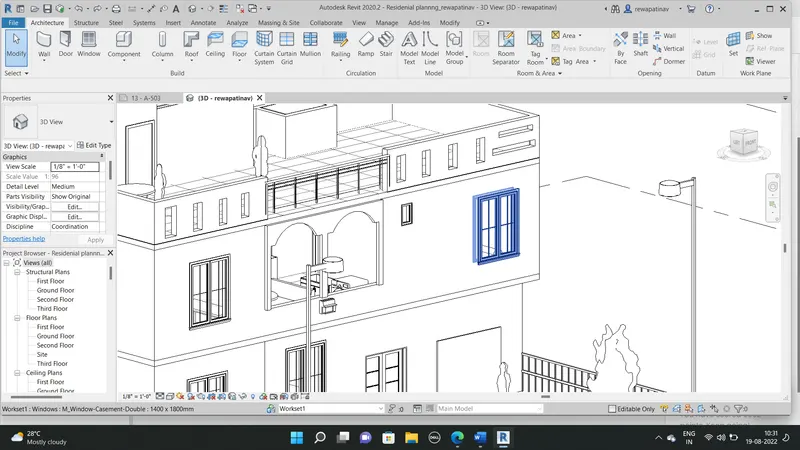

1. BX- Section Box Command

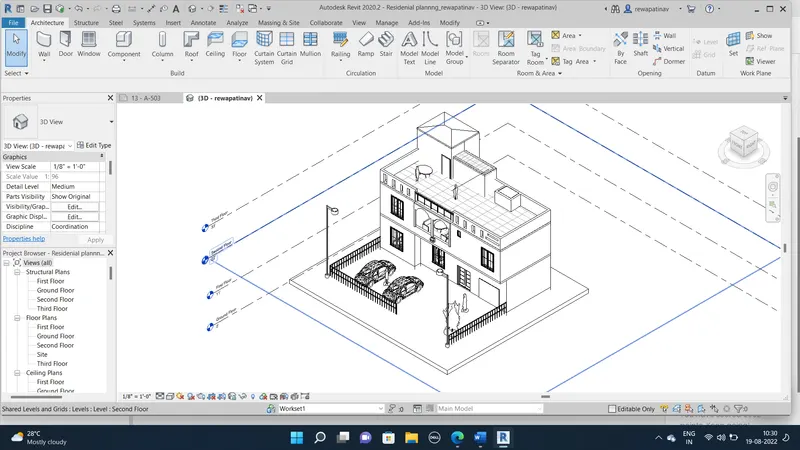

To perform the shortcut command >open 3d view of residential house design> Selecteed a window > TYpe BX

Than Box Section View is Extended using the mouse drag,

1. Create Simmilar -CS

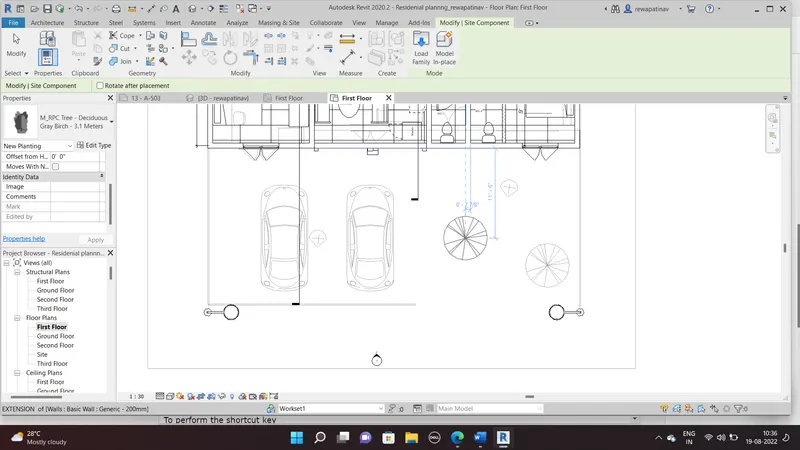

To perform the shortcut key

Selected a Tree and type Command >CS> Than placed the similar item in the plan at the suitable place

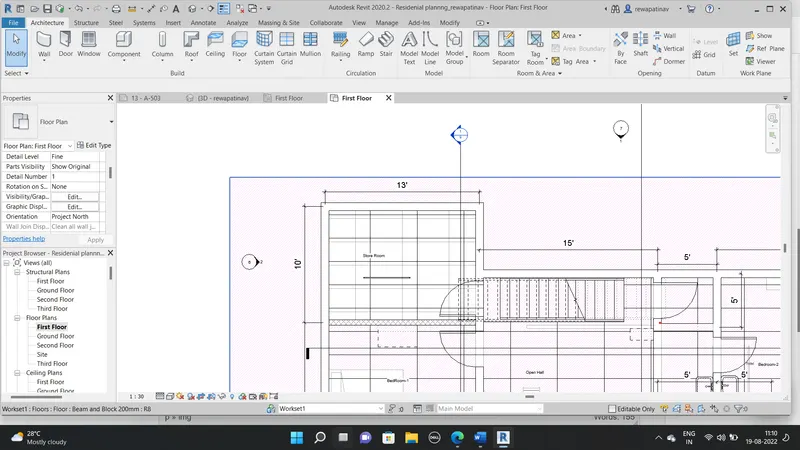

1. TL- thin line

To reduce the Thickness o the wall line or any any other element Line thickness as Thin Line

To perform Select a wall in  the plan>Type TL >

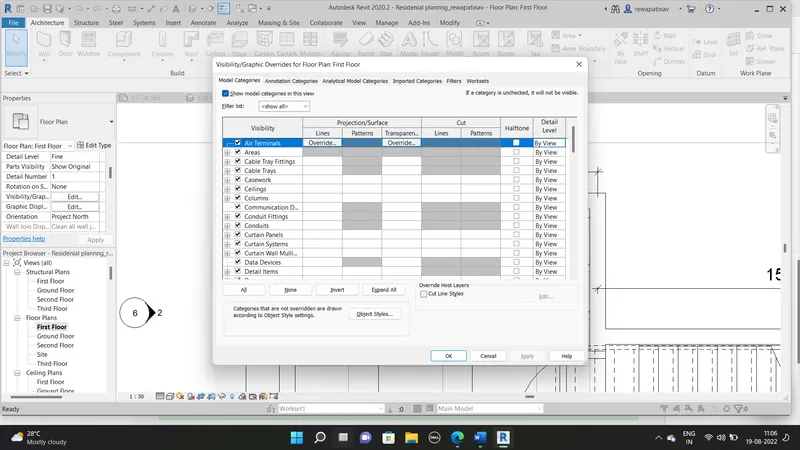

1. VG- Visibility Graphics

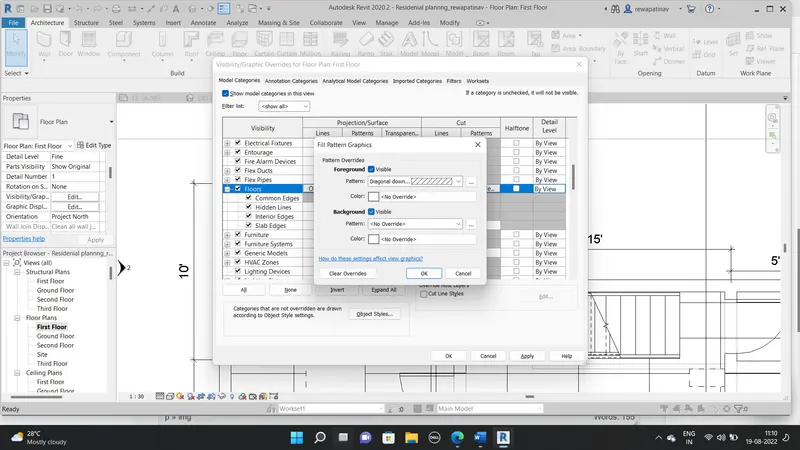

To Setup the Visibility of the graphics the Command type VG>open the setup box and than Change the pattern and color of the Floor

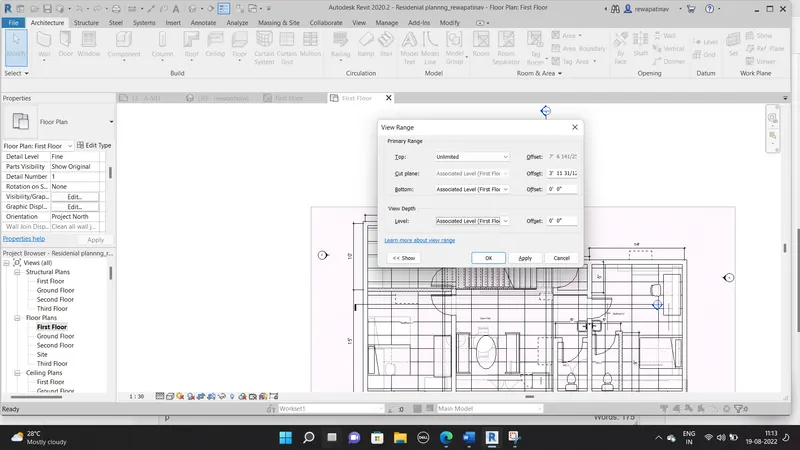

1.  VR- View Range

To define the Range of the View of the plan

1. Ctr+

using this this shortcut key the previously select items are selected Back

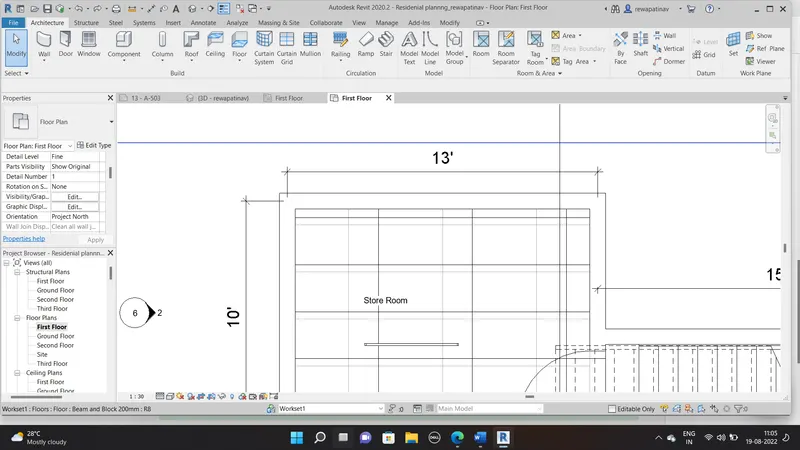

1. DI – Dimensions

By using this shortcut key we directly go to provide the dimensions

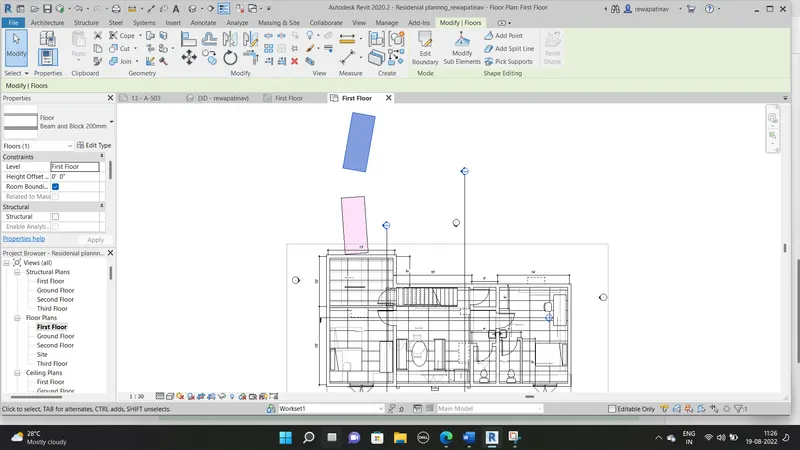

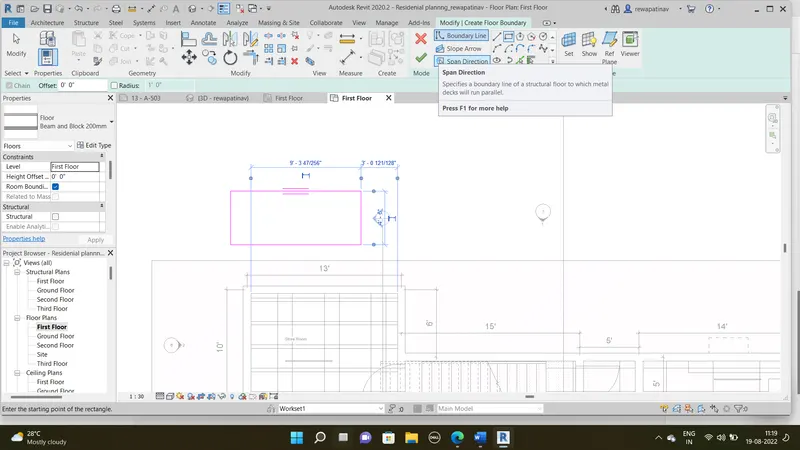

1. AL- Align

it is use to align the element with reference to the anyother element alignment

for example i have created a floor and than aligned it with the wall face

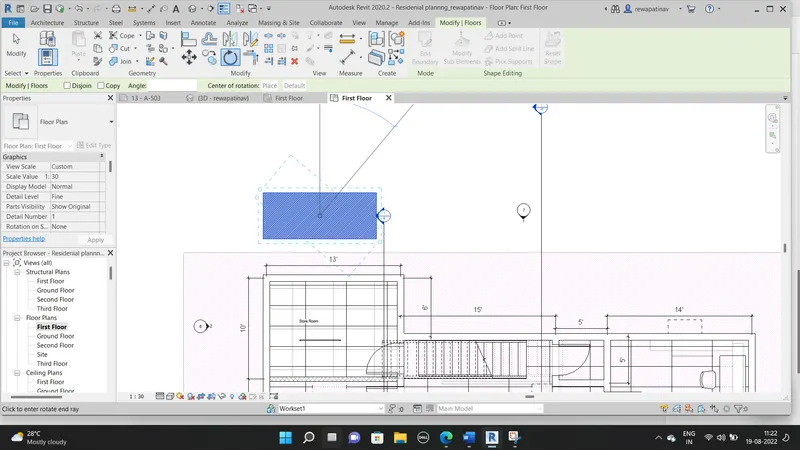

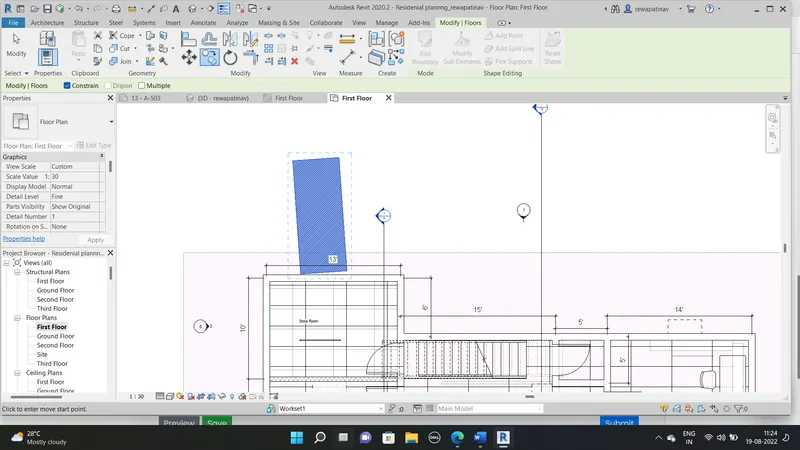

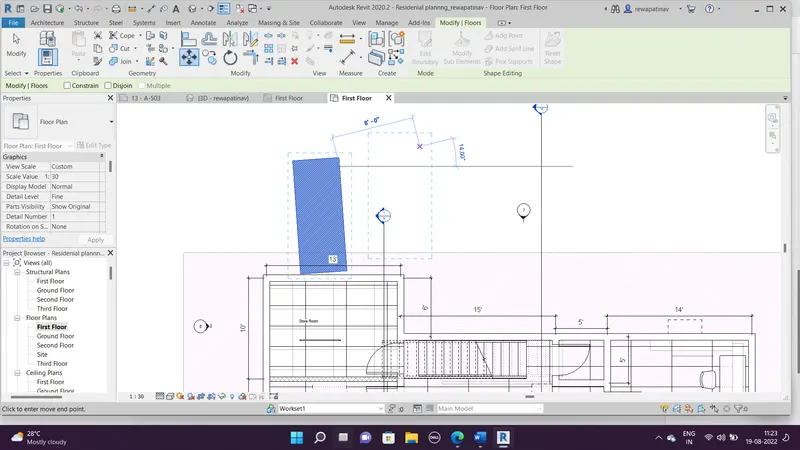

1. RO- Rotate

Rotate Command used to rotate any object with the specific angle

1. MV -Move

TO move ant object type MV by selecting the object

1. CO -Copy

To copy the object type Command CO

1. MM Mirror

TO mirror the object type MM and mirror the object by drawing the axis or by selecting the line

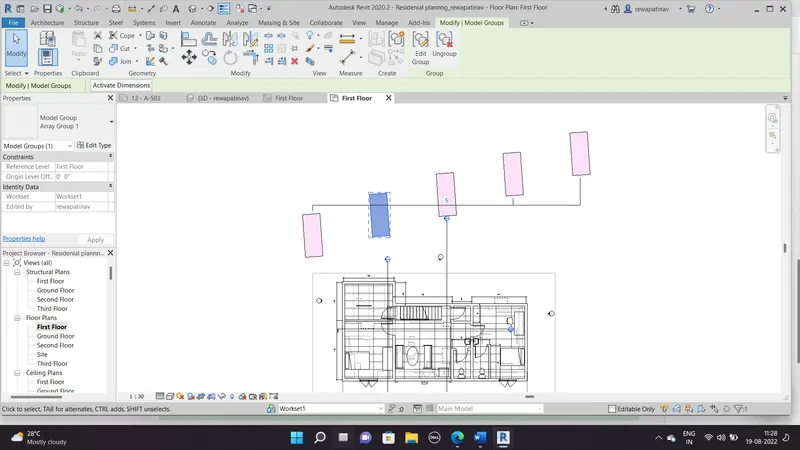

1.  AR Array

to draw the present object in multiple time with refrence to a line or a cirle polar >AR

2 Ans

AIM-:Using Revit and the project used from week 6 to 8 prepare a schedule for

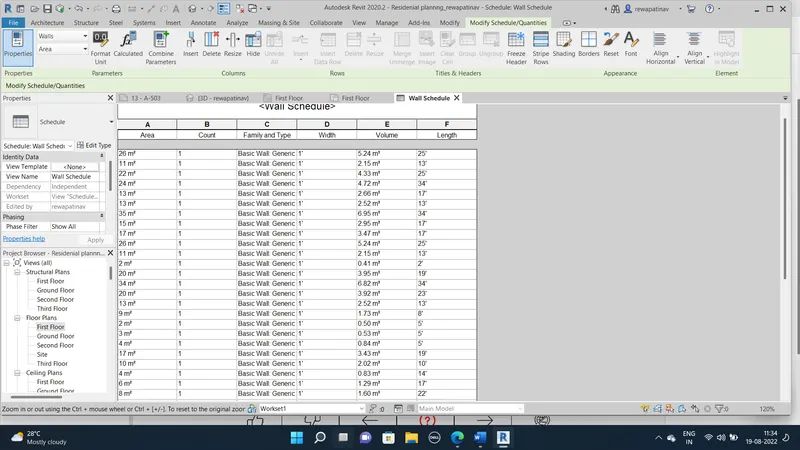

          a. Walls


Procdure -:

open the Residntial plan created

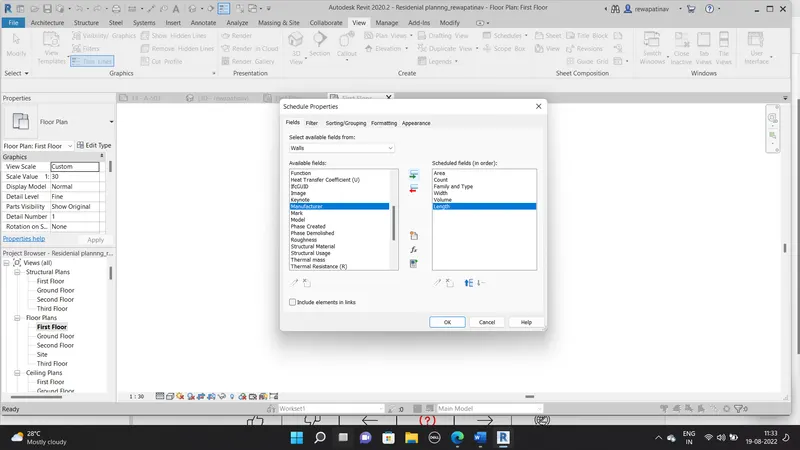

Than View TAb> Shedule>Shedule and quantities

Than Select the appropriate perameters of requirement  than shedu;e and quantities are generated

b. Doors

View tab> Shedule > Select Floor > Parameters >shedule generated

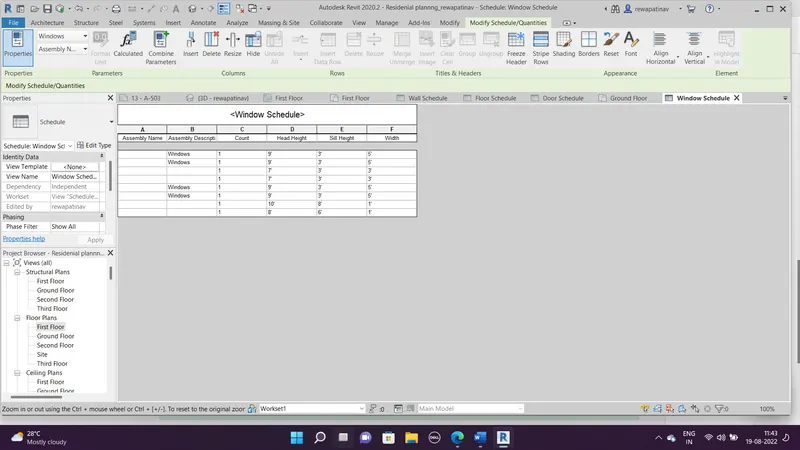

          c. Windows

          d. Material – Concrete/Wood

Ans.3

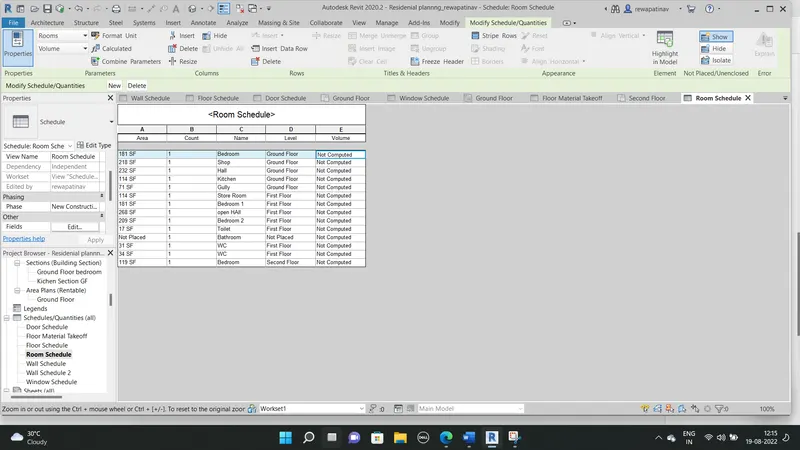

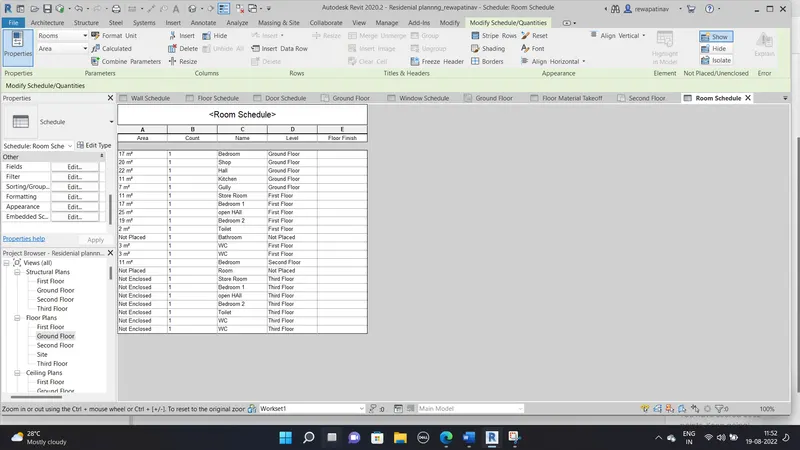

AIM-Calculate area and volume of each room in the model with appropriate room tags applied to each room. Prepare a schedule report for area and volume of each room.Room Schedule of Room area and Volume.

 Ans.4

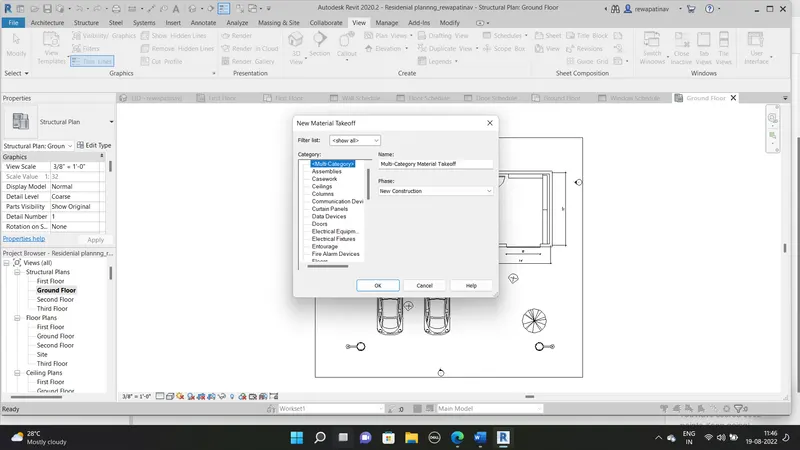

Aim - Calculate the Total Cost of the Materials Involved in the Project

Ans .5

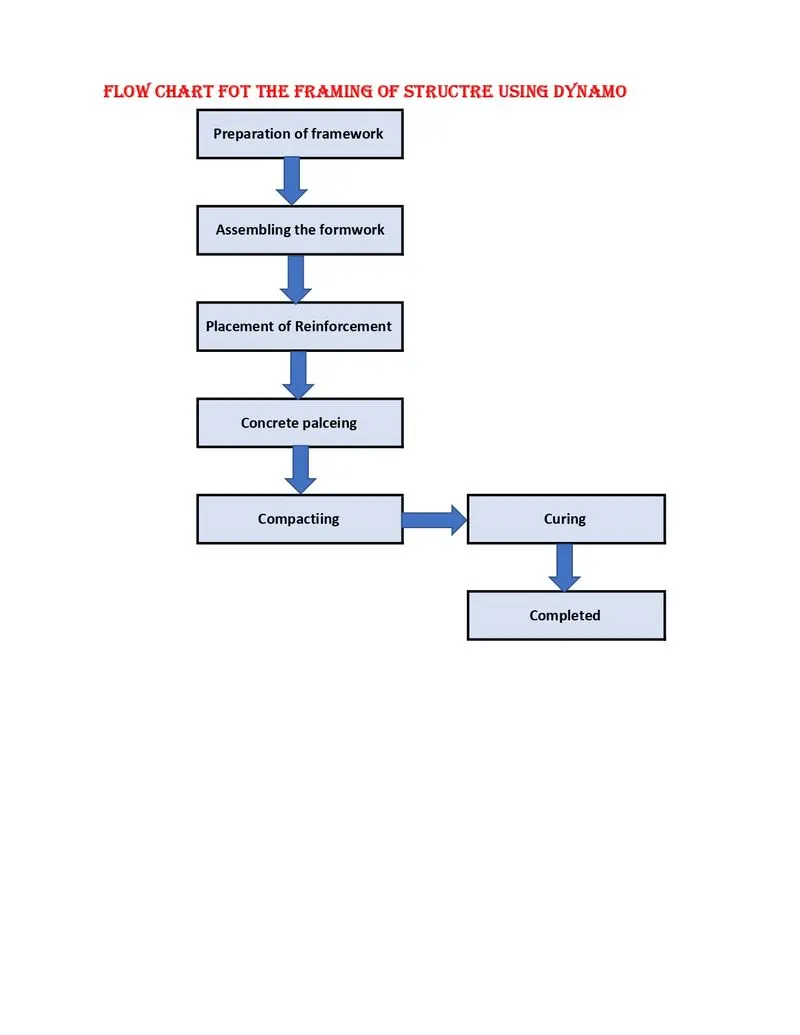

Decide the framing for the structure in the dynamo

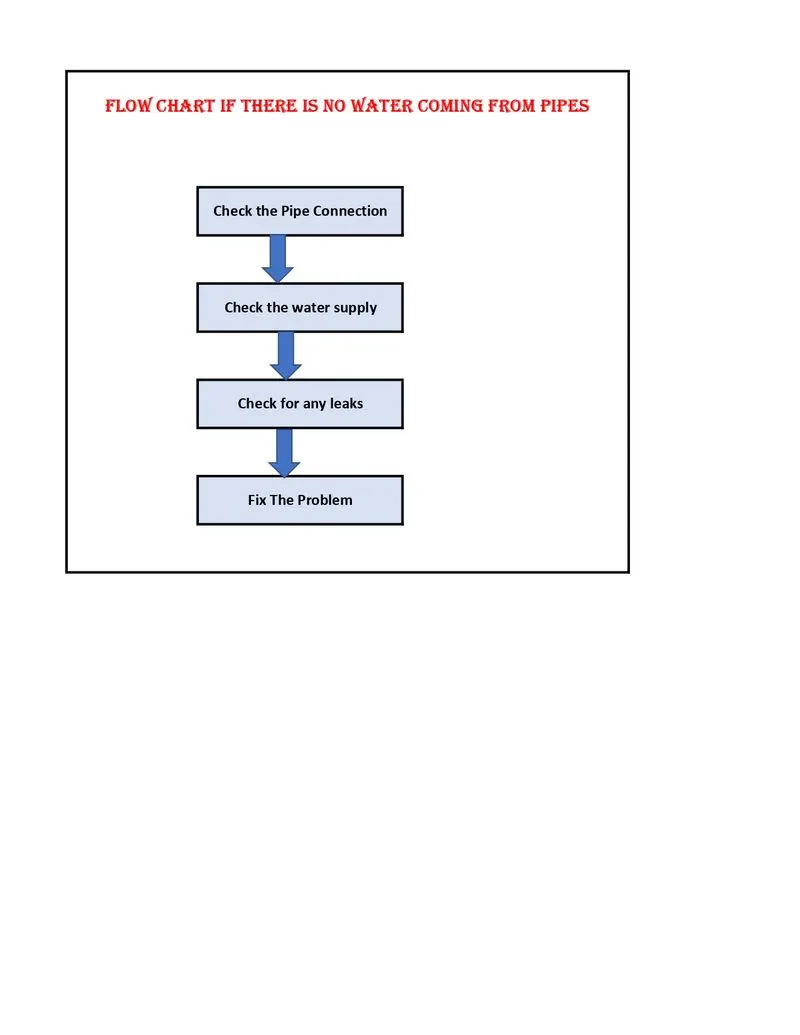

. If there is no water coming from the pipes

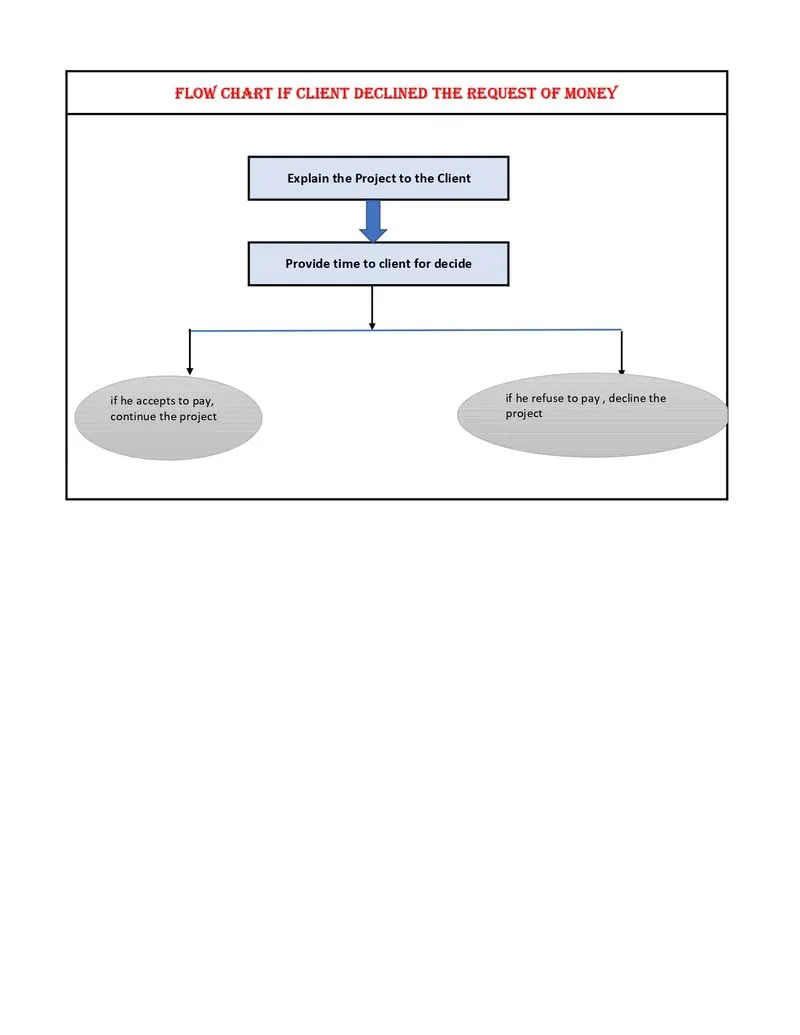

If request for money from client has been declined for the project

Ans.6

AIM- List the various parameters of the element

Wall-

Construction parameter

• Structure
• wraping at inserts
• wraping at ends
• Width
• Function

Graphics

• Coarse scale fill pattern
• Coarse scale fill Color
• Structural Material
• Analystical Properties
• Heat transfer cofficent
• Thermal Resistance
• Thermal Mass
• Abosrptance
• Roughness

Identity Datas

• Type image
• Keynote
• Model
• manufacturer
• Tyepe comments
• URL
• Description
• Assembly description
• Assembly code
• Type mark
• Fire Rating
• Cost
• Workset
• Edited By

2. Floor Parameters

Construction parameter

• Structure
• Default thickness
• Function

Graphics

• Coarse scale fill pattern
• Coarse scale fill Color

Analytical Properties

• Structural material

Identity Datas

• Type image
• Keynote
• Model
• manufacturer
• Tyepe comments
• URL
• Description
• Assembly description
• Assembly code
• Type mark
• Fire Rating
• Cost
• Workset
• Edited By

3. Door Parameters

Construction

• Funciton
• wall closure
• Construction type

Material and Finihses

• Door material
• Frame Material

Dimensions

• Thickness
• Height
• Trim projection ext
• Trim projection int
• Trim width
• Rough width
• Rough Height

Analytical Properties

• Define thermal properties by
• Visual Light transmittance
• Thermal Resistance
• Solar heat gain cofficient
• Heat transfer cofficient
• Analytic Construction

Identity Datas

• Type image
• Keynote
• Model
• manufacturer
• Tyepe comments
• URL
• Description
• Assembly description
• Assembly code
• Type mark
• Fire Rating
• Cost
• Workset
• Edited By
• omni class number
• omni class title
• Code name

IFC Parameter

• operation

 4. Window Parameter

onstruction

• Funciton
• wall closure
• Construction type
• Muntin pattern
• exterior trim
• interior trim

Graphics

• Muntin visibilty
• Exterior frame material
• Interior frame materila
• Exterior trim material
• interior trim material
• Glass panel materila

Dimensions

• Thickness
• Height
• Trim projection ext
• Trim projection int
• Trim width
• Rough width
• Rough Height

Analytical Properties

• Define thermal properties by
• Visual Light transmittance
• Thermal Resistance
• Solar heat gain cofficient
• Heat transfer cofficient
• Analytic Construction

Identity Datas

• Type image
• Keynote
• Model
• manufacturer
• Tyepe comments
• URL
• Description
• Assembly description
• Assembly code
• Type mark
• Fire Rating
• Cost
• Workset
• Edited By
• omni class number
• omni class title
• Code name

Table Parameters

Material and finishes

• Base material
• Top material

Dimensions

• Half width
• half length
• height
• length
• Width

Identity Datas

• Type image
• Keynote
• Model
• manufacturer
• Tyepe comments
• URL
• Description
• Assembly description
• Assembly code
• Type mark
• Fire Rating
• Cost
• Workset
• Edited By
• omni class number
• omni class title
• Code name
