Photo Realistic Rendering

                                                                                                             MODELING A AMERICAN CHOPPER

   INTRODUCTION:

                     In this project, we are going to create an AMERICAN CHOPPER with the help of solid works 2022. At this first we learn commands after that using this command we draw the sketch of the part with the dimension. after completing all parts we assemble the American chopper. Then we add the lights, camera, decals to the model and dothe rendering of the chopper using the solid works visualization 2022

    OBJECTIVE:

• The objective of the project is to create a model of different parts of the chopper using solid works
• To assemble the different parts moduled for the chopper
• To add decals and create a photorealistic model of the chopper and render the model using Solidworks visualize

   PARTS TO BE MODELED FOR CHOPPER

• Transmission belt
• Kick stand
• Front fender
• Rear fender
• Oil tank
• Chain
• Front fork
• Chassis
• Engine
• Gas tank

   DESIGN APPROACH

   There is two types of design approach

• Bottom-up approach
• Top-down approach

    Bottom-up Design

                       In bottom-up design, you first design and model parts, then insert them into an assembly and use mates to position the parts. To change the parts, you must edit them individually. These changes are then seen in the assembly.

   Top-down approach

                      In Top-down design, parts shape, size, and location can be designed in the assembly



   Feature

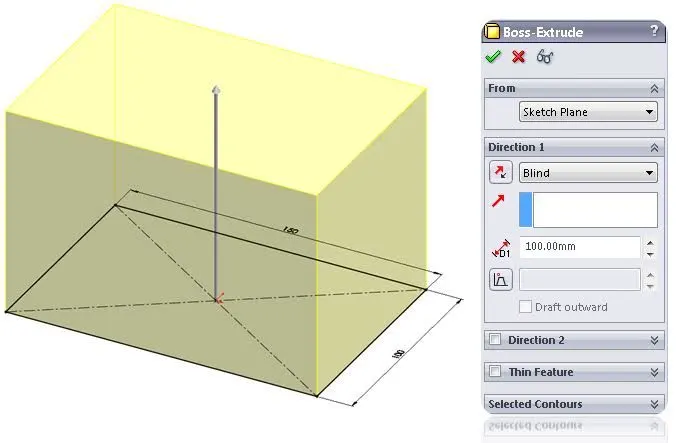

• Extrude

                Extrude is a tool used to extend a sketched profile in one or two direction as a thin feature or solid feature.an extrude operation can either add material to a part or remove material from the part



• Fillet

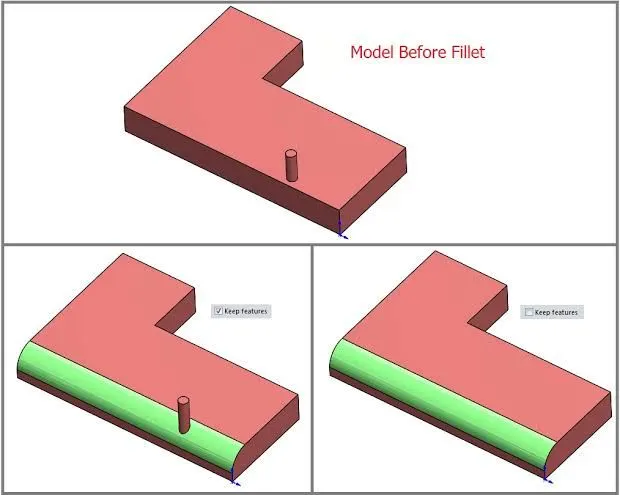

                Fillet creates a rounded internal or external face on the part.you can do it to all edges,or selected edges,or edge loop



• Revolve boss feature

               Revolves add or remove material by revolving one or more profiles around a centerline.you can create revolved boss,revolved cut,or revolved surface

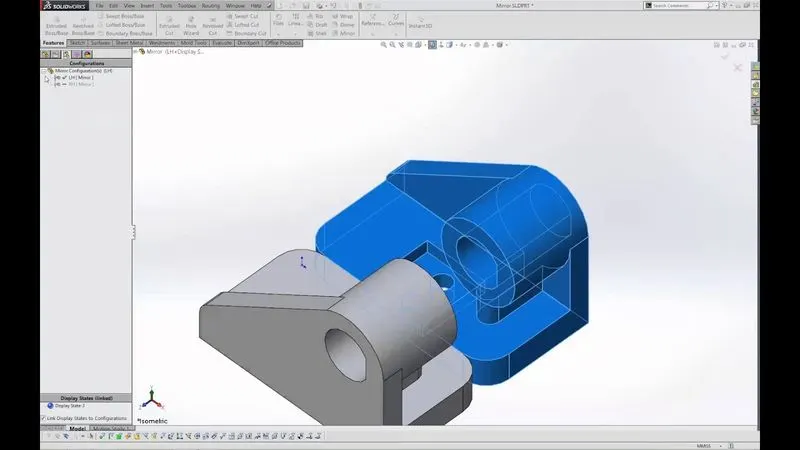

• Mirror

               Create a copy of a feature,the feature can be mirrored about a plane.you can select a body that has to be mirrored and select the plane that has to be mirrored about.bodies to mirror



• Extrude cut

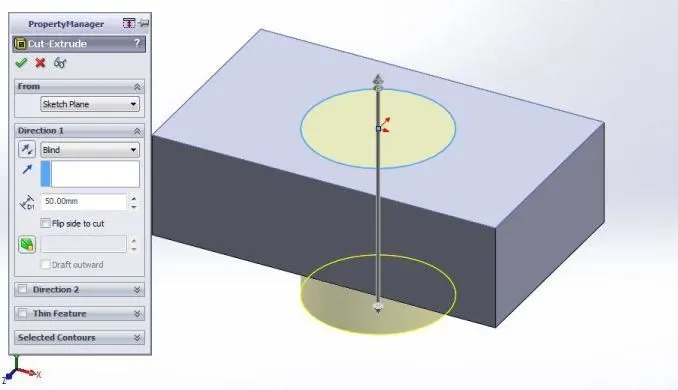

               Extrude cut is used to remove materials from the 3D model using 2D sketch. you should do a 2D sketch where the part to be removed and do a extrude cut so the un wanted part is removed from the 3D model



• Shell

                The shell feature is used to hollow out a part,you can shell a soild part,creating a closed hollow model,you can also shell a model using multiple thicknesses

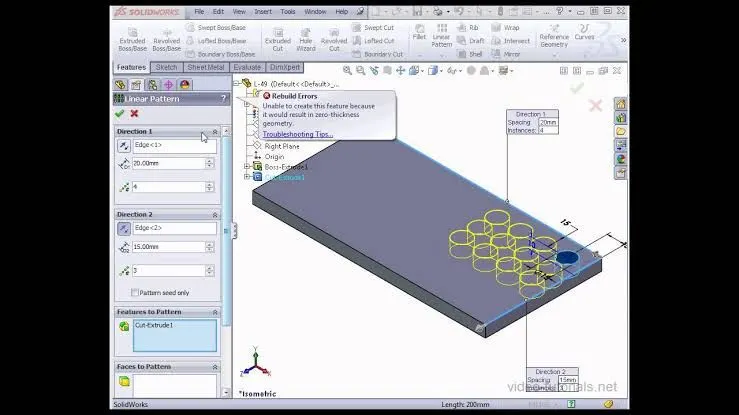

• Linear pattern

               This feature is used to create a multiple instances of one or more feature along one or two linear path,you can space uniformly along the path you have selected.create one or more features to replicate

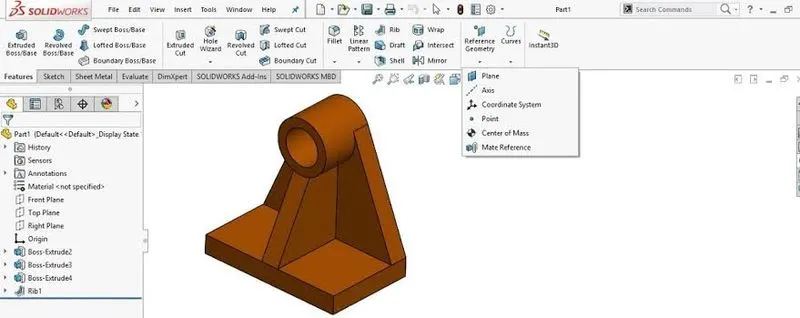

• Reference geometry

               Reference geometry defines the shape or form of a surface or a solid.Reference geometry includes items such as planes,axes,coordinate systems,and points.you can use reference geometry in the creation of several kind of features



• Projected curve

               With the help of projected curve you can project a sketched curve onto a model face to create a 3D curve.you can also create a 3D curve that represents the intersection of two extruded surfaces generated by creating sketches on two intersecting planes.you can also use 3D sketches as input for the projected curve



• Knit

               Knit tool is used to combine two or more faces and surfaces into one.Create a solid body when the knit surface from a closed volume,or leaves as a surface body.select merge entities to merge face with the same underlying geometry

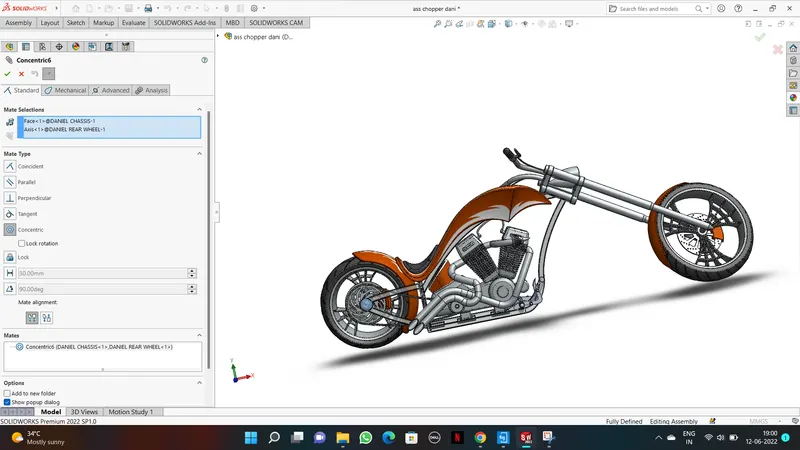

• Mate

               Mates is used to create geometric relationships between assembly components.when you add mates you define the allowable directions of linear or rotational motion of the components.you can move a component within its degrees of freedom

   RELATIONSHIP IN SOLID WORKS

• Parallel

               This parallel feature helps to keep the selected items at a constant distance from each other



• Tangent

               Tangent is used to place a cylindrical, spherical, or conical face tangent with other components



• Coincident

               Coincident mate is used to mate between two features that you want to coincide with each other



• Concentric

                A concentric mate forces two cylindrical faces to become concentric.the faces can be move along the common axis



   PARTS OF CHOPPER

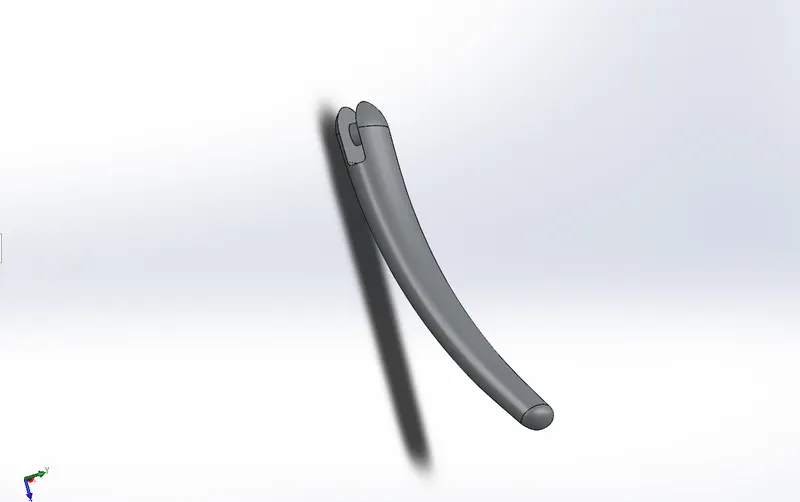

• Kickstand

               A kick stand is used to support the chopper when its parked

    Features used to create Kickstand

• Sketch
• Ellipse
• Splines
• Loft
• Cut extrude
• Extrude
• Split
• Fillet
• Appearance

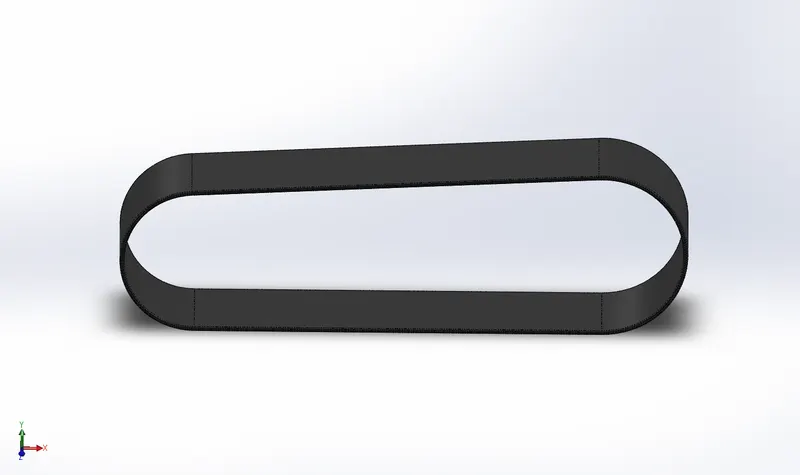

• Transmission belt

               Transmission belt is used to transmit he power from one shaft or pulley or rotating component to another.these belts are mostly made of rubber. The transmission belt is used to drive the chain shaft driven by the engine by wheel

   Features used to create tranismission belt

• Sketch
• Extrude
• Offset
• Fillet
• Appearance

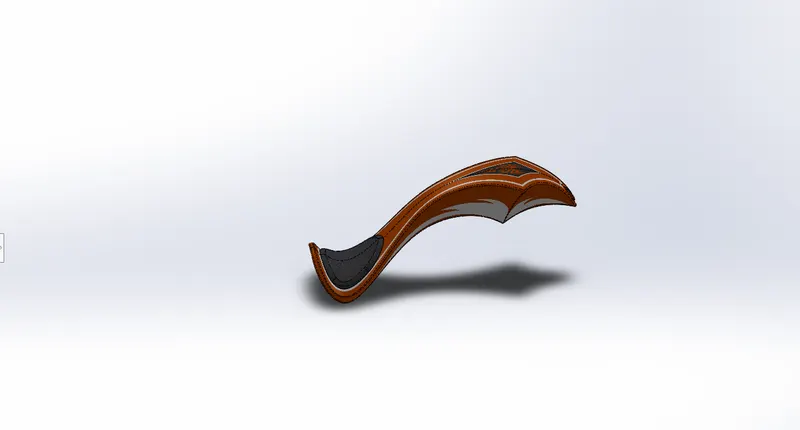

• Front fender

               Fender is used to prevent sand ,mud, rocks, liquid, and other particals from being thrown into air by the rotating tyre

   Features used to create the front fender

• Sketch
• 3-point arc
• Trim
• Revolve
• Extend

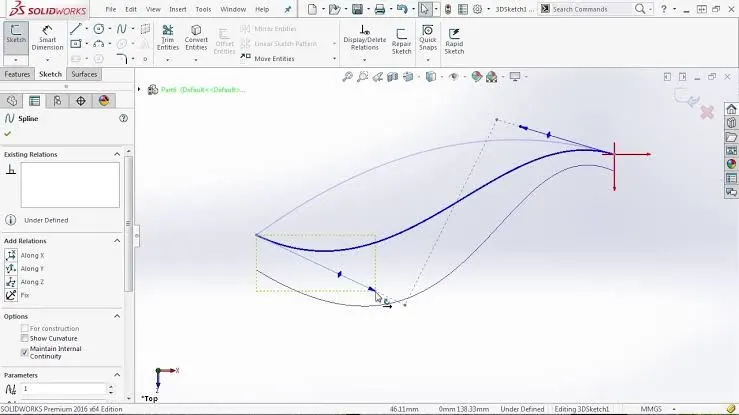

• Spline
• Fillet
• Appearance



• Rear fender

               The rear fender is placed above the rear tyre of the vehicle.its purpose is to prevent sand ,mud and other particals being thrown into the air by the rotating tyre

   Features used to create the rear fender

• Sketch
• 3-point arc
• Extend
• Trim
• Revolve
• Spline
• Fillet
• Appearance

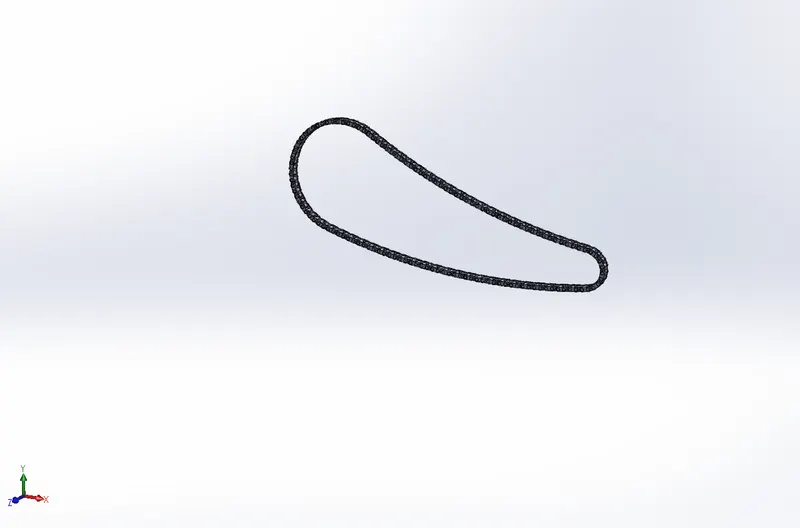

• Chain

               Chain is used to transmit the power from the engine to the rear wheel to run the vehicle

   Features used to create the chain

• Sketch
• Ciecles
• 3-point arc
• Slot
• Block
• Fillet
• Curve pattern
• Mirror
• Appearance

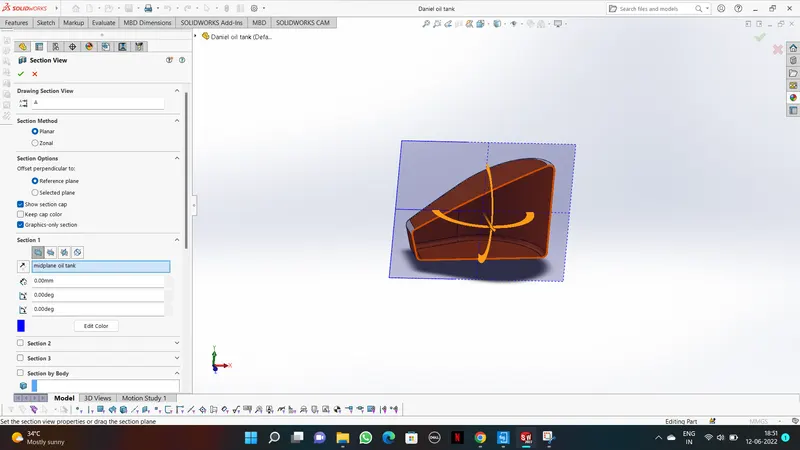

• Oil tank

                Oil tank is used to store the oil for the use of choppe

   Features used to create the oil tank

• Sketch
• 3-point arc
• Extrude
• Combine
• Fillet
• Shell
• Apperarnce



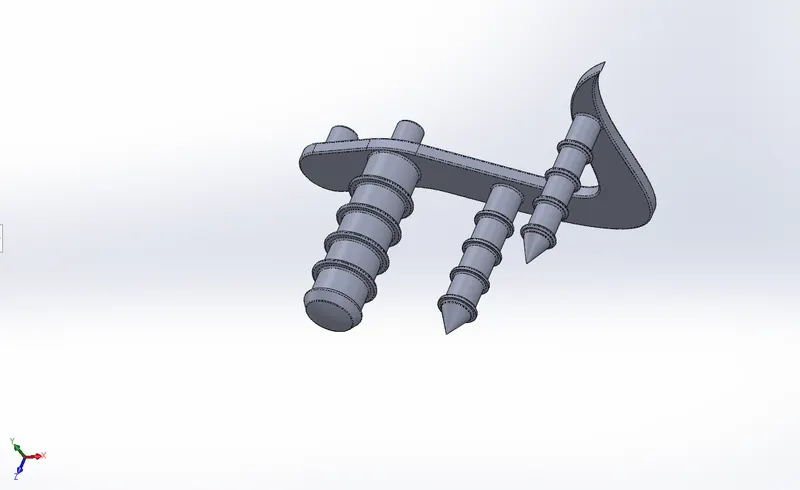

• Pedal

               Pedal is used to place the foot so that you can ride ccomfortably.the pedal also has gear shaft to shift gears while you ride the vehicle

   Features used to create pedal

• SketchFr
• Circles
• Fillet
• Revolve
• Offset
• Dome
• Chamfer
• linear pattern
• Appearance



• Front wheel

               Front wheel has spokes and tyre that makes contact with the ground so that the vehicle can move.the front wheel is fixed to the front stantion of the vehicle

   Feature used to create the front wheel

• Sketch
• Lines
• 3-point arc
• Fillet
• Spline
• Extend
• Trim
• Cut extrude
• Offset
• Circular pattern
• Chamfer
• Apperarance

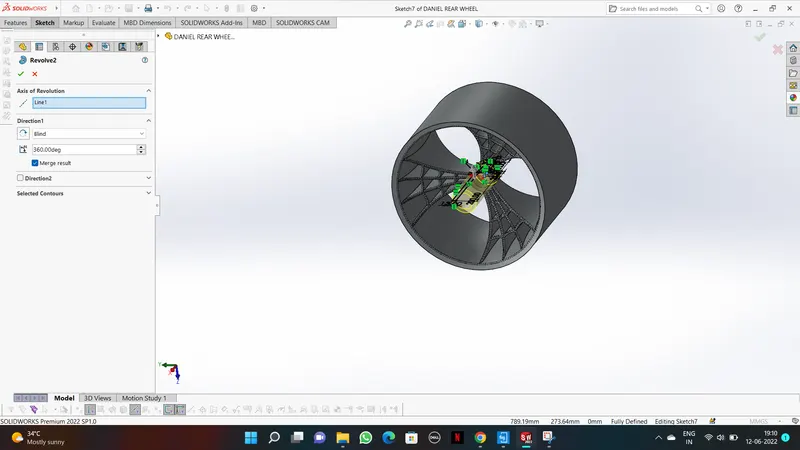

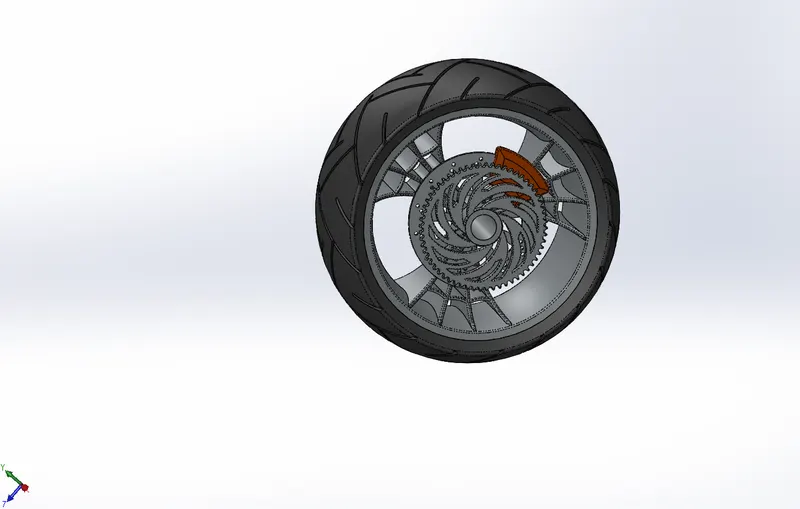

• Rear wheel

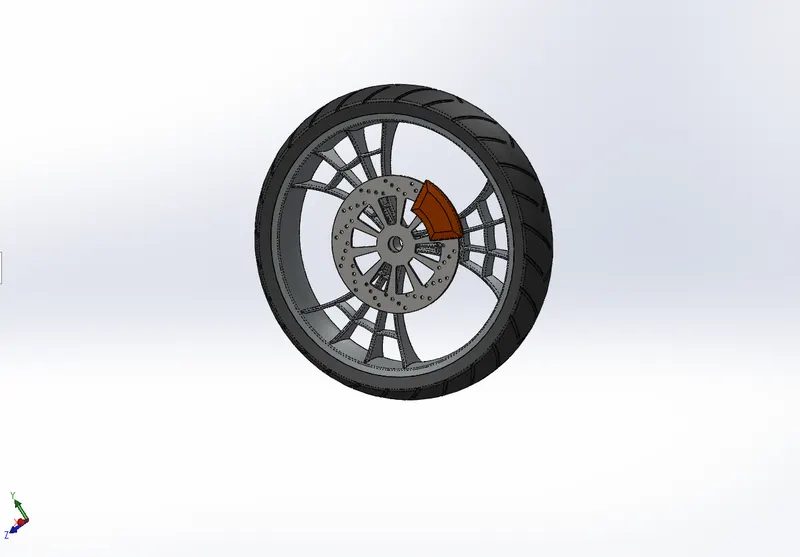

               Rear wheel has sprocket,caliper,rim,disc and tyre.It is fixed to the swing arm that is attached to the chassis.the the power from the engine is transmitted to the rear wheel through the chain and sprocket to move the vehicle

   Features used to create rear wheel

• Sketch
• Lines
• 3-pont arc
• Sketch fillet
• Extend
• Trim
• Revolve
• Revolve cut
• Extrude
• Extrude cut
• Offset
• Circular pattern
• Chamfer
• Appearance

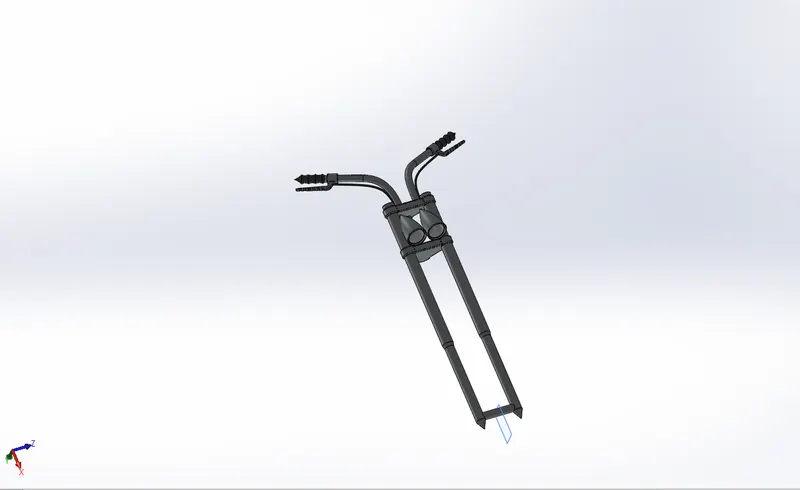

• Front fork

               Front fork is used to connect the front wheel to the frame of the vehicle.the fork is also part of the steering system that allows the vehicle to turn left and right.the fork also has the stantion (front shock absorber) that absorbs the shocks when the vehicle runs on pits and bumps

   Feature used to create Front fork

• Sketch
• Lines and Circles
• Revolve
• Fillet
• Linear pattern
• Spline
• Projected curves
• Cut extrude
• Dome
• Sweep
• Mirror
• Combine
• Appearance



• Chassis

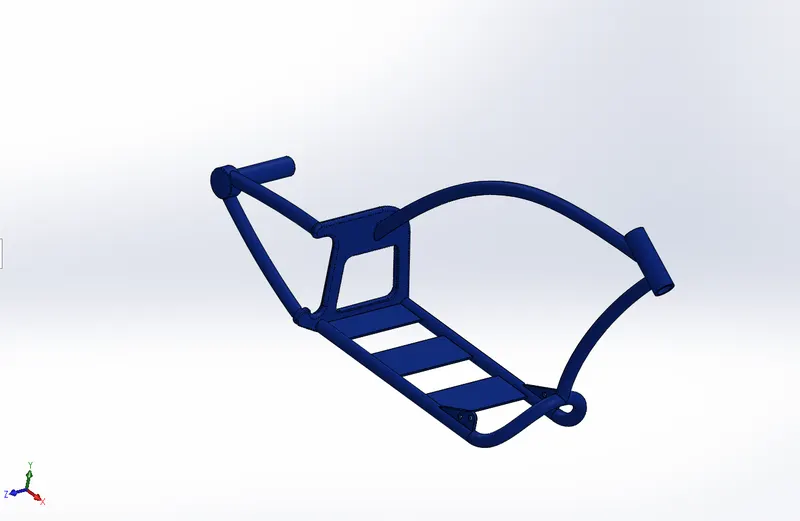

               Chassis is the main component in the vehicle.it is the skeleton of the vehicle.All the other component like swing arm,front fork,engine,gas tank etc.. are mounted on the chassis as base structure

   Features used to create the chassis

• Blueprint sketch
• Spline
• Projected curves
• Mirror
• Extrude
• Cut extrude
• Chamfer
• Dome
• Split
• Revolve
• Combine
• Appearance

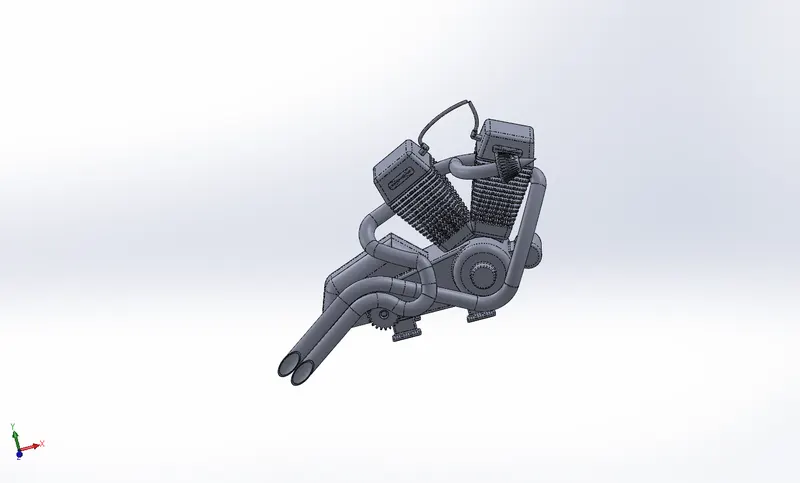

• Engine

               The engine is the heart of the vehicle, the engine converts the chemical eneregy to heat energy the the heat energy is converted into mechanical energy. then the energy is transmitted to the rear wheel with the help of the chain sprocket and the chain

   Features used to create engine

• Blueprint Sketch
• Lines
• Circles
• Extrude
• Extrude cut
• Fillet
• Chamfer
• Revolve
• Dome
• Circular pattern
• Linear pattern
• Mirror
• Projected curves
• Composite curves
• Split
• Appearance

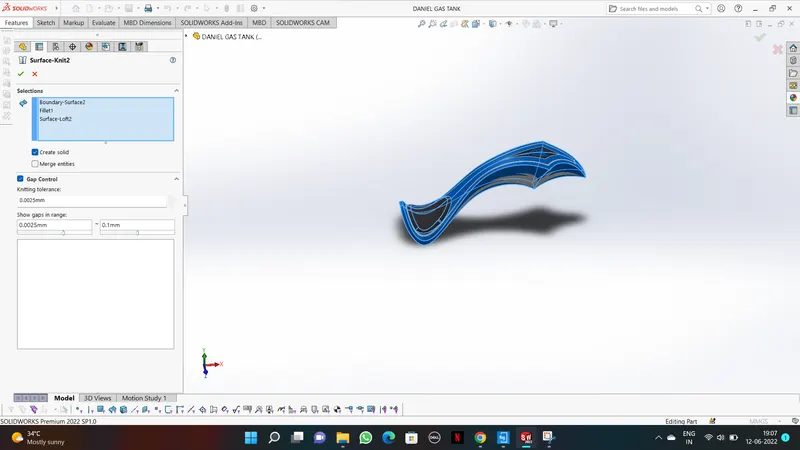

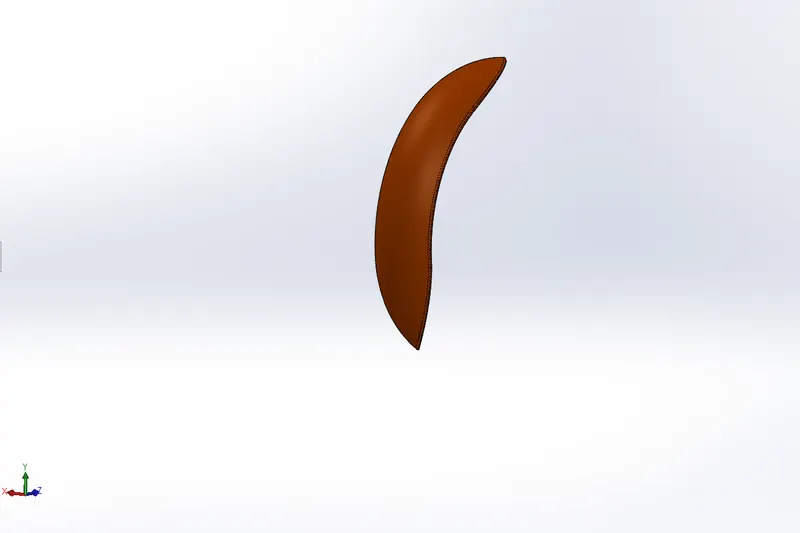

• Gas tank

               Gas tank is used to store the fuel for the comburtion for the engine.it is designed to keep the fuel safe protected from the heat and other impact.

   Festures used to create Gas tank

• Blueprint
• Surface sweep
• Surface trim
• Surface loft
• Spline
• Mirror
• Surface knit
• Surface extrude
• Shell
• Fillet
• Extrude cut
• Appearance

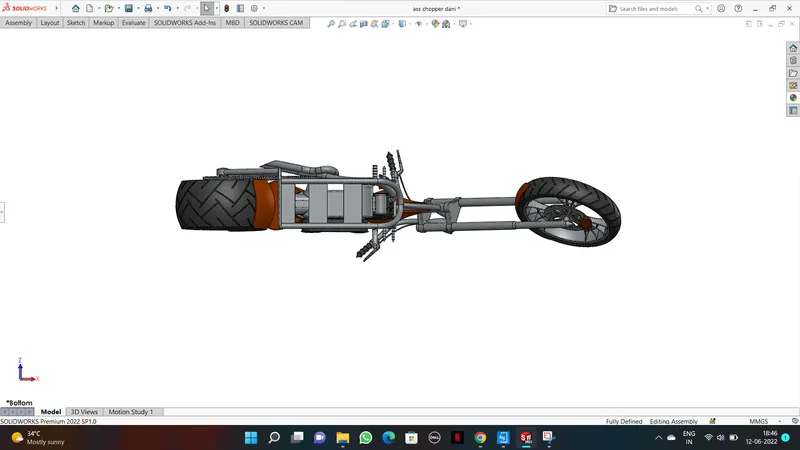

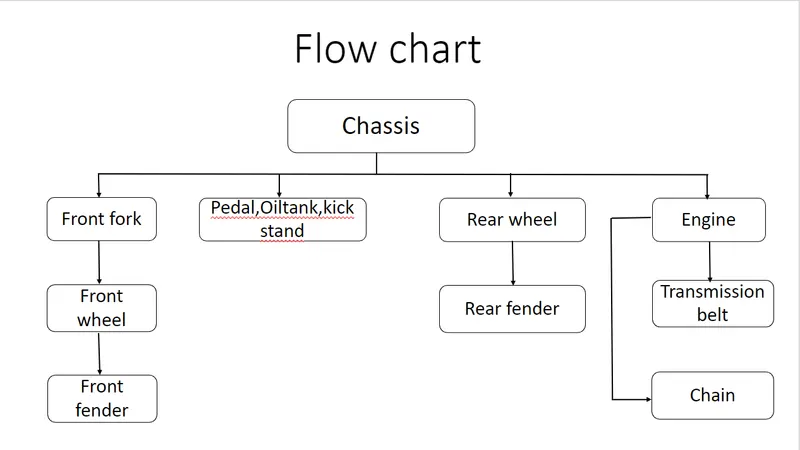

   ASSEMBLY OF THE CHOPPER

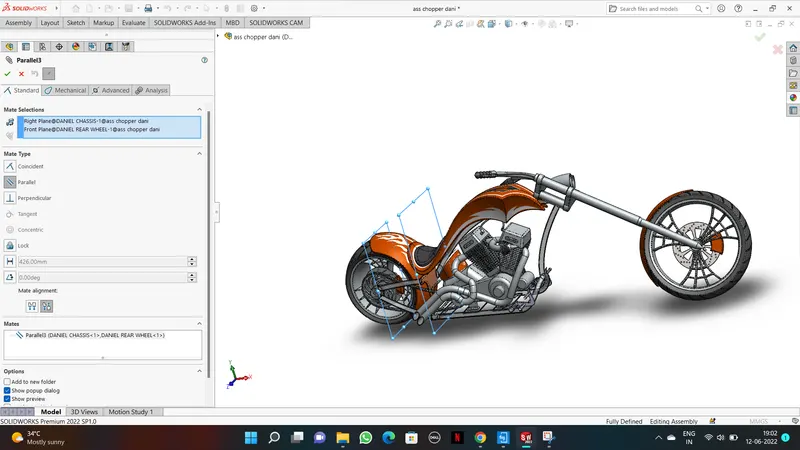

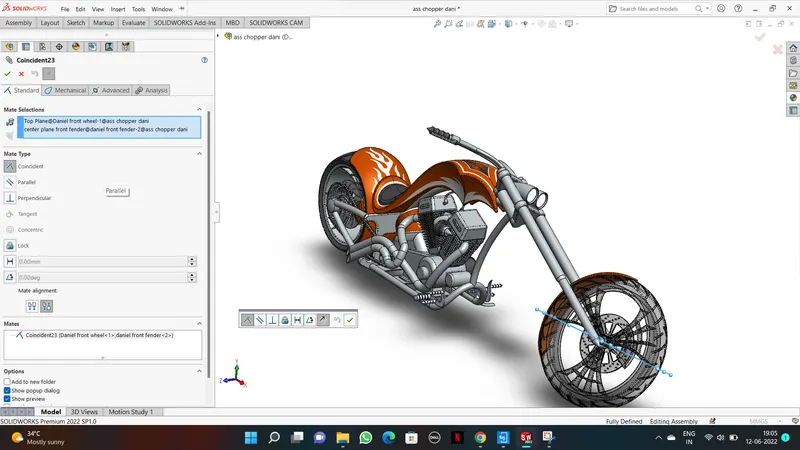

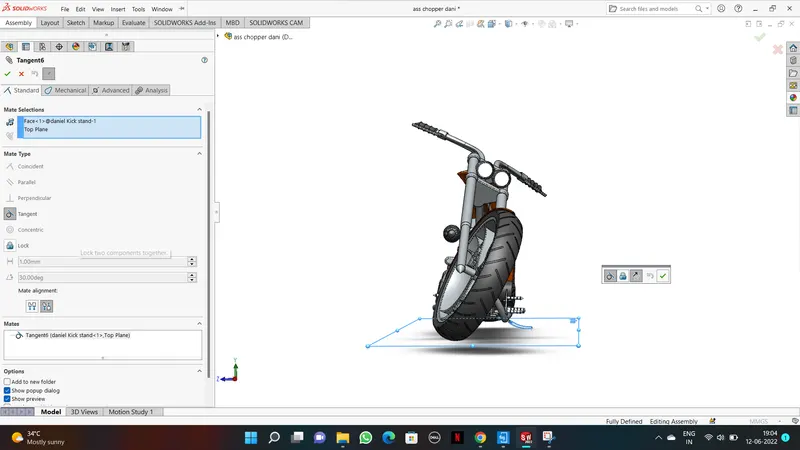

               This is where all the parts are assembled into one whole chopper. First the chassis is inserted by using insert part in the option.with the chassis as our base we insert the other parts and with the help of mates relations we fix the parts in appropriate position to get a fully defined chopper

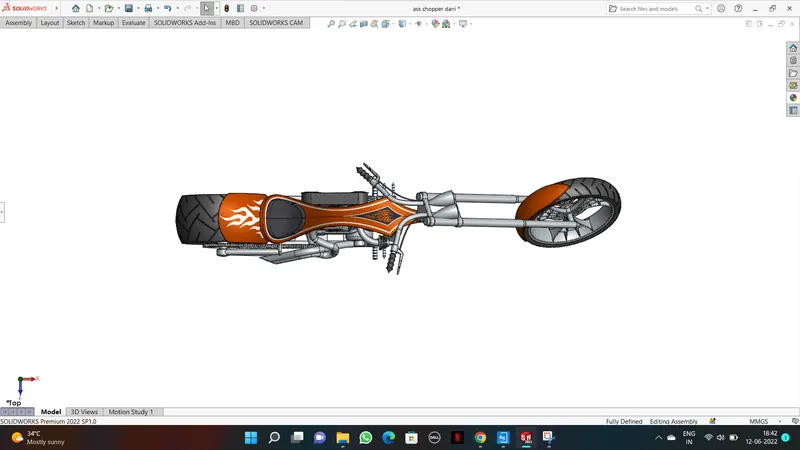

   ISOMETRIC VIEW



   TOP VIEW



   FRONT VIEW

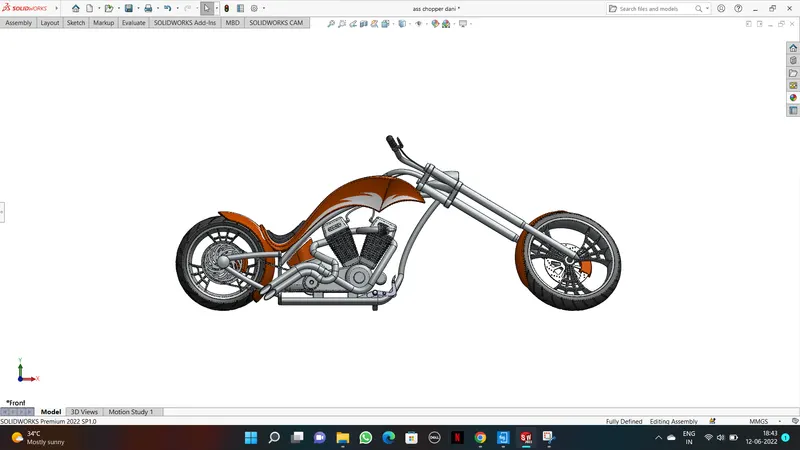

   LEFT SIDE VIEW



   RIGHT SIDE VIEW

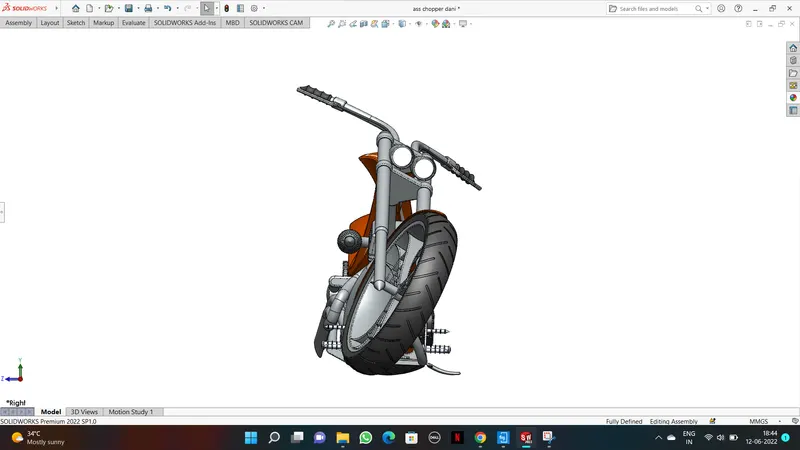

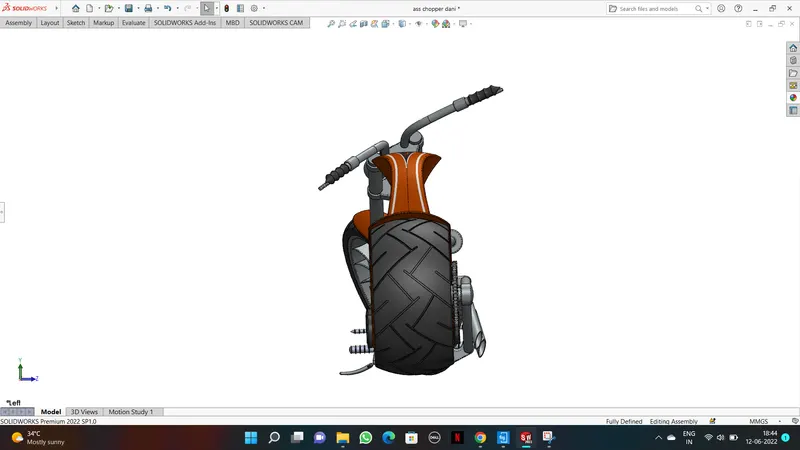

   BACK VIEW



   BOTTOM VIEW

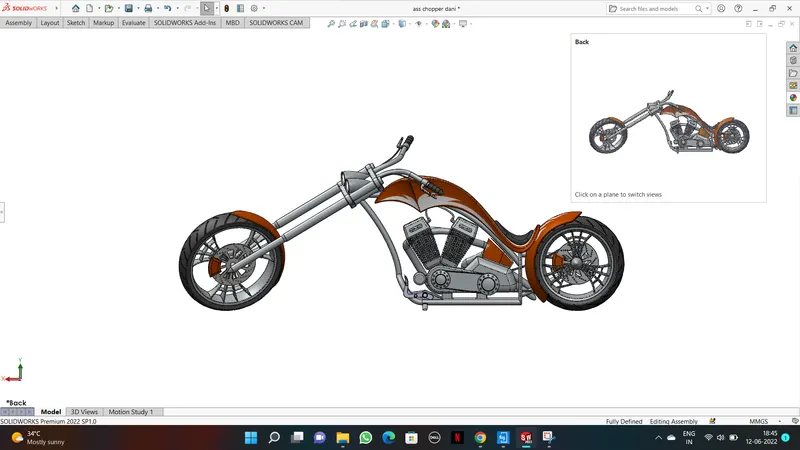

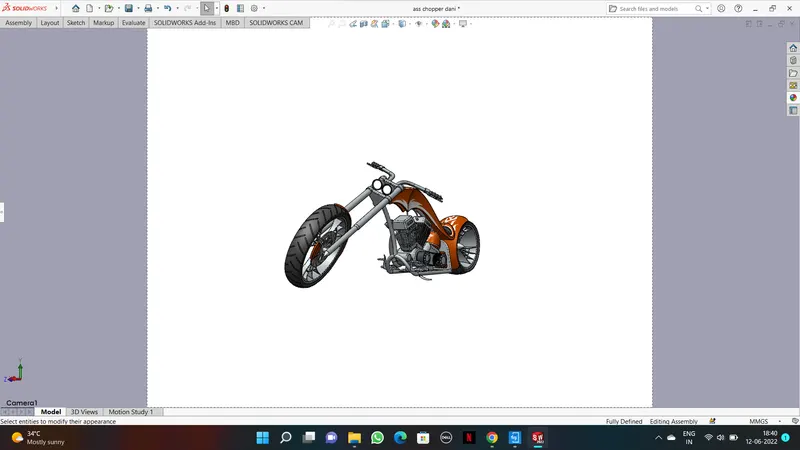

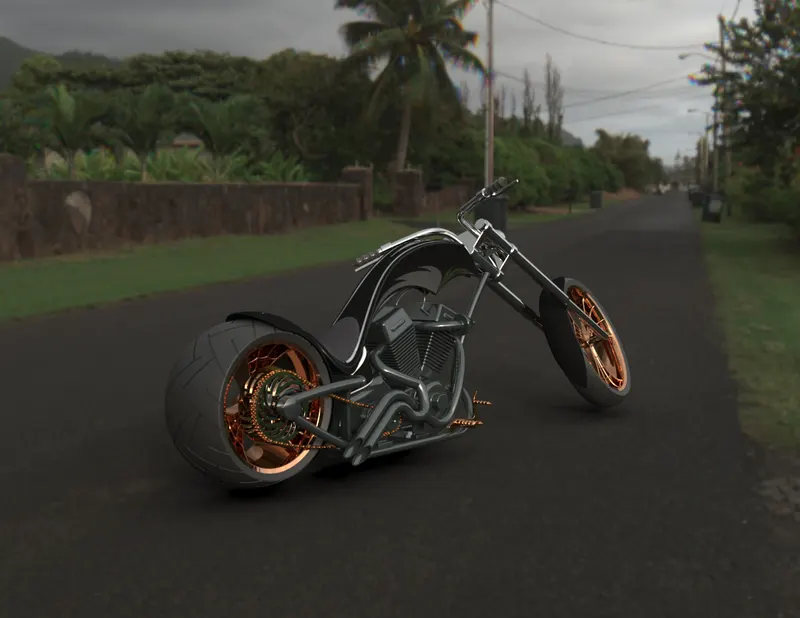

   CAMERA VIEW

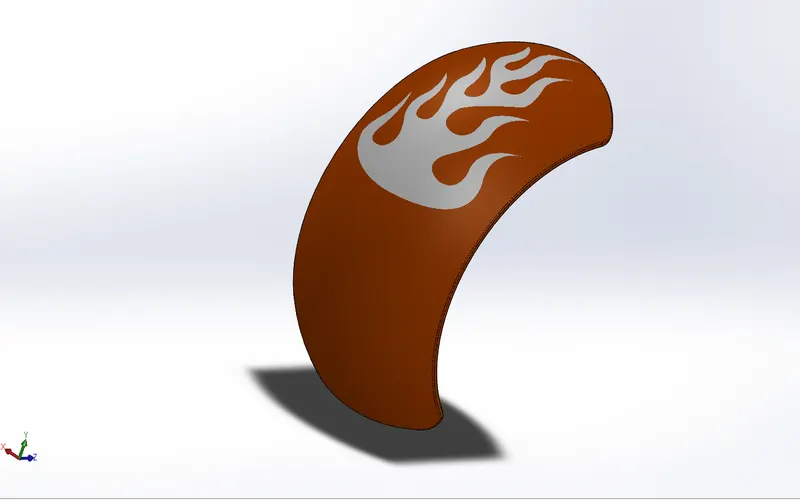

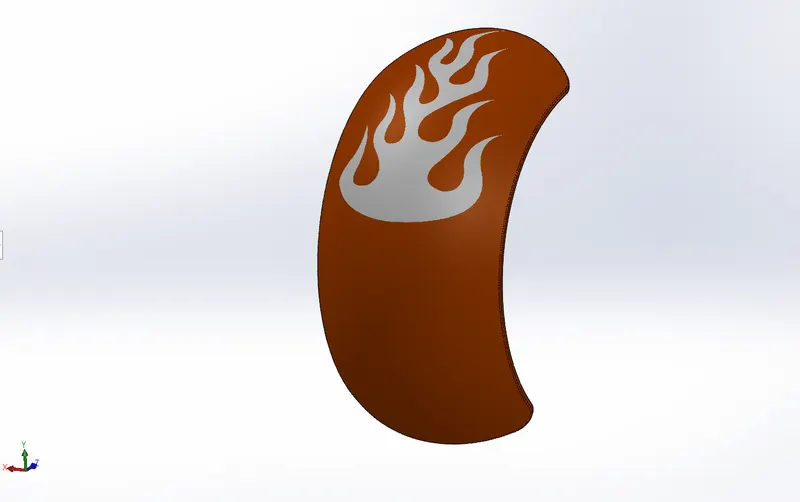

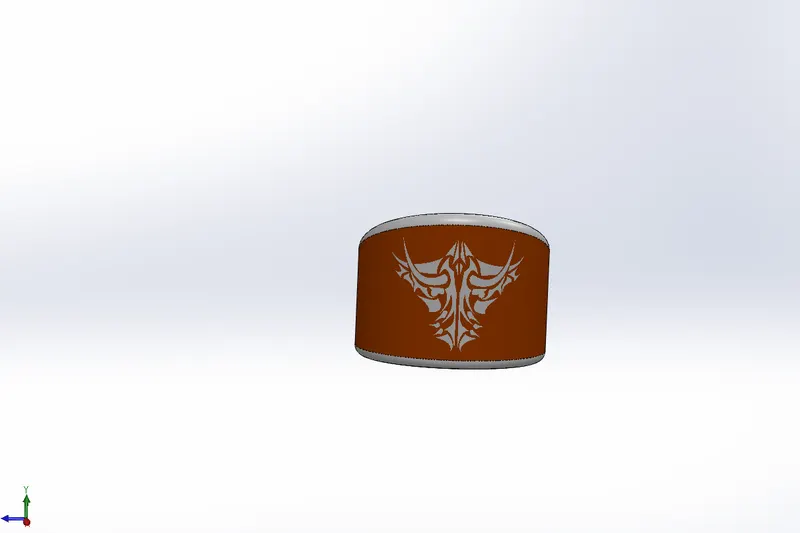

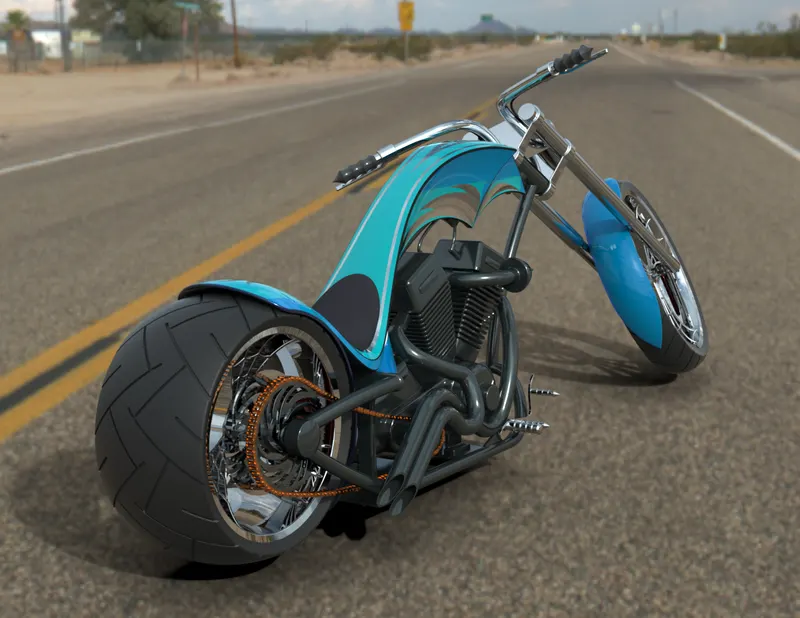

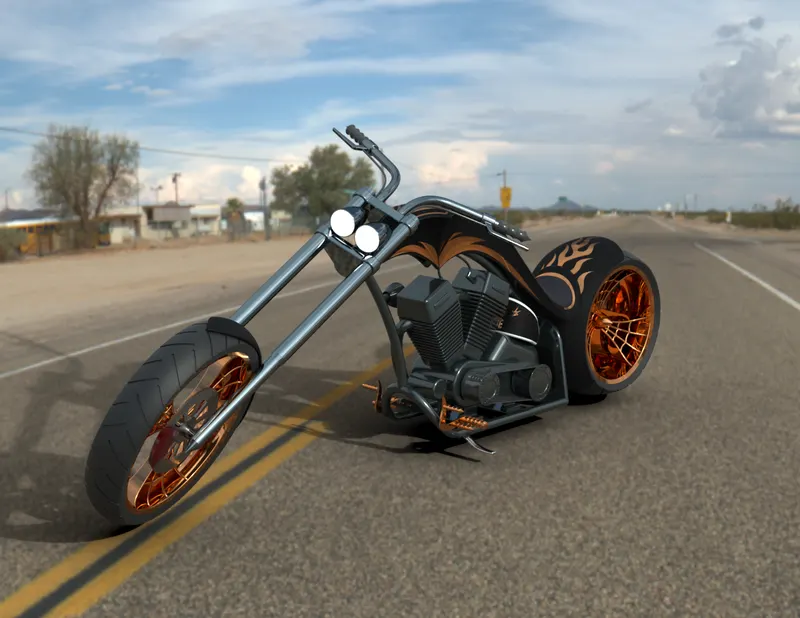

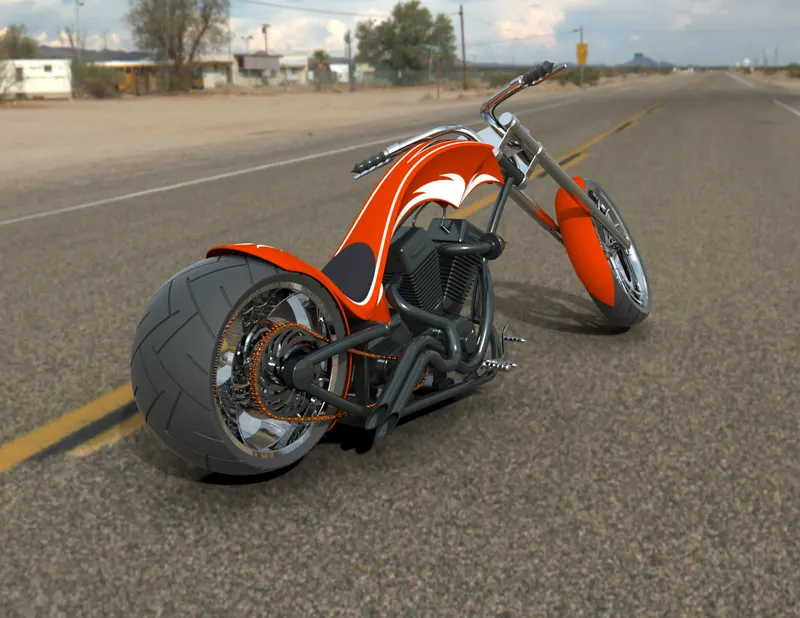

   DECALS

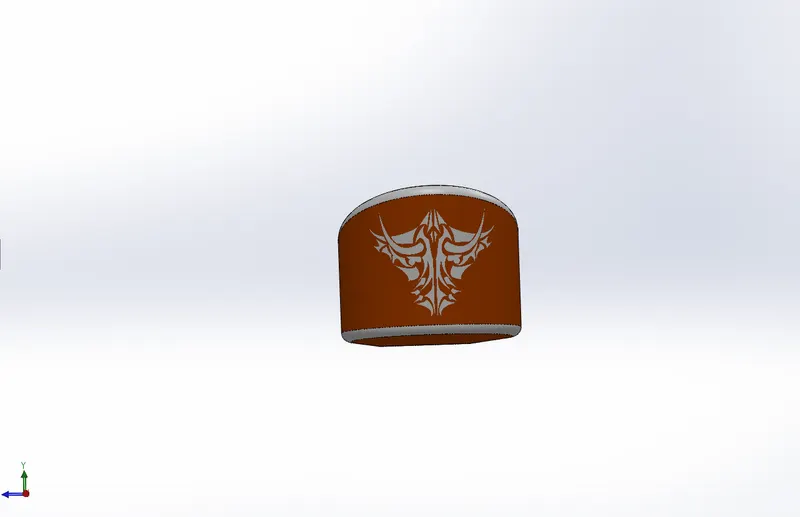

               A decals is a 2d image applied to the model.decals is used to enhance the look of the chopper by giving details and design to the patrs.



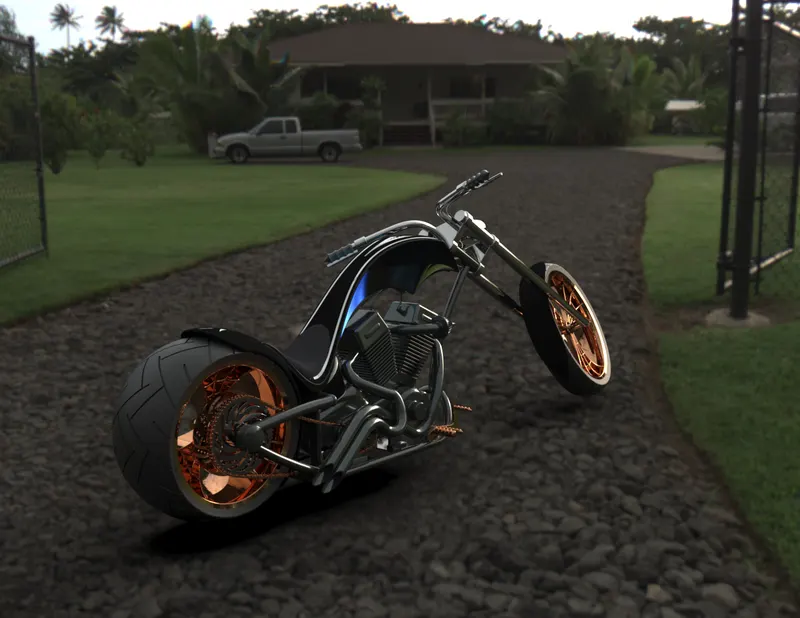

   RENDERING

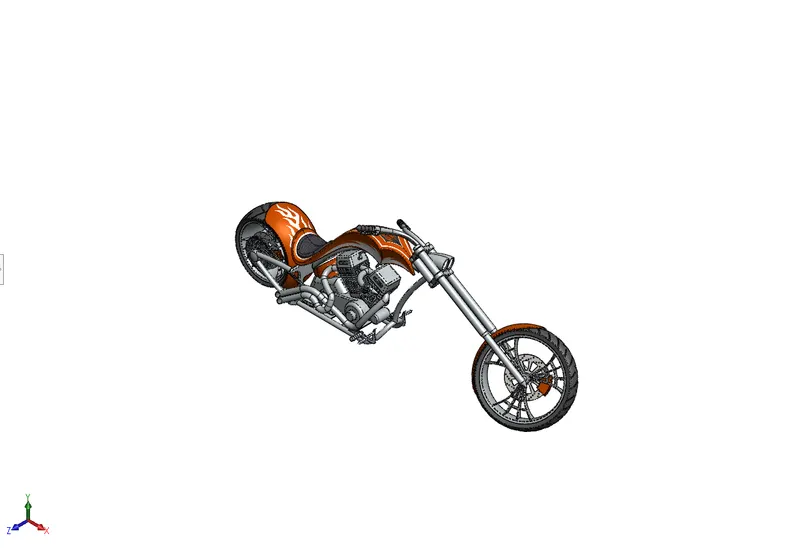

               In this process we add lightings,camera,scene,and decals to the model to look realistic and give a good look to it.solidworks visualize allows to leverage your 3D data to create photo-quality content in the fastest and easiest way you can from image to animation to give a virtual reality look to the model
