DESIGN OF AMERICAN CHOPPER USING SOLIDWORKS
OBJECTIVE:-
The objective of the project is to model an AMERICAN CHOPPER using CAD (computer aided drafting) softwhere like SOLIDWORKS and to render it with SOLIDWORKS VISUALIZE to create a photorealistic view of it.
INTRODUCTION:-
This project explains the designing of American chopper using CAD software SOLIDWORKS from sketching the parts and modelling them to final rendering of the assembly to give a photo realistic view.
METHODOLOGY:-
- Part Modelling
- Assembly
- Rendering
PART MODELLING:-
In part modelling first the 2D sketch of the part is sketched using the tools in the sketch tab and then the 2D sketch is converted into 3D part using features in the features tab.
FEATURES USED:-
BOSS EXTRUDE: This feature is used to expand the object in 3d according to the sketch plane.
EXTRUDE CUT: This feature is used to cut/move the 3D object in linear path according to sketch.
FILLET: This is a feature used for making round internal or external edges to avoid sharp edges and make it smooth.
LOFTED BOSS/BASE: This is a feature used to achieve complex shapes.It does this by interpolating surface between various cross-section of a model.These cross-section can be sketches,faces,or edges.
SPLIT:This is used to split single solid part into two solid parts.it is used to project an entity onto other surfaces or curved/planar faces.
DOME:Dome is a feature used to make dome shaped extrude including elliptical dome.
SHELL:Shell feature is used to make to hollow space in solid part by selecting outer wall of the solid part and so removes the inner parta.It is also used to reduce the specific thickness.
COMBINE:combine tool is used to make integration of two solid parts which intersect each other as same solid part.
CHAMFER:Chamfer is used to make a sharp edge or corner slightly trapered rather than beign a perfect square .
LINEAR PATTERN:The linear parent is used to create a different nummber of instances required to create the pattern linearly.
CURVE DRIVEN PATTERN:Curve driven pattern is used to make any pattern which follower by the curve is sketched before.
CIRCULAR PATTEN:Circular pattern is a feature used to makeot 3D feature into circlular pattern according to number of insistences.
REVOLVE BOSS BASE: Revolve feature is used to make cylindrical or circular 3D extrude along with along with a given reference axis as per drawn sketch.
REVOLVE CUT:Revolve cut is used to cut or reduce the extrude of cylindrical round surface.
MOVE/COPY BODY : This feature is used to move/copy the 3D body to one place to another place.
MIRROR: Mirror is used to mirror a feature or body by reference of the selected plane.
SWEEP:This feature is used to sweep any kind of fully defined sketch along with the path.
SWEEP CUT:Sweep cut is same as sweep feature but its directly proportional to sweep which makes a cut along with the sweep path.
SWEEP SURFACE: It is used to make a surface along with a path the curve is driven.
BOUNDARY SURFACE:Boundary surface is used to make a surface in between two finished surfaces.
LOFT SURFACE:Loft surface is used to make loft in between two profiles along with guide path.
KNIT SURFACE:Knit surface is used to knit the two free edges or open edges of the surface together also it reduces the gap between the two edges of the surface.
SURFACE TRIM:-Primarily used to cut away material from a surface and provides two modes STANDARD and MUTUAL.
PROJECTION CURVE:Projection curve is a 3D curve which is projected on the basic of the two different planes.
BLOCKS:You can make save,edit and insert blocks from the drawing items and sketch entities that you use often such as standard notes,title blocks,label positions and so on you can attach blocks to geometry or to drawing views
TRIM ENTITIES:It is used to trim the unwanted lines or extended entities in the sketch
APPEARANCES: An appearances defines visual properties of the model including colour and texture.Appearences do not affect physical propertites which are defined by materials every materials is assigned as default apperance.
ASSEMBLY:
Assembly is most often reffered to putting components together in an assembly line,but more specifically,it refers to creating a complete product that performs an intended function.Changes in the component are automatically reflected in the assembly i.e.The rebuild option will automatically take place or else it will ask the user to rebuild the document.
ASSEMBLY APPROACHES IN SOLIDWORKS
- TOP-DOWN APPROACH
- BOTTOM-UP APPROACH
RENDERING
Rendering or image synthesis is the automatic process of generating a photorealistic or non-photorealistic image from a 2D or 3D model using a computer program.The resulting image is referred to as the render.
MAJOR CATEGORIES IN RENDERING
- REAL-TIME RENDERING
- PRE-RENDERING
SOFTWARE USED
- PHOTOVIEW 360
- SOLIDWORKS VISULIZE
COMPONENTS DESIGNED
- TRANSMISSION BELT
- KICK STAND
- FRONT FENDER
- REAR FENDER
- CHAIN
- OIL TANK
- PEDEL
- FRONTWHEEL
- REARWHEEL
- FRONT FORK
- CHASSIS
- GAS TANK
DESCRIPTION

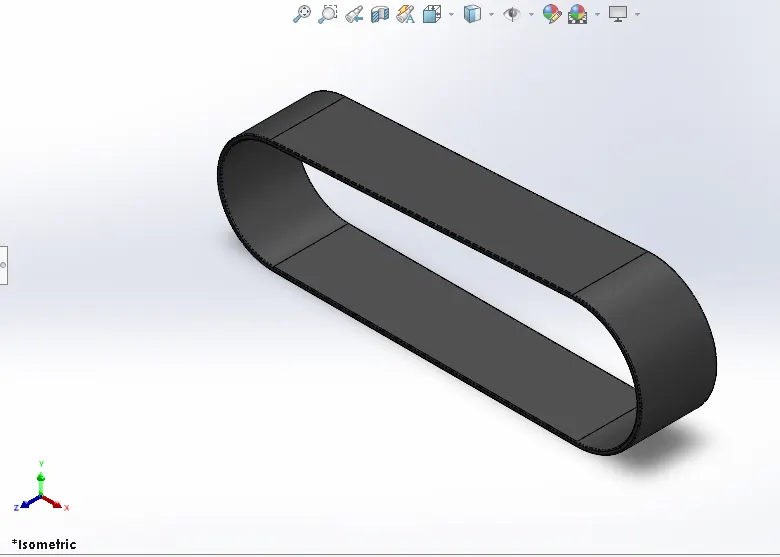

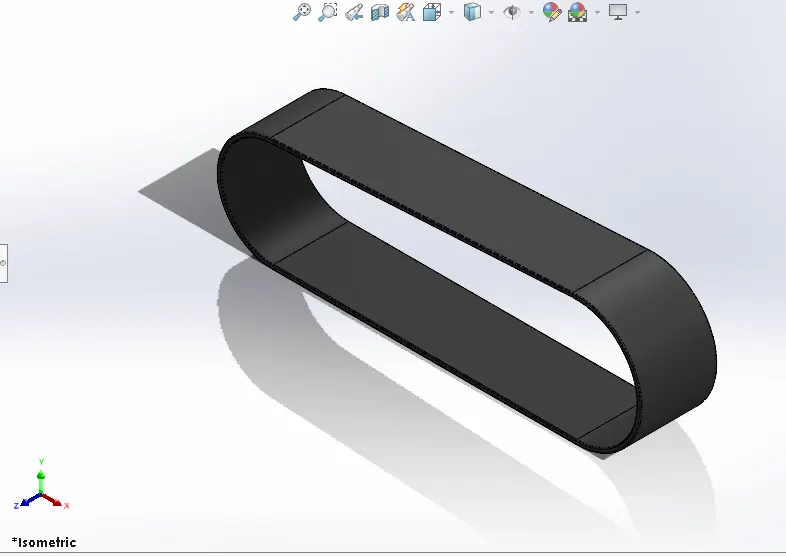

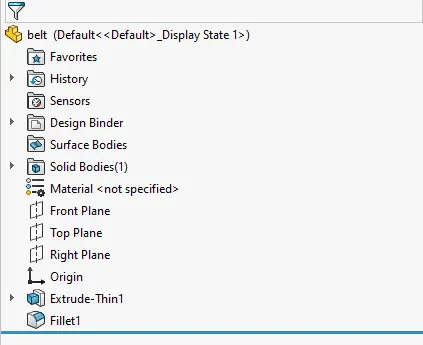

TRANSMISSION BELT
FEATURES USED
- OFFSET ENTITIES
- EXTRUDE BOSS
- FILLET
- APPEARANCES
This transmission belt is designed to adapt to the two pulleys created on one side of the engine block.It is a simple model created using very fewer tools like line,curve and extrude boss/base

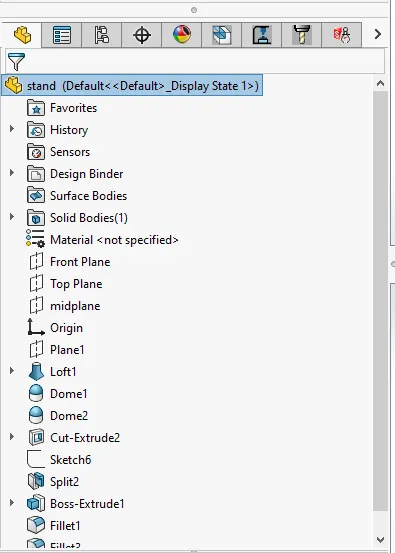

KICK STAND
FEATURE USED
- LOFT BOSS
- EXTRUDE BOSS
- EXTRUDE CUT
- DOME
- SPLIT
- FILLETS
- APPEARANCE
Kickstand for this bike is of a very simple kind made by the application of sweep feature.An opening is kept for it to the chassis and the dome is applied at the ends of the kickstand.

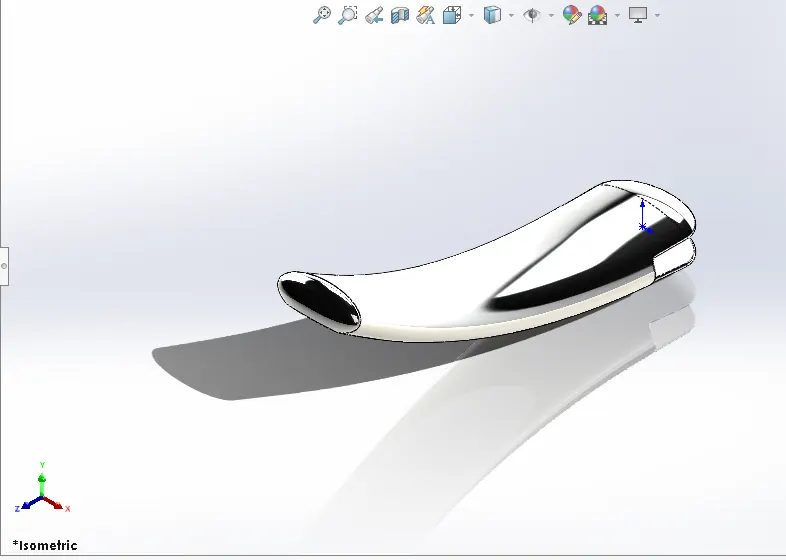

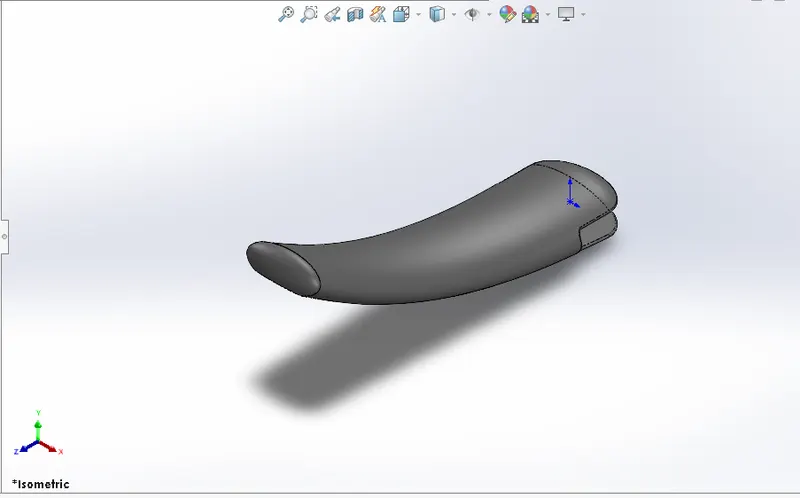

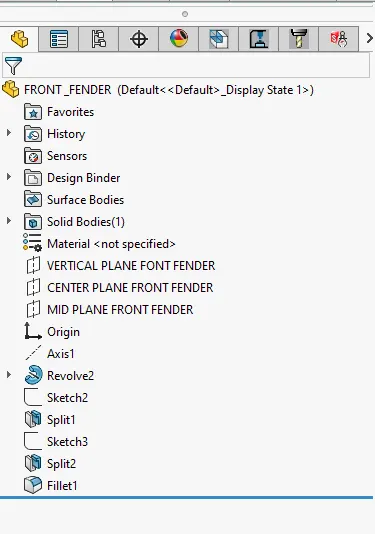

FRONT FENDER
FEATURE USED
- OFFSET ENTITIES
- TRIM ENTITIES
- REVOLVE BOSS
- DYNAMIC MIRROR
- SPLIT
- FILLETS
- APPEARANCE
The front fender for this bike is designed simply by revolving the cross-section and cutting away material at the end to make it pointed.Revolve and split tools are the most used tools here.

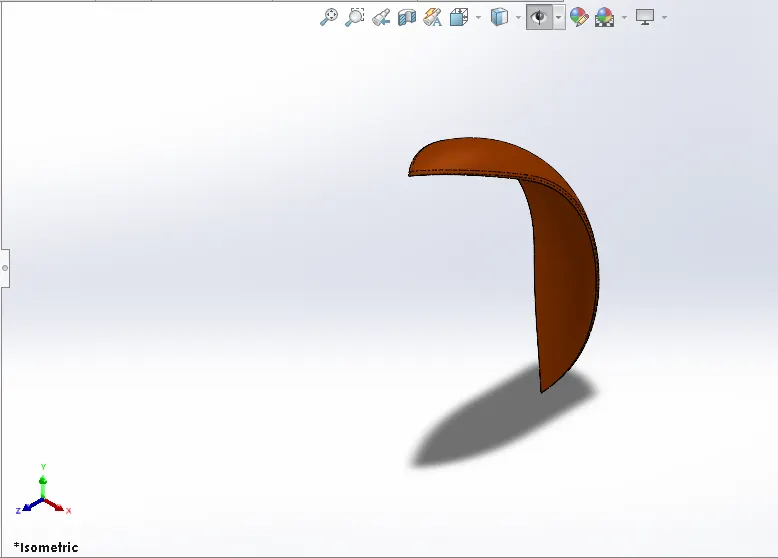

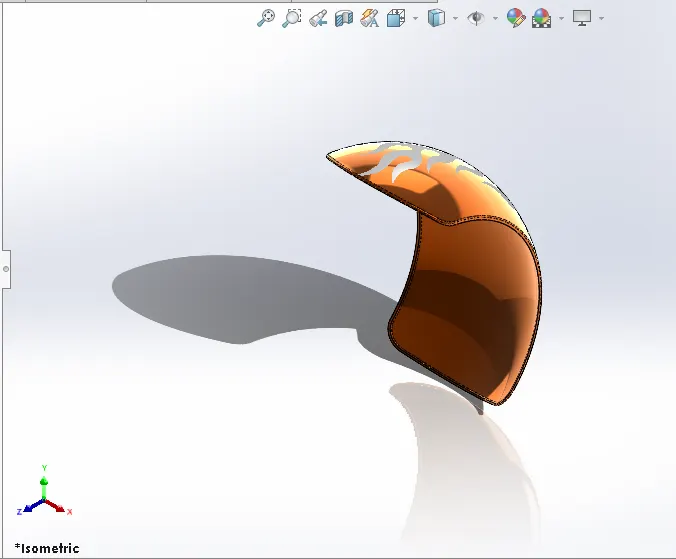

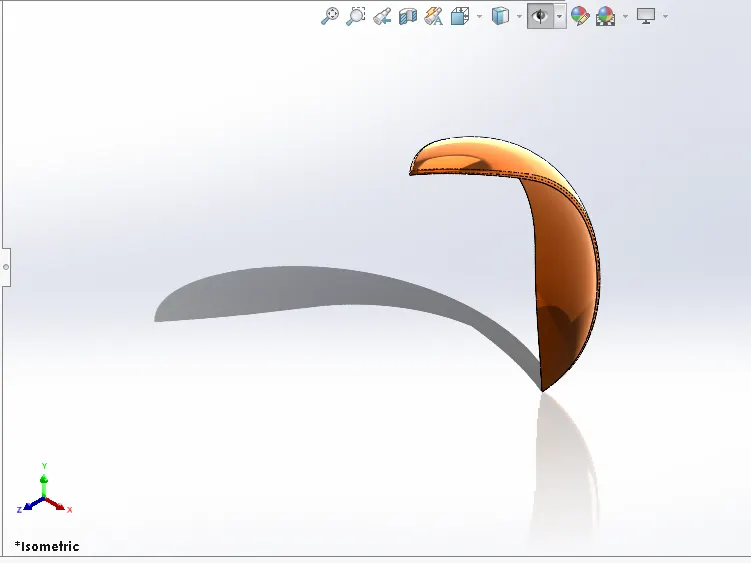

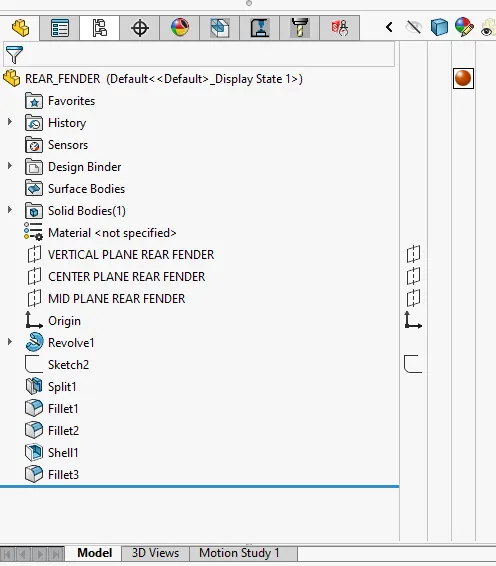

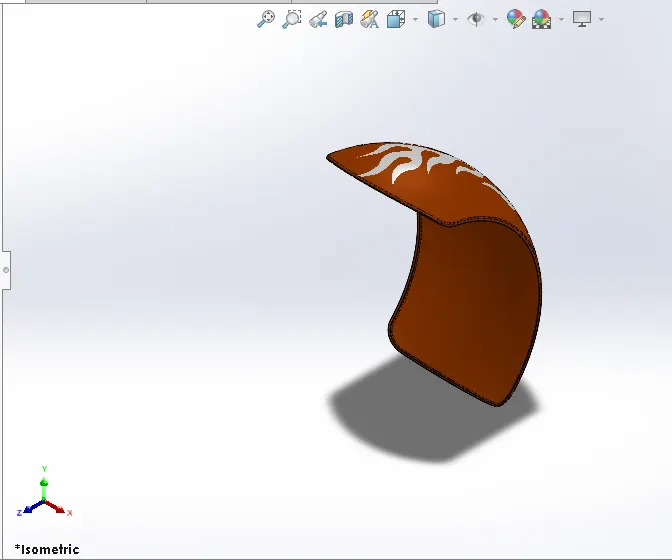

REAR FENDER
FEATURE USED
- OFFSET ENTITIES
- TRIM ENTITIES
- REVOLVE BOSS
- DYNAMIC MIRROR
- SPLIT
- FILLETS
- APPEARANCE
The rear fender is thicker but shorter compared to the front fender.It doesn,t have a pointed end like the front fender,rather rounded end as in the idea of sketch.Revolve and split tools are the most used tools here.

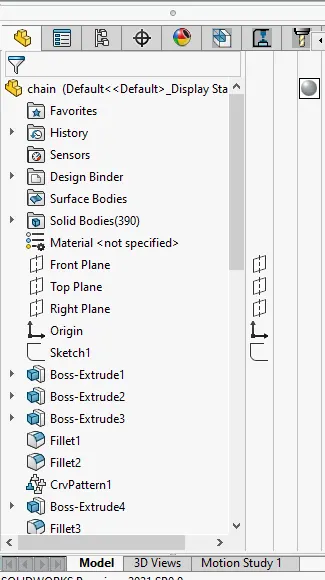

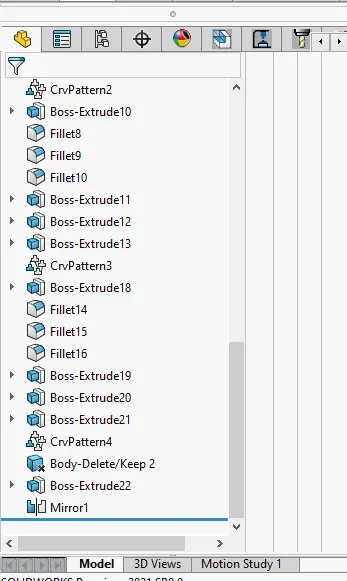

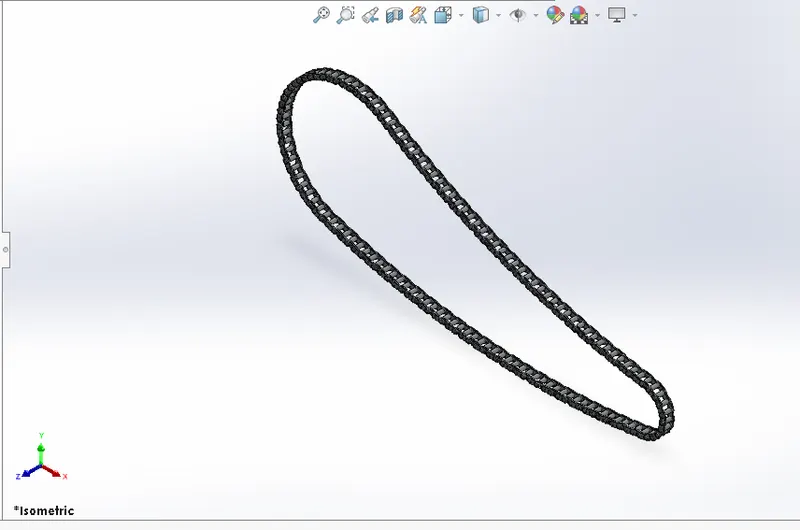

CHAIN
FEATURE USED
- TRIM ENTITIES
- FILLET
- BLOCKS
- EXTRUDE BOSS
- LINEAR PATTERNS
- APPEARANCES

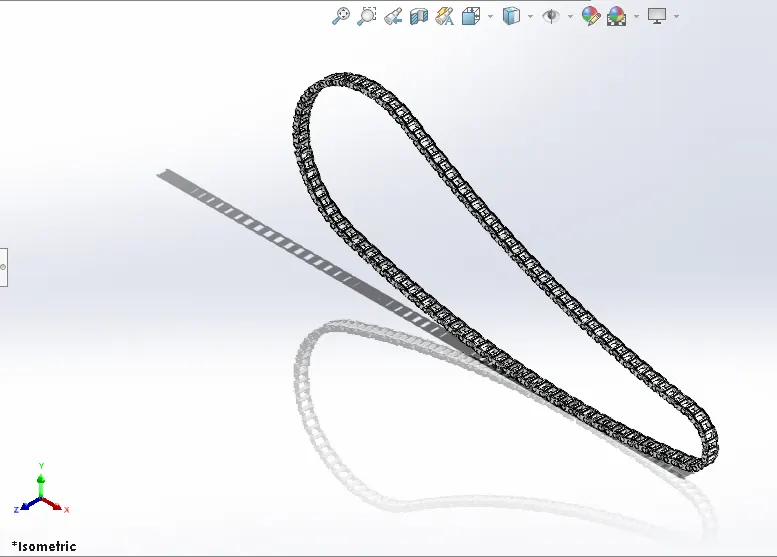

It is the most complex part of the whole design project.It consists of 390 bodies including seperate bodies for all the inner plates,outer plates and the pins.The major feature used in the part is the curve driven pattern which allows each instance of chain parts to follow the curve drawn intially for the chain.It is essential to keep all the elements of this chain as a seperate body because it has to rotate along the curve and around the sprocket which is not possible if it is merged to make a single body

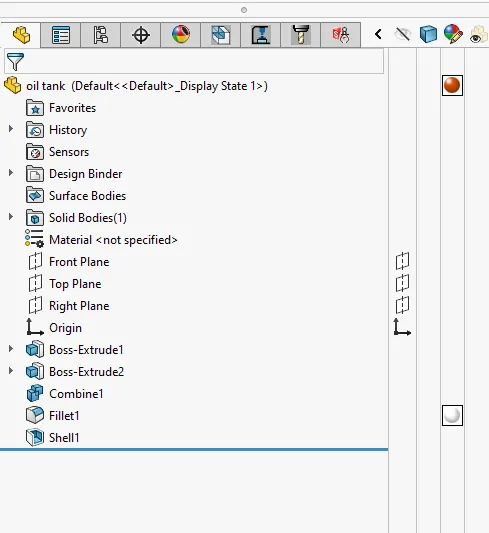

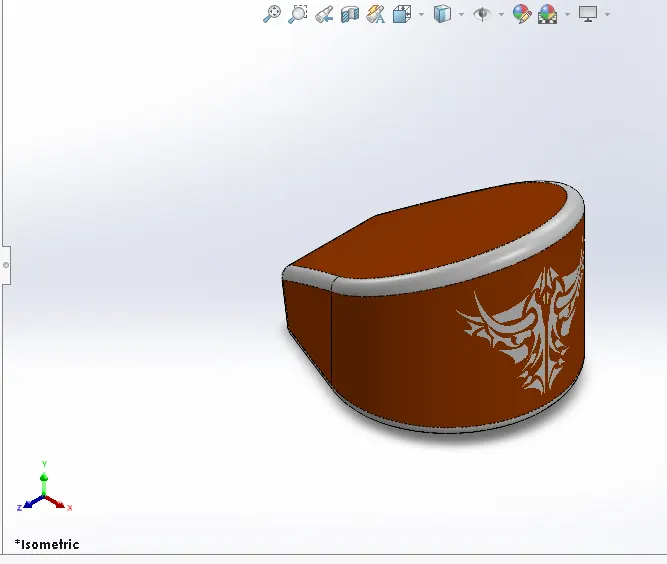

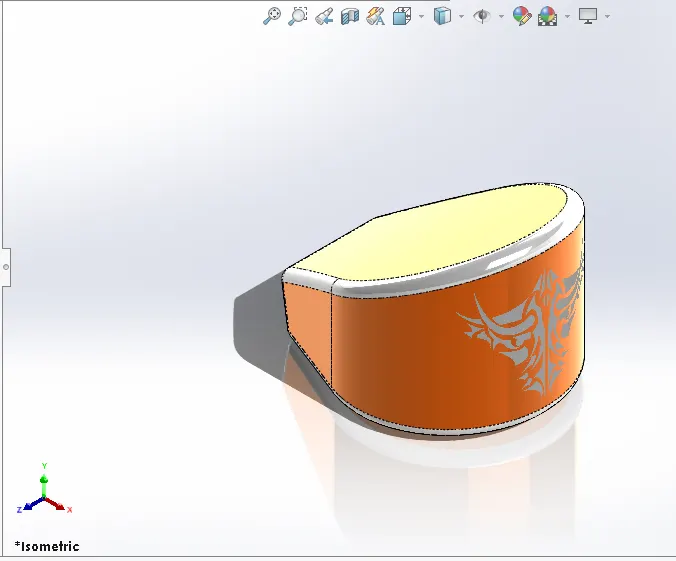

OIL TANK
FEATURE USED
- BOSS EXTRUDE
- FILLET
- COMBINE
- SHELL
- APPEARANCES
The oil tank is placed above the engine block which is also made hollow inside.Extude and shell are the major features used in this part.

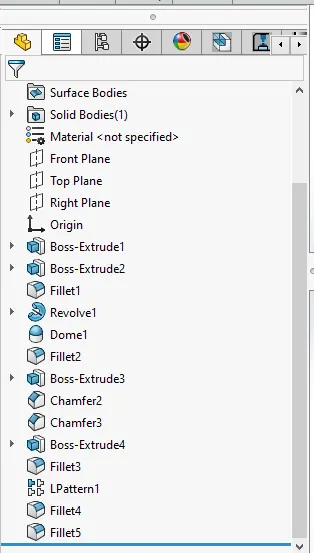

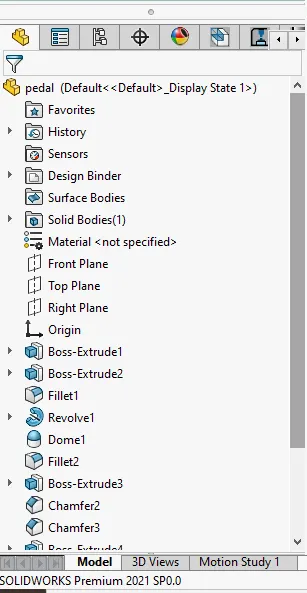

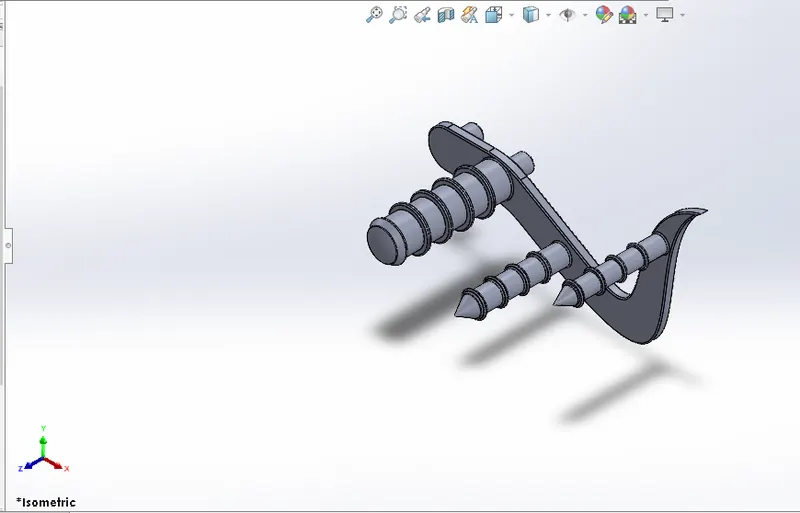

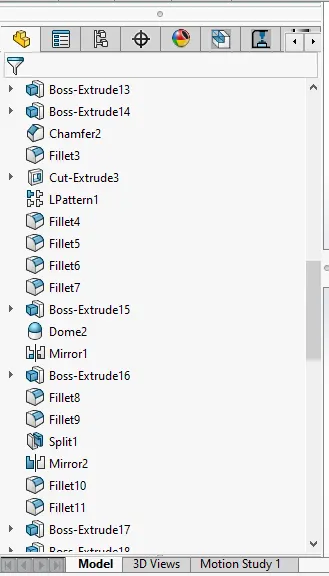

PEDAL
FEATURE USED
- DOME
- FILLET
- CHAMFER
- EXTRUDE BOSS
- LINEAR PATTERNS
- APPEARANCES

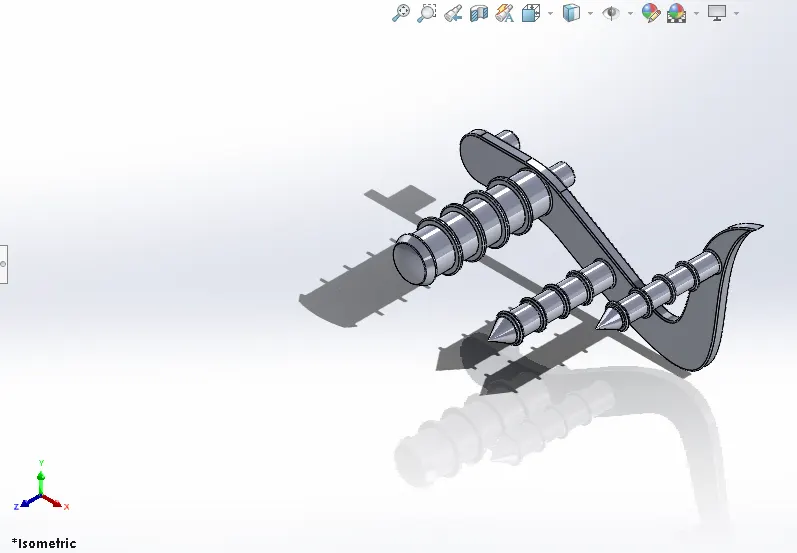

There are two pedals,left and right.Among them,only the right pedal was sketched and designed in the part design environment and the left was made using the in-context features of the assembly environment.it is designed to sit into the holes provided at the bottom of the chassis on both sides.

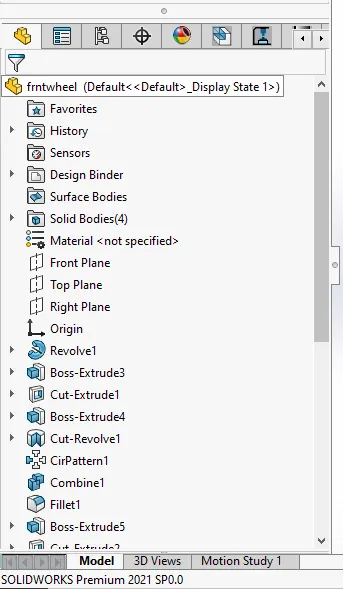

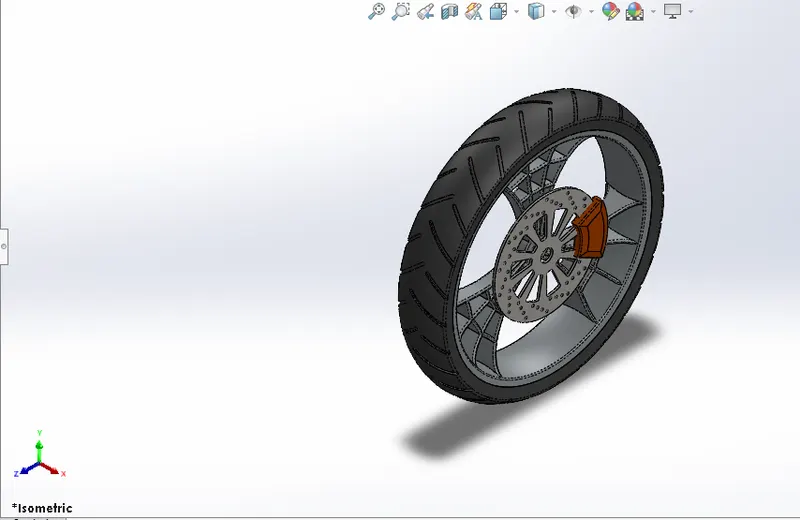

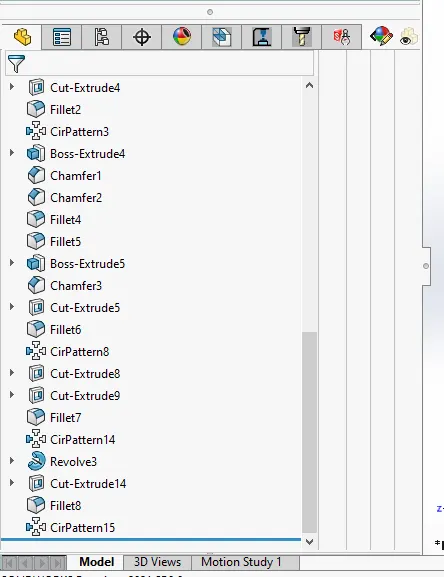

FRONT WHEEL
FEATURE USED
- BOSS EXTRUDE
- REVOLVE BOSS
- TRIM ENTITIES
- FILLET
- REVOLVE CUT
- LINEAR PATTERN
- CHAMFER
- CUT EXTRUDE
- CIRCULAR PATTERN
- APPEARANCE
The front wheel is thinner that the rear wheel.It is designed to be a multi-body part consisting of the rotor,sprocket,rim,tire and the calliper all are made to be single bodies.Mostly used features include revolve,extrude cut and circular pattern.

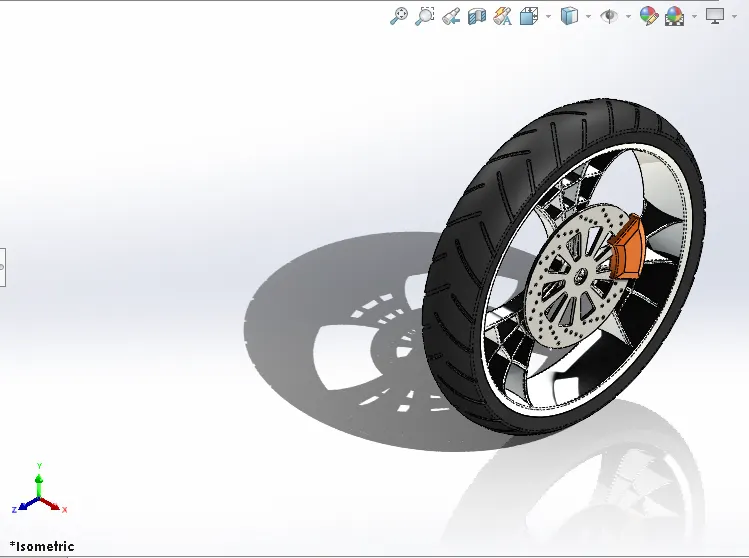

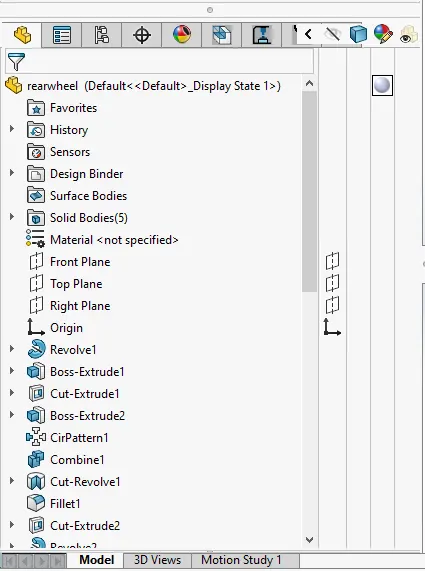

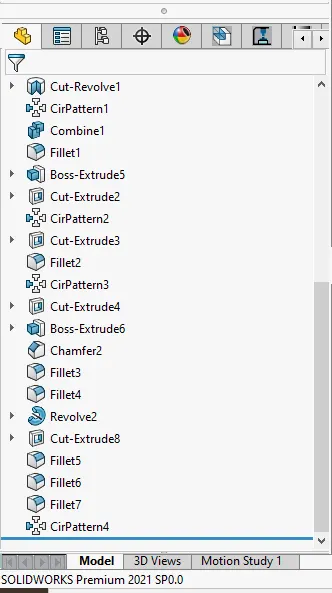

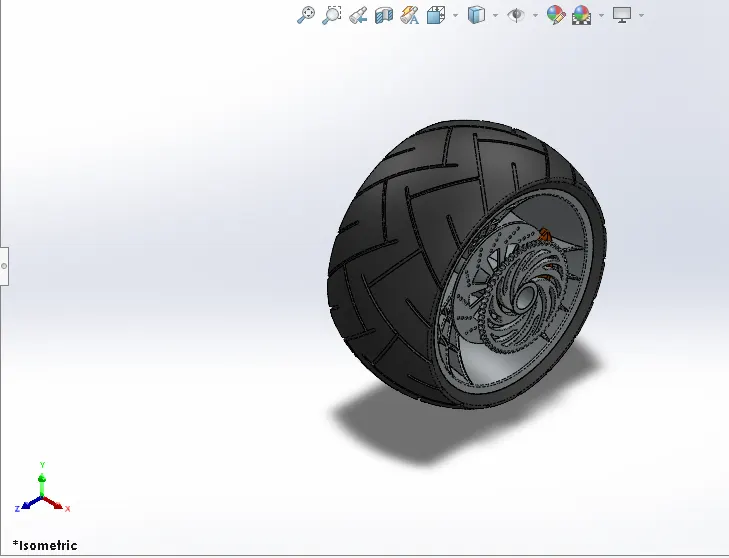

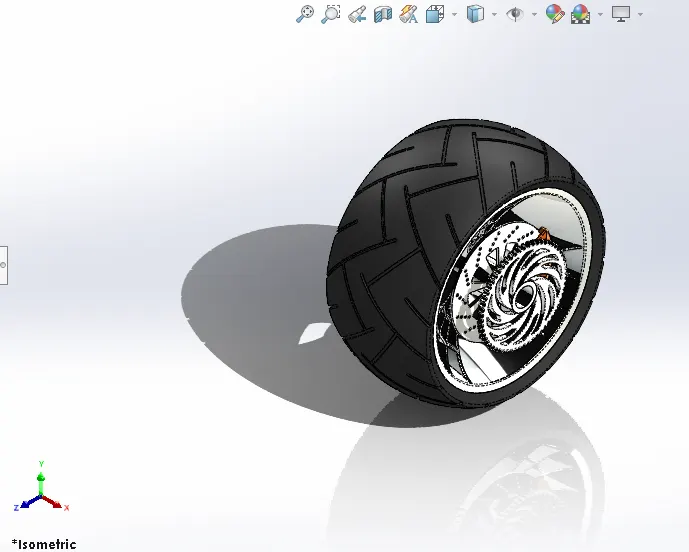

REAR WHEEL
FEATURE USED
- BOSS EXTRUDE
- REVOLVE BOSS
- TRIM ENTITIES
- FILLET
- REVOLVE CUT
- LINEAR PATTERN
- CHAMFER
- CUT EXTRUDE
- CIRCULAR PATTERN
- APPEARANCE
The Rear wheel is thicker that the front wheel.It is designed to be a multi-body part consisting of the rotor,sprocket,rim,tire and the calliper all are made to be single bodies.Mostly used features include revolve,extrude cut and circular pattern.

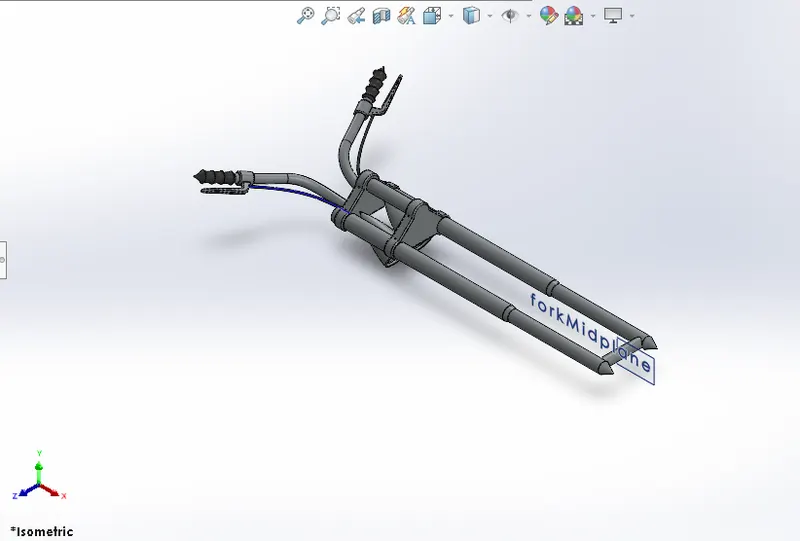

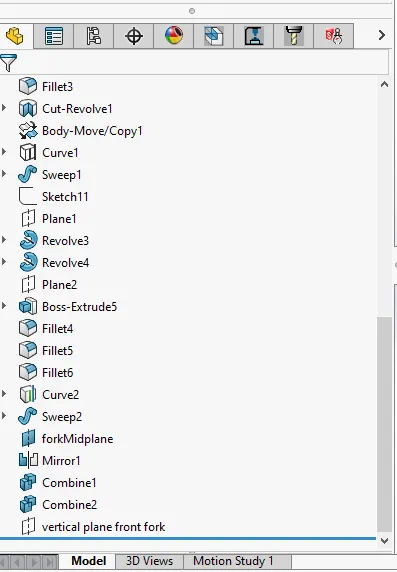

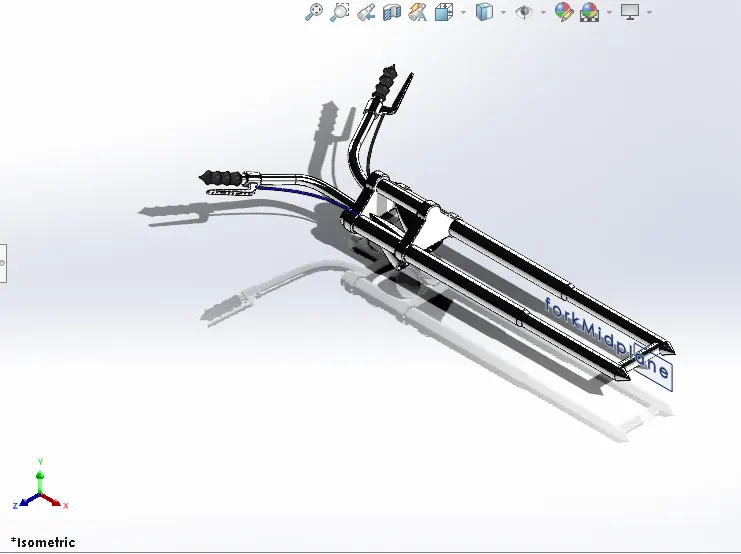

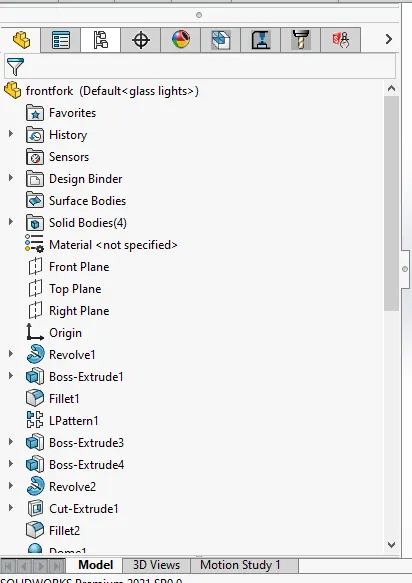

FRONT FORK
FEATURE USED
- BOSS EXTRUDE
- REVOLVE BOSS
- TRIM ENTITIES
- FILLET
- SPLIT
- MOVE/COPY BODIES
- DOME
- COMBINE
- PROJECTED CURVE
- CUT EXTRUDE
- SWEEP BOSS
- APPEARANCE
It is the most unique part of this American Chopper bike.It is longer than usual bikes and the angle is extremely low with respect to the horizontal.The handles are shorter and are customized according to their comfort.For this model,revolve features is mostly used.It consists of two headlights.

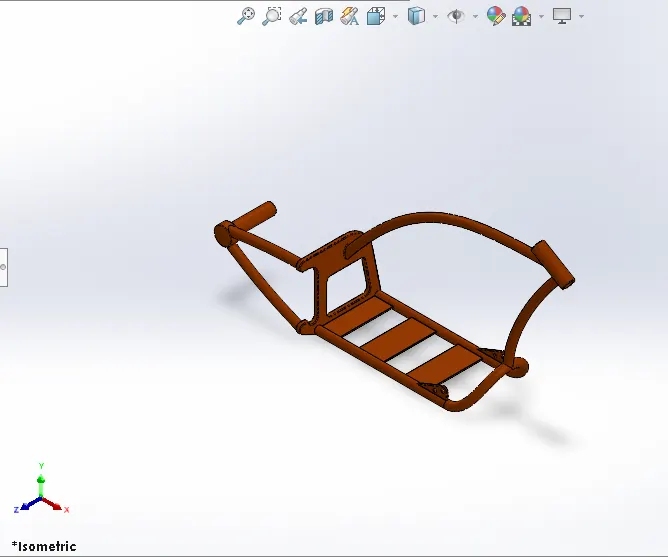

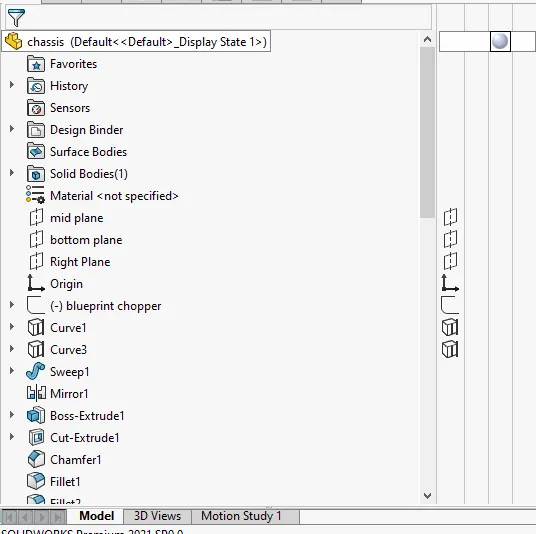

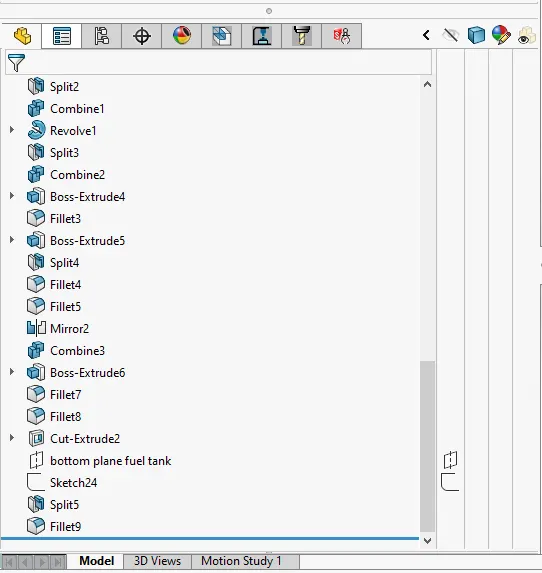

CHASSIS
FEATURE USED
- BOSS EXTRUDE
- REVOLVE BOSS
- TRIM ENTITIES
- FILLET
- SPLIT
- MOVE/COPY BODIES
- DOME
- COMBINE
- PROJECTED CURVE
- CUT EXTRUDE
- SWEEP BOSS
- APPEARANCE

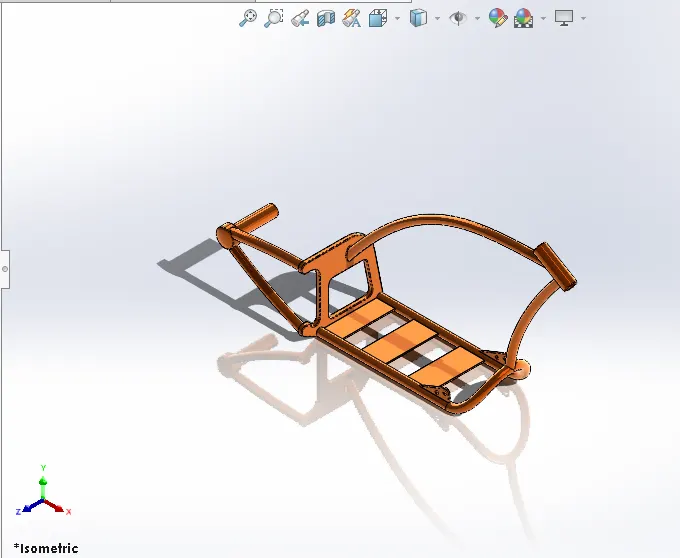

The chassis is the frame that bears most of the load on the bike.In the design process of this chassis,the mostly applied feature are splines,sweeps,project curves, split etc.The lower tude is mirrorer with respect to the mind-plane.The rear plate supports the rear arm which holds the hub from only one direction so it is designed to be stiff enough.

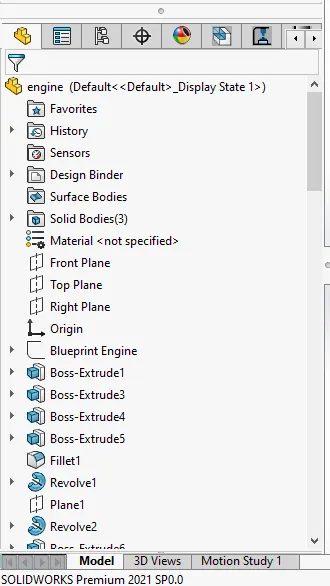

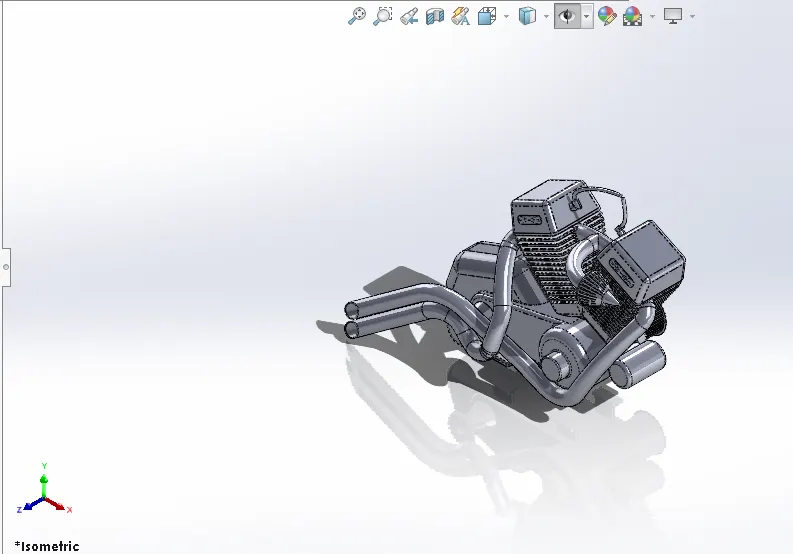

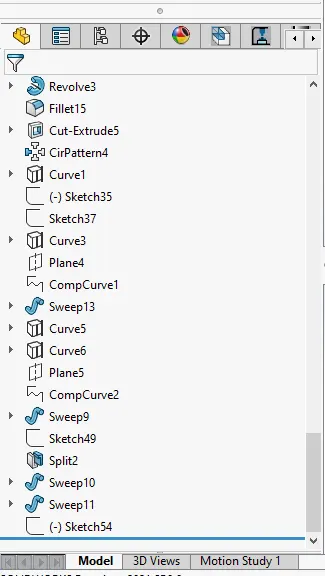

ENGINE
FEATURE USED
- TRIM ENTITIES
- REVOLVE BOSS
- EXTRUDE CUT
- OFFSET ENTITIES
- DOME
- FILLET
- PROJECTED CURVE
- COMPOSITE CURVE
- SWEEP BOSS
- MIRROR
- CIRCULAR PATTERN
- SPLIT
- APPERANCE

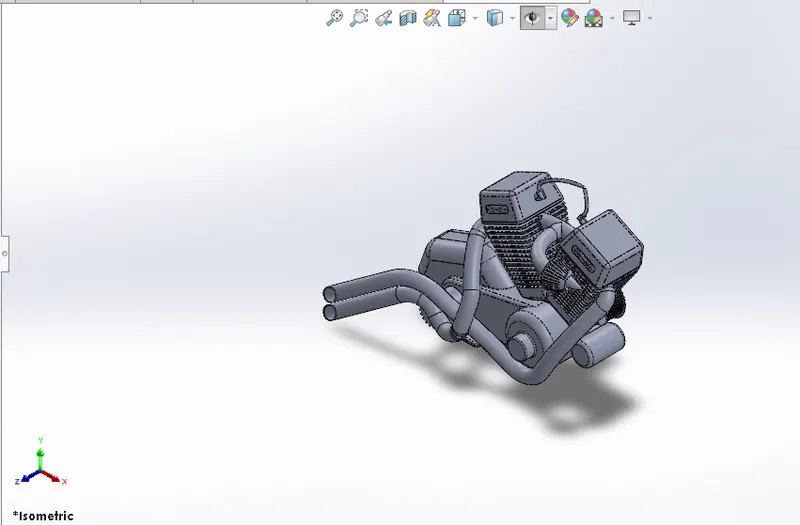

The engine used in the bike is a v engine with two exhaust pipes.Although it is the solid modeling of the engine block,it covers most of the aspects of the engine block,it incorporates the cooling fins,spark plug representation,intake and exhaust manifolds,transsmission unit with the transmission belt and pulleys.

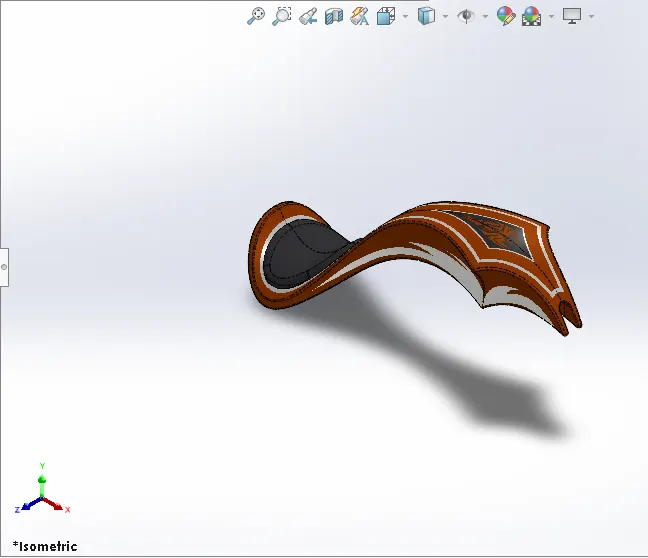

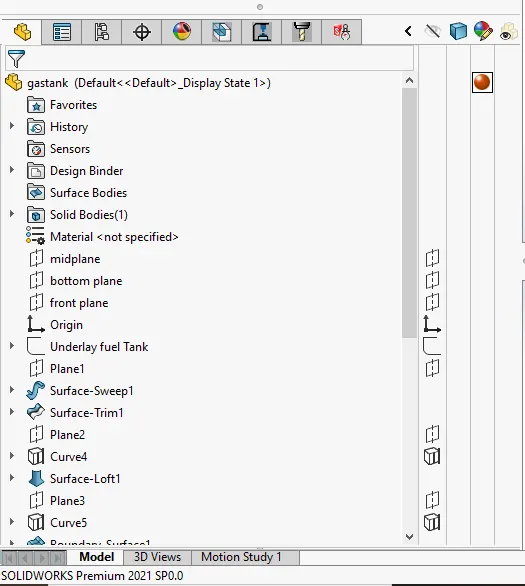

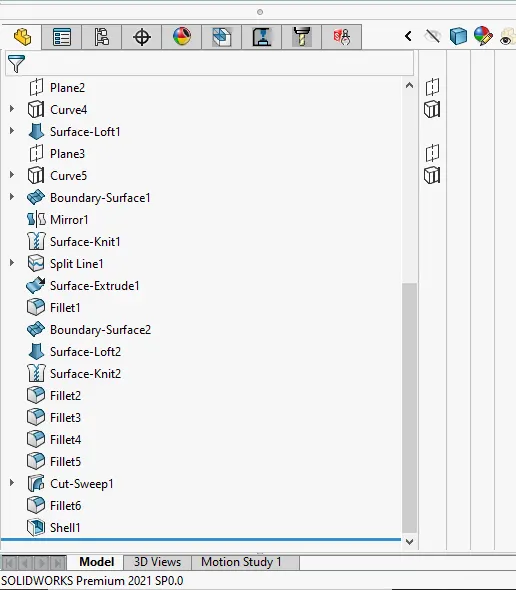

GAS TANK
FEATURE USED
- PROJECTED CURVE
- TRIM ENTITIES
- SWEEP BOSS
- LOFT SURFACE
- KNIT SURFACE
- SWEEP CUT
- FILLET
- APPEARANCE
The fuel tank for this American Chopper is designed as per the info sketch.It is hollowed out to make a tank for the fuel inside . The mostly applied feature include extrude surface,boundary surface,shell,and knit surface .Sienna is assigned as its appearance and decals are applied.

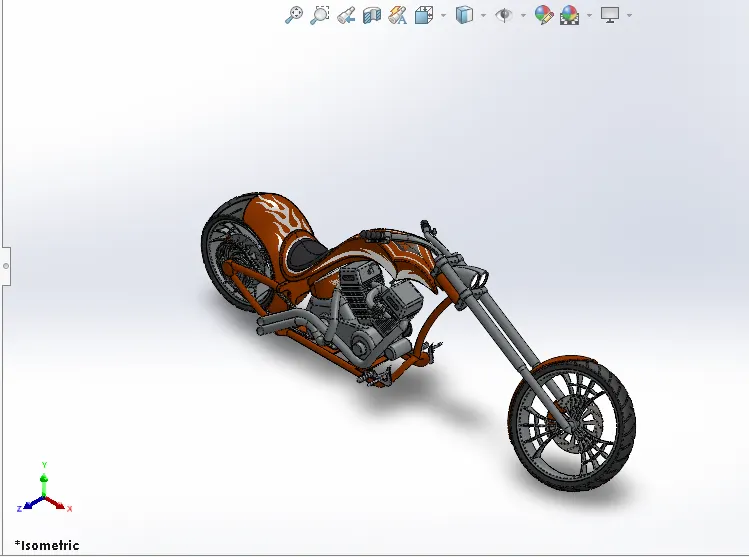

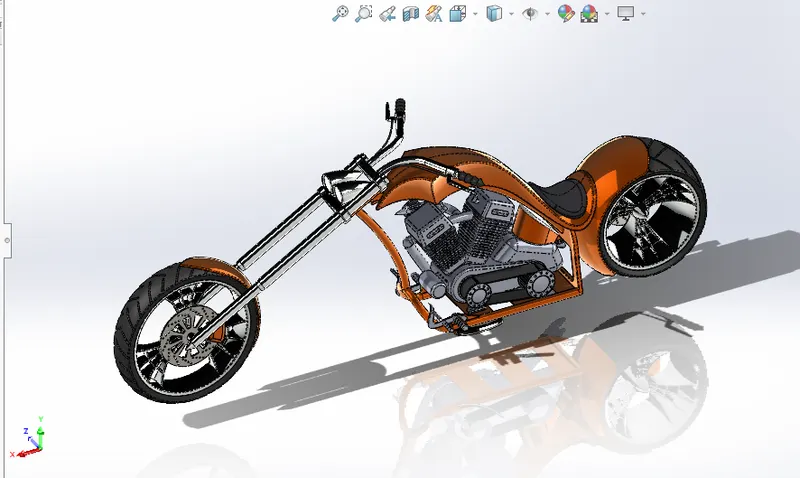

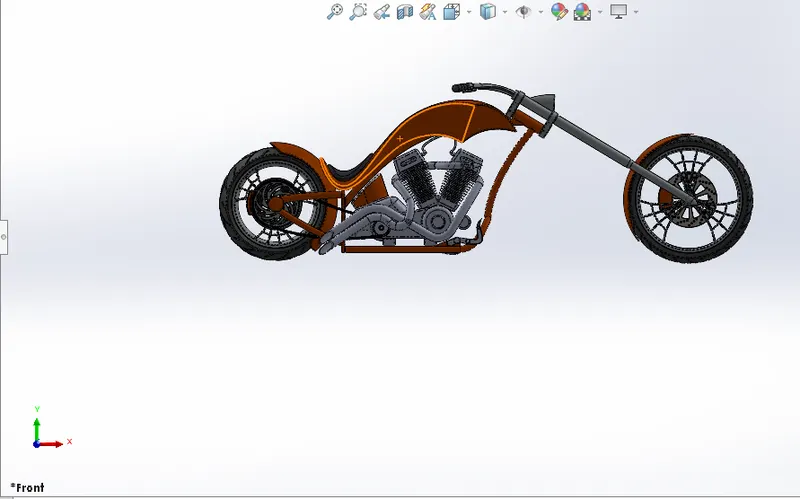

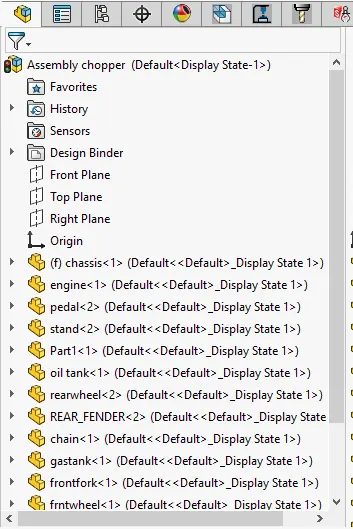

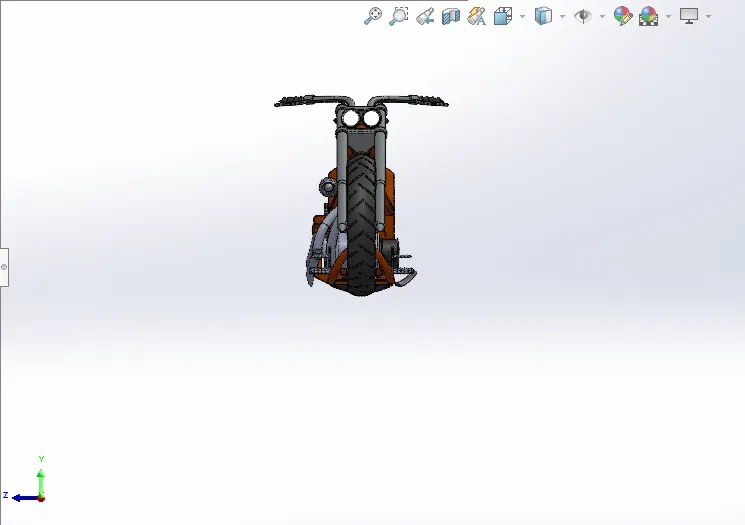

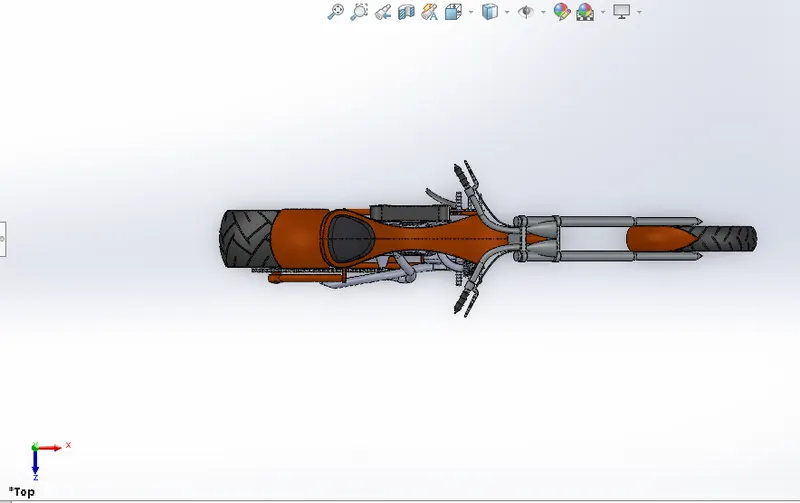

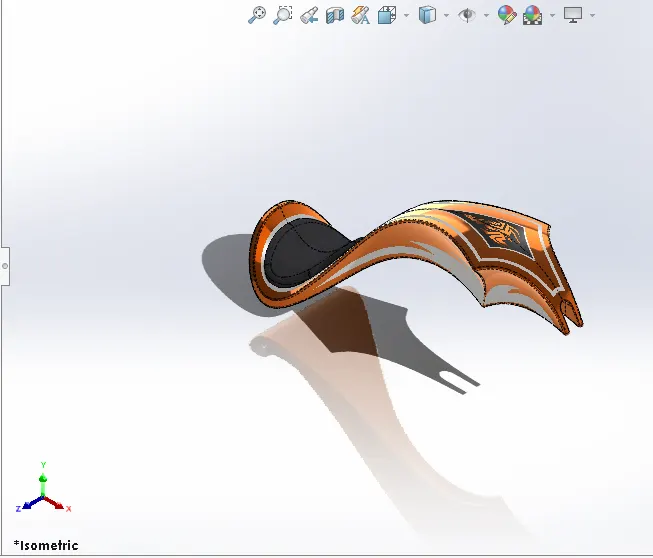

ASSEMBLED AMERICAN CHOPPER
Assembly is most often referred to putting components together in an assembly line,but more specifically it refers to creating a complete product that performs an intended function.changes in the component are automatically reflected in the assembly ie.The rebulid option will automatically take place or else it will ask the user to rebuild the document.

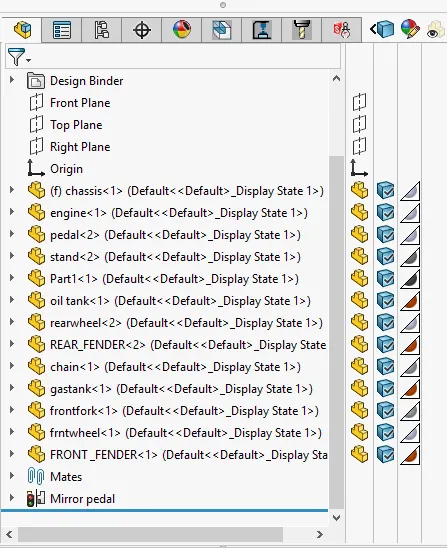

The American chopper is assembled using the feature called mates.Each and every part is mated with the other or the base part with specific relation.Some relations that are used to mate the parts of american chopper are mentioned below.
- CONCENTRIC
- COINCIDENT
- PARALLEL
- TANGENT
- WIDTH

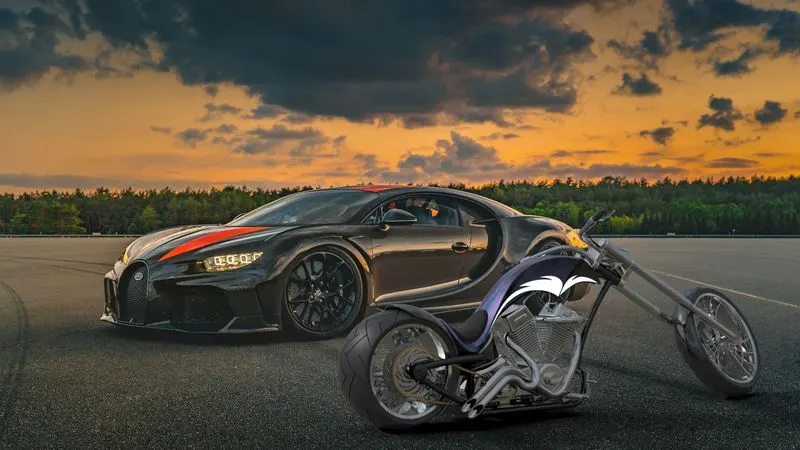

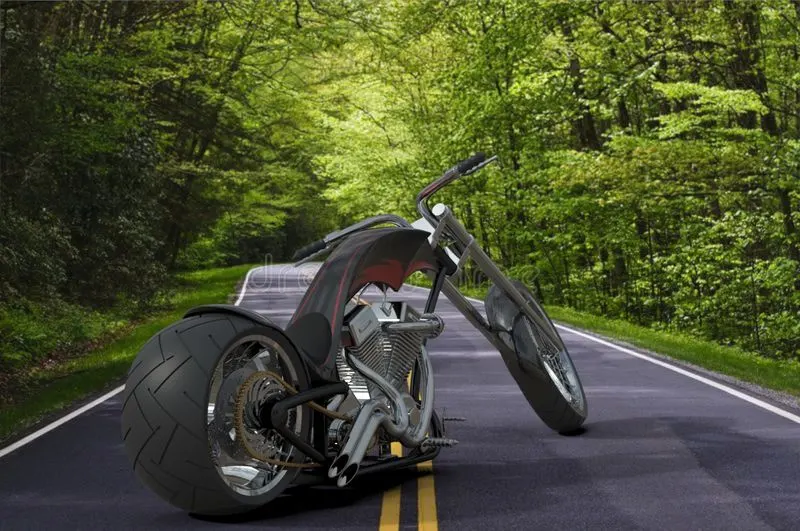

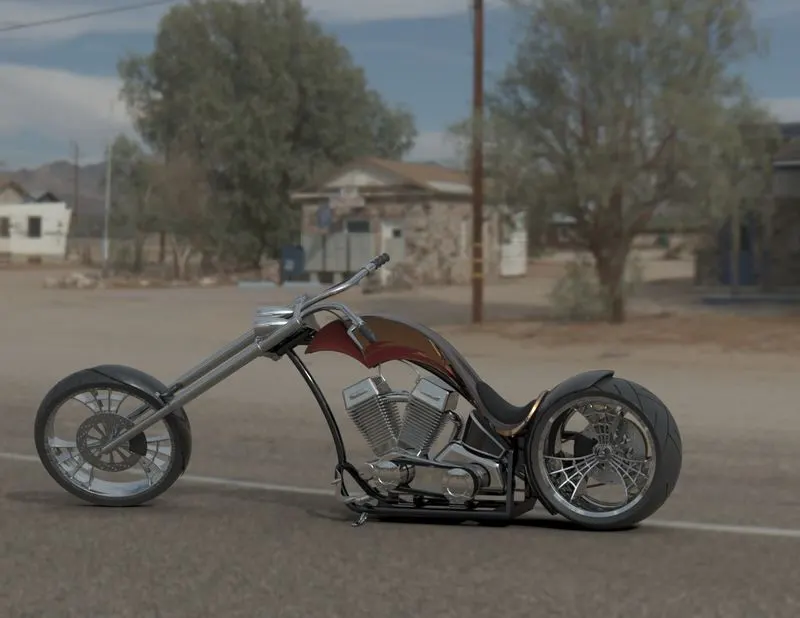

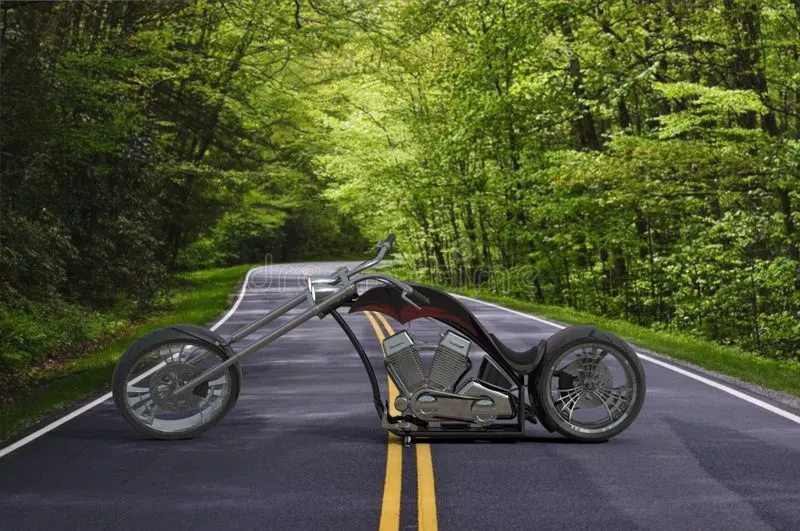

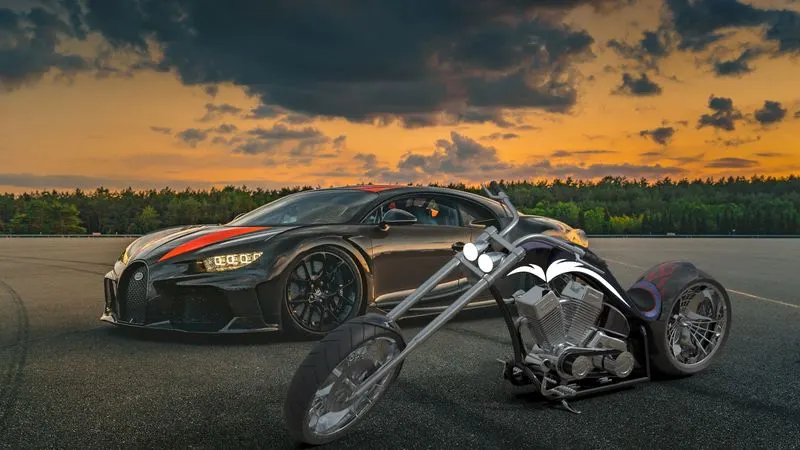

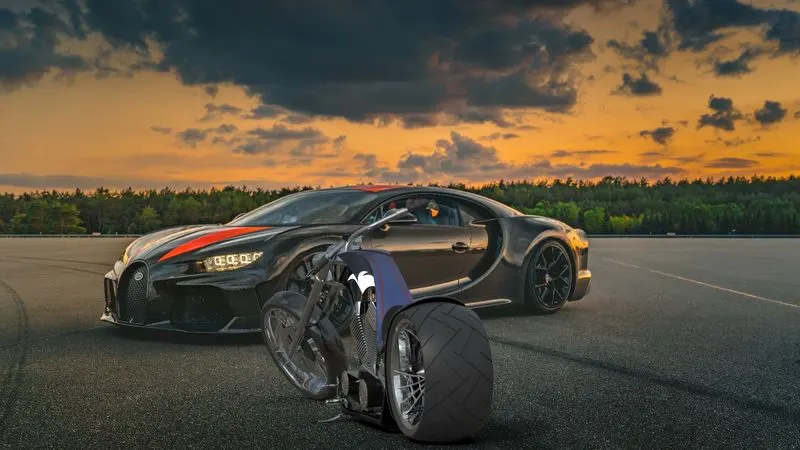

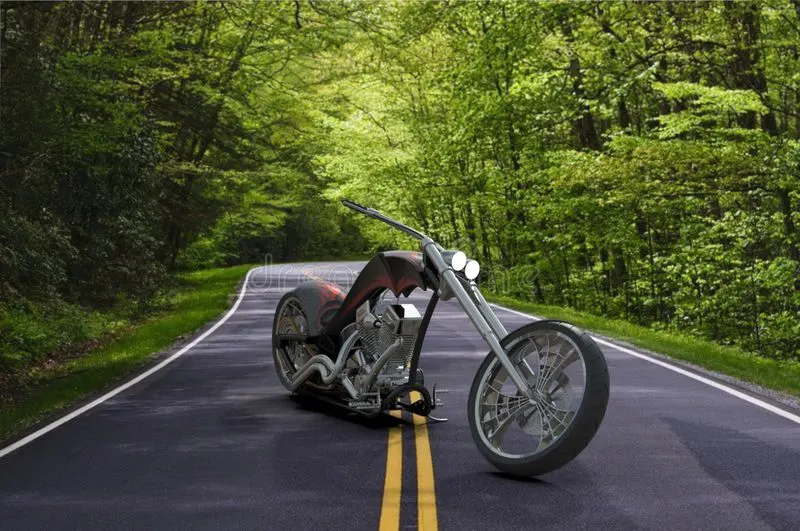

FINAL RENDERS OF AMERICAN CHOPPER
CONCLUSION
Thus the parts of the american chopper are designed and assembled using SOLIDWORKS and are rendered to photorealistic images using PHOTOVIEW 360 and SOLIDWORKS VISUALIZE.
GOOGLE DRIVE LINK:-
https://drive.google.com/drive/folders/1unt_PXrg3tlQFOwRNE12pArgnMuvDW07?usp=sharing
https://drive.google.com/drive/folders/1K6GjzlPXFvJAWXmm2uXUBNlU-UE7C9Zr?usp=sharing
https://drive.google.com/drive/folders/1FBrCFxKK97r5XRxXI69uGCLTE2nWdbqq?usp=sharing
