Modelling of 25 storey building with the specified properties using ETABS
1.Aim:
- To model a 25 storey building on ETABS with given structural properties.
- Extracting the model information from the analysis.
Given:
- Ground floor or plinth floor level can be taken at a height of 1.5 metres from the base.
- Each of the successive 25 storeys has a storey height of 3 metres.
- Buildings are assumed to be pinned at the base
- All columns in all storey are of the same size
- All beams in all storeys are of the same size
- Building is located on Soil type-II and in Zone-III. Assume other factors if required.
Structural Element Sizes:
- Beams : 300 × 400 mm
- Columns : 800 × 800 mm
- Slab : 150 mm thick
Loadings:
- Dead Load on beams from infill wall : 10 kN/m (Let us assume the same for roof floor in view of parapet)
- Live load on floor : 3 kN/m2 (Let us assume the same for roof floor)
Material Properties:
- Grade of Concrete : M30
- Grade of Steel Reinforcement Bars : Fe 415
Procedure:

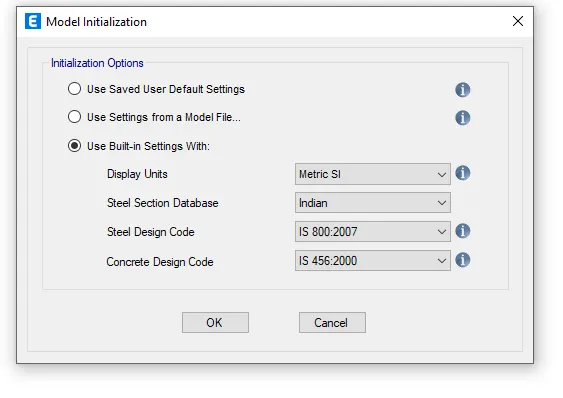

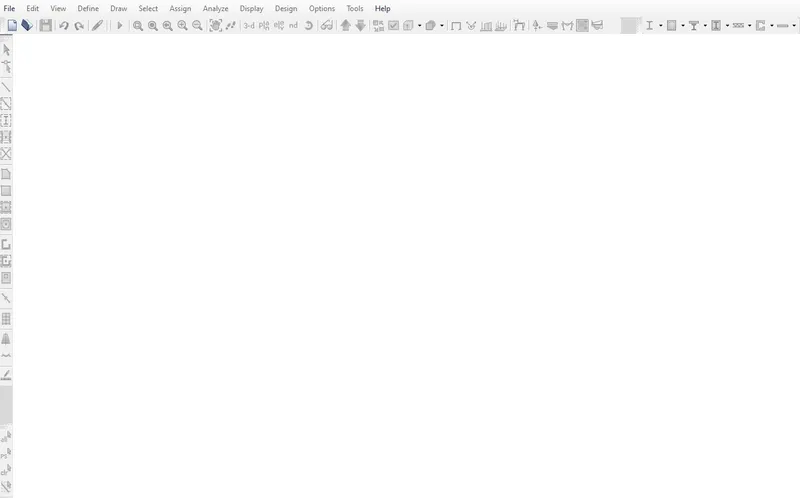

Open the Etabs software and click on "new model"
Set the units

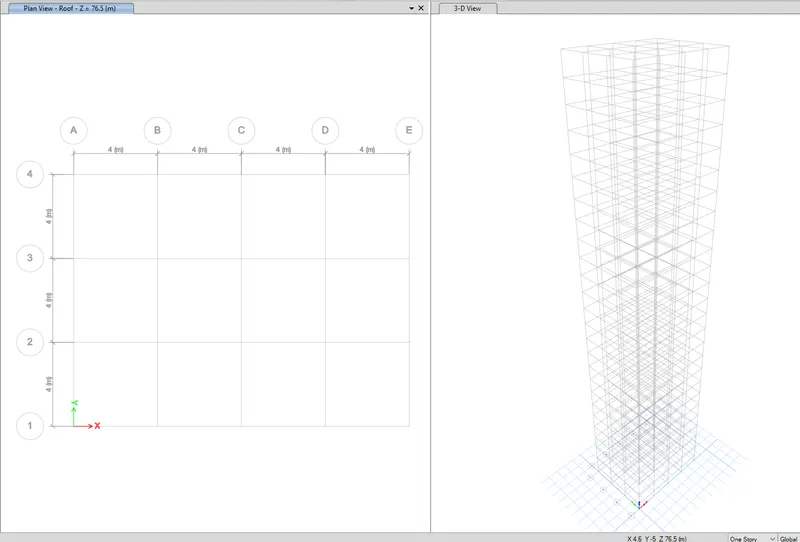

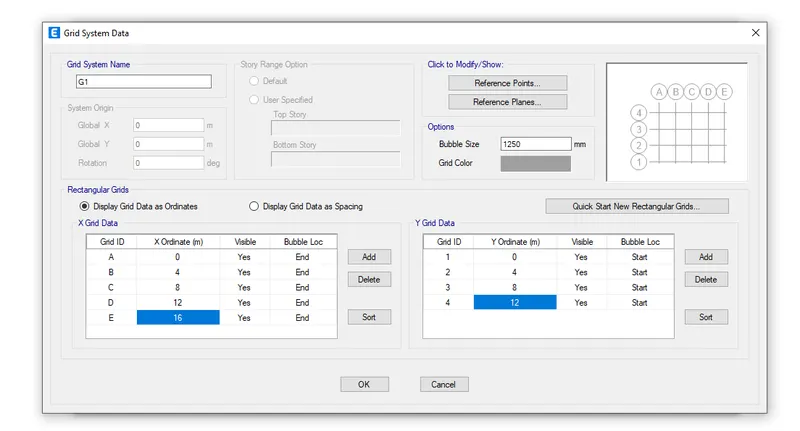

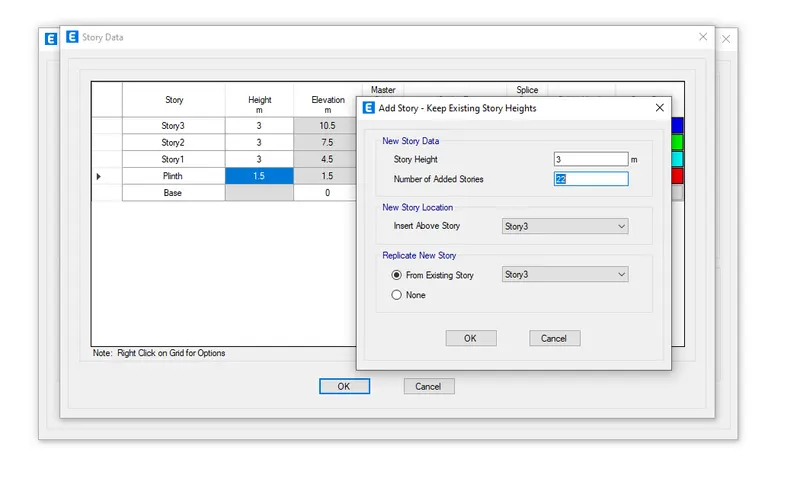

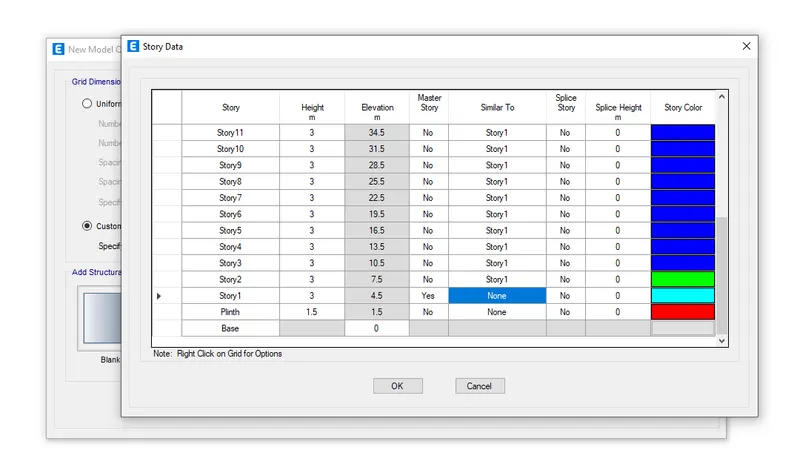

Creating the grid data and storys
And rename the storys

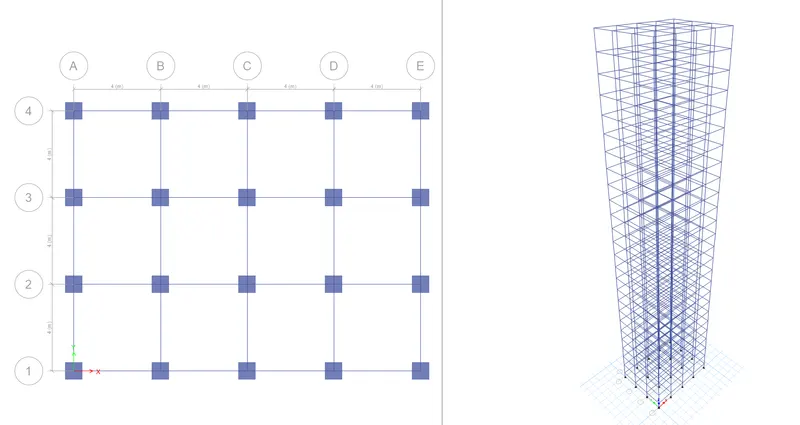

The following results will be shown:

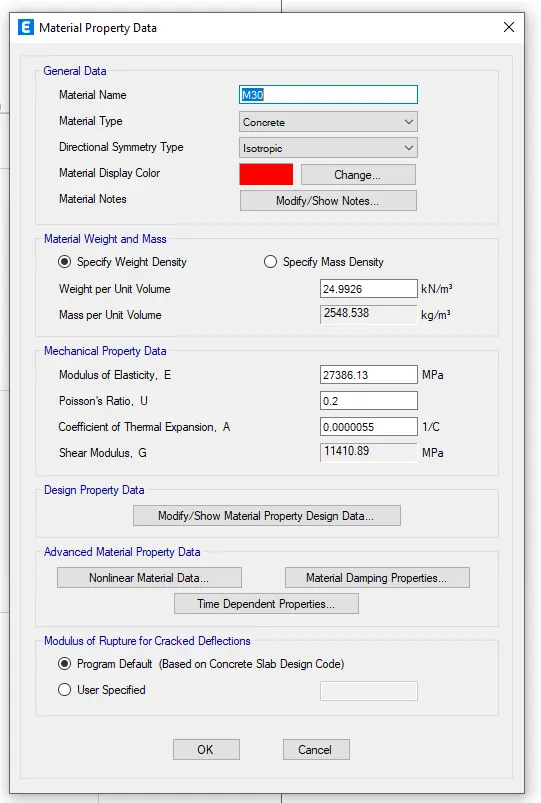

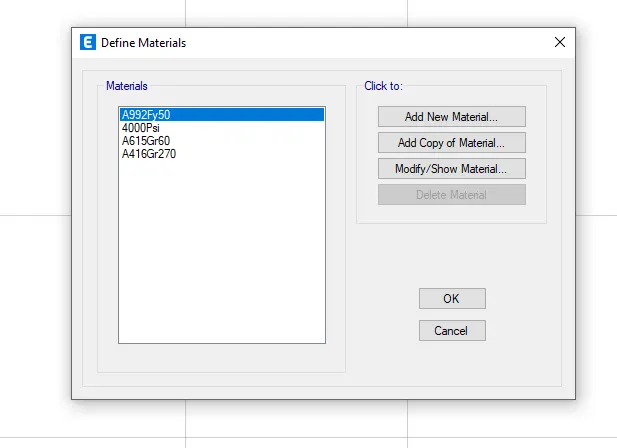

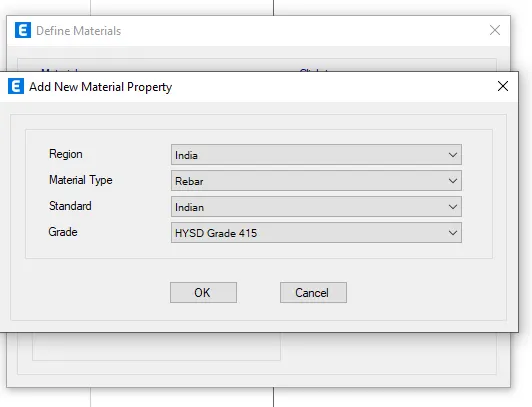

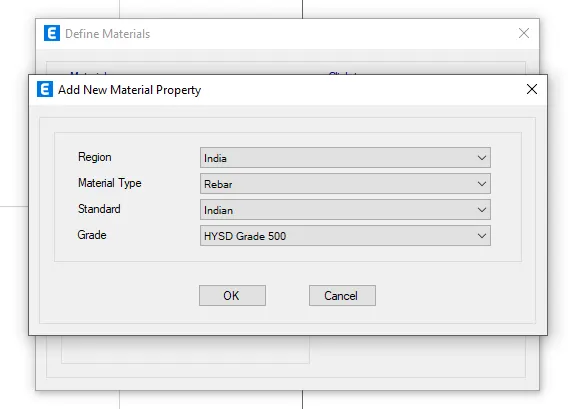

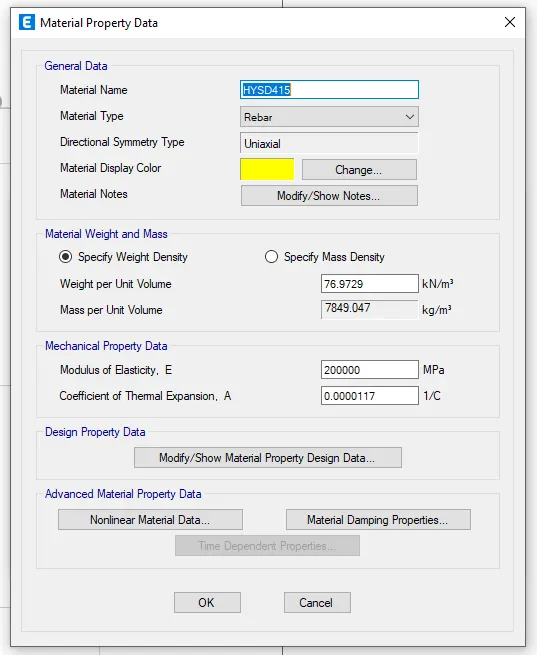

Adding materials

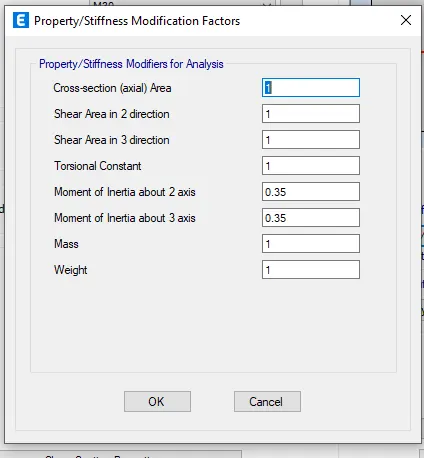

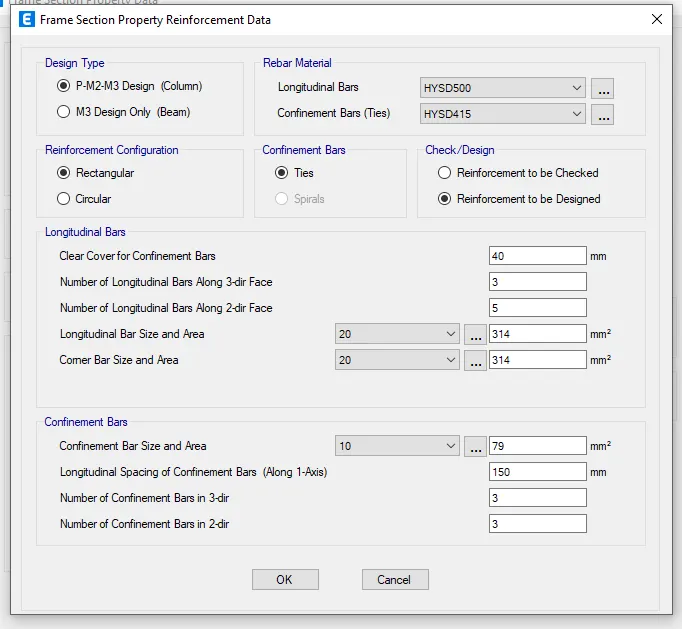

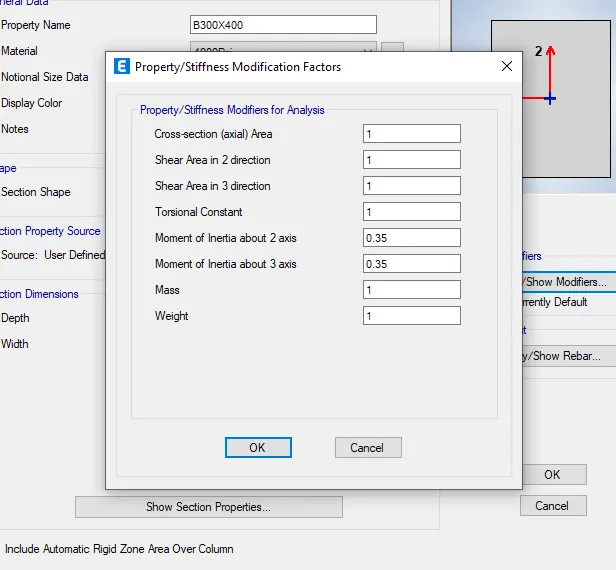

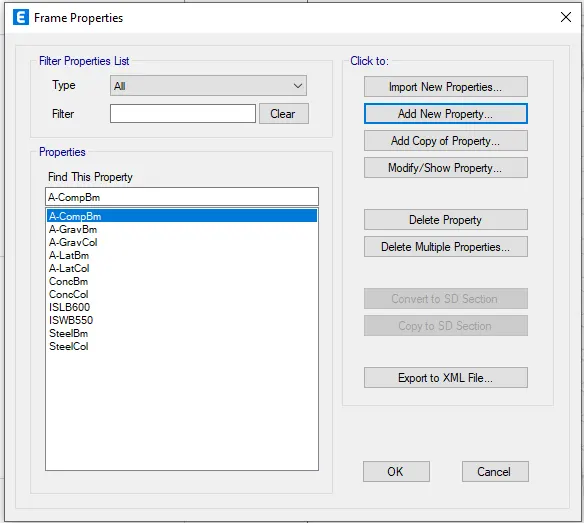

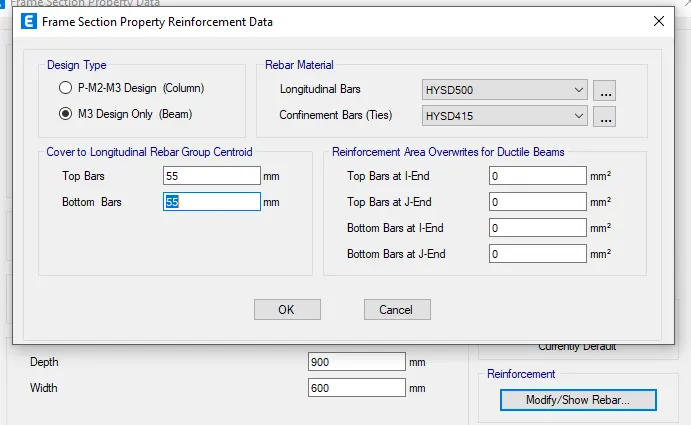

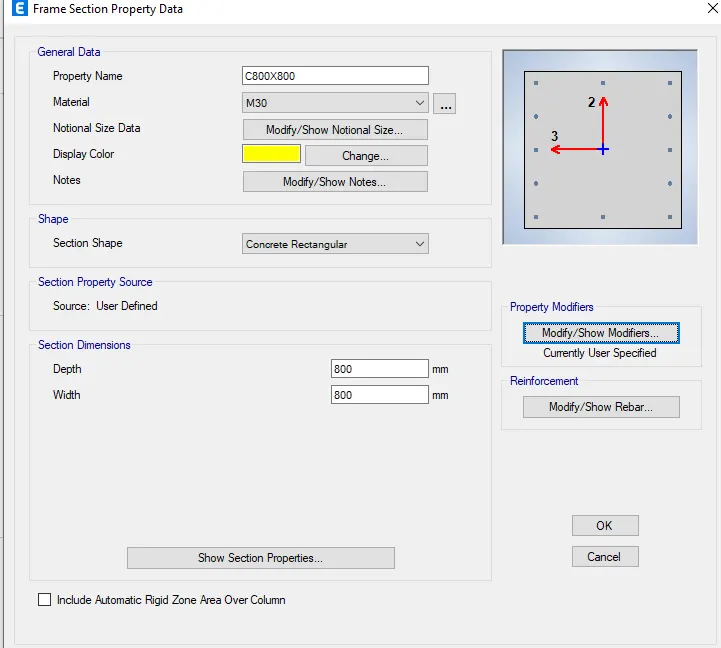

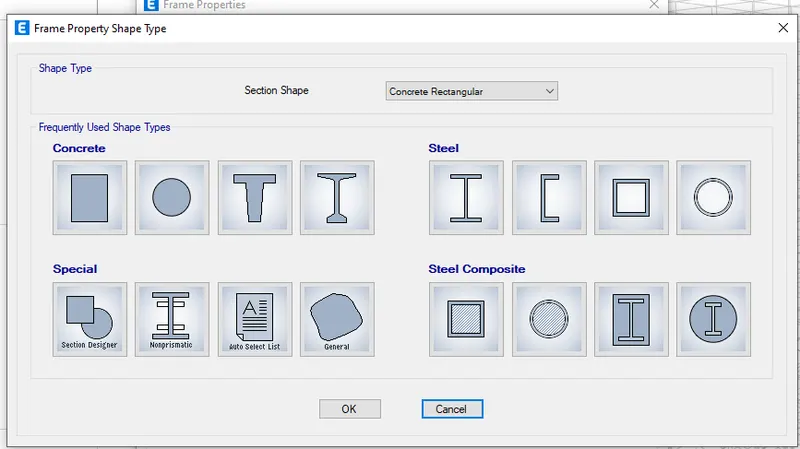

Adding columns,beams and slabs to the structure

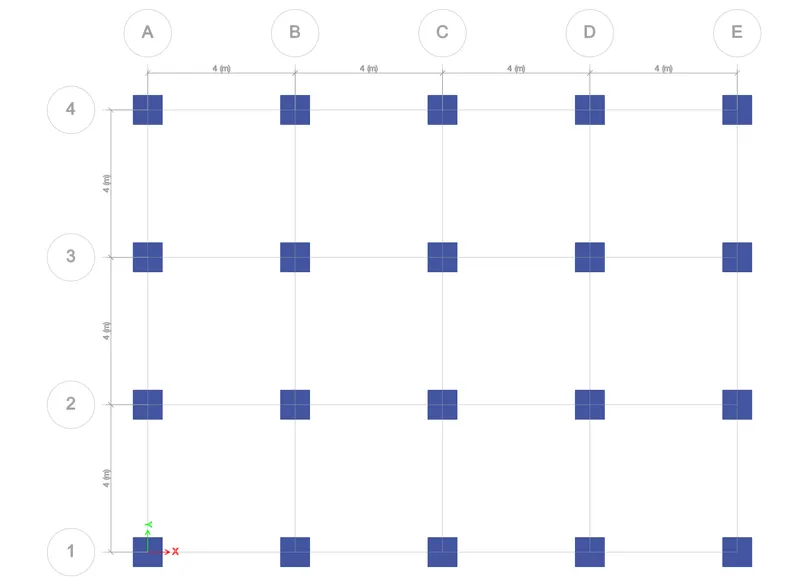

Drawing columns:

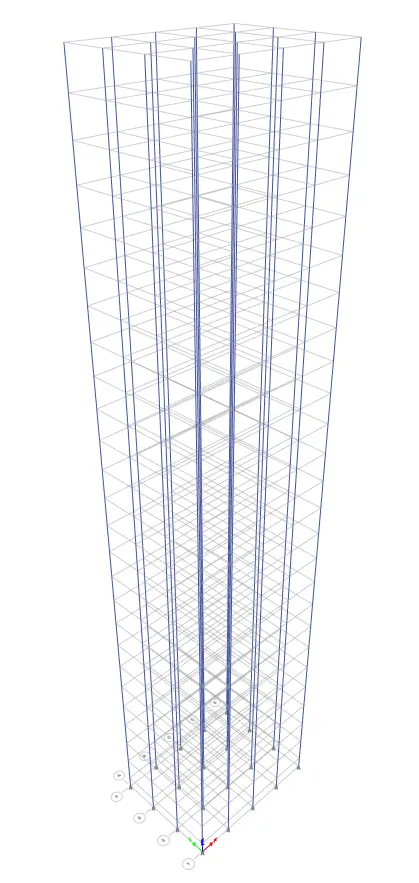

Columns in 3D view:
After adding beams

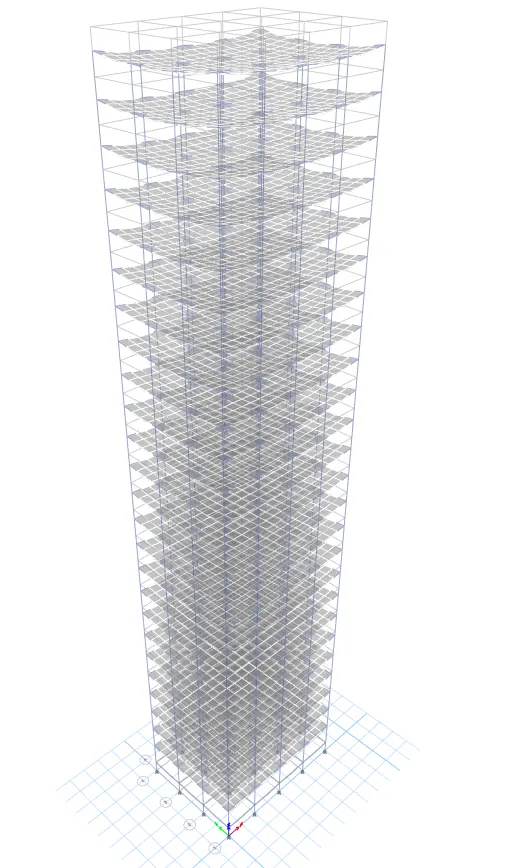

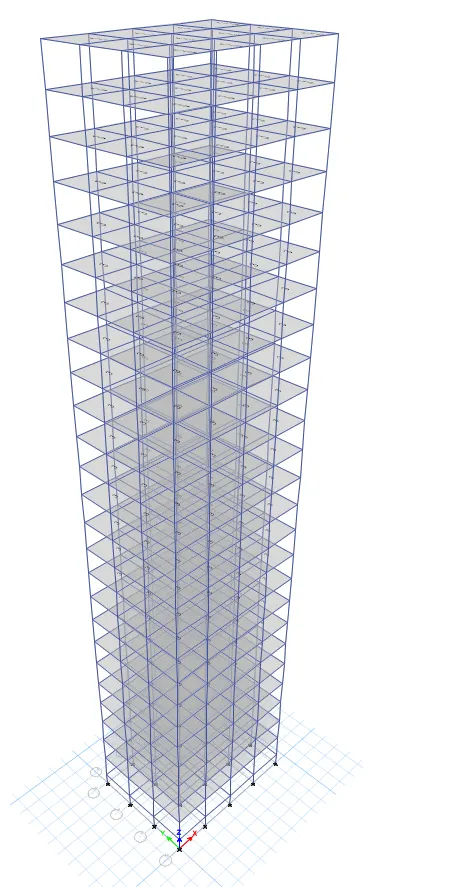

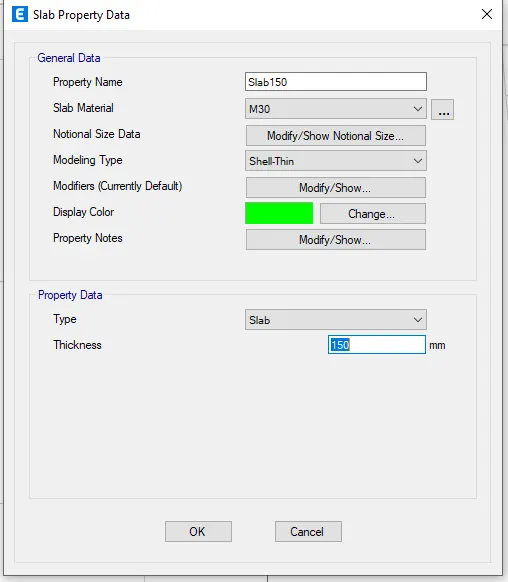

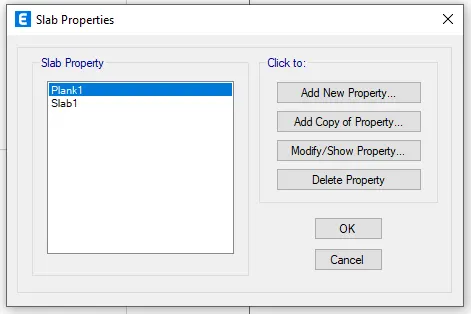

Adding slabs to it

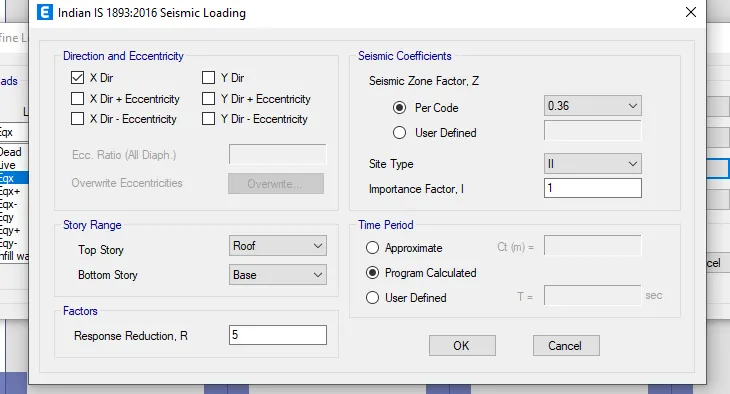

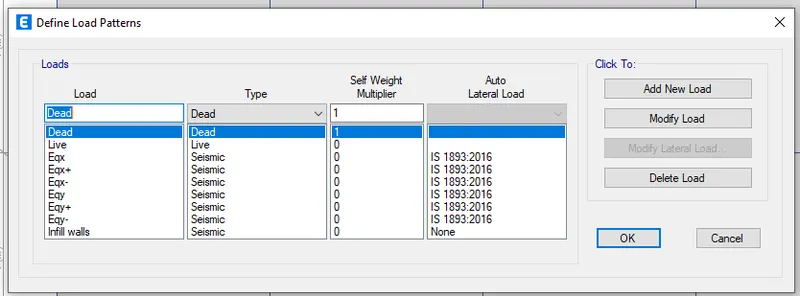

Defining the loads:

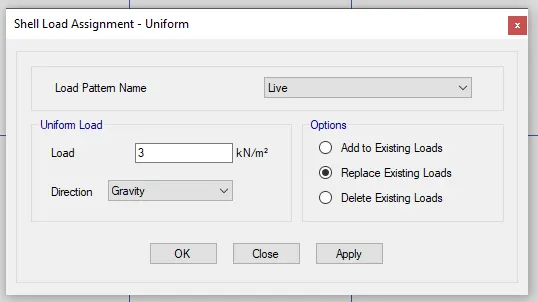

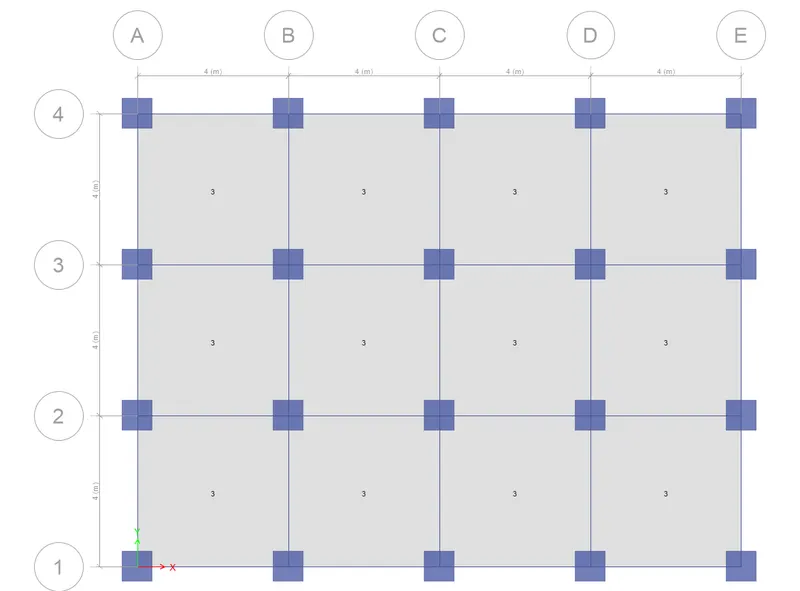

After adding the live load
In 3D view

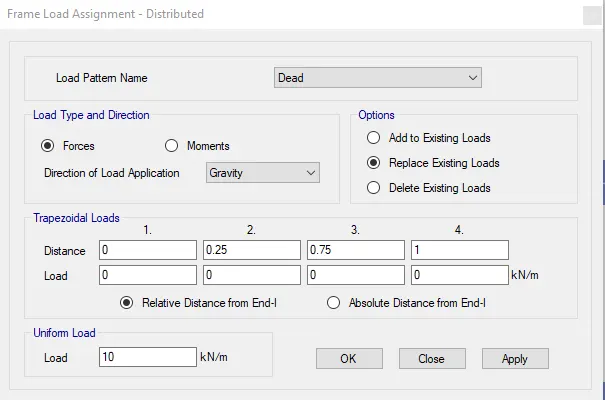

Defining Dead Load on beams from infill wall:

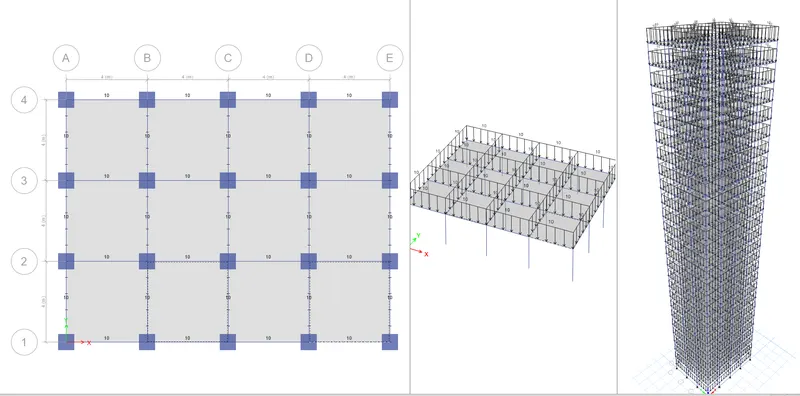

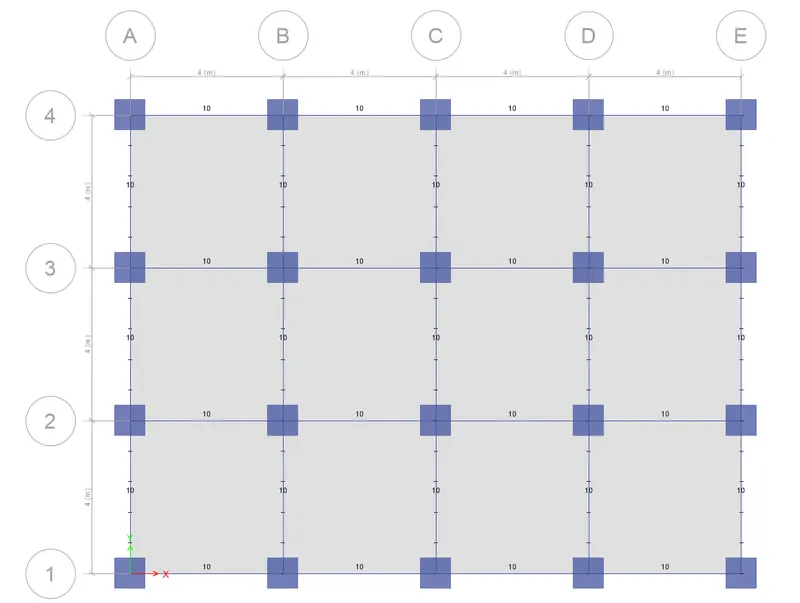

After adding the dead load
In 3D view:

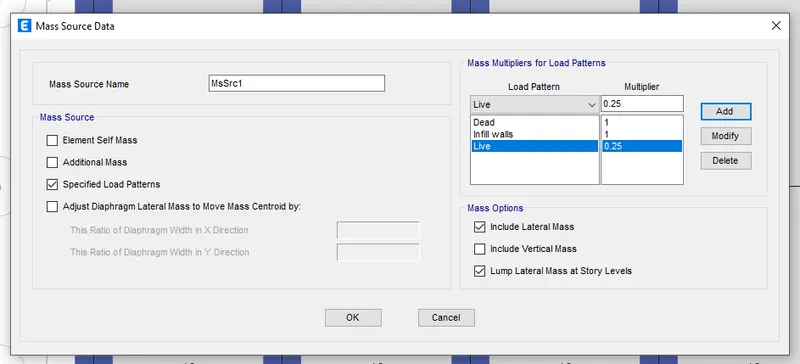

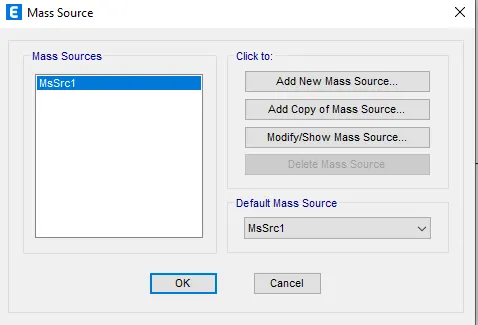

To define mass source:

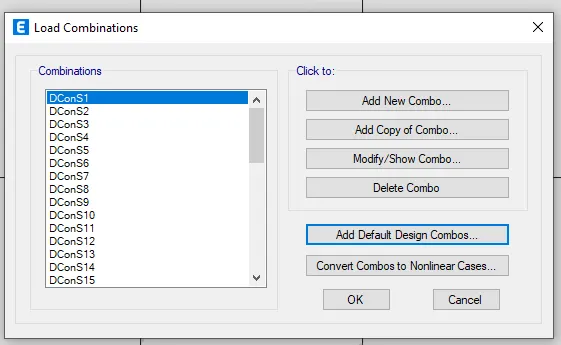

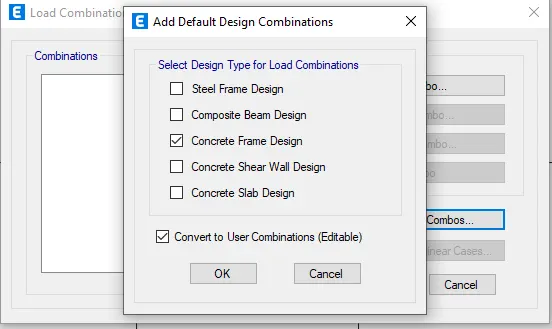

Defining the load combinations:

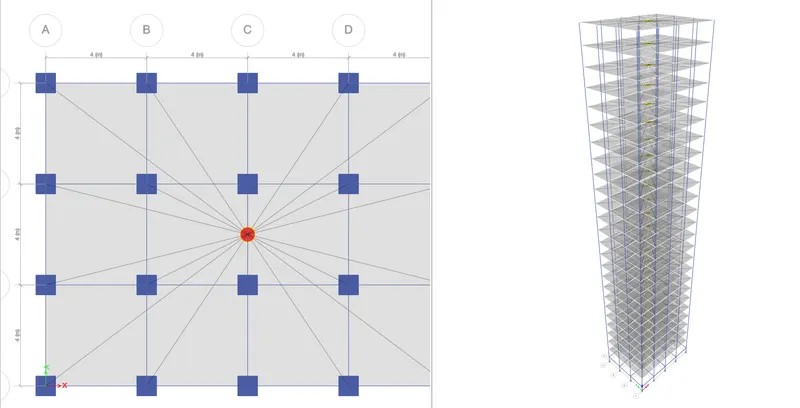

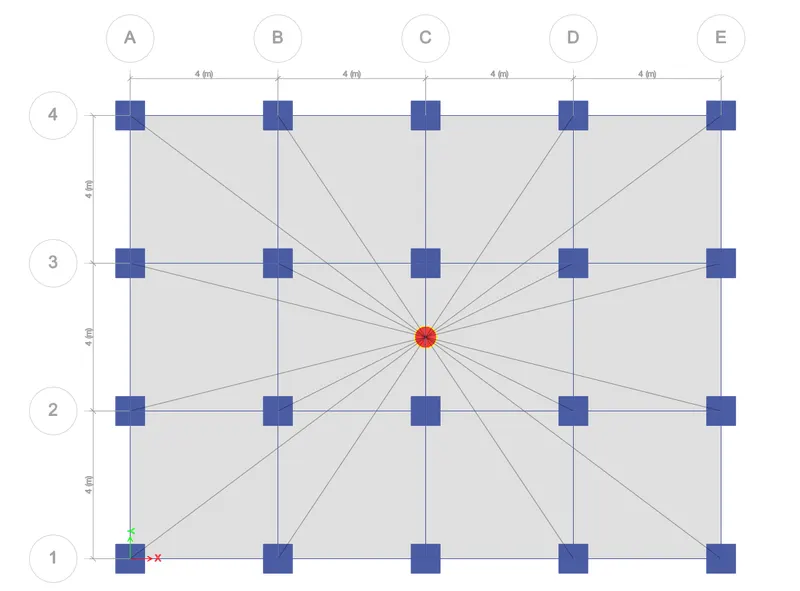

Adding the diaphragms:

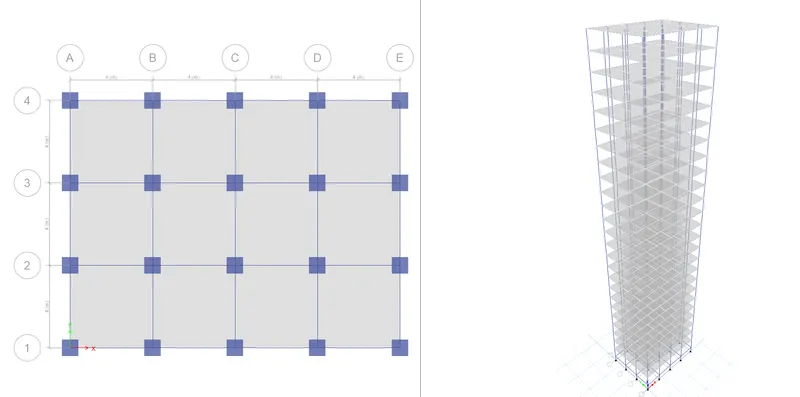

In 3D view:

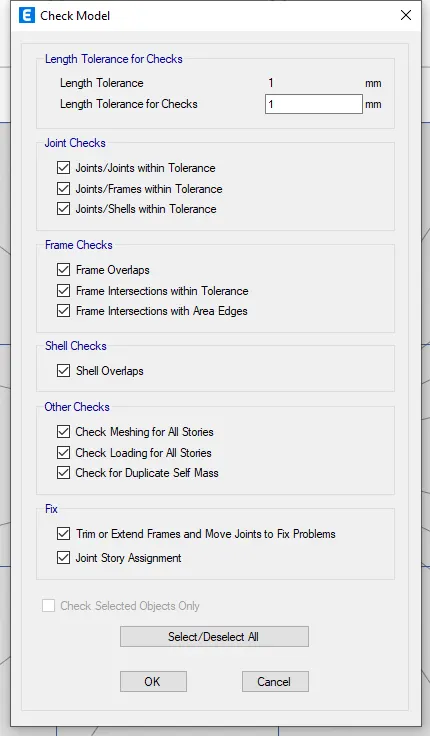

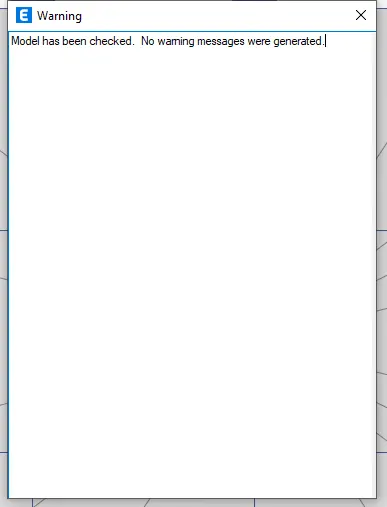

Checking model:
If "No warning" arise, then the model is ready for the analysis
Run Analysis:

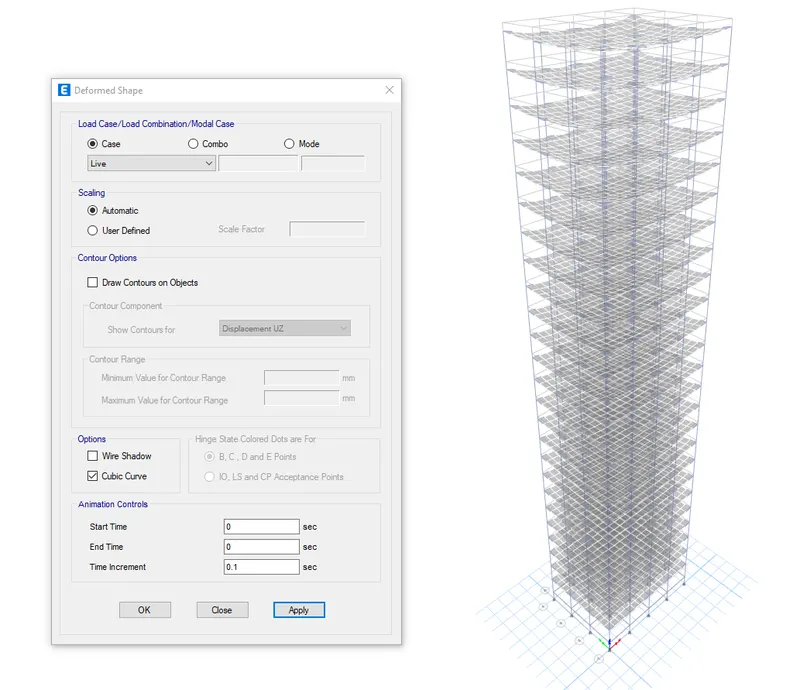

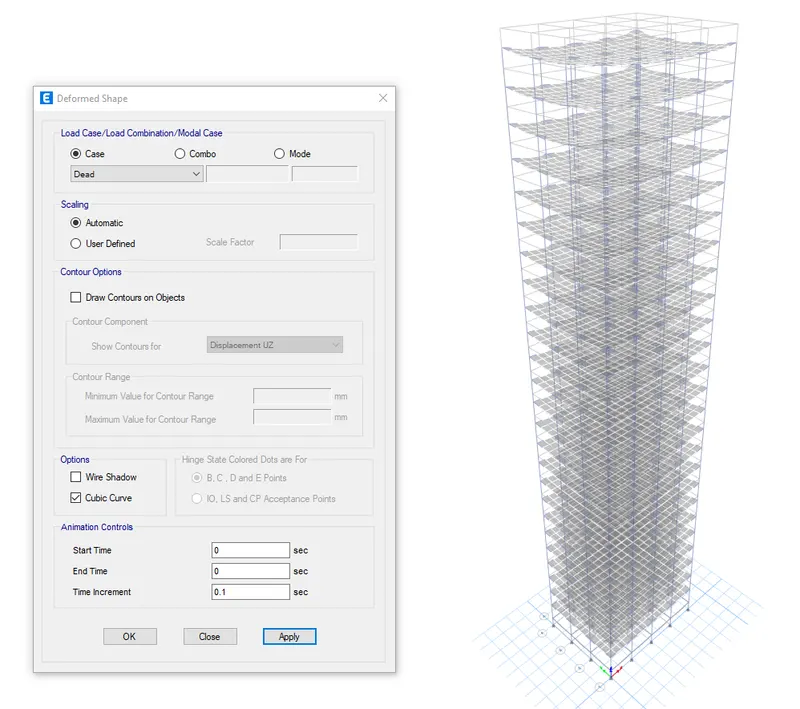

Checking the deflection:
Checking base reaction:
Result:

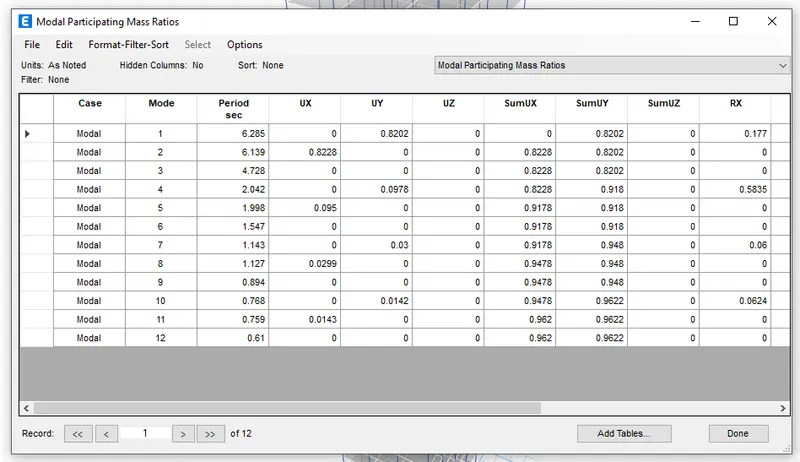

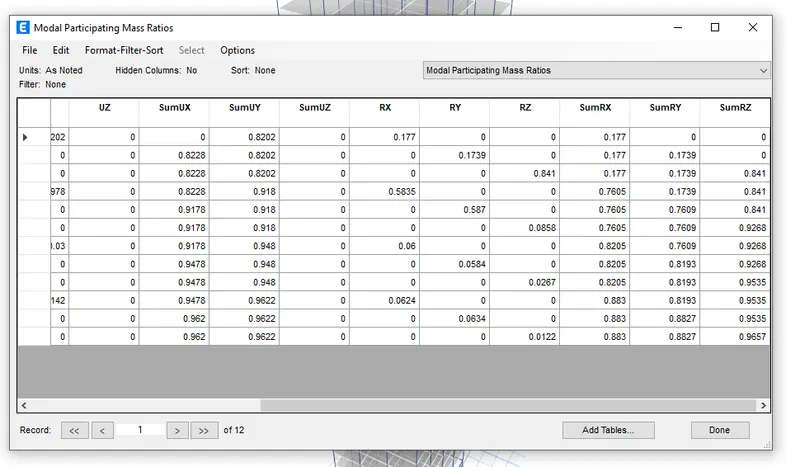

- From the table the time periods, T X1 = 6.285 and T Y1 = 6.139
- The 25 story building has been analyzed
