Modelling of 25 storey building with the specified properties using ETABS

1. Modelling of 25 storey building in ETABS

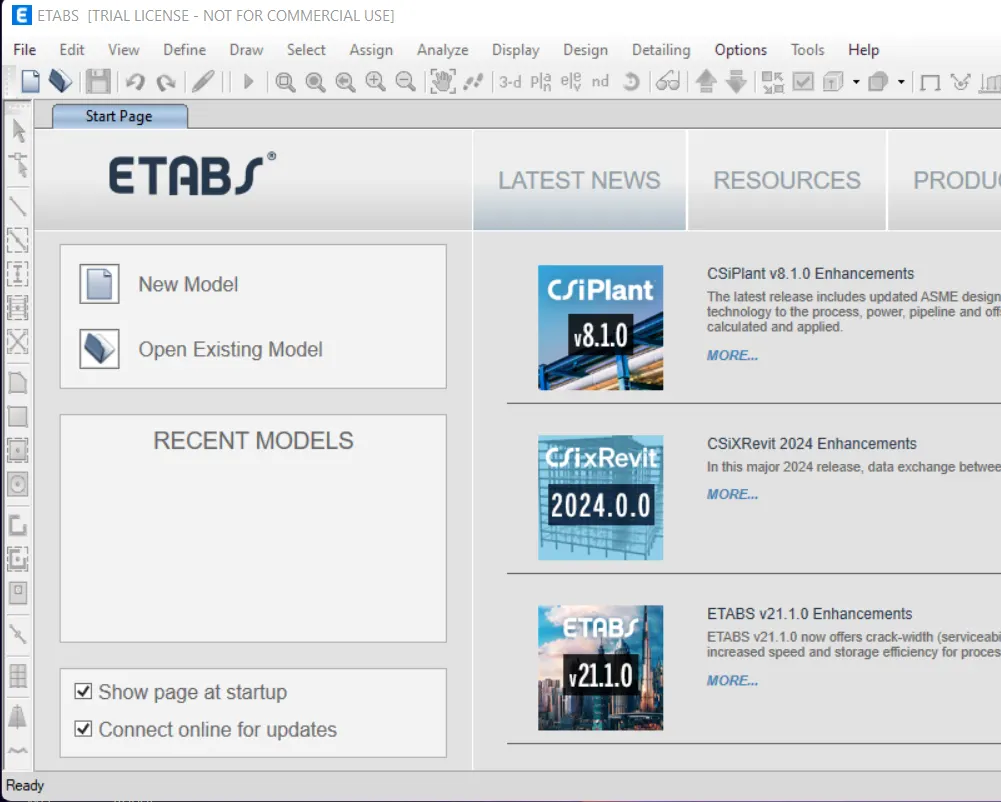

Open the Etabs software and click new model

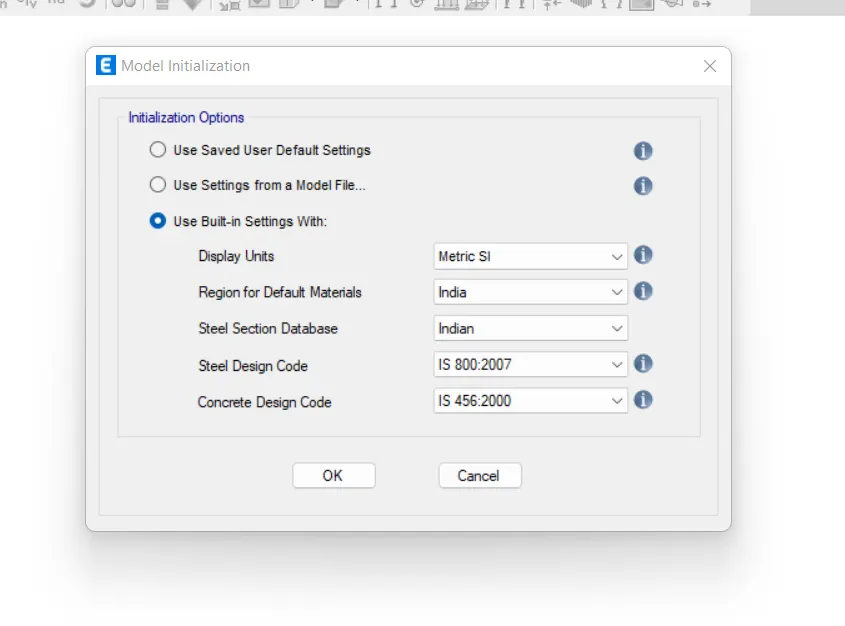

Setup model initialization and set design codes

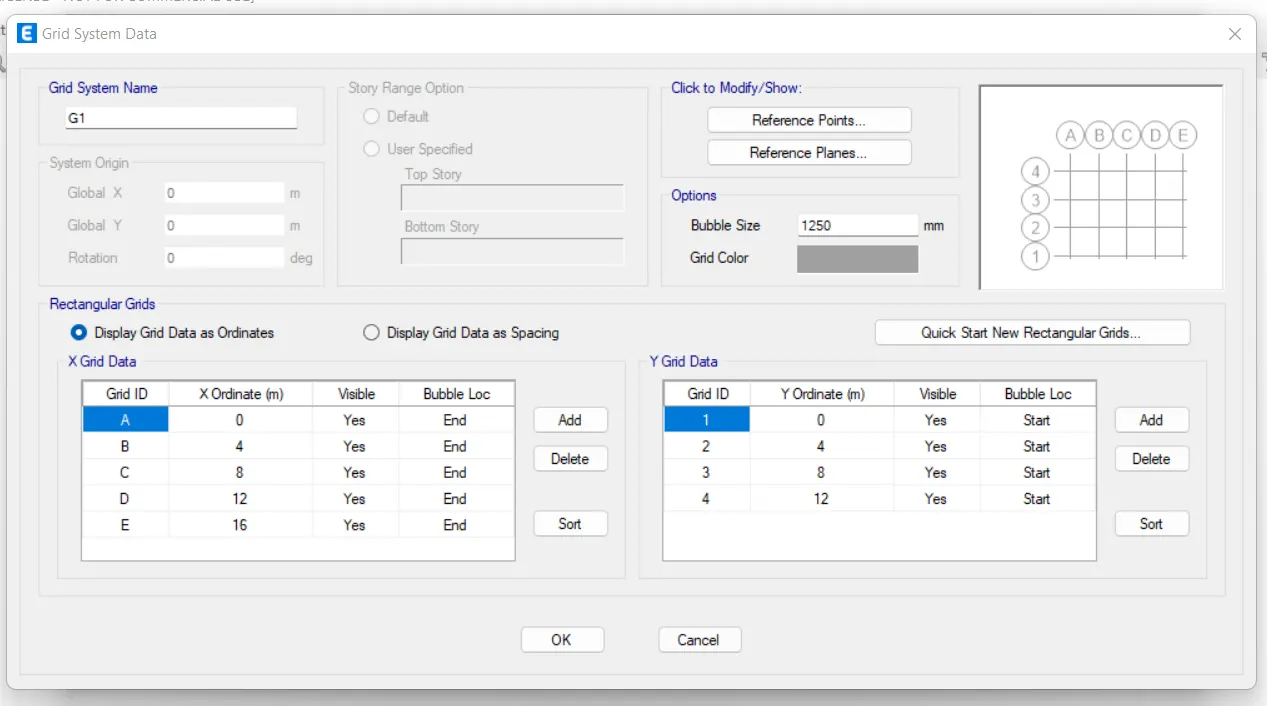

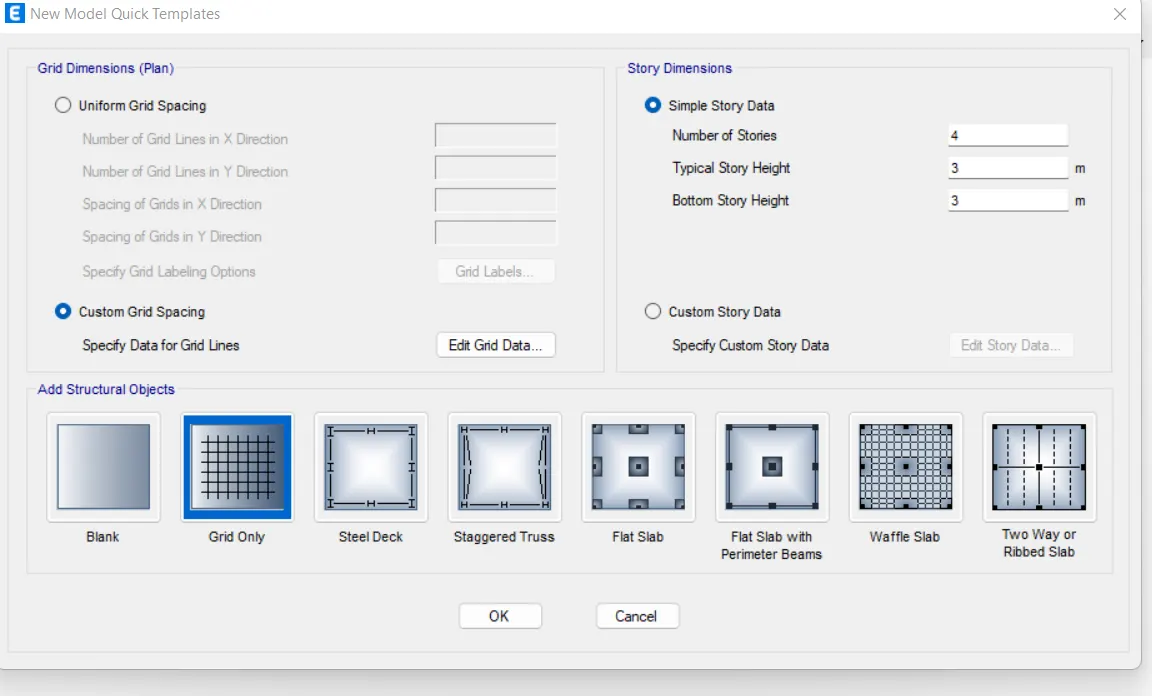

Give custom grid spacing

Give spacing as per the question in both x and y direction

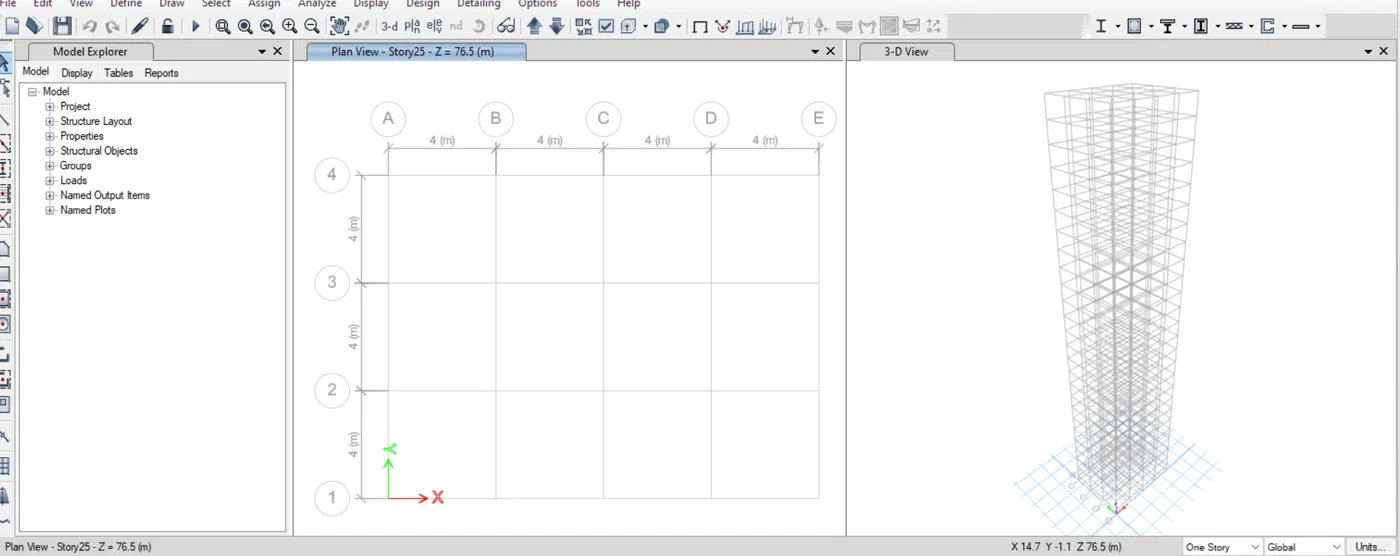

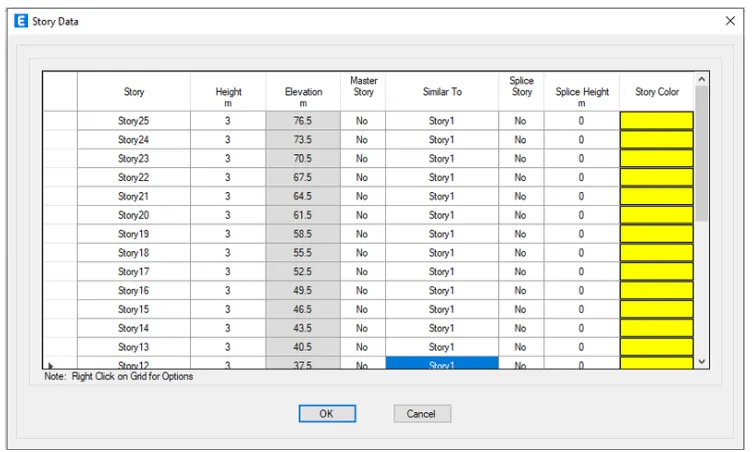

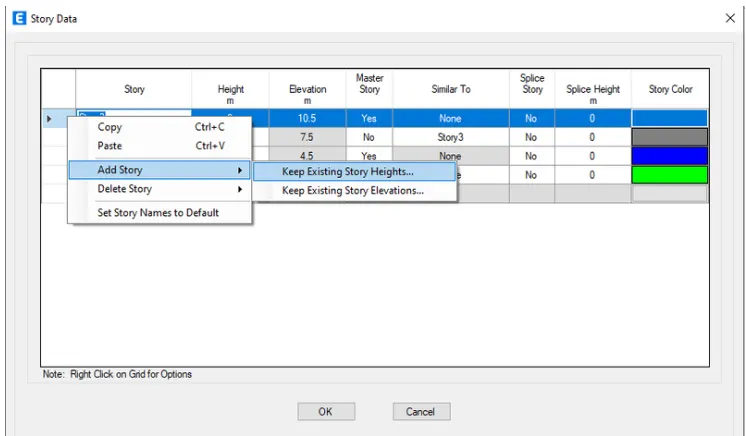

Then edit story data and add stories

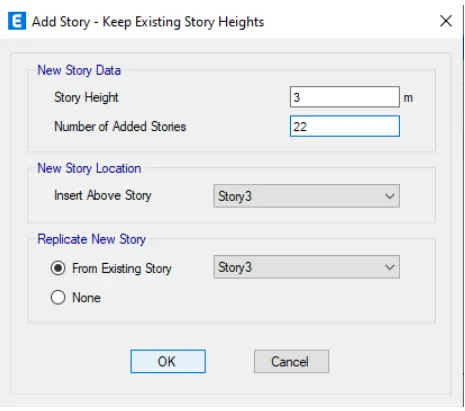

Add 22 stories more to 25 stories

Give story1 as master story and other all as no

Give similar to story1 for all except plinth and story1

Give ok

Go to define option and select material properties

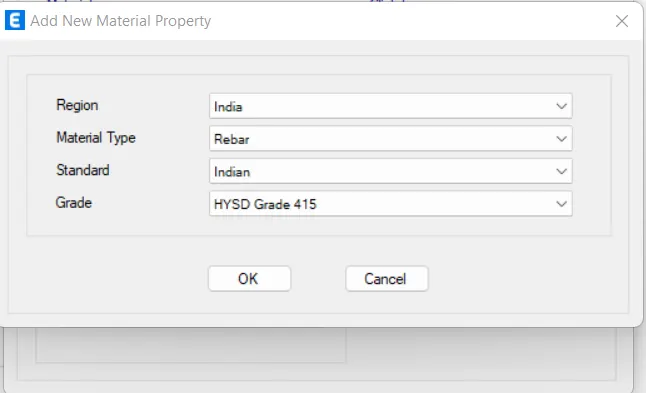

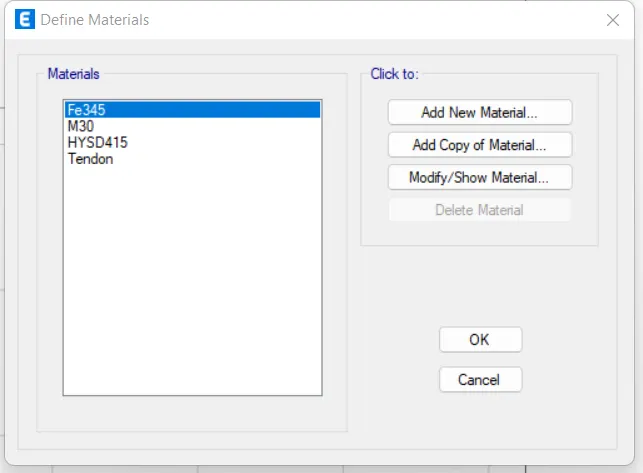

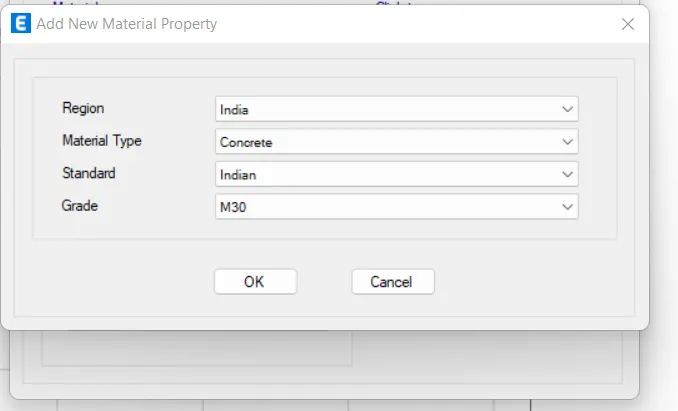

Add M30 and HYSD 415 by clicking add new material

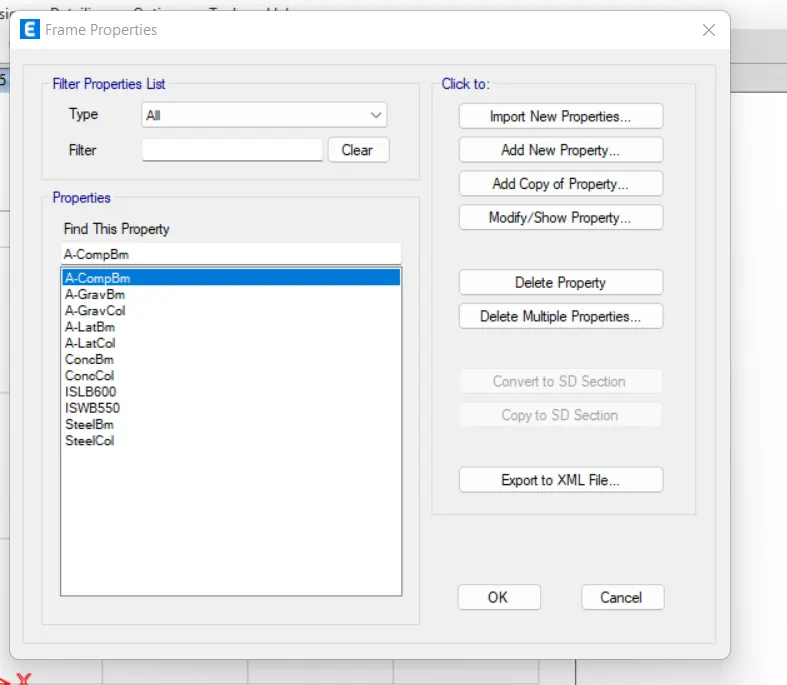

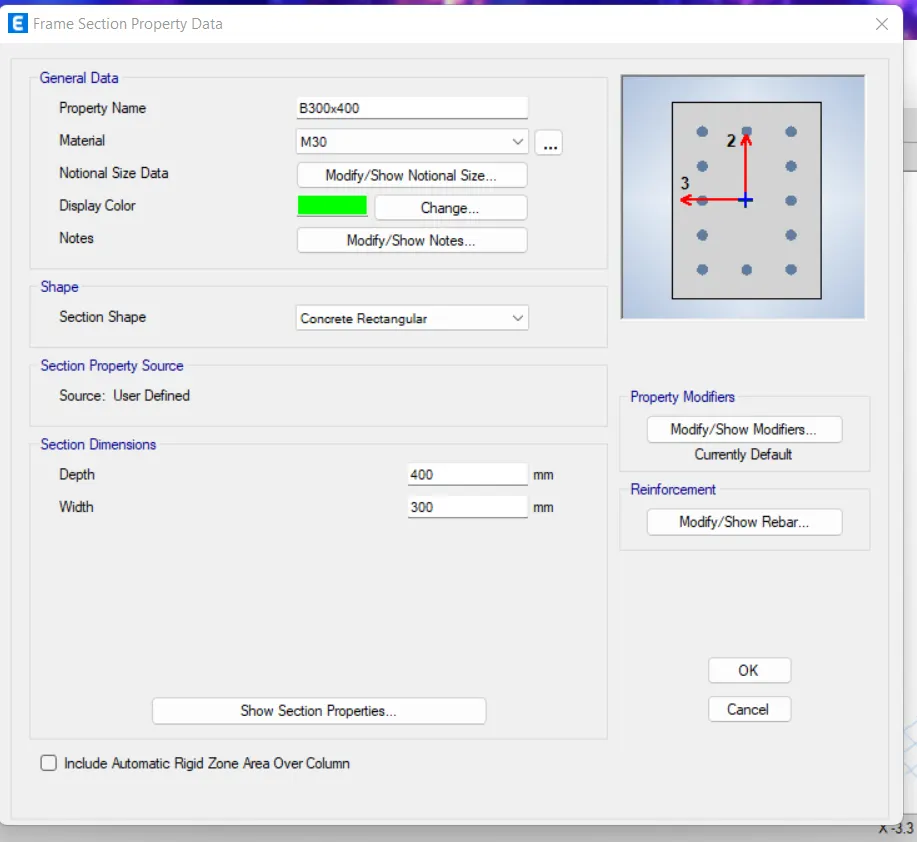

Then under deifne , select section properties and add frame sections for column and beam.

Give dimensions according to the question

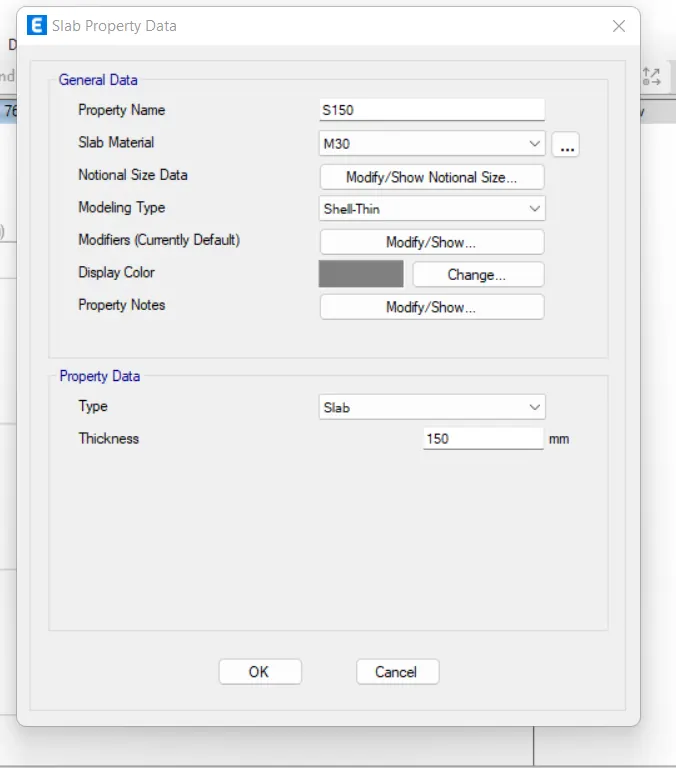

Then define slab sections and Create S150

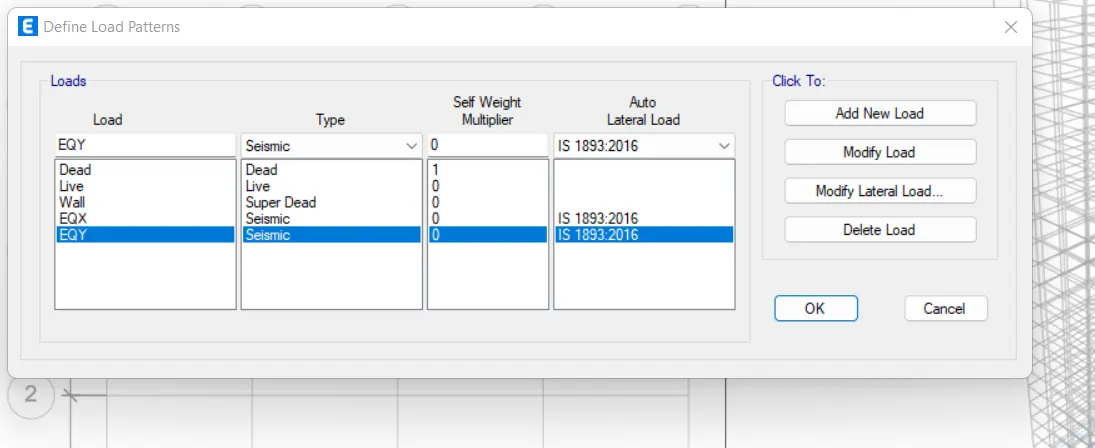

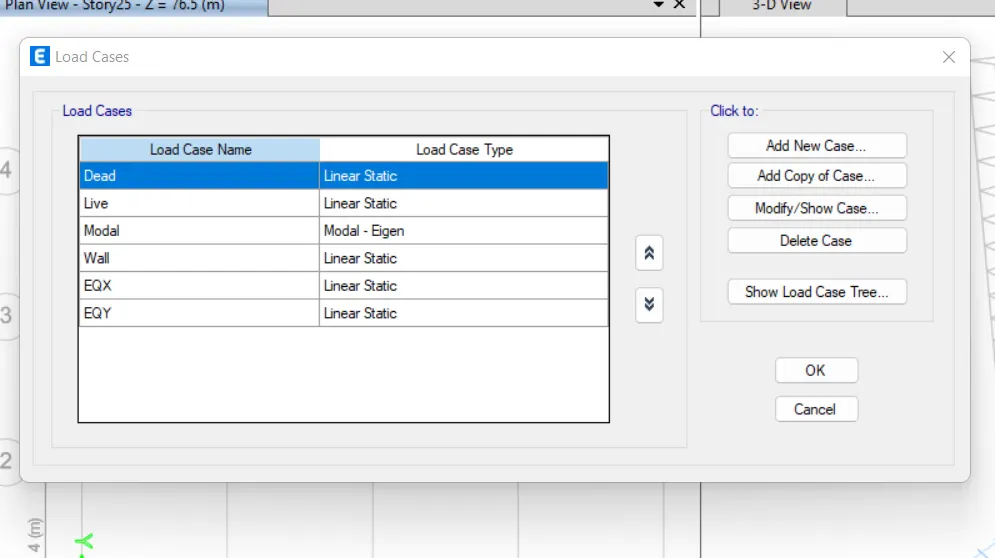

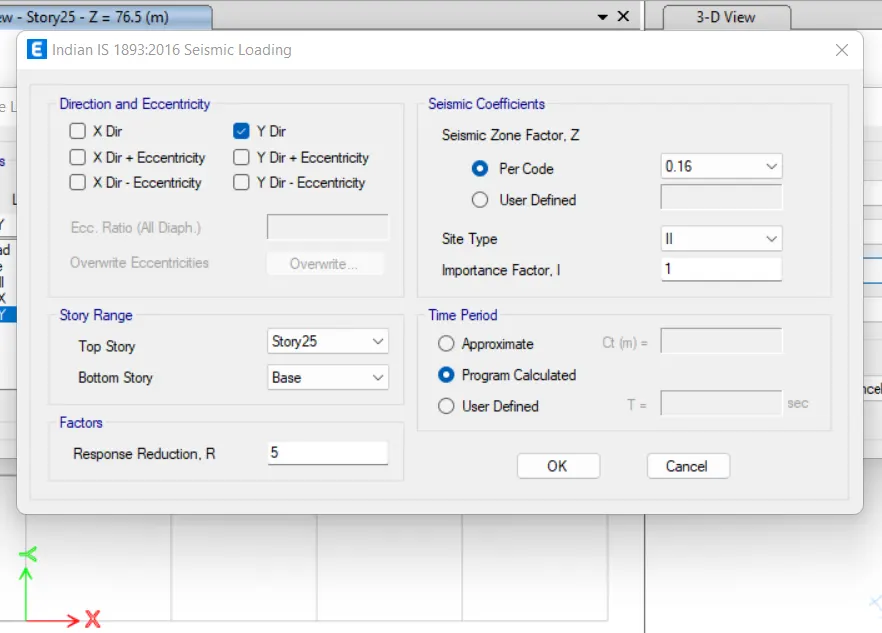

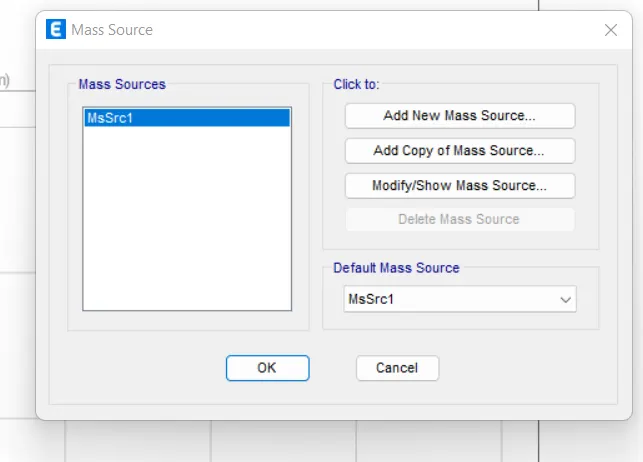

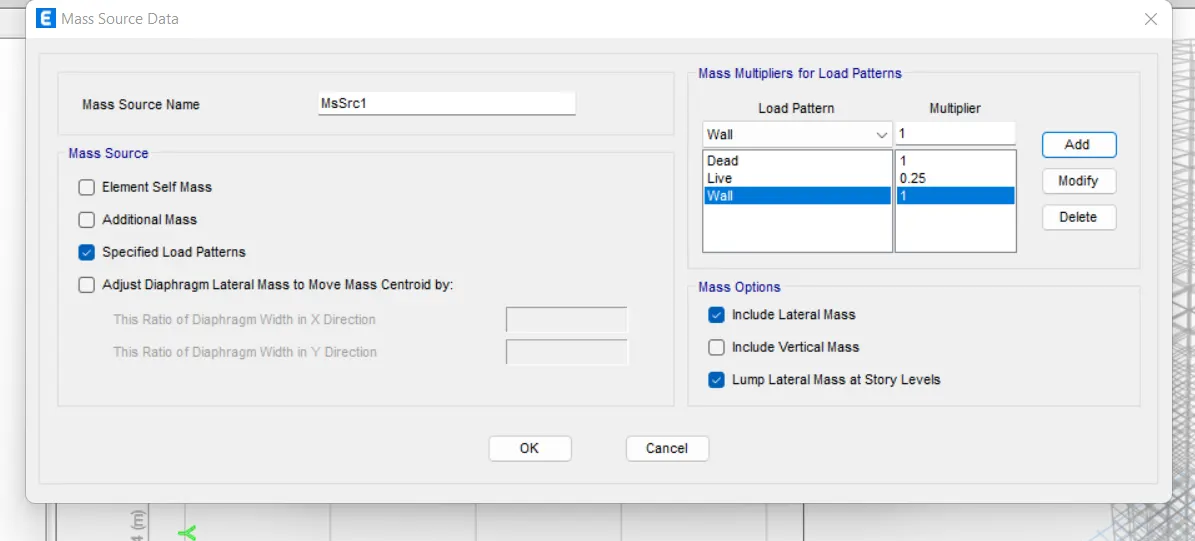

Then define load patterns as given in the question

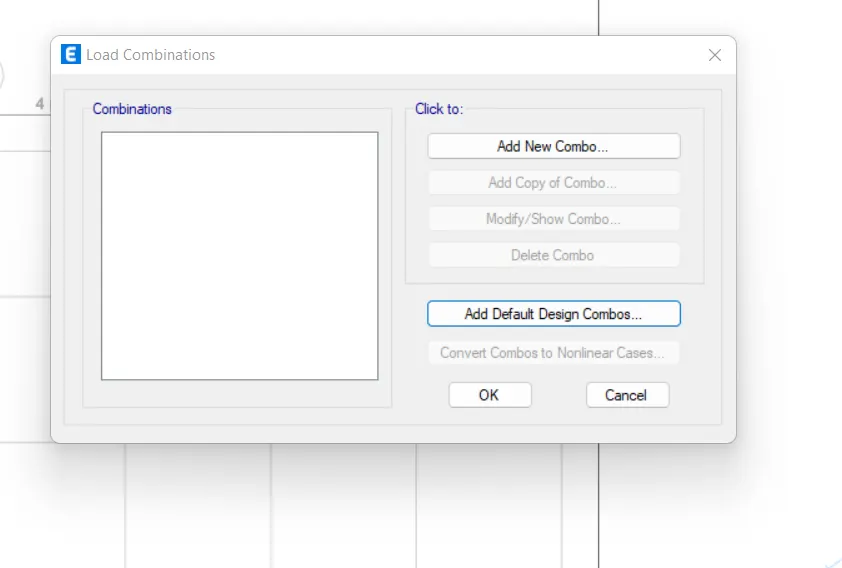

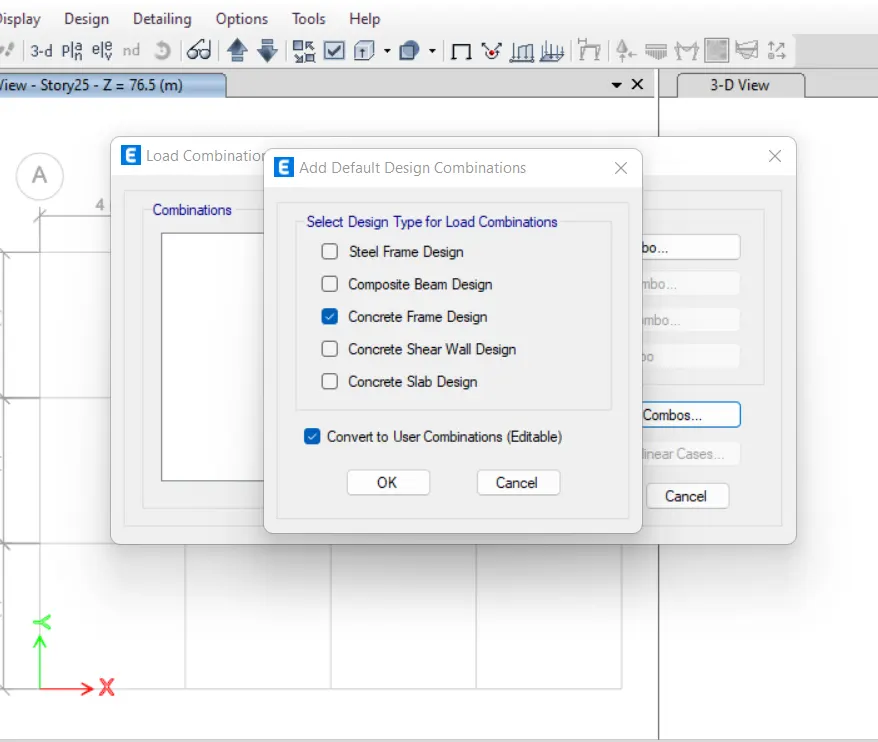

Add default design combo and select concrete frame design

Give convert to user combinations

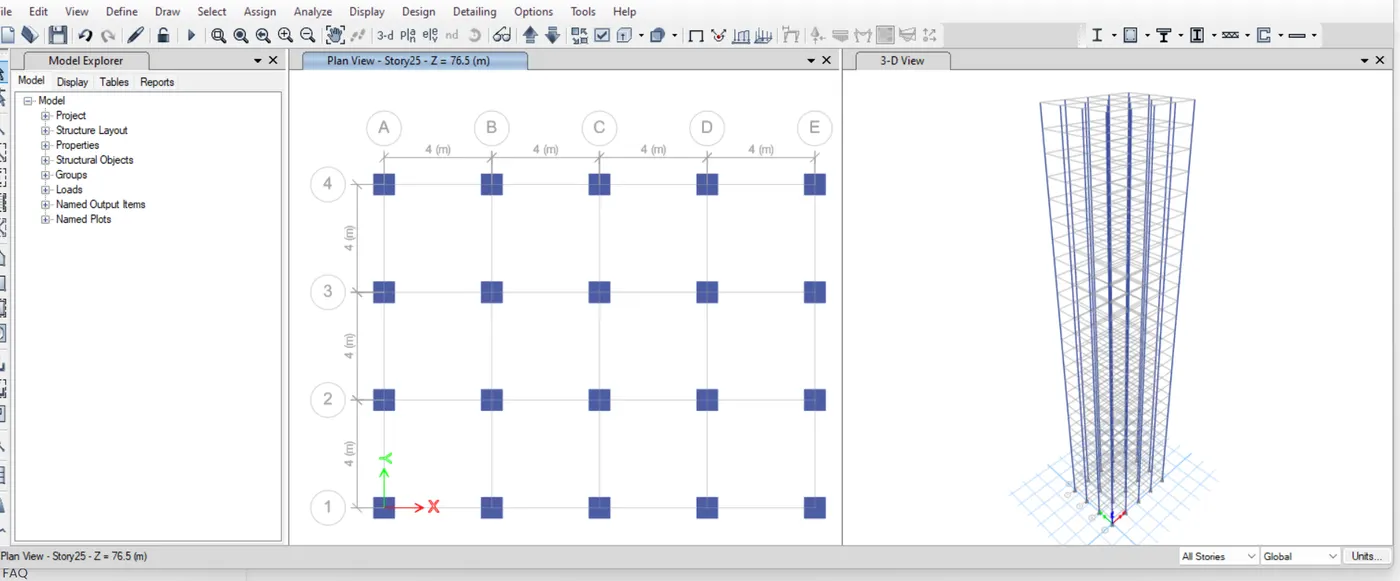

Then quick draw columns

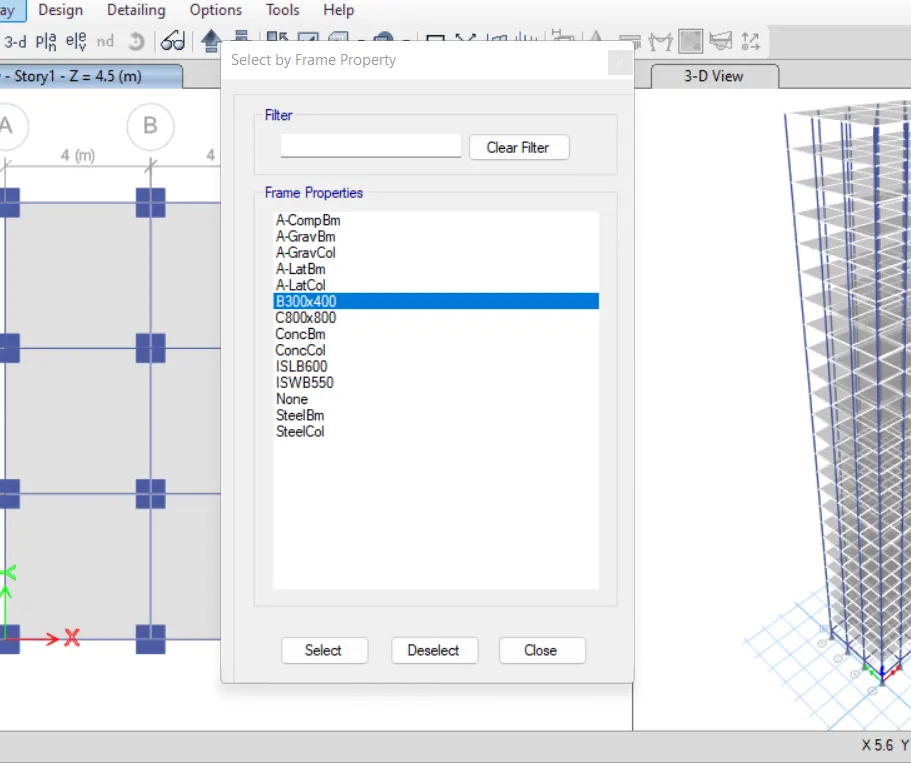

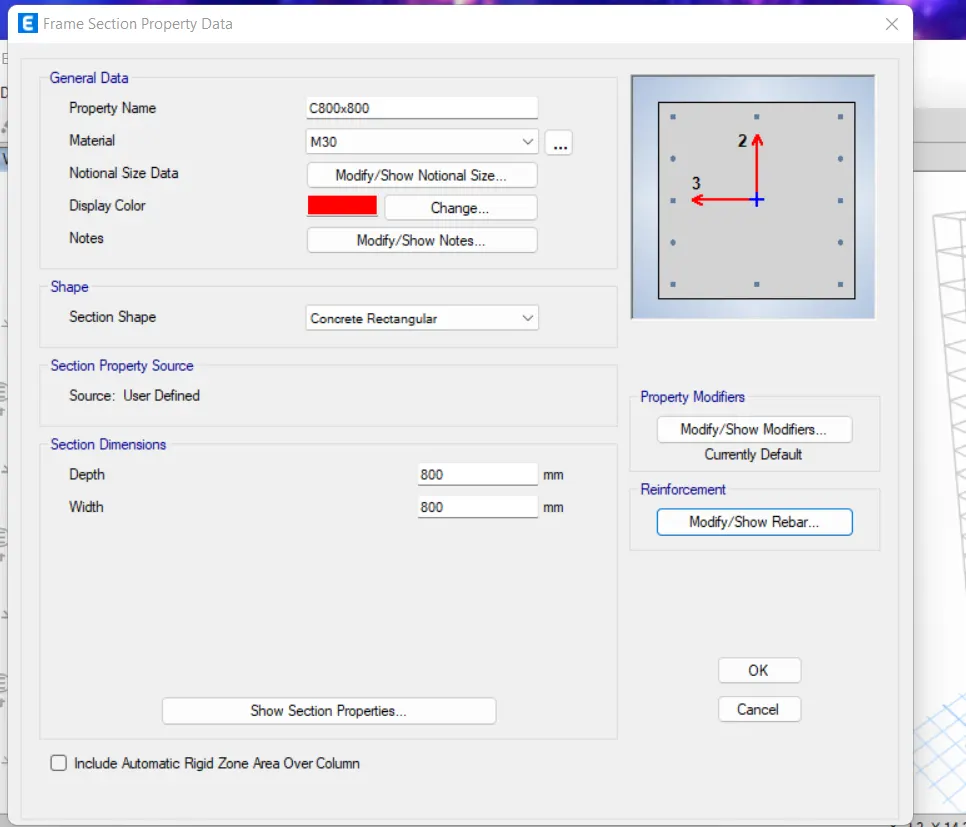

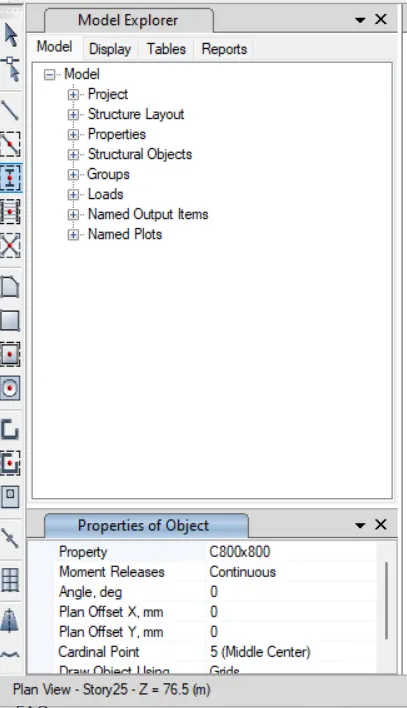

Select property C800x800 as we created and select all stories

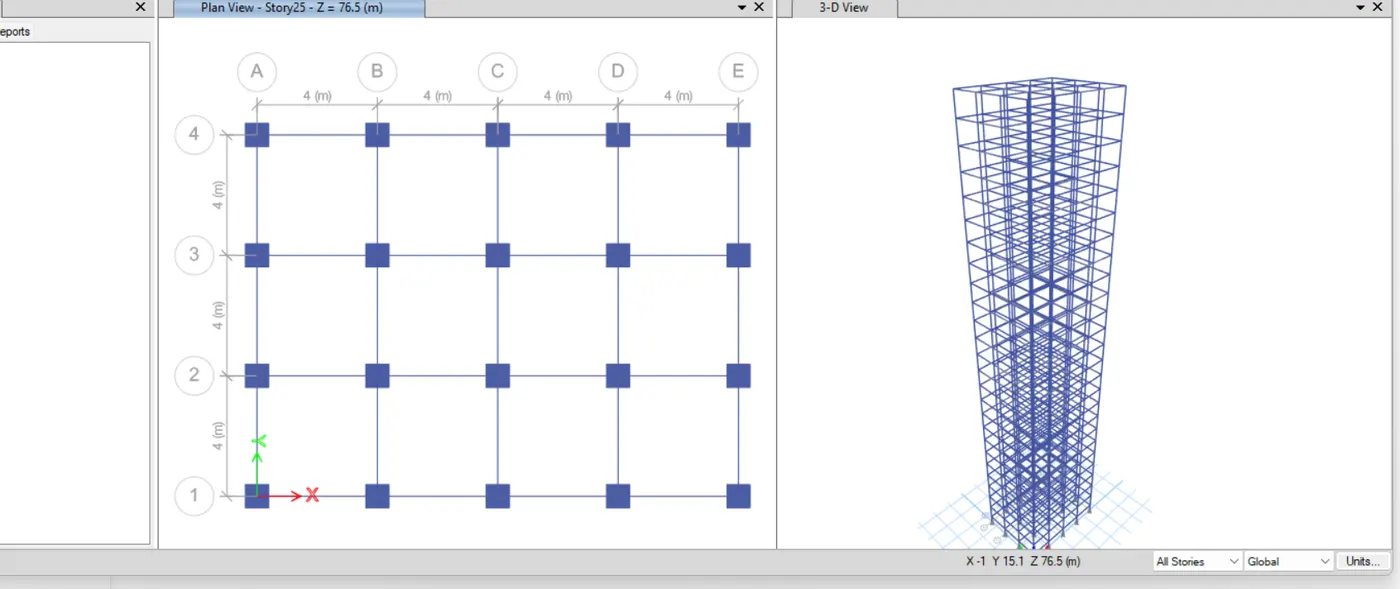

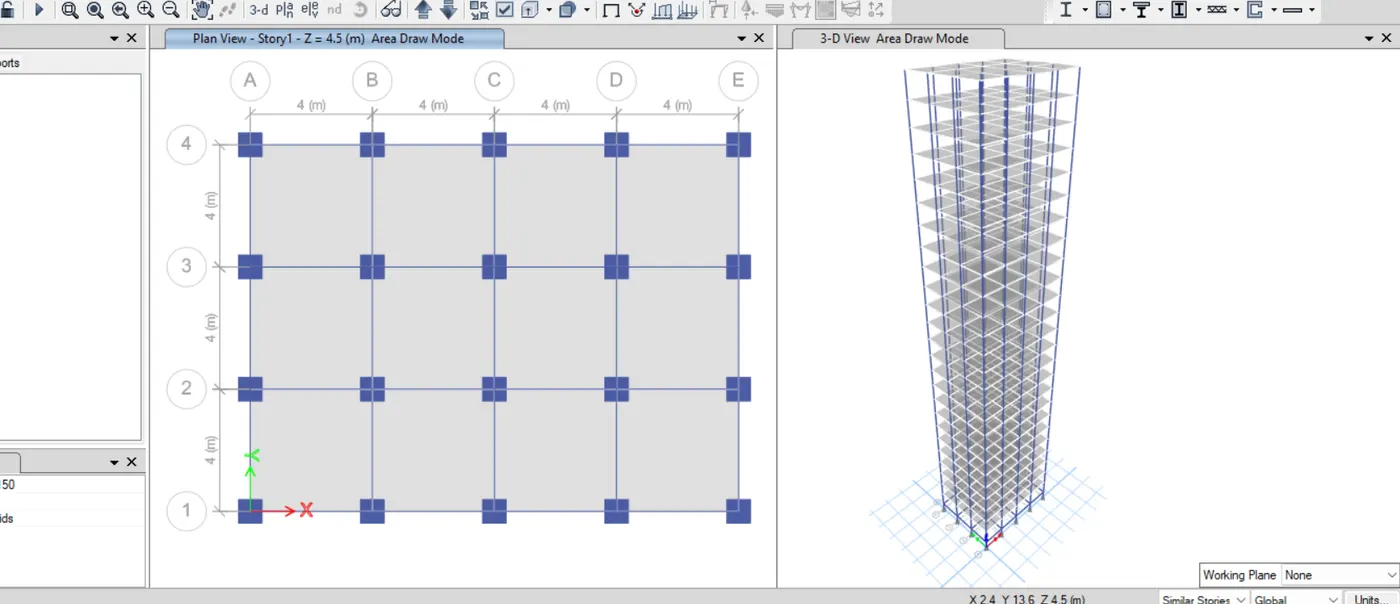

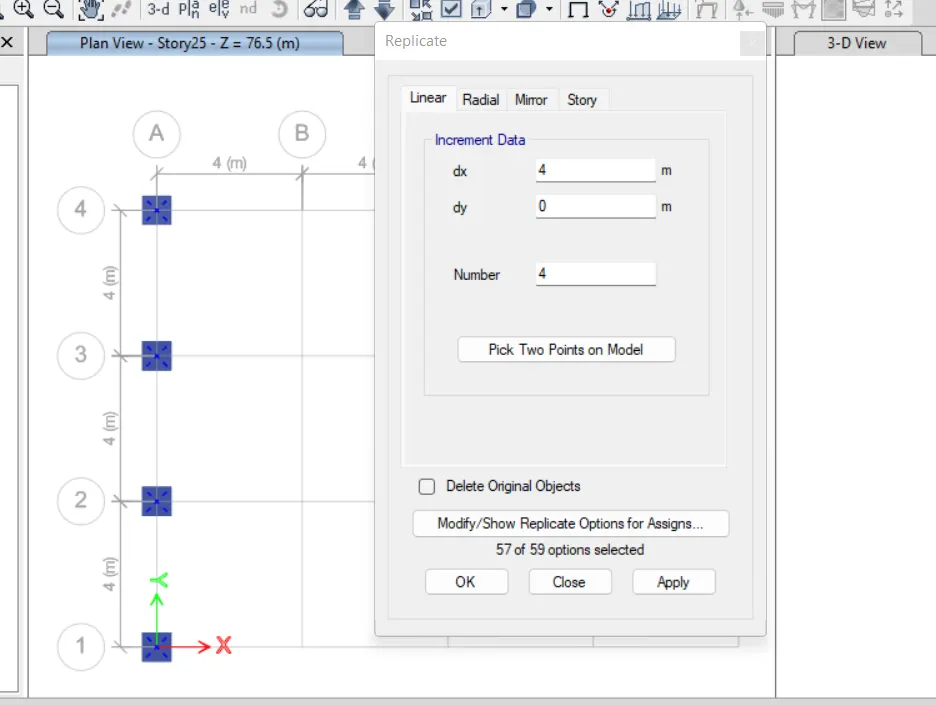

Apply columns on the grid points and replicate in x direction for all grid intersections.

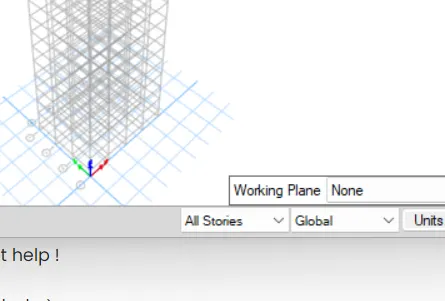

All the columns are added and created

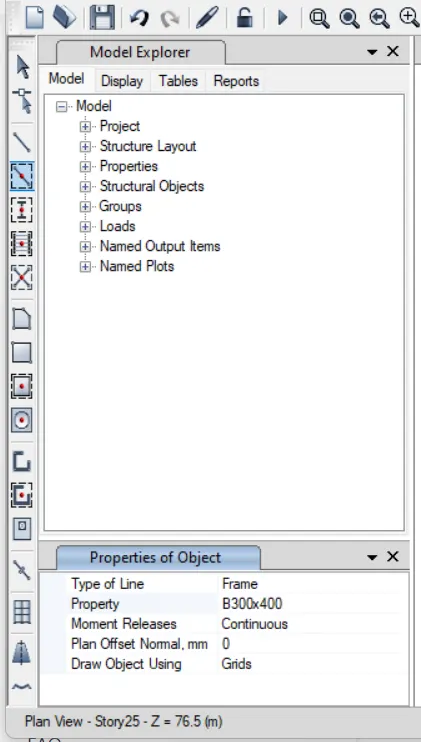

Now create beams similarly

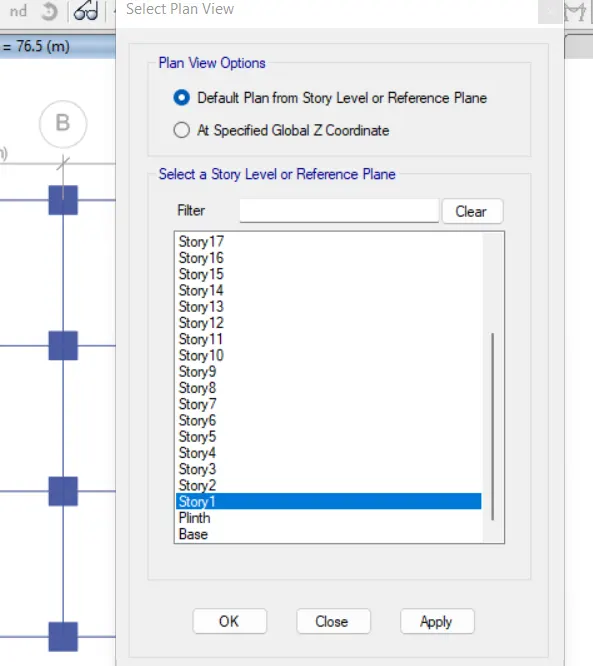

Now create slabs, first select plan view on top and select story1 and give similar stories in right bottom corner

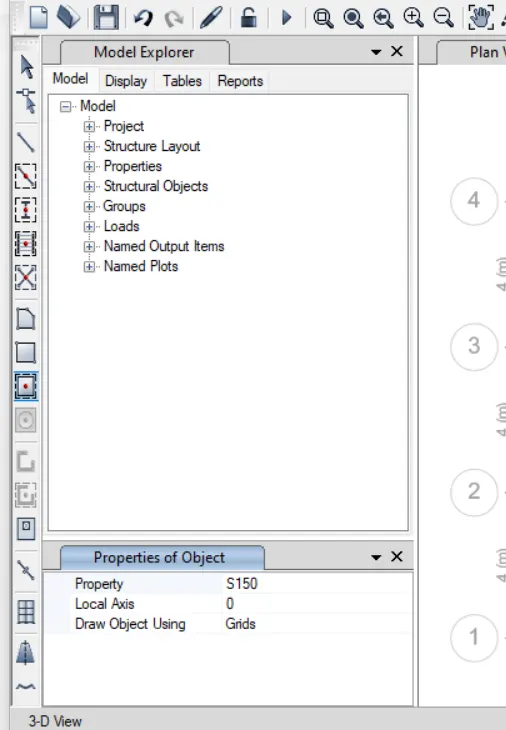

Select property S150 to draw slabs

And click all boundaries

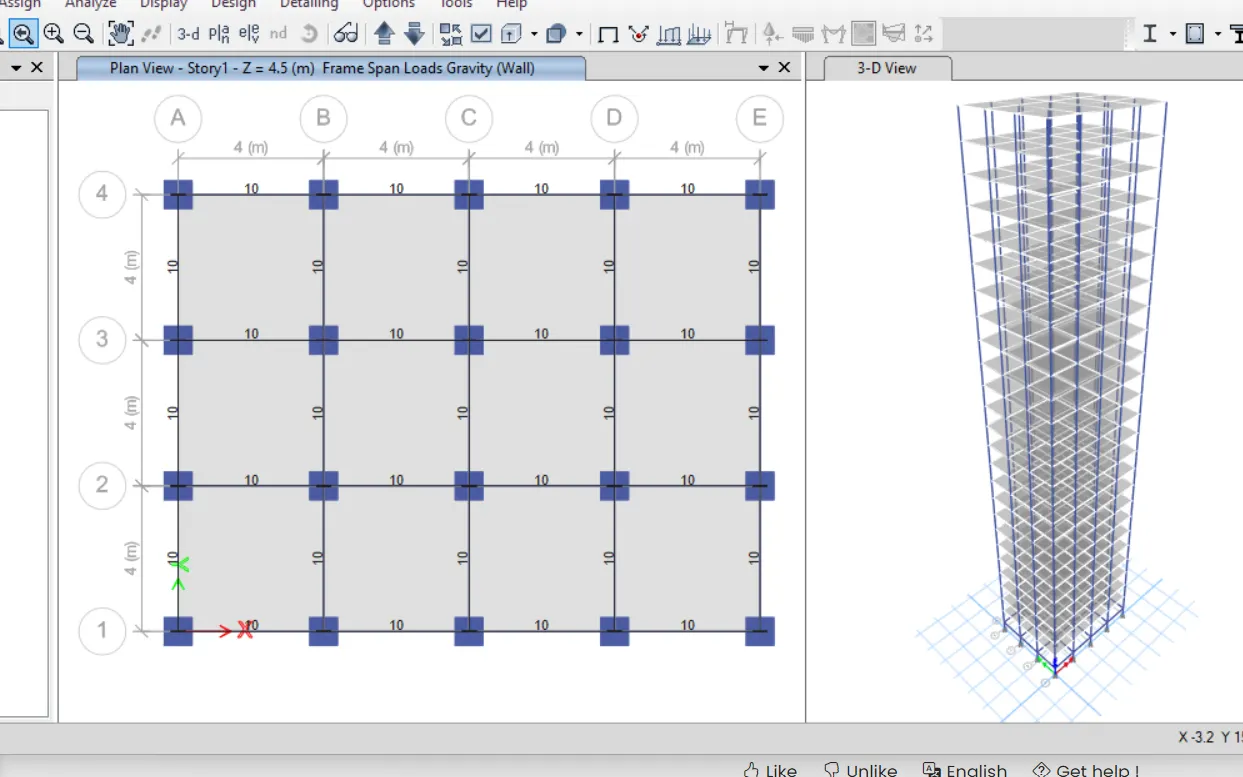

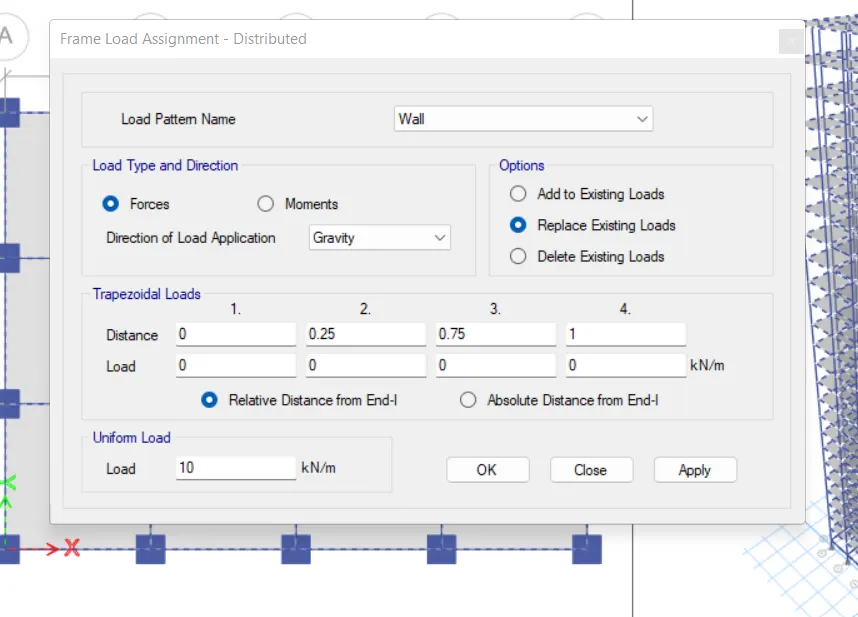

Using select option select all beams and assign load for wall as 10 kN

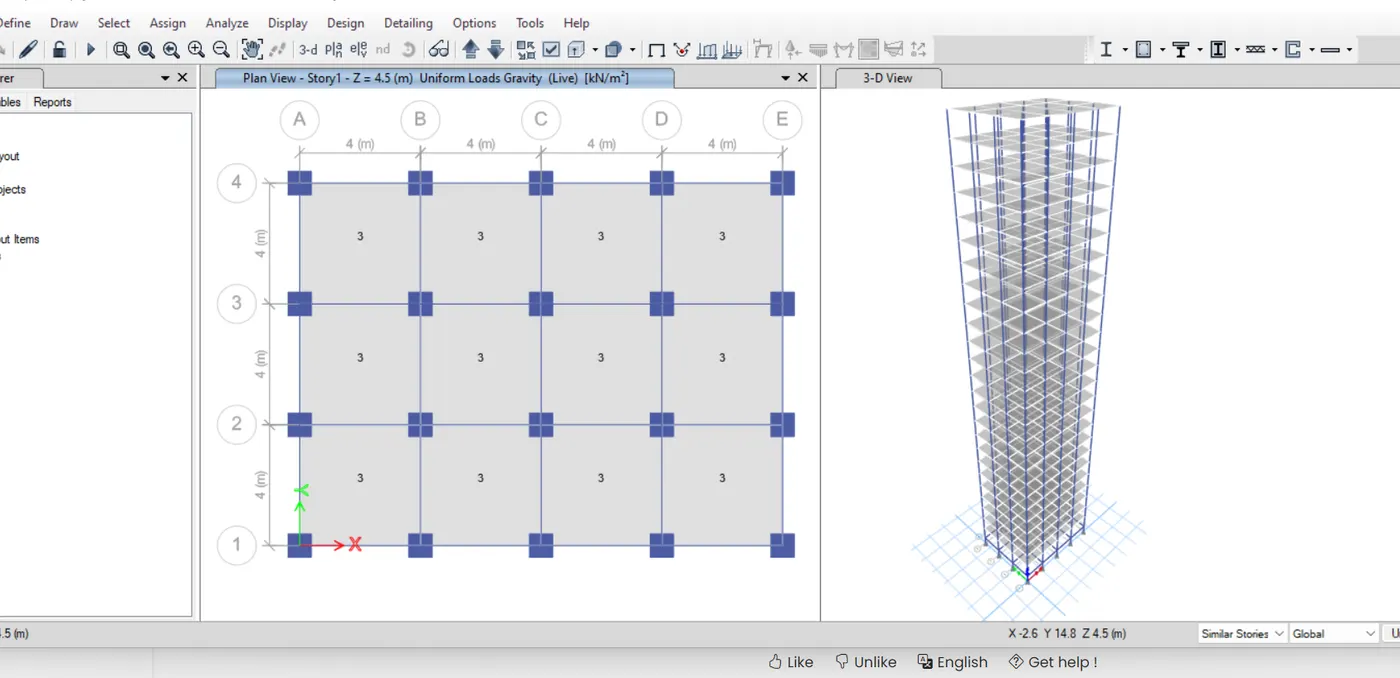

Similarly select slabs and assign live load 3 kN

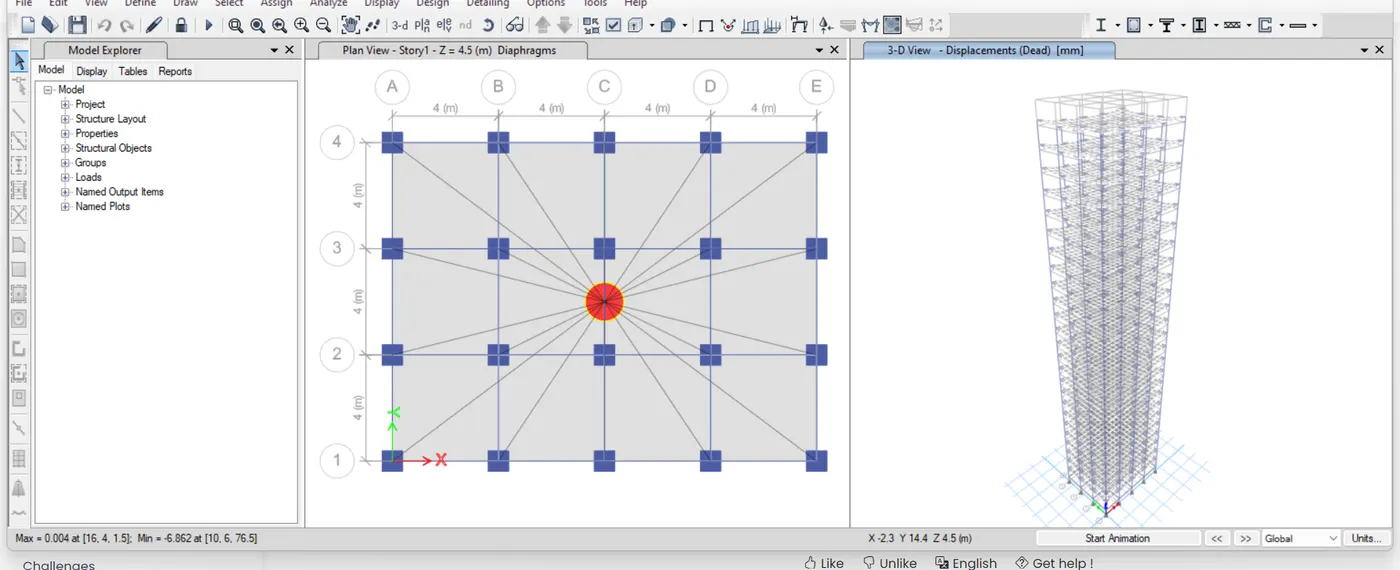

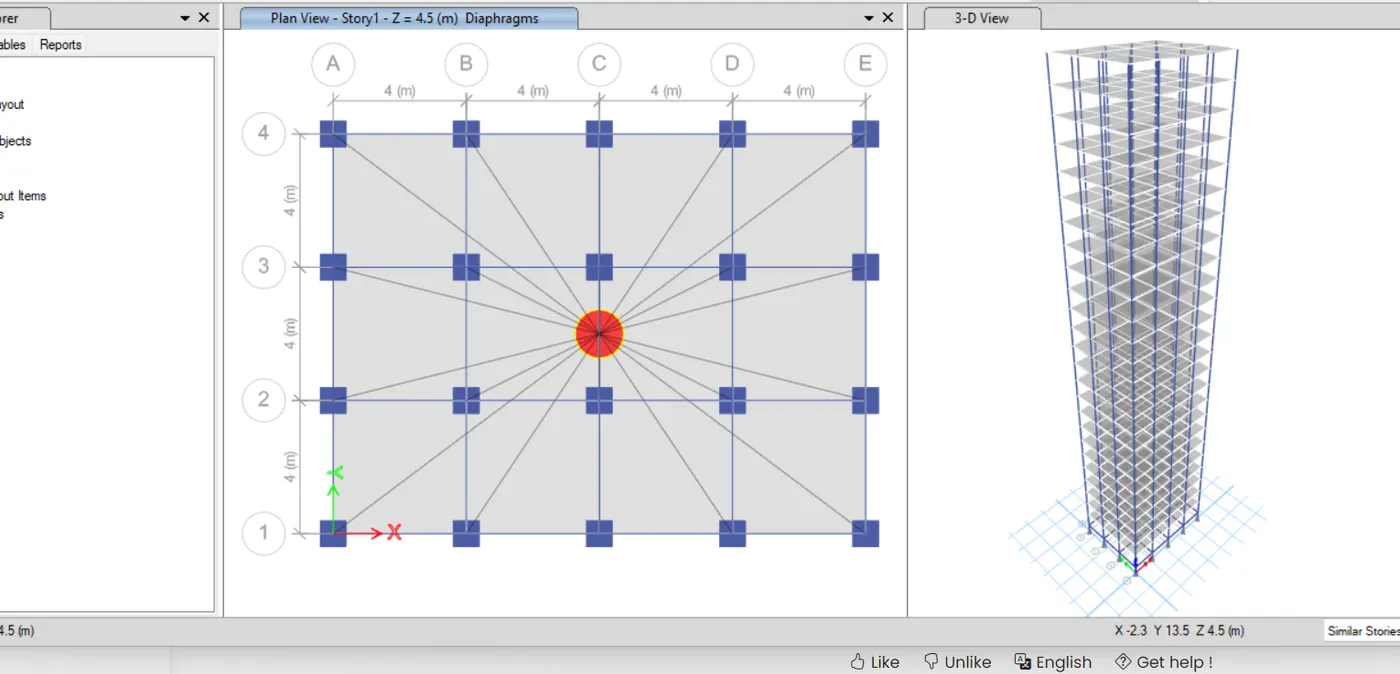

Then assign diaphragm

Then select play and run analysis and save

Result

X-direction - 3.96

Y-direction - 3.76

Yes

Yes

no

Yes
